作者，Evil Genius

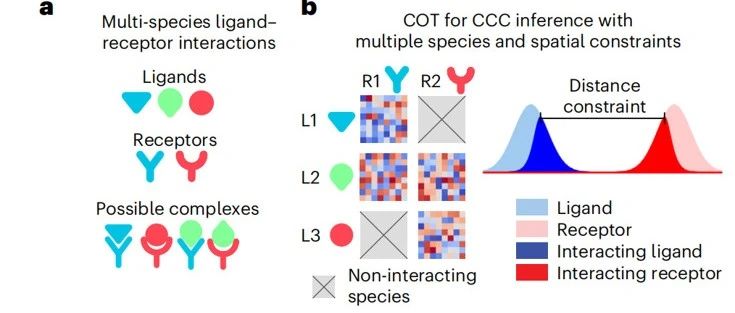

文章Screening cell–cell communication in spatial transcriptomics via collective optimal transport（nature methods）。

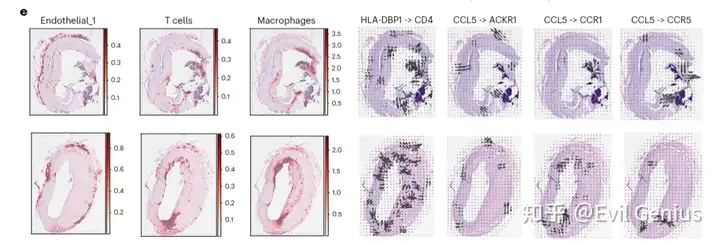

关于空间通讯信号流已经分享了很多了，其实主要就是看通讯的流向。

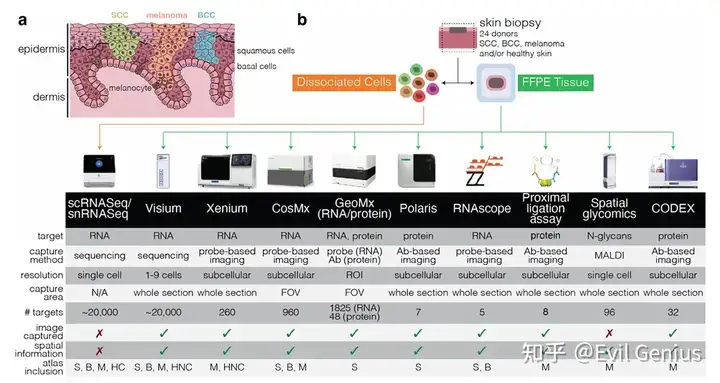

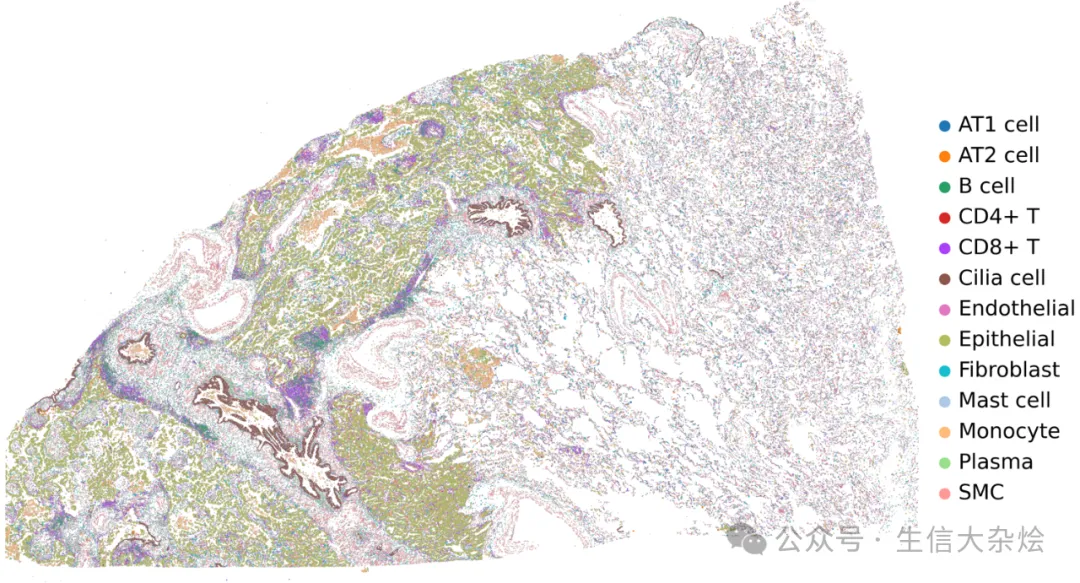

包括高精度平台的数据分析

当然，10X数据最好看

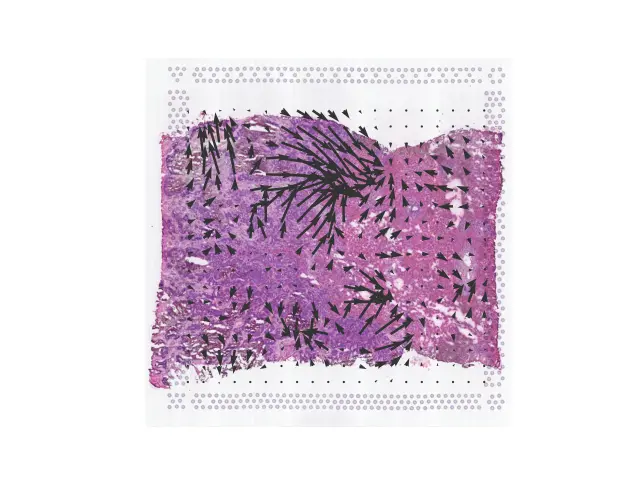

我们需要实现的目标（小批量数据为例）

至于其生物学意义，我们课上在讲解

封装版代码如下，比较简单

#! usr/python
####zhaoyunfei
####20240715
####https://commot.readthedocs.io/en/latest/index.html
####taskset -c 20 python
import argparse

parse=argparse.ArgumentParser(description='COMMOT')
parse.add_argument('--sp_input',help='the input file of matrix for spatial',type=str,required = True)
parse.add_argument('--sample',help='the sample name',type=str,required = True)
parse.add_argument('--species',help='the species',type=str,required = True,choices = ['mouse','human'])
parse.add_argument('--outdir',help='the outdir',type=str,required = True)

argv=parse.parse_args()
sp_input=args.sp_input
sample = args.sample
species = args.species
outdir = args.outdir


import os
import gc
import ot
import pickle
import anndata
import scanpy as sc
import pandas as pd
import numpy as np
from scipy import sparse
from scipy.stats import spearmanr, pearsonr
from scipy.spatial import distance_matrix
import matplotlib.pyplot as plt

import commot as ct


adata = sc.read_visium(sp_input,library_id = sample)

adata.var_names_make_unique()

sc.pp.normalize_total(adata, inplace=True)

sc.pp.log1p(adata)

adata_dis500 = adata.copy()

sc.pp.highly_variable_genes(adata, min_mean=0.0125, max_mean=3, min_disp=0.5)

adata = adata[:, adata.var.highly_variable]

sc.tl.pca(adata, svd_solver='arpack')

sc.pp.neighbors(adata, n_neighbors=10, n_pcs=20)

sc.tl.umap(adata)

sc.tl.leiden(adata, resolution=0.4)

df_cellchat = ct.pp.ligand_receptor_database(species=species, signaling_type='Secreted Signaling', database='CellChat')

df_cellchat_filtered = ct.pp.filter_lr_database(df_cellchat, adata_dis500, min_cell_pct=0.05)
###限速
ct.tl.spatial_communication(adata_dis500,database_name='cellchat', df_ligrec=df_cellchat_filtered, dis_thr=500, heteromeric=True, pathway_sum=True)

for pathway in list(set(df_cellchat_filtered.iloc[:,2])):

    ct.tl.communication_direction(adata_dis500, database_name='cellchat', pathway_name=pathway, k=5)

    ct.pl.plot_cell_communication(adata_dis500, database_name='cellchat', pathway_name=pathway, plot_method='grid', background_legend=True,scale=0.00001, ndsize=8, grid_density=0.4, summary='sender', background='image', clustering='leiden', cmap='Alphabet',normalize_v = True, normalize_v_quantile=0.995)

    plt.savefig(outdir + '/' + sample + 'signal.arrow.grid.spatial.png',bbox_inches = 'tight')

    ct.pl.plot_cell_communication(adata_dis500, database_name='cellchat', pathway_name=pathway, plot_method='stream', background_legend=True,scale=0.00001, ndsize=8, grid_density=0.4, summary='sender', background='image', clustering='leiden', cmap='Alphabet',normalize_v = True, normalize_v_quantile=0.995)

    plt.savefig(outdir + '/' + sample + 'signal.arrow.stream.spatial.png',bbox_inches = 'tight')
