Kafka基础篇学习笔记整理

    KafkaProducer(ProducerConfig config,
                  Serializer<K> keySerializer,
                  Serializer<V> valueSerializer,
                  ProducerMetadata metadata,
                  KafkaClient kafkaClient,
                  ProducerInterceptors<K, V> interceptors,
                  Time time) {
            ...
            //记录累加器
            this.accumulator = new RecordAccumulator(logContext,
                    config.getInt(ProducerConfig.BATCH_SIZE_CONFIG),
                    this.compressionType,
                    lingerMs(config),
                    retryBackoffMs,
                    deliveryTimeoutMs,
                    metrics,
                    PRODUCER_METRIC_GROUP_NAME,
                    time,
                    apiVersions,
                    transactionManager,
                    new BufferPool(this.totalMemorySize, config.getInt(ProducerConfig.BATCH_SIZE_CONFIG), metrics, time, PRODUCER_METRIC_GROUP_NAME));
            ....
            //数据发送线程
            this.sender = newSender(logContext, kafkaClient, this.metadata);
            String ioThreadName = NETWORK_THREAD_PREFIX + " | " + clientId;
            this.ioThread = new KafkaThread(ioThreadName, this.sender, true);
            this.ioThread.start();
            ....
    }

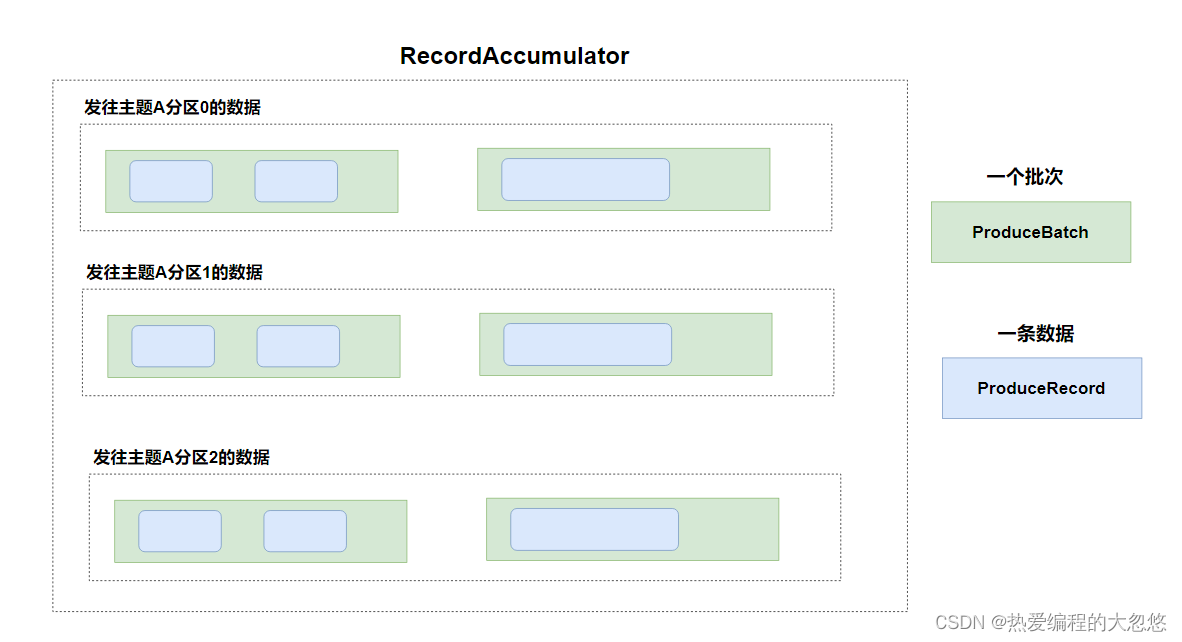

public class RecordAccumulator {
    ...
    private final ConcurrentMap<TopicPartition, Deque<ProducerBatch>> batches;

    public RecordAppendResult append(TopicPartition tp,
                                     long timestamp,
                                     byte[] key,
                                     byte[] value,
                                     Header[] headers,
                                     Callback callback,
                                     long maxTimeToBlock,
                                     boolean abortOnNewBatch,
                                     long nowMs) throws InterruptedException {
        ...
        try {

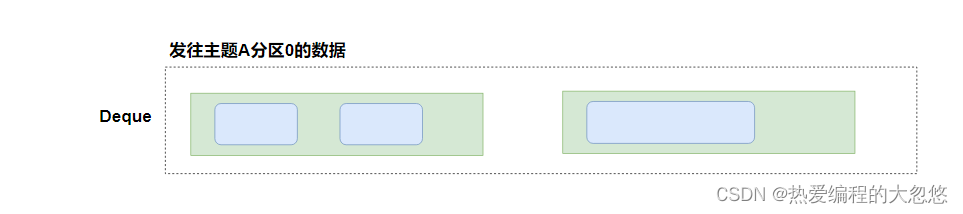

            //获取已有的缓冲区,或者创建新的缓冲区(Deque)
            Deque<ProducerBatch> dq = getOrCreateDeque(tp);
            //锁住该缓冲区,避免用户异步编程操作导致数据发送数据顺序错乱的问题
            synchronized (dq) {
                if (closed)
                    throw new KafkaException("Producer closed while send in progress");
                  //tryAppend方法将一条消息数据的时间戳、key、value、
                 //header等信息追加到缓冲区中（Deque<ProducerBatch> ）
                RecordAppendResult appendResult = tryAppend(timestamp, key, value, headers, callback, dq, nowMs);
                if (appendResult != null)
                    return appendResult;
            }
            ...
            synchronized (dq) {
                ...
                //再次尝试,查看是否能将消息成功追加到Deque的某个批次中
                RecordAppendResult appendResult = tryAppend(timestamp, key, value, headers, callback, dq, nowMs);
                if (appendResult != null) {
                    return appendResult;
                }
                //如果追加失败,那么创建一个新的批次,加入Deque尾部
                ...
                ProducerBatch batch = new ProducerBatch(tp, recordsBuilder, nowMs);
                ...
                dq.addLast(batch);
                ...
                return new RecordAppendResult(future, dq.size() > 1 || batch.isFull(), true, false);
            }
    }

public ProducerRecord(String topic, Integer partition, Long timestamp, K key, V value, Iterable<Header> headers){
         ...
        //消息属于哪个主题
        this.topic = topic;
        //消息属于哪个分区
        this.partition = partition;
        //消息的key
        this.key = key;
        //消息的value
        this.value = value;
        //消息的时间戳
        this.timestamp = timestamp;
        //消息的消息头
        this.headers = new RecordHeaders(headers);
    }

    @Override
    public Future<RecordMetadata> send(ProducerRecord<K, V> record, Callback callback) {
        //调用拦截器对record进行预处理,该方法不会抛出异常
        ProducerRecord<K, V> interceptedRecord = this.interceptors.onSend(record);
        //发送消息
        return doSend(interceptedRecord, callback);
    }

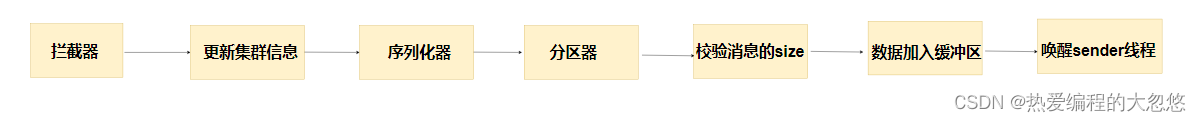

private Future<RecordMetadata> doSend(ProducerRecord<K, V> record, Callback callback) {
        TopicPartition tp = null;
        try {
            //1.检测生产者是否已经关闭
            throwIfProducerClosed();
            //2、检查正要将数据发往的主题在kafka集群中的包含哪些分区
            //获取集群中一些元数据信息
            long nowMs = time.milliseconds();
            ClusterAndWaitTime clusterAndWaitTime;
            try {
                clusterAndWaitTime = waitOnMetadata(record.topic(), record.partition(), nowMs, maxBlockTimeMs);
            } catch (KafkaException e) {
                ...
            }
            nowMs += clusterAndWaitTime.waitedOnMetadataMs;
            long remainingWaitMs = Math.max(0, maxBlockTimeMs - clusterAndWaitTime.waitedOnMetadataMs);
            Cluster cluster = clusterAndWaitTime.cluster;
            byte[] serializedKey;
            try {
                //3.对消息的key进行序列化
                serializedKey = keySerializer.serialize(record.topic(), record.headers(), record.key());
            } catch (ClassCastException cce) {
                ...
            }
            byte[] serializedValue;
            try {
                //4.对消息的value进行序列化
                serializedValue = valueSerializer.serialize(record.topic(), record.headers(), record.value());
            } catch (ClassCastException cce) {
                ...
            }
            //5.分区器进行计算,决定此条消息发送到哪个分区
            int partition = partition(record, serializedKey, serializedValue, cluster);
            tp = new TopicPartition(record.topic(), partition);
            ...
            //6.预估消息发送消息的大小,内容包括key,value以及消息头
            int serializedSize = AbstractRecords.estimateSizeInBytesUpperBound(apiVersions.maxUsableProduceMagic(),
                    compressionType, serializedKey, serializedValue, headers);
            //7.检查发送消息的大小是否超过阈值
            ensureValidRecordSize(serializedSize);
            ...
            // 拦截器回调函数
            Callback interceptCallback = new InterceptorCallback<>(callback, this.interceptors, tp);
            //8.将消息添加到消息累加器(缓冲区)
            RecordAccumulator.RecordAppendResult result = accumulator.append(tp, timestamp, serializedKey,
                    serializedValue, headers, interceptCallback, remainingWaitMs, true, nowMs);
            ...
            //9.如果添加进缓冲队列已经满了，或者是首次创建的,那么幻想sender线程进行数据发送
            if (result.batchIsFull || result.newBatchCreated) {
                log.trace("Waking up the sender since topic {} partition {} is either full or getting a new batch", record.topic(), partition);
                this.sender.wakeup();
            }
            //10.返回future对象
            return result.future;
        }
        ...
    }

#新版本中
acks=all
#在一些比较旧的apache kafka老版本中，参数名称如下
request.required.acks=all

retries=Integer.MAX_VALUE
retry.backoff.ms=100
delivery.timeout.ms=120000

max.in.flight.requests.per.connection=1

public interface ProducerInterceptor<K, V> extends Configurable {
    /**
    * 该方法封装于KafkaProducer.send()方法中，运行在用户主线程
    * Producer确保在消息序列化前调用该方法，可以对消息进行任意操作，但慎重修改消息的topic、key和partition,会影响分区以及日志压缩
    */
    public ProducerRecord<K, V> onSend(ProducerRecord<K, V> record);

    /**
    * 该方法在消息发送结果应答或者发送失败时调用，并且通常都是在callback()触发之前执行，运行在IO线程中
。实现该方法的代码逻辑尽量简单，否则影响消息发送效率
    */
    public void onAcknowledgement(RecordMetadata metadata, Exception exception);

    /**
    * 生产者的producer.close触发
    */
    public void close();
}

public class RequestStatCalInterceptor implements ProducerInterceptor<String,String> {
    private static final String MSG_PREFIX="dhy:";
    private final AtomicInteger successCnt = new AtomicInteger(0);
    private final AtomicInteger errorCnt = new AtomicInteger(0);


    @Override
    public ProducerRecord<String,String> onSend(ProducerRecord<String,String> msg) {
        return new ProducerRecord<>(msg.topic(),msg.partition(),msg.timestamp(),msg.key(),MSG_PREFIX+msg.value());
    }

    @Override
    public void onAcknowledgement(RecordMetadata metadata, Exception exception) {
        if (metadata == null) {
            errorCnt.getAndIncrement();
        }else {
            successCnt.getAndIncrement();
        }
    }

    @Override
    public void close() {
        double successRate = (double) successCnt.get() / (successCnt.get() + errorCnt.get());

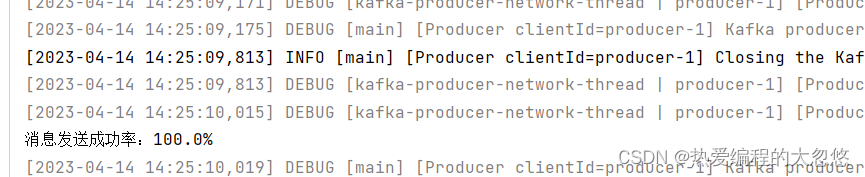

        System.out.println("消息发送成功率：" + successRate*100 +"%");
    }

    @Override
    public void configure(Map<String, ?> configs) {

    }
}

//拦截器的配置
props.put(ProducerConfig.INTERCEPTOR_CLASSES_CONFIG, Collections.singletonList("interceptor.RequestStatCalInterceptor"));

props.put(ProducerConfig.INTERCEPTOR_CLASSES_CONFIG, RequestStatCalInterceptor.class.getName());

/**
 * 将对象转成二进制数组的接口序列化实现类
 */
public interface Serializer<T> extends Closeable {

    /**
     * 参数configs会传入生产者配置参数，
     * 序列化器实现类可以根据生产者参数配置影响序列化逻辑
     * isKey布尔型，表示当前序列化的对象是不是消息的key，如果不是key就是value
     */
    default void configure(Map<String, ?> configs, boolean isKey) {
        // intentionally left blank
    }

    /**
     * 重要方法将对象data转换为二进制数组
     */
    byte[] serialize(String topic, T data);


    default byte[] serialize(String topic, Headers headers, T data) {
        return serialize(topic, data);
    }

    /**
     * 关闭序列化器
     * 此方法的实现必须是幂等的，因为可能被调多次
     */
    @Override
    default void close() {
        // intentionally left blank
    }
}

<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-databind</artifactId>
    <version>2.9.7</version>
</dependency>

public class Peo {
   private String name;
   private Integer age;
   ...
}

public class JacksonSerializer implements Serializer<Peo> {
    private static final ObjectMapper objectMapper = new ObjectMapper();

    @Override
    public byte[] serialize(String topic, Peo data) {
        byte[] result=null;
        try {
            result=objectMapper.writeValueAsBytes(data);
        } catch (JsonProcessingException e) {
            e.printStackTrace();
        }
        return result;
    }
}

        //序列化器的配置
        props.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, JacksonSerializer.class.getName());

    @Test
    void testJacksonSerializer() throws ExecutionException, InterruptedException {
        Peo peo = new Peo();
        peo.setName("dhy");
        peo.setAge(18);
        KafkaProducer<String, Peo> producer = new KafkaProducer<>(props);
        RecordMetadata metadata = producer.send(new ProducerRecord<>(TEST_TOPIC, peo)).get();
        System.out.println("消息偏移量为:"+metadata.offset());
    }

/**
 * 分区器接口
 */
public interface Partitioner extends Configurable, Closeable {

    /**
     * 根据消息record信息对其进行重新分区
     *
     * @param topic 主题名称
     * @param key 用于分区的key对象
     * @param keyBytes 用于分区的key的二进制数组
     * @param value 生产者消息对象
     * @param valueBytes 生产者消息对象的二进制数组
     * @param cluster 当前kafka集群的metadata信息
     */
    public int partition(String topic, Object key, byte[] keyBytes, Object value, byte[] valueBytes, Cluster cluster);

    /**
     * 当分区器执行完成时被调用
     */
    public void close();


    default public void onNewBatch(String topic, Cluster cluster, int prevPartition) {}
}

/**
 * 通过对消息value进行hash,然后取余于分区数计算出消息要被路由到的分区
 */
public class ValuePartitioner implements Partitioner {
    @Override
    public int partition(String topic, Object key, byte[] keyBytes, Object value, byte[] valueBytes, Cluster cluster) {
        return partition(valueBytes, cluster.partitionsForTopic(topic).size());
    }

    private int partition(byte[] valueBytes, int numPartitions) {
        return Utils.toPositive(Utils.murmur2(valueBytes)) % numPartitions;
    }

    @Override
    public void close() {
    }

    @Override
    public void configure(Map<String, ?> configs) {
    }
}

props.put(ProducerConfig.PARTITIONER_CLASS_CONFIG, ValuePartitioner.class.getName());

//初始化事务
void initTransactions();
//开启事务
void beginTransaction() throws ProducerFencedException;
//为消费者提供在事务内的位移提交的操作
void sendOffsetsToTransaction(Map<TopicPartition, OffsetAndMetadata> offsets, String consumerGroupId)throws ProducerFencedException;
//提交事务
void commitTransaction() throws ProducerFencedException;
//中止事务,类比事务的回滚
void abortTransaction() throws ProducerFencedException;

/**
 * 生产者使用demo
 */
public class KafkaProducerTest {
    private static final String TEST_TOPIC = "test1";
    private Properties props;

    @BeforeEach
    public void prepareTest() {
        props = new Properties();
        //kafka broker列表
        props.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");
        props.put(ProducerConfig.MAX_BLOCK_MS_CONFIG, 5000);
        //可靠性确认应答参数
        props.put(ProducerConfig.ACKS_CONFIG, "1");
        //发送失败,重新尝试的次数
        props.put(ProducerConfig.RETRIES_CONFIG, "3");
        //生产者数据key序列化方式
        props.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, StringSerializer.class.getName());
        //序列化器的配置
        props.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, StringSerializer.class.getName());
        //生产者端开启幂等
        props.put(ProducerConfig.ENABLE_IDEMPOTENCE_CONFIG, Boolean.TRUE);
        //生产者端开启事务
        props.put(ProducerConfig.TRANSACTIONAL_ID_CONFIG, "test-transaction");
    }


    @Test
    void testTransaction() throws ExecutionException, InterruptedException {
        KafkaProducer<String, String> producer = new KafkaProducer<>(props);
        //0.初始化事务管理器
        producer.initTransactions();
        //1.开启事务
        producer.beginTransaction();
        try {
            //2.发送消息
            producer.send(new ProducerRecord<>(TEST_TOPIC, Integer.toString(1), "test1"));
            producer.send(new ProducerRecord<>(TEST_TOPIC, Integer.toString(2), "test2"));
            producer.send(new ProducerRecord<>(TEST_TOPIC, Integer.toString(3), "test3"));
            //3.提交事务
            producer.commitTransaction();
        } catch (ProducerFencedException e) {
            e.printStackTrace();
            //4.1 事务回滚
            producer.abortTransaction();
        } catch (KafkaException e) {
            e.printStackTrace();
            //4.2 事务回滚
            producer.abortTransaction();
        } finally {
            producer.close();
        }
    }
}

session.timout.ms=10000
heartbeat.interval.ms=2000
max.poll.interval.ms=配置该值大于消费者批处理消息最长耗时（默认5分钟）
max.poll.records=500（默认值是500）

public class ConsumerBalance {
    private static KafkaConsumer<String, String> consumer;

    /**
     * 存储一个主题多个分区的当前消费偏移量
     */
    private static Map<TopicPartition, OffsetAndMetadata> currentOffsets = new HashMap<>();

    /**
     *  初始化消费者
     */
    static {
        Properties configs = initConfig();
        consumer = new KafkaConsumer<>(configs);
        //主题订阅
        consumer.subscribe(Collections.singletonList("test1"), new RebalanceListener(consumer));
    }

    /**
     * 初始化配置
     */
    private static Properties initConfig() {
        Properties props = new Properties();
        props.put("bootstrap.servers", "localhost:9092");
        props.put("group.id", "dhy-group");
        props.put("enable.auto.commit", true);
        props.put("auto.commit.interval.ms", 1000);
        props.put("session.timeout.ms", 30000);
        props.put("max.poll.records", 1000);
        props.put("key.deserializer", StringDeserializer.class.getName());
        props.put("value.deserializer", StringDeserializer.class.getName());
        return props;
    }

    public static void main(String[] args) {

        while (true) {
            // 这里的参数指的是轮询的时间间隔，也就是多长时间去拉一次数据
            ConsumerRecords<String, String> records = consumer.poll(Duration.ofMillis(3000));
            records.forEach((ConsumerRecord<String, String> record) -> {
                System.out.println("topic:" + record.topic()
                        + ",partition:" + record.partition()
                        + ",offset:" + record.offset()
                        + ",key:" + record.key()
                        + ",value" + record.value());
                // 每次消费记录消费偏移量，用于一旦发生rebalance时提交
                currentOffsets.put(new TopicPartition(record.topic(), record.partition()), new OffsetAndMetadata(record.offset() + 1, "no matadata"));
            });
            consumer.commitAsync();
        }
    }

    static class RebalanceListener implements ConsumerRebalanceListener {
        KafkaConsumer<String, String> consumer;

        public RebalanceListener(KafkaConsumer<String,String> consumer) {
            this.consumer = consumer;
        }

        /**
         * 在rebalance发生之前和消费者停止读取消息之后被调用
         */
        @Override
        public void onPartitionsRevoked(Collection<TopicPartition> partitions) {
            consumer.commitSync(currentOffsets);
        }

        /**
         * 在rebalance完成之后(重新分配了消费者对应的分区)，消费者开始读取消息之前被调用。
         */
        @Override
        public void onPartitionsAssigned(Collection<TopicPartition> partitions) {
            consumer.commitSync(currentOffsets);
        }
    }
}

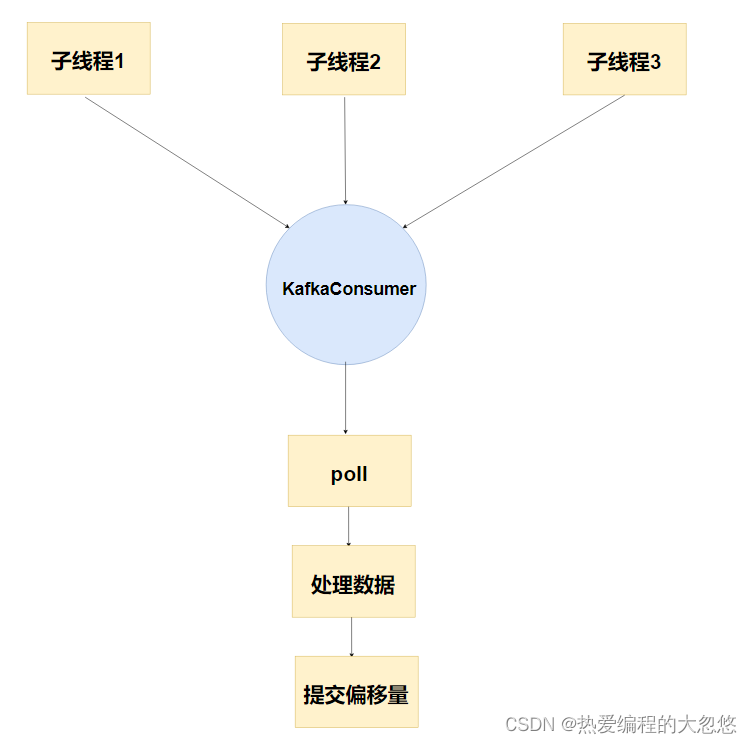

class ConsumerGroupThreadPoolTest {
    @Test
    void test(){
        ExecutorService executorService = Executors.newFixedThreadPool(3);
        for (int i = 0; i < 3; i++) {
            executorService.execute(new MyConsumer());
        }
    }
}

class MyConsumer implements Runnable {
    private static final String TEST_TOPIC = "test1";
    private final KafkaConsumer<String, String> consumer;

    public MyConsumer() {
        Properties props = new Properties();
        //kafka集群信息
        props.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");
        //消费者组名称
        props.put(ConsumerConfig.GROUP_ID_CONFIG, "dhy_group");
        //key的反序列化器
        props.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class.getName());
        //value的反序列化器
        props.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class.getName());
        //初始化消费者
        consumer = new KafkaConsumer<>(props);
    }

    @Override
    public void run() {
        consumeTemplate(MyConsumer::printRecord, null);
    }

    /**
     * recordConsumer针对单条数据进行处理，此方法中应该做好异常处理，避免外围的while循环因为异常中断。
     */
    public void consumeTemplate(Consumer<ConsumerRecord<String, String>> recordConsumer, Consumer<KafkaConsumer<String, String>> afterCurrentBatchHandle) {
        consumer.subscribe(Collections.singletonList(TEST_TOPIC));
        try {
            while (true) {
                ConsumerRecords<String, String> records = consumer.poll(Duration.ofSeconds(100));
                for (ConsumerRecord<String, String> record : records) {
                    recordConsumer.accept(record);
                }
                if (afterCurrentBatchHandle != null) {
                    afterCurrentBatchHandle.accept(consumer);
                }
            }
        } finally {
            consumer.close();
        }
    }

    private static void printRecord(ConsumerRecord<String, String> record) {
        System.out.println("topic:" + record.topic()
                + ",partition:" + record.partition()
                + ",offset:" + record.offset()
                + ",key:" + record.key()
                + ",value" + record.value());
        record.headers().forEach(System.out::println);
    }
}

public interface ConsumerInterceptor<K, V> extends Configurable, AutoCloseable {
    /**
     * 发生的时机：在返回给客户端之前，也就是poll() 方法返回之前
     * 这个方法允许你修改records(记录集合)，然后信息的记录集合被返回
     * 没有返回记录条数上的限制，你可以在这里可以可以过滤或者是生成新的记录
     */
    public ConsumerRecords<K, V> onConsume(ConsumerRecords<K, V> records);

    //当offset 被提交之后调用
    public void onCommit(Map<TopicPartition, OffsetAndMetadata> offsets);
    //当拦截器关闭的时候被调用
    public void close();
}

package interceptor;

import org.apache.kafka.clients.consumer.ConsumerInterceptor;
import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.apache.kafka.clients.consumer.ConsumerRecords;
import org.apache.kafka.clients.consumer.OffsetAndMetadata;
import org.apache.kafka.common.TopicPartition;

import java.util.Map;
import java.util.concurrent.atomic.AtomicLong;

public class LatencyCalConsumerInterceptor implements ConsumerInterceptor<String, String> {

    /**
     * 数据处理总耗时
     */
    private static final AtomicLong totalLatency = new AtomicLong();
    /**
     * 消息的总数量
     */
    private static final AtomicLong msgCount = new AtomicLong();


    /**
     * 在消费者进行数据处理之前被调用
     */
    @Override
    public ConsumerRecords<String, String> onConsume(ConsumerRecords<String, String> records) {
        long lantency = 0L;
        //累加每条消息处理耗时
        for (ConsumerRecord<String, String> msg : records) {
            lantency += (System.currentTimeMillis() - msg.timestamp());
        }
        //获取当前消息发送处理的总耗时
        long totalLatencyLong = totalLatency.addAndGet(lantency);
        //获取消息总数
        long msgCountLong = msgCount.incrementAndGet();
        System.out.println("该批次消息发出到消费处理的平均延时：" + (totalLatencyLong / msgCountLong));
        return records;
    }

    @Override
    public void onCommit(Map<TopicPartition, OffsetAndMetadata> offsets) {}
    @Override
    public void close() {}
    @Override
    public void configure(Map<String, ?> configs) {}
}

props.put(ConsumerConfig.INTERCEPTOR_CLASSES_CONFIG, LatencyCalConsumerInterceptor.class.getName());

public interface Deserializer<T> extends Closeable {

    /**
     * 参数configs会传入消费者配置参数，
     * 反序列化器实现类可以根据消费者参数配置影响序列化逻辑
     * isKey布尔型，表示当前反序列化的对象是不是消息的key，如果不是key就是value
     */
    default void configure(Map<String, ?> configs, boolean isKey) {
    }

    //核心反序列化函数，将二进制数组转成T类对象
    T deserialize(String topic, byte[] var2);

    default T deserialize(String topic, Headers headers, byte[] data) {
        return this.deserialize(topic, data);
    }

    default void close() {
    }
}

/**
 * 反序列化器
 */
public class JacksonDeserializer implements Deserializer<Peo> {
    private static final ObjectMapper objectMapper = new ObjectMapper();
    @Override
    public Peo deserialize(String topic, byte[] data) {
        try {
            return objectMapper.readValue(data,Peo.class);
        } catch (IOException e) {
            e.printStackTrace();
            return null;
        }
    }
}

        //value的反序列化器
        props.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, JacksonDeserializer.class.getName());

    @Test
    void testDeserializer(){
        //1.创建消费者
        KafkaConsumer<String, Peo> consumer = new KafkaConsumer<>(props);
        //2.订阅Topic
        consumer.subscribe(Collections.singletonList(TEST_TOPIC));

        try {
            while (true) {
                //循环拉取数据,
                //Duration超时时间，如果有数据可消费，立即返回数据
                // 如果没有数据可消费，超过Duration超时时间也会返回，但是返回结果数据量为0
                ConsumerRecords<String, Peo> records = consumer.poll(Duration.ofSeconds(100));
                for (ConsumerRecord<String, Peo> record : records) {
                    System.out.println(record.value());
                }
            }
        } finally {
            //退出应用程序前使用close方法关闭消费者，
            // 网络连接和socket也会随之关闭，并立即触发一次再均衡（再均衡概念后续章节介绍）
            consumer.close();
        }
    }

<dependency>
    <groupId>org.springframework.kafka</groupId>
    <artifactId>spring-kafka</artifactId>
</dependency>

spring:
  kafka:
    bootstrap-servers: localhost:9092
    producer: # 生产者
      retries: 3  #发送失败重试次数
      acks: all  #所有分区副本确认后，才算消息发送成功
      # 指定消息key和消息体的序列化编码方式
      key-serializer: org.apache.kafka.common.serialization.StringSerializer
      value-serializer: org.springframework.kafka.support.serializer.JsonSerializer
    consumer: #消费者
      # 指定消息key和消息体的反序列化解码方式，与生产者序列化方式一一对应
      key-deserializer: org.apache.kafka.common.serialization.StringDeserializer
      value-deserializer: org.springframework.kafka.support.serializer.JsonDeserializer
      # 该参数作用见下文注释
      properties:
        spring:
          json:
            trusted:
              packages: '*'

spring.kafka.consumer.properties.spring.json.trusted.packages=com.example.myapp.pojo

logging:
  level:
    org:
      springframework:
        kafka: ERROR # spring-kafka
      apache:
        kafka: ERROR # kafka

@Data
public class User {
    private String name;
    private Integer age;
}

@SpringBootTest(classes = KafkaSpringBootDemo.class)
class SpringKafkaTest {

    @Resource
    KafkaTemplate<String, User> kafkaTemplate;

    @Test
    void testProducer() {
        User user = new User();
        user.setAge(21);
        user.setName("大忽悠");
        kafkaTemplate.send(TEST_KAFKA_TOPIC, user);
        //阻塞等待观察结果
        System.in.read();
    }
}

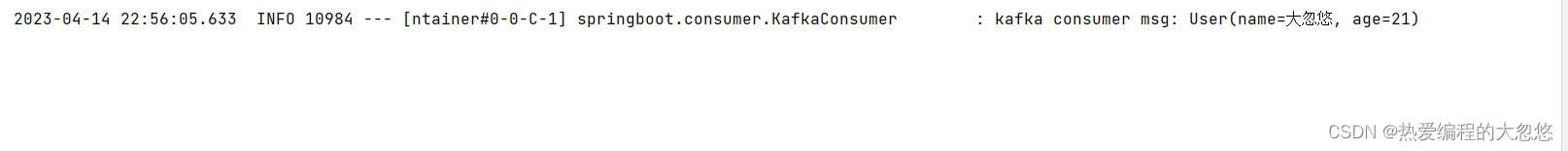

@Component
@Slf4j
public class KafkaConsumer {
    @KafkaListener(topics = TEST_KAFKA_TOPIC , groupId = TEST_CONSUMER_GROUP)
    public void dealUser(User user) {
      log.info("kafka consumer msg: {}",user);
    }
}

Caused by: java.lang.IllegalArgumentException: The class 'springboot.pojo.User' is not in the trusted packages

   @Test

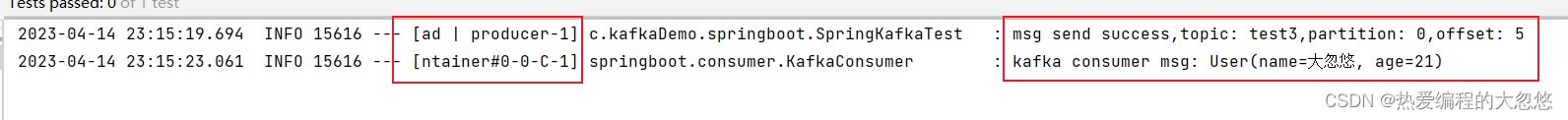

    void testAsyncWithCallBack() throws IOException {
        User user = new User();
        user.setAge(21);
        user.setName("大忽悠");
        kafkaTemplate.send(TEST_KAFKA_TOPIC, user).addCallback(new ListenableFutureCallback<SendResult<String, User>>() {
            @Override
            public void onFailure(Throwable ex) {
                log.error("msg send err: ",ex);
            }

            @Override
            public void onSuccess(SendResult<String, User> result) {
                // 消息发送到的topic
                String topic = result.getRecordMetadata().topic();
                // 消息发送到的分区
                int partition = result.getRecordMetadata().partition();
                // 消息在分区内的offset
                long offset = result.getRecordMetadata().offset();
                log.info("msg send success,topic: {},partition: {},offset: {}",topic,partition,offset);
            }
        });
        System.in.read();
    }

    @Test
    void testSync() throws IOException {
        User user = new User();
        user.setAge(21);
        user.setName("大忽悠");
        try {
            SendResult<String, User> result = kafkaTemplate.send(TEST_KAFKA_TOPIC, user).get();
            // 消息发送到的topic
            String topic = result.getRecordMetadata().topic();
            // 消息发送到的分区
            int partition = result.getRecordMetadata().partition();
            // 消息在分区内的offset
            long offset = result.getRecordMetadata().offset();
            log.info("msg send success,topic: {},partition: {},offset: {}",topic,partition,offset);
        } catch (InterruptedException | ExecutionException e) {
            log.error("send msg sync occurs err: ",e);
        }
        System.in.read();
    }

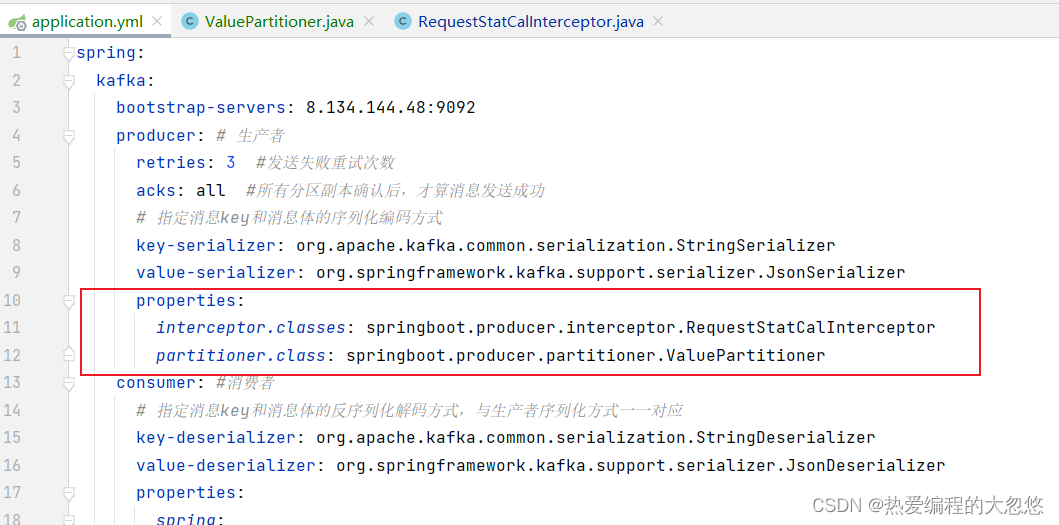

spring:
	kafka:
		producer:
			properties:
                interceptor.classes: springboot.producer.interceptor.RequestStatCalInterceptor
                partitioner.class: springboot.producer.partitioner.ValuePartitioner

spring:
	kafka:
		producer:
			properties:
			    enable.idempotence: true

   @Test
    void testTransaction() {
        User user = new User();
        user.setAge(21);
        user.setName("大忽悠");
        //调用事务模板方法
        kafkaTemplate.executeInTransaction(operations -> {
            operations.send(TEST_KAFKA_TOPIC, user);
            //业务处理发生异常,事务回滚
            throw new RuntimeException("fail");
        });
    }

public @interface KafkaListener {

   /**
    * 消费者的id，如果没有配置或默认生成一个。如果配置了会覆盖groupId，笔者的经验这个配置不需要配
    */
   String id() default "";

   /**
    * 配置一个bean，类型为：org.springframework.kafka.config.KafkaListenerContainerFactory
    */
   String containerFactory() default "";

   /**
    * 三选一：该消费者组监听的Topic名称
    */
   String[] topics() default {};

   /**
    * 三选一：通过为消费者组指定表达式匹配监听多个Topic（笔者从来没用过，也不建议使用）
    */
   String topicPattern() default "";

   /**
    * 三选一：消费组指定监听Topic的若干分区。
    */
   TopicPartition[] topicPartitions() default {};

   /**
    * 没用过，不知道作用
    */
   String containerGroup() default "";

   /**
    * Listener的异常处理器，后续会介绍
    * @since 1.3
    */
   String errorHandler() default "";

   /**
    * 消费者组的分组id
    * @since 1.3
    */
   String groupId() default "";

   /**
    * 设否设置id属性为消费组组id
    * @since 1.3
    */
   boolean idIsGroup() default true;

   /**
    * 消费者组所在客户端的客户端id的前缀，用于kafka客户端分类
    * @since 2.1.1
    */
   String clientIdPrefix() default "";

   /**
    * 用于SpEL表达式，获取当前Listener的配置信息
    * 如获取监听Topic列表的SpEL表达式为 ： "#{__listener.topicList}"
    * @return the pseudo bean name.
    * @since 2.1.2
    */
   String beanRef() default "__listener";

   /**
    * 当前消费者组启动多少了消费者线程，并行执行消费动作
    * @since 2.2
    */
   String concurrency() default "";

   /**
    * 是否自动启动，true or false
    * @since 2.2
    */
   String autoStartup() default "";

   /**
    * Kafka consumer 属性配置，支持所有的apache kafka 消费者属性配置
    * 但不包括group.id 和 client.id 配置属性
    * @since 2.2.4
    */
   String[] properties() default {};

   /**
    * 笔者从来没用过，自己理解下面的这段英文吧
    * When false and the return type is an {@link Iterable} return the result as the
    * value of a single reply record instead of individual records for each element.
    * Default true. Ignored if the reply is of type {@code Iterable<Message<?>>}.
    * @return false to create a single reply record.
    * @since 2.3.5
    */
   boolean splitIterables() default true;

   /**
    *  笔者从来没用过，自己理解下面的这段英文吧
    * Set the bean name of a
    * {@link org.springframework.messaging.converter.SmartMessageConverter} (such as the
    * {@link org.springframework.messaging.converter.CompositeMessageConverter}) to use
    * in conjunction with the
    * {@link org.springframework.messaging.MessageHeaders#CONTENT_TYPE} header to perform
    * the conversion to the required type. If a SpEL expression is provided
    * ({@code #{...}}), the expression can either evaluate to a
    * {@link org.springframework.messaging.converter.SmartMessageConverter} instance or a
    * bean name.
    * @return the bean name.
    * @since 2.7.1
    */
   String contentTypeConverter() default "";

}

dhyconsumer:
    topic: topic1,topic2
    group-id: dhy-group
    concurrency: 5

@KafkaListener(topics = "#{'${dhyconsumer.topic}'.split(',')}",
        groupId = "${dhyconsumer.group-id}",
        concurrency="${dhyconsumer.concurrency}")
public void readMsg(ConsumerRecord consumerRecord) {
     //监听到数据之后，进行处理操作
}

@KafkaListener(topicPartitions =
        { @TopicPartition(topic = "topic1", partitions = { "0", "1" }),
          @TopicPartition(topic = "topic2", partitions = {"0","4"},partitionOffsets = @PartitionOffset(partition = "0", initialOffset = "300"))
        })
public void readMsg(ConsumerRecord<?, ?> record) {

}

@Configuration
public class KafkaInitialConfiguration {

    /**
     * 监听器工厂
     */
    @Autowired
    private ConsumerFactory<String,String> consumerFactory;

    /**
     * @return 配置一个消息过滤策略
     */
    @Bean
    public ConcurrentKafkaListenerContainerFactory<String,String> myFilterContainerFactory() {
        ConcurrentKafkaListenerContainerFactory<String,String> factory = new ConcurrentKafkaListenerContainerFactory<>();
        factory.setConsumerFactory(consumerFactory);
        // 被过滤的消息将被丢弃
        factory.setAckDiscarded(true);
        //设置消息过滤策略
        factory.setRecordFilterStrategy(new RecordFilterStrategy() {
            @Override
            public boolean filter(ConsumerRecord consumerRecord) {
                //这里做逻辑判断
                //返回true的消息将会被丢弃
                return true;
            }
        });
        return factory;
    }
}

@KafkaListener(containerFactory ="myFilterContainerFactory")

@KafkaListener(properties = {"enable.auto.commit:false","max.poll.interval.ms:6000" })

@KafkaListener(topics = "topic1")
public void  readMsg(@Payload String data,
                         @Header(KafkaHeaders.RECEIVED_MESSAGE_KEY) Integer key,
                         @Header(KafkaHeaders.RECEIVED_PARTITION_ID) int partition,
                         @Header(KafkaHeaders.RECEIVED_TOPIC) String topic,
                         @Header(KafkaHeaders.RECEIVED_TIMESTAMP) long ts) {

}

@Component
public class KafkaConsumer {
    @KafkaListener(topics = {"topic2"})
    @SendTo("topic1")
    public String listen1(String data) {
        System.out.println("业务A收到消息：" + data);
        return data + "(已处理)";
    }

    @KafkaListener(topics = {"topic1"})
    public void listen2(String data) {
        System.out.println("业务B收到消息：" + data);
    }
}

    @KafkaListener(topics = TEST_KAFKA_TOPIC , groupId = TEST_CONSUMER_GROUP)
    public void dealUser(User user) {
      log.info("kafka consumer msg: {}",user);
    }

# 开启自动提交消费offset（这个配置实际上专指按照周期自动提交）
spring.kafka.consumer.enable-auto-commit: true
# 进行自动提交操作的时间间隔
spring.kafka.consumer.auto-commit-interval: 10s

# 禁用按周期自动提交消费者offset
spring.kafka.consumer.enable-auto-commit: false
# offset提交模式为record
spring.kafka.listener.ack-mode: record

# 禁用自动提交消费offset
spring.kafka.consumer.enable-auto-commit: false
# offset提交模式为manual_immediate
spring.kafka.listener.ack-mode: manual_immediate  或  manual

    @KafkaListener(topics = TEST_KAFKA_TOPIC, groupId = TEST_CONSUMER_GROUP)
    public void dealUser(User user, Acknowledgment ack) {
        log.info("kafka consumer msg: {}", user);
        ack.acknowledge();
    }

    @KafkaListener(topics = TEST_KAFKA_TOPIC, groupId = TEST_CONSUMER_GROUP)
    public void dealUser(List<User> user) {

    }

# listener类型为批量batch类型（默认为single单条消费模式）
spring.kafka.listener.type: batch
# offset提交模式为batch（不可使用record - 启动报错）
spring.kafka.listener.ack-mode: batch
# 禁用自动按周期提交消费者offset
spring.kafka.consumer.enable-auto-commit: false

# listener类型为批量batch类型（默认为single单条消费模式）
spring.kafka.listener.type: batch
# offset提交模式为manual（不可使用record - 启动报错）
spring.kafka.listener.ack-mode: manual_immediate  或  manual
# 禁用自动按周期提交消费者offset
spring.kafka.consumer.enable-auto-commit: false

    @KafkaListener(topics = TEST_KAFKA_TOPIC, groupId = TEST_CONSUMER_GROUP)
    public void dealUser(List<User> user,Acknowledgment ack) {
        user.forEach(System.out::println);
        ack.acknowledge();
    }

spring:
  kafka:
    consumer:
      auto-offset-reset: earliest
      key-deserializer: org.springframework.kafka.support.serializer.ErrorHandlingDeserializer
      value-deserializer: org.springframework.kafka.support.serializer.ErrorHandlingDeserializer
      properties:
        spring.json.trusted.packages: '*'
        spring.deserializer.key.delegate.class: org.apache.kafka.common.serialization.StringDeserializer
        spring.deserializer.value.delegate.class: org.springframework.kafka.support.serializer.JsonDeserializer

	@Override
	public T deserialize(String topic, byte[] data) {
		try {
			return this.delegate.deserialize(topic, data);
		}
		catch (Exception e) {
			return recoverFromSupplier(topic, null, data, e);
		}
	}

	private T recoverFromSupplier(String topic, Headers headers, byte[] data, Exception exception) {
	    //如果我们指定了反序列失败的处理函数,这里会回调，否则返回null
		if (this.failedDeserializationFunction != null) {
			FailedDeserializationInfo failedDeserializationInfo =
					new FailedDeserializationInfo(topic, headers, data, this.isForKey, exception);
			return this.failedDeserializationFunction.apply(failedDeserializationInfo);
		}
		else {
			return null;
		}
	}

	/**
	 * Supplier for a T when deserialization fails.
	 */
	public static final String KEY_FUNCTION = "spring.deserializer.key.function";

	/**
	 * Supplier for a T when deserialization fails.
	 */
	public static final String VALUE_FUNCTION = "spring.deserializer.value.function";

@Component
public class MyErrorHandler implements KafkaListenerErrorHandler {
    @Override
    public Object handleError(Message<?> message, ListenerExecutionFailedException exception) {
        return null;
    }

    @Override
    public Object handleError(Message<?> message, ListenerExecutionFailedException exception, Consumer<?, ?> consumer) {
        return null;
    }
}
