实践——从fuzzing到0day漏洞挖掘

GET /vfolder.ghp HTTP/1.1
Accept: text/html, application/xhtml+xml, */*
Referer: http://192.168.52.143/
Accept-Language: zh-CN
User-Agent: Mozilla/5.0 (Windows NT 6.1; Trident/7.0; rv:11.0) like Gecko
Accept-Encoding: gzip, deflate
Host: 192.168.52.143
If-Modified-Since: Thu, 01 Mar 2018 08:00:13 GMT; length=15959
DNT: 1
Connection: Keep-Alive
Cookie: SESSIONID=17936; UserID=; PassWD=

<?xml version="1.0" encoding="utf-8"?>
<Peach xmlns="http://peachfuzzer.com/2012/Peach" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://peachfuzzer.com/2012/Peach ../peach.xsd">

    <DataModel name="DataVfolder">
            <String value="GET /vfolder.ghp" mutable="false" token="true"/>
            <String value=" HTTP/1.1" mutable="false" token="true"/>
            <String value="\r\n" mutable="false" token="true"/>

            <String value="User-Agent: " mutable="false" token="true"/>
            <String value="Mozilla/4.0" mutable="false" token="true"/>
            <String value="\r\n" mutable="false" token="true"/>

            <String value="Host: 192.168.52.143" mutable="false" token="true"/>
            <String value="\r\n" mutable="false" token="true"/>

            <String value="Accept: " mutable="false" token="true"/>
            <String value="text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8" mutable="false" token="true"/>
            <String value="\r\n" mutable="false" token="true"/>

            <String value="Accept-Language: " mutable="false" token="true"/>
            <String value="en-us" mutable="false" token="true"/>
            <String value="\r\n" mutable="false" token="true"/>

            <String value="Accept-Encoding: " mutable="false" token="true"/>
            <String value="gzip, deflate" mutable="false" token="true"/>
            <String value="\r\n" mutable="false" token="true"/>

            <String value="Referer: " mutable="false" token="true"/>
            <String value="http://192.168.52.143/" mutable="false" token="true"/>
            <String value="\r\n" mutable="false" token="true"/>

            <String value="Cookie: " mutable="false" token="true"/>
            <String value="SESSIONID=17936; " mutable="false" token="true"/>

            <!-- fuzz UserID -->
            <String value="UserID=" mutable="false" token="true"/>
            <String value="" />
            <String value="; " mutable="false" token="true"/>

            <!-- fuzz PassWD -->
            <String value="PassWD=" mutable="false" token="true"/>
            <String value="" />
            <String value="; " mutable="false" token="true"/>
            <String value="\r\n" mutable="false" token="true"/>

            <String value="Conection: " mutable="false" token="true"/>
            <String value="Keep-Alive" mutable="false" token="true"/>
            <String value="\r\n" mutable="false" token="true"/>
            <String value="\r\n" mutable="false" token="true"/>
    </DataModel>

    <DataModel name="DataResponse">
        <!-- server reply, we don't care -->
        <String value="" />
    </DataModel>

    <StateModel name="StateVfolder" initialState="Initial">
        <State name="Initial">
            <Action type="output">
                <DataModel ref="DataVfolder"/>
            </Action>
            <Action type="input">
                <DataModel ref="DataResponse"/>
            </Action>
        </State>
    </StateModel>

    <Agent name="LocalAgent">
        <Monitor class="WindowsDebugger">
            <Param name="CommandLine" value="C:\EFS Software\Easy File Sharing Web Server\fsws.exe"/>
            <Param name="WinDbgPath" value="C:\WinDDK\7600.16385.1\Debuggers" />
        </Monitor>

        <!-- close the popup window asking us to buy the software before running tests -->
        <Monitor class="PopupWatcher">
            <Param name="WindowNames" value="Registration - unregistered"/>
        </Monitor>
    </Agent>

    <Test name="TestVfolder">
        <Agent ref="LocalAgent"/>
        <StateModel ref="StateVfolder"/>
        <Publisher class="TcpClient">
            <Param name="Host" value="192.168.52.143"/>
            <Param name="Port" value="80"/>
        </Publisher>

        <Logger class="File">
            <!-- save crash information in the Logs directory -->
            <Param name="Path" value="efswLogs"/>
        </Logger>

        <!-- use a finite number of test cases that test UserID first, followed by PassWD -->
        <Strategy class="Sequential" />

    </Test>
</Peach>

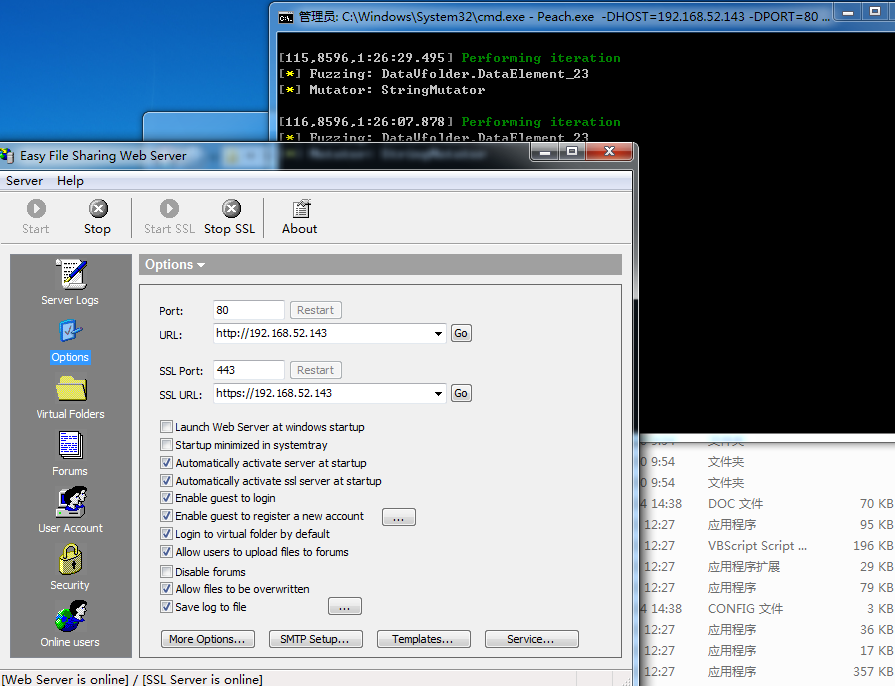

Peach.exe -DHOST=192.168.52.143 -DPORT=80 ./remotefuzz/efs_fuzz.xml TestVfolder
