LangGraph4j 学习系列(7)-流式响应

菩提树下的杨过

发布于 2026-03-02 09:27:02

230

接上节继续，流式响应在LLM应用中是改善用户体验的重要手段之一，可以有效缓解长耗时应用的用户焦虑感。

Stream基础示例

定义节点

/**
 * @author junmingyang
 */
public class ChatNode implements NodeAction<MessagesState<String>> {

    private final String message;

    public ChatNode(String message) {
        this.message = message;
    }

    @Override
    public Map<String, Object> apply(MessagesState<String> state) throws Exception {
//        System.out.println("current messages => " + state.messages());
        //模拟节点执行耗时
        Thread.sleep(2000);
        return Map.of(MessagesState.MESSAGES_STATE, this.message);
    }
}

示例代码

/**
 * @author junmingyang
 */
public class StreamGraphApplication {

    public static void main(String[] args) throws GraphStateException {

    //流式模式
    StateGraph<MessagesState<String>> graph1 = getGraph();

    RunnableConfig rc = RunnableConfig.builder()
            .threadId("conversation-1")
            .streamMode(CompiledGraph.StreamMode.VALUES)
            .build();

    AsyncGenerator.Cancellable<NodeOutput<MessagesState<String>>> result = graph1.compile()
            //这里调用stream方法，而不是invoke方法
            .stream(Map.of(), rc);

    System.out.println("=========流式stream模式========");
    for (NodeOutput<MessagesState<String>> output : result) {
        System.out.println("Node: " + output.node());
        if (!CollectionUtils.isEmpty(output.state().messages())) {
            System.out.println(output.state().messages().toString());
        }

        //流式模式下，可以通过取消来停止流式执行
        if ("node-3".equalsIgnoreCase(output.node())) {
            result.cancel(true);
        }
    }

    System.out.println("=========常规invoke模式========");

    //常规模式
    StateGraph<MessagesState<String>> graph2 = getGraph();

    graph2.compile().invoke(Map.of()).ifPresent(c -> {
        System.out.println(c.data());
    });

}


    public static StateGraph<MessagesState<String>> getGraph() throws GraphStateException {
        return new StateGraph<MessagesState<String>>(MessagesState.SCHEMA, MessagesState::new)
                .addNode("node-1", node_async(new ChatNode("1")))
                .addNode("node-2", node_async(new ChatNode(" 2")))
                .addNode("node-3", node_async(new ChatNode(" 3")))
                .addNode("node-4", node_async(new ChatNode(" 4")))
                .addNode("node-5", node_async(new ChatNode(" 5")))

                .addEdge(GraphDefinition.START, "node-1")
                .addEdge("node-1", "node-2")
                .addEdge("node-2", "node-3")
                .addEdge("node-3", "node-4")
                .addEdge("node-4", "node-5")
                .addEdge("node-5", GraphDefinition.END);
    }
}

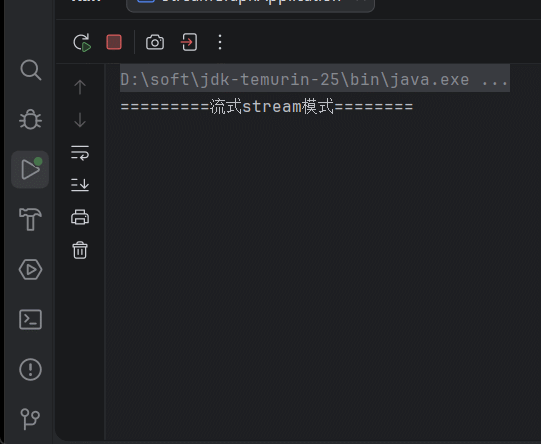

运行结果

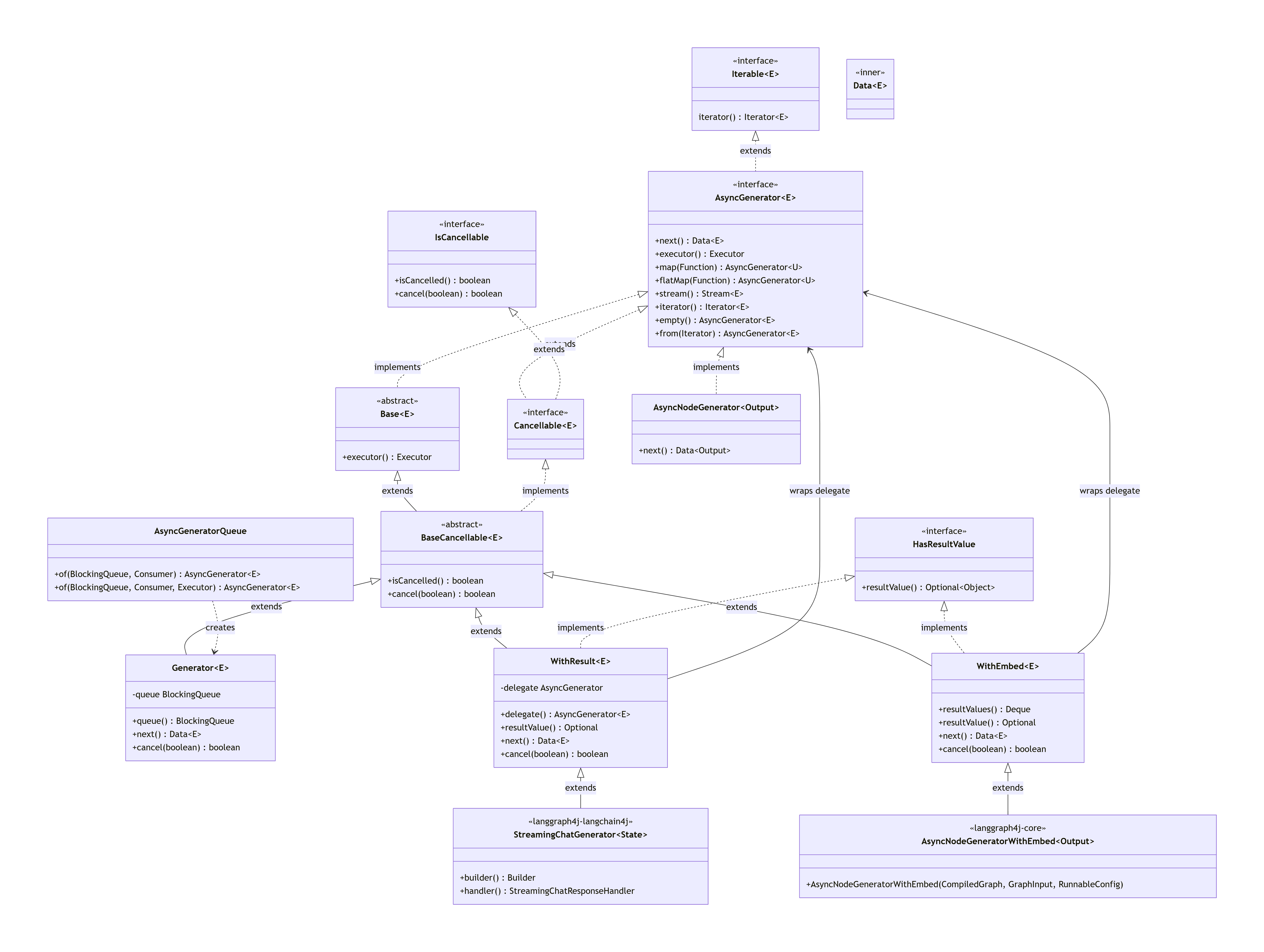

代码中的org.bsc.async.AsyncGenerator是实现流式的关键接口，Graph调用stream()方法后，会得到该接口的实例，该接口的主要类图如下：

与LangChain4j整合

从上面的类图可以看到，langgraph4j-langchain4j 包下，StreamingChatGenerator 也实现了AsyncGenerator接口，用它可以实现与LLM的流式交互

public class LLMStreamApp {

    public static void main(String[] args) {

        StreamingChatGenerator<AgentState> generator = StreamingChatGenerator.builder()
                .mapResult(r -> Map.of("content", r.aiMessage().text()))
                .build();

        OllamaStreamingChatModel model = OllamaStreamingChatModel.builder()
                .baseUrl("http://localhost:11434")
                .temperature(0.0)
                .logRequests(true)
                .logResponses(true)
                .modelName("glm-4.6:cloud")
                .build();

        ChatRequest request = ChatRequest.builder()
                .messages(UserMessage.from("李清照的成名作有哪些？"))
                .build();

        model.chat(request, generator.handler());

        for (StreamingOutput<AgentState> output : generator) {
            System.out.print(output.chunk());
        }
    }
}

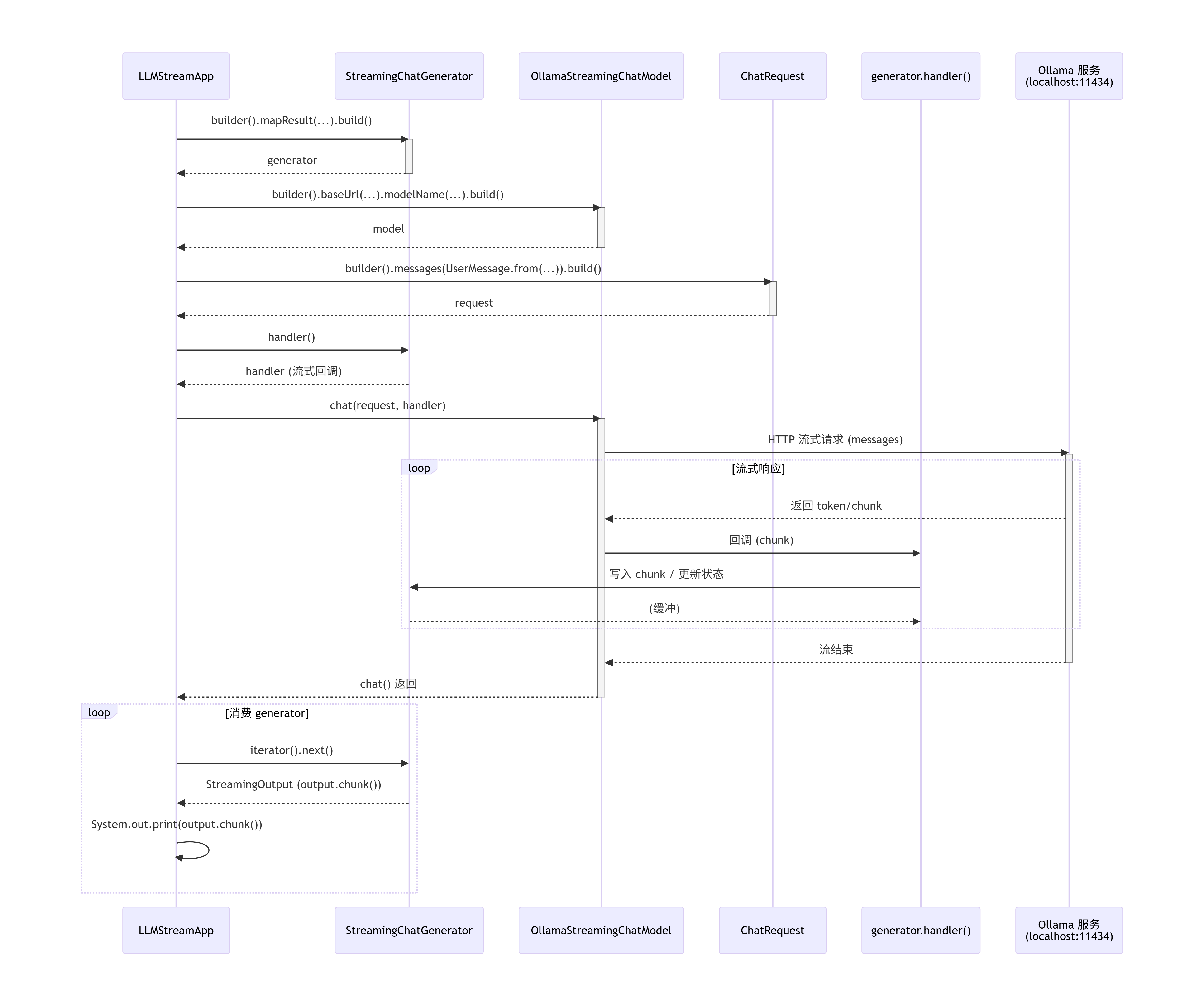

时序图 - 由Cursor生成

上述的代码，并未体现出Graph图的特性，也可以改成下面的写法：

public class LLMStreamGraphApp {

    public static void main(String[] args) throws GraphStateException {

        OllamaStreamingChatModel model = OllamaStreamingChatModel.builder()
                .baseUrl("http://localhost:11434")
                .temperature(0.0)
                .logRequests(true)
                .logResponses(true)
                .modelName("qwen3:1.7b")
                .build();

        //定义Agent节点
        NodeAction<MessagesState<ChatMessage>> callModel = state -> {
            StreamingChatGenerator<MessagesState<ChatMessage>> generator = StreamingChatGenerator.<MessagesState<ChatMessage>>builder()
                    .mapResult(response -> Map.of(MESSAGES_STATE, response.aiMessage()))
                    .startingNode("agent")
                    .startingState(state)
                    .build();

            ChatRequest request = ChatRequest.builder()
                    .messages(state.messages())
                    .build();

            model.chat(request, generator.handler());
            //注：key名可以改成其它，不一定非要是“_streaming_messages”
            return Map.of("_streaming_messages", generator);
        };


        //定义图
        CompiledGraph<MessagesState<ChatMessage>> graph = new MessagesStateGraph<>(new LC4jStateSerializer<MessagesState<ChatMessage>>(MessagesState::new))
                .addNode("agent", node_async(callModel))
                .addEdge(START, "agent")
                .addEdge("agent", END)
                .compile();

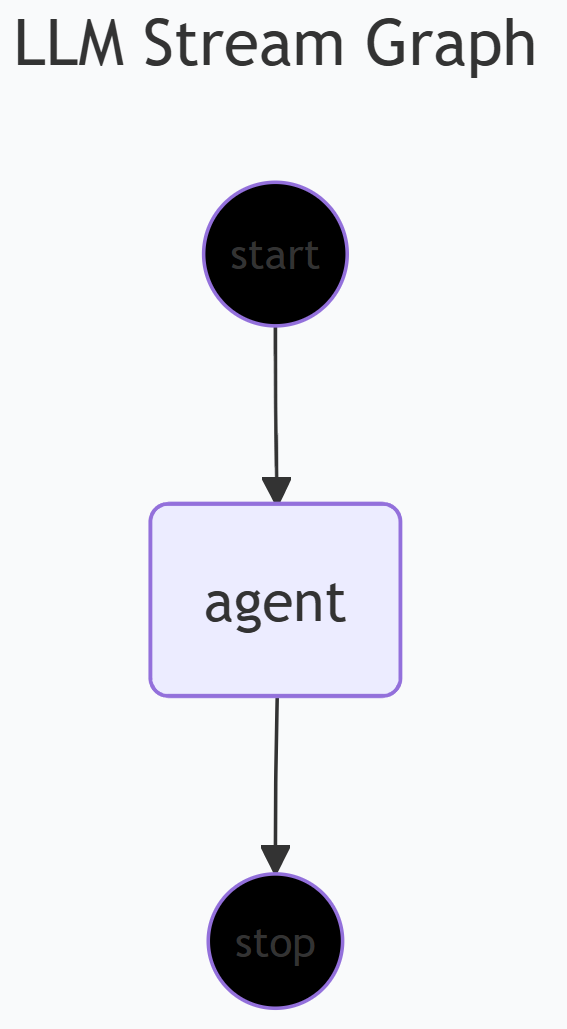

        System.out.println(graph.getGraph(GraphRepresentation.Type.MERMAID, "LLM Stream Graph", true).content());

        //流式执行
        AsyncGenerator<NodeOutput<MessagesState<ChatMessage>>> stream = graph.stream(Map.of(MESSAGES_STATE, UserMessage.from("李清照的成名作有哪些？")));

        //输出流式结果
        for (NodeOutput<MessagesState<ChatMessage>> out : stream) {
            if (out instanceof StreamingOutput<?> streamingOut) {
                System.out.print(streamingOut.chunk());
            }
        }

    }
}
