基于Seurat的空转单样本数据分析流程学习(五)-cellchat

rm(list = ls())
library(Seurat)
library(tidyverse)
library(cowplot)
library(patchwork)
library(CellChat)
library(patchwork)
library(qs)

scRNA <- qread("sce.all.qs")

dir.create("0-cellchat")
setwd("0-cellchat")

# 展示组织图像及其注释过的 spot
color.use <- scPalette(nlevels(scRNA$second_type));
names(color.use) <- levels(scRNA)

Idents(scRNA) <- "second_type"
Seurat::SpatialDimPlot(scRNA, label = T,
                       label.size = 3, cols = color.use)

# 矩阵
data.input <- GetAssayData(scRNA, assay ="SCT",slot ="data" )

# 临床信息
Idents(scRNA) <- "second_type"
meta = data.frame(labels = Seurat::Idents(scRNA), #要选择特定的Idents
                  samples = "sample1",
                  row.names = names(Seurat::Idents(scRNA)))
meta$samples <- factor(meta$samples)

# 坐标
coordinates <- GetTissueCoordinates(
  scRNA,
  scale = NULL,
  cols = c("imagerow", "imagecol")
)
spatial.locs <- as.matrix(coordinates[, c("x", "y")])

# 缩放因子
scalefactors <- jsonlite::fromJSON(
  txt = file.path(
    "~/Desktop/Spatial_scRNA/GSE281978/GSM8633891/spatial",
    "scalefactors_json.json"
  )
)

spot.size <- 65   # 10X Visium: spot 直径 ~55 μm，Gap ~10 μm，总约 65 μm

# 转换因子 (像素 -> 微米)
conversion.factor <- spot.size / scalefactors$spot_diameter_fullres

spatial.factors <- data.frame(
  ratio = conversion.factor,
  tol   = spot.size / 2   # 容差 = 半个 spot 大小
)

d.spatial <- computeCellDistance(
  coordinates = spatial.locs,
  ratio       = spatial.factors$ratio,
  tol         = spatial.factors$tol
)
min(d.spatial[d.spatial!=0])

cellchat <- createCellChat(object = data.input,
                           meta = meta,
                           group.by = "labels",
                           datatype = "spatial",
                           coordinates = spatial.locs,
                           spatial.factors = spatial.factors)

cellchat

# 要注意数据库的选择，human还是mouse
CellChatDB <- CellChatDB.human

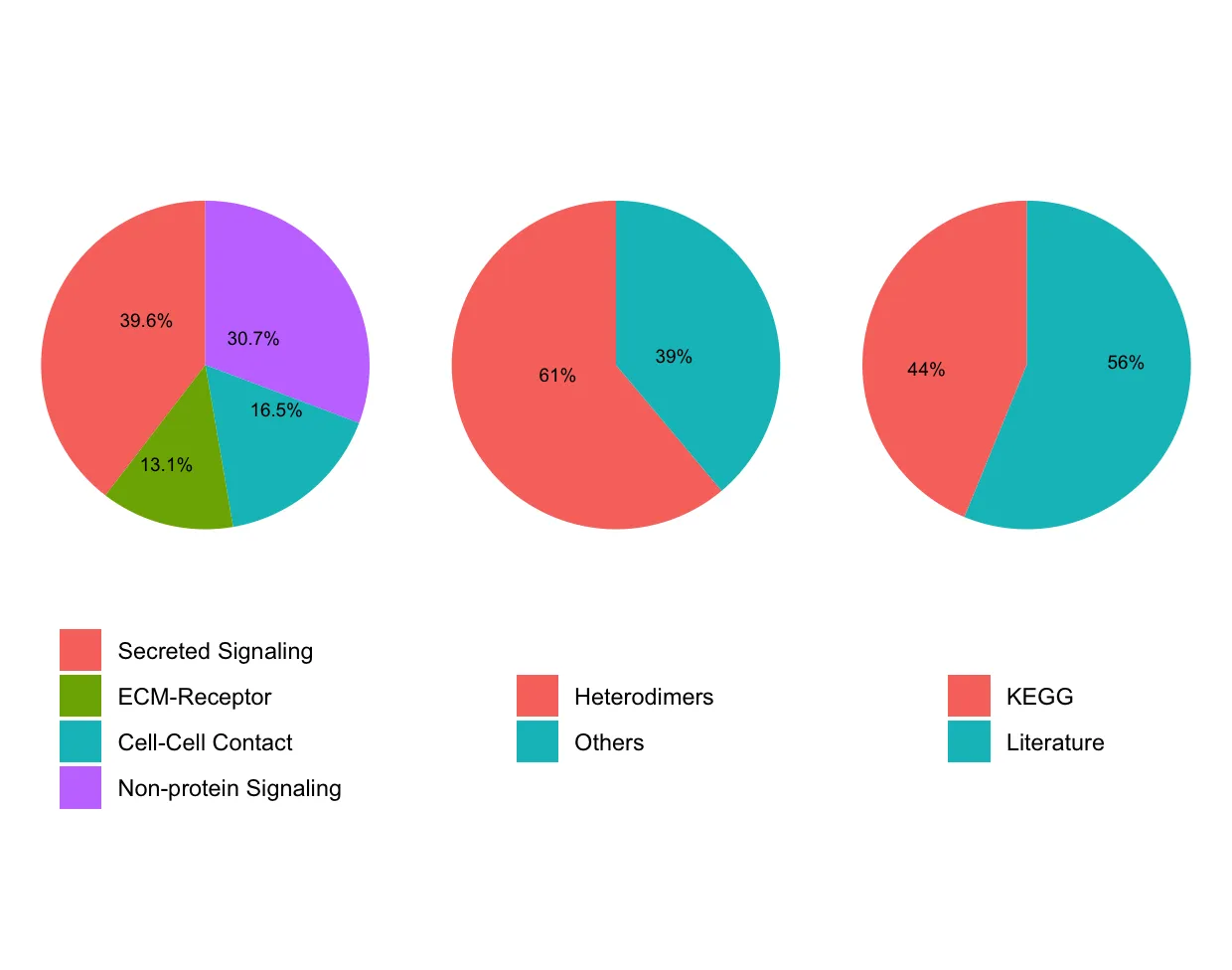

showDatabaseCategory(CellChatDB)
dplyr::glimpse(CellChatDB$interaction)

# 使用CellChatDB的一个子集进行细胞-细胞通讯分析
CellChatDB.use <- subsetDB(CellChatDB,
                           search = "Secreted Signaling",
                           key = "annotation") # use Secreted Signaling

# 使用CellChatDB的所有子集进行分析
CellChatDB.use <- CellChatDB

# 设定数据库所用数据集
cellchat@DB <- CellChatDB.use

# 对子信号基因的表达数据进行子集提取，以节省计算成本
cellchat <- subsetData(cellchat) # 即便采用完整数据库，这一步骤仍然必不可少
future::plan("multisession", workers = 4)
cellchat <- identifyOverExpressedGenes(cellchat)
cellchat <- identifyOverExpressedInteractions(cellchat, variable.both = F)
#> The number of highly variable ligand-receptor pairs used for signaling inference is 1469

#将基因表达数据投影到蛋白质–蛋白质相互作用网络（可选：在运行时，用户应在 computeCommunProb() 函数中将 raw.use = FALSE，以使用投影后的数据）
cellchat <- smoothData(cellchat, adj=PPI.human) # PPI.mouse

# 这一步骤非常缓慢
cellchat <- computeCommunProb(cellchat, type = "truncatedMean", trim = 0.1,
                              distance.use = TRUE,
                              interaction.range = 250,
                              scale.distance = 0.01,
                              contact.dependent = TRUE,
                              contact.range = 100)

# 如果某些细胞组中的细胞数量较少，用户可以选择过滤掉细胞间的通信。默认情况下，每个细胞组中需要至少有 10 个细胞才能进行细胞间通信。
cellchat <- filterCommunication(cellchat, min.cells = 10)

cellchat <- computeCommunProbPathway(cellchat)

cellchat <- aggregateNet(cellchat)

groupSize <- as.numeric(table(cellchat@idents))
par(mfrow = c(1,2), xpd=TRUE)
netVisual_circle(cellchat@net$count, vertex.weight = rowSums(cellchat@net$count), weight.scale = T, label.edge= F, title.name = "Number of interactions")
netVisual_circle(cellchat@net$weight, vertex.weight = rowSums(cellchat@net$weight), weight.scale = T, label.edge= F, title.name = "Interaction weights/strength")

netVisual_heatmap(cellchat, measure = "count", color.heatmap = "Blues")
#> Do heatmap based on a single object

netVisual_heatmap(cellchat, measure = "weight", color.heatmap = "Blues")

pathways.show <- c("IGF")
# Circle plot
par(mfrow=c(1,1), xpd = TRUE) # `xpd = TRUE` should be added to show the title
netVisual_aggregate(cellchat, signaling = pathways.show, layout = "circle")

# Spatial plot
par(mfrow=c(1,1))
netVisual_aggregate(cellchat, signaling = pathways.show, layout = "spatial", edge.width.max = 2, vertex.size.max = 1, alpha.image = 0.2, vertex.label.cex = 3.5)

# 计算并可视化网络中心性得分
cellchat <- netAnalysis_computeCentrality(cellchat, slot.name = "netP") # 槽 ‘netP’ 表示推断出的信号通路的细胞间通讯网络
# 使用热图可视化计算出的中心性分数，便于快速识别各细胞群在主要信号传导中的作用
par(mfrow=c(1,1))
netAnalysis_signalingRole_network(cellchat, signaling = pathways.show, width = 8, height = 2.5, font.size = 10)

# 用户在可视化信号网络时，可以在空间转录组图上展示这些信息，例如，圆圈越大表示接收到的信号越强
par(mfrow=c(1,1))
netVisual_aggregate(cellchat, signaling = pathways.show, layout = "spatial", edge.width.max = 2, alpha.image = 0.2, vertex.weight = "incoming", vertex.size.max = 4, vertex.label.cex = 3.5)

# 在组织中可视化基因表达分布
spatialFeaturePlot(cellchat, features = c("Igf1","Igf1r"), point.size = 0.8, color.heatmap = "Reds", direction = 1)

# 输入一个配体–受体对
spatialFeaturePlot(cellchat, pairLR.use = "IGF1_IGF1R", point.size = 0.5, do.binary = FALSE, cutoff = 0.05, enriched.only = F, color.heatmap = "Reds", direction = 1)

# 输入一个配体–受体对，并以二值形式显示其表达情况
spatialFeaturePlot(cellchat, pairLR.use = "IGF1_IGF1R", point.size = 1, do.binary = TRUE, cutoff = 0.05, enriched.only = F, color.heatmap = "Reds", direction = 1)

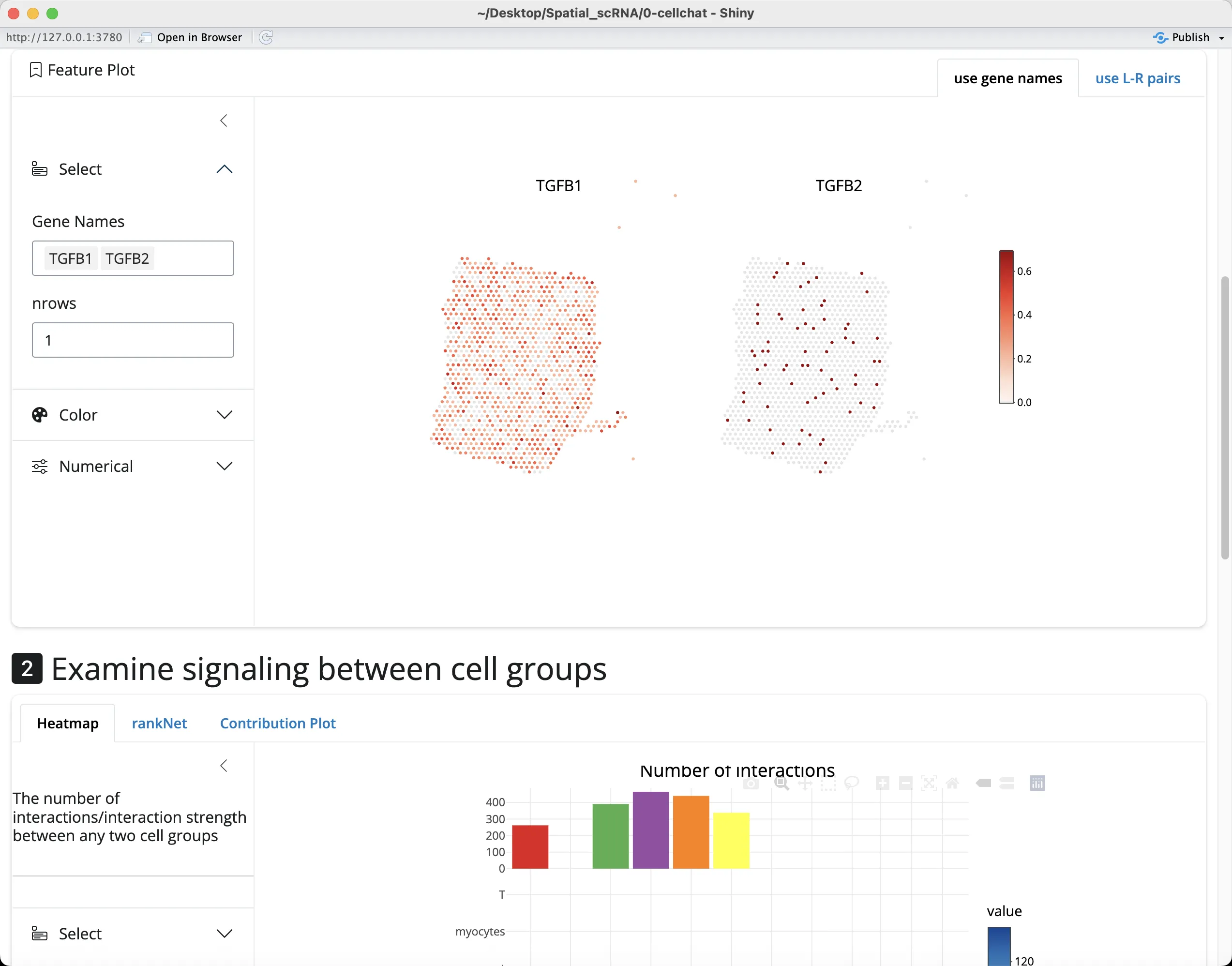

runCellChatApp(cellchat)
