echo "echo never > /sys/kernel/mm/transparent_hugepage/enabled" >> /etc/rc.d/rc.local && echo "echo never > /sys/kernel/mm/transparent_hugepage/defrag" >>/etc/rc.d/rc.local && chmod +x /etc/rc.d/rc.local

# 确认关闭

grep -i HugePages_Total /proc/meminfo

cat /proc/sys/vm/nr_hugepages

sysctl vm.nr_hugepages

# for runtime effect

sudo sysctl -w vm.swappiness=1

# for permanent effect

echo vm.swappiness=1 >> /etc/sysctl.conf

# check

cat /proc/sys/vm/swappiness

修改# vim /etc/security/limits.conf，添加

* soft nofile 128000

* hard nofile 128000

* soft nproc 128000

* hard nproc 128000

修改umask有时候kylin会把umask设置成0077，导致了很多问题

# 临时生效umask 0022

删除/etc/bashrc最后一行umask 0077

第2步安装Python3.9.14

tar -zxvf Python-3.9.14.tgz

cd Python-3.9.14# 安装位置为/usr/local/python3目录

./configure --enable-shared

make && make altinstall

#python3.9 --version

# pip3.9 list

验证

# python3.9

Python 3.9.14 (main, Feb 7 2025, 11:19:13)

第3步安装postgresql （HUE需要server）

麒麟操作系统自带postgresql 10.5安装包即可

yum install postgresql-server postgresql-devel python3-devel -y

# HUE需要psycopg2

pip3.9 install psycopg2

配置yarn数据库，并能外机访问

。。。。。。

初始化和修改配置

yum install postgresql-server postgresql-devel python3-devel -y

postgresql-setup initdb

systemctl enable postgresql

systemctl start postgresql

创建数据库和用户

使用管理员登录数据库

sudo -u postgres psql

ALTER USER postgres PASSWORD '******';

\q

切换到root用户，重启postgresql服务

systemctl restart postgresql

修改默认生成的 postgres 用户密码（此postgres非上面的postgres用户，此为数据库的用户，上面的为操作系统的用户）

su - postgres

psql -U postgres

alter user postgres with encrypted password '******';

创建用户和数据库并授权

create user das with password '******'; // 创建用户

create database das owner das; // 创建数据库

grant all privileges on database das to das; // 授权

主机名：192.168.13.157

端口：5432

用户名：postgres

密码：******

Root/******

create user root with password '******';

create database yarn owner root; // 创建数据库

grant all privileges on database yarn to root; // 授权

第4步安装kylinos v10的java（所有节点）

yum install java-11-openjdk java-11-openjdk-devel -y

/usr/share/java/mysql-connector-java.jar

确认

# ll /usr/lib/jvm/java-11-openjdk-11.0.26.4-1.p01.ky10.aarch64/bin/java

# ll /usr/lib/jvm/java-11-openjdk-11.0.26.4-1.p01.ky10.aarch64/bin/jar

第5步用httpd部署自己的YUM源

安装 httpd web 服务

该服务主要用于提供一个内网的安装源，如操作系统源，以及之后需要的 CM 和 CMP

源。

在10.111.15.50节点，即bigdata50节点配置即可

注意：先把 /etc/yum.repos.d/下的repo文件放到bak下，否则在联网的情况下，会安装一些不匹配的包，造成http启动报错等等一些问题，在更新源

yum clean all

yum makecache

yum repolist

#安装

[root@bigdata50 ~]$ yum -y install httpd

#配置

修改 /etc/httpd/conf/httpd.conf 第284行

由

AddType application/x-gzip .gz .tgz

修改为

AddType application/x-gzip .gz .tgz .parcel

#重启服务并设定开机启动

systemctl status httpd

systemctl start httpd

systemctl enable httpd

#按照顺序安装，前两个包是第三个包的依赖，所以必须先安装

yum -y install yum-utils

#创建本地的系统repo包路径

createrepo /var/www/html/***

系统会根据提示安装依赖的包。

#转移默认的repo包

mkdir /etc/yum.repos.d/bak

mv /etc/yum.repos.d/* /etc/yum.repos.d/bak

#编辑本地的系统repo包

vi /etc/yum.repos.d/os.repo

[CenOS8-Base]

name=os_repo

baseurl=http://192.168.0.211/iso/BaseOS

enabled=true

gpgcheck=false

更新源

yum clean all

yum makecache

yum repolist

说明：本地的操作系统的yum源已经配置完成，其他主机想使用该机器的yum源，可以借助后面的脚本把os.repo同步到其他主机的目录/etc/yum.repos.d中

第7步添加用户

第8步安装mysql8.0.39及创建数据库

Mysql安装yum remove mariadb

# yum localinstall mysql-community-common-8.0.39-1.el8.aarch64.rpm --nogpgcheck -y

# yum localinstall mysql-community-client-plugins-8.0.39-1.el8.aarch64.rpm --nogpgcheck -y

# yum localinstall mysql-community-libs-8.0.39-1.el8.aarch64.rpm --nogpgcheck -y

# yum localinstall mysql-community-client-8.0.39-1.el8.aarch64.rpm --nogpgcheck -y

# yum localinstall mysql-community-icu-data-files-8.0.39-1.el8.aarch64.rpm --nogpgcheck -y

# yum localinstall mysql-community-server-8.0.39-1.el8.aarch64.rpm --nogpgcheck -y

# yum localinstall mysql-community-devel-8.0.39-1.el8.aarch64.rpm --nogpgcheck -y

设置“%”可访问；

HUE特殊处理

#pip3.9 install mysqlclient

Hue节点安装MySQL客户端

# yum localinstall mysql-community-common-8.0.39-1.el8.aarch64.rpm --nogpgcheck -y

# yum localinstall mysql-community-client-plugins-8.0.39-1.el8.aarch64.rpm --nogpgcheck -y

# yum localinstall mysql-community-libs-8.0.39-1.el8.aarch64.rpm --nogpgcheck -y

# yum localinstall mysql-community-client-8.0.39-1.el8.aarch64.rpm --nogpgcheck -y

# yum localinstall mysql-community-devel-8.0.39-1.el8.aarch64.rpm --nogpgcheck -y

确认安装

# yum install -y mysql-devel xmlsec1 xmlsec1-openssl --nogpgcheck

测试/opt/cloudera/cm-agent/bin/python3.9 --version 输出

返回：Python 3.9.14

#pip3.9 list

返回：

安装可能用到的数据库

CREATE DATABASE scm DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;

FLUSH PRIVILEGES;

create user 'scm'@'%' identified by '******';

FLUSH PRIVILEGES;

alter user 'scm '@'%' IDENTIFIED WITH mysql_native_password BY '******';

FLUSH PRIVILEGES;

grant all privileges on scm.* to 'scm'@'%' with grant option;

FLUSH PRIVILEGES;

----------------------------------------------------------------------------------------------------------------------------------------------------

CREATE DATABASE amon DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;

FLUSH PRIVILEGES;

create user 'amon'@'%' identified by '******';

FLUSH PRIVILEGES;

alter user 'amon'@'%' IDENTIFIED WITH mysql_native_password BY '******';

FLUSH PRIVILEGES;

grant all privileges on amon.* to 'amon'@'%' with grant option;

FLUSH PRIVILEGES;

CREATE DATABASE rman DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci; FLUSH PRIVILEGES;

create user 'rman'@'%' identified by '******';

FLUSH PRIVILEGES;

alter user 'rman'@'%' IDENTIFIED WITH mysql_native_password BY '******';

FLUSH PRIVILEGES;

grant all privileges on rman.* to 'rman'@'%' with grant option;

FLUSH PRIVILEGES;

CREATE DATABASE hue DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci; FLUSH PRIVILEGES;

create user 'hue'@'%' identified by '******';

FLUSH PRIVILEGES;

alter user 'hue'@'%' IDENTIFIED WITH mysql_native_password BY '******';

FLUSH PRIVILEGES;

grant all privileges on hue.* to 'hue'@'%' with grant option;

FLUSH PRIVILEGES;

CREATE DATABASE hive DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;

FLUSH PRIVILEGES;

create user 'hive'@'%' identified by '******';

FLUSH PRIVILEGES;

alter user 'hive'@'%' IDENTIFIED WITH mysql_native_password BY '******';

FLUSH PRIVILEGES;

grant all privileges on hive.* to 'hive'@'%' with grant option;

FLUSH PRIVILEGES;

CREATE DATABASE ranger DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;FLUSH PRIVILEGES;

create user 'rangeradmin'@'%' identified by '******';

FLUSH PRIVILEGES;

alter user 'rangeradmin'@'%' IDENTIFIED WITH mysql_native_password BY '******';

FLUSH PRIVILEGES;

grant all privileges on ranger.* to 'rangeradmin'@'%' with grant option;

FLUSH PRIVILEGES;

CREATE DATABASE nav DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;

FLUSH PRIVILEGES;

create user 'nav'@'%' identified by '******';

FLUSH PRIVILEGES;

alter user 'nav'@'%' IDENTIFIED WITH mysql_native_password BY '******';

FLUSH PRIVILEGES;

grant all privileges on nav.* to 'nav'@'%' with grant option;

FLUSH PRIVILEGES;

CREATE DATABASE navms DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci; FLUSH PRIVILEGES;

create user 'navms'@'%' identified by '******';

FLUSH PRIVILEGES;

alter user 'navms'@'%' IDENTIFIED WITH mysql_native_password BY '******';

FLUSH PRIVILEGES;

grant all privileges on navms.* to 'navms'@'%' with grant option;

FLUSH PRIVILEGES;

CREATE DATABASE oozie DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci; FLUSH PRIVILEGES;

create user 'oozie'@'%' identified by '******';

FLUSH PRIVILEGES;

alter user 'oozie'@'%' IDENTIFIED WITH mysql_native_password BY '******';

FLUSH PRIVILEGES;

grant all privileges on oozie.* to 'oozie'@'%' with grant option;

FLUSH PRIVILEGES;

----------------------------------------------------------------------------------------------------------------------------------------------------

创建安装Knox

CREATE DATABASE knox DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;

FLUSH PRIVILEGES;

create user 'knox'@'%' identified by '******';

FLUSH PRIVILEGES;

alter user 'knox'@'%' IDENTIFIED WITH mysql_native_password BY '******';

FLUSH PRIVILEGES;

grant all privileges on amon.* to 'knox'@'%' with grant option;

FLUSH PRIVILEGES;

第9步离线安装daemons、agent，server，support-cdh6（可选）可以自建httpd的yum源安装

#所有节点安装

# yum localinstall /opt/cloudera-manager-daemons-7.13.1.100-63338448.ky10.aarch64.rpm -y

# yum localinstall /opt/cloudera-manager-agent-7.13.1.100-63338448.ky10.aarch64.rpm -y

#主管理节点额外安装

# yum localinstall /opt/cloudera-manager-server-7.13.1.100-63338448.ky10.aarch64.rpm -y

可选安装support-cdh6

# yum localinstall cloudera-manager-support-cdh6-7.13.1.100-63338448.ky10.aarch64.rpm

第10步 python验证安装

#cd /opt/cloudera/cm-agent/bin

# python3.9

反馈：Python 3.9.14 (main, May 17 2025, 20:44:07)

[GCC 7.3.0] on linux

## sh /opt/cloudera/cm-agent/bin/python

反馈：Python 3.9.14 (main, May 17 2025, 20:44:07)

[GCC 7.3.0] on linux

第11步配置server和agent

必须集群外机器能用3306端口访问mysql

必须都是ip地址，不能用host本地域名

#/opt/cloudera/cm/schema/scm_prepare_database.sh -h 192.168.200.220 mysql scm root ******

只要success既可

#vim /etc/cloudera-scm-server/db.properties

所有agent节点，包含server节点，一般用hosts的本地域名

#vim /etc/cloudera-scm-agent/config.ini

server_host=master30.CMP.cn

第12步 server和agent的启动等命令

systemctl status cloudera-scm-server

systemctl stop cloudera-scm-server

systemctl enable cloudera-scm-server

systemctl restart cloudera-scm-server

--------------------------------------------------------------------------------------------------------------------------

systemctl status cloudera-scm-agent

systemctl stop cloudera-scm-agent

systemctl enable cloudera-scm-agent

systemctl restart cloudera-scm-agent

第13步 WEBUI登录

# 查看启动状态（等待约8分钟直到7180端口可用）

netstat -anp | grep 7180

本地访问计算机修改hosts

http://master20.CMP.cn:7180/

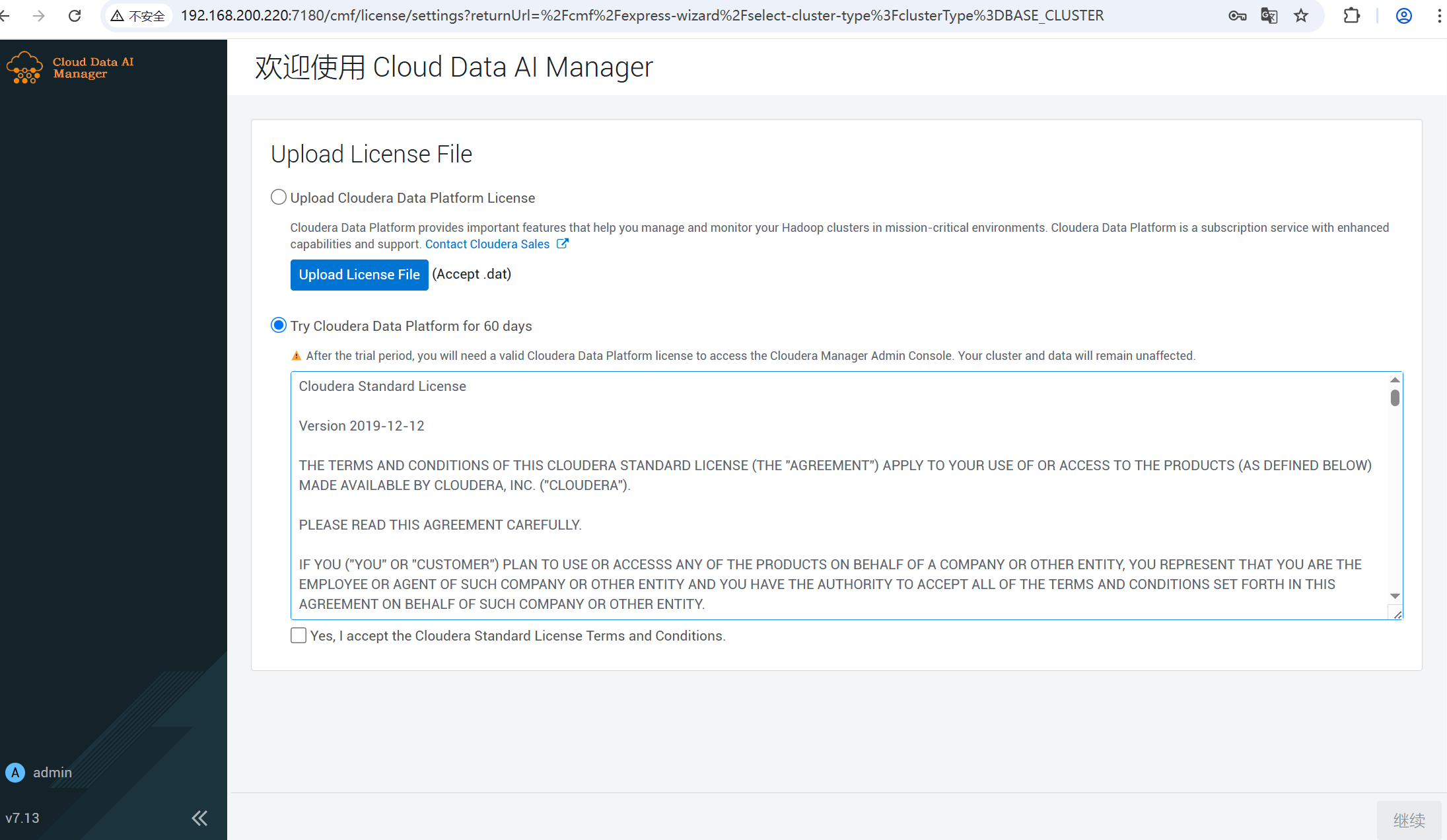

选择“Try **** for 60 days”；到期后联系我们。

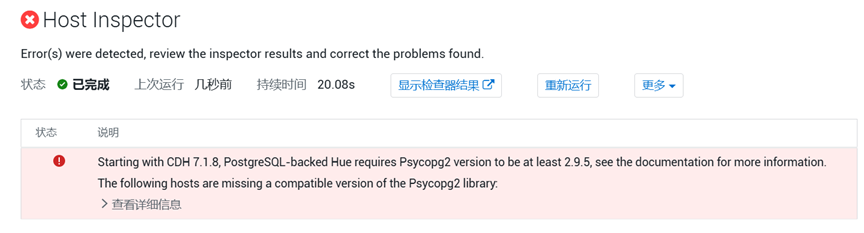

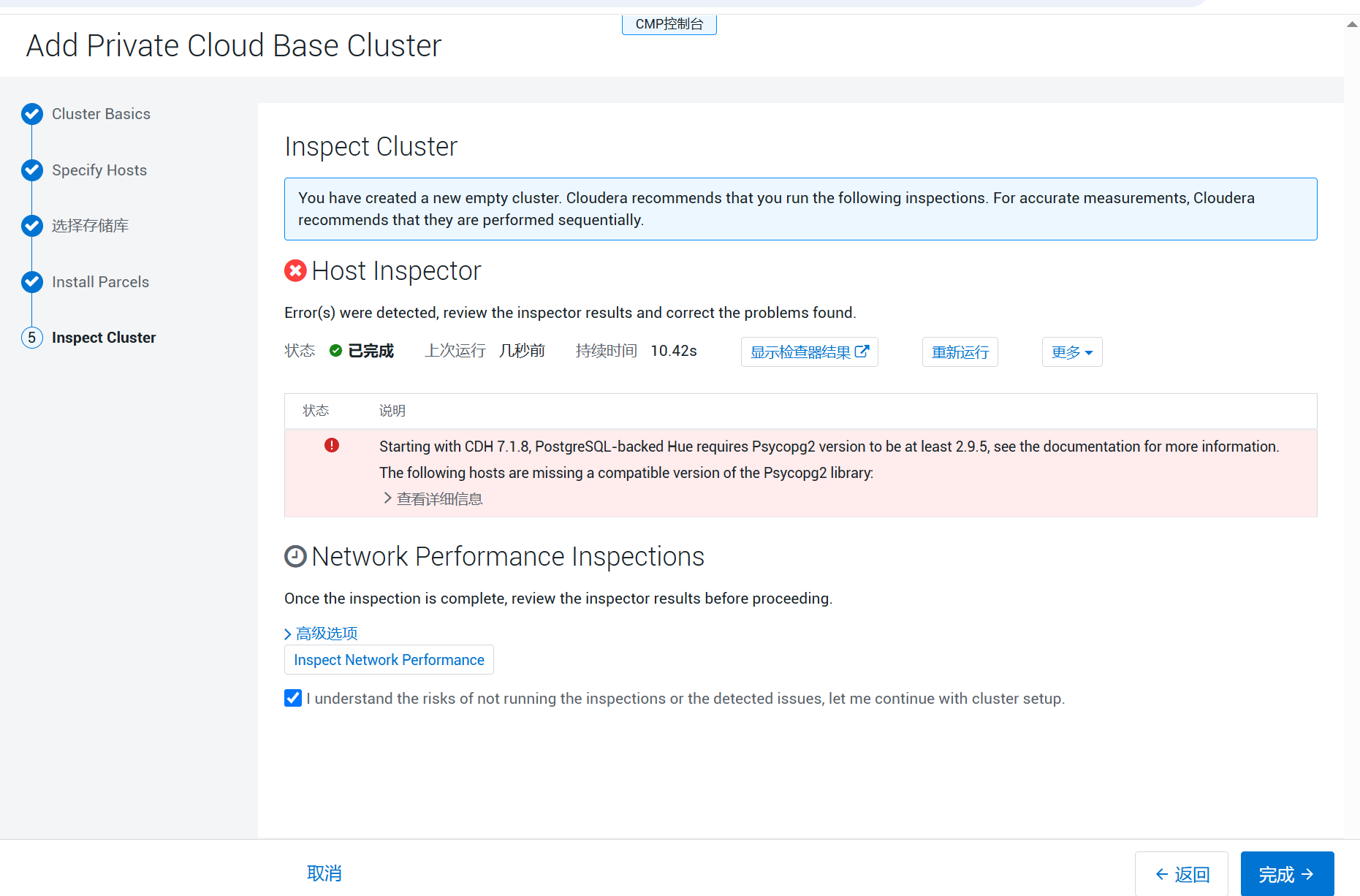

第14步安装CDH时检测“Host Inspector”

可以不用管，直接勾选“I understand the risks of not running the inspections or the detected issues, let me continue with cluster setup.”既可。

第15步 WEBUI的CDH安装

开启webUI配置CDH，按照，检测每个节点都要有kerberos的客户端

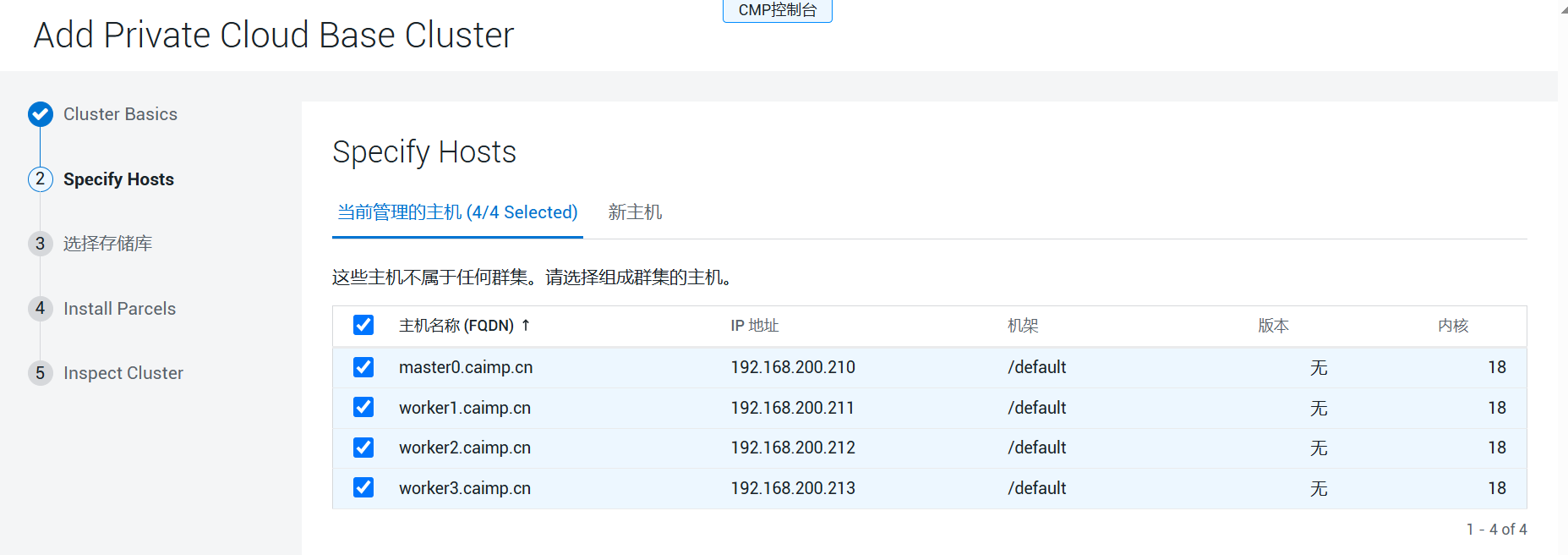

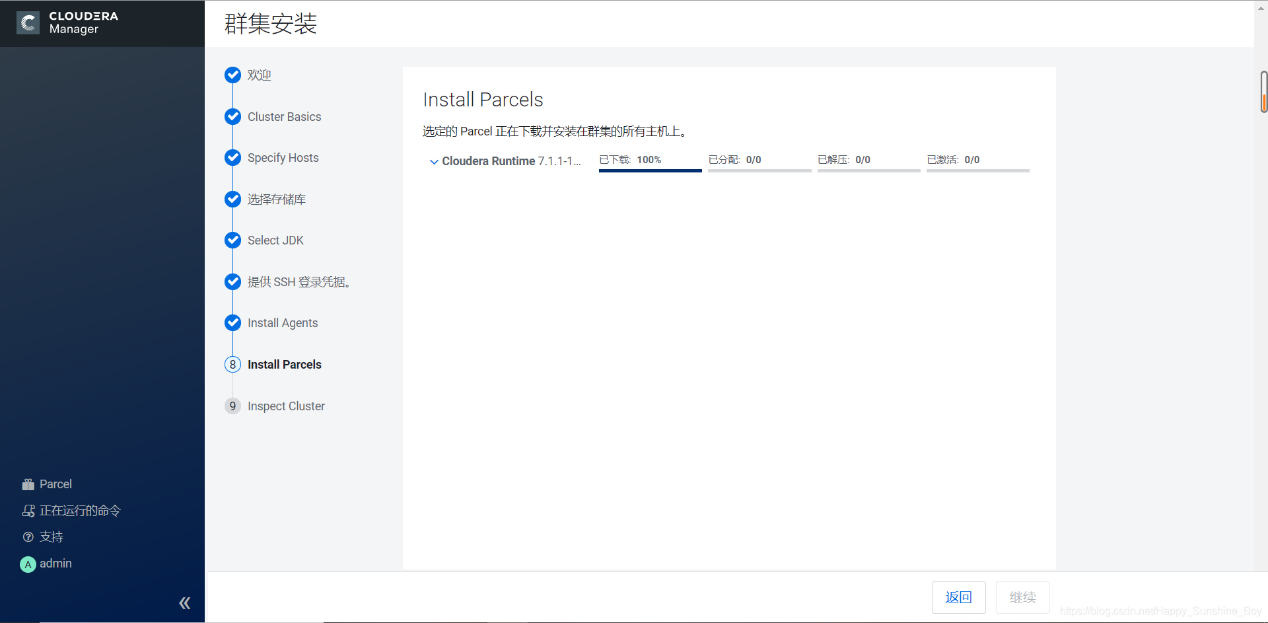

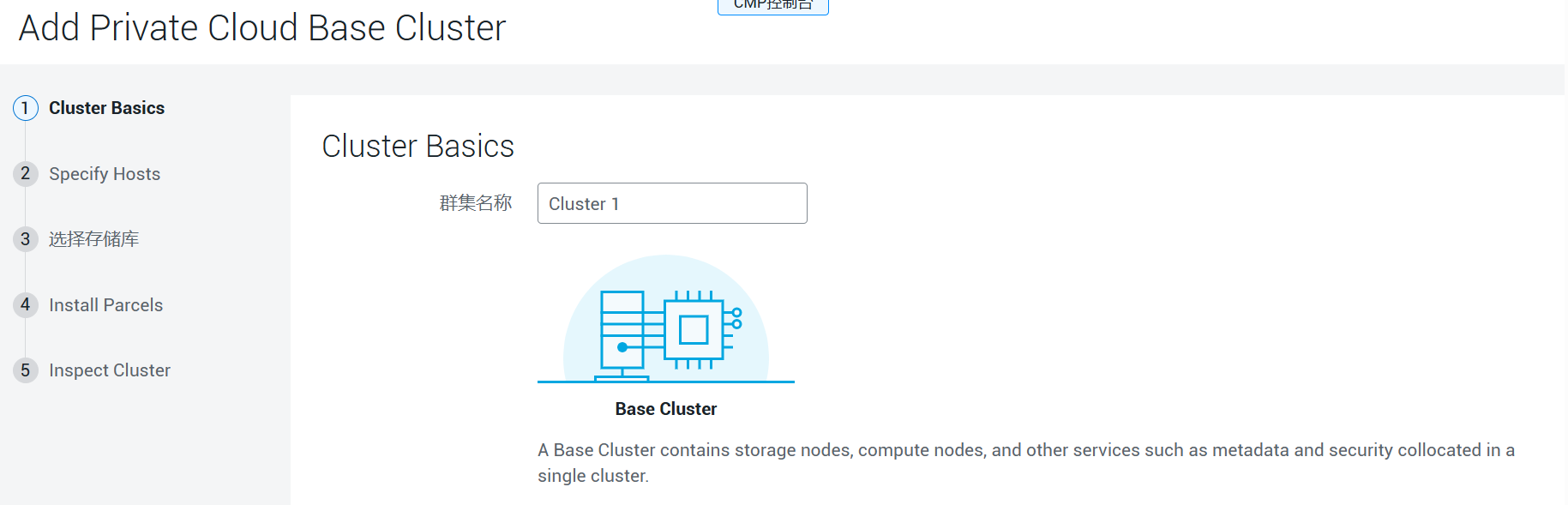

添加集群，按照步骤依次操作即可；（以下截图在安装过程中以实际为准）

https://img-blog.csdnimg.cn/20200610160051895.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0hhcHB5X1N1bnNoaW5lX0JveQ==,size_16,color_FFFFFF,t_70

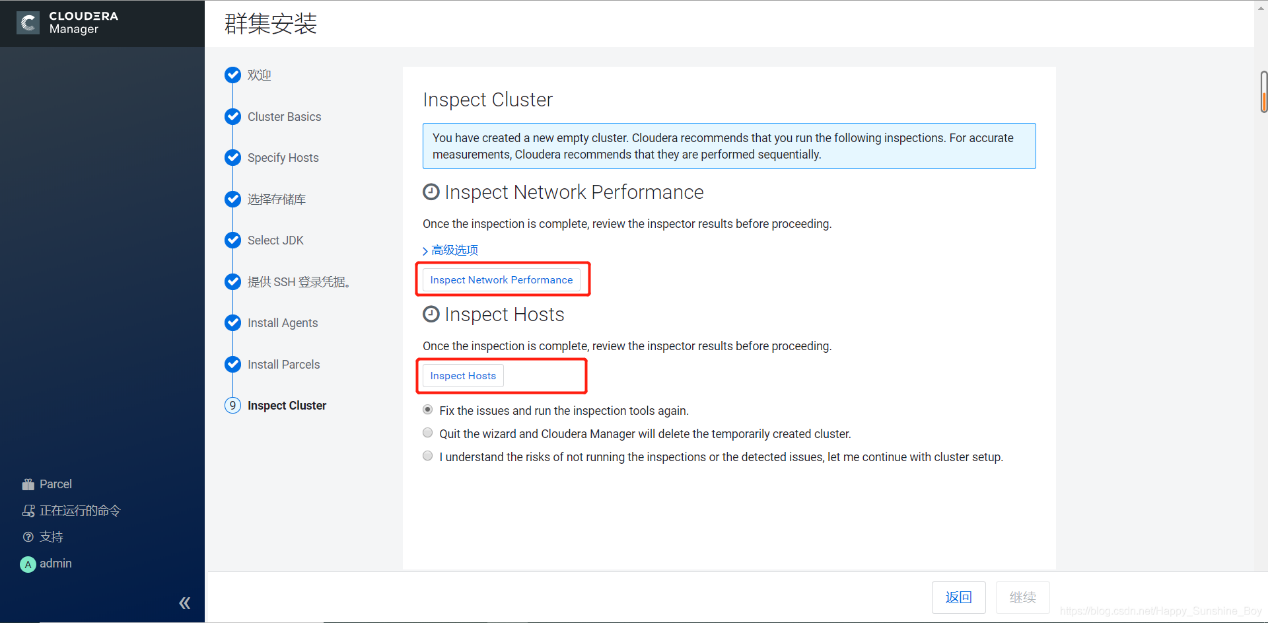

自动进入下一步主机检查和网络检查，确保所有检查项均通过：

https://img-blog.csdnimg.cn/20200610162130853.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0hhcHB5X1N1bnNoaW5lX0JveQ==,size_16,color_FFFFFF,t_70

需要手工点击进行网络性能和主机检查：

这一项可以不管，直接勾选点击“完成”既可。

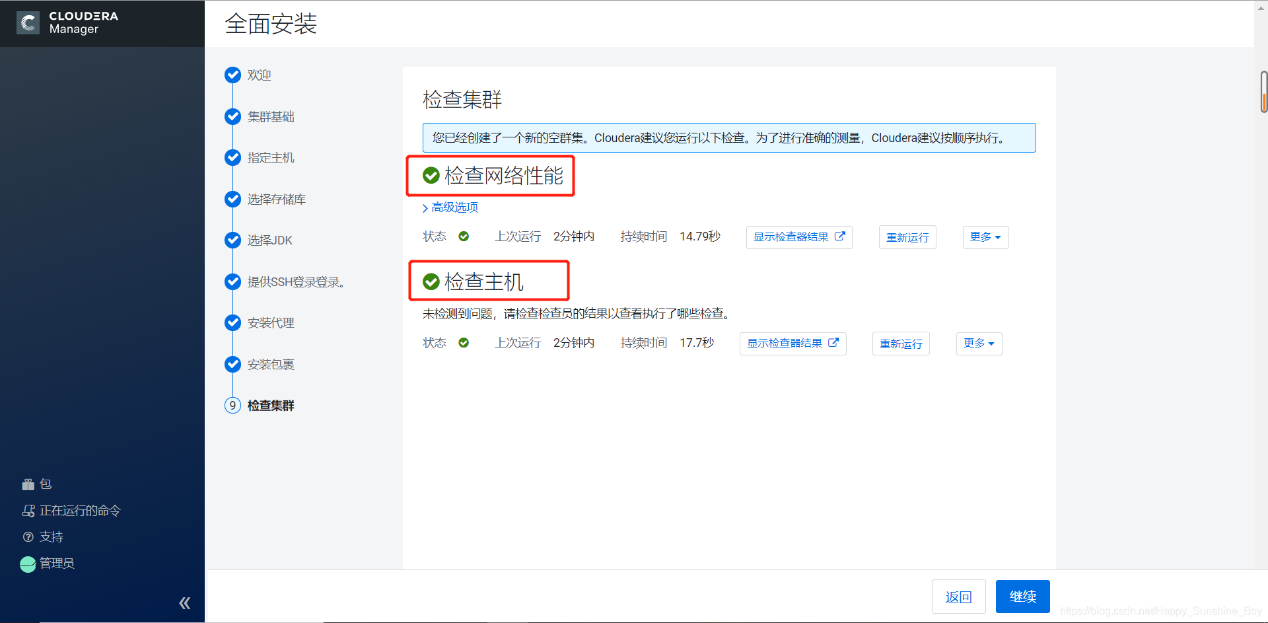

如果有错误或者黄色警告，查看“显示检查器结果”，并逐项解决，然后“重新运行”检查，直到所有的检查都通过，否则没办法点击继续下一步：

https://img-blog.csdnimg.cn/20200610163548950.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0hhcHB5X1N1bnNoaW5lX0JveQ==,size_16,color_FFFFFF,t_70

点击完成进入服务安装向导。

集群设置安装向导

0. WEBUI界面重复安装需要注意的事情：

重复WEBUI安装：

删除重新创建（除scm外）的数据库；
删除/dfs目录（所有节点）。

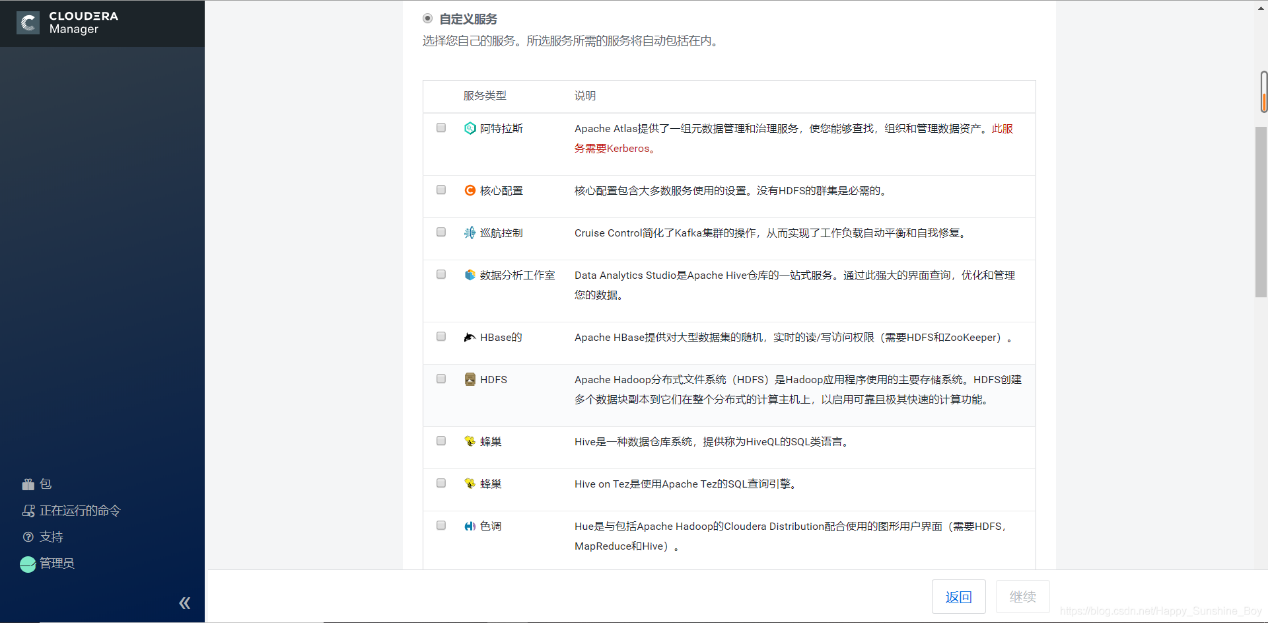

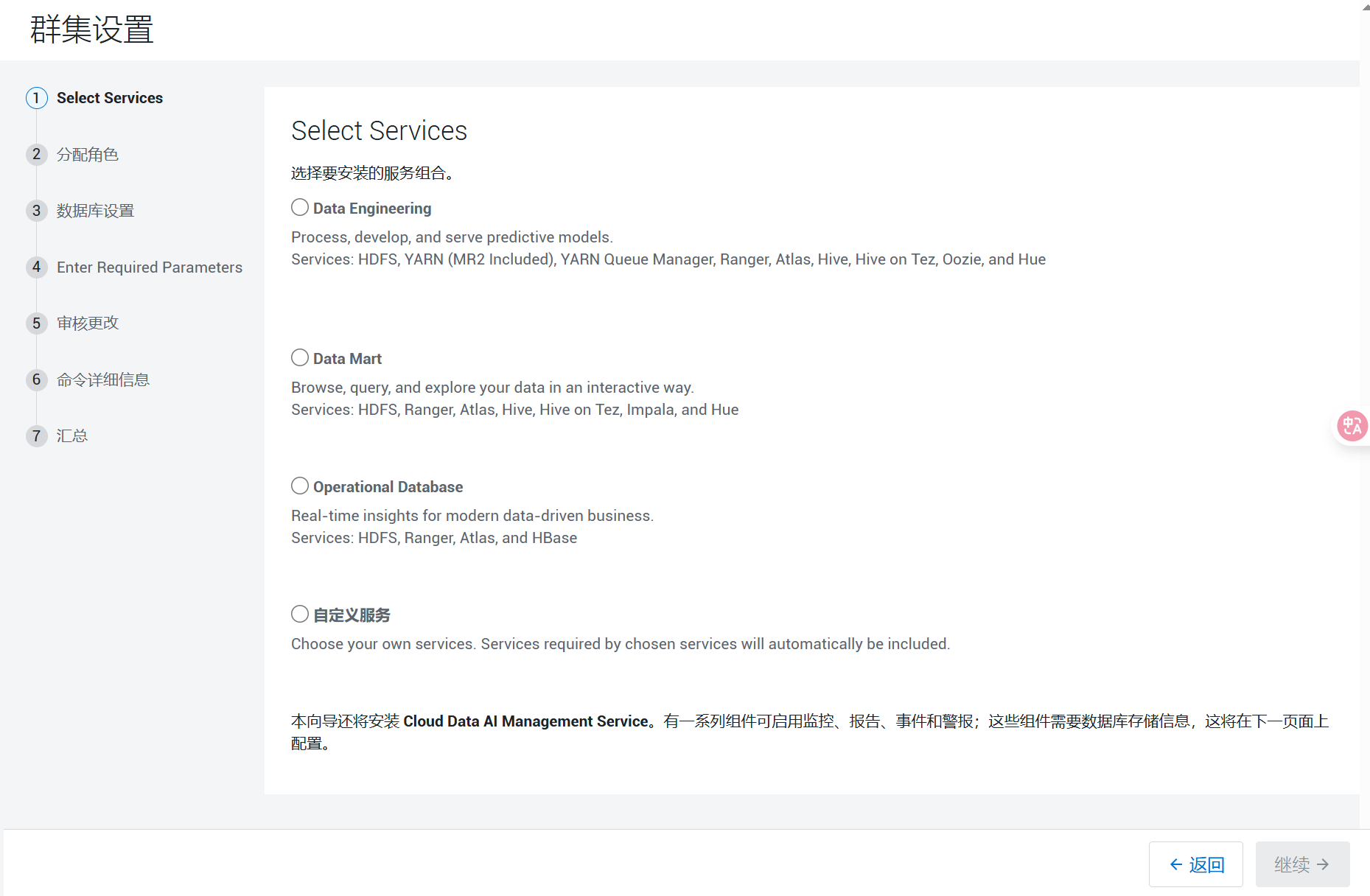

1. 选择需要安装的服务：

自定义服务中可以看到所有组件，可以根据自己的需求来选择：

https://img-blog.csdnimg.cn/20200610163822222.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0hhcHB5X1N1bnNoaW5lX0JveQ==,size_16,color_FFFFFF,t_70

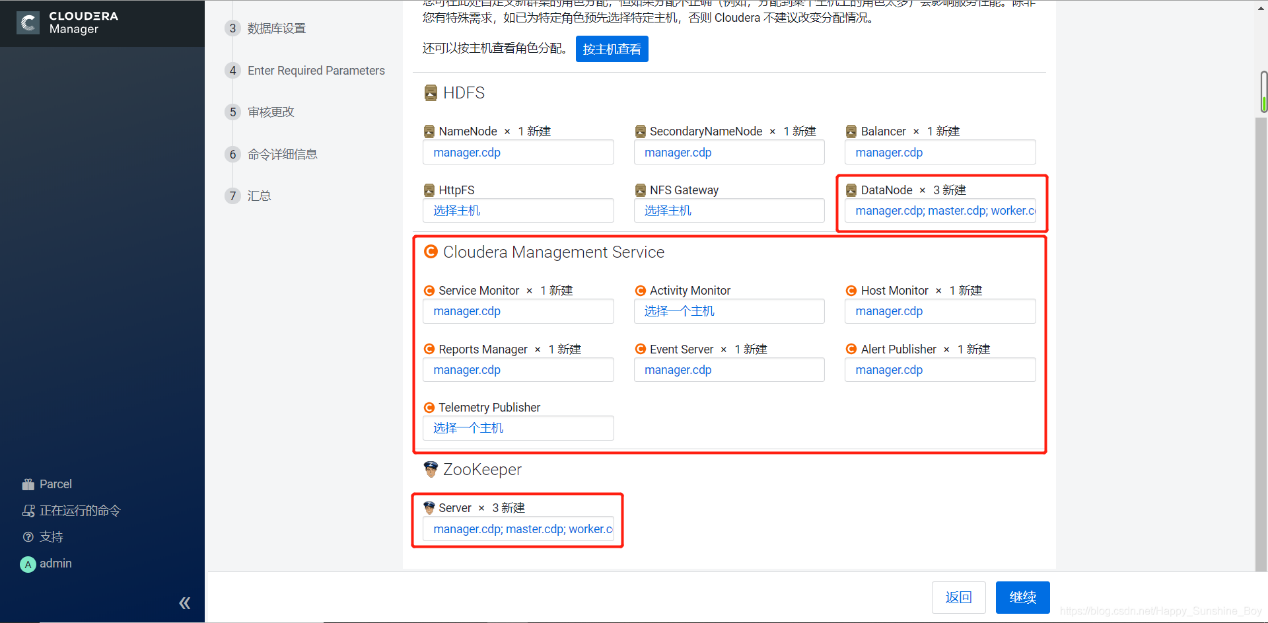

点击“继续”，进入集群角色分配，一台机器作为管理节点，另外三台机器作为DataNode：

https://img-blog.csdnimg.cn/20200611154258673.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0hhcHB5X1N1bnNoaW5lX0JveQ==,size_16,color_FFFFFF,t_70

注意： Cloudera Management Service中的Activity Monitor现在已经基本上不用，可以不安装该服务。Telemetry Publisher是遥感服务，用于Workload XM通信，如果没有计划使用Workload XM，则不需要安装该服务。ZooKeeper至少安装3节点，需要为奇数节点数，本项目安装5个节点。
