[数据分析]因果推断入门：相关性≠因果性，那什么才是？

import numpy as np
import pandas as pd

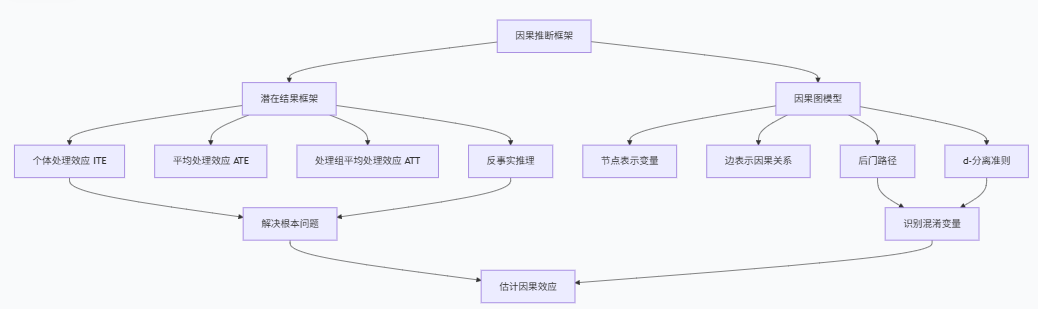

class PotentialOutcomesFramework:
    def __init__(self, n_units=1000):
        self.n_units = n_units
        self.data = None

    def generate_data(self, baseline_y0=50, treatment_effect=10, heterogeneity=5):
        """生成模拟潜在结果数据"""
        np.random.seed(42)

        # 生成基线特征
        age = np.random.normal(45, 15, self.n_units)
        education = np.random.normal(12, 3, self.n_units)

        # 生成潜在结果
        base_y0 = baseline_y0 + 0.5*age + 1.5*education + np.random.normal(0, 10, self.n_units)
        indiv_te = treatment_effect + heterogeneity*(education - 12)/3 + np.random.normal(0, 3, self.n_units)

        y0 = base_y0
        y1 = base_y0 + indiv_te

        # 基于倾向得分分配处理
        propensity = 1 / (1 + np.exp(-(age - 45)/15 - (education - 12)/3))
        treatment = np.random.binomial(1, propensity)

        # 观察结果
        observed_y = np.where(treatment == 1, y1, y0)

        self.data = pd.DataFrame({
            'age': age,
            'education': education,
            'y0': y0,
            'y1': y1,
            'treatment': treatment,
            'observed_y': observed_y,
            'true_ite': y1 - y0
        })

        return self.data

    def calculate_naive_ate(self):
        """计算简单的ATE估计（可能有偏差）"""
        if self.data is None:
            self.generate_data()

        treated_mean = self.data[self.data['treatment'] == 1]['observed_y'].mean()
        control_mean = self.data[self.data['treatment'] == 0]['observed_y'].mean()

        return treated_mean - control_mean

    def calculate_true_ate(self):
        """计算真实的ATE"""
        if self.data is None:
            self.generate_data()

        return self.data['true_ite'].mean()

# 示例使用
framework = PotentialOutcomesFramework()
data = framework.generate_data()

naive_ate = framework.calculate_naive_ate()
true_ate = framework.calculate_true_ate()

print(f"简单ATE估计: {naive_ate:.2f}")
print(f"真实ATE: {true_ate:.2f}")
print(f"估计偏差: {naive_ate - true_ate:.2f}")

import networkx as nx
import matplotlib.pyplot as plt

class CausalGraph:
    def __init__(self):
        self.graph = nx.DiGraph()

    def add_edges(self, edges):
        """添加边到因果图"""
        self.graph.add_edges_from(edges)

    def draw_graph(self):
        """绘制因果图"""
        plt.figure(figsize=(10, 8))
        pos = nx.spring_layout(self.graph)
        nx.draw(self.graph, pos, with_labels=True, node_size=3000,
                node_color='skyblue', font_size=15, arrowsize=20)
        plt.title("因果图模型", fontsize=20)
        plt.show()

    def get_backdoor_paths(self, treatment, outcome):
        """获取后门路径"""
        backdoor_paths = []

        # 查找所有连接treatment和outcome的路径
        all_paths = nx.all_simple_paths(self.graph, treatment, outcome)

        for path in all_paths:
            # 检查是否是后门路径（以指向treatment的箭头开始）
            if len(path) >= 2 and (path[1], path[0]) in self.graph.edges:
                backdoor_paths.append(path)

        return backdoor_paths

    def get_confounders(self, treatment, outcome):
        """识别混淆变量"""
        backdoor_paths = self.get_backdoor_paths(treatment, outcome)
        confounders = set()

        for path in backdoor_paths:
            # 后门路径上的变量（除了treatment和outcome）都是潜在的混淆变量
            confounders.update(path[1:-1])

        return confounders

# 创建因果图示例
cg = CausalGraph()
edges = [('年龄', '治疗'), ('年龄', '健康结果'), ('教育', '治疗'),
         ('教育', '健康结果'), ('治疗', '健康结果')]
cg.add_edges(edges)

cg.draw_graph()

print("后门路径:", cg.get_backdoor_paths('治疗', '健康结果'))
print("混淆变量:", cg.get_confounders('治疗', '健康结果'))

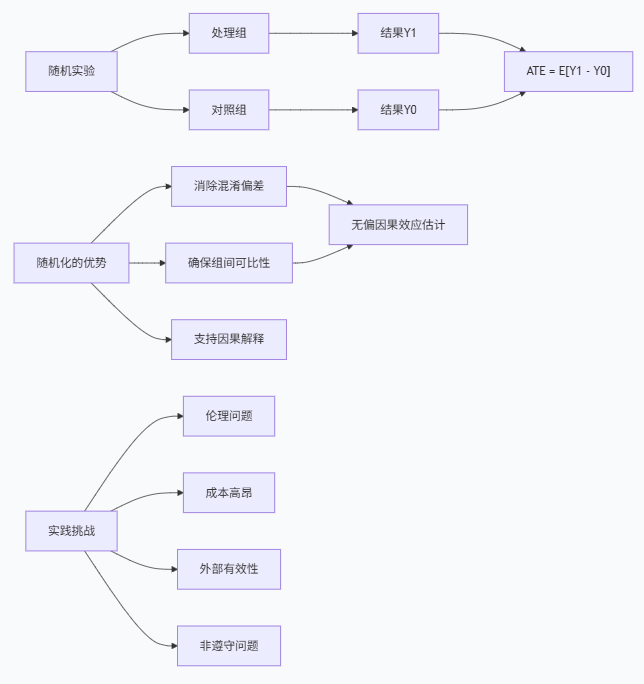

class RandomizedExperiment:
    def __init__(self, n_units=1000, true_effect=5):
        self.n_units = n_units
        self.true_effect = true_effect
        self.data = None

    def generate_data(self):
        """生成模拟数据"""
        np.random.seed(42)

        # 生成基线特征
        age = np.random.normal(45, 15, self.n_units)
        education = np.random.normal(12, 3, self.n_units)
        baseline_health = np.random.normal(50, 10, self.n_units)

        # 随机分配处理
        treatment = np.random.binomial(1, 0.5, self.n_units)

        # 生成结果（处理效应为true_effect）
        y0 = baseline_health + 0.3*age + 0.5*education + np.random.normal(0, 5, self.n_units)
        y1 = y0 + self.true_effect
        observed_y = np.where(treatment == 1, y1, y0)

        self.data = pd.DataFrame({
            'age': age,
            'education': education,
            'baseline_health': baseline_health,
            'treatment': treatment,
            'y0': y0,
            'y1': y1,
            'observed_y': observed_y
        })

        return self.data

    def check_balance(self):
        """检查随机化后的平衡性"""
        if self.data is None:
            self.generate_data()

        balance_table = pd.DataFrame()

        for covariate in ['age', 'education', 'baseline_health']:
            treated_mean = self.data[self.data['treatment'] == 1][covariate].mean()
            control_mean = self.data[self.data['treatment'] == 0][covariate].mean()
            difference = treated_mean - control_mean
            p_value = self._calculate_p_value(
                self.data[self.data['treatment'] == 1][covariate],
                self.data[self.data['treatment'] == 0][covariate]
            )

            balance_table[covariate] = [treated_mean, control_mean, difference, p_value]

        balance_table.index = ['处理组均值', '对照组均值', '差异', 'p值']

        return balance_table.round(3)

    def _calculate_p_value(self, group1, group2):
        """计算两组差异的p值"""
        from scipy.stats import ttest_ind
        _, p_value = ttest_ind(group1, group2)
        return p_value

    def estimate_ate(self):
        """估计平均处理效应"""
        if self.data is None:
            self.generate_data()

        treated_mean = self.data[self.data['treatment'] == 1]['observed_y'].mean()
        control_mean = self.data[self.data['treatment'] == 0]['observed_y'].mean()

        ate = treated_mean - control_mean
        ate_se = self._calculate_ate_se()

        return ate, ate_se, (ate - 1.96*ate_se, ate + 1.96*ate_se)

    def _calculate_ate_se(self):
        """计算ATE的标准误"""
        treated_var = self.data[self.data['treatment'] == 1]['observed_y'].var()
        control_var = self.data[self.data['treatment'] == 0]['observed_y'].var()
        n_treated = len(self.data[self.data['treatment'] == 1])
        n_control = len(self.data[self.data['treatment'] == 0])

        se = np.sqrt(treated_var/n_treated + control_var/n_control)
        return se

# 运行随机实验模拟
experiment = RandomizedExperiment(n_units=2000, true_effect=5)
data = experiment.generate_data()

print("平衡性检查:")
print(experiment.check_balance())

ate, ate_se, ci = experiment.estimate_ate()
print(f"\nATE估计: {ate:.3f}")
print(f"标准误: {ate_se:.3f}")
print(f"95%置信区间: ({ci[0]:.3f}, {ci[1]:.3f})")

import statsmodels.api as sm
import statsmodels.formula.api as smf

def analyze_experiment_regression(data):
    """使用回归分析实验数据"""
    # 简单均值比较模型
    model1 = smf.ols('observed_y ~ treatment', data=data).fit()

    # 调整基线协变量提高精度
    model2 = smf.ols('observed_y ~ treatment + age + education + baseline_health', data=data).fit()

    # 包含交互项（处理效应异质性）
    model3 = smf.ols('observed_y ~ treatment * (age + education)', data=data).fit()

    return model1, model2, model3

# 分析实验数据
model1, model2, model3 = analyze_experiment_regression(data)

print("简单模型:")
print(f"ATE估计: {model1.params['treatment']:.3f}, p值: {model1.pvalues['treatment']:.4f}")

print("\n调整协变量模型:")
print(f"ATE估计: {model2.params['treatment']:.3f}, p值: {model2.pvalues['treatment']:.4f}")

print("\n异质性处理效应模型:")
print(f"平均ATE: {model3.params['treatment']:.3f}, p值: {model3.pvalues['treatment']:.4f}")

from sklearn.linear_model import LogisticRegression
from sklearn.neighbors import NearestNeighbors

class PropensityScoreMatcher:
    def __init__(self):
        self.ps_model = None
        self.matched_data = None

    def estimate_propensity_scores(self, X, treatment):
        """估计倾向得分"""
        self.ps_model = LogisticRegression()
        self.ps_model.fit(X, treatment)
        propensity_scores = self.ps_model.predict_proba(X)[:, 1]
        return propensity_scores

    def match(self, data, covariates, treatment_var, outcome_var, caliper=0.1):
        """执行倾向得分匹配"""
        X = data[covariates]
        treatment = data[treatment_var]

        # 估计倾向得分
        data['propensity_score'] = self.estimate_propensity_scores(X, treatment)

        # 分离处理组和对照组
        treated = data[data[treatment_var] == 1]
        control = data[data[treatment_var] == 0]

        # 使用最近邻匹配
        nbrs = NearestNeighbors(n_neighbors=1, metric='euclidean')
        nbrs.fit(control[['propensity_score']])

        distances, indices = nbrs.kneighbors(treated[['propensity_score']])

        # 应用卡钳值
        matched_indices = []
        for i, (dist, idx) in enumerate(zip(distances, indices)):
            if dist < caliper:
                matched_indices.append((treated.index[i], control.index[idx[0]]))

        # 创建匹配后的数据集
        treated_matched = data.loc[[pair[0] for pair in matched_indices]]
        control_matched = data.loc[[pair[1] for pair in matched_indices]]

        self.matched_data = pd.concat([treated_matched, control_matched])

        return self.matched_data

    def estimate_ate(self):
        """估计匹配后的ATE"""
        if self.matched_data is None:
            raise ValueError("必须先执行匹配")

        treated_mean = self.matched_data[self.matched_data['treatment'] == 1]['observed_y'].mean()
        control_mean = self.matched_data[self.matched_data['treatment'] == 0]['observed_y'].mean()

        return treated_mean - control_mean

# 使用PSM示例
# 首先创建有混淆的观察性数据
np.random.seed(42)
n_units = 2000

# 生成混淆变量
age = np.random.normal(45, 15, n_units)
education = np.random.normal(12, 3, n_units)

# 基于混淆变量生成处理分配（非随机）
propensity = 1 / (1 + np.exp(-(age - 45)/15 - (education - 12)/3))
treatment = np.random.binomial(1, propensity)

# 生成结果（真实效应为5）
y0 = 50 + 0.5*age + 1.5*education + np.random.normal(0, 10, n_units)
y1 = y0 + 5
observed_y = np.where(treatment == 1, y1, y0)

obs_data = pd.DataFrame({
    'age': age,
    'education': education,
    'treatment': treatment,
    'observed_y': observed_y
})

# 执行PSM
matcher = PropensityScoreMatcher()
matched_data = matcher.match(obs_data, ['age', 'education'], 'treatment', 'observed_y')

naive_ate = obs_data[obs_data['treatment'] == 1]['observed_y'].mean() - obs_data[obs_data['treatment'] == 0]['observed_y'].mean()
psm_ate = matcher.estimate_ate()

print(f"简单比较ATE: {naive_ate:.3f}")
print(f"PSM调整后ATE: {psm_ate:.3f}")
print(f"真实ATE: 5.000")

class IPTWEstimator:
    def __init__(self):
        self.ps_model = None

    def estimate_ate(self, data, covariates, treatment_var, outcome_var):
        """使用IPTW估计ATE"""
        X = data[covariates]
        treatment = data[treatment_var]

        # 估计倾向得分
        self.ps_model = LogisticRegression()
        self.ps_model.fit(X, treatment)
        propensity_scores = self.ps_model.predict_proba(X)[:, 1]

        # 计算权重
        weights = np.where(treatment == 1,
                          1/propensity_scores,
                          1/(1-propensity_scores))

        # 加权估计ATE
        weighted_treated = np.sum(weights * treatment * data[outcome_var]) / np.sum(weights * treatment)
        weighted_control = np.sum(weights * (1-treatment) * data[outcome_var]) / np.sum(weights * (1-treatment))

        ate = weighted_treated - weighted_control

        return ate, weights

# 使用IPTW示例
iptw = IPTWEstimator()
ate_iptw, weights = iptw.estimate_ate(obs_data, ['age', 'education'], 'treatment', 'observed_y')

print(f"IPTW估计ATE: {ate_iptw:.3f}")

class DifferenceInDifferences:
    def __init__(self):
        pass

    def generate_panel_data(self, n_units=1000, n_periods=5, true_effect=3):
        """生成面板数据"""
        np.random.seed(42)

        # 生成单位固定效应和时间固定效应
        unit_effects = np.random.normal(0, 5, n_units)
        time_effects = np.random.normal(0, 2, n_periods)

        # 生成处理分配（某些单位在某个时间点后接受处理）
        treatment_unit = np.random.binomial(1, 0.5, n_units)
        treatment_time = n_periods // 2  # 中间时间点引入处理

        data = []
        for i in range(n_units):
            for t in range(n_periods):
                # 基础结果
                base_outcome = 50 + unit_effects[i] + time_effects[t]

                # 处理效应（处理后且处理组）
                if t >= treatment_time and treatment_unit[i] == 1:
                    treatment_effect = true_effect
                else:
                    treatment_effect = 0

                outcome = base_outcome + treatment_effect + np.random.normal(0, 3)

                data.append({
                    'unit': i,
                    'time': t,
                    'treatment_unit': treatment_unit[i],
                    'post_treatment': 1 if t >= treatment_time else 0,
                    'outcome': outcome
                })

        return pd.DataFrame(data)

    def estimate_did(self, data):
        """估计DID"""
        # 分组计算前后均值
        pre_treatment = data[data['post_treatment'] == 0].groupby('treatment_unit')['outcome'].mean()
        post_treatment = data[data['post_treatment'] == 1].groupby('treatment_unit')['outcome'].mean()

        # 计算DID
        diff_treatment = post_treatment[1] - pre_treatment[1]
        diff_control = post_treatment[0] - pre_treatment[0]

        did_estimate = diff_treatment - diff_control

        return did_estimate

# 使用DID示例
did = DifferenceInDifferences()
panel_data = did.generate_panel_data()
did_estimate = did.estimate_did(panel_data)

print(f"DID估计效应: {did_estimate:.3f}")
print(f"真实效应: 3.000")

class InstrumentalVariable:
    def __init__(self):
        pass

    def generate_iv_data(self, n_units=1000, true_effect=4):
        """生成工具变量数据"""
        np.random.seed(42)

        # 生成工具变量（与处理相关但与结果无关）
        instrument = np.random.normal(0, 1, n_units)

        # 生成混淆变量
        confounder = np.random.normal(0, 2, n_units)

        # 生成处理（受工具变量和混淆变量影响）
        treatment = 0.8 * instrument + 0.5 * confounder + np.random.normal(0, 1, n_units)
        treatment = (treatment > 0).astype(int)

        # 生成结果（受处理和混淆变量影响）
        outcome = true_effect * treatment + 1.5 * confounder + np.random.normal(0, 2, n_units)

        return pd.DataFrame({
            'instrument': instrument,
            'confounder': confounder,
            'treatment': treatment,
            'outcome': outcome
        })

    def estimate_iv(self, data):
        """使用2SLS估计IV"""
        from sklearn.linear_model import LinearRegression

        # 第一阶段：工具变量预测处理
        stage1 = LinearRegression()
        stage1.fit(data[['instrument']], data['treatment'])
        treatment_pred = stage1.predict(data[['instrument']])

        # 第二阶段：预测的处理预测结果
        stage2 = LinearRegression()
        stage2.fit(treatment_pred.reshape(-1, 1), data['outcome'])

        iv_estimate = stage2.coef_[0]

        return iv_estimate

# 使用IV示例
iv = InstrumentalVariable()
iv_data = iv.generate_iv_data()
iv_estimate = iv.estimate_iv(iv_data)

naive_estimate = LinearRegression().fit(iv_data[['treatment']], iv_data['outcome']).coef_[0]

print(f"简单回归估计: {naive_estimate:.3f}")
print(f"IV估计: {iv_estimate:.3f}")
print(f"真实效应: 4.000")

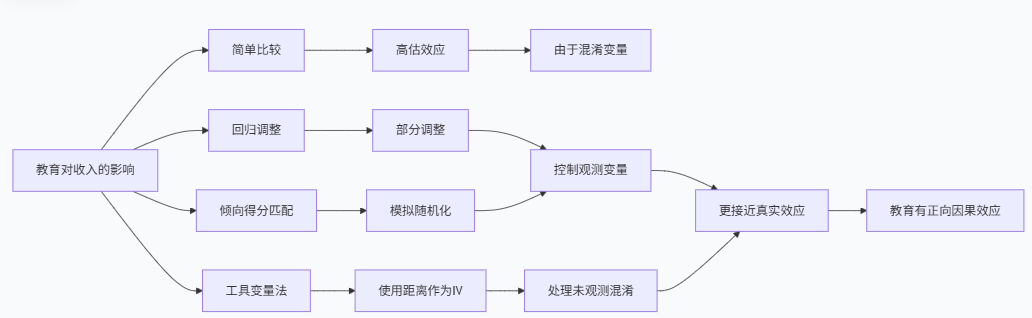

class EducationIncomeData:
    def __init__(self, n_units=5000):
        self.n_units = n_units
        self.data = None

    def generate_data(self, true_effect=0.25):
        """生成教育-收入模拟数据"""
        np.random.seed(42)

        # 观测到的变量
        family_income = np.random.lognormal(10.5, 0.8, self.n_units)
        parental_education = np.random.normal(14, 3, self.n_units)
        cognitive_ability = np.random.normal(100, 15, self.n_units)

        # 未观测到的变量（动机、 ambition）
        motivation = np.random.normal(0, 1, self.n_units)

        # 教育选择模型（受观测和未观测变量影响）
        education_propensity = (
            0.3 * (family_income - np.mean(family_income))/np.std(family_income) +
            0.4 * (parental_education - 14)/3 +
            0.5 * (cognitive_ability - 100)/15 +
            0.6 * motivation +
            np.random.normal(0, 1, self.n_units)
        )

        college = (education_propensity > 0).astype(int)

        # 收入模型（真实教育效应为true_effect）
        log_income = (
            10.0 +
            true_effect * college +
            0.2 * (family_income - np.mean(family_income))/np.std(family_income) +
            0.3 * (parental_education - 14)/3 +
            0.4 * (cognitive_ability - 100)/15 +
            0.5 * motivation +
            np.random.normal(0, 0.5, self.n_units)
        )

        income = np.exp(log_income)

        self.data = pd.DataFrame({
            'family_income': family_income,
            'parental_education': parental_education,
            'cognitive_ability': cognitive_ability,
            'motivation': motivation,  # 注意：在实际分析中这个变量是未观测到的
            'college': college,
            'income': income,
            'log_income': log_income
        })

        return self.data

    def naive_analysis(self):
        """简单比较大学毕业生和非大学毕业生的收入"""
        if self.data is None:
            self.generate_data()

        college_income = self.data[self.data['college'] == 1]['income'].mean()
        no_college_income = self.data[self.data['college'] == 0]['income'].mean()

        income_diff = college_income - no_college_income
        ratio = college_income / no_college_income

        return income_diff, ratio

# 生成数据
education_data = EducationIncomeData(n_units=10000)
data = education_data.generate_data(true_effect=0.25)  # 真实效应：教育使收入增加25%

# 简单比较
income_diff, ratio = education_data.naive_analysis()
print(f"大学毕业生平均收入: {data[data['college'] == 1]['income'].mean():.2f}")
print(f"非大学毕业生平均收入: {data[data['college'] == 0]['income'].mean():.2f}")
print(f"收入差异: {income_diff:.2f}")
print(f"收入比率: {ratio:.3f}")

def regression_adjustment(data):
    """使用回归调整控制观测到的混淆变量"""
    # 只控制观测到的变量
    model = smf.ols('log_income ~ college + family_income + parental_education + cognitive_ability',
                   data=data).fit()

    # 指数转换获取收入比率
    income_ratio = np.exp(model.params['college'])

    return model.params['college'], income_ratio

# 回归调整
coef, ratio = regression_adjustment(data)
print(f"回归调整估计的教育效应 (log): {coef:.4f}")
print(f"收入比率: {ratio:.4f}")

def propensity_score_matching_analysis(data):
    """使用PSM估计教育效应"""
    matcher = PropensityScoreMatcher()

    # 使用观测到的变量进行匹配
    matched_data = matcher.match(
        data,
        ['family_income', 'parental_education', 'cognitive_ability'],
        'college',
        'log_income'
    )

    # 计算匹配后的效应
    college_mean = matched_data[matched_data['college'] == 1]['log_income'].mean()
    no_college_mean = matched_data[matched_data['college'] == 0]['log_income'].mean()

    effect = college_mean - no_college_mean
    income_ratio = np.exp(effect)

    return effect, income_ratio

# PSM分析
effect_psm, ratio_psm = propensity_score_matching_analysis(data)
print(f"PSM估计的教育效应 (log): {effect_psm:.4f}")
print(f"收入比率: {ratio_psm:.4f}")

def instrumental_variable_analysis(data):
    """使用工具变量法估计教育效应"""
    # 添加工具变量：距离最近大学的距离（公里）
    # 假设：距离影响上大学决策但不直接影响收入
    np.random.seed(42)
    data['distance_to_college'] = np.random.exponential(20, len(data))

    # 工具变量与教育的关系
    data['distance_effect'] = -0.02 * data['distance_to_college'] + np.random.normal(0, 0.5, len(data))
    data['college_iv'] = (data['education_propensity'] + data['distance_effect'] > 0).astype(int)

    # 2SLS回归
    # 第一阶段：工具变量预测处理
    stage1 = LinearRegression()
    stage1.fit(data[['distance_to_college']], data['college'])
    data['college_pred'] = stage1.predict(data[['distance_to_college']])

    # 第二阶段：预测的处理预测结果
    stage2 = LinearRegression()
    stage2.fit(data[['college_pred']], data['log_income'])

    iv_effect = stage2.coef_[0]
    income_ratio = np.exp(iv_effect)

    return iv_effect, income_ratio

# IV分析（注意：这里使用了简化的工具变量模拟）
iv_effect, iv_ratio = instrumental_variable_analysis(data.copy())
print(f"IV估计的教育效应 (log): {iv_effect:.4f}")
print(f"收入比率: {iv_ratio:.4f}")

methods = ['简单比较', '回归调整', 'PSM', 'IV']
effects_log = [np.log(ratio), coef, effect_psm, iv_effect]
effects_ratio = [ratio, np.exp(coef), ratio_psm, iv_ratio]

results_df = pd.DataFrame({
    '方法': methods,
    'log收入效应': effects_log,
    '收入比率': effects_ratio
})

print("各种方法的估计结果比较:")
print(results_df.round(4))
print(f"\n真实效应: log收入增加0.2500, 收入比率{np.exp(0.25):.4f}")

class CausalInferencePipeline:
    def __init__(self, data, treatment_var, outcome_var, covariates=None):
        self.data = data.copy()
        self.treatment_var = treatment_var
        self.outcome_var = outcome_var
        self.covariates = covariates or []
        self.results = {}

    def check_balance(self):
        """检查处理组和对照组的平衡性"""
        balance_table = pd.DataFrame()

        for covariate in self.covariates:
            treated_mean = self.data[self.data[self.treatment_var] == 1][covariate].mean()
            control_mean = self.data[self.data[self.treatment_var] == 0][covariate].mean()
            difference = treated_mean - control_mean
            p_value = self._calculate_p_value(
                self.data[self.data[self.treatment_var] == 1][covariate],
                self.data[self.data[self.treatment_var] == 0][covariate]
            )

            balance_table[covariate] = [treated_mean, control_mean, difference, p_value]

        balance_table.index = ['处理组均值', '对照组均值', '差异', 'p值']

        return balance_table.round(3)

    def _calculate_p_value(self, group1, group2):
        """计算两组差异的p值"""
        from scipy.stats import ttest_ind
        _, p_value = ttest_ind(group1, group2)
        return p_value

    def run_naive_analysis(self):
        """运行简单比较分析"""
        treated_mean = self.data[self.data[self.treatment_var] == 1][self.outcome_var].mean()
        control_mean = self.data[self.data[self.treatment_var] == 0][self.outcome_var].mean()

        effect = treated_mean - control_mean
        self.results['naive'] = effect

        return effect

    def run_regression_adjustment(self):
        """运行回归调整分析"""
        if not self.covariates:
            raise ValueError("需要指定协变量")

        formula = f"{self.outcome_var} ~ {self.treatment_var} + " + " + ".join(self.covariates)
        model = smf.ols(formula, data=self.data).fit()

        effect = model.params[self.treatment_var]
        self.results['regression'] = effect

        return effect, model

    def run_propensity_score_matching(self, caliper=0.1):
        """运行倾向得分匹配"""
        if not self.covariates:
            raise ValueError("需要指定协变量")

        matcher = PropensityScoreMatcher()
        matched_data = matcher.match(
            self.data, self.covariates, self.treatment_var, self.outcome_var, caliper
        )

        treated_mean = matched_data[matched_data[self.treatment_var] == 1][self.outcome_var].mean()
        control_mean = matched_data[matched_data[self.treatment_var] == 0][self.outcome_var].mean()

        effect = treated_mean - control_mean
        self.results['psm'] = effect
        self.matched_data = matched_data

        return effect, matched_data

    def run_iptw(self):
        """运行逆概率处理加权"""
        if not self.covariates:
            raise ValueError("需要指定协变量")

        iptw = IPTWEstimator()
        effect, weights = iptw.estimate_ate(self.data, self.covariates, self.treatment_var, self.outcome_var)

        self.results['iptw'] = effect
        self.weights = weights

        return effect, weights

    def run_all_methods(self):
        """运行所有分析方法"""
        results = {}

        results['naive'] = self.run_naive_analysis()
        results['regression'], _ = self.run_regression_adjustment()
        results['psm'], _ = self.run_propensity_score_matching()
        results['iptw'], _ = self.run_iptw()

        return results

    def plot_results(self, true_effect=None):
        """可视化结果比较"""
        methods = list(self.results.keys())
        effects = list(self.results.values())

        plt.figure(figsize=(10, 6))
        bars = plt.bar(methods, effects, alpha=0.7)

        # 添加真实效应线（如果已知）
        if true_effect is not None:
            plt.axhline(y=true_effect, color='r', linestyle='--', label=f'真实效应: {true_effect:.3f}')

        plt.ylabel('处理效应估计')
        plt.title('不同方法的因果效应估计比较')
        plt.legend()

        # 在柱子上添加数值标签
        for bar, effect in zip(bars, effects):
            plt.text(bar.get_x() + bar.get_width()/2, bar.get_height() + 0.01,
                    f'{effect:.3f}', ha='center', va='bottom')

        plt.tight_layout()
        plt.show()

# 使用管道示例
pipeline = CausalInferencePipeline(
    data=obs_data,
    treatment_var='treatment',
    outcome_var='observed_y',
    covariates=['age', 'education']
)

print("平衡性检查:")
print(pipeline.check_balance())

print("\n运行各种分析方法...")
results = pipeline.run_all_methods()

print("\n效应估计结果:")
for method, effect in results.items():
    print(f"{method}: {effect:.3f}")

print(f"真实效应: 5.000")

# 可视化结果
pipeline.plot_results(true_effect=5.0)

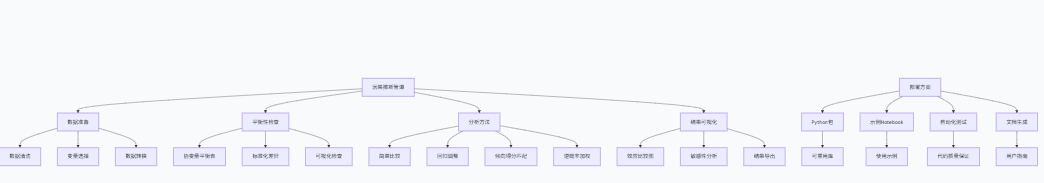

causalib/
│
├── __init__.py
├── data.py          # 数据生成和处理
├── methods.py       # 因果推断方法
├── utils.py         # 工具函数
├── visualization.py # 可视化功能
└── pipeline.py      # 分析管道

from setuptools import setup, find_packages

setup(
    name="causalib",
    version="0.1.0",
    description="A causal inference library for Python",
    author="Your Name",
    author_email="your.email@example.com",
    packages=find_packages(),
    install_requires=[
        "numpy>=1.20.0",
        "pandas>=1.3.0",
        "scipy>=1.7.0",
        "statsmodels>=0.13.0",
        "scikit-learn>=1.0.0",
        "matplotlib>=3.5.0",
        "seaborn>=0.11.0",
        "networkx>=2.6.0"
    ],
    python_requires=">=3.8",
)

# example_usage.ipynb
import causalib as cl
import numpy as np
import pandas as pd

# 生成模拟数据
data_generator = cl.DataGenerator()
data = data_generator.generate_observational_data(
    n_units=2000,
    true_effect=5.0,
    confounding_strength=0.7
)

# 初始化管道
pipeline = cl.CausalPipeline(
    data=data,
    treatment_var='treatment',
    outcome_var='outcome',
    covariates=['age', 'education', 'income']
)

# 检查平衡性
print("平衡性检查:")
print(pipeline.check_balance())

# 运行分析
results = pipeline.run_all_methods()

# 可视化结果
pipeline.plot_results(true_effect=5.0)

# 生成报告
report = pipeline.generate_report()
report.save('causal_analysis_report.html')

# tests/test_causalib.py
import unittest
import numpy as np
from causalib import DataGenerator, CausalPipeline

class TestCausalLib(unittest.TestCase):
    def setUp(self):
        self.data_generator = DataGenerator()

    def test_data_generation(self):
        """测试数据生成"""
        data = self.data_generator.generate_observational_data(
            n_units=1000, true_effect=5.0
        )

        self.assertIn('treatment', data.columns)
        self.assertIn('outcome', data.columns)
        self.assertEqual(len(data), 1000)

    def test_pipeline(self):
        """测试因果管道"""
        data = self.data_generator.generate_observational_data(
            n_units=500, true_effect=3.0
        )

        pipeline = CausalPipeline(
            data=data,
            treatment_var='treatment',
            outcome_var='outcome',
            covariates=['covariate1', 'covariate2']
        )

        results = pipeline.run_all_methods()

        self.assertIn('naive', results)
        self.assertIn('regression', results)
        self.assertIn('psm', results)
        self.assertIn('iptw', results)

        # 检查所有方法都返回数值结果
        for method, effect in results.items():
            self.assertIsInstance(effect, (int, float, np.number))

if __name__ == '__main__':
    unittest.main()

class SensitivityAnalysis:
    def __init__(self):
        pass

    def rosenbaum_sensitivity(self, effect_estimate, gamma_range=np.arange(1, 2.1, 0.1)):
        """
        Rosenbaum敏感性分析：评估结论对隐藏偏倚的稳健性

       参数:
        effect_estimate: 观察到的效应估计
        gamma_range: 隐藏偏倚的强度范围（Γ）

       返回:
        不同Γ水平下的p值范围
        """
        from scipy.stats import norm

        results = []

        for gamma in gamma_range:
            # 计算隐藏偏倚下的p值范围
            log_gamma = np.log(gamma)
            se = effect_estimate / norm.ppf(0.975)  # 近似标准误

            # 计算p值边界
            p_lower = 2 * (1 - norm.cdf(abs(effect_estimate)/se + log_gamma/se))
            p_upper = 2 * (1 - norm.cdf(abs(effect_estimate)/se - log_gamma/se))

            results.append({
                'gamma': gamma,
                'p_lower': p_lower,
                'p_upper': p_upper,
                'significant_lower': p_lower < 0.05,
                'significant_upper': p_upper < 0.05
            })

        return pd.DataFrame(results)

    def plot_sensitivity(self, sensitivity_results):
        """绘制敏感性分析图"""
        plt.figure(figsize=(10, 6))

        plt.plot(sensitivity_results['gamma'], sensitivity_results['p_lower'],
                label='p值下限', marker='o')
        plt.plot(sensitivity_results['gamma'], sensitivity_results['p_upper'],
                label='p值上限', marker='o')

        plt.axhline(y=0.05, color='r', linestyle='--', label='显著性阈值 (0.05)')

        plt.xlabel('隐藏偏倚强度 (Γ)')
        plt.ylabel('p值')
        plt.title('Rosenbaum敏感性分析')
        plt.legend()
        plt.grid(True)

        # 找到结论变得不显著的Γ值
        critical_gamma = sensitivity_results[
            sensitivity_results['significant_upper'] == False
        ]['gamma'].min()

        if not np.isnan(critical_gamma):
            plt.axvline(x=critical_gamma, color='g', linestyle=':',
                       label=f'临界值: Γ={critical_gamma:.2f}')
            plt.legend()

        plt.tight_layout()
        plt.show()

        return critical_gamma

# 敏感性分析示例
sensitivity = SensitivityAnalysis()
sensitivity_results = sensitivity.rosenbaum_sensitivity(effect_estimate=4.5)
critical_gamma = sensitivity.plot_sensitivity(sensitivity_results)

print(f"结论保持显著的最大隐藏偏倚: Γ={critical_gamma:.2f}")
