ROS和RRT的一些资料

ROS和RRT结合的示例比较多，之前博文提过两次（ 1 和 2 ），本文做一些汇总和整理，大部分都在roswiki和GitHub上有具体说明。需要认真阅读源码和说明文件，才能使用顺利。

01. RRT for Swarm 02. RRT-Plugin 03. CallistoRover 04. navigation algorithms(A*, RRT+)

05. ROS-assignment-3-RRT-planner 06. turtlebot_rrt 07. Quadcopter path planning using RRT*

08. Kinodynamic RRT Implementation 09. SRL_GLOBAL_PLANNER(RRT, RGG, RRT*, Theta*-RRT)

10. roswiki： rrt_exploration、riskrrt和motion_planning。

基础内容关注，move base、Navigation、MoveIt!等。下面对上面资源做一个简单的分类。

第一类：插件（plugin）

1. Implementation of RRT

2. A RRT* ROS plugin for Move Base using OMPL

3. SRL_GLOBAL_PLANNER软件包提供了基于采样的运动规划器（RRT，RGG，RRT *，Theta * -RRT）作为ROS中Move-base的全局规划器插件

srl_global_planner

The srl_global_planner ROS package provides an implementation of the sampling based motion planners (RRT, RRT*, Theta*-RRT) as global planner plugin for move_base, a ROS framework. Please refer to http://wiki.ros.org/move_base, for a detailed description of the move_base framework. All the algorithms exploit the POSQ steer function, but other steer functions are available (single and double integrator, Dubins curve). For additional info regarding the POSQ steer function and the learned distance metric used by srl_global_planner refer to the following papers:

• Distance Metric Learning for RRT-Based Motion Planning with Constant-Time Inference, IEEE International Conference on Robotics and Automation (ICRA'15), Seattle, USA, 2015.
• A Novel RRT Extend Function for Efficient and Smooth Mobile Robot Motion Planning, IEEE/RSJ Int. Conference on Intelligent Robots and Systems (IROS'14), Chicago, USA, 2014.

Requirements

• ROS (including visualization rools -> rviz), tested on Indigo and Hydro
• ros-hydro-navigation or ros-indigo-navigation
• Eigen3
• Boost >= 1.46
• C++11 compiler

Installation

Clone the package into you catkin workspace

• cd [workspace]/src
• git clone https://github.com/srl-freiburg/srl_global_planner.git
• cd ../
• catkin_make or catkin build

Usage

• roslaunch srl_global_planner move_base_global_srl.launch will launch the global planner node. You can launch the planner with different configurations, by varying some parameters:
  • TYPE_PLANNER, set to:
    • 0, use RRT
    • 1, use RRT* only partial rewiring
    • 2, use RRT*
  • NUMBER_UPDATE_TRAJ, set to:
    • Choose after how many cost improvements the planner could stop, currently set at 2. Minimum value is 1. Higher the value, higher the computaion time required to generate a trajectory
  • BOX :
    • if it is set to 1, the nearest vertex is selected from a weighted box according to the Ball-Box Theorem.
  • RADIUS :
    • the size of the radius where the near neighbor set is generated, in case you use RRT* select -1 so to have the RRT* shrinking ball.
  • RHO :
    • end condition for the POSQ steer function, should be set to a value of few cm.
  • DT :
    • integration time step of the POSQ steer function, maximum value 0.5s
  • TYPE_SAMPLING :
    • if TYPE_SAMPLING == 0 support set as uniform over a strips following a discrete path generate by a Theta*algorithm
    • If TYPE_SAMPLING == 1 support set as Gaussian Mixture over the Theta* path
    • if TYPE_SAMPLING == 2 support set as gaussians over a spline fitting the Theta* waypoints
    • if TYPE_SAMPLING == 3 support for Theta*-RRT, if set need to specify the range where to set orientations OR_RANGE and the width of the strip along the Theta* path WIDTH_STRIP
    • if TYPE_SAMPLING == 4 support set as the entire state space, the dimension of the state space are read from the grid generate by the move_base framework
    • if TYPE_SAMPLING == 5 Path Biasing along the current available trajectory. If used need to set also the biasing probability BIAS_PROB and the DISPERSION
  • GOAL_BIASING
    • if set to 1 activate goal biasing.
  • GOAL_BIASING_THS
    • set the probability to select a state not in the state space
  • ADD_COST_FROM_COSTMAP, set to true if you want to add cost from global cost map
  • ADD_COST_PATHLENGTH, set to true if you want to add the cost associated to path length and changes of heading
  • ADD_COST_THETASTAR, set to true if you want to add cost resembling closeness to thetastar path
  • Params related to the distance metric, only one of them shoul be set to 1. LEARNED and NOTLEARNED select the best vertex from the spherical neighborhood with radius equal to the parameter RADIUS:
    • LEARNED, set to 1, if you want to find the nearest vertex according to the learned cost
    • FINDNEAREST, set to 1 if you want to find the nearest vertex according to the Kd Tree Euclidean Distance
    • NOTLEARNED, set to 1 if you want to find the nearest vertex according to the cost computed over extensions of POSQ path
  • TIMECOUNTER, set to 1 if you want to specify the maximum amount of seconds your planner should work.
  • MAXTIME, max number of seconds allowed to find a path
  • max_iterations, if TIMECOUNTER is 0, this is the maximum number of iterations the planner will execute to find a path,

Developers

Any contribution to the software is welcome. Contact the current developers for any info:

• Luigi Palmieri (https://github.com/palmieri, palmieri(at)informatik.uni-freiburg.de)

TODOs:

• Rewrite the code to be conform to the ROS Cpp style guide, see http://wiki.ros.org/CppStyleGuide
• Use dynamic reconfiguration of the parameters, see http://wiki.ros.org/dynamic_reconfigure
• Improve documentation
• Include RRTx

------

第二类：算法（rviz可视化）

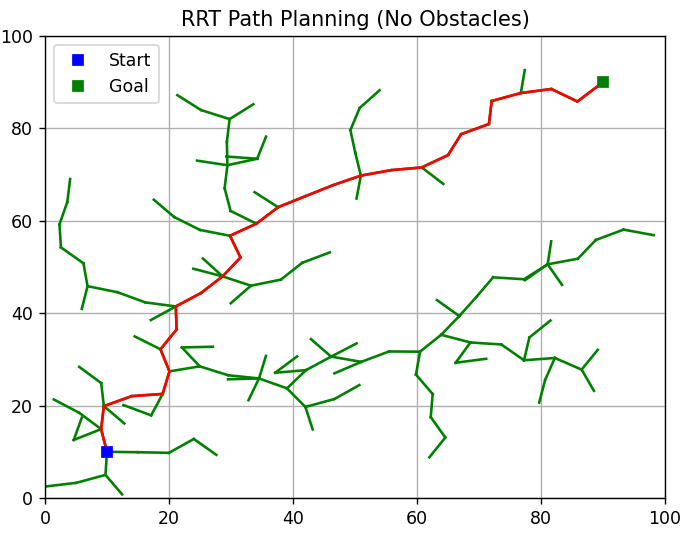

1. 在ROS中实现的基于RRT的路径规划算法（参考博文1）

2. Kinodynamic RRT算法实现

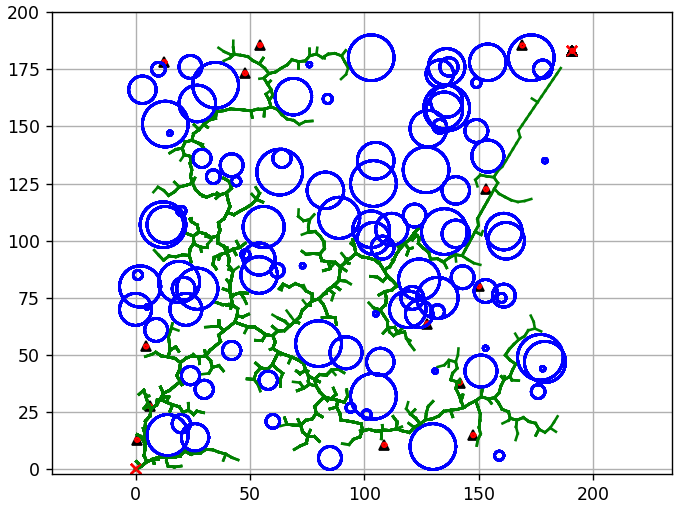

3. ROS（机器人操作系统）的快速扩展随机树算法的实现

------

第三类：实现（Gazebo仿真）

1. rrt_exploration实现了基于多机器人RRT的地图探索算法。它还具有使用图像处理来提取边界点和基于图像的前沿检测（参考博文2）

2. ROS Kinetic Kame快速探索随机树（RRT）全局路径规划插件（turtlebot）

3. 使用RRT *的四旋翼飞行器路径规划和最小加速度轨迹生成算法

------
