blocks|key|859386|text|在你的图像中，颜色似乎是一个比强度更好的分割指标。尝试将其转换为HSV，然后在H通道上运行OTSU。|type|unstyled|depth|inlineStyleRanges|entityRanges|data|859387|巨蟒|859388|hsv+=+cv2.cvtColor(image,+cv2.cv.CV_BGR2HSV)
cv2.imshow('hsv',+hsv[:,:,0])
(thresh,+im_bw)+=+cv2.threshold(hsv[:,:,0],+128,+255,+cv2.THRESH_BINARY+%7C+cv2.THRESH_OTSU)
cv2.imshow('OTSU',+im_bw)|code-block|syntax|javascript|859389|给予(hsv)|859390|​|859391|📷|atomic|offset|length|859392|859393|然后(OTSU)|859394|859395|859396|859397|一点腐蚀和扩张，你应该是好的去|859398|entityMap|0|IMAGE|mutability|IMMUTABLE|imageUrl|https://developer.qcloudimg.com/http-save/yehe-900000/df9509666c17cae5d2c6a1b24f005ee1.jpg|imageAlt|1|https://developer.qcloudimg.com/http-save/yehe-900000/49602c8e604db381abaecdabbc8d64a1.jpg^0|0|0|0|0|0|0|1|0|0|0|0|0|0|1|1|0|0|0^^$0|@$1|2|3|4|5|6|7|1A|8|@]|9|@]|A|$]]|$1|B|3|C|5|6|7|1B|8|@]|9|@]|A|$]]|$1|D|3|E|5|F|7|1C|8|@]|9|@]|A|$G|H]]|$1|I|3|J|5|6|7|1D|8|@]|9|@]|A|$]]|$1|K|3|L|5|6|7|1E|8|@]|9|@]|A|$]]|$1|M|3|N|5|O|7|1F|8|@]|9|@$P|1G|Q|1H|1|1I]]|A|$]]|$1|R|3|L|5|6|7|1J|8|@]|9|@]|A|$]]|$1|S|3|T|5|6|7|1K|8|@]|9|@]|A|$]]|$1|U|3|L|5|6|7|1L|8|@]|9|@]|A|$]]|$1|V|3|N|5|O|7|1M|8|@]|9|@$P|1N|Q|1O|1|1P]]|A|$]]|$1|W|3|L|5|6|7|1Q|8|@]|9|@]|A|$]]|$1|X|3|Y|5|6|7|1R|8|@]|9|@]|A|$]]|$1|Z|3|-4|5|6|7|1S|8|@]|9|@]|A|$]]]|10|$11|$5|12|13|14|A|$15|16|17|-4]]|18|$5|12|13|14|A|$15|19|17|-4]]]]

It seems like color is a much better indicator for segmentation in your image than intensity. Try converting it to HSV and then running OTSU on the H channel.

in python

<pre><code>hsv = cv2.cvtColor(image, cv2.cv.CV_BGR2HSV)
cv2.imshow('hsv', hsv[:,:,0])
(thresh, im_bw) = cv2.threshold(hsv[:,:,0], 128, 255, cv2.THRESH_BINARY | cv2.THRESH_OTSU)
cv2.imshow('OTSU', im_bw)
</code></pre>

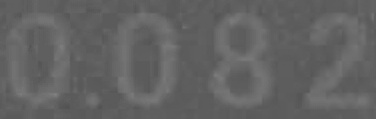

gives (hsv)

<img src="https://i.stack.imgur.com/ZTPLF.jpg" alt="enter image description here">

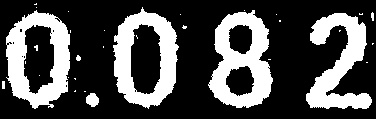

and then (OTSU)

<img src="https://i.stack.imgur.com/DT8Cy.jpg" alt="enter image description here">

A little eroding and dilating and you should be good to go

blocks|key|5277|text|您可能对openCV使用的openCV自适应阈值感兴趣。|type|unstyled|depth|inlineStyleRanges|entityRanges|data|5278|我使用了自适应平均阈值。您可能需要使用一些参数，但如果您的图像是相似的(相同的大小等)，希望不会有太多的调整需要。|5279|#+Smooth+image
filtered+=+cv2.adaptiveThreshold(input_image.astype(np.uint8),+255,+cv2.ADAPTIVE_THRESH_MEAN_C,+cv2.THRESH_BINARY,+41,+3)

#+Some+morphology+to+clean+up+image
kernel+=+np.ones((5,5),+np.uint8)
opening+=+cv2.morphologyEx(filtered,+cv2.MORPH_OPEN,+kernel)
closing+=+cv2.morphologyEx(opening,+cv2.MORPH_CLOSE,+kernel)|code-block|syntax|javascript|5280|结果：|5281|​|5282|📷|atomic|offset|length|5283|5284|5285|5286|5287|5288|5289|5290|entityMap|0|IMAGE|mutability|IMMUTABLE|imageUrl|https://developer.qcloudimg.com/http-save/yehe-900000/d31c12d982f8568d3a4edac8353961d7.png|imageAlt|1|https://developer.qcloudimg.com/http-save/yehe-900000/95fccb77faf2cb10da1e14ed5152f392.png|2|https://developer.qcloudimg.com/http-save/yehe-900000/fa58f9bc12295189146268ea2e1dea31.png^0|0|0|0|0|0|0|1|0|0|0|0|0|1|1|0|0|0|0|1|2|0|0^^$0|@$1|2|3|4|5|6|7|1B|8|@]|9|@]|A|$]]|$1|B|3|C|5|6|7|1C|8|@]|9|@]|A|$]]|$1|D|3|E|5|F|7|1D|8|@]|9|@]|A|$G|H]]|$1|I|3|J|5|6|7|1E|8|@]|9|@]|A|$]]|$1|K|3|L|5|6|7|1F|8|@]|9|@]|A|$]]|$1|M|3|N|5|O|7|1G|8|@]|9|@$P|1H|Q|1I|1|1J]]|A|$]]|$1|R|3|L|5|6|7|1K|8|@]|9|@]|A|$]]|$1|S|3|L|5|6|7|1L|8|@]|9|@]|A|$]]|$1|T|3|N|5|O|7|1M|8|@]|9|@$P|1N|Q|1O|1|1P]]|A|$]]|$1|U|3|L|5|6|7|1Q|8|@]|9|@]|A|$]]|$1|V|3|L|5|6|7|1R|8|@]|9|@]|A|$]]|$1|W|3|N|5|O|7|1S|8|@]|9|@$P|1T|Q|1U|1|1V]]|A|$]]|$1|X|3|L|5|6|7|1W|8|@]|9|@]|A|$]]|$1|Y|3|-4|5|6|7|1X|8|@]|9|@]|A|$]]]|Z|$10|$5|11|12|13|A|$14|15|16|-4]]|17|$5|11|12|13|A|$14|18|16|-4]]|19|$5|11|12|13|A|$14|1A|16|-4]]]]

You might be interested in <a href="http://docs.opencv.org/trunk/doc/py_tutorials/py_imgproc/py_thresholding/py_thresholding.html#adaptive-thresholding" rel="noreferrer">these</a> adaptive thresholds used by openCV.

I used the adaptive mean threshold. You may have to play with the parameters a bit, but if your images are similar (same size etc), hopefully there won't be too much tweaking required.

<pre class="lang-python prettyprint-override"><code># Smooth image
filtered = cv2.adaptiveThreshold(input_image.astype(np.uint8), 255, cv2.ADAPTIVE_THRESH_MEAN_C, cv2.THRESH_BINARY, 41, 3)

# Some morphology to clean up image
kernel = np.ones((5,5), np.uint8)
opening = cv2.morphologyEx(filtered, cv2.MORPH_OPEN, kernel)
closing = cv2.morphologyEx(opening, cv2.MORPH_CLOSE, kernel)
</code></pre>

Results:

<img src="https://i.stack.imgur.com/fBvMY.png" alt="enter image description here">

<img src="https://i.stack.imgur.com/uXG4V.png" alt="enter image description here">

<img src="https://i.stack.imgur.com/80Ip2.png" alt="enter image description here">

blocks|key|1935409|text|下面的代码..。|type|unstyled|depth|inlineStyleRanges|entityRanges|data|1935410|im=cv2.adaptiveThreshold(img,255,cv2.ADAPTIVE_THRESH_MEAN_C,cv2.THRESH_BINARY,111,3)
cv2.imshow('mkm',im)`|code-block|syntax|javascript|1935411|..。取得了良好的效果：|1935412|​|1935413|📷|atomic|offset|length|1935414|1935415|entityMap|0|IMAGE|mutability|IMMUTABLE|imageUrl|https://developer.qcloudimg.com/http-save/yehe-900000/e7a4e540d7c5ee6bd8c0529ef77b88de.png|imageAlt^0|0|0|0|0|0|1|0|0|0^^$0|@$1|2|3|4|5|6|7|Z|8|@]|9|@]|A|$]]|$1|B|3|C|5|D|7|10|8|@]|9|@]|A|$E|F]]|$1|G|3|H|5|6|7|11|8|@]|9|@]|A|$]]|$1|I|3|J|5|6|7|12|8|@]|9|@]|A|$]]|$1|K|3|L|5|M|7|13|8|@]|9|@$N|14|O|15|1|16]]|A|$]]|$1|P|3|J|5|6|7|17|8|@]|9|@]|A|$]]|$1|Q|3|-4|5|6|7|18|8|@]|9|@]|A|$]]]|R|$S|$5|T|U|V|A|$W|X|Y|-4]]]]

The following code ...

<pre><code>im=cv2.adaptiveThreshold(img,255,cv2.ADAPTIVE_THRESH_MEAN_C,cv2.THRESH_BINARY,111,3)
cv2.imshow('mkm',im)`
</code></pre>

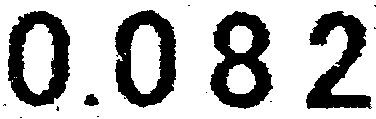

... gives a good result:

<a href="https://i.stack.imgur.com/gFyYH.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/gFyYH.png" alt="adaptive image"></a>

blocks|key|4944|text|如果单个阈值不足以分离所有图像，则可以使用两个阈值尝试分水岭算法。|type|unstyled|depth|inlineStyleRanges|entityRanges|offset|length|data|4945|使用一个高阈值来获得一幅图像，其中一段一定是一个数字的一部分，而一个高的逆阈值则可以得到一幅绝对不是数字一部分的部分的图像。|4946|对这两幅图像进行一定程度的侵蚀，以增加确定性。|4947|然后用这2幅图像作为流域的种子。|4948|这是一个答案，这是在哪里做的|4949|entityMap|0|LINK|mutability|MUTABLE|url|http://docs.opencv.org/modules/imgproc/doc/miscellaneous_transformations.html#watershed|1|https://stackoverflow.com/a/11438165/145999^0|R|5|0|0|0|0|0|0|E|1|0^^$0|@$1|2|3|4|5|6|7|V|8|@]|9|@$A|W|B|X|1|Y]]|C|$]]|$1|D|3|E|5|6|7|Z|8|@]|9|@]|C|$]]|$1|F|3|G|5|6|7|10|8|@]|9|@]|C|$]]|$1|H|3|I|5|6|7|11|8|@]|9|@]|C|$]]|$1|J|3|K|5|6|7|12|8|@]|9|@$A|13|B|14|1|15]]|C|$]]|$1|L|3|-4|5|6|7|16|8|@]|9|@]|C|$]]]|M|$N|$5|O|P|Q|C|$R|S]]|T|$5|O|P|Q|C|$R|U]]]]

If a single threshold is not enough to separate all images, you could try the <a href="http://docs.opencv.org/modules/imgproc/doc/miscellaneous_transformations.html#watershed" rel="nofollow noreferrer">Watershed algorithm</a> with two thresholds.

Use a high threshold to get an image with segments that are definitely part of a digit, and a high inverse threshold to get an image with segments that are definitely not part of a digit.

Erode both images a bit to increase the certainty.

Then use the 2 images as seeds for Watershed.

<a href="https://stackoverflow.com/a/11438165/145999">Here is an answer where this is done</a>

I'm in search for best Adaptive Threshold method for image binarization. But I have any problems with dark and blurry image.

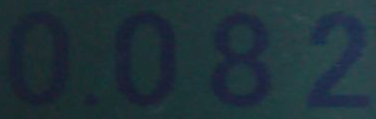

Input image:
<img src="https://i.stack.imgur.com/51H1M.png" alt="Let the Image load...">

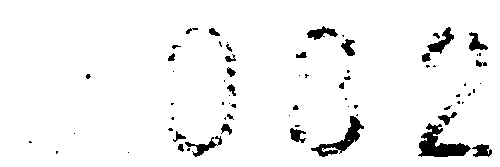

and when I use Adaptive threshold method I receive this
Output Image:
<img src="https://i.stack.imgur.com/KX86P.jpg" alt="Let the Image load...">

This is not good for me!
So, could someone help me fix this problem?

<hr>

another image : <img src="https://i.stack.imgur.com/xu3So.jpg" alt="enter image description here">

and : <img src="https://i.stack.imgur.com/V2sfG.png" alt="enter image description here">

the first seem very bad with @Hammer'solution (i must chose c channel) , the second i can use adaptive threshold normal .
so i want to find the best solution for all cases .

thank Again !
