揭秘互联网的“第一道门”：初识 Socket 编程，亲手推开网络通信的奇妙世界

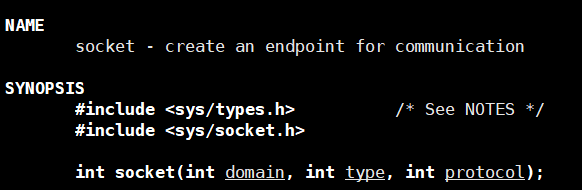

// 创建 socket ⽂件描述符 (TCP/UDP, 客⼾端 + 服务器)
int socket(int domain, int type, int protocol);

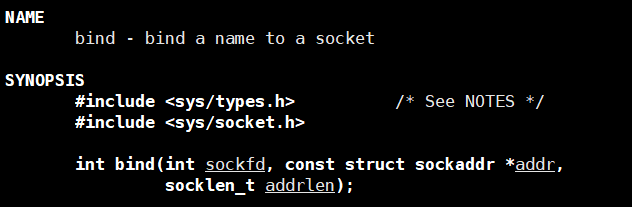

// 绑定端⼝号 (TCP/UDP, 服务器)
int bind(int socket, const struct sockaddr *address, socklen_t address_len);

// 开始监听socket (TCP, 服务器)
int listen(int socket, int backlog);

// 接收请求 (TCP, 服务器)
int accept(int socket, struct sockaddr* address, socklen_t* address_len);

// 建⽴连接 (TCP, 客⼾端)
int connect(int sockfd, const struct sockaddr *addr, socklen_t addrlen);

#pragma once

#include <iostream>
#include <string>
#include <filesystem> // C++17 文件操作
#include <fstream>
#include <ctime>
#include <unistd.h>
#include <memory>
#include <sstream>
#include "Mutex.hpp"

// 规定出场景的日志等级
enum class LogLevel
{
    DEBUG,
    INFO,
    WARNING,
    ERROR,
    FATAL
};

std::string Level2String(LogLevel level)
{
    switch (level)
    {
    case LogLevel::DEBUG:
        return "Debug";
    case LogLevel::INFO:
        return "Info";
    case LogLevel::WARNING:
        return "Warning";
    case LogLevel::ERROR:
        return "Error";
    case LogLevel::FATAL:
        return "Fatal";
    default:
        return "Unknown";
    }
}

// 20XX-08-04 12:27:03
std::string GetCurrentTime()
{
    // 1. 获取时间戳
    time_t currtime = time(nullptr);

    // 2. 如何把时间戳转换成为20XX-08-04 12:27:03
    struct tm currtm;
    localtime_r(&currtime, &currtm);

    // 3. 转换成为字符串
    char timebuffer[64];
    snprintf(timebuffer, sizeof(timebuffer), "%4d-%02d-%02d %02d:%02d:%02d",
             currtm.tm_year + 1900,
             currtm.tm_mon + 1,
             currtm.tm_mday,
             currtm.tm_hour,
             currtm.tm_min,
             currtm.tm_sec);

    return timebuffer;
}

///////////////////////////////////////////////////////////////////
// 1. 刷新的问题 -- 假设我们已经有了一条完整的日志，string->设备(显示器，文件)
// 基类方法
class LogStrategy
{
public:
    virtual ~LogStrategy() = default;
    virtual void SyncLog(const std::string &logmessage) = 0;
};

// 显示器刷新
class ConsoleLogStrategy : public LogStrategy
{
public:
    ~ConsoleLogStrategy()
    {
    }
    void SyncLog(const std::string &logmessage) override
    {
        {
            LockGuard lockguard(&_lock);
            std::cout << logmessage << std::endl;
        }
    }

private:
    Mutex _lock;
};

const std::string logdefaultdir = "log";
const static std::string logfilename = "test.log";

// 文件刷新
class FileLogStrategy : public LogStrategy
{
public:
    FileLogStrategy(const std::string &dir = logdefaultdir,
                    const std::string filename = logfilename)
        : _dir_path_name(dir), _filename(filename)
    {
        LockGuard lockguard(&_lock);
        if (std::filesystem::exists(_dir_path_name))
        {
            return;
        }
        try
        {
            std::filesystem::create_directories(_dir_path_name);
        }
        catch (const std::filesystem::filesystem_error &e)
        {
            std::cerr << e.what() << "\r\n";
        }
    }
    void SyncLog(const std::string &logmessage) override
    {
        {
            LockGuard lockguard(&_lock);
            std::string target = _dir_path_name;
            target += "/";
            target += _filename;

            std::ofstream out(target.c_str(), std::ios::app); // append
            if (!out.is_open())
            {
                return;
            }
            out << logmessage << "\n"; // out.write
            out.close();
        }
    }

    ~FileLogStrategy()
    {
    }

private:
    std::string _dir_path_name; // log
    std::string _filename;      // hello.log => log/hello.log
    Mutex _lock;
};

// 网络刷新

////////////////////////////////////////////////////////

// 1. 定制刷新策略
// 2. 构建完整的日志
class Logger
{
public:
    Logger()
    {
    }
    void EnableConsoleLogStrategy()
    {
        _strategy = std::make_unique<ConsoleLogStrategy>();
    }
    void EnableFileLogStrategy()
    {
        _strategy = std::make_unique<FileLogStrategy>();
    }
    // 形成一条完整日志的方式
    class LogMessage
    {
    public:
        LogMessage(LogLevel level, std::string &filename, int line, Logger &logger)
        : _curr_time(GetCurrentTime()),
          _level(level),
          _pid(getpid()),
          _filename(filename),
          _line(line),
          _logger(logger)
        {
            std::stringstream ss;
            ss << "[" << _curr_time << "] "
               << "[" << Level2String(_level) << "] "
               << "[" << _pid << "] "
               << "[" << _filename << "] "
               << "[" << _line << "]"
               <<  " - ";
            _loginfo = ss.str();
        }
        template<typename T>
        LogMessage& operator << (const T &info)
        {
            std::stringstream ss;
            ss << info;
            _loginfo += ss.str();
            return *this;
        }

        ~LogMessage()
        {
            if(_logger._strategy)
            {
                _logger._strategy->SyncLog(_loginfo);
            }
        }
    private:
        std::string _curr_time; // 日志时间
        LogLevel _level; // 日志等级
        pid_t _pid; // 进程pid
        std::string _filename;
        int _line;

        std::string _loginfo; // 一条合并完成的，完整的日志信息
        Logger &_logger; // 提供刷新策略的具体做法
    };
    LogMessage operator()(LogLevel level, std::string filename, int line)
    {
        return LogMessage(level, filename, line, *this);
    }
    ~Logger()
    {
    }

private:
    std::unique_ptr<LogStrategy> _strategy;
};

Logger logger;

#define LOG(level) logger(level, __FILE__, __LINE__)
#define EnableConsoleLogStrategy() logger.EnableConsoleLogStrategy()
#define EnableFileLogStrategy() logger.EnableFileLogStrategy()

#pragma once

#include <iostream>
#include <mutex>
#include <pthread.h>

class Mutex
{
public:
    Mutex()
    {
        pthread_mutex_init(&_lock, nullptr);
    }
    void Lock()
    {
        pthread_mutex_lock(&_lock);
    }
    void Unlock()
    {
        pthread_mutex_unlock(&_lock);
    }
    pthread_mutex_t *Get()
    {
        return &_lock;
    }
    ~Mutex()
    {
        pthread_mutex_destroy(&_lock);
    }
private:
    pthread_mutex_t _lock;
};

class LockGuard
{
public:
    LockGuard(Mutex *_mutex):_mutexp(_mutex)
    {
        _mutexp->Lock();
    }
    ~LockGuard()
    {
        _mutexp->Unlock();
    }
private:
    Mutex *_mutexp;
};

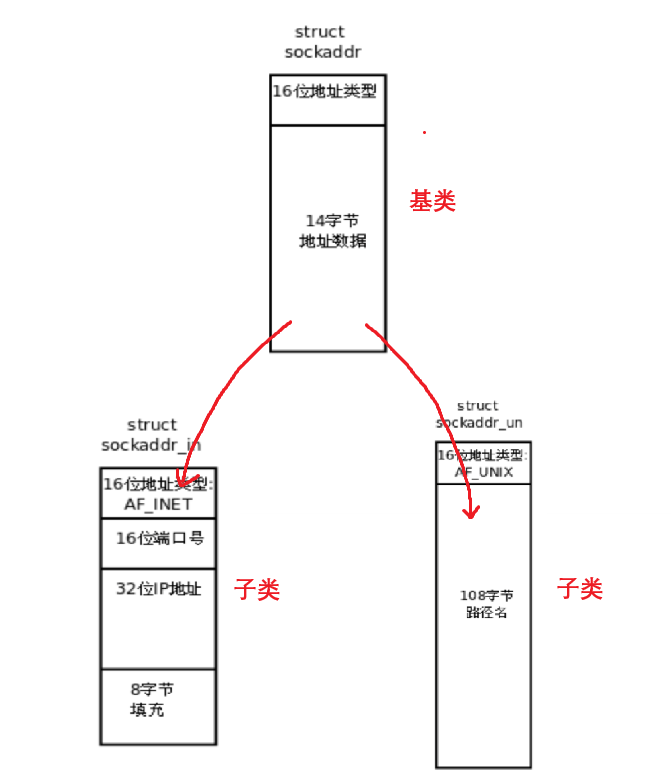

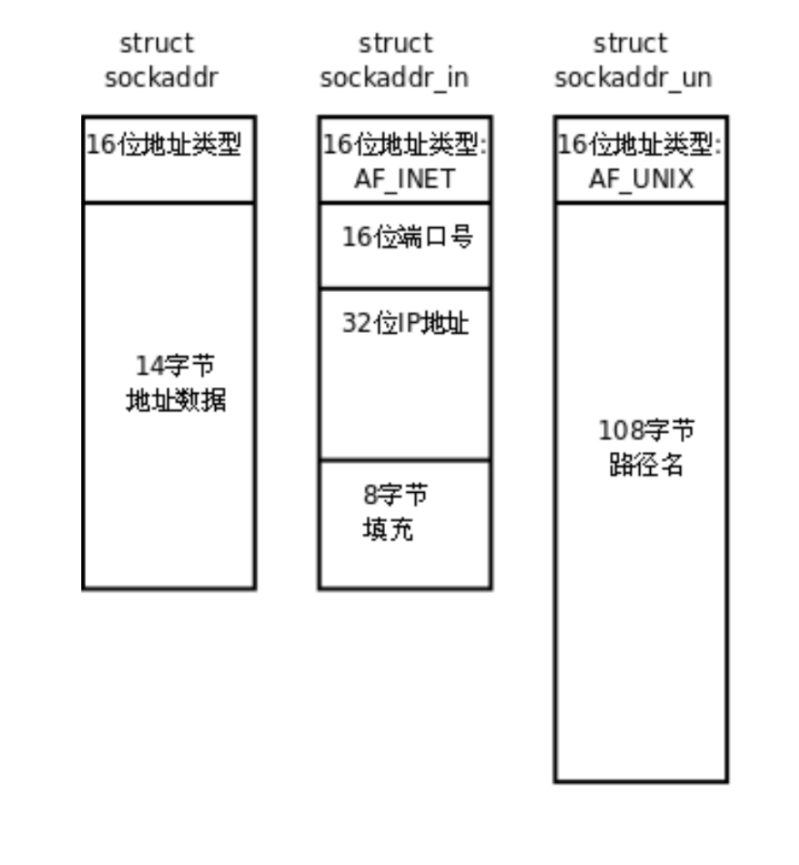

/* Structure describing an Internet socket address.  */
struct sockaddr_in
  {
    __SOCKADDR_COMMON (sin_);
    in_port_t sin_port;			/* Port number.  */
    struct in_addr sin_addr;		/* Internet address.  */

    /* Pad to size of `struct sockaddr'.  */
    unsigned char sin_zero[sizeof (struct sockaddr)
			   - __SOCKADDR_COMMON_SIZE
			   - sizeof (in_port_t)
			   - sizeof (struct in_addr)];
  };

/* Internet address.  */
typedef uint32_t in_addr_t;
struct in_addr
  {
    in_addr_t s_addr;
  };

#pragma once
#include <iostream>
#include <sys/types.h>
#include <sys/socket.h>
#include <arpa/inet.h>
#include <netinet/in.h>
#include <cstdlib>
#include <string.h>
#include "logger.hpp"
using namespace std;

const int defaultsockfd = -1;

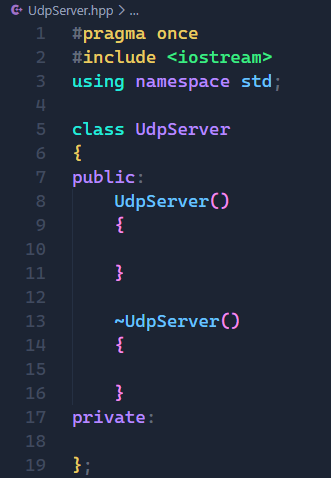

class UdpServer
{
public:

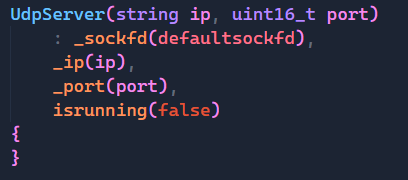

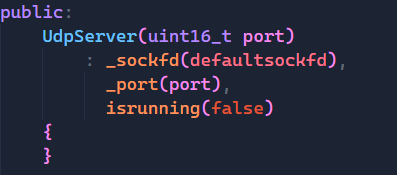

    UdpServer(uint16_t port)
        : _sockfd(defaultsockfd),
          _port(port),
          isrunning(false)
    {
    }

    void Init()
    {

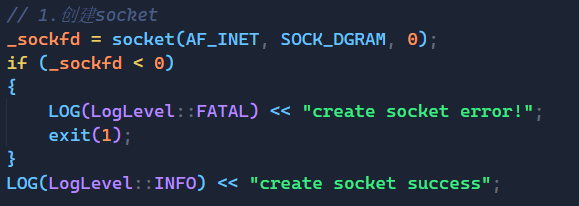

        // 1.创建socket

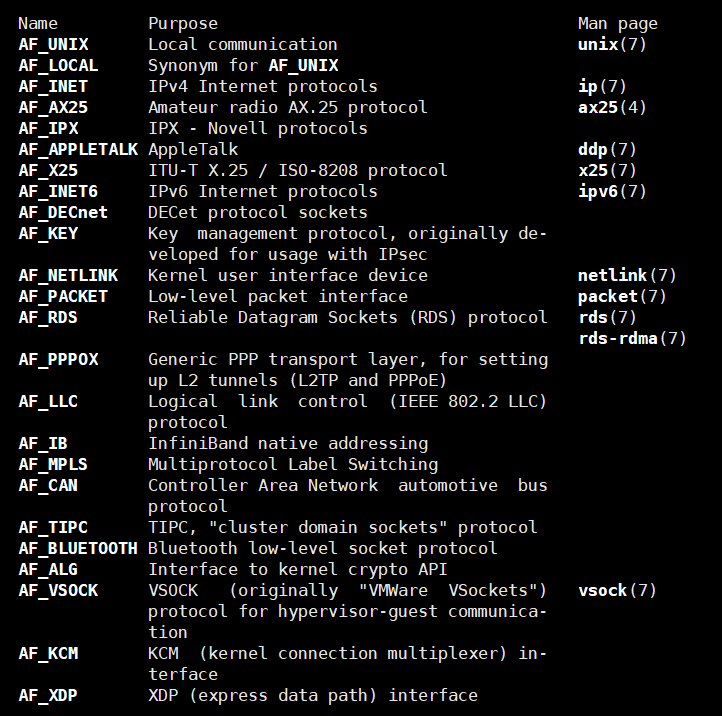

        _sockfd = socket(AF_INET, SOCK_DGRAM, 0);
        if (_sockfd < 0)
        {
            LOG(LogLevel::FATAL) << "create socket error!";
            exit(1);
        }
        LOG(LogLevel::INFO) << "create socket success";

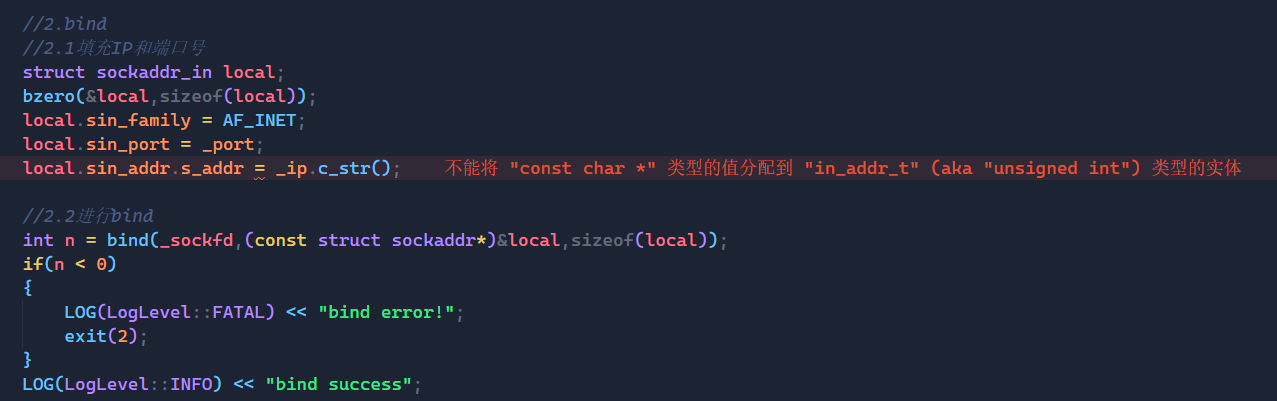

        // 2.bind
        // 2.1填充IP和端口号
        struct sockaddr_in local;
        bzero(&local, sizeof(local));
        local.sin_family = AF_INET;

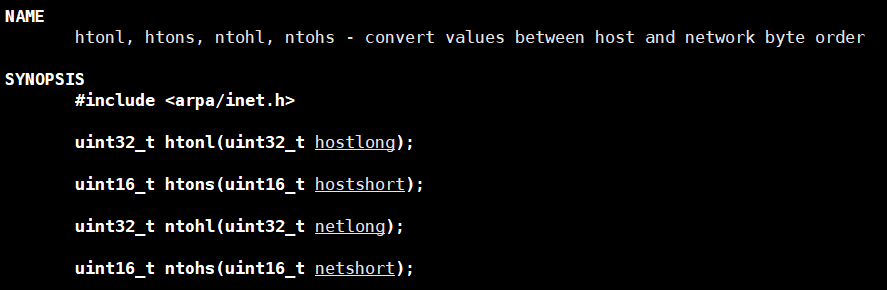

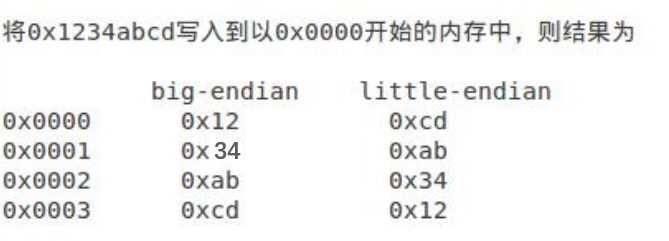

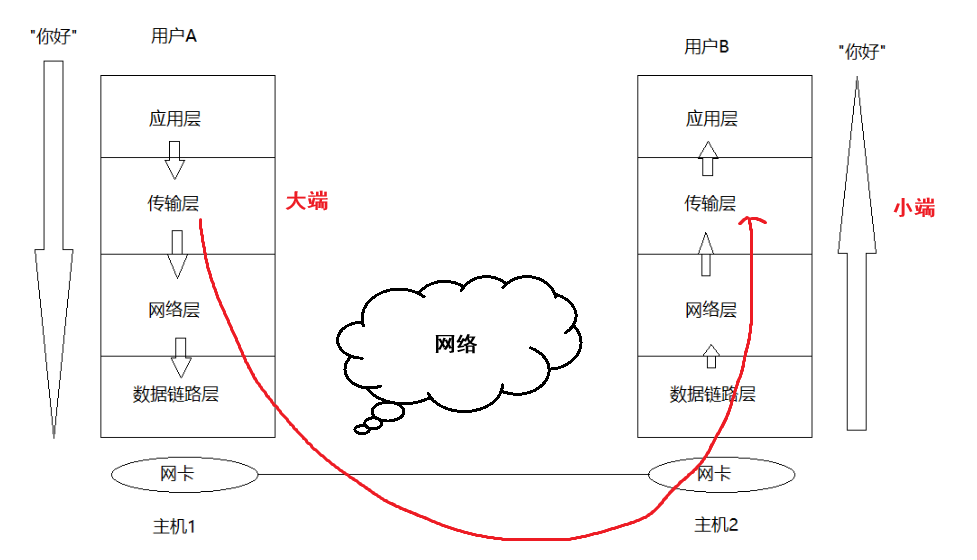

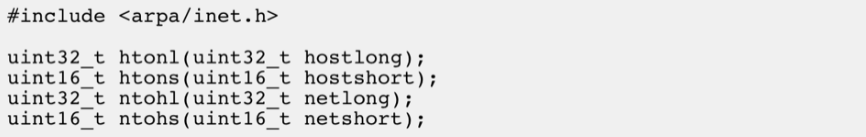

        local.sin_port = htons(_port); // 将端口号转为网络大端序
        // local.sin_addr.s_addr = inet_addr(_ip.c_str());
        local.sin_addr.s_addr = INADDR_ANY; // 表示任意IP

        // 2.2进行bind
        int n = bind(_sockfd, (const struct sockaddr *)&local, sizeof(local));
        if (n < 0)
        {
            LOG(LogLevel::FATAL) << "bind error!";
            exit(2);
        }
        LOG(LogLevel::INFO) << "bind success";
    }

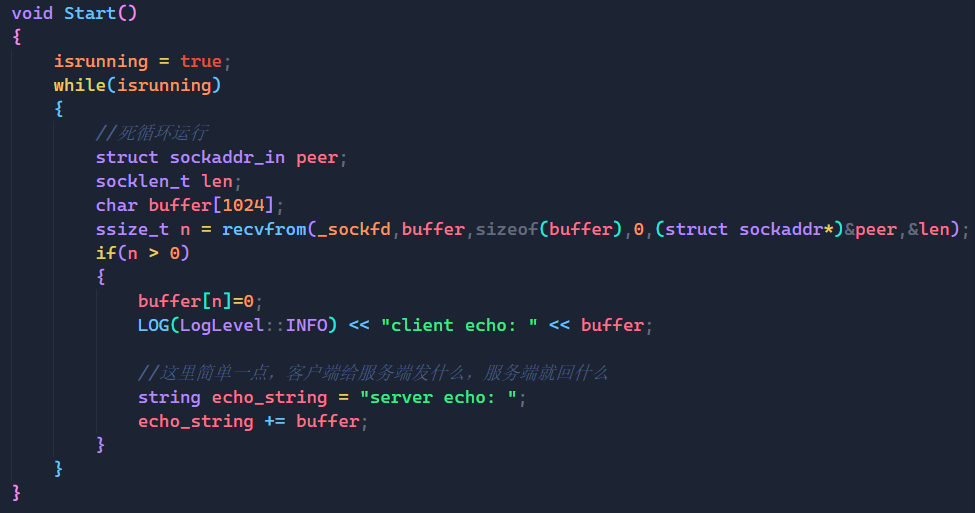

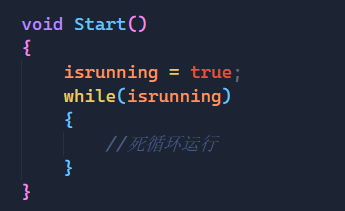

    void Start()
    {
        isrunning = true;
        while (isrunning)
        {
            // 死循环运行
            struct sockaddr_in peer;
            socklen_t len = sizeof(peer);
            char buffer[1024];
            ssize_t n = recvfrom(_sockfd, buffer, sizeof(buffer), 0, (struct sockaddr *)&peer, &len);
            if (n > 0)
            {
                buffer[n] = 0;
                LOG(LogLevel::INFO) << "client echo: " << buffer;

                // 这里简单一点，客户端给服务端发什么，服务端就回什么
                string echo_string = "server echo: ";
                echo_string += buffer;

                sendto(_sockfd, echo_string.c_str(), echo_string.size(), 0, (struct sockaddr *)&peer, len);
            }
        }
    }

    void Stop()
    {
        isrunning = false;
    }

    ~UdpServer()
    {
    }

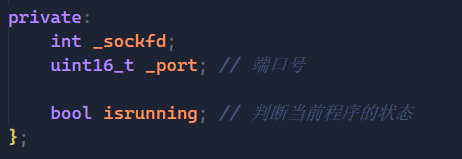

private:
    int _sockfd;
    uint16_t _port; // 端口号

    bool isrunning; // 判断当前程序的状态
};

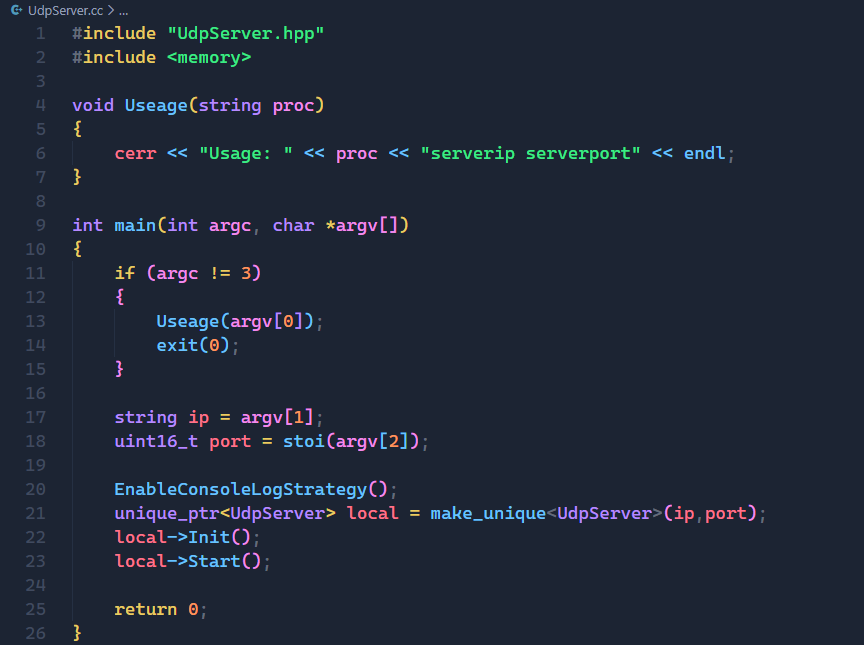

#include "UdpServer.hpp"
#include <memory>

void Useage(string proc)
{
    cerr << "Usage: " << proc << "serverport" << endl;
}

int main(int argc, char *argv[])
{
    if (argc != 2)
    {
        Useage(argv[0]);
        exit(0);
    }

    uint16_t port = stoi(argv[1]);

    EnableConsoleLogStrategy();
    unique_ptr<UdpServer> local = make_unique<UdpServer>(port);
    local->Init();
    local->Start();

    return 0;
}

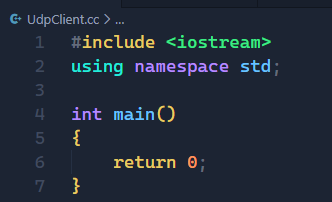

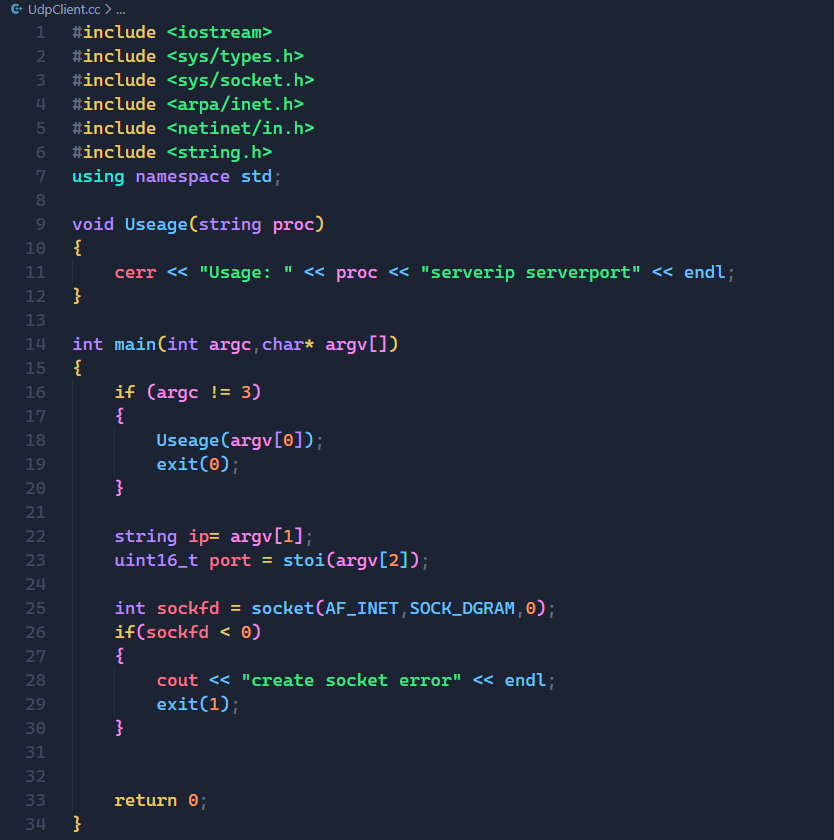

#include <iostream>
#include <sys/types.h>
#include <sys/socket.h>
#include <arpa/inet.h>
#include <netinet/in.h>
#include <string.h>
using namespace std;

void Useage(string proc)
{
    cerr << "Usage: " << proc << "serverip serverport" << endl;
}

int main(int argc, char *argv[])
{
    if (argc != 3)
    {
        Useage(argv[0]);
        exit(0);
    }

    string ip = argv[1];
    uint16_t port = stoi(argv[2]);

    int sockfd = socket(AF_INET, SOCK_DGRAM, 0);
    if (sockfd < 0)
    {
        cout << "create socket error" << endl;
        exit(1);
    }

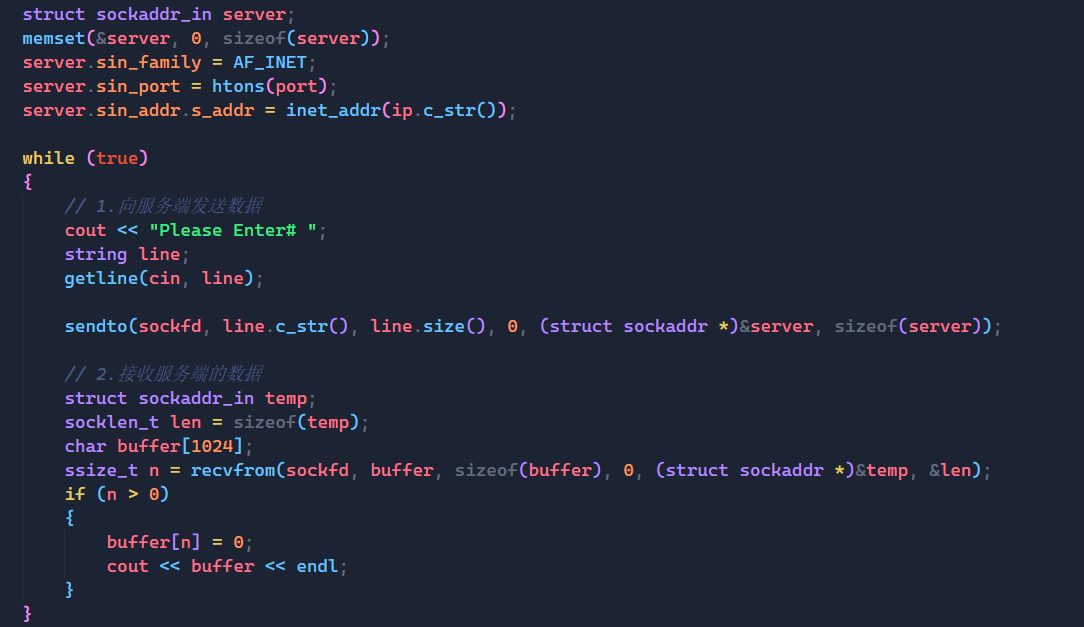

    struct sockaddr_in server;
    memset(&server, 0, sizeof(server));
    server.sin_family = AF_INET;
    server.sin_port = htons(port);
    server.sin_addr.s_addr = inet_addr(ip.c_str());

    while (true)
    {
        // 1.向服务端发送数据
        cout << "Please Enter# ";
        string line;
        getline(cin, line);

        sendto(sockfd, line.c_str(), line.size(), 0, (struct sockaddr *)&server, sizeof(server));

        // 2.接收服务端的数据
        struct sockaddr_in temp;
        socklen_t len = sizeof(temp);
        char buffer[1024];
        ssize_t n = recvfrom(sockfd, buffer, sizeof(buffer), 0, (struct sockaddr *)&temp, &len);
        if (n > 0)
        {
            buffer[n] = 0;
            cout << buffer << endl;
        }
    }
    return 0;
}
