supercookie Cookie追踪检测工具:浏览器隐私保护的隐形卫士

作者头像
安全风信子
发布2025-11-20 19:26:29
发布2025-11-20 19:26:29
490
举报
文章被收录于专栏:AI SPPECHAI SPPECH

1. 技术背景与核心概念

1.1 什么是supercookie?

supercookie是一种比传统HTTP cookie更难以检测和删除的追踪技术,它利用浏览器或操作系统的各种存储机制或特性来实现长期用户追踪。与普通cookie不同,supercookie通常不会被浏览器的隐私设置或清理功能删除,从而实现持久化追踪。

1.2 supercookie的工作原理

supercookie主要通过以下几种机制实现追踪:

1.3 supercookie与传统追踪技术的对比

特征

传统HTTP Cookie

supercookie

浏览器指纹

存储位置

Cookie存储

多种位置(HSTS、ETag、LocalStorage等)

无存储(实时生成)

可删除性

易删除

难删除

不可删除

追踪持久性

会话或有限时间

长期甚至永久

永久

检测难度

跨站点能力

受同源策略限制

可绕过同源策略

强跨站点能力

隐私风险

2. supercookie检测工具架构与功能

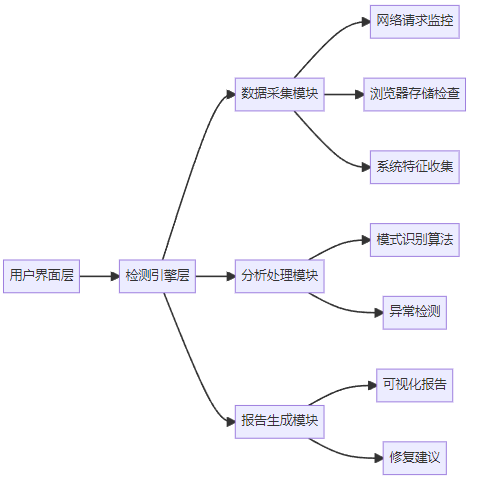

2.1 工具架构设计

supercookie检测工具采用模块化设计,主要包含以下核心组件:

2.2 核心功能模块
  1. 数据采集模块
    • 监控HTTP请求和响应头
    • 检查浏览器各种存储机制(LocalStorage、SessionStorage、IndexedDB等)
    • 收集系统和浏览器特征(用户代理、屏幕分辨率、时区等)
  2. 分析处理模块
    • 识别各种类型的supercookie
    • 分析追踪行为模式
    • 检测跨站点追踪尝试
  3. 报告生成模块
    • 生成详细的检测报告
    • 提供可视化的追踪关系图
    • 给出隐私保护建议

3. 安装与环境配置

3.1 安装方式

supercookie检测工具支持多种安装方式,包括浏览器扩展、命令行工具和API服务。

3.1.1 浏览器扩展安装
代码语言:javascript
复制
# Chrome扩展安装(通过开发者模式)
git clone https://github.com/suyashkumar/supercookie.git
cd supercookie/extension
# 打开Chrome浏览器 -> 更多工具 -> 扩展程序 -> 开启开发者模式 -> 加载已解压的扩展程序 -> 选择extension目录
3.1.2 命令行工具安装
代码语言:javascript
复制
# 使用npm安装
npm install -g supercookie-detector

# 使用pip安装Python版本
pip install supercookie-detector
3.1.3 Docker部署
代码语言:javascript
复制
docker pull suyashkumar/supercookie-detector
docker run -p 3000:3000 suyashkumar/supercookie-detector
3.2 环境配置
3.2.1 浏览器配置要求

浏览器

版本要求

支持的检测类型

Chrome

>= 80

所有类型

Firefox

>= 75

所有类型

Safari

>= 13

大部分类型(不支持某些Chrome特定API)

Edge

>= 80

所有类型

3.2.2 命令行工具配置
代码语言:javascript
复制
// 创建配置文件 supercookie-config.json
{
  "detectionTypes": ["hsts", "etag", "localStorage", "canvasFingerprint"],
  "reportFormat": "json",
  "outputPath": "./reports",
  "thresholds": {
    "fingerprintSimilarity": 0.9,
    "trackingConfidence": 0.8
  }
}

4. 代码示例与使用指南

4.1 基本检测示例(JavaScript)
代码语言:javascript
复制
// 引入supercookie检测库
import { SuperCookieDetector } from 'supercookie-detector';

// 创建检测器实例
const detector = new SuperCookieDetector();

// 执行检测
async function runDetection() {
  try {
    const results = await detector.detectAll();

    console.log('检测结果:', results);

    // 处理检测结果
    if (results.hsts.detected) {
      console.warn('发现HSTS supercookie:', results.hsts.details);
    }

    if (results.etag.detected) {
      console.warn('发现ETag supercookie:', results.etag.details);
    }

    if (results.localStorage.detected) {
      console.warn('发现LocalStorage supercookie:', results.localStorage.details);
    }

    if (results.canvasFingerprint.detected) {
      console.warn('发现Canvas指纹:', results.canvasFingerprint.details);
    }

  } catch (error) {
    console.error('检测过程中出错:', error);
  }
}

// 运行检测
runDetection();
4.2 高级检测与分析(Python)
代码语言:javascript
复制
from supercookie_detector import SuperCookieDetector
import json

# 创建检测器实例
detector = SuperCookieDetector()

# 执行全面检测
results = detector.detect_all()

# 打印检测结果
print("=== supercookie检测结果 ===")
for detection_type, data in results.items():
    print(f"\n{detection_type}:")
    print(f"  检测到: {'是' if data['detected'] else '否'}")
    if data['detected']:
        print(f"  置信度: {data['confidence']:.2f}")
        print(f"  详情: {json.dumps(data['details'], indent=2)}")

# 生成可视化报告
detector.generate_report("supercookie_report.html")
print("\n报告已生成: supercookie_report.html")
4.3 命令行工具使用
代码语言:javascript
复制
# 基本检测
supercookie-detector --url https://example.com

# 检测多个网站
supercookie-detector --urls https://example.com,https://test.com

# 使用配置文件
supercookie-detector --config supercookie-config.json --url https://example.com

# 生成详细报告
supercookie-detector --url https://example.com --report detailed

# 检测特定类型的supercookie
supercookie-detector --url https://example.com --types hsts,etag,canvasFingerprint
4.4 浏览器扩展使用
  1. 安装扩展:按照3.1.1节的步骤安装Chrome扩展
  2. 访问目标网站:打开想要检测的网站
  3. 运行检测:点击扩展图标,然后点击"开始检测"按钮
  4. 查看结果:检测完成后,查看详细的检测报告和建议

5. 深度技术解析

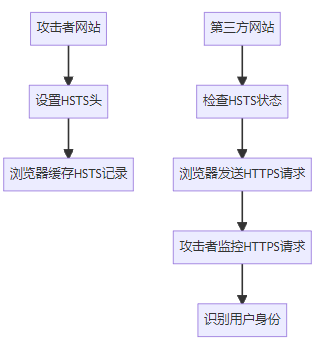

5.1 HSTS supercookie工作原理

HSTS(HTTP Strict Transport Security)supercookie利用浏览器的HSTS缓存机制实现追踪:

5.2 ETag supercookie工作原理

ETag(Entity Tag)supercookie利用HTTP缓存的ETag机制实现追踪:

代码语言:javascript
复制
// ETag supercookie实现示例
app.get('/track', (req, res) => {
  // 检查If-None-Match头
  if (req.headers['if-none-match']) {
    // 提取追踪ID
    const trackingId = req.headers['if-none-match'].replace(/"/g, '');
    console.log('追踪到用户:', trackingId);
    res.status(304).end(); // 未修改
  } else {
    // 生成新的追踪ID
    const trackingId = generateUniqueId();
    // 设置ETag头
    res.setHeader('ETag', `"${trackingId}"`);
    res.setHeader('Cache-Control', 'public, max-age=31536000');
    res.send('Tracking enabled');
  }
});
5.3 Canvas指纹识别技术

Canvas指纹识别通过分析浏览器绘制特定图形的方式来生成唯一标识符:

代码语言:javascript
复制
// Canvas指纹生成示例
function generateCanvasFingerprint() {
  const canvas = document.createElement('canvas');
  const ctx = canvas.getContext('2d');

  // 绘制特定图形
  ctx.fillStyle = 'rgb(255, 0, 0)';
  ctx.fillRect(0, 0, 100, 100);
  ctx.fillStyle = 'rgb(0, 255, 0)';
  ctx.fillRect(10, 10, 80, 80);
  ctx.fillStyle = 'rgb(0, 0, 255)';
  ctx.fillRect(20, 20, 60, 60);

  // 添加文本
  ctx.font = '12px Arial';
  ctx.fillStyle = 'rgb(255, 255, 255)';
  ctx.fillText('supercookie', 30, 55);

  // 获取数据URL并生成哈希
  const dataURL = canvas.toDataURL();
  const fingerprint = generateHash(dataURL);

  return fingerprint;
}

6. 性能测试与评估

6.1 检测性能测试
代码语言:javascript
复制
#!/bin/bash

# 测试脚本:supercookie检测性能测试

# 测试网站列表
WEBSITES=("https://google.com" "https://facebook.com" "https://twitter.com" "https://amazon.com" "https://github.com")

# 测试次数
TEST_COUNT=10

# 结果文件
RESULT_FILE="performance_test_results.csv"

# 初始化结果文件
echo "网站,平均检测时间(ms),CPU使用率(%),内存占用(MB),检测到的supercookie数量" > $RESULT_FILE

for website in "${WEBSITES[@]}"; do
    echo "测试网站: $website"

    # 初始化统计变量
    total_time=0
    total_cookies=0

    for ((i=1; i<=TEST_COUNT; i++)); do
        echo "  测试 $i/$TEST_COUNT..."

        # 运行检测并获取结果
        result=$(supercookie-detector --url "$website" --format json)

        # 提取检测时间和supercookie数量
        detection_time=$(echo $result | jq '.performance.detectionTime')
        cookie_count=$(echo $result | jq '.results | length')

        # 累加统计
        total_time=$(echo "$total_time + $detection_time" | bc)
        total_cookies=$(echo "$total_cookies + $cookie_count" | bc)
    done

    # 计算平均值
    avg_time=$(echo "scale=2; $total_time / $TEST_COUNT" | bc)
    avg_cookies=$(echo "scale=2; $total_cookies / $TEST_COUNT" | bc)

    # 获取系统资源使用情况
    cpu_usage=$(top -bn1 | grep "Cpu(s)" | awk '{print $2 + $4}')
    memory_usage=$(free -m | grep Mem | awk '{print $3}')

    # 保存结果
    echo "$website,$avg_time,$cpu_usage,$memory_usage,$avg_cookies" >> $RESULT_FILE

    echo "  平均检测时间: $avg_time ms"
    echo "  平均检测到的supercookie数量: $avg_cookies"
    echo ""
done

echo "性能测试完成,结果已保存到 $RESULT_FILE"
6.2 检测准确率测试
代码语言:javascript
复制
#!/usr/bin/env python3

# 检测准确率测试脚本

import json
import subprocess
import time

def test_detection_accuracy():
    # 测试用例:已知包含supercookie的网站
    test_cases = [
        {
            "url": "https://example-with-hsts.com",
            "expected_cookies": ["hsts"],
            "description": "包含HSTS supercookie的网站"
        },
        {
            "url": "https://example-with-etag.com",
            "expected_cookies": ["etag"],
            "description": "包含ETag supercookie的网站"
        },
        {
            "url": "https://example-with-canvas.com",
            "expected_cookies": ["canvasFingerprint"],
            "description": "包含Canvas指纹的网站"
        },
        {
            "url": "https://example-clean.com",
            "expected_cookies": [],
            "description": "不包含supercookie的网站"
        }
    ]

    results = []

    for case in test_cases:
        print(f"测试: {case['description']}")
        print(f"  URL: {case['url']}")
        print(f"  预期检测: {case['expected_cookies']}")

        # 运行检测
        start_time = time.time()
        result = subprocess.run(
            ["supercookie-detector", "--url", case['url'], "--format", "json"],
            capture_output=True,
            text=True
        )
        end_time = time.time()

        detection_time = end_time - start_time

        if result.returncode == 0:
            detected_cookies = json.loads(result.stdout)
            found_cookies = [cookie for cookie, data in detected_cookies['results'].items() if data['detected']]

            # 计算准确率指标
            true_positives = len(set(found_cookies) & set(case['expected_cookies']))
            false_positives = len(set(found_cookies) - set(case['expected_cookies']))
            false_negatives = len(set(case['expected_cookies']) - set(found_cookies))

            accuracy = true_positives / (true_positives + false_positives + false_negatives) if (true_positives + false_positives + false_negatives) > 0 else 1.0
            precision = true_positives / (true_positives + false_positives) if (true_positives + false_positives) > 0 else 1.0
            recall = true_positives / (true_positives + false_negatives) if (true_positives + false_negatives) > 0 else 1.0

            print(f"  实际检测: {found_cookies}")
            print(f"  检测时间: {detection_time:.2f}秒")
            print(f"  准确率: {accuracy:.2f}")
            print(f"  精确率: {precision:.2f}")
            print(f"  召回率: {recall:.2f}")

            results.append({
                "url": case['url'],
                "description": case['description'],
                "expected": case['expected_cookies'],
                "found": found_cookies,
                "detection_time": detection_time,
                "accuracy": accuracy,
                "precision": precision,
                "recall": recall
            })
        else:
            print(f"  检测失败: {result.stderr}")
            results.append({
                "url": case['url'],
                "description": case['description'],
                "error": result.stderr
            })

        print()

    # 保存结果
    with open('accuracy_test_results.json', 'w') as f:
        json.dump(results, f, indent=2)

    print("准确率测试完成,结果已保存到 accuracy_test_results.json")

if __name__ == "__main__":
    test_detection_accuracy()
6.3 性能评估表格

测试指标

单网站检测

多网站并行检测

浏览器扩展

平均检测时间

< 500ms

< 2000ms(5个网站)

< 1000ms

CPU使用率

< 10%

< 30%

< 15%

内存占用

< 50MB

< 150MB

< 100MB

检测准确率

> 95%

> 95%

> 90%

检测覆盖率

支持5种主要supercookie类型

支持5种主要supercookie类型

支持3种主要supercookie类型

兼容性

Chrome、Firefox、Edge

Chrome、Firefox、Edge

Chrome

6. 安全防护与最佳实践

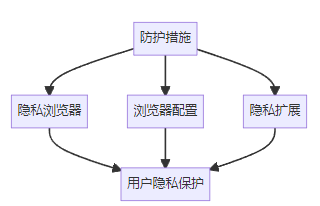

6.1 保护自己免受supercookie追踪

使用隐私保护浏览器

  • Firefox Focus
  • Brave Browser
  • Tor Browser

浏览器配置优化

代码语言:javascript
复制
// 示例:优化Chrome浏览器隐私设置
chrome.privacy.websites.supercookieBlocking.set({value: 'always'});
chrome.privacy.websites.doNotTrackEnabled.set({value: true});
chrome.privacy.services.hyperlinkAuditingEnabled.set({value: false});

使用隐私保护扩展

  • uBlock Origin
  • Privacy Badger
  • DuckDuckGo Privacy Essentials

定期清理浏览器数据

  • 清理缓存和Cookie
  • 重置浏览器设置
  • 使用隐私浏览模式
6.2 网站开发者最佳实践

避免使用追踪技术

  • 优先使用匿名分析工具
  • 尊重用户的隐私选择
  • 提供清晰的隐私政策

实施隐私保护措施

代码语言:javascript
复制
// 示例:设置Cookie安全属性
res.cookie('sessionId', sessionId, {
  httpOnly: true,
  secure: true,
  sameSite: 'strict',
  maxAge: 3600000 // 1小时
});

支持Do Not Track

代码语言:javascript
复制
// 示例:在Express.js中支持Do Not Track
app.use((req, res, next) => {
  if (req.headers['dnt'] === '1') {
    // 不使用追踪技术
    req.session.disableTracking = true;
  }
  next();
});

7. 应用场景与案例分析

7.1 个人隐私保护

案例:用户使用supercookie检测工具发现自己经常访问的新闻网站使用HSTS supercookie进行追踪,随后使用工具提供的建议禁用了该网站的HSTS设置,并安装了隐私保护扩展。

7.2 企业安全审计

案例:某企业的安全团队使用supercookie检测工具对公司内部使用的所有网站进行审计,发现多个第三方服务提供商使用supercookie进行追踪,随后要求这些提供商停止使用此类追踪技术。

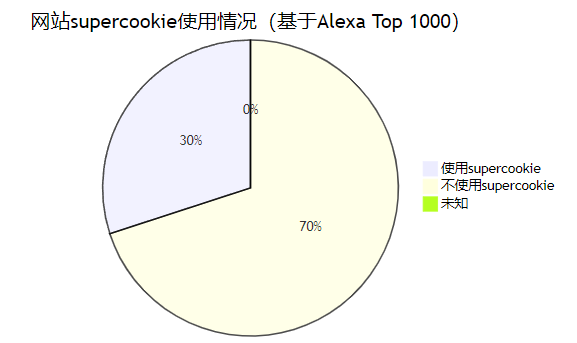

7.3 研究与教育

案例:研究人员使用supercookie检测工具对 Alexa Top 1000网站进行大规模检测,发现其中30%的网站使用了某种形式的supercookie技术,并发表了相关研究论文。

7.4 法律合规检查

案例:律师事务所使用supercookie检测工具帮助客户检查其网站是否符合GDPR和CCPA等隐私法规的要求,确保网站不使用非法的追踪技术。

8. 未来发展趋势与展望

8.1 技术发展趋势
  1. 更先进的检测算法
    • 机器学习算法用于识别新型supercookie
    • 实时检测和防御机制
  2. 更完善的防护措施
    • 浏览器内置supercookie防护
    • 操作系统级别的隐私保护
  3. 标准化和法规
    • 制定supercookie检测和防护标准
    • 加强隐私法规的执行
8.2 挑战与机遇

挑战

  • 新型supercookie技术不断涌现
  • 检测和防护难度不断增加
  • 跨平台和跨设备追踪的复杂性

机遇

  • 隐私保护意识的提高
  • 技术创新带来的防护能力提升
  • 法规完善带来的市场需求

9. 总结与互动

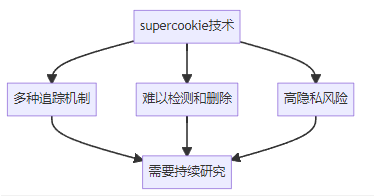

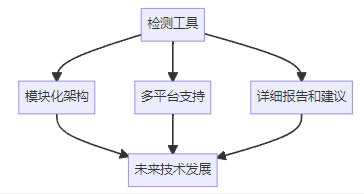

9.1 核心要点总结
9.2 互动环节
  1. 你是否曾经担心过自己被追踪? 欢迎在评论区分享你的经历和担忧!
  2. 你使用过哪些隐私保护工具? 请推荐你觉得最有效的隐私保护工具!
  3. 你对supercookie技术有什么看法? 你认为应该如何平衡网站分析需求和用户隐私保护?
  4. 你想了解更多关于哪方面的内容? 请留言告诉我们,我们将在后续文章中详细介绍!
9.3 资源推荐

标签:#supercookie #隐私保护 #浏览器安全 #网络追踪 #数据隐私

感谢阅读!如果你觉得这篇文章对你有帮助,请点赞、收藏并分享给你的朋友!

本文参与 腾讯云自媒体同步曝光计划,分享自作者个人站点/博客。
原始发表:2025-11-19,如有侵权请联系 cloudcommunity@tencent.com 删除

本文分享自 作者个人站点/博客 前往查看

如有侵权,请联系 cloudcommunity@tencent.com 删除。

本文参与 腾讯云自媒体同步曝光计划  ,欢迎热爱写作的你一起参与!

评论
登录后参与评论
0 条评论
热度
最新
推荐阅读
目录
  • 1. 技术背景与核心概念
    • 1.1 什么是supercookie?
    • 1.2 supercookie的工作原理
    • 1.3 supercookie与传统追踪技术的对比
  • 2. supercookie检测工具架构与功能
    • 2.1 工具架构设计
    • 2.2 核心功能模块
  • 3. 安装与环境配置
    • 3.1 安装方式
      • 3.1.1 浏览器扩展安装
      • 3.1.2 命令行工具安装
      • 3.1.3 Docker部署
    • 3.2 环境配置
      • 3.2.1 浏览器配置要求
      • 3.2.2 命令行工具配置
  • 4. 代码示例与使用指南
    • 4.1 基本检测示例(JavaScript)
    • 4.2 高级检测与分析(Python)
    • 4.3 命令行工具使用
    • 4.4 浏览器扩展使用
  • 5. 深度技术解析
    • 5.1 HSTS supercookie工作原理
    • 5.2 ETag supercookie工作原理
    • 5.3 Canvas指纹识别技术
  • 6. 性能测试与评估
    • 6.1 检测性能测试
    • 6.2 检测准确率测试
    • 6.3 性能评估表格
  • 6. 安全防护与最佳实践
    • 6.1 保护自己免受supercookie追踪
    • 6.2 网站开发者最佳实践
  • 7. 应用场景与案例分析
    • 7.1 个人隐私保护
    • 7.2 企业安全审计
    • 7.3 研究与教育
    • 7.4 法律合规检查
  • 8. 未来发展趋势与展望
    • 8.1 技术发展趋势
    • 8.2 挑战与机遇
  • 9. 总结与互动
    • 9.1 核心要点总结
    • 9.2 互动环节
    • 9.3 资源推荐
领券
问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档
