SDS存储与Bcache缓存

一.ceph存储服务器

节点 IP 服务

node1 192.168.80.21 mon mgr osd*12

node2 192.168.80.22 mon mgr osd*12

node3 192.168.80.23 mon mgr osd*12

二.准备工作

hostnamectl set-hostname node1 #其他递推

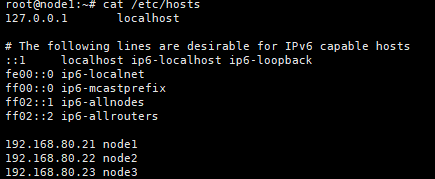

并将三节点的信息写入/etc/hosts文件下

添加描述

在node1上设置免密，三台互通

ssh-keygen -t rsa

ssh-copy-id 192.168.80.22/23

apt-get install ntp

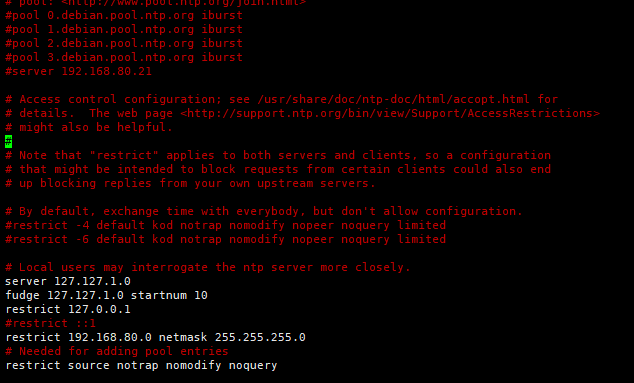

在/etc/ntp.conf中设置本机为ntpserver并允许192.168.80.0网段访问，如下

添加描述

在其他node节点注释掉pool，添加server 192.168.80.21

三.ceph集群部署

在node1上操作

1.uuidgen #生成集群fsid-uuid

2.配置/etc/ceph/ceph.conf如下：

[global]

fsid = 9bf24809-220b-4910-b384-c1f06ea80728

mon_initial_members = node1,node2,node3

mon_host = 192.168.80.21,192.168.80.22,192.168.80.23

public_network = 192.168.80.0/24

cluster_network = 192.168.80.0/24

auth_cluster_required = cephx

auth_service_required = cephx

auth_client_required = cephx

osd_pool_default_size = 3

osd_pool_default_min_size = 2

3.创建集群mon秘钥

ceph-authtool --create-keyring /tmp/ceph.mon.keyring --gen-key -n mon. --cap mon 'allow *'

4.创建集群client秘钥并导入到集群mon秘钥

ceph-authtool --create-keyring /etc/ceph/ceph.client.admin.keyring --gen-key -n client.admin --cap mon 'allow *' --cap osd 'allow *' --cap mds 'allow *' --cap mgr 'allow *'

ceph-authtool /tmp/ceph.mon.keyring --import-keyring /etc/ceph/ceph.client.admin.keyring

5.根据主机名，ip生成mon map

monmaptool --create --add node1 192.168.80.21 --add node2 192.168.80.22 --add node3 192.168.80.23 --fsid 9bf24809-220b-4910-b384-c1f06ea80728 /tmp/monmap

6.初始化并启动mon

mkdir -p /var/lib/ceph/mon/ceph-node1/

chown -R ceph:ceph /var/lib/ceph /tmp/monmap /tmp/ceph.mon.keyring /etc/ceph/

sudo -u ceph ceph-mon --mkfs -i node1 --monmap /tmp/monmap --keyring /tmp/ceph.mon.keyring

systemctl start ceph-mon@node1.service

systemctl enable ceph-mon@node1.service

systemctl status ceph-mon@node1.service

7.将秘钥，配置文件同步到node2/3

scp -r /etc/ceph/* root@node2:/etc/ceph/

scp -r scp /var/lib/ceph/bootstrap-osd/ceph.keyring root@node2:/var/lib/ceph/bootstrap-osd/

scr -r /tmp/monmap /tmp/ceph.mon.keyring root@node2:/tmp/

之后初始化并启动mon服务通步骤6

ceph -s 检测集群状态，若出现msgr2问题则任一节点 ceph mon enable-msgr2

四.bcache附盘

针对nvme ssd 进行分区推荐parted

单盘操作可参考：

bcahce添加：

1. wipefs –a /dev/nvme0n1p7

2. wipefs –a /dev/sdb

3. make-bcache –C /dev/nvme0n1p7 #会有cset.uuid

4. echo /dev/nvme0n1p7 > /sys/fs/bcache/register

5. bcache-super-show /dev/nvme0n1p7 | grep cset.uuid| cut –d $’\t’ –f 3 #提取cset.uuid最终写入/sys/block

6. make-bcache –B /dev/sdb --discard –writeback –wipebcache

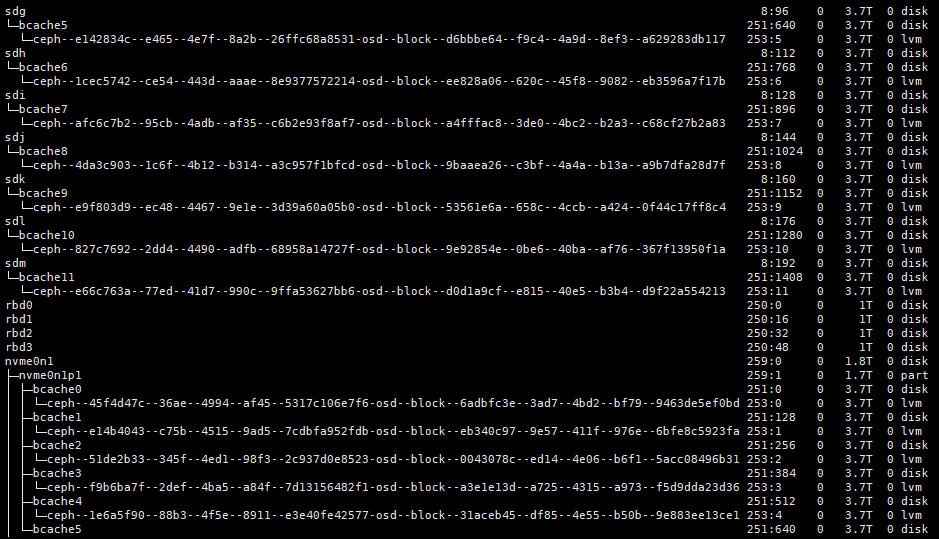

7. echo /dev/sdb > /sys/fs/bcache/register #可以看到成为bcache0，若cde---1,2,3具体根据数目

8. echo “cset.uuid” > /sys/block/bcache0/bcache/attach

脚本如下：

wipefs -a /dev/ssd

make-bcache -C /dev/ssd

echo /dev/ssd > /sys/fs/bcache/register

bcache-super-show /dev/nvme0n1p7 | grep cset.uuid| cut –d $’\t’ –f 3 #提取cset.uuid最终写入/sys/block

for i in {b..m}; do wipefs -a /dev/sd$i; done

for i in {b..m}; do ./make-bcache -B /dev/sd$i --wipe-bcache;sleep 1 ; done

for i in {b..g};do echo /dev/sd$i > /sys/fs/bcache/register;sleep 1 ;done

for i in {o..11}; do echo fc55d8f5-3b98-477c-94c6-0eaf917fb1fd > /sys/block/bcache$i/bcache/attach ; done

添加描述

五.创建crush map

1. ceph osd getcrushmap –o map 提取最新crushmap

2. crushtool –d map –o map.txt 反编译 并可以修改weight为1 root default共12

3. crushtool –c map.txt –o newmap 编译crush图

4. ceph osd setcrushmap –i newmap 注入

六.创建osd

for i in {b..m}; do parted /dev/sd$i mklabel gpt -s ;done

for i in {0..11};do ceph-volume lvm zap /dev/bcache$i;done

for i in {0..11};do ceph-volume lvm prepare --data /dev/bcache$i;done

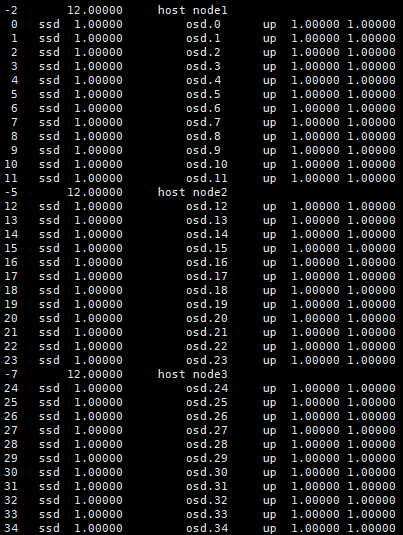

ceph-volume lvm activate --all

以上为BLUESTORE存储引擎

添加描述

若为filestore需要指定journal 日志可参考如下

举例bcache0:/dev/nvme0n1p1

echo bcache0:/dev/nvme0n1p1

for i in {0..11},do j=$(i=(i+1)); echo "bcache${i}:/dev/nvme0n1p${j}" >> osd.txt

cat osd.txt | ./prepare-osd.sh 生成osd 如ceph-volume lvm prepare --data /dev/bcache0 --journal /dev/nvme0n1

prepare-osd.sh

#!/bin/bash

while read line

do

disk=`echo $line | cut -d ":" -f 1`

journal=`echo $line | cut -d ':' -f 2`

echo $disk $journal

#ceph-volume lvm prepare --data /dev/${disk} --journal /dev/${journal} #为方便下面查看注释创建命令已注销

done

cat osd.txt

bcache0:nvme0n1p1

bcache1:nvme0n1p2

bcache2:nvme0n1p3

bcache3:nvme0n1p4

bcache4:nvme0n1p5

bcache5:nvme0n1p6

bcache6:nvme1n1p1

bcache7:nvme1n1p2

bcache8:nvme1n1p3

bcache9:nvme1n1p4

bcache10:nvme1n1p5

bcache11:nvme1n1p6

cat osd.txt| ./prepare_osd.sh

bcache0 nvme0n1p1

bcache1 nvme0n1p2

bcache2 nvme0n1p3

bcache3 nvme0n1p4

bcache4 nvme0n1p5

bcache5 nvme0n1p6

bcache6 nvme1n1p1

bcache7 nvme1n1p2

bcache8 nvme1n1p3

bcache9 nvme1n1p4

bcache10 nvme1n1p5

bcache11 nvme1n1p6

7.创建pool以及rbd，映射

ceph osd pool create rbd_pool 1024 1024

./create_12_rbd.sh

脚本如下

#!/bin/bash

for i in {0..11}

do

rbd create rbd_pool/rbd${i} --size 1024G

rbd feature disable rbd_pool/rbd${i} object-map fast-diff deep-flatten

rbd info rbd_pool/rbd${i}

done

客户端rbd映射

scp root@node1:/etc/ceph/* /etc/ceph

ceph osd application enable rbd_pool rbd

for i {0..3};

do rbd map rbd_pool/rbd${i};

done

其他节点

for i {4..7}

for i {8..11}

rbd showmapped
