【SpringBoot】自动配置

原创

用户11182874

发布于 2025-01-19 00:30:35

2820

1. 概述

自动配置是SpringBoot框架中的核心之一，其目的是将我们开发中引入的jar包类和自己编写的业务类自动注入到IoC容器中，而无需像我们的Spring一样，需要在配置文件中进行繁杂冗余的配置。例如我们使用事务时，在SpringBoot中无需任何操作，只要我们在配置文件中简单配置一下数据源即可，像事务管理器等内容SpringBoot框架已经我们注册成为Bean了；在Spring中，我们还需要在配置文件中引入事务管理器、数据库连接池、数据源等内容。

2. 源码分析

2.1. 从启动类开始

@SpringBootApplication
public class SpringBootApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringBootApplication.class, args);
    }

}

在启动类中，@SpringBootApplication是开启自动配置的核心注解，当然不止这一个功能，具体内容如下描述：

2.2. 到`@SpringBootApplication`注解中去

@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan(
    excludeFilters = {@Filter(
    type = FilterType.CUSTOM,
    classes = {TypeExcludeFilter.class}
), @Filter(
    type = FilterType.CUSTOM,
    classes = {AutoConfigurationExcludeFilter.class}
)}
)

如上为@SpringBootApplication注解上标注的注解，由于自动配置和注解内部的内容关系不大，因此只是复制了注解内容。

@Target、@Retention、@Documented、@Inherited四个注解都是元注解，和SpringBoot的自动配置没有其他关系，因此不做详细介绍。@Target({ElementType.TYPE}) @Retention(RetentionPolicy.RUNTIME) @Documented @Configuration @Indexed如上就是@SpringBootConfiguration注解内标注的注解，同样元注解不再介绍，只剩余一个@Configuration注解，表示是一个配置类的意思，因此最后 ==得出@SpringBootConfiguration注解表示启动类是一个配置类，也需要注册到IoC容器中去。==
@SpringBootConfiguration这个注解内部的注解是的内容如下：
@EnableAutoConfiguration注解是启动自动配置的重要注解，详细内容见下描述。@Target({ElementType.TYPE}) @Retention(RetentionPolicy.RUNTIME) @Documented @Inherited @AutoConfigurationPackage @Import({AutoConfigurationImportSelector.class})如上为@EnableAutoConfiguration注解标注的注解，具体来介绍一下对应内容：
@ComponentScan注解表示扫描的意思，默认扫描的是启动类所在包及其对应子包。2.3. 再到@EnableAutoConfiguration注解中去
@Target、@Retention、@Documented、@Inherited四个注解都是元注解，和SpringBoot的自动配置没有其他关系，因此不做详细介绍。 protected AutoConfigurationEntry getAutoConfigurationEntry(AnnotationMetadata annotationMetadata) { if (!this.isEnabled(annotationMetadata)) { return EMPTY_ENTRY; } else { AnnotationAttributes attributes = this.getAttributes(annotationMetadata); List<String> configurations = this.getCandidateConfigurations(annotationMetadata, attributes); configurations = this.removeDuplicates(configurations); Set<String> exclusions = this.getExclusions(annotationMetadata, attributes); this.checkExcludedClasses(configurations, exclusions); configurations.removeAll(exclusions); configurations = this.getConfigurationClassFilter().filter(configurations); this.fireAutoConfigurationImportEvents(configurations, exclusions); return new AutoConfigurationEntry(configurations, exclusions); } }上述代码中是主要实现自动配置内容的代码，接下来我们逐行进行解析描述。
@AutoConfigurationPackage注解的作用是确定了要扫描的包及其子包，切记是确定要扫描的包以及子包，而非已经开始扫描了。@AutoConfigurationPackage注解中有@Import({AutoConfigurationPackages.Registrar.class})注解，该注解才是真正发挥作用的注解。对于注解·@ComponentScan·注解来说才是要开始扫描。
@Import注解是自动配置最核心的注解，而之所以能自动配置，都是因为该注解导入的AutoConfigurationImportSelector类，具体如下描述。2.4. 进到AutoConfigurationImportSelector类中
判断是否开启了自动配置，如果没有开启，那么就直接返回一个空；如果开启了自动配置，那么就执行向下执行。if (!this.isEnabled(annotationMetadata)) { return EMPTY_ENTRY; }AnnotationAttributes attributes = this.getAttributes(annotationMetadata);List<String> configurations = this.getCandidateConfigurations(annotationMetadata, attributes);configurations = this.removeDuplicates(configurations);Set<String> exclusions = this.getExclusions(annotationMetadata, attributes);this.checkExcludedClasses(configurations, exclusions); configurations.removeAll(exclusions);configurations = this.getConfigurationClassFilter().filter(configurations);this.fireAutoConfigurationImportEvents(configurations, exclusions);return new AutoConfigurationEntry(configurations, exclusions);2.5. 进入getCandidateConfigurations方法protected List<String> getCandidateConfigurations(AnnotationMetadata metadata, AnnotationAttributes attributes) { List<String> configurations = new ArrayList(SpringFactoriesLoader.loadFactoryNames(this.getSpringFactoriesLoaderFactoryClass(), this.getBeanClassLoader())); ImportCandidates.load(AutoConfiguration.class, this.getBeanClassLoader()).forEach(configurations::add); Assert.notEmpty(configurations, "No auto configuration classes found in META-INF/spring.factories nor in META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports. If you are using a custom packaging, make sure that file is correct."); return configurations; }上述代码不再进行逐行分析，总的来说。上述代码就是去我们导入的jar包中找到我们要导入的自动配置类列表，获取完毕之后，返回即可。而我们找的获取自动配置类列表的所在的文件名是META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports.。
根据注解元数据来获取注解的一些属性，这些属性中可能包含了一些配置信息，例如排除的类、激活的配置等。
根据注解元数据和注解的属性来获取可能要进行自动配置的配置类名列表，对于这行代码要进入的方法来说，下述还会有详细解释。
移除获取的自动配置类列表名中重复的项
根据注解元数据和注解的属性，获取所有要被排除的自动配置类。
根据获取要排除的自动配置类和可能要引入的自动配置类进行检查是否确定要配出，如果不确定那么就会抛出异常；如果确定那么就会继续执行移除所有要被排除在外的自动配置类内容。
使用配置类过滤器将配置类列表中不需要的配置项进行过滤，可能根据一些条件注解等其他方式来排除。
触发自动配置导入事件，允许其他组件监听并响应自动配置的导入过程。
创建一个新的AutoConfigurationEntry对象，其中包含最终确定的配置列表和排除列表，并将其返回。

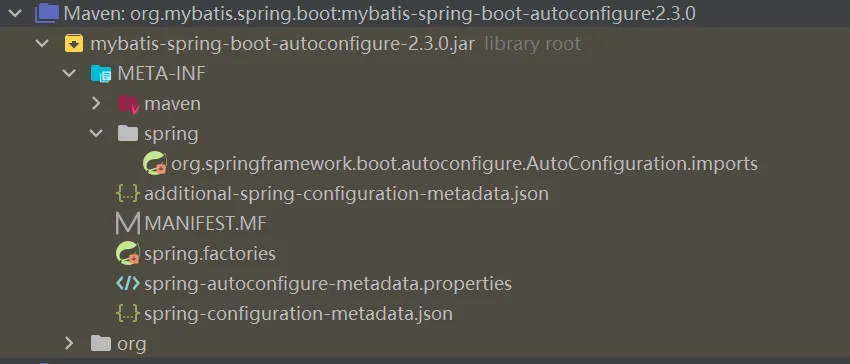

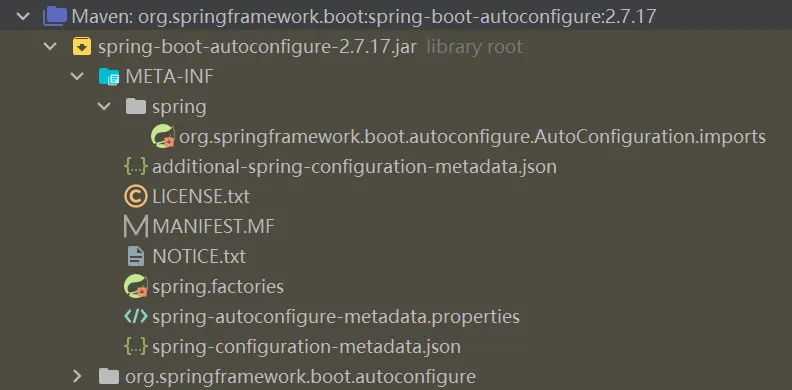

从上述两张图片结合代码可以看出，我们会将自动配置包的全路径类型放入一个统一个文件路径+文件名下面，所以代码在进行查找时，就会把所有的、无论哪个包下的自动配置文件中的全部类全部导入进去，我们就能实现轻松的自动配置。

对于一个启动器来说，它都会引入一个自动配置包，而自动配置包下就会有META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports.这个内容，这里面的数据就是一个一个的自动配置类：

对于每个配置类内部是什么内容，下述会使用一个具体的配置类来进行查看。

2.6. 到`MybatisAutoConfiguration`类中

//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by FernFlower decompiler)
//

package org.mybatis.spring.boot.autoconfigure;

import java.beans.FeatureDescriptor;
import java.util.Iterator;
import java.util.List;
import java.util.Optional;
import java.util.Set;
import java.util.stream.Collectors;
import java.util.stream.Stream;
import javax.sql.DataSource;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.mapping.DatabaseIdProvider;
import org.apache.ibatis.plugin.Interceptor;
import org.apache.ibatis.scripting.LanguageDriver;
import org.apache.ibatis.session.ExecutorType;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.type.TypeHandler;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.mapper.MapperFactoryBean;
import org.mybatis.spring.mapper.MapperScannerConfigurer;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.BeanWrapper;
import org.springframework.beans.BeanWrapperImpl;
import org.springframework.beans.factory.BeanFactory;
import org.springframework.beans.factory.BeanFactoryAware;
import org.springframework.beans.factory.InitializingBean;
import org.springframework.beans.factory.ListableBeanFactory;
import org.springframework.beans.factory.ObjectProvider;
import org.springframework.beans.factory.support.BeanDefinitionBuilder;
import org.springframework.beans.factory.support.BeanDefinitionRegistry;
import org.springframework.boot.autoconfigure.AutoConfigurationPackages;
import org.springframework.boot.autoconfigure.AutoConfigureAfter;
import org.springframework.boot.autoconfigure.condition.ConditionalOnClass;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.boot.autoconfigure.condition.ConditionalOnSingleCandidate;
import org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.EnvironmentAware;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import org.springframework.context.annotation.ImportBeanDefinitionRegistrar;
import org.springframework.core.env.Environment;
import org.springframework.core.io.Resource;
import org.springframework.core.io.ResourceLoader;
import org.springframework.core.type.AnnotationMetadata;
import org.springframework.util.Assert;
import org.springframework.util.CollectionUtils;
import org.springframework.util.ObjectUtils;
import org.springframework.util.StringUtils;

@Configuration
@ConditionalOnClass({SqlSessionFactory.class, SqlSessionFactoryBean.class})
@ConditionalOnSingleCandidate(DataSource.class)
@EnableConfigurationProperties({MybatisProperties.class})
@AutoConfigureAfter({DataSourceAutoConfiguration.class, MybatisLanguageDriverAutoConfiguration.class})
public class MybatisAutoConfiguration implements InitializingBean {
    private static final Logger logger = LoggerFactory.getLogger(MybatisAutoConfiguration.class);
    private final MybatisProperties properties;
    private final Interceptor[] interceptors;
    private final TypeHandler[] typeHandlers;
    private final LanguageDriver[] languageDrivers;
    private final ResourceLoader resourceLoader;
    private final DatabaseIdProvider databaseIdProvider;
    private final List<ConfigurationCustomizer> configurationCustomizers;
    private final List<SqlSessionFactoryBeanCustomizer> sqlSessionFactoryBeanCustomizers;

    public MybatisAutoConfiguration(MybatisProperties properties, ObjectProvider<Interceptor[]> interceptorsProvider, ObjectProvider<TypeHandler[]> typeHandlersProvider, ObjectProvider<LanguageDriver[]> languageDriversProvider, ResourceLoader resourceLoader, ObjectProvider<DatabaseIdProvider> databaseIdProvider, ObjectProvider<List<ConfigurationCustomizer>> configurationCustomizersProvider, ObjectProvider<List<SqlSessionFactoryBeanCustomizer>> sqlSessionFactoryBeanCustomizers) {
        this.properties = properties;
        this.interceptors = (Interceptor[])interceptorsProvider.getIfAvailable();
        this.typeHandlers = (TypeHandler[])typeHandlersProvider.getIfAvailable();
        this.languageDrivers = (LanguageDriver[])languageDriversProvider.getIfAvailable();
        this.resourceLoader = resourceLoader;
        this.databaseIdProvider = (DatabaseIdProvider)databaseIdProvider.getIfAvailable();
        this.configurationCustomizers = (List)configurationCustomizersProvider.getIfAvailable();
        this.sqlSessionFactoryBeanCustomizers = (List)sqlSessionFactoryBeanCustomizers.getIfAvailable();
    }

    public void afterPropertiesSet() {
        this.checkConfigFileExists();
    }

    private void checkConfigFileExists() {
        if (this.properties.isCheckConfigLocation() && StringUtils.hasText(this.properties.getConfigLocation())) {
            Resource resource = this.resourceLoader.getResource(this.properties.getConfigLocation());
            Assert.state(resource.exists(), "Cannot find config location: " + resource + " (please add config file or check your Mybatis configuration)");
        }

    }

    @Bean
    @ConditionalOnMissingBean
    public SqlSessionFactory sqlSessionFactory(DataSource dataSource) throws Exception {
        SqlSessionFactoryBean factory = new SqlSessionFactoryBean();
        factory.setDataSource(dataSource);
        factory.setVfs(SpringBootVFS.class);
        if (StringUtils.hasText(this.properties.getConfigLocation())) {
            factory.setConfigLocation(this.resourceLoader.getResource(this.properties.getConfigLocation()));
        }

        this.applyConfiguration(factory);
        if (this.properties.getConfigurationProperties() != null) {
            factory.setConfigurationProperties(this.properties.getConfigurationProperties());
        }

        if (!ObjectUtils.isEmpty(this.interceptors)) {
            factory.setPlugins(this.interceptors);
        }

        if (this.databaseIdProvider != null) {
            factory.setDatabaseIdProvider(this.databaseIdProvider);
        }

        if (StringUtils.hasLength(this.properties.getTypeAliasesPackage())) {
            factory.setTypeAliasesPackage(this.properties.getTypeAliasesPackage());
        }

        if (this.properties.getTypeAliasesSuperType() != null) {
            factory.setTypeAliasesSuperType(this.properties.getTypeAliasesSuperType());
        }

        if (StringUtils.hasLength(this.properties.getTypeHandlersPackage())) {
            factory.setTypeHandlersPackage(this.properties.getTypeHandlersPackage());
        }

        if (!ObjectUtils.isEmpty(this.typeHandlers)) {
            factory.setTypeHandlers(this.typeHandlers);
        }

        Resource[] mapperLocations = this.properties.resolveMapperLocations();
        if (!ObjectUtils.isEmpty(mapperLocations)) {
            factory.setMapperLocations(mapperLocations);
        }

        Set<String> factoryPropertyNames = (Set)Stream.of((new BeanWrapperImpl(SqlSessionFactoryBean.class)).getPropertyDescriptors()).map(FeatureDescriptor::getName).collect(Collectors.toSet());
        Class<? extends LanguageDriver> defaultLanguageDriver = this.properties.getDefaultScriptingLanguageDriver();
        if (factoryPropertyNames.contains("scriptingLanguageDrivers") && !ObjectUtils.isEmpty(this.languageDrivers)) {
            factory.setScriptingLanguageDrivers(this.languageDrivers);
            if (defaultLanguageDriver == null && this.languageDrivers.length == 1) {
                defaultLanguageDriver = this.languageDrivers[0].getClass();
            }
        }

        if (factoryPropertyNames.contains("defaultScriptingLanguageDriver")) {
            factory.setDefaultScriptingLanguageDriver(defaultLanguageDriver);
        }

        this.applySqlSessionFactoryBeanCustomizers(factory);
        return factory.getObject();
    }

    private void applyConfiguration(SqlSessionFactoryBean factory) {
        org.apache.ibatis.session.Configuration configuration = this.properties.getConfiguration();
        if (configuration == null && !StringUtils.hasText(this.properties.getConfigLocation())) {
            configuration = new org.apache.ibatis.session.Configuration();
        }

        if (configuration != null && !CollectionUtils.isEmpty(this.configurationCustomizers)) {
            Iterator var3 = this.configurationCustomizers.iterator();

            while(var3.hasNext()) {
                ConfigurationCustomizer customizer = (ConfigurationCustomizer)var3.next();
                customizer.customize(configuration);
            }
        }

        factory.setConfiguration(configuration);
    }

    private void applySqlSessionFactoryBeanCustomizers(SqlSessionFactoryBean factory) {
        if (!CollectionUtils.isEmpty(this.sqlSessionFactoryBeanCustomizers)) {
            Iterator var2 = this.sqlSessionFactoryBeanCustomizers.iterator();

            while(var2.hasNext()) {
                SqlSessionFactoryBeanCustomizer customizer = (SqlSessionFactoryBeanCustomizer)var2.next();
                customizer.customize(factory);
            }
        }

    }

    @Bean
    @ConditionalOnMissingBean
    public SqlSessionTemplate sqlSessionTemplate(SqlSessionFactory sqlSessionFactory) {
        ExecutorType executorType = this.properties.getExecutorType();
        return executorType != null ? new SqlSessionTemplate(sqlSessionFactory, executorType) : new SqlSessionTemplate(sqlSessionFactory);
    }

    @Configuration
    @Import({AutoConfiguredMapperScannerRegistrar.class})
    @ConditionalOnMissingBean({MapperFactoryBean.class, MapperScannerConfigurer.class})
    public static class MapperScannerRegistrarNotFoundConfiguration implements InitializingBean {
        public MapperScannerRegistrarNotFoundConfiguration() {
        }

        public void afterPropertiesSet() {
            MybatisAutoConfiguration.logger.debug("Not found configuration for registering mapper bean using @MapperScan, MapperFactoryBean and MapperScannerConfigurer.");
        }
    }

    public static class AutoConfiguredMapperScannerRegistrar implements BeanFactoryAware, EnvironmentAware, ImportBeanDefinitionRegistrar {
        private BeanFactory beanFactory;
        private Environment environment;

        public AutoConfiguredMapperScannerRegistrar() {
        }

        public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
            if (!AutoConfigurationPackages.has(this.beanFactory)) {
                MybatisAutoConfiguration.logger.debug("Could not determine auto-configuration package, automatic mapper scanning disabled.");
            } else {
                MybatisAutoConfiguration.logger.debug("Searching for mappers annotated with @Mapper");
                List<String> packages = AutoConfigurationPackages.get(this.beanFactory);
                if (MybatisAutoConfiguration.logger.isDebugEnabled()) {
                    packages.forEach((pkg) -> {
                        MybatisAutoConfiguration.logger.debug("Using auto-configuration base package '{}'", pkg);
                    });
                }

                BeanDefinitionBuilder builder = BeanDefinitionBuilder.genericBeanDefinition(MapperScannerConfigurer.class);
                builder.addPropertyValue("processPropertyPlaceHolders", true);
                builder.addPropertyValue("annotationClass", Mapper.class);
                builder.addPropertyValue("basePackage", StringUtils.collectionToCommaDelimitedString(packages));
                BeanWrapper beanWrapper = new BeanWrapperImpl(MapperScannerConfigurer.class);
                Set<String> propertyNames = (Set)Stream.of(beanWrapper.getPropertyDescriptors()).map(FeatureDescriptor::getName).collect(Collectors.toSet());
                if (propertyNames.contains("lazyInitialization")) {
                    builder.addPropertyValue("lazyInitialization", "${mybatis.lazy-initialization:false}");
                }

                if (propertyNames.contains("defaultScope")) {
                    builder.addPropertyValue("defaultScope", "${mybatis.mapper-default-scope:}");
                }

                boolean injectSqlSession = (Boolean)this.environment.getProperty("mybatis.inject-sql-session-on-mapper-scan", Boolean.class, Boolean.TRUE);
                if (injectSqlSession && this.beanFactory instanceof ListableBeanFactory) {
                    ListableBeanFactory listableBeanFactory = (ListableBeanFactory)this.beanFactory;
                    Optional<String> sqlSessionTemplateBeanName = Optional.ofNullable(this.getBeanNameForType(SqlSessionTemplate.class, listableBeanFactory));
                    Optional<String> sqlSessionFactoryBeanName = Optional.ofNullable(this.getBeanNameForType(SqlSessionFactory.class, listableBeanFactory));
                    if (!sqlSessionTemplateBeanName.isPresent() && sqlSessionFactoryBeanName.isPresent()) {
                        builder.addPropertyValue("sqlSessionFactoryBeanName", sqlSessionFactoryBeanName.get());
                    } else {
                        builder.addPropertyValue("sqlSessionTemplateBeanName", sqlSessionTemplateBeanName.orElse("sqlSessionTemplate"));
                    }
                }

                builder.setRole(2);
                registry.registerBeanDefinition(MapperScannerConfigurer.class.getName(), builder.getBeanDefinition());
            }
        }

        public void setBeanFactory(BeanFactory beanFactory) {
            this.beanFactory = beanFactory;
        }

        public void setEnvironment(Environment environment) {
            this.environment = environment;
        }

        private String getBeanNameForType(Class<?> type, ListableBeanFactory factory) {
            String[] beanNames = factory.getBeanNamesForType(type);
            return beanNames.length > 0 ? beanNames[0] : null;
        }
    }
}

通过上述代码可以看出，在自动配置类中，其实就是一个一个的Bean，这些Bean又会根据一些条件注解什么的，在判断之后如果可以进行注入，那么最终就会注册到IoC容器。这就是自动配置的核心所在，对于Spring来说，需要开发人员一个一个导入；对于SpringBoot来说直接自动导入，非常简洁。

注意： 在SpringBoot的不同版本中，对于自动配置类列表放置的位置还有所差别，例如在比较新的版本中，我们的自动配置类列表都是放在imports结尾的文件中；但是一些较早的SpringBoot版本，我们的自动配置类列表则是放在factories结尾的文件中，所以我们需要了解一下这个内容。

3. 总结

通过源码的分析，我认为应该已经对SpringBoot的自动配置有了一定的认知。所谓的自动配置，就是将本需要程序猿干的活，交给系统来干了，这样不仅省时省力，还不会报错。

原创声明：本文系作者授权腾讯云开发者社区发表，未经许可，不得转载。

如有侵权，请联系 cloudcommunity@tencent.com 删除。

spring boot

原创声明：本文系作者授权腾讯云开发者社区发表，未经许可，不得转载。

如有侵权，请联系 cloudcommunity@tencent.com 删除。

spring boot

登录后参与评论

0 条评论

热度
