使用skywalking监控springboot项目

core:
  default:
  restHost: ${SW_CORE_REST_HOST:0.0.0.0}
  restPort: ${SW_CORE_REST_PORT:12800}
  restContextPath: ${SW_CORE_REST_CONTEXT_PATH:/}
  gRPCHost: ${SW_CORE_GRPC_HOST:0.0.0.0}
  gRPCPort: ${SW_CORE_GRPC_PORT:11800}
  downsampling:
    - Hour
    - Day
    - Month
  # Set a timeout on metric data. After the timeout has expired, the metric data will automatically be deleted.
  recordDataTTL: ${SW_CORE_RECORD_DATA_TTL:90} # Unit is minute
  minuteMetricsDataTTL: ${SW_CORE_MINUTE_METRIC_DATA_TTL:90} # Unit is minute
  hourMetricsDataTTL: ${SW_CORE_HOUR_METRIC_DATA_TTL:36} # Unit is hour
  dayMetricsDataTTL: ${SW_CORE_DAY_METRIC_DATA_TTL:45} # Unit is day
  monthMetricsDataTTL: ${SW_CORE_MONTH_METRIC_DATA_TTL:18} # Unit is month
storage:
  h2:
    driver: ${SW_STORAGE_H2_DRIVER:org.h2.jdbcx.JdbcDataSource}
    url: ${SW_STORAGE_H2_URL:jdbc:h2:mem:skywalking-oap-db}
    user: ${SW_STORAGE_H2_USER:sa}
    #  elasticsearch:
    #    # nameSpace: ${SW_NAMESPACE:""}
    #    clusterNodes:     ${SW_STORAGE_ES_CLUSTER_NODES:localhost:9200}
    #    indexShardsNumber: ${SW_STORAGE_ES_INDEX_SHARDS_NUMBER:2}
    #    indexReplicasNumber: ${SW_STORAGE_ES_INDEX_REPLICAS_NUMBER:0}
    #    # Batch process setting, refer to https://www.elastic.co/guide/en/elasticsearch/client/java-api/5.5/java-docs-bulk-processor.html
    #    bulkActions: ${SW_STORAGE_ES_BULK_ACTIONS:2000} # Execute the bulk every 2000 requests
    #    bulkSize: ${SW_STORAGE_ES_BULK_SIZE:20} # flush the bulk every 20mb
    #    flushInterval: ${SW_STORAGE_ES_FLUSH_INTERVAL:10} # flush the bulk every 10 seconds whatever the number of requests
    #    concurrentRequests: ${SW_STORAGE_ES_CONCURRENT_REQUESTS:2} # the number of concurrent requests
receiver-register:
    default:
receiver-trace:
    default:
bufferPath: ${SW_RECEIVER_BUFFER_PATH:../trace-buffer/}  # Path to trace buffer files, suggest to use absolute path
bufferOffsetMaxFileSize: ${SW_RECEIVER_BUFFER_OFFSET_MAX_FILE_SIZE:100} # Unit is MB
bufferDataMaxFileSize: ${SW_RECEIVER_BUFFER_DATA_MAX_FILE_SIZE:500} # Unit is MB
bufferFileCleanWhenRestart: ${SW_RECEIVER_BUFFER_FILE_CLEAN_WHEN_RESTART:false}
sampleRate: ${SW_TRACE_SAMPLE_RATE:10000} # The sample rate precision is 1/10000. 10000 means 100% sample in default.
receiver-jvm:
    default:
#service-mesh:

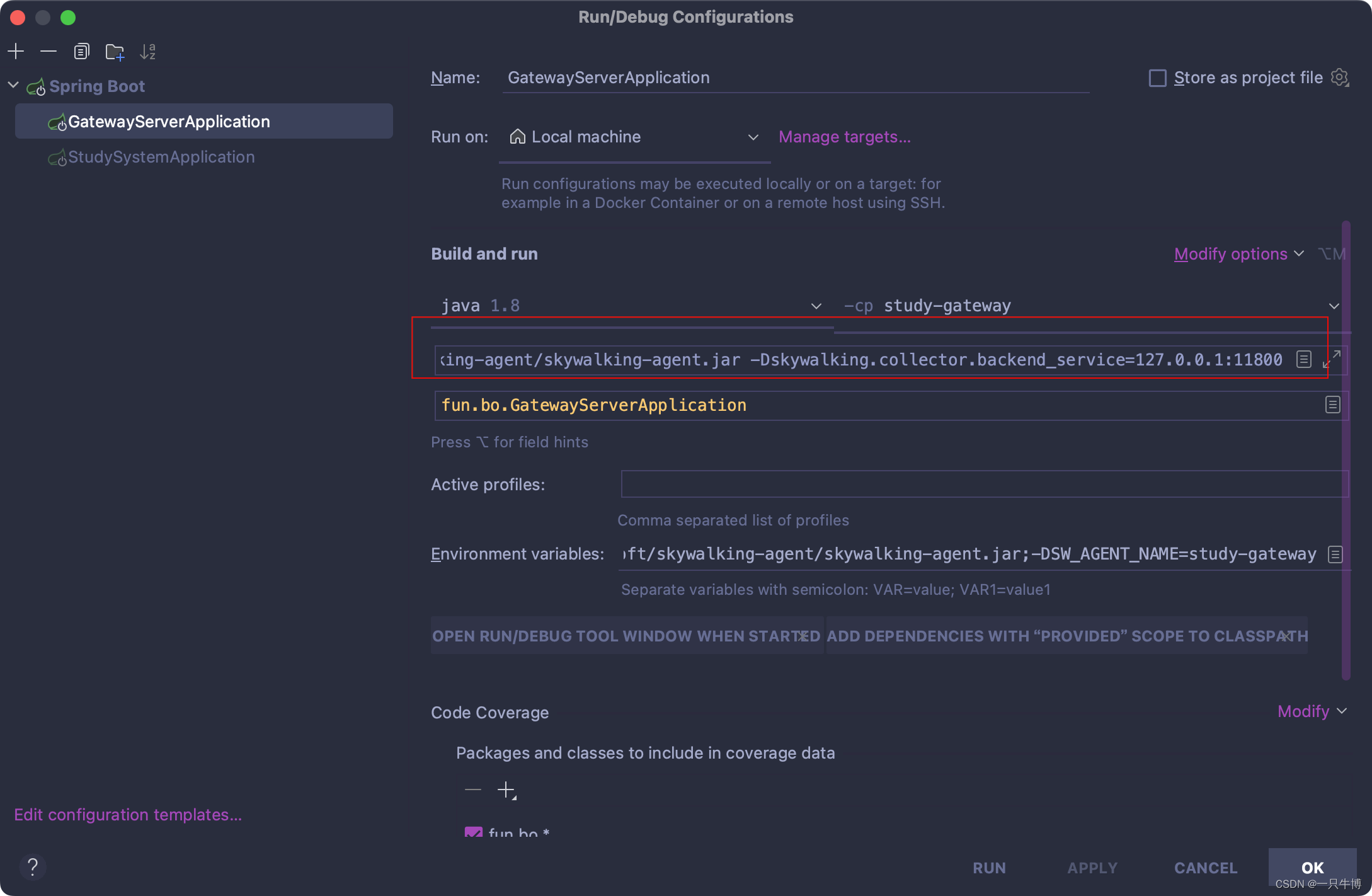

-javaagent:C:\Users\ke\Desktop\apache-skywalking-apm-6.6.0\apache-skywalking-apm-bin\agent\skywalking-agent.jar
-Dskywalking.agent.service_name=service-myapp

  INFO 2020-02-13 14:57:36:310 main SnifferConfigInitializer : Config file found in C:\Users\ke\Desktop\apache-skywalking-apm-6.6.0\apache-skywalking-apm-bin\agent\config\agent.config.

java -javaagent:C:\Users\ke\Desktop\apache-skywalking-apm-6.6.0\apache-skywalking-apm-bin\agent/skywalking-agent.jar=-Dskywalking.agent.service_name=service-myapp,-Dskywalking.collector.backend_service=localhost:11800 -jar service-myapp.jar

[root@basenode demo]# vi startup.sh

#!/bin/sh
# SkyWalking Agent配置
export SW_AGENT_NAME=springboot-skywalking-wudl #Agent名字,一般使用`spring.application.name`
export SW_AGENT_COLLECTOR_BACKEND_SERVICES=192.168.1.180:11800 #配置 Collector 地址。
export SW_AGENT_SPAN_LIMIT=2000 #配置链路的最大Span数量，默认为 300。
export JAVA_AGENT=-javaagent:/opt/module/skywalking-apm-bin-es7/agent/skywalking-agent.jar
java $JAVA_AGENT -jar /opt/module/demo/user-center-0.0.1-SNAPSHOT.jar #jar启动

[root@basenode demo]# sh startup.sh
DEBUG 2021-09-12 18:01:30:050 main AgentPackagePath : The beacon class location is jar:file:/opt/module/skywalking-apm-bin-es7/agent/skywalking-agent.jar!/org/apache/skywalking/apm/agent/core/boot/AgentPackagePath.class.
INFO 2021-09-12 18:01:30:051 main SnifferConfigInitializer : Config file found in /opt/module/skywalking-apm-bin-es7/agent/config/agent.config.

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::        (v2.2.2.RELEASE)

2021-09-12 18:01:39.170  INFO 5590 --- [           main] c.wudl.usercenter.UserCenterApplication  : Starting UserCenterApplication v0.0.1-SNAPSHOT on basenode with PID 5590 (/opt/module/demo/user-center-0.0.1-SNAPSHOT.jar started by root in /opt/module/demo)
2021-09-12 18:01:39.177  INFO 5590 --- [           main] c.wudl.usercenter.UserCenterApplication  : The following profiles are active: dev
2021-09-12 18:01:43.948  INFO 5590 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat initialized with port(s): 9909 (http)
2021-09-12 18:01:44.050  INFO 5590 --- [           main] o.apache.catalina.core.StandardService   : Starting service [Tomcat]
2021-09-12 18:01:44.050  INFO 5590 --- [           main] org.apache.catalina.core.StandardEngine  : Starting Servlet engine: [Apache Tomcat/9.0.29]
2021-09-12 18:01:44.196  INFO 5590 --- [           main] o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring embedded WebApplicationContext
2021-09-12 18:01:44.197  INFO 5590 --- [           main] o.s.web.context.ContextLoader            : Root WebApplicationContext: initialization completed in 4819 ms
2021-09-12 18:01:47.260  INFO 5590 --- [           main] o.s.s.concurrent.ThreadPoolTaskExecutor  : Initializing ExecutorService 'applicationTaskExecutor'
2021-09-12 18:01:47.956  INFO 5590 --- [           main] t.m.m.autoconfigure.MapperCacheDisabler  : Clear tk.mybatis.mapper.util.MsUtil CLASS_CACHE cache.
2021-09-12 18:01:47.956  INFO 5590 --- [           main] t.m.m.autoconfigure.MapperCacheDisabler  : Clear tk.mybatis.mapper.genid.GenIdUtil CACHE cache.
2021-09-12 18:01:47.957  INFO 5590 --- [           main] t.m.m.autoconfigure.MapperCacheDisabler  : Clear tk.mybatis.mapper.version.VersionUtil CACHE cache.
2021-09-12 18:01:47.957  INFO 5590 --- [           main] t.m.m.autoconfigure.MapperCacheDisabler  : Clear EntityHelper entityTableMap cache.
2021-09-12 18:01:48.365  INFO 5590 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat started on port(s): 9909 (http) with context path ''
2021-09-12 18:01:48.370  INFO 5590 --- [           main] c.wudl.usercenter.UserCenterApplication  : Started UserCenterApplication in 11.576 seconds (JVM running for 18.419)
