直播间列表(Flutter)

最近更新时间:2026-01-30 11:23:02

我的收藏
LiveListStoreAtomicXCore 中负责管理直播房间列表、创建、加入以及维护房间状态的核心模块。通过LiveListStore,开发者可以为应用构建完整的直播生命周期管理。


核心功能

直播列表拉取:获取当前所有公开的直播间列表,支持分页加载。
直播生命周期管理:提供从创建、开播、加入、离开到结束直播的全套流程接口。
直播信息更新:主播可以随时更新直播间的公开信息,例如封面、公告等。
实时事件监听:监听直播结束、用户被踢出等关键事件。
自定义业务数据:强大的自定义元数据(MetaData)能力,允许您在房间内存储和同步任何业务相关的信息,例如直播状态、音乐信息、自定义角色等。

核心概念

在开始集成之前,下表介绍了 LiveListStore 相关的核心概念:
核心概念
类型
核心职责与描述
LiveInfo
class
代表一个直播间的所有信息模型。包含了直播 ID (liveID)、名称 (liveName)、房主信息 (liveOwner) 以及自定义元数据 (metaData) 等。
class
代表直播列表模块的当前状态。其核心属性 liveList 是一个 ValueListenable<List<LiveInfo>> 类型,存储了拉取到的直播列表;currentLive 则代表用户当前所在的直播间信息。
class
代表直播房间的全局事件监听器。包含 onLiveEnded (直播结束) 和 onKickedOutOfLive (被踢出直播) 两种回调,用于处理关键的房间状态变更。
class
这是与直播列表和房间生命周期交互的核心管理类。它是一个全局单例 (shared),负责所有直播房间的创建、加入、信息更新等操作。

实现步骤

步骤1:组件集成

参考 快速接入 集成 AtomicXCore,并完成 构建基础语聊房应用 的功能实现。

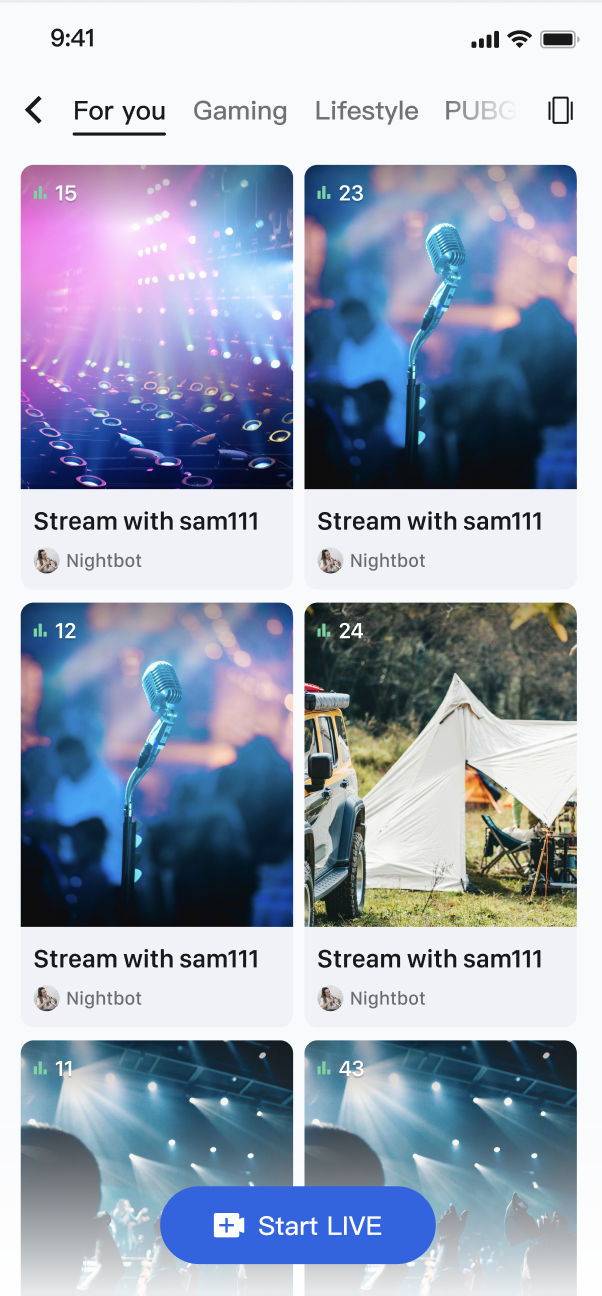

步骤2:实现观众从直播列表进入直播间

实现方式

1. 创建一个展示直播列表的页面,该页面使用 GridView 来布局直播间卡片。
2. 当用户点击某个卡片时,获取该直播间的 liveID,并跳转到观众观看页面。

代码示例

import 'package:flutter/material.dart';
import 'package:atomic_x_core/atomicxcore.dart';

/// 直播列表页面
class LiveListPage extends StatefulWidget {
const LiveListPage({super.key});

@override
State<LiveListPage> createState() => _LiveListPageState();
}

class _LiveListPageState extends State<LiveListPage> {
final _liveListStore = LiveListStore.shared;
final ScrollController _scrollController = ScrollController();
bool _isLoading = false;
late final VoidCallback _liveListListener = _onLiveListChanged;

@override
void initState() {
super.initState();
_liveListStore.liveState.liveList.addListener(_liveListListener);
_scrollController.addListener(_onScroll);
_fetchLiveList();
}

void _onLiveListChanged() {
setState(() {});
}

void _onScroll() {
// 滚动到底部时加载更多
if (_scrollController.position.pixels >=
_scrollController.position.maxScrollExtent - 200) {
_loadMore();
}
}

Future<void> _fetchLiveList() async {
if (_isLoading) return;
setState(() => _isLoading = true);

final result = await _liveListStore.fetchLiveList(cursor: '', count: 20);
if (!result.isSuccess) {
debugPrint('直播列表拉取失败: ${result.message}');
}

setState(() => _isLoading = false);
}

Future<void> _loadMore() async {
if (_isLoading) return;

final cursor = _liveListStore.liveState.liveListCursor.value;
if (cursor.isEmpty) return; // 没有更多数据

setState(() => _isLoading = true);
await _liveListStore.fetchLiveList(cursor: cursor, count: 20);
setState(() => _isLoading = false);
}

Future<void> _refresh() async {
_liveListStore.reset();
await _fetchLiveList();
}

// 当用户点击列表中的某个卡片时
void _onLiveCardTap(LiveInfo liveInfo) {
// 创建观众观看页面,并将 liveID 传入
Navigator.push(
context,
MaterialPageRoute(
builder: (context) => YourAudiencePage(liveID: liveInfo.liveID),
),
);
}

@override
void dispose() {
_liveListStore.liveState.liveList.removeListener(_liveListListener);
_scrollController.dispose();
super.dispose();
}

@override
Widget build(BuildContext context) {
final liveList = _liveListStore.liveState.liveList.value;

return Scaffold(
appBar: AppBar(title: const Text('直播列表')),
body: RefreshIndicator(
onRefresh: _refresh,
child: liveList.isEmpty
? Center(
child: _isLoading
? const CircularProgressIndicator()
: const Text('暂无直播'),
)
: GridView.builder(
controller: _scrollController,
padding: const EdgeInsets.all(8),
gridDelegate: const SliverGridDelegateWithFixedCrossAxisCount(
crossAxisCount: 2,
childAspectRatio: 0.75,
crossAxisSpacing: 8,
mainAxisSpacing: 8,
),
itemCount: liveList.length + (_isLoading ? 1 : 0),
itemBuilder: (context, index) {
if (index >= liveList.length) {
return const Center(child: CircularProgressIndicator());
}
return _buildLiveCard(liveList[index]);
},
),
),
);
}

Widget _buildLiveCard(LiveInfo liveInfo) {
return GestureDetector(
onTap: () => _onLiveCardTap(liveInfo),
child: Card(
clipBehavior: Clip.antiAlias,
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
// 封面图
Expanded(
child: Stack(
fit: StackFit.expand,
children: [
Image.network(
liveInfo.coverURL,
fit: BoxFit.cover,
errorBuilder: (context, error, stackTrace) {
return Container(color: Colors.grey[300]);
},
),
// 直播中标签
Positioned(
top: 8,
left: 8,
child: Container(
padding: const EdgeInsets.symmetric(
horizontal: 6,
vertical: 2,
),
decoration: BoxDecoration(
color: Colors.red,
borderRadius: BorderRadius.circular(4),
),
child: const Text(
'直播中',
style: TextStyle(color: Colors.white, fontSize: 10),
),
),
),
// 观看人数
Positioned(
bottom: 8,
right: 8,
child: Container(
padding: const EdgeInsets.symmetric(
horizontal: 6,
vertical: 2,
),
decoration: BoxDecoration(
color: Colors.black54,
borderRadius: BorderRadius.circular(4),
),
child: Row(
mainAxisSize: MainAxisSize.min,
children: [
const Icon(
Icons.visibility,
color: Colors.white,
size: 12,
),
const SizedBox(width: 4),
Text(
'${liveInfo.totalViewerCount}',
style: const TextStyle(
color: Colors.white,
fontSize: 10,
),
),
],
),
),
),
],
),
),
// 直播信息
Padding(
padding: const EdgeInsets.all(8),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
liveInfo.liveName,
maxLines: 1,
overflow: TextOverflow.ellipsis,
style: const TextStyle(fontWeight: FontWeight.bold),
),
const SizedBox(height: 4),
Row(
children: [
CircleAvatar(
radius: 10,
backgroundImage: NetworkImage(
liveInfo.liveOwner.avatarURL,
),
),
const SizedBox(width: 4),
Expanded(
child: Text(
liveInfo.liveOwner.userName,
maxLines: 1,
overflow: TextOverflow.ellipsis,
style: TextStyle(
fontSize: 12,
color: Colors.grey[600],
),
),
),
],
),
],
),
),
],
),
),
);
}
}

/// 观众观看页面(占位)
class YourAudiencePage extends StatelessWidget {
final String liveID;

const YourAudiencePage({super.key, required this.liveID});

@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: const Text('直播间')),
body: Center(child: Text('直播间: $liveID')),
);
}
}
LiveInfo 参数说明
参数名
类型
描述
liveID
String
直播间的唯一标识符
liveName
String
直播间的标题
coverURL
String
直播间的封面图片地址
liveOwner
LiveUserInfo
房主的个人信息
totalViewerCount
int
直播间的总观看人数
categoryList
List<int>
直播间的分类标签列表
notice
String
直播间的公告信息
metaData
Map<String, String>
开发者自定义的元数据,用于实现复杂的业务场景

功能进阶

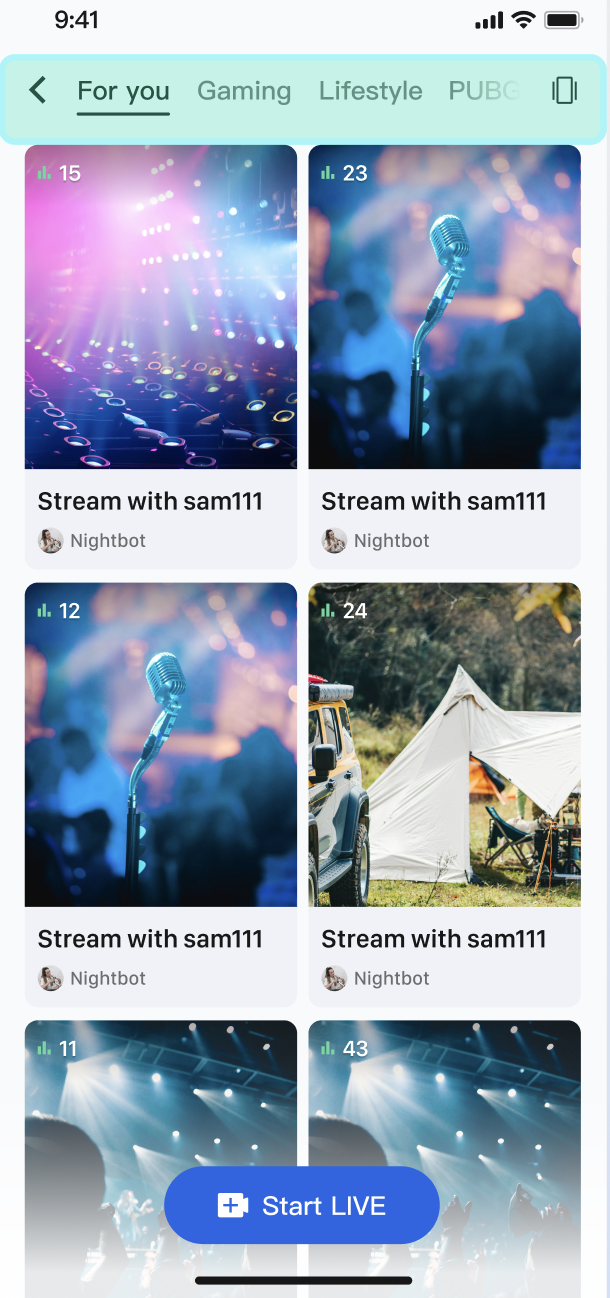

场景一:分类展示直播列表

在 App 的直播广场页,顶部设有“热门”、“音乐”、“游戏”等分类标签。用户点击不同的标签后,下方的直播列表会动态筛选,只展示对应分类的直播间,从而帮助用户快速发现感兴趣的内容。


实现方式

核心是利用 LiveInfo 模型中的 categoryList 属性。
1. 当主播开播设置分类后,fetchLiveList 返回的 LiveInfo 对象中就会包含这些分类信息。
2. 您的 App 在获取到完整的直播列表后,只需在客户端根据用户选择的分类,对这个列表进行一次简单的筛选,然后刷新 UI 即可。

代码示例

以下示例展示了如何创建一个 LiveListManager 来处理数据和筛选逻辑。
import 'package:flutter/material.dart';
import 'package:atomic_x_core/atomicxcore.dart';

/// 直播列表数据管理器
class LiveListManager extends ChangeNotifier {
final _liveListStore = LiveListStore.shared;
List<LiveInfo> _fullLiveList = [];
List<LiveInfo> _filteredLiveList = [];
int? _selectedCategoryId;

List<LiveInfo> get filteredLiveList => _filteredLiveList;
int? get selectedCategoryId => _selectedCategoryId;
late final VoidCallback _liveListListener = _onLiveListChanged;

LiveListManager() {
_liveListStore.liveState.liveList.addListener(_liveListListener);
}

void _onLiveListChanged() {
_fullLiveList = _liveListStore.liveState.liveList.value;
_applyFilter();
}

Future<void> fetchFirstPage() async {
_liveListStore.reset();
await _liveListStore.fetchLiveList(cursor: '', count: 20);
}

/// 根据分类筛选直播列表
void filterLiveList({int? categoryId}) {
_selectedCategoryId = categoryId;
_applyFilter();
}

void _applyFilter() {
if (_selectedCategoryId == null) {
// 如果 categoryId 为 null,则显示完整列表
_filteredLiveList = List.from(_fullLiveList);
} else {
// 筛选包含指定分类的直播间
_filteredLiveList = _fullLiveList.where((liveInfo) {
return liveInfo.categoryList.contains(_selectedCategoryId);
}).toList();
}
notifyListeners();
}

@override
void dispose() {
_liveListStore.liveState.liveList.removeListener(_liveListListener);
super.dispose();
}
}
/// 带分类筛选的直播列表页面
class CategoryLiveListPage extends StatefulWidget {
const CategoryLiveListPage({super.key});

@override
State<CategoryLiveListPage> createState() => _CategoryLiveListPageState();
}

class _CategoryLiveListPageState extends State<CategoryLiveListPage> {
final _manager = LiveListManager();
late final VoidCallback _managerChangedListener = _onManagerChanged;

// 分类列表(示例)
final List<Map<String, dynamic>> _categories = [
{'id': null, 'name': '全部'},
{'id': 1, 'name': '音乐'},
{'id': 2, 'name': '游戏'},
{'id': 3, 'name': '聊天'},
];

@override
void initState() {
super.initState();
_manager.addListener(_managerChangedListener);
_manager.fetchFirstPage();
}

void _onManagerChanged() {
setState(() {});
}

// 当用户点击顶部分类标签时
void _onCategoryTap(int? categoryId) {
_manager.filterLiveList(categoryId: categoryId);
}

@override
void dispose() {
_manager.removeListener(_managerChangedListener);
_manager.dispose();
super.dispose();
}

@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: const Text('直播广场')),
body: Column(
children: [
// 分类标签栏
SizedBox(
height: 50,
child: ListView.builder(
scrollDirection: Axis.horizontal,
padding: const EdgeInsets.symmetric(horizontal: 8),
itemCount: _categories.length,
itemBuilder: (context, index) {
final category = _categories[index];
final isSelected = _manager.selectedCategoryId == category['id'];
return Padding(
padding: const EdgeInsets.symmetric(horizontal: 4),
child: ChoiceChip(
label: Text(category['name']),
selected: isSelected,
onSelected: (_) => _onCategoryTap(category['id']),
),
);
},
),
),
// 直播列表
Expanded(
child: _manager.filteredLiveList.isEmpty
? const Center(child: Text('暂无直播'))
: GridView.builder(
padding: const EdgeInsets.all(8),
gridDelegate:
const SliverGridDelegateWithFixedCrossAxisCount(
crossAxisCount: 2,
childAspectRatio: 0.75,
crossAxisSpacing: 8,
mainAxisSpacing: 8,
),
itemCount: _manager.filteredLiveList.length,
itemBuilder: (context, index) {
final liveInfo = _manager.filteredLiveList[index];
return _buildLiveCard(liveInfo);
},
),
),
],
),
);
}

Widget _buildLiveCard(LiveInfo liveInfo) {
return Card(
clipBehavior: Clip.antiAlias,
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Expanded(
child: Image.network(
liveInfo.coverURL,
fit: BoxFit.cover,
width: double.infinity,
errorBuilder: (context, error, stackTrace) {
return Container(color: Colors.grey[300]);
},
),
),
Padding(
padding: const EdgeInsets.all(8),
child: Text(
liveInfo.liveName,
maxLines: 1,
overflow: TextOverflow.ellipsis,
),
),
],
),
);
}
}

场景二:同步语聊房内自定义状态

在语聊房中,主播可能需要向所有观众同步一些自定义信息,例如“当前房间话题”、“背景音乐信息”等。LiveListStoreMetaData 功能可以实现这一点。

实现方式

1. 主播端将自定义信息(建议使用 JSON 格式)通过 updateLiveMetaData 接口设置到一个或多个 key 中。AtomicXCore 会将这个变更实时同步给所有观众。
2. 观众端只需订阅 LiveListState.currentLive,监听 metaData 的变化,一旦发现关心的 key 更新,就解析其 value 并刷新业务状态。

代码示例

import 'dart:convert';
import 'package:flutter/material.dart';
import 'package:atomic_x_core/atomicxcore.dart';

/// 背景音乐模型
class MusicModel {
final String musicId;
final String musicName;

MusicModel({required this.musicId, required this.musicName});

factory MusicModel.fromJson(Map<String, dynamic> json) {
return MusicModel(
musicId: json['musicId'] ?? '',
musicName: json['musicName'] ?? '',
);
}

Map<String, dynamic> toJson() {
return {
'musicId': musicId,
'musicName': musicName,
};
}
}

/// 主播端:推送背景音乐
class HostMusicController {
final _liveListStore = LiveListStore.shared;

Future<void> updateBackgroundMusic(MusicModel music) async {
final jsonString = jsonEncode(music.toJson());

// 将要更新的元数据
final metaData = {'music_info': jsonString};

// 使用全局单例的 liveListStore 来更新 metaData
final result = await _liveListStore.updateLiveMetaData(metaData);
if (result.isSuccess) {
debugPrint('背景音乐 ${music.musicName} 推送成功');
} else {
debugPrint('背景音乐推送失败: ${result.message}');
}
}
}

/// 观众端:订阅并响应背景音乐变化
class AudienceMusicWidget extends StatefulWidget {
const AudienceMusicWidget({super.key});

@override
State<AudienceMusicWidget> createState() => _AudienceMusicWidgetState();
}

class _AudienceMusicWidgetState extends State<AudienceMusicWidget> {
final _liveListStore = LiveListStore.shared;
MusicModel? _currentMusic;
String? _lastMusicInfo;
late final VoidCallback _currentLiveChangedListener = _onCurrentLiveChanged;

@override
void initState() {
super.initState();
_liveListStore.liveState.currentLive.addListener(_currentLiveChangedListener);
}

void _onCurrentLiveChanged() {
final currentLive = _liveListStore.liveState.currentLive.value;
final musicInfo = currentLive.metaData['music_info'];

// 检查是否有变化
if (musicInfo != _lastMusicInfo) {
_lastMusicInfo = musicInfo;
_parseMusicInfo(musicInfo);
}
}

void _parseMusicInfo(String? jsonString) {
if (jsonString == null || jsonString.isEmpty) {
setState(() => _currentMusic = null);
return;
}

try {
final json = jsonDecode(jsonString) as Map<String, dynamic>;
final music = MusicModel.fromJson(json);
setState(() => _currentMusic = music);
// 刷新业务状态,播放新的音乐
_playMusic(music);
} catch (e) {
debugPrint('解析音乐信息失败: $e');
}
}

void _playMusic(MusicModel music) {
// 实现播放音乐的逻辑
debugPrint('正在播放: ${music.musicName}');
}

@override
void dispose() {
_liveListStore.liveState.currentLive.removeListener(_currentLiveChangedListener);
super.dispose();
}

@override
Widget build(BuildContext context) {
return Container(
padding: const EdgeInsets.all(8),
decoration: BoxDecoration(
color: Colors.black54,
borderRadius: BorderRadius.circular(8),
),
child: Row(
mainAxisSize: MainAxisSize.min,
children: [
const Icon(Icons.music_note, color: Colors.white, size: 16),
const SizedBox(width: 4),
Text(
_currentMusic?.musicName ?? '暂无音乐',
style: const TextStyle(color: Colors.white, fontSize: 12),
),
],
),
);
}
}

API 文档

关于 LiveListStore 及其相关类的所有公开接口、属性和方法的详细信息,请参考 AtomicXCore 框架的官方 API 文档。本文档使用到的相关 Store 如下:
Store/Component
功能描述
API 文档
LiveListStore
直播间全生命周期管理:创建 / 加入 / 离开 / 销毁房间,查询房间列表,修改直播信息(名称、公告等),监听直播状态(例如被踢出、结束)。

常见问题

语聊房的列表和视频直播的列表数据是同一份吗?

它们的数据是同一份,您不需要分开拉取。LiveListStore 是一个全局单例,它负责统一管理应用中所有“直播”房间的生命周期,无论是视频直播还是语聊房。

直播列表中如何区分语聊房和视频直播?

LiveListStore 本身不区分房间的业务类型。您需要在获取列表后,在客户端的应用层(业务逻辑或 UI 层)进行筛选和分类。
我们推荐采用以下两种方式进行区分:
方式一(推荐):使用 seatLayoutTemplateID 区分
这是一个用于定义房间布局的模板 ID,关于目前已支持的模板 ID 和效果,请参考文档 开始直播-运行效果。您要在创建房间时指定 ID,然后在获取列表时根据 ID 范围来识别业务场景。
步骤1:创建房间时指定 ID
调用 LiveListStore.shared.createLive 时,您需要根据业务场景为 LiveInfoseatLayoutTemplateID 属性传入指定范围的 ID:
语聊房场景:传入 1-199 范围内的模板 ID。
视频直播场景:传入 200-999 范围内的模板 ID。
步骤2:获取列表时筛选
客户端在 liveState.liveList 中收到列表数据后,通过判断这个 ID 值所属的范围来区分,从而在进入直播间的时候区分两种业务场景。
重要提示:
创建房间时,如果传入的 seatLayoutTemplateID 范围与您的业务场景(语聊房、视频直播)不匹配,可能会导致麦位布局出现功能异常。
方式二:为 liveID 添加业务前缀
这是一种可选的、纯粹的应用层约定,用于辅助您在客户端快速筛选。
步骤1:创建房间时添加前缀
在您生成 liveID 并调用 createLive 时,为不同业务类型的 liveID 赋予不同的前缀。例如:视频直播的 ID 以 “Live_” 开头 (例如:Live_12345),语聊房的 ID 以 “voice_” 开头 (例如:voice_67890)。
步骤2:获取列表时检查前缀
客户端在拉取到列表后,通过检查 liveID 字符串的前缀来进行区分。

使用 updateLiveMetaData 注意事项

为了保证系统的稳定和高效,metaData 的使用遵循以下规则:
权限:只有房主和管理员可以调用 updateLiveMetaData。普通观众没有权限。
数量与大小限制:
单个房间最多支持 10 个 key。
每个 key 的长度不超过 50 字节,每个 value 的长度不超过 2KB
单个房间所有 value 的总大小不超过 16KB
冲突解决metaData 的更新机制是“后来者覆盖”。如果多个管理员在短时间内修改同一个 key,最后一次的修改会生效。建议在业务设计上避免多人同时修改同一个关键信息。
