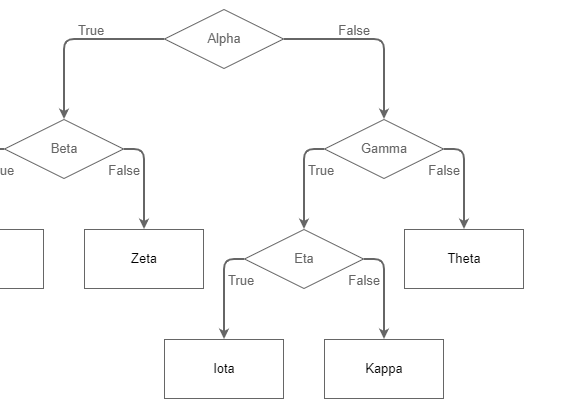

问D3.js在决策树中绘制钻石和连接链接

EN

function drawDiamond(centroid) {
  // Start at the top
  var result = 'M' + centroid.x + ',' + (centroid.y - rectH / 2);

  // Go right
  result += 'L' + (centroid.x + rectW / 2) + ',' + centroid.y;

  // Bottom
  result += 'L' + centroid.x + ',' + (centroid.y + rectH / 2);

  // Left
  result += 'L' + (centroid.x - rectW / 2) + ',' + centroid.y;

  // Close the shape
  result += 'Z';

  return result;
}

function drawRect(centroid) {
  // Start at the top left
  var result = 'M' + (centroid.x - rectW / 2) + ',' + (centroid.y - rectH / 2);

  // Go right
  result += 'h' + rectW;

  // Go down
  result += 'v' + rectH;

  // Left
  result += 'h-' + rectW;

  // Close the shape
  result += 'Z';

  return result;
}

var margin = {
    top: 20,
    right: 120,
    bottom: 20,
    left: 120
  },
  width = 960 - margin.right - margin.left,
  height = 800 - margin.top - margin.bottom;

var emptyDecisionBox = {
  "name": "newDecision",
  "id": "newId",
  "value": "notSure",
  "condition": "true",
};

var selectedNode;


var root = {
  "name": "Root",
  "children": [{
      "name": "analytics",
      "type": "decision",
      "value": "a+b",
      "children": [{
        "name": "distinction",
        "type": "action",
        "condition": "true",
        "value": "5",
      }, {
        "name": "nonDistinction",
        "type": "action",
        "condition": "false",
        "value": "4"
      }],
    },
    {
      "name": "division",
      "type": "action",
      "value": "a-b",
      "children": [],
    }
  ]
};

var i = 0,
  duration = 750,
  rectW = 60,
  rectH = 30;

var tree = d3.layout.tree().nodeSize([70, 40]);
var linkFunc = function(d) {
  var source = {
    x: d.source.x,
    y: d.source.y + (rectH / 2)
  };
  var target = {
    x: d.target.x + (rectW / 2),
    y: d.target.y
  };

  // This is where the line bends
  var inflection = {
    x: target.x,
    y: source.y
  };
  var radius = 5;

  var result = "M" + source.x + ',' + source.y;

  if (source.x < target.x) {
    // Child is to the right of the parent
    result += ' H' + (inflection.x - radius);
  } else {
    result += ' H' + (inflection.x + radius);
  }

  // Curve the line at the bend slightly
  result += ' Q' + inflection.x + ',' + inflection.y + ' ' + inflection.x + ',' + (inflection.y + radius);

  result += 'V' + target.y;
  return result;
}

var svg = d3.select("body").append("svg").attr("width", 1000).attr("height", 1000)
  .call(zm = d3.behavior.zoom().scaleExtent([1, 3]).on("zoom", redraw)).append("g")
  .attr("transform", "translate(" + 350 + "," + 20 + ")");

//necessary so that zoom knows where to zoom and unzoom from
zm.translate([350, 20]);

// new part
var plusButton = svg
  .append('g')
  .classed('button', true)
  .classed('hide', true)
  .on('click', function() {
    console.log("CLICKED");
  });

plusButton
  .append('rect')
  .attr('transform', 'translate(-8, -8)') // center the button inside the `g`
  .attr('width', 16)
  .attr('height', 16)
  .attr('rx', 2);

plusButton
  .append('path')
  .attr('d', 'M-6 0 H6 M0 -6 V6');

var rectangleShape = svg.append('g')
  .classed('button', true)
  .classed('hide', true)
  .on('click', function() {
    removeAllButtonElements();
  })

rectangleShape
  .append('rect')
  .attr('width', 40)
  .attr('height', 20)
  .style('fill', 'orange');


var diamondImage = svg.append('g')
  .classed('button', true)
  .classed('hide', true)
  .classed('scale', true)
  .on('click', function() {
    addElement(selectedNode);
    console.log("Clicked on Diamond");
    console.log("set hide to true");
    removeAllButtonElements();
  });

diamondImage
  .append('path')
  .attr('d', 'M 20 0 40 20 20 40 0 20 Z')
  .style("fill", 'orange');


var rectangleShapeFalse = svg.append('g')
  .classed('button', true)
  .classed('hide', true)
  .on('click', function() {
    console.log("rectangle clicked");
    removeAllButtonElements();
  })

rectangleShapeFalse
  .append('rect')
  .attr('width', 40)
  .attr('height', 20)
  .style('fill', 'orange');

var diamondImageFalse = svg.append('g')
  .classed('button', true)
  .classed('hide', true)
  .classed('scale', true)
  .on('click', function() {
    console.log("Clicked on Diamond");
    console.log("set hide to true");
    removeAllButtonElements();
  });

diamondImageFalse
  .append('path')
  .attr('d', 'M 20 0 40 20 20 40 0 20 Z')
  .style("fill", 'orange');


function removeAllButtonElements() {
  plusButton.classed('hide', true);
  diamondImage.classed('hide', true);
  rectangleShape.classed('hide', true);
  diamondImageFalse.classed('hide', true);
  rectangleShapeFalse.classed('hide', true);
}

// new part ends.

root.x0 = 0;
root.y0 = height / 2;

function collapse(d) {
  if (d.children) {
    d._children = d.children;
    d._children.forEach(collapse);
    d.children = null;
  }
}

/* root.children.forEach(collapse); */
update(root);

d3.select("#body").style("height", "800px");

function update(source) {

  // Compute the new tree layout.
  var nodes = tree.nodes(root).reverse(),
    links = tree.links(nodes);

  // Normalize for fixed-depth.
  nodes.forEach(function(d) {
    d.y = d.depth * 180;
  });

  // Update the nodes…
  var node = svg.selectAll("g.node")
    .data(nodes, function(d) {
      return d.id || (d.id = ++i);
    });

  // Enter any new nodes at the parent's previous position.
  var nodeEnter = node.enter().append("g")
    .attr("class", "node")
    .attr("transform", function(d) {
      return "translate(" + source.x0 + "," + source.y0 + ")";
    })
    .on("click", click);

  nodeEnter.append("rect")
    .attr("width", rectW)
    .attr("height", rectH)
    .attr("stroke", "black")
    .attr("stroke-width", 1)
    .style("fill", function(d) {
      return d._children ? "lightsteelblue" : "#fff";
    });

  /*   nodeEnter.append('path').attr("d", d3.svg.symbol().type( function(d) { return "circle" }) );
   */

  nodeEnter.append("text")
    .attr("x", rectW / 2)
    .attr("y", rectH / 2)
    .attr("dy", ".35em")
    .attr("text-anchor", "middle")
    .text(function(d) {
      return d.name;
    });

  // Transition nodes to their new position.
  var nodeUpdate = node.transition()
    .duration(duration)
    .attr("transform", function(d) {
      return "translate(" + d.x + "," + d.y + ")";
    });

  nodeUpdate.select("rect")
    .attr("width", rectW)
    .attr("height", rectH)
    .attr("stroke", "black")
    .attr("stroke-width", 1)
    .style("fill", function(d) {
      return d._children ? "lightsteelblue" : "#fff";
    });

  nodeUpdate.select("text")
    .style("fill-opacity", 1);

  // Transition exiting nodes to the parent's new position.
  var nodeExit = node.exit().transition()
    .duration(duration)
    .attr("transform", function(d) {
      return "translate(" + source.x + "," + source.y + ")";
    })
    .remove();

  nodeExit.select("rect")
    .attr("width", rectW)
    .attr("height", rectH)
    //.attr("width", bbox.getBBox().width)""
    //.attr("height", bbox.getBBox().height)
    .attr("stroke", "black")
    .attr("stroke-width", 1);

  nodeExit.select("text");

  // Update the links…
  var link = svg.selectAll("path.link")
    .data(links, function(d) {
      return d.target.id;
    });

  // Enter any new links at the parent's previous position.
  link.enter().insert("path", "g")
    .attr("class", "link")
    .attr("x", rectW / 2)
    .attr("y", rectH / 2)
    .attr("d", linkFunc)
    .on('mouseenter', function(d, i) {
      // Use the native SVG interface to get the bounding box to
      // calculate the center of the path
      var bbox = this.getBBox();
      var x = bbox.x + bbox.width / 2,
        y = bbox.y + bbox.height / 2;
      plusButton
        .attr('transform', 'translate(' + x + ', ' + y + ')')
        .classed('hide', false);
    })
    .on('mouseleave', function(d, i) {
      plusButton
        .classed('hide', true);
    });

  // Transition links to their new position.
  link.transition()
    .duration(duration)
    .attr("d", linkFunc);

  // Transition exiting nodes to the parent's new position.
  link.exit().transition()
    .duration(duration)
    .attr("d", linkFunc)
    .remove();

  // Stash the old positions for transition.
  nodes.forEach(function(d) {
    d.x0 = d.x;
    d.y0 = d.y;
  });
}


function click(d) {
  console.log(d);
  selectedNode = d;
  var x = d.x;
  var y = d.y + 40;

  var m = d.x + 50;
  var h = d.y + 20;

  diamondImage
    .attr('transform', 'translate(' + m + ', ' + h + ')')
    .classed('hide', false);

  var m = d.x + 60;
  var h = d.y - 10;

  rectangleShape
    .attr('transform', 'translate(' + m + ', ' + h + ')')
    .classed('hide', false);

  var m = d.x - 40;
  var h = d.y + 20;

  diamondImageFalse
    .attr('transform', 'translate(' + m + ', ' + h + ')')
    .classed('hide', false);

  var m = d.x - 40;
  var h = d.y - 10;

  rectangleShapeFalse
    .attr('transform', 'translate(' + m + ', ' + h + ')')
    .classed('hide', false);
}

//Redraw for zoom
function redraw() {
  //console.log("here", d3.event.translate, d3.event.scale);
  svg.attr("transform",
    "translate(" + d3.event.translate + ")" +
    " scale(" + d3.event.scale + ")");
}

function addElement(d) {
  console.log(d);

  d.children = [];
  d.children.push(emptyDecisionBox);
  update(root);
}

.node {
  cursor: pointer;
}

.node circle {
  fill: #fff;
  stroke: steelblue;
  stroke-width: 1.5px;
}

.node text {
  font: 10px sans-serif;
}

.link {
  fill: none;
  stroke: #ccc;
  stroke-width: 1.5px;
}

body {
  overflow: hidden;
}

.button>path {
  stroke: blue;
  stroke-width: 1.5;
}

.button>rect {
  fill: #ddd;
  stroke: grey;
  stroke-width: 1px;
}

.hide {
  display: none;
  opacity: 0 !important;
  pointer-events: none;
}

.link:hover {
  cursor: pointer;
  stroke-width: 8px;
}

.scale {
  /* transform: scale(0.4); */
}

<script src="https://cdnjs.cloudflare.com/ajax/libs/d3/3.5.17/d3.min.js"></script>
<div class="tree-diagram"></div>
