大附件迁移优化断点续传与增量同步实现

原创
作者头像
用户12602052
发布2026-07-10 20:10:52
发布2026-07-10 20:10:52
00
举报

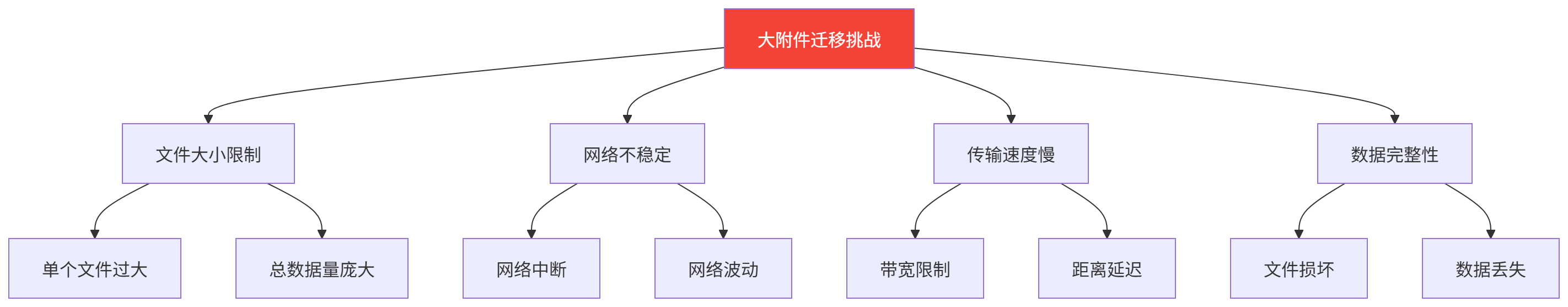

一、大附件迁移挑战

图表
图表

二、断点续传原理

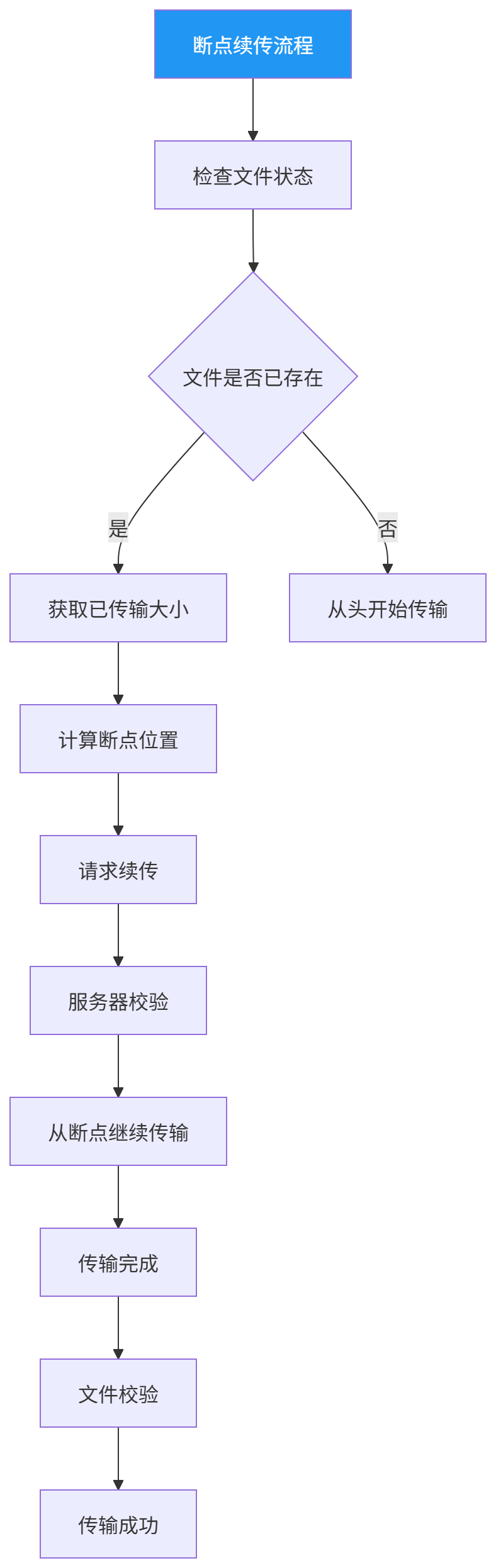

2.1 断点续传流程

图表
图表

2.2 断点续传机制

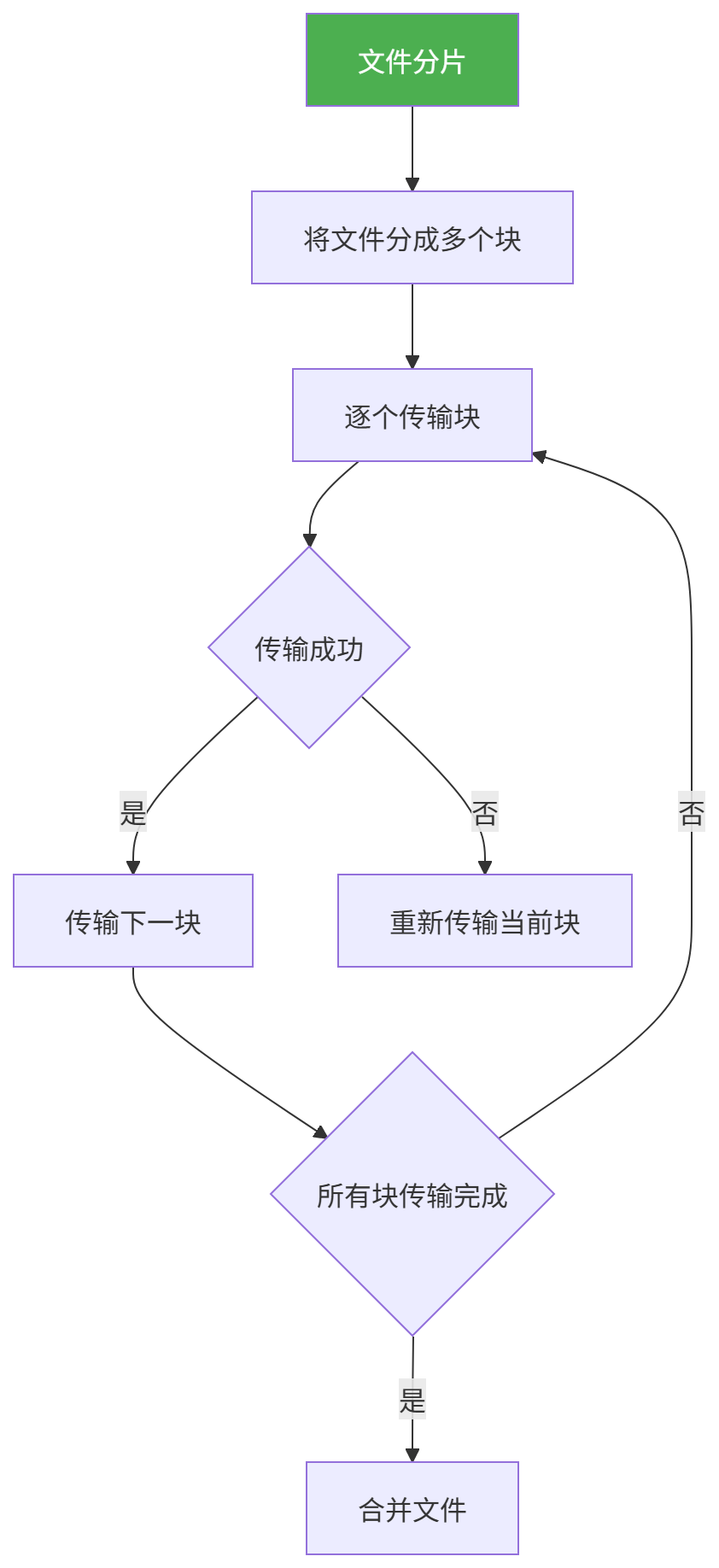

分片传输

图表
图表

分片参数

参数

说明

建议值

分片大小

每个分片的大小

1MB-10MB

并发数

同时传输的分片数

3-5

重试次数

单个分片重试次数

3-5

超时时间

分片传输超时时间

30秒

三、断点续传实现

3.1 文件状态检查

文件信息接口

请求地址/api/file/status

请求方式:GET

请求参数

参数

类型

说明

fileId

string

文件唯一标识

fileName

string

文件名

响应参数

参数

类型

说明

exists

boolean

文件是否存在

size

long

文件总大小

uploadedSize

long

已上传大小

md5

string

文件MD5值

chunks

array

已上传分片列表

3.2 分片上传

分片上传接口

请求地址/api/file/upload/chunk

请求方式:POST

请求参数

参数

类型

说明

fileId

string

文件唯一标识

chunkIndex

int

分片索引

chunkTotal

int

分片总数

chunkSize

int

分片大小

data

binary

分片数据

md5

string

分片MD5值

响应参数

参数

类型

说明

success

boolean

是否成功

chunkIndex

int

分片索引

uploaded

int

已上传分片数

3.3 文件合并

文件合并接口

请求地址/api/file/upload/merge

请求方式:POST

请求参数

参数

类型

说明

fileId

string

文件唯一标识

fileName

string

文件名

chunkTotal

int

分片总数

md5

string

文件MD5值

响应参数

参数

类型

说明

success

boolean

是否成功

fileUrl

string

文件访问地址

size

long

文件大小

3.4 断点续传代码示例

代码语言:javascript
复制
class ResumableUploader {
    constructor(options) {
        this.fileId = options.fileId;
        this.file = options.file;
        this.chunkSize = options.chunkSize || 1024 * 1024;
        this.concurrency = options.concurrency || 3;
        this.retryCount = options.retryCount || 3;

        this.chunks = [];
        this.uploadedChunks = new Set();
    }

    async init() {
        const status = await this.checkStatus();
        if (status.exists) {
            this.uploadedChunks = new Set(status.chunks);
        }
        this.splitFile();
    }

    splitFile() {
        const totalChunks = Math.ceil(this.file.size / this.chunkSize);
        for (let i = 0; i < totalChunks; i++) {
            const start = i * this.chunkSize;
            const end = Math.min(start + this.chunkSize, this.file.size);
            this.chunks.push({
                index: i,
                start,
                end,
                data: this.file.slice(start, end)
            });
        }
    }

    async checkStatus() {
        const response = await fetch(`/api/file/status?fileId=${this.fileId}`);
        return response.json();
    }

    async upload() {
        const pendingChunks = this.chunks.filter(c => !this.uploadedChunks.has(c.index));
        const batches = this.chunkArray(pendingChunks, this.concurrency);

        for (const batch of batches) {
            await Promise.all(batch.map(chunk => this.uploadChunk(chunk)));
        }

        await this.mergeFile();
    }

    async uploadChunk(chunk) {
        for (let attempt = 0; attempt < this.retryCount; attempt++) {
            try {
                const formData = new FormData();
                formData.append('fileId', this.fileId);
                formData.append('chunkIndex', chunk.index);
                formData.append('chunkTotal', this.chunks.length);
                formData.append('chunkSize', chunk.data.size);
                formData.append('data', chunk.data);

                const response = await fetch('/api/file/upload/chunk', {
                    method: 'POST',
                    body: formData
                });

                const result = await response.json();
                if (result.success) {
                    this.uploadedChunks.add(chunk.index);
                    return;
                }
            } catch (error) {
                console.error(`Chunk ${chunk.index} upload failed:`, error);
            }
        }

        throw new Error(`Chunk ${chunk.index} upload failed after ${this.retryCount} attempts`);
    }

    async mergeFile() {
        const response = await fetch('/api/file/upload/merge', {
            method: 'POST',
            headers: { 'Content-Type': 'application/json' },
            body: JSON.stringify({
                fileId: this.fileId,
                fileName: this.file.name,
                chunkTotal: this.chunks.length
            })
        });

        return response.json();
    }

    chunkArray(array, size) {
        const chunks = [];
        for (let i = 0; i < array.length; i += size) {
            chunks.push(array.slice(i, i + size));
        }
        return chunks;
    }
}

四、增量同步原理

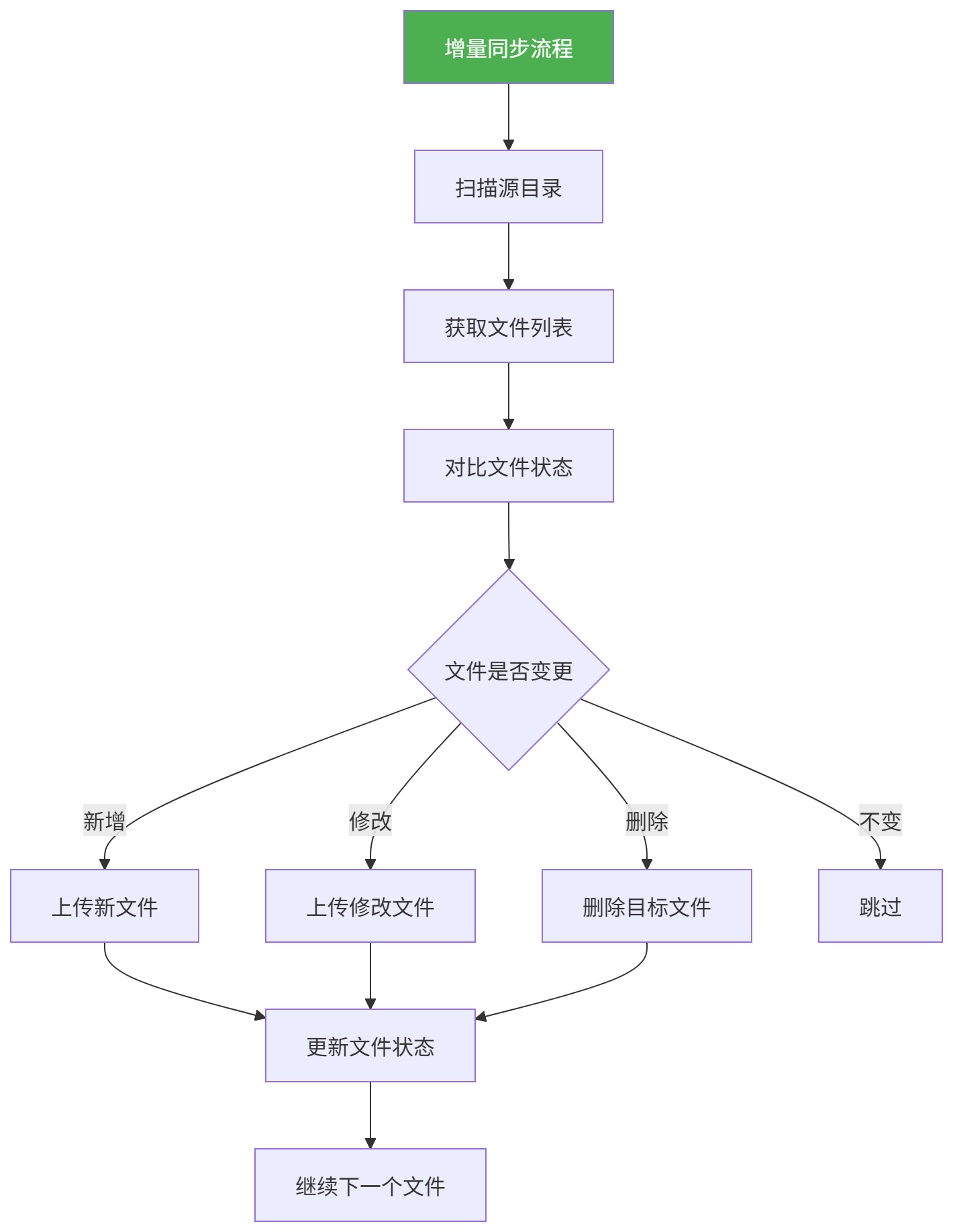

4.1 增量同步流程

图表
图表

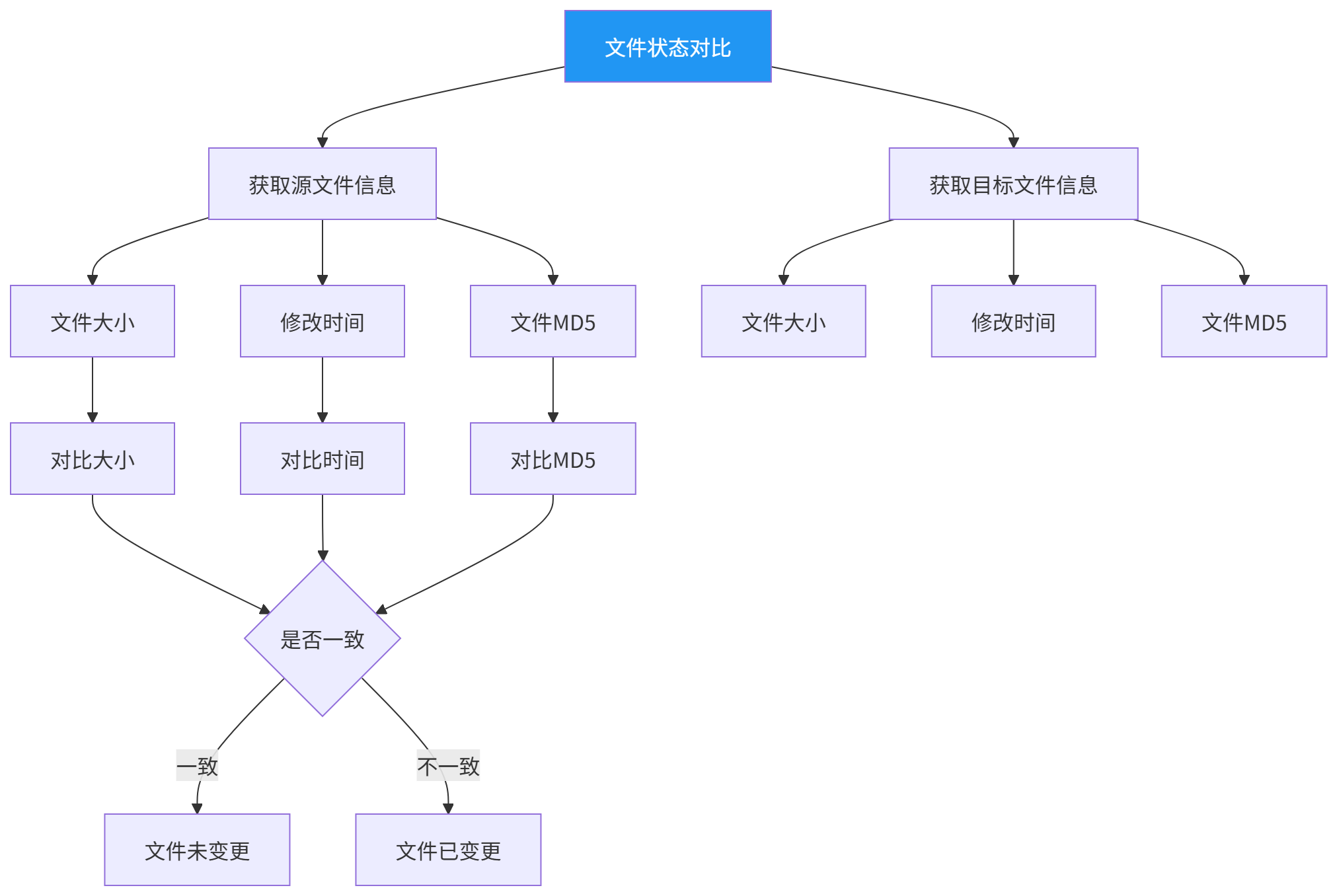

4.2 文件状态对比

文件状态对比机制

图表
图表

对比策略

对比项

说明

优先级

文件大小

快速判断文件是否变更

修改时间

判断文件是否被修改

文件MD5

精确判断文件内容

低(耗时)

五、增量同步实现

5.1 文件扫描

文件扫描接口

请求地址/api/files/scan

请求方式:POST

请求参数

参数

类型

说明

directory

string

扫描目录

recursive

boolean

是否递归扫描

includePattern

string

包含文件模式

excludePattern

string

排除文件模式

响应参数

参数

类型

说明

success

boolean

是否成功

files

array

文件列表

文件列表结构

字段

类型

说明

filePath

string

文件路径

fileName

string

文件名

size

long

文件大小

modifiedTime

datetime

修改时间

md5

string

文件MD5值

5.2 文件对比

文件对比接口

请求地址/api/files/compare

请求方式:POST

请求参数

参数

类型

说明

sourceFiles

array

源文件列表

targetFiles

array

目标文件列表

响应参数

参数

类型

说明

added

array

新增文件列表

modified

array

修改文件列表

deleted

array

删除文件列表

unchanged

array

未变更文件列表

5.3 增量同步执行

增量同步接口

请求地址/api/files/sync

请求方式:POST

请求参数

参数

类型

说明

syncType

string

同步类型(add/modify/delete/all)

files

array

需要同步的文件列表

deleteMissing

boolean

是否删除目标不存在的文件

响应参数

参数

类型

说明

success

boolean

是否成功

total

int

总文件数

successCount

int

成功数量

failCount

int

失败数量

details

array

同步详情

5.4 增量同步代码示例

代码语言:javascript
复制
import os
import hashlib
import requests

class IncrementalSync:
    def __init__(self, source_dir, target_api):
        self.source_dir = source_dir
        self.target_api = target_api

    def calculate_md5(self, file_path):
        md5_hash = hashlib.md5()
        with open(file_path, 'rb') as f:
            for chunk in iter(lambda: f.read(8192), b''):
                md5_hash.update(chunk)
        return md5_hash.hexdigest()

    def scan_files(self, directory, recursive=True):
        files = []
        for root, dirs, filenames in os.walk(directory):
            for filename in filenames:
                file_path = os.path.join(root, filename)
                relative_path = os.path.relpath(file_path, directory)

                files.append({
                    'filePath': relative_path,
                    'fileName': filename,
                    'size': os.path.getsize(file_path),
                    'modifiedTime': os.path.getmtime(file_path),
                    'md5': self.calculate_md5(file_path)
                })

            if not recursive:
                break

        return files

    def get_target_files(self):
        response = requests.post(
            f'{self.target_api}/api/files/scan',
            json={'directory': '/data', 'recursive': True}
        )
        return response.json().get('files', [])

    def compare_files(self, source_files, target_files):
        source_map = {f['filePath']: f for f in source_files}
        target_map = {f['filePath']: f for f in target_files}

        added = [f for path, f in source_map.items() if path not in target_map]
        deleted = [f for path, f in target_map.items() if path not in source_map]

        modified = []
        unchanged = []

        for path, source in source_map.items():
            if path in target_map:
                target = target_map[path]
                if source['md5'] != target['md5']:
                    modified.append(source)
                else:
                    unchanged.append(source)

        return {
            'added': added,
            'modified': modified,
            'deleted': deleted,
            'unchanged': unchanged
        }

    def sync_files(self, comparison):
        all_files = comparison['added'] + comparison['modified']

        if not all_files:
            return {'success': True, 'message': 'No files to sync'}

        response = requests.post(
            f'{self.target_api}/api/files/sync',
            json={
                'syncType': 'all',
                'files': all_files,
                'deleteMissing': True
            }
        )

        return response.json()

    def run(self):
        print(f"Scanning source directory: {self.source_dir}")
        source_files = self.scan_files(self.source_dir)
        print(f"Found {len(source_files)} files")

        print("Getting target files...")
        target_files = self.get_target_files()
        print(f"Target has {len(target_files)} files")

        print("Comparing files...")
        comparison = self.compare_files(source_files, target_files)

        print(f"Added: {len(comparison['added'])}")
        print(f"Modified: {len(comparison['modified'])}")
        print(f"Deleted: {len(comparison['deleted'])}")
        print(f"Unchanged: {len(comparison['unchanged'])}")

        print("Starting sync...")
        result = self.sync_files(comparison)
        print(f"Sync result: {result}")

        return result

六、优化策略

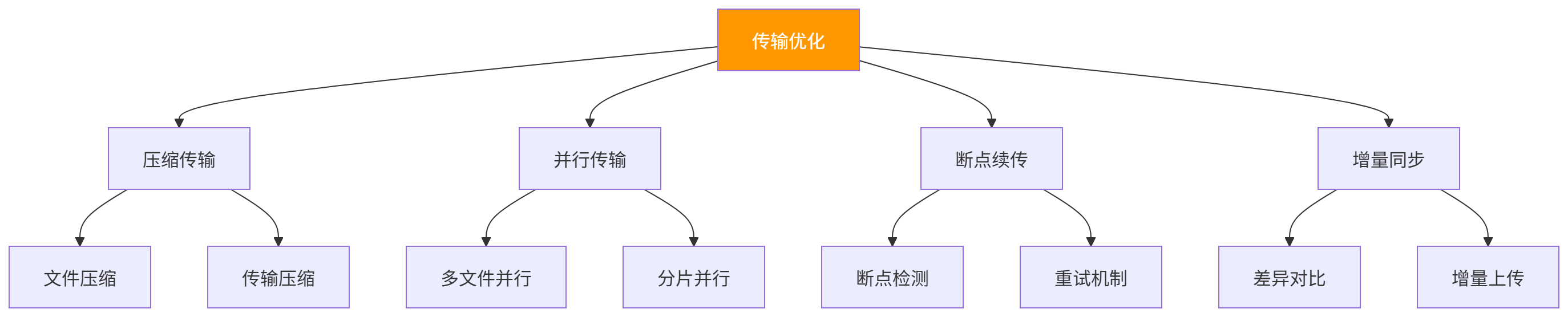

6.1 传输优化

图表
图表

6.2 存储优化

存储优化策略

策略

说明

适用场景

压缩存储

压缩后存储

文本文件

去重存储

相同文件只存储一份

重复文件多

分块存储

分块存储大文件

超大文件

云存储

使用云存储服务

需要弹性扩展

6.3 并发优化

并发配置

参数

建议值

说明

并发连接数

5-10

同时上传的文件数

分片并发数

3-5

单个文件的分片并发数

线程池大小

CPU核心数*2

处理线程数

队列大小

100-500

任务队列大小

七、监控与告警

7.1 监控指标

指标

说明

上传速度

文件上传速度

传输进度

当前传输进度

成功数量

成功传输的文件数

失败数量

传输失败的文件数

平均耗时

平均传输耗时

错误率

传输错误率

7.2 告警配置

告警规则

告警项

阈值

告警方式

传输失败

>3次

邮件+短信

传输超时

>30分钟

邮件

错误率

>10%

邮件+短信

存储空间

>90%

邮件

八、常见问题

8.1 文件传输中断

现象:文件传输过程中网络中断

解决方案

方案

说明

断点续传

使用断点续传功能

自动重试

配置自动重试机制

分片传输

使用分片传输

8.2 大文件传输慢

现象:单个大文件传输速度慢

解决方案

方案

说明

分片传输

将文件分成小分片

并行传输

同时传输多个分片

压缩传输

压缩后传输

8.3 文件完整性问题

现象:传输后文件损坏

解决方案

方案

说明

MD5校验

传输前后校验MD5

分片校验

每个分片单独校验

完整性检测

文件合并后检测

8.4 增量同步遗漏

现象:部分文件未被同步

解决方案

方案

说明

增加扫描频率

缩短扫描间隔

增加对比精度

使用MD5精确对比

日志记录

记录同步日志
