基于 Kubernetes 构建安全、稳定、可长期运维的 OpenClaw 生产实例

原创

jack.yang

发布于 2026-03-15 15:38:48

670

文章被收录于专栏：用户2276240的专栏用户2276240的专栏

作者：程序员老杨 更新日期：2026 年 3 月 15 日 适用对象：云原生工程师、AI 运维团队、企业 DevOps

一、为什么选择 Kubernetes 部署 OpenClaw？

OpenClaw 作为“本地 AI 数字员工”，其生产价值体现在7×24 小时可靠运行、多渠道协同、状态持久化与灾备恢复。相比单机 Docker Compose，Kubernetes 提供：

✅ 高可用：Pod 自动重启、节点故障迁移
✅ 资源隔离：CPU/内存限制、QoS 保障
✅ 声明式配置：GitOps 友好，版本可控
✅ 扩展性：未来可横向扩展多智能体实例
✅ 可观测性：无缝集成 Prometheus、Loki、Jaeger

💡 前提：本文假设您已拥有一个的 Kubernetes 集群（推荐 v1.30–v1.32），并使用 Containerd 作为容器运行时。

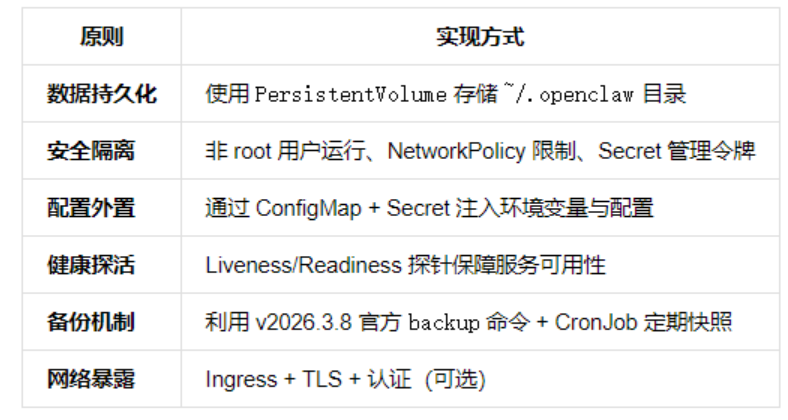

二、核心设计原则

三、准备工作

1. 镜像准备

拉取最新稳定版 OpenClaw 镜像，并推送到私有镜像仓库（如 Harbor、阿里云 ACR）：

# 拉取国内加速镜像
docker pull docker.1ms.run/alpine/openclaw:v2026.3.8

# 标记并推送至私有仓库（示例）
docker tag docker.1ms.run/alpine/openclaw:v2026.3.8 your-registry.example.com/ai/openclaw:v2026.3.8
docker push your-registry.example.com/ai/openclaw:v2026.3.8

🔒 安全建议：生产环境禁止直接拉取公网镜像，应使用私有仓库镜像扫描 + 签名验证。

2. 创建命名空间

# namespace.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: openclaw-prod

kubectl apply -f namespace.yaml

四、核心资源配置清单

1. Secret：存储访问令牌

# secret.yaml
apiVersion: v1
kind: Secret
metadata:
  name: openclaw-secret
  namespace: openclaw-prod
type: Opaque
data:
  # 使用 base64 编码（注意：不是加密！）
  OPENCLAW_TOKEN: <REPLACE_WITH_BASE64_ENCODED_TOKEN>
---
apiVersion: v1
kind: Secret
metadata:
  name: openclaw-tls
  namespace: openclaw-prod
type: kubernetes.io/tls
data:
  tls.crt: <BASE64_OF_FULLCHAIN_PEM>
  tls.key: <BASE64_OF_PRIVKEY_PEM>

生成令牌：

echo -n "$(openssl rand -hex 32)" | base64
# 输出用于替换 <REPLACE_WITH_BASE64_ENCODED_TOKEN>

2. PersistentVolumeClaim（PVC）

# pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: openclaw-pvc
  namespace: openclaw-prod
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 20Gi
  storageClassName: standard  # 根据集群实际 StorageClass 调整

3. Deployment：主服务

# deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: openclaw-gateway
  namespace: openclaw-prod
spec:
  replicas: 1
  selector:
    matchLabels:
      app: openclaw-gateway
  template:
    metadata:
      labels:
        app: openclaw-gateway
    spec:
      securityContext:
        runAsNonRoot: true
        runAsUser: 1000
        runAsGroup: 1000
        fsGroup: 1000
      containers:
      - name: gateway
        image: your-registry.example.com/ai/openclaw:v2026.3.8
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 18789
          name: http
        env:
        - name: NODE_ENV
          value: "production"
        - name: OPENCLAW_TOKEN
          valueFrom:
            secretKeyRef:
              name: openclaw-secret
              key: OPENCLAW_TOKEN
        volumeMounts:
        - name: data
          mountPath: /home/node
        - name: config
          mountPath: /home/node/config
          readOnly: true
        resources:
          requests:
            memory: "1Gi"
            cpu: "1"
          limits:
            memory: "2Gi"
            cpu: "2"
        livenessProbe:
          httpGet:
            path: /health
            port: 18789
          initialDelaySeconds: 60
          periodSeconds: 30
          timeoutSeconds: 5
          failureThreshold: 3
        readinessProbe:
          httpGet:
            path: /health
            port: 18789
          initialDelaySeconds: 30
          periodSeconds: 10
      volumes:
      - name: data
        persistentVolumeClaim:
          claimName: openclaw-pvc
      - name: config
        emptyDir: {}
      restartPolicy: Always

4. Service 与 Ingress

# service-ingress.yaml
apiVersion: v1
kind: Service
metadata:
  name: openclaw-service
  namespace: openclaw-prod
spec:
  selector:
    app: openclaw-gateway
  ports:
    - protocol: TCP
      port: 80
      targetPort: 18789
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: openclaw-ingress
  namespace: openclaw-prod
  annotations:
    nginx.ingress.kubernetes.io/proxy-read-timeout: "300"
    nginx.ingress.kubernetes.io/proxy-send-timeout: "300"
spec:
  tls:
  - hosts:
    - openclaw.example.com
    secretName: openclaw-tls
  rules:
  - host: openclaw.example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: openclaw-service
            port:
              number: 80

五、自动化备份：CronJob 定期快照

利用 OpenClaw v2026.3.8 的 backup 命令实现每日自动备份：

# cronjob-backup.yaml
apiVersion: batch/v1
kind: CronJob
metadata:
  name: openclaw-daily-backup
  namespace: openclaw-prod
spec:
  schedule: "0 2 * * *"  # 每天凌晨 2 点
  jobTemplate:
    spec:
      template:
        spec:
          restartPolicy: OnFailure
          securityContext:
            runAsNonRoot: true
            runAsUser: 1000
            runAsGroup: 1000
          containers:
          - name: backup
            image: your-registry.example.com/ai/openclaw:v2026.3.8
            command:
            - /bin/sh
            - -c
            - |
              set -e
              BACKUP_NAME="daily-$(date +%Y%m%d)"
              openclaw backup create --name "$BACKUP_NAME"
              echo "Backup $BACKUP_NAME created successfully."
            volumeMounts:
            - name: data
              mountPath: /home/node
          volumes:
          - name: data
            persistentVolumeClaim:
              claimName: openclaw-pvc

📌 备份位置：备份文件默认存于 /home/node/.openclaw/backups/，可通过 sidecar 容器同步至 S3/OSS。

六、安全加固措施

1. NetworkPolicy（限制出入流量）

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: openclaw-netpol
  namespace: openclaw-prod
spec:
  podSelector:
    matchLabels:
      app: openclaw-gateway
  policyTypes:
  - Ingress
  - Egress
  ingress:
  - from:
    - namespaceSelector:
        matchLabels:
          kubernetes.io/metadata.name: ingress-nginx  # 仅允许 Ingress Controller 访问
    ports:
    - protocol: TCP
      port: 18789
  egress:
  - to:
    - ipBlock:
        cidr: 0.0.0.0/0  # 或根据实际需求限制出站（如仅允许 API 端点）

2. PodSecurity Admission（启用 restricted 策略）

确保命名空间启用 restricted 级别：

apiVersion: v1
kind: Namespace
metadata:
  name: openclaw-prod
  labels:
    pod-security.kubernetes.io/enforce: restricted

七、部署与验证

# 应用所有配置
kubectl apply -f namespace.yaml
kubectl apply -f secret.yaml
kubectl apply -f pvc.yaml
kubectl apply -f deployment.yaml
kubectl apply -f service-ingress.yaml
kubectl apply -f cronjob-backup.yaml

# 初始化渠道（首次运行）
kubectl exec -n openclaw-prod deploy/openclaw-gateway -- onboard

# 查看状态
kubectl get pods -n openclaw-prod
kubectl logs -n openclaw-prod -l app=openclaw-gateway -f

访问 https://openclaw.example.com，输入令牌即可进入 Dashboard。

八、升级与维护

升级流程：

构建新版本镜像并推送到私有仓库
更新 deployment.yaml 中的 image 字段
执行 kubectl apply -f deployment.yaml
Kubernetes 将滚动更新 Pod，旧 PVC 数据自动挂载

灾难恢复：

# 进入 Pod 执行恢复
kubectl exec -it -n openclaw-prod <POD_NAME> -- openclaw backup list
kubectl exec -n openclaw-prod <POD_NAME> -- openclaw backup restore --name daily-20260314
