项目概述

本项目是一个基于muduo网络库实现的高性能RTMP流媒体服务器，支持：

✅ H.264 + AAC 音视频编码格式
✅ 多路推流和拉流
✅ GOP缓存机制 实现快速首屏
✅ 音视频同步
✅ 低延迟优化

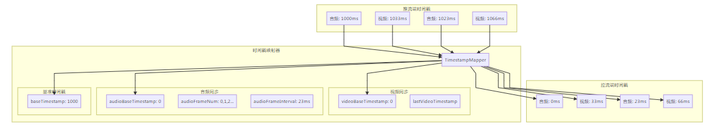

✅ 时间戳映射 保证播放连续性

技术栈

网络框架: muduo (高性能网络库)
协议支持: RTMP 1.0 规范
音视频格式: H.264 + AAC
编程语言: C++17
构建工具: CMake

视频讲解及源码领取：音视频开发找工作要不要学习流媒体服务器？

快速开始

编译运行步骤

# 1. 编译RTMP服务器
mkdir build && cd build

# 配置CMake（Debug版本，便于调试）
cmake -DCMAKE_BUILD_TYPE=Debug ..
# 或者(默认debug模式)
cmake ..
# 或者编译Release版本（生产环境）
cmake -DCMAKE_BUILD_TYPE=Release  ..

# 编译（使用所有CPU核心）
make -j$(nproc)

# 2.修改配置文件(可以不改，用默认的就行)
配置文件默认路径: 相对于build目录是../config.json， 即是在项目源码根目录

# 3. 运行程序
# 方法1：直接运行 运行服务器，默认使用../config.json配置文件
./bin/rtmp_server

# 方法2：指定配置文件
./bin/rtmp_server --config=/path/to/your/config.json

# 4. 测试（另开终端）
# 推流:
ffmpeg -re -i test_video.mp4 -c copy -f flv rtmp://localhost:1935/live/test

# 拉流:
ffplay rtmp://localhost:1935/live/test

系统架构

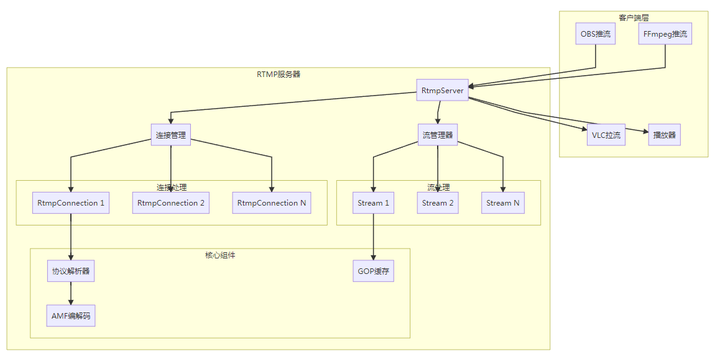

整体架构图

核心模块职责

模块	职责	文件
RtmpServer	服务器主框架，管理TCP连接和配置	rtmp_server.h/cc
RtmpConnection	单个RTMP连接处理（握手、命令、媒体数据）	rtmp_connection.h/cc
StreamManager	流管理，协调推流端和拉流端	stream_manager.h/cc
RtmpProtocolParser	RTMP协议解析和消息序列化	rtmp_protocol.h/cc
GopCache	GOP缓存，实现快速首屏	gop_cache.h/cc
AmfCodec	AMF数据编解码	rtmp_protocol.h/cc

核心模块详解

1. RtmpServer 服务器主框架

class RtmpServer {
    // 核心功能
    void start();                    // 启动服务器
    void stop();                     // 停止服务器
    void onConnection();             // 处理新连接
    void onMessage();                // 处理消息

    // 配置管理
    RtmpServerConfig config_;        // 服务器配置

    // 连接管理
    std::unordered_map<std::string,
        std::shared_ptr<RtmpConnection>> connections_;

    // 流管理
    std::shared_ptr<StreamManager> streamManager_;
};

关键配置参数：

struct RtmpServerConfig {
    std::string listenAddress = "0.0.0.0";
    uint16_t listenPort = 1935;
    int maxConnections = 1000;
    int maxStreams = 100;
    int gopCacheMaxCount = 1;        // GOP缓存数量（优化延迟）
    int gopCacheMaxSizeBytes = 2 * 1024 * 1024; // 2MB  GOP缓存大小
    int chunkSize = 60000;             // RTMP块大小
};

2. RtmpConnection 连接处理

class RtmpConnection {
    // 连接状态
    enum class RtmpConnectionType {
        kUnknown,
        kPublisher,      // 推流连接
        kSubscriber      // 拉流连接
    };

    // 核心处理流程
    void onMessage();                // 接收TCP数据
    bool handleHandshake();          // RTMP握手处理
    void processMessages();          // 处理RTMP消息
    void processCommand();           // 处理RTMP命令
    void processAudioData();         // 处理音频数据
    void processVideoData();         // 处理视频数据
    void processMetaData();          // 处理元数据
};

3. StreamManager 流管理器

class StreamManager {
    // 流管理
    std::shared_ptr<Stream> createStream(const std::string& name);
    std::shared_ptr<Stream> getStream(const std::string& name);

    // 推流管理
    std::shared_ptr<Publisher> createPublisher(const std::string& streamName,
                                              TcpConnectionPtr conn);

    // 拉流管理
    std::shared_ptr<Subscriber> createSubscriber(const std::string& streamName,
                                                TcpConnectionPtr conn);

    // 数据转发
    void onPublisherData(const std::string& streamName,
                        std::shared_ptr<MediaPacket> packet);

private:
    std::unordered_map<std::string, std::shared_ptr<Stream>> streams_;
};

RTMP协议实现

RTMP协议栈

+---------------------------+
|    Application Layer      |  <- RTMP Commands, Media Data
+---------------------------+
|      RTMP Messages        |  <- Audio/Video/Command Messages
+---------------------------+
|      RTMP Chunks          |  <- Chunk分片传输
+---------------------------+
|         TCP              |  <- 可靠传输
+---------------------------+

1. 消息类型定义

enum class RtmpMessageType : uint8_t {
    kSetChunkSize = 1,           // 设置Chunk大小
    kAbort = 2,                  // 中止消息
    kAck = 3,                    // 确认消息
    kUserControl = 4,            // 用户控制消息
    kWindowAckSize = 5,          // 窗口确认大小
    kSetPeerBandwidth = 6,       // 设置对等带宽
    kAudio = 8,                  // 音频数据
    kVideo = 9,                  // 视频数据
    kDataAMF0 = 18,             // AMF0数据消息
    kCommandAMF0 = 20,          // AMF0命令消息
};

2. Chunk格式

enum class RtmpChunkFormat : uint8_t {
    kType0 = 0,  // 完整消息头 (11字节)
    kType1 = 1,  // 无消息流ID (7字节)
    kType2 = 2,  // 仅时间戳增量 (3字节)
    kType3 = 3   // 仅数据 (0字节)
};

Chunk Header 结构：

Type 0: [Basic Header][Timestamp][Message Length][Message Type ID][Message Stream ID]
Type 1: [Basic Header][Timestamp Delta][Message Length][Message Type ID]
Type 2: [Basic Header][Timestamp Delta]
Type 3: [Basic Header]

3. AMF编解码

class AmfCodec {
    // 基本类型编解码
    static void encodeAmfValue(Buffer* buffer, const AmfValue& value);
    static bool decodeAmfValue(Buffer* buffer, AmfValue* value);

    // 复合类型编解码
    static void encodeAmfObject(Buffer* buffer,
                               const std::unordered_map<std::string, AmfValue>& object);
    static bool decodeAmfObject(Buffer* buffer,
                               std::unordered_map<std::string, AmfValue>* object);
};

AMF数据类型：

enum class AmfType : uint8_t {
    kNumber = 0x00,      // 64位双精度浮点数
    kBoolean = 0x01,     // 布尔值
    kString = 0x02,      // UTF-8字符串
    kObject = 0x03,      // 对象
    kNull = 0x05,        // 空值
    kUndefined = 0x06,   // 未定义
    kEcmaArray = 0x08,   // ECMA数组
    kObjectEnd = 0x09,   // 对象结束
    kStrictArray = 0x0A, // 严格数组
};

推流实现详解

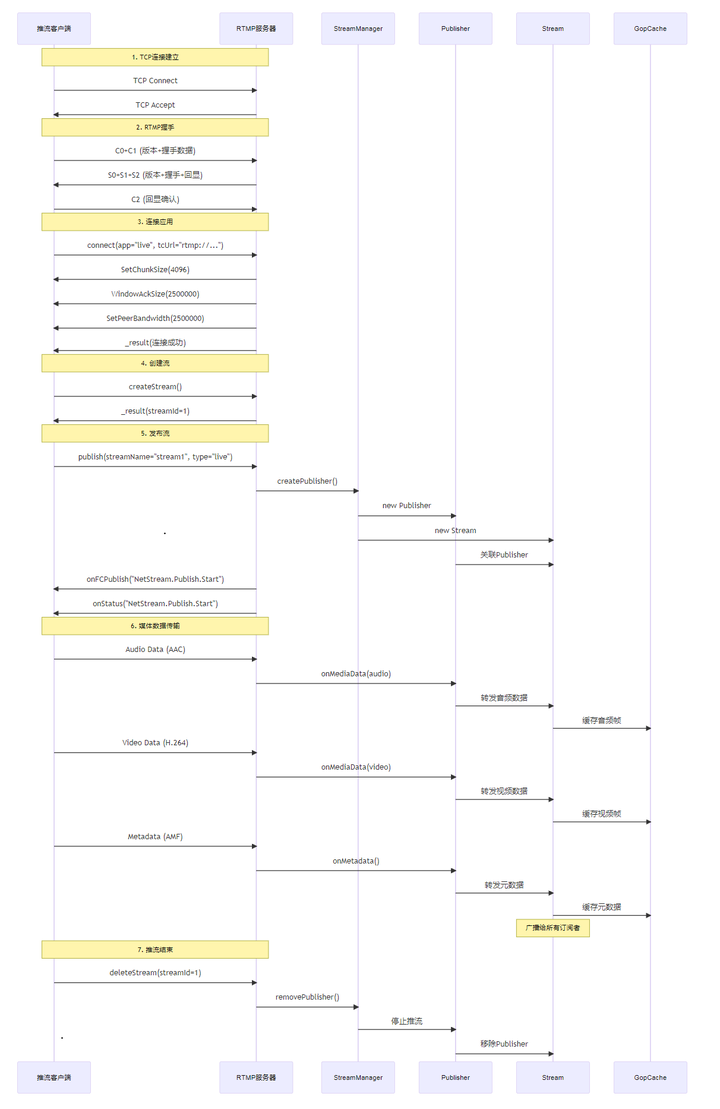

推流交互时序图

推流核心代码流程

1. 处理publish命令

void RtmpConnection::handlePublish(const RtmpCommand& command) {
    // 解析流名
    std::string streamName = command.getStringArg(0);
    std::string publishType = command.getStringArg(1); // "live"

    // 设置连接类型
    connectionType_ = RtmpConnectionType::kPublisher;
    streamName_ = streamName;

    // 创建Publisher对象
    auto mgr = streamManager_.lock();
    auto conn = tcpConnection_.lock();
    publisher_ = mgr->createPublisher(streamName, conn);

    // 启动推流
    publisher_->startPublish();

    // 发送响应
    sendOnFCPublish("NetStream.Publish.Start", "Started publishing stream.");
    sendPublishStatus("NetStream.Publish.Start", "Started publishing stream.");

    // 更新状态
    parser_.setState(RtmpConnectionState::kPublishing);
}

2. 处理媒体数据

void RtmpConnection::processAudioData(const RtmpMessage& message) {
    if (!isPublisher() || !publisher_) return;

    // 创建MediaPacket
    auto packet = std::make_shared<MediaPacket>(
        MediaPacketType::kAudio,
        message.payload(),
        message.header().timestamp,
        message.header().messageStreamId
    );

    // 转发给Publisher
    publisher_->onMediaData(packet);
}

void RtmpConnection::processVideoData(const RtmpMessage& message) {
    if (!isPublisher() || !publisher_) return;

    // 创建MediaPacket
    auto packet = std::make_shared<MediaPacket>(
        MediaPacketType::kVideo,
        message.payload(),
        message.header().timestamp,
        message.header().messageStreamId
    );

    // 转发给Publisher
    publisher_->onMediaData(packet);
}

3. Publisher数据转发

void Publisher::onMediaData(std::shared_ptr<MediaPacket> packet) {
    if (!packet || !isPublishing_) return;

    updateLastActiveTime();
    updateStats(packet->data().size(), 1);

    // 转发给StreamManager
    if (auto mgr = manager_.lock()) {
        mgr->onPublisherData(streamName_, packet);
    }
}

关键实现细节

1. 序列头检测和缓存

// 检测AVC Sequence Header
bool isAvcSequenceHeader(const MediaPacket& packet) {
    return packet.type() == MediaPacketType::kVideo &&
           packet.videoCodec() == VideoCodec::kAVC &&
           packet.data().size() > 1 &&
           static_cast<uint8_t>(packet.data()[1]) == 0;
}

// 检测AAC Sequence Header
bool isAacSequenceHeader(const MediaPacket& packet) {
    return packet.type() == MediaPacketType::kAudio &&
           packet.audioFormat() == AudioFormat::kAAC &&
           packet.data().size() > 1 &&
           static_cast<uint8_t>(packet.data()[1]) == 0;
}

2. 关键帧检测

bool MediaPacket::isKeyFrame() const {
    if (type_ != MediaPacketType::kVideo || data_.empty()) {
        return false;
    }

    // FLV视频标签格式：Frame Type (4 bits) + Codec ID (4 bits)
    uint8_t firstByte = static_cast<uint8_t>(data_[0]);
    uint8_t frameType = (firstByte >> 4) & 0x0F;

    return frameType == 1; // 1 = 关键帧
}

拉流实现详解

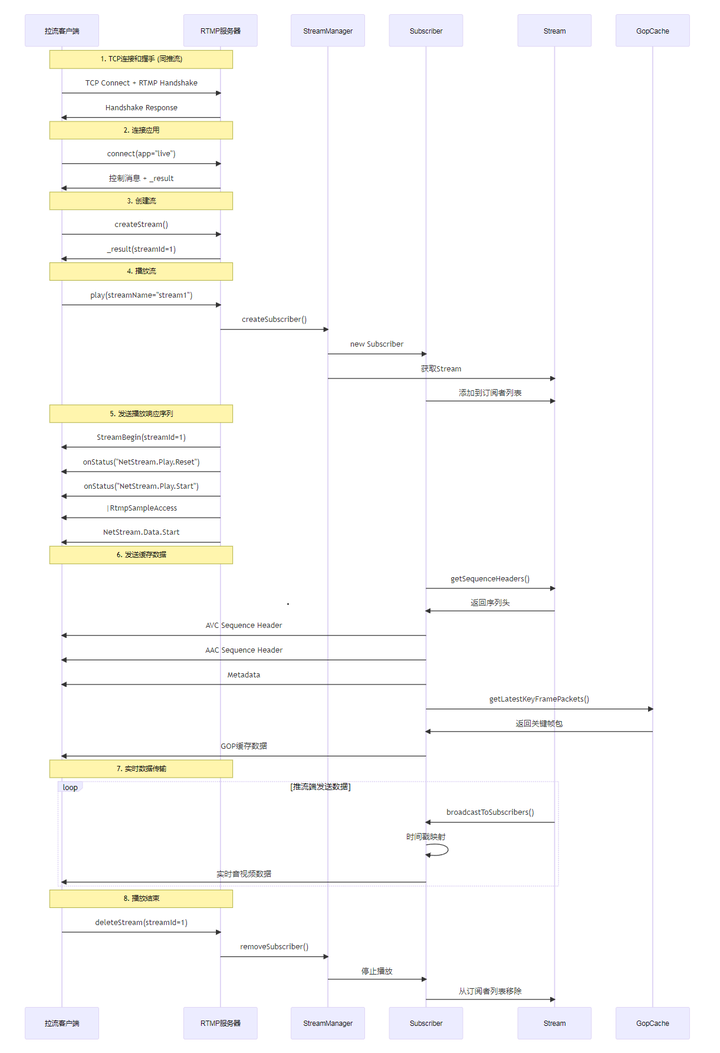

拉流交互时序图

拉流核心代码流程

1. 处理play命令

void RtmpConnection::handlePlay(const RtmpCommand& command) {
    std::string streamName = command.getStringArg(0);

    // 设置连接类型
    connectionType_ = RtmpConnectionType::kSubscriber;
    streamName_ = streamName;

    // 创建Subscriber对象
    auto mgr = streamManager_.lock();
    auto conn = tcpConnection_.lock();
    subscriber_ = mgr->createSubscriber(streamName, conn);

    // 发送RTMP标准播放响应序列
    uint32_t streamId = 1;

    // 1. StreamBegin用户控制消息
    sendStreamBegin(streamId);

    // 2. NetStream.Play.Reset
    sendPlayStatus("NetStream.Play.Reset", "Playing and resetting stream.");

    // 3. NetStream.Play.Start
    sendPlayStatus("NetStream.Play.Start", "Started playing stream.");

    // 4. RtmpSampleAccess
    sendRtmpSampleAccess();

    // 5. NetStream.Data.Start
    sendDataStart();

    // 启动播放
    subscriber_->startPlay();
    parser_.setState(RtmpConnectionState::kPlaying);
}

2. Subscriber播放启动

void Subscriber::startPlay() {
    if (!isPlaying_) {
        isPlaying_ = true;
        startTime_ = Timestamp::now();

        // 重置时间戳映射器
        timeStampMapper_.reset();

        // 发送缓存数据
        if (auto mgr = manager_.lock()) {
            auto stream = mgr->getStream(streamName_);
            if (stream) {
                // 1. 发送序列头（必须）
                auto sequenceHeaders = stream->getSequenceHeaders();
                if (!sequenceHeaders.empty()) {
                    sendCachedData(sequenceHeaders);
                }

                // 2. 发送GOP缓存（可选，快速首屏）
                auto gopPackets = stream->gopCache()->getLatestKeyFramePackets();
                if (!gopPackets.empty()) {
                    sendCachedData(gopPackets);
                }
            }
        }
    }
}

3. 实时数据广播

void Stream::broadcastToSubscribers(std::shared_ptr<MediaPacket> packet) {
    std::vector<std::shared_ptr<Subscriber>> subscribersCopy;

    // 复制订阅者列表（避免在发送时修改）
    {
        MutexLockGuard lock(mutex_);
        subscribersCopy.reserve(subscribers_.size());

        for (const auto& pair : subscribers_) {
            if (pair.second && pair.second->isConnected()) {
                subscribersCopy.push_back(pair.second);
            }
        }
    }

    // 发送数据
    for (auto& subscriber : subscribersCopy) {
        subscriber->sendMediaData(packet);
    }
}

关键实现细节

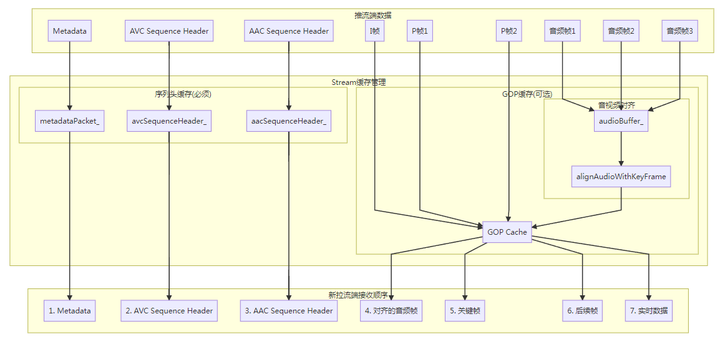

1. 序列头管理

// Stream类独立管理序列头
class Stream {
private:
    std::shared_ptr<MediaPacket> avcSequenceHeader_;  // H.264配置
    std::shared_ptr<MediaPacket> aacSequenceHeader_;  // AAC配置
    std::shared_ptr<MediaPacket> metadataPacket_;     // 元数据

public:
    std::vector<std::shared_ptr<MediaPacket>> getSequenceHeaders() const {
        std::vector<std::shared_ptr<MediaPacket>> headers;
        MutexLockGuard lock(mutex_);

        // 按顺序添加
        if (metadataPacket_) headers.push_back(metadataPacket_);
        if (avcSequenceHeader_) headers.push_back(avcSequenceHeader_);
        if (aacSequenceHeader_) headers.push_back(aacSequenceHeader_);

        return headers;
    }
};

2. 播放响应消息格式

// StreamBegin用户控制消息
void RtmpConnection::sendStreamBegin(uint32_t streamId) {
    Buffer buffer;
    buffer.appendInt16(0x0000); // 事件类型：StreamBegin
    buffer.appendInt32(streamId);

    RtmpMessageHeader header;
    header.messageTypeId = static_cast<uint8_t>(RtmpMessageType::kUserControl);
    header.messageLength = static_cast<uint32_t>(buffer.readableBytes());

    RtmpMessage message(header, std::string(buffer.peek(), buffer.readableBytes()));
    sendMessage(message);
}

// onStatus消息
void RtmpConnection::sendPlayStatus(const std::string& code, const std::string& description) {
    Buffer buffer;

    // 命令名：onStatus
    AmfCodec::encodeAmfValue(&buffer, AmfValue("onStatus"));

    // 事务ID：0
    AmfCodec::encodeAmfValue(&buffer, AmfValue(0.0));

    // 命令对象：null
    AmfCodec::encodeAmfValue(&buffer, AmfValue());

    // 信息对象
    std::unordered_map<std::string, AmfValue> info;
    info["level"] = AmfValue("status");
    info["code"] = AmfValue(code);
    info["description"] = AmfValue(description);
    AmfCodec::encodeAmfObject(&buffer, info);

    RtmpMessageHeader header;
    header.messageTypeId = static_cast<uint8_t>(RtmpMessageType::kCommandAMF0);
    header.messageLength = static_cast<uint32_t>(buffer.readableBytes());
    header.messageStreamId = 1;

    RtmpMessage message(header, std::string(buffer.peek(), buffer.readableBytes()));
    sendMessage(message);
}

多路流处理

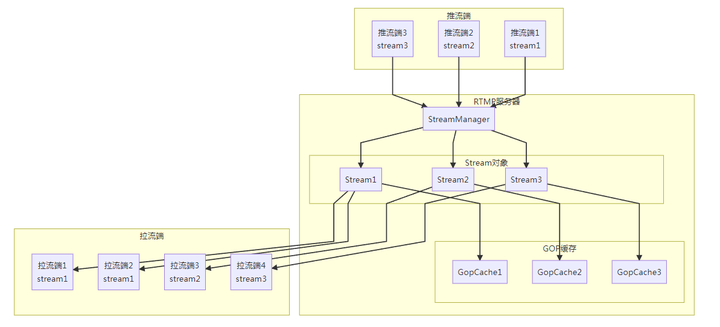

多路推流架构

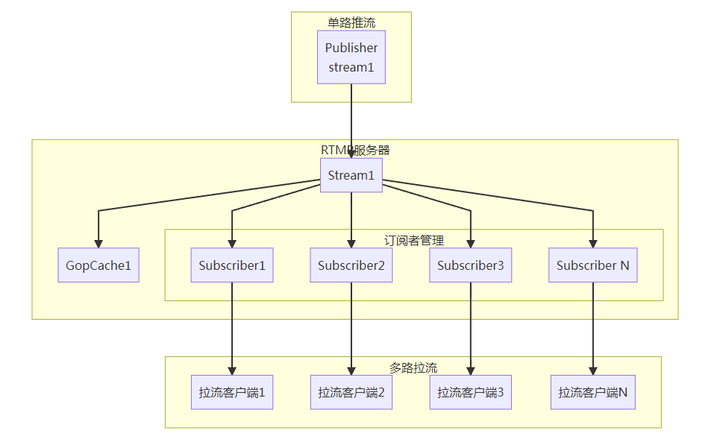

多路拉流架构

核心实现

1. 流管理器

class StreamManager {
private:
    std::unordered_map<std::string, std::shared_ptr<Stream>> streams_;

public:
    // 创建或获取流
    std::shared_ptr<Stream> getOrCreateStream(const std::string& streamName) {
        MutexLockGuard lock(mutex_);

        auto it = streams_.find(streamName);
        if (it != streams_.end()) {
            return it->second;
        }

        // 创建新流
        auto stream = std::make_shared<Stream>(streamName);
        stream->initialize();
        streams_[streamName] = stream;

        return stream;
    }

    // 数据转发
    void onPublisherData(const std::string& streamName,
                        std::shared_ptr<MediaPacket> packet) {
        auto stream = getStream(streamName);
        if (stream) {
            stream->onMediaData(packet);  // 广播给所有订阅者
        }
    }
};

2. 订阅者管理

class Stream {
private:
    std::unordered_map<std::string, std::shared_ptr<Subscriber>> subscribers_;

public:
    void addSubscriber(std::shared_ptr<Subscriber> subscriber) {
        MutexLockGuard lock(mutex_);
        subscribers_[subscriber->id()] = subscriber;

        LOG_INFO << "Added subscriber: " << subscriber->id()
                 << " to stream: " << name_
                 << ", total subscribers: " << subscribers_.size();
    }

    void removeSubscriber(const std::string& subscriberId) {
        MutexLockGuard lock(mutex_);
        auto it = subscribers_.find(subscriberId);
        if (it != subscribers_.end()) {
            subscribers_.erase(it);
            LOG_INFO << "Removed subscriber: " << subscriberId
                     << " from stream: " << name_
                     << ", remaining subscribers: " << subscribers_.size();
        }
    }
};

3. 并发数据广播

void Stream::broadcastToSubscribers(std::shared_ptr<MediaPacket> packet) {
    // 使用副本避免长时间持锁
    std::vector<std::shared_ptr<Subscriber>> subscribersCopy;

    {
        MutexLockGuard lock(mutex_);
        subscribersCopy.reserve(subscribers_.size());

        for (const auto& pair : subscribers_) {
            if (pair.second && pair.second->isConnected()) {
                subscribersCopy.push_back(pair.second);
            }
        }
    }

    // 并发发送数据
    for (auto& subscriber : subscribersCopy) {
        subscriber->sendMediaData(packet);
    }
}

GOP缓存机制

GOP缓存架构

GOP缓存实现

1. 核心数据结构

class GopCache {
private:
    std::shared_ptr<Gop> currentGop_;              // 当前GOP
    size_t maxCacheSize_;                          // 最大缓存大小
    size_t currentCacheSize_;                      // 当前缓存大小

    // 音视频对齐缓冲区
    std::deque<std::shared_ptr<MediaPacket>> audioBuffer_;
    uint32_t lastKeyFrameTimestamp_ = 0;
    static const uint32_t AUDIO_ALIGN_WINDOW = 200;  // 200ms对齐窗口

public:
    void addPacket(std::shared_ptr<MediaPacket> packet);
    std::vector<std::shared_ptr<MediaPacket>> getCachedPackets() const;
    std::vector<std::shared_ptr<MediaPacket>> getLatestKeyFramePackets() const;
};

2. GOP检测和切换

bool GopCache::needNewGop(std::shared_ptr<MediaPacket> packet) const {
    // 没有当前GOP
    if (!currentGop_) {
        return true;
    }

    // 检测到新的关键帧
    if (packet->type() == MediaPacketType::kVideo && packet->isKeyFrame()) {
        return true;
    }

    return false;
}

void GopCache::addPacket(std::shared_ptr<MediaPacket> packet) {
    MutexLockGuard lock(mutex_);

    // 音频帧：维护音频缓冲区
    if (packet->type() == MediaPacketType::kAudio) {
        maintainAudioBuffer(packet);
    }

    // 检查是否需要新GOP
    bool isNewGop = needNewGop(packet);

    if (isNewGop) {
        startNewGop();

        // 关键帧：进行音视频对齐
        if (packet->type() == MediaPacketType::kVideo && packet->isKeyFrame()) {
            lastKeyFrameTimestamp_ = packet->timestamp();
            alignAudioWithKeyFrame(lastKeyFrameTimestamp_);
        }
    }

    // 添加到当前GOP
    if (!currentGop_) {
        startNewGop();
    }

    currentGop_->addPacket(packet);
    updateCacheSize();
}

3. 音视频对齐

void GopCache::alignAudioWithKeyFrame(uint32_t keyFrameTimestamp) {
    if (audioBuffer_.empty() || !currentGop_) {
        return;
    }

    std::vector<std::shared_ptr<MediaPacket>> alignedAudio;

    // 查找关键帧前后的音频帧
    for (const auto& audioPacket : audioBuffer_) {
        uint32_t audioTimestamp = audioPacket->timestamp();
        int32_t timeDiff = static_cast<int32_t>(audioTimestamp) -
                          static_cast<int32_t>(keyFrameTimestamp);

        // 收集关键帧前200ms到后50ms的音频帧
        if (timeDiff >= -static_cast<int32_t>(AUDIO_ALIGN_WINDOW) &&
            timeDiff <= 50) {
            alignedAudio.push_back(audioPacket);
        }
    }

    // 按时间戳排序
    std::sort(alignedAudio.begin(), alignedAudio.end(),
              [](const std::shared_ptr<MediaPacket>& a,
                 const std::shared_ptr<MediaPacket>& b) {
                  return a->timestamp() < b->timestamp();
              });

    // 添加到GOP开头
    for (const auto& audioPacket : alignedAudio) {
        currentGop_->addPacket(audioPacket);
    }

    LOG_INFO << "Aligned " << alignedAudio.size()
             << " audio frames with key frame at " << keyFrameTimestamp;
}

4. 快速首屏优化

std::vector<std::shared_ptr<MediaPacket>>
GopCache::getLatestKeyFramePackets() const {
    MutexLockGuard lock(mutex_);

    std::vector<std::shared_ptr<MediaPacket>> packets;

    if (currentGop_ && !currentGop_->empty()) {
        const auto& gopPackets = currentGop_->packets();

        // 找到关键帧位置
        size_t keyFrameIndex = 0;
        bool foundKeyFrame = false;

        for (size_t i = 0; i < gopPackets.size(); ++i) {
            if (gopPackets[i]->type() == MediaPacketType::kVideo &&
                gopPackets[i]->isKeyFrame()) {
                keyFrameIndex = i;
                foundKeyFrame = true;
                break;
            }
        }

        if (foundKeyFrame) {
            // 从关键帧开始，最多取10个包（约1秒内容）
            size_t endIndex = std::min(keyFrameIndex + 10, gopPackets.size());

            for (size_t i = keyFrameIndex; i < endIndex; ++i) {
                packets.push_back(gopPackets[i]);
            }
        }
    }

    return packets;
}

GOP缓存统计

struct GopInfo {
    uint32_t audioDuration = 0;        // 音频时长
    uint32_t videoDuration = 0;        // 视频时长
    size_t audioPackets = 0;           // 音频包数
    size_t videoPackets = 0;           // 视频包数
    size_t totalSize = 0;              // 总大小
    uint32_t firstTimestamp = 0;       // 第一个时间戳
    uint32_t lastTimestamp = 0;        // 最后一个时间戳
    bool hasKeyFrame = false;          // 是否有关键帧
    uint32_t audioSampleRate = 44100;  // 音频采样率
    double audioFrameDuration = 0.0;   // 音频帧时长
};

GopInfo Gop::getGopInfo() const {
    GopInfo info;

    if (packets_.empty()) {
        return info;
    }

    // 统计音视频帧数和时长
    uint32_t minTimestamp = packets_[0]->timestamp();
    uint32_t maxTimestamp = packets_[0]->timestamp();

    for (const auto& packet : packets_) {
        uint32_t timestamp = packet->timestamp();

        minTimestamp = std::min(minTimestamp, timestamp);
        maxTimestamp = std::max(maxTimestamp, timestamp);
        info.totalSize += packet->data().size();

        if (packet->type() == MediaPacketType::kAudio) {
            info.audioPackets++;
        } else if (packet->type() == MediaPacketType::kVideo) {
            info.videoPackets++;
            if (packet->isKeyFrame()) {
                info.hasKeyFrame = true;
            }
        }
    }

    info.firstTimestamp = minTimestamp;
    info.lastTimestamp = maxTimestamp;

    // 计算音频帧时长（基于44.1kHz采样率，1024采样点/帧）
    info.audioFrameDuration = 1024.0 / 44100.0 * 1000.0;  // 23.22ms
    info.audioDuration = static_cast<uint32_t>(info.audioPackets * info.audioFrameDuration);

    return info;
}

时间戳同步

时间戳映射器

时间戳映射实现

1. 时间戳映射器结构

struct TimestampMapper {
    // 统一基准时间戳
    uint32_t baseTimestamp = 0;
    bool initialized = false;

    // 音频同步
    uint32_t audioBaseTimestamp = 0;
    uint32_t audioFrameNum = 0;
    uint32_t audioFrameInterval = 0;        // 动态计算
    bool audioInitialized = false;

    // 视频同步
    uint32_t videoBaseTimestamp = 0;
    uint32_t lastVideoTimestamp = 0;
    bool videoInitialized = false;

    // 同步阈值
    static const uint32_t SYNC_THRESHOLD = 300;  // 300ms

    uint32_t mapTimestamp(uint32_t originalTimestamp, MediaPacketType type);
    void reset();
};

2. 音频时间戳映射

uint32_t TimestampMapper::mapAudioTimestamp(uint32_t originalTimestamp) {
    // 初始化统一基准
    initializeBase(originalTimestamp);

    if (originalTimestamp < baseTimestamp) {
        return lastAudioTimestamp;  // 防止时间戳倒退
    }

    uint32_t mappedTimestamp = originalTimestamp - baseTimestamp;

    // 动态计算音频帧间隔
    calculateAudioFrameInterval(originalTimestamp);

    // 初始化音频基准
    if (!audioInitialized) {
        audioBaseTimestamp = mappedTimestamp;
        audioFrameNum = 0;
        audioInitialized = true;
        lastAudioTimestamp = mappedTimestamp;
        return mappedTimestamp;
    }

    // 如果还没有稳定的帧间隔，直接返回
    if (!audioFrameIntervalCalculated) {
        lastAudioTimestamp = mappedTimestamp;
        return mappedTimestamp;
    }

    // 计算期望的音频时间戳
    uint32_t expectedTimestamp = audioBaseTimestamp + audioFrameNum * audioFrameInterval;

    // 检查时间戳差异
    int32_t timeDiff = static_cast<int32_t>(mappedTimestamp) -
                      static_cast<int32_t>(expectedTimestamp);

    // 如果在同步阈值内，使用期望时间戳
    if (abs(timeDiff) <= SYNC_THRESHOLD) {
        lastAudioTimestamp = expectedTimestamp;
        audioFrameNum++;
        return expectedTimestamp;
    } else {
        // 超出阈值，重新校准
        audioBaseTimestamp = mappedTimestamp;
        audioFrameNum = 0;
        lastAudioTimestamp = mappedTimestamp;
        return mappedTimestamp;
    }
}

3. 视频时间戳映射

uint32_t TimestampMapper::mapVideoTimestamp(uint32_t originalTimestamp) {
    // 初始化统一基准
    initializeBase(originalTimestamp);

    if (originalTimestamp < baseTimestamp) {
        return lastVideoTimestamp;  // 防止时间戳倒退
    }

    uint32_t mappedTimestamp = originalTimestamp - baseTimestamp;

    // 初始化视频基准
    if (!videoInitialized) {
        videoBaseTimestamp = mappedTimestamp;
        videoInitialized = true;
        lastVideoTimestamp = mappedTimestamp;
        return mappedTimestamp;
    }

    // 检查时间戳单调性
    if (mappedTimestamp < lastVideoTimestamp) {
        // 时间戳倒退，使用上一个时间戳
        return lastVideoTimestamp;
    }

    // 检查时间戳跳跃
    uint32_t timeDiff = mappedTimestamp - lastVideoTimestamp;
    if (timeDiff > 2000) {  // 超过2秒的跳跃
        LOG_WARN << "Video timestamp jump detected: " << timeDiff << "ms";
        // 可以选择重新校准或者限制跳跃
        mappedTimestamp = lastVideoTimestamp + 33;  // 假设30fps
    }

    lastVideoTimestamp = mappedTimestamp;
    return mappedTimestamp;
}

4. 音频帧间隔计算

void TimestampMapper::calculateAudioFrameInterval(uint32_t currentTimestamp) {
    if (!audioFrameIntervalCalculated) {
        if (lastRawAudioTimestamp != 0) {
            uint32_t interval = currentTimestamp - lastRawAudioTimestamp;

            // 过滤异常值（正常音频帧间隔应该在10-50ms之间）
            if (interval >= 10 && interval <= 50) {
                audioFrameIntervalSum += interval;
                audioFrameIntervalCount++;

                // 收集足够样本后计算平均值
                if (audioFrameIntervalCount >= FRAME_INTERVAL_SAMPLES) {
                    audioFrameInterval = audioFrameIntervalSum / audioFrameIntervalCount;
                    audioFrameIntervalCalculated = true;

                    LOG_INFO << "Audio frame interval calculated: " << audioFrameInterval << "ms";
                }
            }
        }
        lastRawAudioTimestamp = currentTimestamp;
    }
}

同步检查

bool TimestampMapper::checkSync() const {
    if (!initialized || !audioInitialized || !videoInitialized) {
        return true;  // 未初始化完成，暂不检查
    }

    // 计算音视频时间戳差异
    int32_t avDiff = static_cast<int32_t>(lastAudioTimestamp) -
                     static_cast<int32_t>(lastVideoTimestamp);

    bool inSync = abs(avDiff) <= SYNC_THRESHOLD;

    if (!inSync) {
        LOG_WARN << "Audio-Video sync issue detected: " << avDiff << "ms";
    }

    return inSync;
}

关键技术细节

1. RTMP握手实现

class RtmpProtocolParser {
public:
    // 生成C0+C1握手数据
    std::string generateHandshakeC0C1() {
        std::string c0c1;
        c0c1.resize(1 + kRtmpHandshakeSize);

        // C0: 版本号
        c0c1[0] = 0x03;

        // C1: 握手数据
        char* c1 = &c0c1[1];

        // 时间戳 (4字节)
        uint32_t timestamp = static_cast<uint32_t>(time(nullptr));
        c1[0] = (timestamp >> 24) & 0xFF;
        c1[1] = (timestamp >> 16) & 0xFF;
        c1[2] = (timestamp >> 8) & 0xFF;
        c1[3] = timestamp & 0xFF;

        // 版本 (4字节)
        c1[4] = c1[5] = c1[6] = c1[7] = 0x00;

        // 随机数据 (1528字节)
        std::random_device rd;
        std::mt19937 gen(rd());
        std::uniform_int_distribution<> dis(0, 255);

        for (int i = 8; i < kRtmpHandshakeSize; ++i) {
            c1[i] = static_cast<char>(dis(gen));
        }

        return c0c1;
    }

    // 生成C2握手数据
    std::string generateHandshakeC2(const std::string& s1) {
        std::string c2;
        c2.resize(kRtmpHandshakeSize);

        // C2是S1的回显
        std::memcpy(&c2[0], s1.data(), kRtmpHandshakeSize);

        return c2;
    }
};

2. Chunk解析

bool RtmpProtocolParser::parseChunkHeader(Buffer* buffer, RtmpChunkHeader* header) {
    if (buffer->readableBytes() < 1) {
        return false;
    }

    // 解析Basic Header
    uint8_t basicHeader = static_cast<uint8_t>(buffer->peekInt8());
    header->format = static_cast<RtmpChunkFormat>((basicHeader >> 6) & 0x03);
    uint32_t chunkStreamId = basicHeader & 0x3F;

    // 处理扩展Chunk Stream ID
    size_t basicHeaderSize = 1;
    if (chunkStreamId == 0) {
        if (buffer->readableBytes() < 2) return false;
        chunkStreamId = static_cast<uint8_t>(buffer->peek()[1]) + 64;
        basicHeaderSize = 2;
    } else if (chunkStreamId == 1) {
        if (buffer->readableBytes() < 3) return false;
        chunkStreamId = static_cast<uint8_t>(buffer->peek()[1]) * 256 +
                       static_cast<uint8_t>(buffer->peek()[2]) + 64;
        basicHeaderSize = 3;
    }

    header->chunkStreamId = chunkStreamId;

    // 计算Message Header大小
    size_t messageHeaderSize = 0;
    switch (header->format) {
        case RtmpChunkFormat::kType0: messageHeaderSize = 11; break;
        case RtmpChunkFormat::kType1: messageHeaderSize = 7; break;
        case RtmpChunkFormat::kType2: messageHeaderSize = 3; break;
        case RtmpChunkFormat::kType3: messageHeaderSize = 0; break;
    }

    // 检查数据是否足够
    if (buffer->readableBytes() < basicHeaderSize + messageHeaderSize) {
        return false;
    }

    // 跳过Basic Header
    buffer->retrieve(basicHeaderSize);

    // 解析Message Header
    if (messageHeaderSize > 0) {
        parseMessageHeader(buffer, header, messageHeaderSize);
    }

    return true;
}

3. AMF编解码实现

// AMF Number编码
void AmfCodec::encodeNumber(Buffer* buffer, double number) {
    char data[8];
    uint64_t bits;
    std::memcpy(&bits, &number, 8);

    // 大端序写入
    for (int i = 0; i < 8; ++i) {
        data[i] = static_cast<char>((bits >> (56 - i * 8)) & 0xFF);
    }

    buffer->append(data, 8);
}

// AMF String编码
void AmfCodec::encodeString(Buffer* buffer, const std::string& str) {
    // 字符串长度（2字节大端序）
    buffer->appendInt16(static_cast<int16_t>(str.size()));

    // 字符串内容
    buffer->append(str);
}

// AMF Object编码
void AmfCodec::encodeAmfObject(Buffer* buffer,
                              const std::unordered_map<std::string, AmfValue>& object) {
    // 对象类型标识
    buffer->appendInt8(static_cast<int8_t>(AmfType::kObject));

    // 编码键值对
    for (const auto& pair : object) {
        // 键（不包含类型标识）
        buffer->appendInt16(static_cast<int16_t>(pair.first.size()));
        buffer->append(pair.first);

        // 值（包含类型标识）
        encodeAmfValue(buffer, pair.second);
    }

    // 对象结束标记
    buffer->appendInt16(0);  // 空键
    buffer->appendInt8(static_cast<int8_t>(AmfType::kObjectEnd));
}

4. 消息序列化

void RtmpProtocolParser::serializeMessage(const RtmpMessage& message, Buffer* buffer) {
    const auto& header = message.header();
    const auto& payload = message.payload();

    // 选择Chunk Stream ID
    uint32_t chunkStreamId = selectChunkStreamId(header.messageTypeId);

    // 计算需要的Chunk数量
    uint32_t chunkCount = (payload.size() + chunkSize_ - 1) / chunkSize_;

    for (uint32_t i = 0; i < chunkCount; ++i) {
        // 计算当前Chunk的payload大小
        uint32_t chunkPayloadSize = std::min(chunkSize_,
                                           static_cast<uint32_t>(payload.size() - i * chunkSize_));

        // 写入Chunk Header
        if (i == 0) {
            // 第一个Chunk使用Type 0
            writeChunkHeader(buffer, RtmpChunkFormat::kType0, chunkStreamId, header);
        } else {
            // 后续Chunk使用Type 3
            writeChunkHeader(buffer, RtmpChunkFormat::kType3, chunkStreamId, header);
        }

        // 写入Chunk Payload
        buffer->append(&payload[i * chunkSize_], chunkPayloadSize);
    }
}

5. 媒体数据检测

class MediaPacket {
public:
    // 检测视频帧类型
    VideoFrameType videoFrameType() const {
        if (type_ != MediaPacketType::kVideo || data_.empty()) {
            return VideoFrameType::kInterFrame;
        }

        // FLV视频标签：Frame Type (4 bits) + Codec ID (4 bits)
        uint8_t firstByte = static_cast<uint8_t>(data_[0]);
        uint8_t frameType = (firstByte >> 4) & 0x0F;

        return static_cast<VideoFrameType>(frameType);
    }

    // 检测视频编码格式
    VideoCodec videoCodec() const {
        if (type_ != MediaPacketType::kVideo || data_.empty()) {
            return VideoCodec::kAVC;
        }

        uint8_t firstByte = static_cast<uint8_t>(data_[0]);
        uint8_t codecId = firstByte & 0x0F;

        return static_cast<VideoCodec>(codecId);
    }

    // 检测音频格式
    AudioFormat audioFormat() const {
        if (type_ != MediaPacketType::kAudio || data_.empty()) {
            return AudioFormat::kAAC;
        }

        uint8_t firstByte = static_cast<uint8_t>(data_[0]);
        uint8_t format = (firstByte >> 4) & 0x0F;

        return static_cast<AudioFormat>(format);
    }

    // 检测AAC序列头
    bool isAacSequenceHeader() const {
        if (type_ != MediaPacketType::kAudio || data_.size() < 2) {
            return false;
        }

        // AAC序列头：音频格式=AAC && AAC包类型=0
        uint8_t firstByte = static_cast<uint8_t>(data_[0]);
        uint8_t secondByte = static_cast<uint8_t>(data_[1]);

        uint8_t format = (firstByte >> 4) & 0x0F;
        uint8_t aacPacketType = secondByte;

        return (format == static_cast<uint8_t>(AudioFormat::kAAC)) &&
               (aacPacketType == 0);
    }
};

监控和日志

1. 日志级别

// 设置日志级别
Logger::setLogLevel(Logger::LogLevel::DEBUG);

// 关键日志输出
LOG_INFO << "RTMP Server started on " << config_.listenAddress << ":" << config_.listenPort;
LOG_DEBUG << "Received media packet: " << packet->data().size() << " bytes";
LOG_WARN << "Connection timeout: " << connectionId;
LOG_ERROR << "Failed to parse RTMP message";

2. 性能监控

struct ServerStatistics {
    std::atomic<uint64_t> totalConnections{0};
    std::atomic<uint64_t> currentConnections{0};
    std::atomic<uint64_t> totalStreams{0};
    std::atomic<uint64_t> currentStreams{0};
    std::atomic<uint64_t> totalBytesReceived{0};
    std::atomic<uint64_t> totalBytesSent{0};
    std::atomic<uint64_t> totalPacketsReceived{0};
    std::atomic<uint64_t> totalPacketsSent{0};
};

// 定期输出统计信息
void printStatistics() {
    auto stats = server->getStatistics();
    LOG_INFO << "=== RTMP Server Statistics ===";
    LOG_INFO << "Connections: " << stats.currentConnections.load()
             << "/" << stats.totalConnections.load();
    LOG_INFO << "Streams: " << stats.currentStreams.load()
             << "/" << stats.totalStreams.load();
    LOG_INFO << "Bytes: RX=" << stats.totalBytesReceived.load()
             << " TX=" << stats.totalBytesSent.load();
    LOG_INFO << "Packets: RX=" << stats.totalPacketsReceived.load()
             << " TX=" << stats.totalPacketsSent.load();
}

总结

本RTMP推拉流项目实现了一个完整的流媒体服务器，主要特点包括：

完整的RTMP协议支持: 握手、命令处理、媒体数据传输
高性能网络处理: 基于muduo库的异步网络框架
音视频同步机制: 时间戳映射器确保播放连续性
GOP缓存优化: 实现快速首屏和低延迟播放
多路流支持: 支持多个推流和拉流并发
完善的错误处理: 异常检测和恢复机制

通过深入理解RTMP协议和流媒体技术，可以进一步扩展功能，如：

支持更多编码格式（H.265、Opus等）
增加HLS/DASH输出
实现流录制功能
添加用户认证和权限控制
集成CDN分发

原创声明：本文系作者授权腾讯云开发者社区发表，未经许可，不得转载。

如有侵权，请联系 cloudcommunity@tencent.com 删除。

音视频开发

原创声明：本文系作者授权腾讯云开发者社区发表，未经许可，不得转载。

如有侵权，请联系 cloudcommunity@tencent.com 删除。

音视频项目：实现一个RTMP流媒体服务器

音视频项目：实现一个RTMP流媒体服务器

项目概述

技术栈

快速开始

编译运行步骤

系统架构

整体架构图

核心模块职责

核心模块详解

1. RtmpServer 服务器主框架

2. RtmpConnection 连接处理

3. StreamManager 流管理器

RTMP协议实现

RTMP协议栈

1. 消息类型定义

2. Chunk格式

3. AMF编解码

推流实现详解

推流交互时序图

推流核心代码流程

1. 处理publish命令

2. 处理媒体数据

3. Publisher数据转发

关键实现细节

1. 序列头检测和缓存

2. 关键帧检测

拉流实现详解

拉流交互时序图

拉流核心代码流程

1. 处理play命令

2. Subscriber播放启动

3. 实时数据广播

关键实现细节

1. 序列头管理

2. 播放响应消息格式

多路流处理

多路推流架构

多路拉流架构

核心实现

1. 流管理器

2. 订阅者管理

3. 并发数据广播

GOP缓存机制

GOP缓存架构

GOP缓存实现

1. 核心数据结构

2. GOP检测和切换

3. 音视频对齐

4. 快速首屏优化

GOP缓存统计

时间戳同步

时间戳映射器

时间戳映射实现

1. 时间戳映射器结构

2. 音频时间戳映射

3. 视频时间戳映射

4. 音频帧间隔计算

同步检查

关键技术细节

1. RTMP握手实现

2. Chunk解析

3. AMF编解码实现

4. 消息序列化

5. 媒体数据检测

监控和日志

1. 日志级别

2. 性能监控

总结

社区

活动

圈层

关于

腾讯云开发者

热门产品

热门推荐

更多推荐
