超详细！论坛系统核心功能拆解：发帖互动、板块管理、消息通知，技术与体验双视角

DROP DATABASE IF EXISTS forum_db;
#创建数据库并指定字符集
CREATE DATABASE forum_db CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci;
USE forum_db;

#创建用户表
DROP TABLE IF EXISTS t_user;
CREATE TABLE t_user(
  id BIGINT PRIMARY KEY auto_increment COMMENT '编号,主键自增',
  username VARCHAR(20) NOT NULL UNIQUE COMMENT '用户名,唯一',
  `password` VARCHAR(32) NOT NULL COMMENT '加密后的密码',
  nickname VARCHAR(50) NOT NULL COMMENT '昵称',
  phoneNum VARCHAR(20)  COMMENT '手机号',
  email VARCHAR(50) COMMENT '电子邮箱',
  gender TINYINT NOT NULL DEFAULT 2 COMMENT '性别 0女,1男,2保密',
  salt VARCHAR(32) NOT NULL COMMENT '为密码加盐',
  avatarUrl VARCHAR(255) COMMENT '用户头像路径',
  avatarCount INT NOT NULL DEFAULT 0 COMMENT '发帖数量',
  isAdmin TINYINT NOT NULL DEFAULT 0 COMMENT '是否是管理员 0否,1是',
  remark VARCHAR(100) COMMENT '备注,自我介绍',
  state TINYINT NOT NULL DEFAULT 0 COMMENT '状态 0正常,1禁言',
  deleteState TINYINT NOT NULL DEFAULT 0 COMMENT '是否删除,0否,1是',
  createTime DATETIME NOT NULL COMMENT '创建时间,精确到秒',
  updateTime DATETIME NOT NULL COMMENT '更新时间,精确到秒'
);

-- ----------------------------
-- 创建版块表 t_board
-- ----------------------------
DROP TABLE IF EXISTS `t_board`;
CREATE TABLE `t_board` (
 `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '版块编号，主键，⾃增',
 `name` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '版块名，⾮空',
 `articleCount` int(11) NOT NULL DEFAULT 0 COMMENT '帖⼦数量，默认0',
 `sort` int(11) NOT NULL DEFAULT 0 COMMENT '排序优先级，升序，默认0，',
 `state` tinyint(4) NOT NULL DEFAULT 0 COMMENT '状态，0 正常，1禁⽤，默认0',
 `deleteState` tinyint(4) NOT NULL DEFAULT 0 COMMENT '是否删除 0否，1是，默认0',
 `createTime` datetime NOT NULL COMMENT '创建时间，精确到秒，⾮空',
 `updateTime` datetime NOT NULL COMMENT '更新时间，精确到秒，⾮空',
 PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8mb4 COLLATE =
utf8mb4_general_ci COMMENT = '版块表' ROW_FORMAT = Dynamic;

DROP TABLE IF EXISTS `t_article`;
CREATE TABLE `t_article` (
 `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '帖⼦编号，主键，⾃增',
 `boardId` bigint(20) NOT NULL COMMENT '关联板块编号，⾮空',
 `userId` bigint(20) NOT NULL COMMENT '发帖⼈，⾮空，关联⽤⼾编号',
 `title` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT
NULL COMMENT '标题，非空，最⼤⻓度100个字符',
 `content` text CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL
COMMENT '帖⼦正⽂，⾮空',
 `visitCount` int(11) NOT NULL DEFAULT 0 COMMENT '访问量，默认0',
 `replyCount` int(11) NOT NULL DEFAULT 0 COMMENT '回复数据，默认0',
 `likeCount` int(11) NOT NULL DEFAULT 0 COMMENT '点赞数，默认0',
 `state` tinyint(4) NOT NULL DEFAULT 0 COMMENT '状态 0正常 1 禁⽤，默认0',
 `deleteState` tinyint(4) NOT NULL DEFAULT 0 COMMENT '是否删除 0 否 1 是，默认0',
 `createTime` datetime NOT NULL COMMENT '创建时间，精确到秒，⾮空',
 `updateTime` datetime NOT NULL COMMENT '修改时间，精确到秒，⾮空',
 PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8mb4 COLLATE =
utf8mb4_general_ci COMMENT = '帖⼦表' ROW_FORMAT = Dynamic;

-- ----------------------------
-- 创建帖⼦回复表 t_article_reply
-- ----------------------------
DROP TABLE IF EXISTS `t_article_reply`;
CREATE TABLE `t_article_reply` (
 `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '编号，主键，⾃增',
 `articleId` bigint(20) NOT NULL COMMENT '关联帖子编号，⾮空',
 `postUserId` bigint(20) NOT NULL COMMENT '楼主⽤⼾，关联⽤⼾编号，⾮空',
 `replyId` bigint(20) NULL DEFAULT NULL COMMENT '关联回复编号，⽀持楼中楼',
 `replyUserId` bigint(20) NULL DEFAULT NULL COMMENT '楼主下的回复⽤⼾编号，支持楼中楼',
 `content` varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '回贴内容，⻓度500个字符，⾮空',
 `likeCount` int(11) NOT NULL DEFAULT 0 COMMENT '点赞数，默认0',
 `state` tinyint(4) NOT NULL DEFAULT 0 COMMENT '状态 0 正常，1禁⽤，默认0',
 `deleteState` tinyint(4) NOT NULL DEFAULT 0 COMMENT '是否删除 0否 1是，默认0',
 `createTime` datetime NOT NULL COMMENT '创建时间，精确到秒，⾮空',
 `updateTime` datetime NOT NULL COMMENT '更新时间，精确到秒，⾮空',
 PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8mb4 COLLATE =
utf8mb4_general_ci COMMENT = '帖⼦回复表' ROW_FORMAT = Dynamic;

-- ----------------------------
-- 创建站内信表 for t_message
-- ----------------------------
DROP TABLE IF EXISTS `t_message`;
CREATE TABLE `t_message` (
 `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '站内信编号，主键，⾃增',
 `postUserId` bigint(20) NOT NULL COMMENT '发送者，并联⽤⼾编号',
 `receiveUserId` bigint(20) NOT NULL COMMENT '接收者，并联⽤⼾编号',
 `content` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT
NULL COMMENT '内容，⾮空，⻓度255个字符',
 `state` tinyint(4) NOT NULL DEFAULT 0 COMMENT '状态 0未读 1已读，默认0',
 `deleteState` tinyint(4) NOT NULL DEFAULT 0 COMMENT '是否删除 0否，1是，默认0',
 `createTime` datetime NOT NULL COMMENT '创建时间，精确到秒，⾮空',
 `updateTime` datetime NOT NULL COMMENT '更新时间，精确到秒，⾮空',
 PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8mb4 COLLATE =
utf8mb4_general_ci COMMENT = '站内信表' ROW_FORMAT = Dynamic;

DROP TABLE IF EXISTS `t_user`;
CREATE TABLE `t_user` (
`id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '⽤⼾编号，主键，⾃增',
 `username` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT
NULL COMMENT '⽤⼾名，⾮空，唯⼀',
 `password` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT
NULL COMMENT '加密后的密码',
 `nickname` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT
NULL COMMENT '昵称，⾮空',
 `phoneNum` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL
DEFAULT NULL COMMENT '⼿机号',
 `email` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL
DEFAULT NULL COMMENT '邮箱地址',
 `gender` tinyint(4) NOT NULL DEFAULT 2 COMMENT '0⼥ 1男 2保密，⾮空，默认2',
 `salt` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL
COMMENT '为密码加盐，⾮空',
 `avatarUrl` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci
NULL DEFAULT NULL COMMENT '⽤⼾头像URL，默认系统图⽚',
 `articleCount` int(11) NOT NULL DEFAULT 0 COMMENT '发帖数量，⾮空，默认0',
 `isAdmin` tinyint(4) NOT NULL DEFAULT 0 COMMENT '是否管理员，0否 1是，默认0',
 `remark` varchar(1000) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL
DEFAULT NULL COMMENT '备注，⾃我介绍',
 `state` tinyint(4) NOT NULL DEFAULT 0 COMMENT '状态 0 正常，1 禁⾔，默认0',
 `deleteState` tinyint(4) NOT NULL DEFAULT 0 COMMENT '是否删除 0否 1是，默认0',
 `createTime` datetime NOT NULL COMMENT '创建时间，精确到秒',
 `updateTime` datetime NOT NULL COMMENT '更新时间，精确到秒',
 PRIMARY KEY (`id`) USING BTREE,
 UNIQUE INDEX `user_username_uindex`(`username`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 2 CHARACTER SET = utf8mb4 COLLATE =
utf8mb4_general_ci COMMENT = '⽤⼾表' ROW_FORMAT = Dynamic;
SET FOREIGN_KEY_CHECKS = 1;

<!-- 定义一些全局的参数 -->
<properties>
    <!-- JDK的版本号 -->
    <java.version>1.8</java.version>
    <!-- 编译环境JDK版本 -->
    <maven.compiler.source>${java.version}</maven.compiler.source>
    <!-- 运行环境JVM版本 -->
    <maven.compiler.target>${java.version}</maven.compiler.target>
    <!-- 构建项目指定编码集 -->
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <!-- 数据库驱动 -->
    <mysql-connector.version>8.0.33</mysql-connector.version>
    <!-- Mybatis依赖-->
    <mybatis-starter.version>2.3.0</mybatis-starter.version>
    <!-- 数据源 -->
    <druid-starter.version>1.2.16</druid-starter.version>
    <!-- Mybatis generator-->
    <mybatis-generator-plugin-version>1.4.1</mybatis-generator-plugin-version>
    <!-- springfox -->
    <springfox-boot-starter.version>3.0.0</springfox-boot-starter.version>
</properties>

<!-- Mysql驱动 -->
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>${mysql-connector.version}</version>
</dependency>
<!-- Mybatis 依赖-->
<dependency>
    <groupId>org.mybatis.spring.boot</groupId>
    <artifactId>mybatis-spring-boot-starter</artifactId>
    <version>${mybatis-starter.version}</version>
</dependency>
<!-- 数据源 -->
<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>druid-spring-boot-starter</artifactId>
    <version>${druid-starter.version}</version>
</dependency>

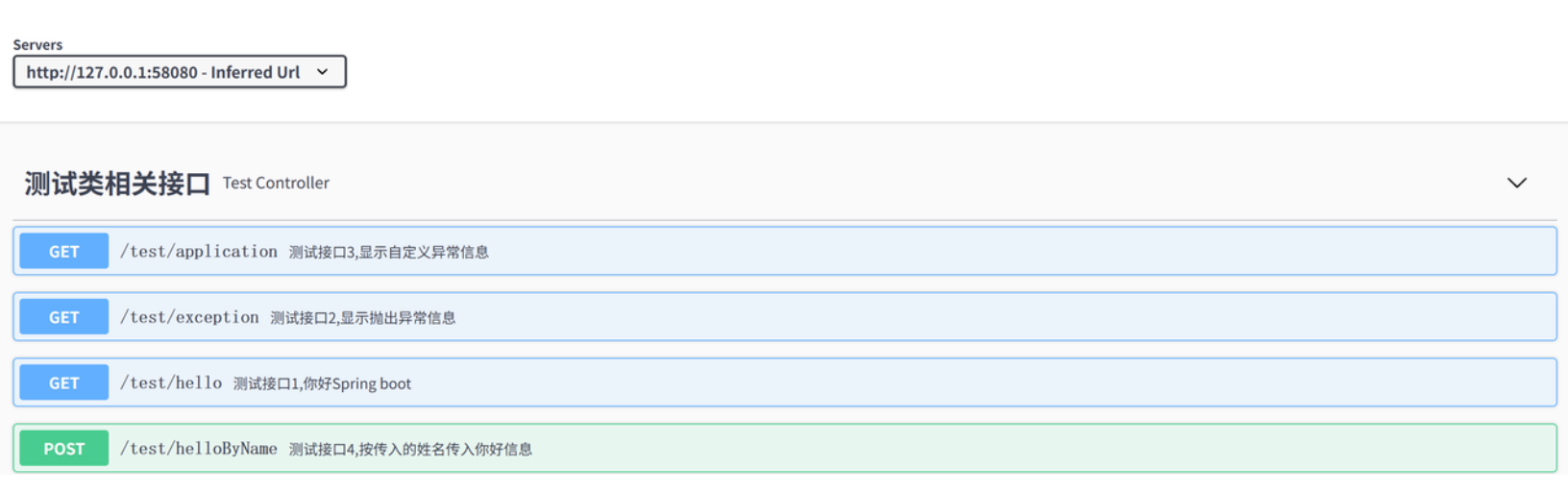

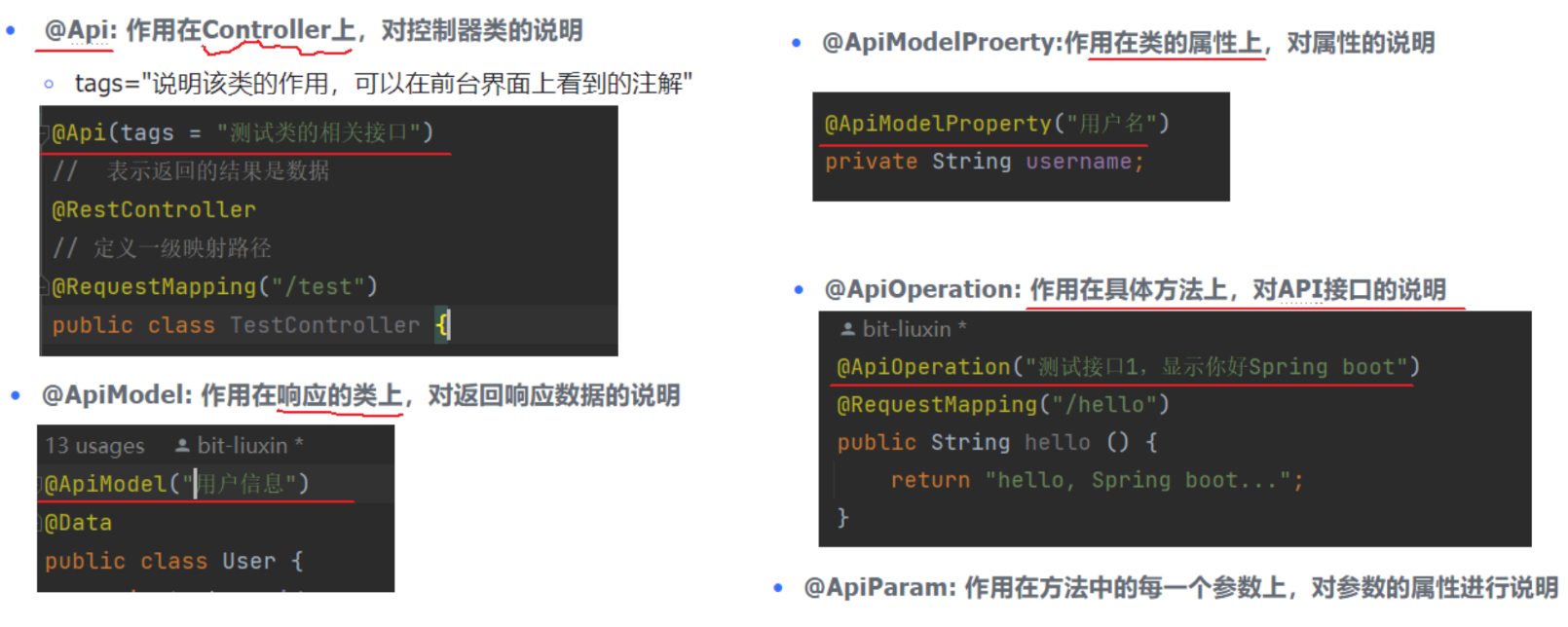

<!-- API文档生成，基于swagger2 -->
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-boot-starter</artifactId>
    <version>${springfox-boot-starter.version}</version>
</dependency>

<!-- SpringBoot健康监控 -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-actuator</artifactId>
</dependency>

<!-- 编码解码加密工具包-->
<dependency>
    <groupId>commons-codec</groupId>
    <artifactId>commons-codec</artifactId>
</dependency>

spring:
  application:
    name: 论坛系统
  # 配置数据源
  datasource:
    url: jdbc:mysql://127.0.0.1:3306/forum_db?characterEncoding=utf8&useSSL=false&allowPublicKeyRetrieval=true
    username: root
    password: jqka
    driver-class-name: com.mysql.cj.jdbc.Driver
server:
  port: 58080  #自定义服务器端口
logging:
  pattern:
    dateformat: MM-dd HH:mm:ss #日期显示格式
  level:
    root: info  #日志默认级别
    com.example.forum: debug  #指定包下的日志级别
  file:
    path: D:/JavaCode/log

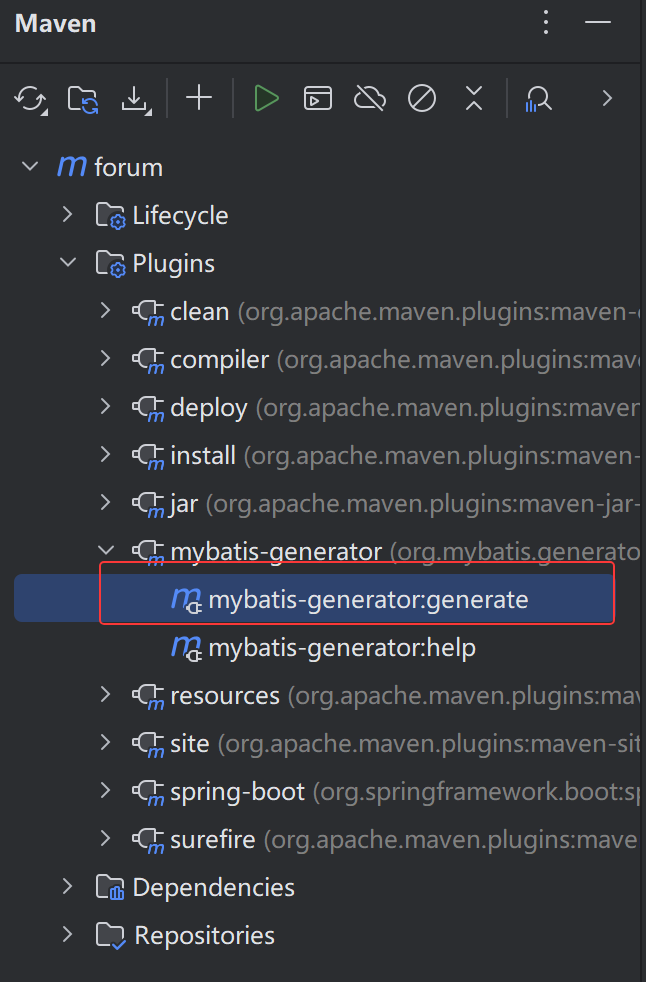

<!-- Mybatis generator-->
<mybatis-generator-plugin-version>1.4.1</mybatis-generator-plugin-version>

<!-- mybatis 生成器插件 -->
<plugin>
    <groupId>org.mybatis.generator</groupId>
    <artifactId>mybatis-generator-maven-plugin</artifactId>
    <version>${mybatis-generator-plugin-version}</version>
    <executions>
        <execution>
            <id>Generate MyBatis Artifacts</id>
            <phase>deploy</phase>
            <goals>
                <goal>generate</goal>
            </goals>
        </execution>
    </executions>
    <!-- 相关配置 -->
    <configuration>
        <!-- 打开日志 -->
        <verbose>true</verbose>
        <!-- 允许覆盖 -->
        <overwrite>true</overwrite>
        <!-- 配置文件路径 -->
        <configurationFile>
            src/main/resources/mybatis/generatorConfig.xml
        </configurationFile>
    </configuration>
</plugin>

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
    <!-- 驱动包路径，location中路径替换成自己本地路径 -->
    <classPathEntry location="D:\JavaCode\project\forum\forum\mysql-connector-java-5.1.49.jar"/>

    <context id="DB2Tables" targetRuntime="MyBatis3">
        <!-- 禁用自动生成的注释 -->
        <commentGenerator>
            <property name="suppressAllComments" value="true"/>
            <property name="suppressDate" value="true"/>
        </commentGenerator>

        <!-- 连接配置 -->
        <jdbcConnection driverClass="com.mysql.jdbc.Driver"
                        connectionURL="jdbc:mysql://127.0.0.1:3306/forum_db?characterEncoding=utf8&amp;useSSL=false"
                        userId="root"
                        password="jqka">
        </jdbcConnection>

        <javaTypeResolver>
            <!-- 小数统一转为BigDecimal -->
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>

        <!-- 实体类生成位置 -->
        <javaModelGenerator targetPackage="com.example.forum.model" targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
            <property name="trimStrings" value="true"/>
        </javaModelGenerator>

        <!-- mapper.xml生成位置 -->
        <sqlMapGenerator targetPackage="mapper" targetProject="src/main/resources">
            <property name="enableSubPackages" value="true"/>
        </sqlMapGenerator>

        <!-- DAO类生成位置 -->
        <javaClientGenerator type="XMLMAPPER" targetPackage="com.example.forum.dao" targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
        </javaClientGenerator>

        <!-- 配置生成表与实例, 只需要修改表名tableName, 与对应类名domainObjectName 即可-->
        <table tableName="t_article" domainObjectName="Article" enableSelectByExample="false"
               enableDeleteByExample="false" enableDeleteByPrimaryKey="false" enableCountByExample="false"
               enableUpdateByExample="false">
            <!-- 类的属性用数据库中的真实字段名做为属性名, 不指定这个属性会自动转换 _ 为驼峰命名规则-->
            <property name="useActualColumnNames" value="true"/>
        </table>
        <table tableName="t_article_reply" domainObjectName="ArticleReply" enableSelectByExample="false"
               enableDeleteByExample="false" enableDeleteByPrimaryKey="false" enableCountByExample="false"
               enableUpdateByExample="false">
            <property name="useActualColumnNames" value="true"/>
        </table>
        <table tableName="t_board" domainObjectName="Board" enableSelectByExample="false" enableDeleteByExample="false"
               enableDeleteByPrimaryKey="false" enableCountByExample="false" enableUpdateByExample="false">
            <property name="useActualColumnNames" value="true"/>
        </table>
        <table tableName="t_message" domainObjectName="Message" enableSelectByExample="false"
               enableDeleteByExample="false" enableDeleteByPrimaryKey="false" enableCountByExample="false"
               enableUpdateByExample="false">
            <property name="useActualColumnNames" value="true"/>
        </table>
        <table tableName="t_user" domainObjectName="User" enableSelectByExample="false" enableDeleteByExample="false"
               enableDeleteByPrimaryKey="false" enableCountByExample="false" enableUpdateByExample="false">
            <property name="useActualColumnNames" value="true"/>
        </table>

    </context>
</generatorConfiguration>

<!-- useGeneratedKeys = true -->
<!-- keyProperty = 主键字段-->
<!-- 当插⼊⼀条数据后，可以通过user.getId()获取到自动生成的Id值，如果方法中需要立即获取
Id值，加⼊这个配置 -->
<insert id="insert" parameterType="com.example.forum.model.User"
useGeneratedKeys="true" keyProperty="id" >

package com.example.forum.config;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Configuration;

/**
 * 配置mybatis的扫描路径
 */
@Configuration
@MapperScan("com.example.forum.dao")
public class MyBatisConfig {
}

# mybatis 相关配置，单独配置，顶格写
mybatis:
  mapper-locations: classpath:mapper/**/*.xml # 指定 xxxMapper.xml的扫描路径

# 查看当前状态，列出未修改后添加的文件
git status
# 添加修改后的文件到暂存区，再次运行git status，上⾯的文件会变为绿色显示
git add .
# 提交到本地仓库
git commit -m '第⼀次提交'
# 推送到远程仓库
git push

package com.example.forum.common;

public enum ResultCode {
    /** 定义状态码 */
    SUCCESS                     (0, "成功"),
    FAILED                      (1000, "操作失败"),
    FAILED_UNAUTHORIZED         (1001, "未授权"),
    FAILED_PARAMS_VALIDATE      (1002, "参数校验失败"),
    FAILED_FORBIDDEN            (1003, "禁⽌访问"),
    FAILED_CREATE               (1004, "新增失败"),
    FAILED_NOT_EXISTS           (1005, "资源不存在"),
    AILED_USER_EXISTS           (1101, "用户已存在"),
    FAILED_USER_NOT_EXISTS      (1102, "用户不存在"),
    FAILED_LOGIN                (1103, "用户名或密码错误"),
    FAILED_USER_BANNED          (1104, "您已被禁言, 请联系管理员, 并重新登录."),
    FAILED_TWO_PWD_NOT_SAME     (1105, "两次输的密码不⼀致"),
    ERROR_SERVICES              (2000, "服务器内部错误"),
    ERROR_IS_NULL               (2001, "IS NULL.");


    //状态码
    int code;
    //描述信息
    String message;

    ResultCode(int code, String message) {
        this.code = code;
        this.message = message;
    }


//使用@Getter也可以
    public int getCode() {
        return code;
    }

    public String getMessage() {
        return message;
    }

    @Override
    public String toString() {
        return "code = " + code + ", message = " + message + ". ";
    }
}

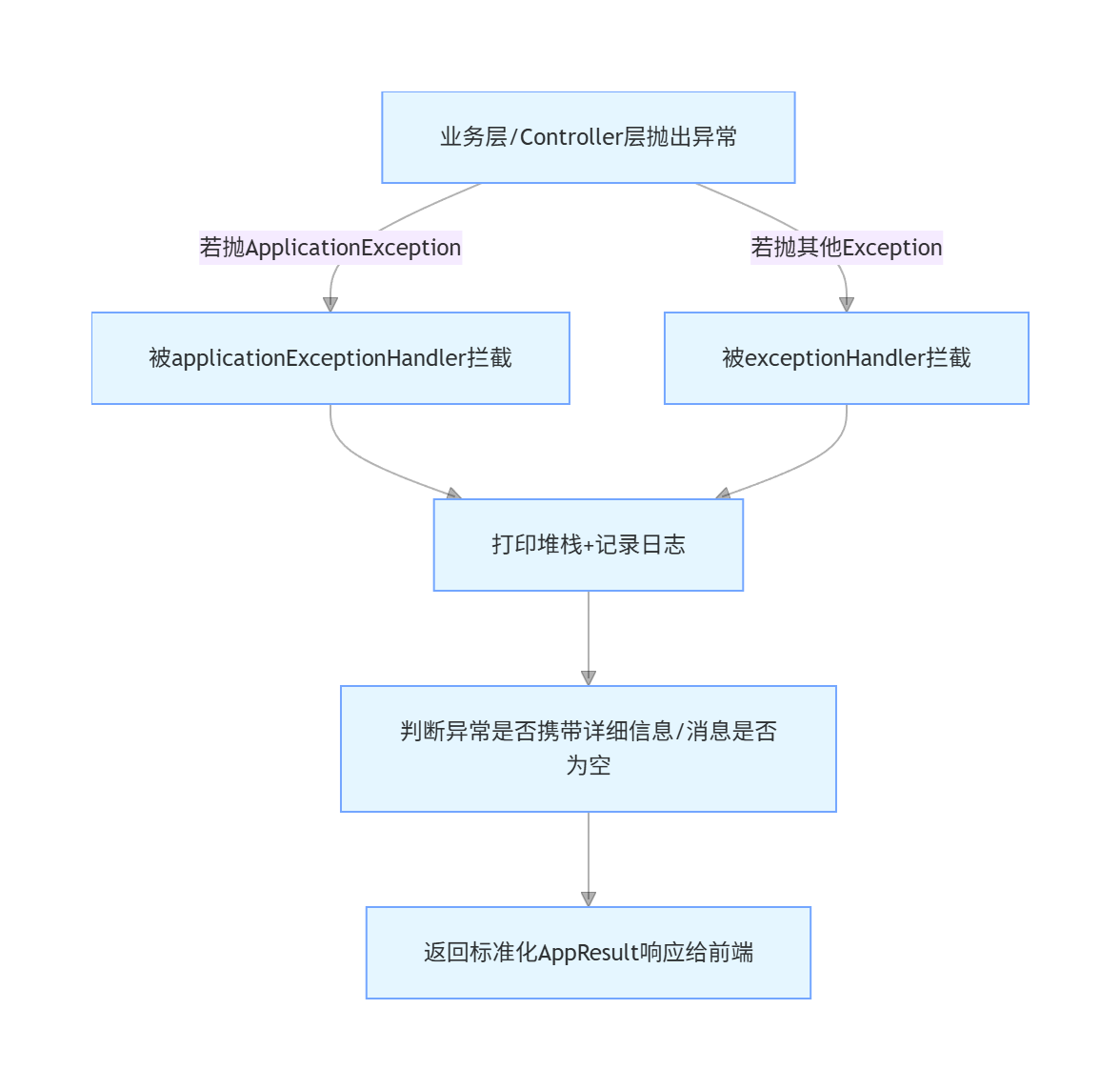

@Slf4j
@ControllerAdvice
public class GlobalExceptionHandler {
    @ExceptionHandler(ApplicationException.class)
    @ResponseBody
    public AppResult applicationExceptionHandler(ApplicationException e) {
        e.printStackTrace();
        log.error(e.getMessage());
        //优先返回异常中携带的标准化错误结果（ErrorResult）
        if (e.getErrorResult() != null) {
            // 返回异常类中记录的状态
            return e.getErrorResult();
        }
        //非空校验
        //若异常无携带结果，校验异常消息是否为空
        if (e.getMessage() == null || "".equals(e.getMessage())) {
            //返回默认服务错误
            return AppResult.failed(ResultCode.ERROR_SERVICES);
        }
        // 返回具体异常信息
        return AppResult.failed(e.getMessage());
    }

    @ExceptionHandler(Exception.class)
    @ResponseBody
    public AppResult exceptionHandler(Exception e) {
        //打印异常信息
        e.printStackTrace();
        //打印日志
        log.error(e.getMessage());
        //非空判断
        if (e.getMessage() == null || "".equals(e.getMessage())) {
            return AppResult.failed(ResultCode.ERROR_SERVICES);
        }
        //返回异常信息
        return AppResult.failed(e.getMessage());
    }
}

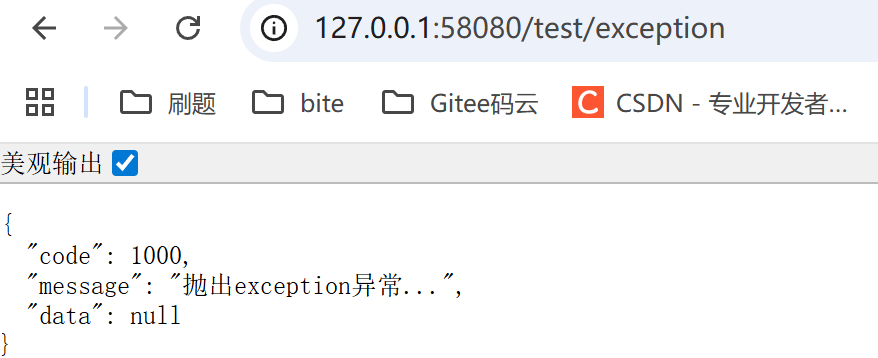

@GetMapping("/exception")
public String exception() throws Exception {
    throw new Exception("抛出exception异常...");
}

@GetMapping("/application")
public String application() {
    throw new ApplicationException("抛出applicationException异常...");
}

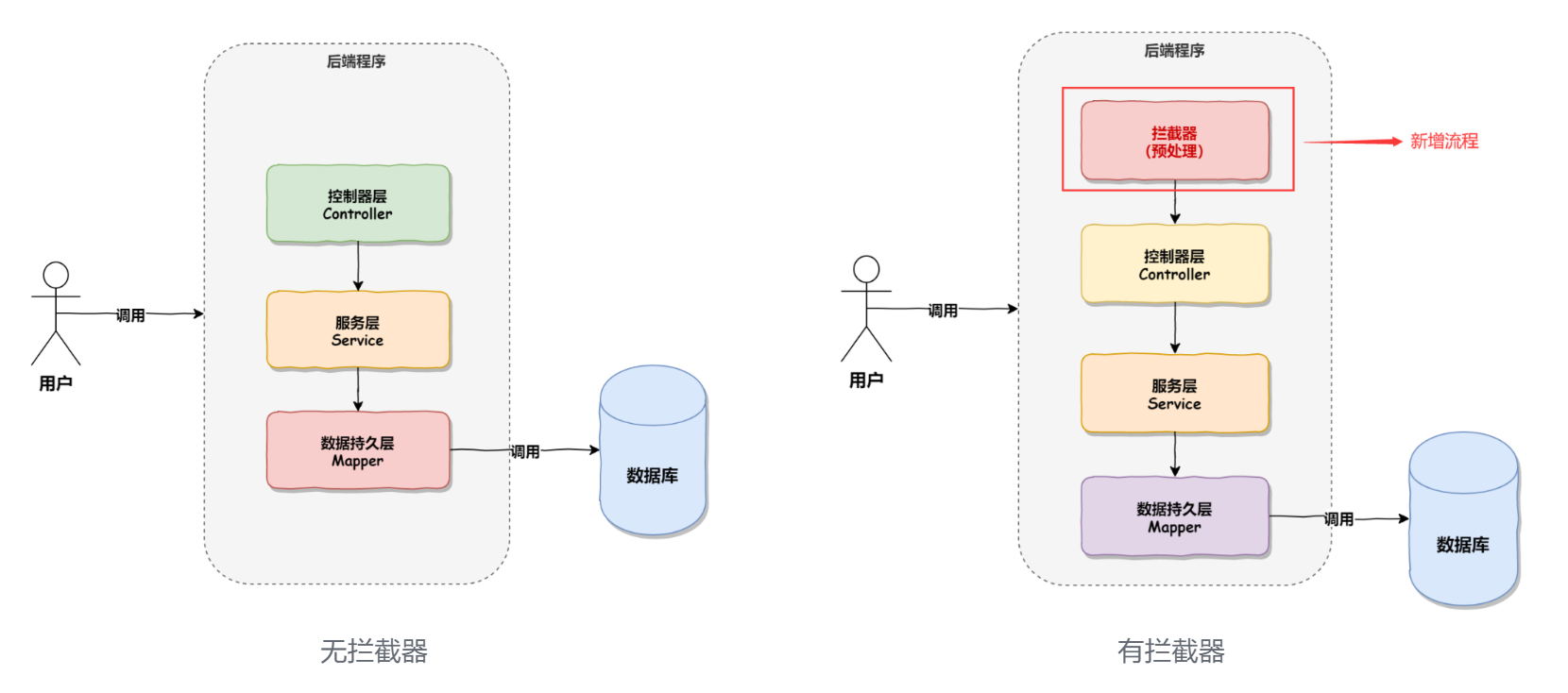

@Configuration
public class AppInterceptorConfigurer implements WebMvcConfigurer {
    //注入自定义的登录拦截器
    @Resource
    private LoginInterceptor loginInterceptor;

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        // 添加登录拦截器
        registry.addInterceptor(loginInterceptor) // 添加⽤⼾登录拦截器
                .addPathPatterns("/**") // 拦截所有请求
                .excludePathPatterns("/sign-in.html") // 排除登录HTML
                .excludePathPatterns("/sign-up.html") // 排除注册HTML
                .excludePathPatterns("/user/login") // 排除登录api接⼝
                .excludePathPatterns("/user/register") // 排除注册api接⼝
                .excludePathPatterns("/user/logout") // 排除退出api接⼝
                .excludePathPatterns("/swagger*/**") // 排除登录swagger下所有
                .excludePathPatterns("/v3*/**") // 排除登录v3下所有，与 swagger相关
                .excludePathPatterns("/dist/**") // 排除所有静态⽂件
                .excludePathPatterns("/image/**")
                .excludePathPatterns("/**.ico")
                .excludePathPatterns("/js/**");

    }
}

@Component
public class LoginInterceptor implements HandlerInterceptor {
    @Value(("${404Lounge.login.url}"))
    private String defaultURL;
    /**
     *
     * 前置处理(对请求的预处理)
     * @return true: 继续流程    false:流程终止
     * @throws Exception
     */
    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        //获取session对象
        HttpSession session = request.getSession();
        //判断session是否有效
        if(session != null && session.getAttribute(AppConfig.USER_SESSION) != null){
            return true;
        }
        //校验URL是否正确
        if(!defaultURL.startsWith("/")) {
            defaultURL = "/" + defaultURL;
        }
        //强制将未登录用户的请求重定向到登录页面
        response.sendRedirect(defaultURL);
        //中断流程
        return false;
    }
}

<springfox-boot-starter.version>3.0.0springfox-boot-starter.version>

<!-- API文档生成，基于swagger2 -->
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-boot-starter</artifactId>
    <version>${springfox-boot-starter.version}</version>
</dependency>
<!-- SpringBoot健康监控 -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-actuator</artifactId>
</dependency>

package com.example.forum.config;

import org.springframework.boot.actuate.autoconfigure.endpoint.web.CorsEndpointProperties;
import org.springframework.boot.actuate.autoconfigure.endpoint.web.WebEndpointProperties;
import org.springframework.boot.actuate.autoconfigure.web.server.ManagementPortType;
import org.springframework.boot.actuate.endpoint.ExposableEndpoint;
import org.springframework.boot.actuate.endpoint.web.*;
import org.springframework.boot.actuate.endpoint.web.annotation.ControllerEndpointsSupplier;
import org.springframework.boot.actuate.endpoint.web.annotation.ServletEndpointsSupplier;
import org.springframework.boot.actuate.endpoint.web.servlet.WebMvcEndpointHandlerMapping;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.env.Environment;
import org.springframework.util.StringUtils;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.oas.annotations.EnableOpenApi;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import java.util.ArrayList;
import java.util.Collection;
import java.util.List;
/**
 * Swagger配置类
 *
 */
// 配置类
@Configuration
// 开启Springfox-Swagger
@EnableOpenApi
public class SwaggerConfig {/**
 * Springfox-Swagger基本配置
 * @return
 */
@Bean
public Docket createApi() {
    Docket docket = new Docket(DocumentationType.OAS_30)
            .apiInfo(apiInfo())
            .select()

            .apis(RequestHandlerSelectors.basePackage("com.example.forum.controller"))
            .paths(PathSelectors.any())
            .build();
    return docket;
}
    // 配置API基本信息
    private ApiInfo apiInfo() {
        ApiInfo apiInfo = new ApiInfoBuilder()
                .title("404客厅API")
                .description("404客厅系统前后端分离API测试")
                .contact(new Contact("404Lounge",
                        "http://62.234.142.221:58080/sign-in.html", "435752097@qq.com"))
                .version("1.0")
                .build();
        return apiInfo;
    }
    /**
     * 解决SpringBoot 6.0以上与Swagger 3.0.0 不兼容的问题
     * 复制即可
     **/
    @Bean
    public WebMvcEndpointHandlerMapping
    webEndpointServletHandlerMapping(WebEndpointsSupplier webEndpointsSupplier,

                                     ServletEndpointsSupplier servletEndpointsSupplier,

                                     ControllerEndpointsSupplier controllerEndpointsSupplier,

                                     EndpointMediaTypes endpointMediaTypes, CorsEndpointProperties corsProperties,

                                     WebEndpointProperties webEndpointProperties, Environment environment) {
        List<ExposableEndpoint<?>> allEndpoints = new ArrayList();
        Collection<ExposableWebEndpoint> webEndpoints =
                webEndpointsSupplier.getEndpoints();
        allEndpoints.addAll(webEndpoints);
        allEndpoints.addAll(servletEndpointsSupplier.getEndpoints());
        allEndpoints.addAll(controllerEndpointsSupplier.getEndpoints());
        String basePath = webEndpointProperties.getBasePath();
        EndpointMapping endpointMapping = new EndpointMapping(basePath);
        boolean shouldRegisterLinksMapping =
                this.shouldRegisterLinksMapping(webEndpointProperties, environment,
                        basePath);
        return new WebMvcEndpointHandlerMapping(endpointMapping, webEndpoints,
                endpointMediaTypes,
                corsProperties.toCorsConfiguration(), new
                EndpointLinksResolver(allEndpoints, basePath),
                shouldRegisterLinksMapping, null);
    }
    private boolean shouldRegisterLinksMapping(WebEndpointProperties
                                                       webEndpointProperties, Environment environment,
                                               String basePath) {
        return webEndpointProperties.getDiscovery().isEnabled() &&
                (StringUtils.hasText(basePath)
                        ||
                        ManagementPortType.get(environment).equals(ManagementPortType.DIFFERENT));
    }
}

mvc:
  pathmatch:
    matching-strategy: ANT_PATH_MATCHER #Springfox-Swagger兼容性配置

@Api(tags = "测试类相关接口")
@RestController
@RequestMapping("/test")
public class TestController {

    @ApiOperation("测试接口1,你好Spring boot")
    @GetMapping("/hello")
    public String hello() {
        return "hello";
    }

    @ApiOperation("测试接口4,按传入的姓名传入你好信息")
    @PostMapping("/helloByName")
    public AppResult helloByName(@ApiParam("姓名") @RequestParam("name") String name) {
        return AppResult.success("hello " + name);
    }

    @ApiOperation("测试接口2,显示抛出异常信息")
    @GetMapping("/exception")
    public String exception() throws Exception {
        throw new Exception("抛出exception异常...");
    }
    @ApiOperation("测试接口3,显示自定义异常信息")
    @GetMapping("/application")
    public String application() {
        throw new ApplicationException("抛出applicationException异常...");
    }
}

<!-- 编码解码加密工具包-->
<dependency>
    <groupId>commons-codec</groupId>
    <artifactId>commons-codec</artifactId>
</dependency>

public class MD5Util {
    //传入原字符串后可以得到一个经过md5加密的密文

    /**
     * 对字符串进行明文加密
     * @param str 明文
     * @return 返回密文
     */
    public static String md5(String str) {
        return DigestUtils.md5Hex(str);
    }

    /**
     * 对用户密码进行加密
     * 原始字符串加密后与扰动字符串组合再进⾏⼀次MD5加密
     * @param str 密码明文
     * @param salt 扰动字符  盐值
     * @return 返回密文
     */
    public static String md5Salt(String str, String salt) {
        return md5(md5(str) + salt);
    }
}

String salt = UUIDUtil.UUID_32();
String ciphertext = MD5Util.md5Salt(password, salt);

package com.example.forum.utils;

import java.util.UUID;

public class UUIDUtil {

    /**
     * 标准的UUID
     * @return
     */
    public static String UUID_36() {
        return UUID.randomUUID().toString();
    }

    /**
     * 生成一个32位的 UUID 去掉 4 个 -
     * @return
     */
    public static String UUID_32() {
        return UUID.randomUUID().toString().replace("-", "");
    }
}

// 请求
POST /user/register HTTP/1.1
Content-Type: application/x-www-form-urlencoded

username=user222&nickname=user222&password=123456&passwordRepeat=123456

// 响应
HTTP/1.1 200
Content-Type: application/json

{"code":0,"message":"成功","data":null}

// 请求
POST /user/login HTTP/1.1
Content-Type: application/x-www-form-urlencoded

username=bitboy&password=123456

// 响应
HTTP/1.1 200
Content-Type: application/json

{"code":0,"message":"成功","data":null}

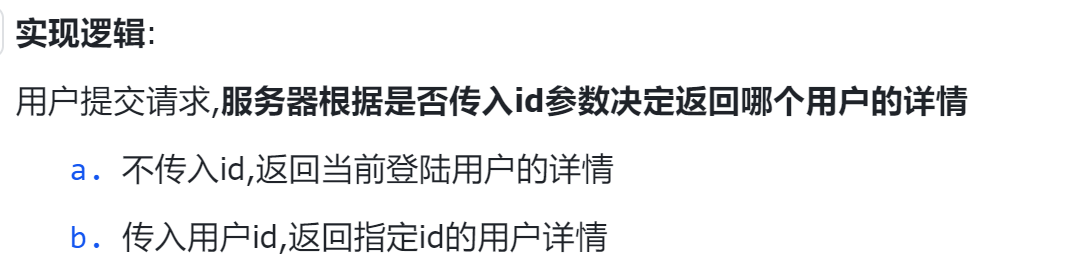

// 请求
GET /user/info HTTP/1.1
GET /user/info?id=1 HTTP/1.1

// 响应
HTTP/1.1 200
Content-type: application/json

//具体的User对象
{
    "code": 0,
    "message": "成功",
    "data": {
    "id": 25,
    "username": "user223",
    "nickname": "user223",
    "phoneNum": null,
    "email": null,
    "gender": 1,
    "avatarUrl": null,
    "articleCount": 0,
    "isAdmin": 0,
    "state": 0,
    "createTime": "2025-09-08 15:06:10",
    "updateTime": "2025-09-08 15:06:10"
    }
}

jackson:
  date-format: yyyy-MM-dd HH:mm:ss # 日期格式
  default-property-inclusion: NON_NULL # 不为null时序列化

// 请求
GET http://127.0.0.1:58080/user/logout HTTP/1.1

// 响应
HTTP/1.1 200
Content-Type: application/json

{"code":0,"message":"成功","data":null}

CodeOnHub:
  login:
    url: sign-in.html # 未登录状况下强制跳转页面

请求 URL：http://127.0.0.1:58080/board/topList
响应状态码：200
Content-Type：application/json
{
  "code": 0,
  "message": "成功",
  "data": [
    {
      "id": 1,
      "name": "Java",
      "articleCount": 5,
      "sort": 1,
      "state": 0,
      "createTime": "2023-01-14 11:02:18",
      "updateTime": "2023-01-14 11:02:18"
    },
    {
      "id": 2,
      "name": "C++",
      "articleCount": 1,
      "sort": 2,
      "state": 0,
      "createTime": "2023-01-14 11:02:41",
      "updateTime": "2023-01-14 11:02:41"
    }
  ]
}

SELECT * FROM t_board WHERE state = 0 AND deleteState = 0 ORDER BY sort ASC LIMIT 0,9

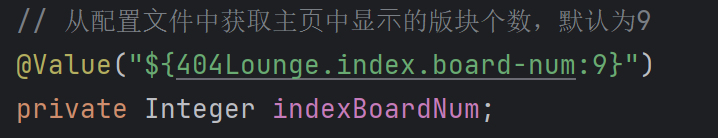

# 项目自定义相关配置
CodeOnHub:
  login:
    url: sign-in.html # 未登录状况下强制跳转页面
  index: # 首页配置节点
    board-num: 9 # 首页中显示的版块个数

List<Board> selectByNum(@Param("num") Integer num);

请求方式：GET
请求 URL：http://127.0.0.1:58080/board/getById
响应状态码：200
Content-Type：application/json

{
  "code": 0,
  "message": "成功",
  "data": {
    "id": 1,
    "name": "Java",
    "articleCount": 5,
    "sort": 1,
    "state": 0,
    "createTime": "2025-01-14 11:02:18",
    "updateTime": "2025-01-14 11:02:18"
  }
}

// 请求

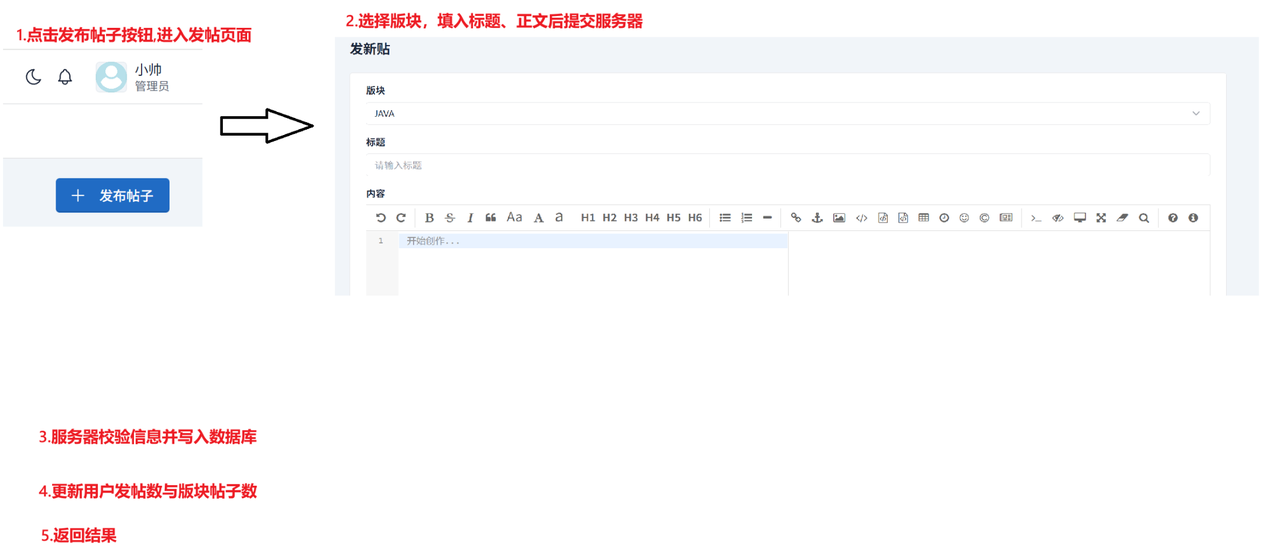

POST http://127.0.0.1:58080/article/create HTTP/1.1
Content-Type: application/x-www-form-urlencoded

boardId=1&title=% E6% B5%8B% E8% AF%95% E6%96% B0% E5% B8%96% E5% AD%90% E6% A0%87% E9% A2%98&content=% E6% B5%8B% E8% AF%95% E6%96% B0% E5% B8%96% E5% AD%90% E5%86%85% E5% AE% B9
// 响应
HTTP/1.1 200

Content-Type: application/json

{"code":0,"message":"成功","data":null}

// 请求

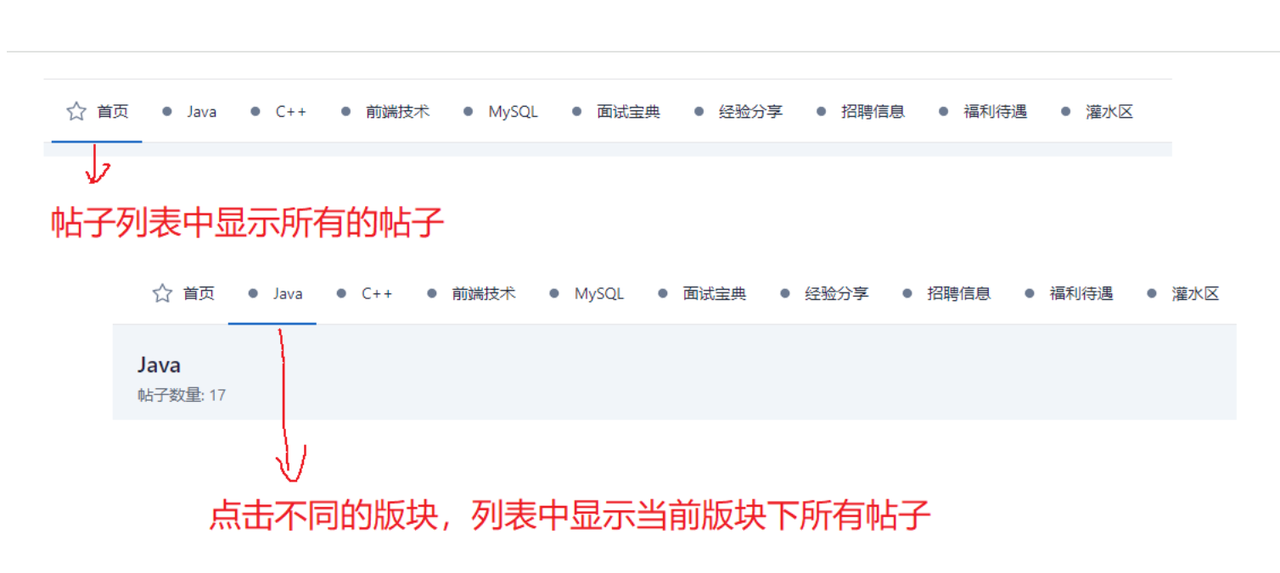

// 返回指定版块下的帖子列表
GET http://127.0.0.1:58080/article/getAllByBoardId?boardId=1 HTTP/1.1

// 返回所有的帖子列表
GET http://127.0.0.1:58080/article/getAllByBoardId HTTP/1.1

// 响应
HTTP/1.1 200
Content-Type: application/json

{
"code": 0,
"message": "成功",
"data": [
    {
        "id": 17,
        "boardId": 1,
        "userId": 1,
        "title": "测试删除",
        "visitCount": 8,
        "replyCount": 1,
        "likeCount": 1,
        "state": 0,
        "createTime": "2025-07-05 04:10:46",
        "updateTime": "2025-07-05 11:22:43",
        "board": {
            "id": 1,
            "name": "Java"
        },
        "user": {
            "id": 1,
            "nickname": "bitboy",
            "phoneNum": null,
            "email": null,
            "gender": 1,
            "avatarUrl": null
    },
    "own": false
}

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

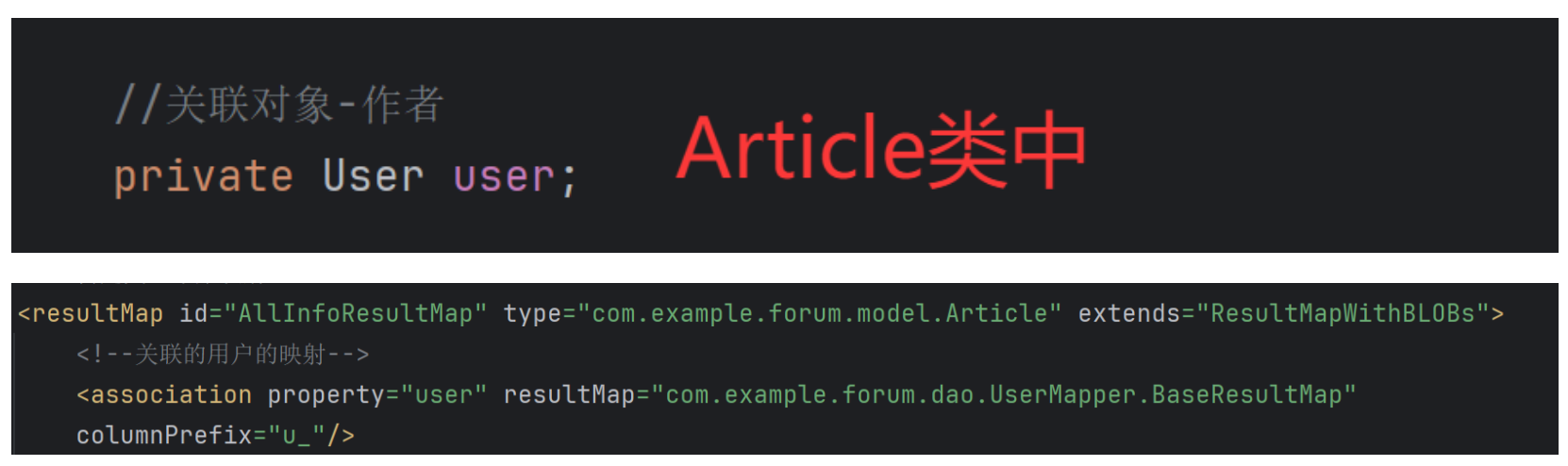

<mapper namespace="com.example.forum.dao.ArticleMapper">
<!--    自定义结果集映射-->

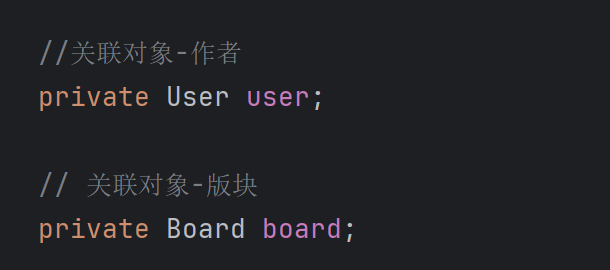

    <resultMap id="AllInfoResultMap" type="com.example.forum.model.Article" extends="ResultMapWithBLOBs">
        <!--关联的用户的映射-->
        <association property="user" resultMap="com.example.forum.dao.UserMapper.BaseResultMap"
        columnPrefix="u_"/>

        <!-- 关联版块的映射 -->
        <association property="board" resultMap="com.example.forum.dao.BoardMapper.BaseResultMap"
                     columnPrefix="b_" />
    </resultMap>

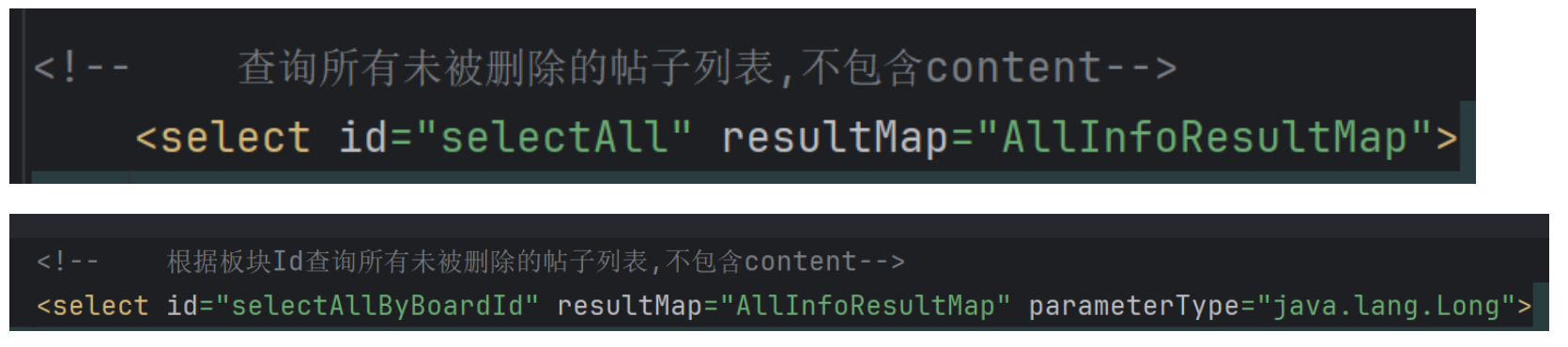

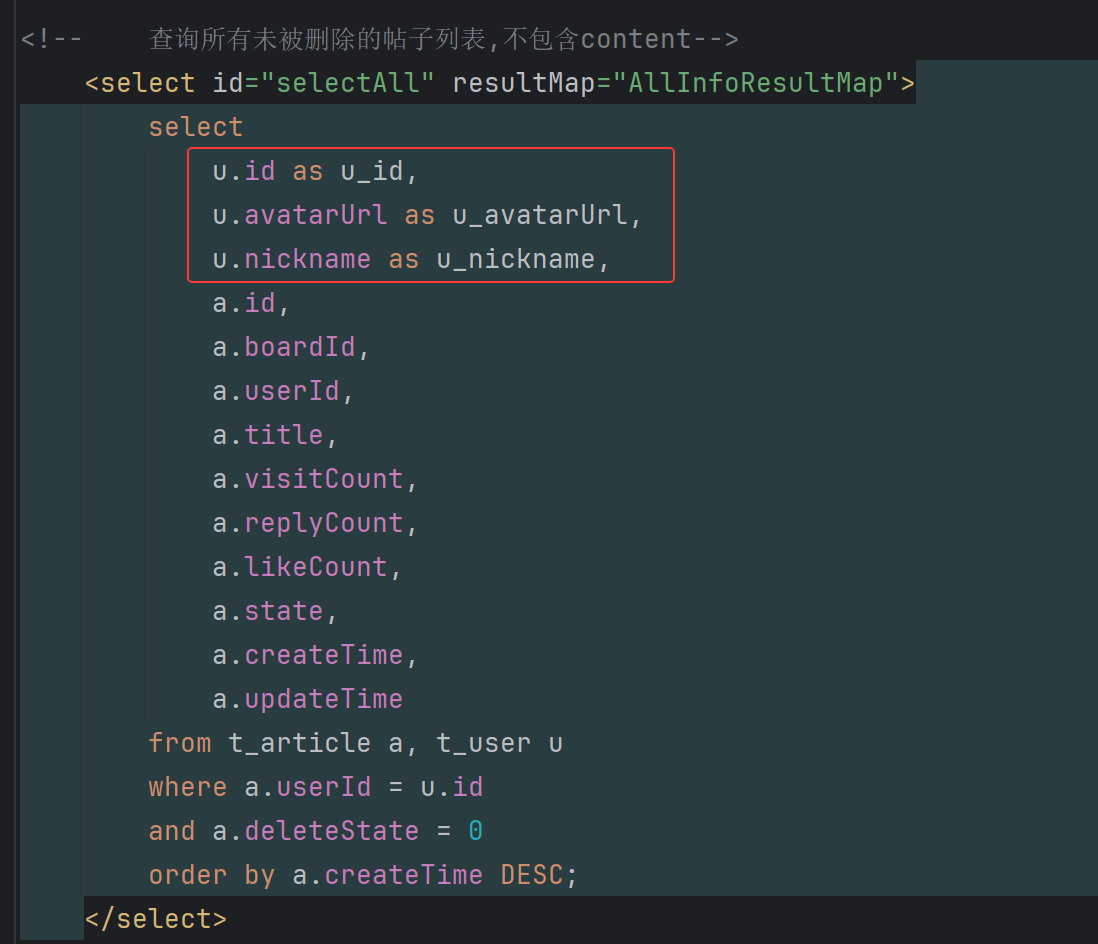

<!--    查询所有未被删除的帖子列表,不包含content-->
    <select id="selectAll" resultMap="AllInfoResultMap">
        select
            u.id as u_id,
            u.avatarUrl as u_avatarUrl,
            u.nickname as u_nickname,
            a.id,
            a.boardId,
            a.userId,
            a.title,
            a.visitCount,
            a.replyCount,
            a.likeCount,
            a.state,
            a.createTime,
            a.updateTime
        from t_article a, t_user u
        where a.userId = u.id
        and a.deleteState = 0
        order by a.createTime DESC;
    </select>

    <!--    根据板块Id查询所有未被删除的帖子列表,不包含content-->
    <select id="selectAllByBoardId" resultMap="AllInfoResultMap" parameterType="java.lang.Long">
        select
            u.id as u_id,
            u.avatarUrl as u_avatarUrl,
            u.nickname as u_nickname,
            a.id,
            a.boardId,
            a.userId,
            a.title,
            a.visitCount,
            a.replyCount,
            a.likeCount,
            a.state,
            a.createTime,
            a.updateTime
        from t_article a, t_user u
        where a.userId = u.id
        and a.deleteState = 0
        and a.boardId = #{boardId,jdbcType=BIGINT}
        order by a.createTime DESC;
    </select>

    <select id="selectDetailById" resultMap="AllInfoResultMap" parameterType="java.lang.Long">
        select
            u.id as u_id,
            u.avatarUrl as u_avatarUrl,
            u.nickname as u_nickname,
            u.gender as u_gender,
            u.isAdmin as u_isAdmin,
            u.state as u_state,
            u.deleteState as u_deleteState,
            b.id as b_id,
            b.name as b_name,
            b.state as b_state,
            b.deleteState as b_deleteState,
            a.id,
            a.boardId,
            a.userId,
            a.title,
            a.content,
            a.visitCount,
            a.replyCount,
            a.likeCount,
            a.state,
            a.createTime,
            a.updateTime
        from
            t_article a, t_user u, t_board b
        where
            a.userId = u.id
          and
            a.boardId = b.id
          and a.deleteState = 0
          and a.id = #{id,jdbcType=BIGINT}
    </select>
</mapper>

<mapper namespace="com.example.forum.dao.ArticleMapper">

<resultMap id="AllInfoResultMap"
type="com.example.forum.model.Article" extends="ResultMapWithBLOBs">

<!--关联的用户的映射-->
<association property="user"
resultMap="com.example.forum.dao.UserMapper.BaseResultMap" columnPrefix="u_"/>

<!-- 关联版块的映射 -->
<association property="board"
resultMap="com.example.forum.dao.BoardMapper.BaseResultMap" columnPrefix="b_"/>

请求方式：GET
请求 URL：http://127.0.0.1:58080/article/getById
{
  "code": 0,
  "message": "成功",
  "data": {
    "id": 1,
    "boardId": 1,
    "userId": 1,
    "title": "单元测试",
    "visitCount": 14,
    "replyCount": 2,
    "likeCount": 3,
    "state": 0,
    "createTime": "2025-07-02 06:46:32",
    "updateTime": "2025-07-05 10:16:43",
    "content": "测试内容",
    "board": {
      "id": 1,
      "name": "Java"
    },
    "user": {
      "id": 1,
      "nickname": "bitboy",
      "phoneNum": null,
      "email": null,
      "gender": 1,
      "avatarUrl": null
    },
    "own": true
  }
}

请求方式：POST
请求 URL：http://127.0.0.1:58080/article/modify
请求头：Content-Type: application/x-www-form-urlencoded
响应状态码：200
Content-Type：application/json
{
  "code": 0,
  "message": "成功",
  "data": null
}

请求方式：POST
请求 URL：http://127.0.0.1:58080/article/thumbsUp
请求头：Content-Type: application/x-www-form-urlencoded
响应状态码：200
Content-Type：application/json

{
  "code": 0,
  "message": "成功",
  "data": null
}

请求方式：POST
请求 URL：http://127.0.0.1:58080/article/delete
响应状态码：200
Content-Type：application/json
{
  "code": 0,
  "message": "成功",
  "data": null
}

请求方式：POST
请求 URL：http://127.0.0.1:58080/reply/create
请求头：Content-Type: application/x-www-form-urlencoded
响应状态码：200
Content-Type：application/json
{
  "code": 0,
  "message": "成功",
  "data": null
}

请求方式：GET
请求 URL：http://127.0.0.1:58080/reply/getReplies
响应状态码：200
Content-Type：application/json
{
  "code": 0,
  "message": "成功",
  "data": [
    {
      "id": 9,
      "articleId": 1,
      "postUserId": 2,
      "content": "回复没试",
      "likeCount": 0,
      "state": 0,
      "createTime": "2023-07-09 06:39:45",
      "updateTime": "2023-07-09 06:39:45",
      "user": {
        "id": 2,
        "nickname": "bitgirl",
        "phoneNum": null,
        "email": null,
        "gender": 2,
        "avatarUrl": null
      }
    }
  ]
}

请求方式：POST
请求 URL：http://127.0.0.1:58080/message/send
请求头：Content-Type: application/x-www-form-urlencoded
{
  "code": 0,
  "message": "成功",
  "data": null
}

请求方式：GET
请求 URL：http://127.0.0.1.41:58080/message/getUnreadCount
响应状态码：200
Content-Type：application/json
{"code":0,"message":"成功","data":1}

请求方式：GET
请求 URL：http://127.0.0.1:58080/message/getAll
响应状态码：200
Content-Type：application/json
{
  "code": 0,
  "message": "成功",
  "data": [
    {
      "id": 11,
      "postUserId": 32,
      "receiveUserId": 3,
      "content": "真的可以发出去吗\n",
      "state": 2,
      "createTime": "2023-06-20 11:21:09",
      "updateTime": "2023-06-25 11:24:38",
      "postUser": {
        "id": 32,
        "nickname": "ljl",
        "phoneNum": null,
        "email": null,
        "gender": 2,
        "avatarUrl": null
      }
    },
    {
      "id": 10,
      // 其余消息数据（因截图未完全展示，此处省略）
    }
  ]
}

请求方式：POST
请求 URL：http://127.0.0.1:58080/message/markRead
请求头：Content-Type: application/x-www-form-urlencoded
响应状态码：200
Content-Type：application/json
{
  "code": 0,
  "message": "成功",
  "data": null
}

请求方式：POST
请求 URL：http://127.0.0.1:58080/message/reply
请求头：Content-Type: application/x-www-form-urlencoded
响应状态码：200
Content-Type：application/json
{
  "code": 0,
  "message": "成功",
  "data": null
}
