深入Spring AI：自定义Advisor

原创

有一只柴犬

发布于 2026-01-12 15:53:25

1610

文章被收录于专栏：人工智能人工智能

1、前言

前面大篇幅介绍了关于Spring AI Advisor机制，并介绍了一些常见的内置的advisor。今天我们来自定义有一个Advisor。

2、快速开始

要自定义一个属于自己的Advisor，其实很自定义一个AOP一样简单。只需遵循以下步骤：

创建一个Advisor类，实现CallAroundAdvisor或StreamAroundAdvisor接口
实现接口的aroundCall()、getName()、getOrder()方法
调用大模型时，将advisor添加进去即可

2.1、定义TimingCustomAdvisor

这里我们实现一个在大模型响应前后，来计算他的耗时时间。在前置增强中统计我们的开始时间，在后置方法中计算耗时。

public class TimingCustomAdvisor implements CallAroundAdvisor {


    @Override
    public AdvisedResponse aroundCall(AdvisedRequest advisedRequest, CallAroundAdvisorChain chain) {
        // 1. 前置增强
        advisedRequest = this.before(advisedRequest);

        // 2. 执行后续的advisor链
        AdvisedResponse response = chain.nextAroundCall(advisedRequest);
        // 3. 后置增强
        this.observeAfter(response);
        return response;
    }


    /**
     * 前置增强，记录一个初始时间，并将时间存放到advisorContext
     *
     * @param advisedRequest
     * @return
     */
    private AdvisedRequest before(AdvisedRequest advisedRequest){
        System.out.println("前置 AdvisorRequest 增强");
        // 存储耗时，上文中我们提到AdvisorContext会共享状态。我们将耗时记录在上下文中，当然也可以自己定义一个变量存储
        advisedRequest.adviseContext().put("start0", System.currentTimeMillis());
        return advisedRequest;
    }

    /**
     * 后置增强，获取初始时间，并计算耗时
     * @param advisedResponse
     */
    private void observeAfter(AdvisedResponse advisedResponse){
        System.out.println("后置 advisedResponse 增强");
        Long start0 = (Long) advisedResponse.adviseContext().get("start0");
        System.out.println("从 AdvisorContext中获取start0:" + start0);
        System.out.println("耗时：" + (System.currentTimeMillis() - start0));
    }


    /**
     * 指定当前advisor名称
     * @return
     */
    @Override
    public String getName() {
        return "TimingCustomAdvisor";
    }


    /**
     * 给定执行顺序
     * @return
     */
    @Override
    public int getOrder() {
        return Integer.MAX_VALUE;
    }
}

2.2、使用advisor

@RestController
@RequestMapping("/api/advisor")
public class TimingCustomAdvisorController {

    @Autowired
    private OpenAiChatModel openAiChatModel;

    @GetMapping("/timing")
    public void timing() {
        ChatClient chatClient = ChatClient.builder(openAiChatModel)
                .build();

        // 将自定义的advisor添加进去
        TimingCustomAdvisor advisor = new TimingCustomAdvisor();
        ChatClient.CallResponseSpec response = chatClient.prompt()
                .advisors(advisor)
                .user("李白对美国加关税怎么看？").call();

        System.out.println(response.content());
    }

}

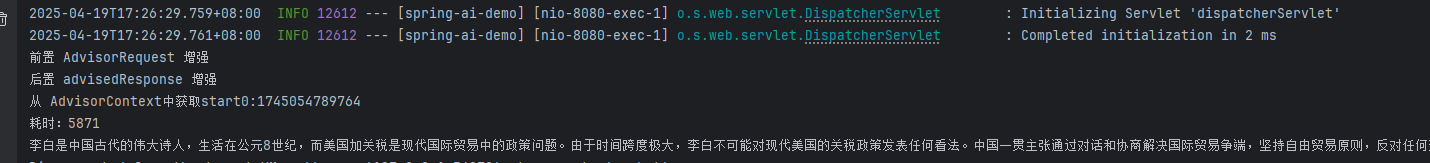

运行结果打印，完全符合我们的预期。

3、验证链式顺序

在TimingCustomAdvisor中，我们指定getOrder()为Integer的最大值，按照官网文档说明，order值越小，会越先执行前置before方法，而相应的会越后执行后置after方法。那么作为一个会打酱油的程序员，肯定不是你说啥就是啥。我们来验证下。

我们再来定义一个Advisor，将getorder的值设置的比TimingCustomAdvisor值小：

public class FormatCustomAdvisor implements CallAroundAdvisor {


    @Override
    public AdvisedResponse aroundCall(AdvisedRequest advisedRequest, CallAroundAdvisorChain chain) {
        // 1. 前置增强
        advisedRequest = this.before(advisedRequest);

        // 2. 执行后续的advisor链
        AdvisedResponse response = chain.nextAroundCall(advisedRequest);
        // 3. 后置增强
        this.observeAfter(response);
        return response;
    }

    private AdvisedRequest before(AdvisedRequest advisedRequest){
        System.out.println("[FormatCustomAdvisor] - 前置 AdvisorRequest 增强");
        return advisedRequest;
    }

    private void observeAfter(AdvisedResponse advisedResponse){
        System.out.println("[FormatCustomAdvisor] - 后置 advisedResponse 增强");
    }

    @Override
    public String getName() {
        return "FormatCustomAdvisor";
    }

    @Override
    public int getOrder() {
        // 这里order值减一
        return Integer.MAX_VALUE - 1;
    }
}

两个Advisor都添加大模型执行中：

@RestController
@RequestMapping("/api/advisor")
public class TimingCustomAdvisorController {

    @Autowired
    private OpenAiChatModel openAiChatModel;

    @GetMapping("/timing")
    public void timing() {
        ChatClient chatClient = ChatClient.builder(openAiChatModel)
                .build();

        // 将自定义的advisor添加进去
        TimingCustomAdvisor timingCustomAdvisor = new TimingCustomAdvisor();
        // 自定义第二个advisor
        FormatCustomAdvisor formatCustomAdvisor = new FormatCustomAdvisor();
        ChatClient.CallResponseSpec response = chatClient.prompt()
                .advisors(timingCustomAdvisor, formatCustomAdvisor)
                .user("李白对美国加关税怎么看？").call();

        System.out.println(response.content());
    }

}

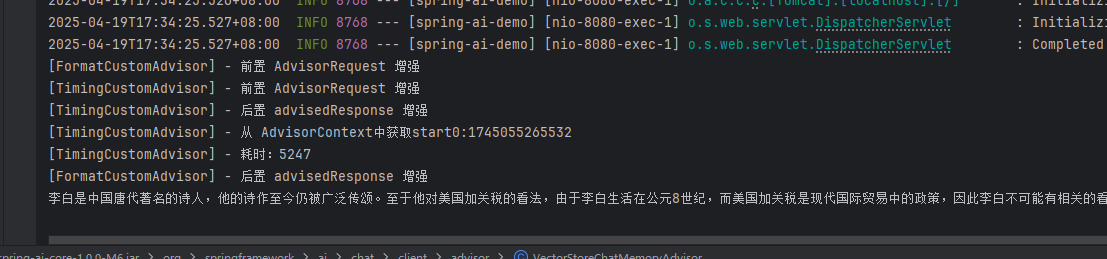

显示打印：

由于FormatCustomAdvisor的getOrder值为Integer.MAX_VALUE - 1，因此FormatCustomAdvisor的执行顺序优于TimingCustomAdvisor。从结论上来看，也符合这样的执行顺序。而后置增强则与前置增强的顺序是相反的。

4、Spring AI中如何维护Advisor链

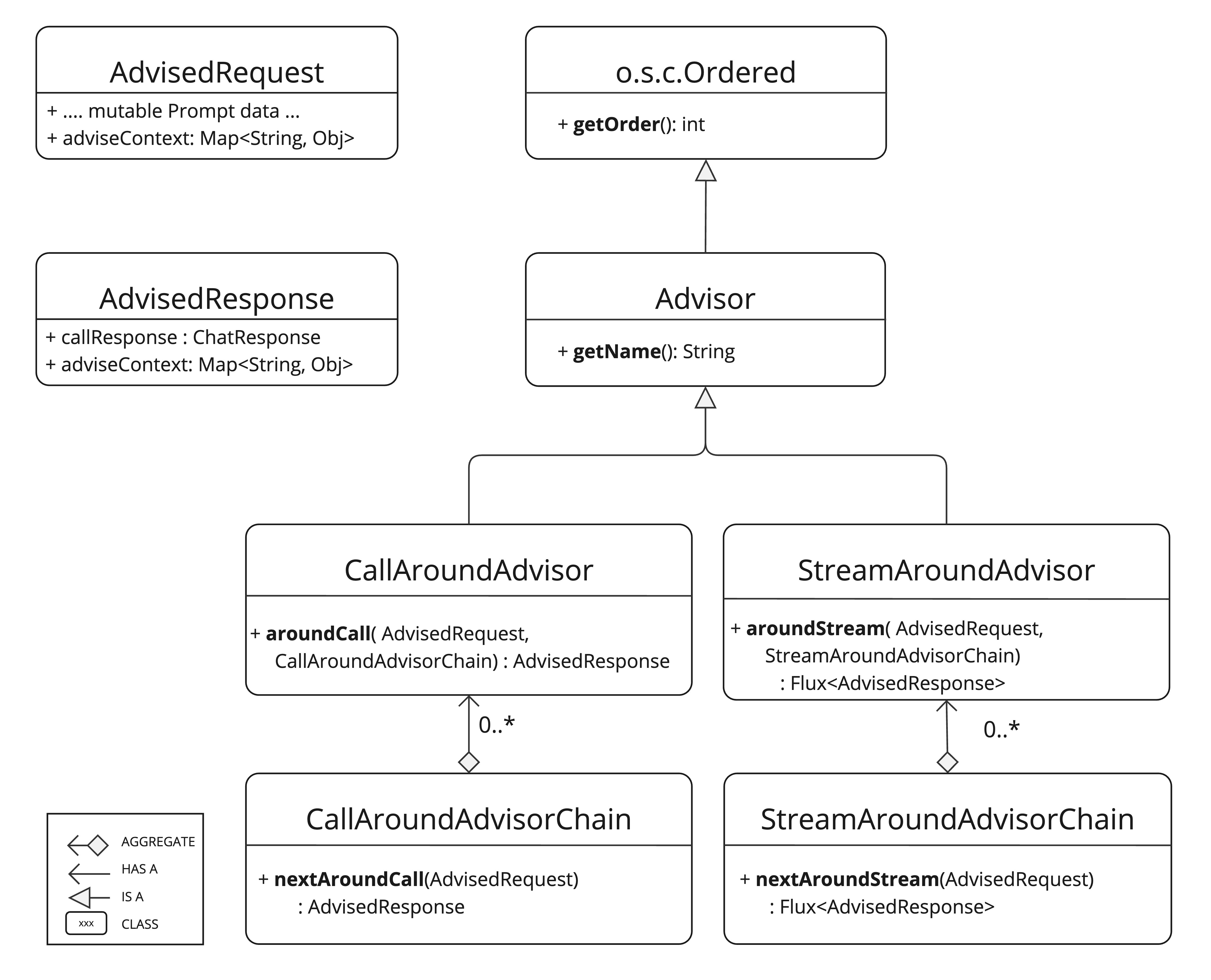

不知道大家还记不记得这个图：

图中所有的类我们在前面的例子中都用过了，但是唯独CallAroundAdvisorChain和StreamAroundAdvisorChain还没介绍到。没错，其实他就是用来维持整个Advisor链的核心。上面我们自定义Advisor的时候，使用到了CallAroundAdvisorChain接口。我们就以这个为例来看下他的实现。

4.1、CallAroundAdvisorChain

CallAroundAdvisorChain接口只有一个方法nextAroundCall，我们直接看他的实现DefaultAroundAdvisorChain。从他的成员变量中，我们可以看到两个很显眼的属性：

private final Deque<CallAroundAdvisor> callAroundAdvisors;

private final Deque<StreamAroundAdvisor> streamAroundAdvisors;

这个Deque是双端队列，而这个就是我们维持advisor链的队列。而在nextAroundCall方法中，会将advisor从队列中取出，然后通过观察者模式接入大模型执行中。核心代码：

@Override
public AdvisedResponse nextAroundCall(AdvisedRequest advisedRequest) {

    if (this.callAroundAdvisors.isEmpty()) {
       throw new IllegalStateException("No AroundAdvisor available to execute");
    }

    var advisor = this.callAroundAdvisors.pop();

    var observationContext = AdvisorObservationContext.builder()
       .advisorName(advisor.getName())
       .advisorType(AdvisorObservationContext.Type.AROUND)
       .advisedRequest(advisedRequest)
       .advisorRequestContext(advisedRequest.adviseContext())
       .order(advisor.getOrder())
       .build();

    return AdvisorObservationDocumentation.AI_ADVISOR
       .observation(null, DEFAULT_OBSERVATION_CONVENTION, () -> observationContext, this.observationRegistry)
       .observe(() -> advisor.aroundCall(advisedRequest, this));
}

同样的，流式处理中也是一样的处理方式：

@Override
public Flux<AdvisedResponse> nextAroundStream(AdvisedRequest advisedRequest) {
    return Flux.deferContextual(contextView -> {
       if (this.streamAroundAdvisors.isEmpty()) {
          return Flux.error(new IllegalStateException("No AroundAdvisor available to execute"));
       }

       var advisor = this.streamAroundAdvisors.pop();

       AdvisorObservationContext observationContext = AdvisorObservationContext.builder()
          .advisorName(advisor.getName())
          .advisorType(AdvisorObservationContext.Type.AROUND)
          .advisedRequest(advisedRequest)
          .advisorRequestContext(advisedRequest.adviseContext())
          .order(advisor.getOrder())
          .build();

       var observation = AdvisorObservationDocumentation.AI_ADVISOR.observation(null,
             DEFAULT_OBSERVATION_CONVENTION, () -> observationContext, this.observationRegistry);

       observation.parentObservation(contextView.getOrDefault(ObservationThreadLocalAccessor.KEY, null)).start();

       // @formatter:off
       return Flux.defer(() -> advisor.aroundStream(advisedRequest, this))
             .doOnError(observation::error)
             .doFinally(s -> observation.stop())
             .contextWrite(ctx -> ctx.put(ObservationThreadLocalAccessor.KEY, observation));
       // @formatter:on
    });
}

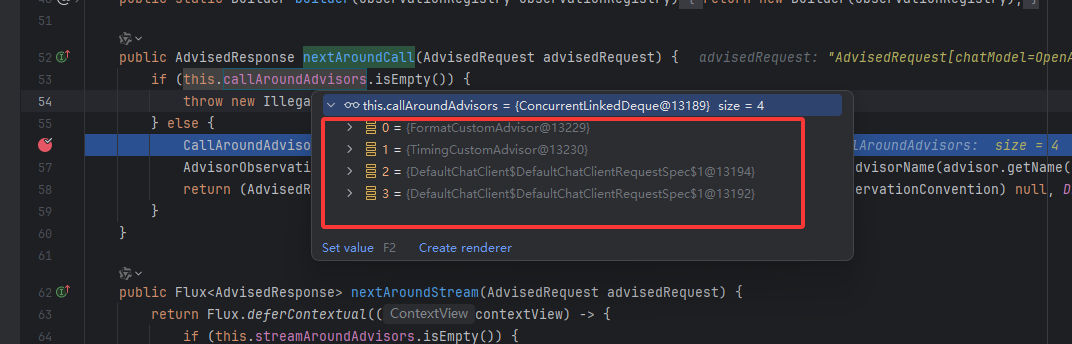

为了验证这个猜想，我们在org.springframework.ai.chat.client.advisor.DefaultAroundAdvisorChain#nextAroundCall方法处，设置个断点。然后运行我们上面的例子看下：

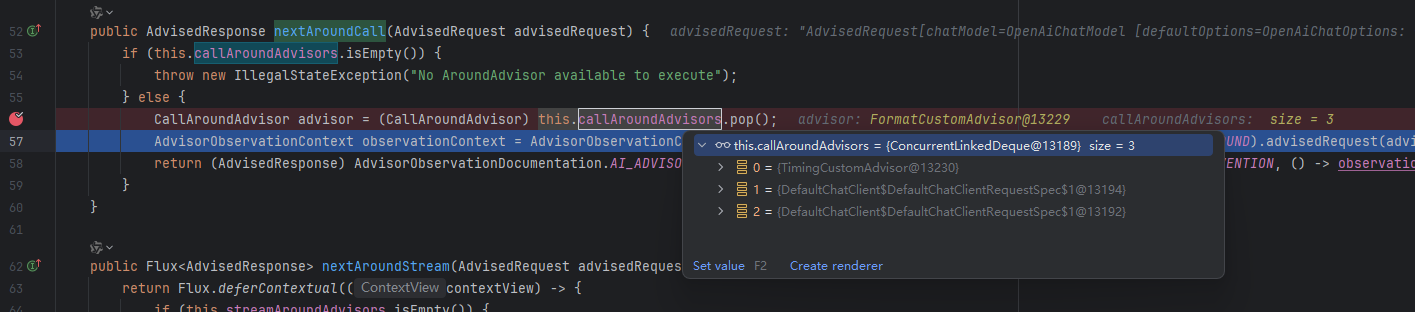

可以看到队列中包含我们自定义的advisor，而当调用CallAroundAdvisor advisor = (CallAroundAdvisor)this.callAroundAdvisors.pop();方法时，会取出队列第一个advisor，也就是FormatCustomAdvisor。取出后，队列中就剩下TimingCustomAdvisor：

4.2、DefaultChatClient

那么，Advisor是如何添加到队列中的？我们看下我们添加advisors的代码：

ChatClient.CallResponseSpec response = chatClient.prompt()
        .advisors(timingCustomAdvisor, formatCustomAdvisor)
        .user("李白对美国加关税怎么看？").call();

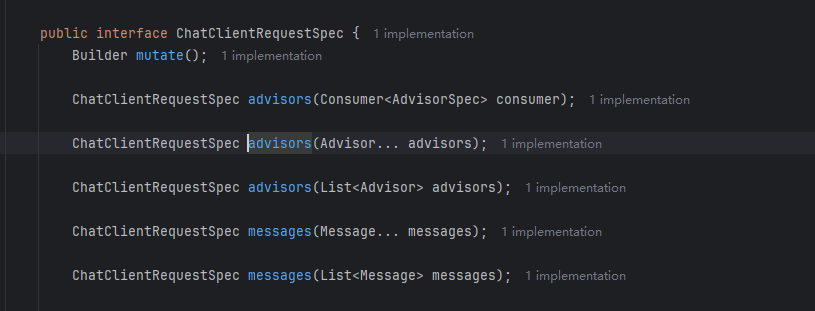

点进去advisors方法查看：

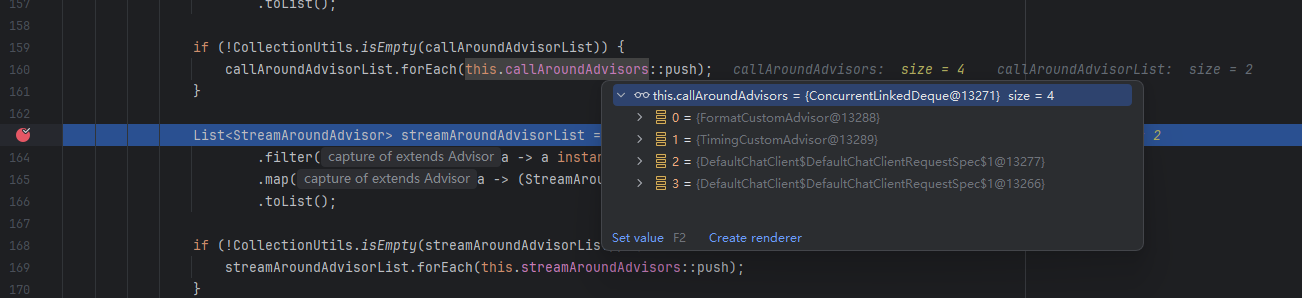

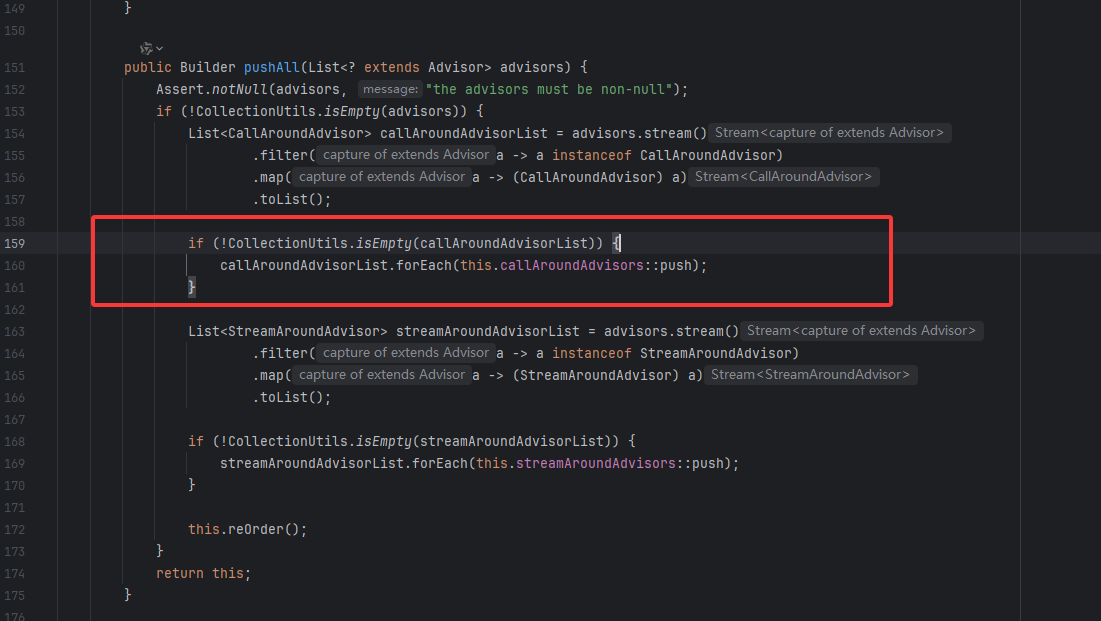

他是一个接口方法，那么找一下他的默认实现，就会跳到org.springframework.ai.chat.client.DefaultChatClient.DefaultChatClientRequestSpec#advisors(org.springframework.ai.chat.client.advisor.api.Advisor...)方法。可以看到：
