空转python版【1】：visium分析(scanpy+squidpy)---矩阵只有10X标准3个文件怎么办？

conda create -n squidpy python=3.10 -y
conda activate squidpy
pip install squidpy -i https://pypi.tuna.tsinghua.edu.cn/simple

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import anndata as ad
import scanpy as sc
import squidpy as sq

adata_test = sq.read.visium(path='./visium_data/',#表达矩阵及spitial文件所在目录
                            counts_file='filtered_feature_bc_matrix.h5',#表达矩阵，可以是filter或者raw
                            library_id='A1_brain',#设定的用于设别sample的id，在多样本整合的时候区分sample
                            load_images=True)#是否加载图片，False则只加载坐标，不加载image
adata_test

AnnData object with n_obs × n_vars = 10878 × 18085
    obs: 'in_tissue', 'array_row', 'array_col'
    var: 'gene_ids', 'feature_types', 'genome'
    uns: 'spatial'
    obsm: 'spatial'

#读入结果结构解析
anndata.AnnData.obsm ['spatial'] - spatial spot coordinates.
anndata.AnnData.uns ['spatial']['{library_id}']['images'] - hires and lowres images.
anndata.AnnData.uns ['spatial']['{library_id}']['scalefactors'] - scale factors for the spots.
anndata.AnnData.uns ['spatial']['{library_id}']['metadata'] - various metadata.

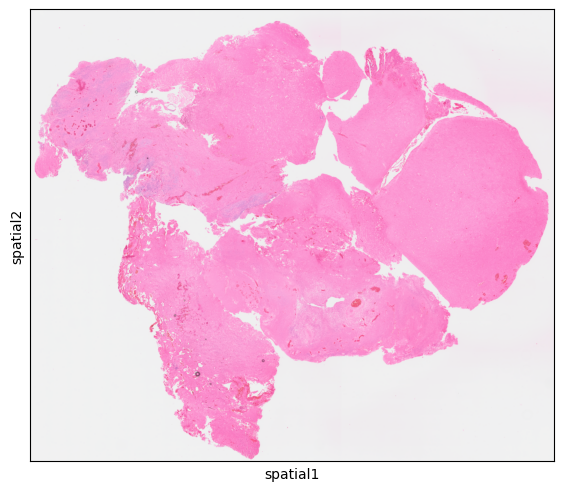

sq.pl.spatial_scatter(adata_test)

#先读入表达矩阵
adata = sc.read_10x_mtx(
    path="./CTR4_processed_data/filtered_feature_bc_matrix/",
    var_names="gene_symbols",
    make_unique=True)
adata.var_names_make_unique()
adata

#读入tissue_positions文件并过滤在组织上的spots
pos = pd.read_csv('./CTR4_processed_data/spatial/tissue_positions.csv')
pos = pos.set_index("barcode")
pos = pos.loc[pos.index.isin(adata.obs_names)]

#添加坐标
adata.obs = adata.obs.merge(pos, left_index=True, right_index=True, how="left")
pxr, pxc = "pxl_row_in_fullres", "pxl_col_in_fullres"
adata.obsm["spatial"] = adata.obs[[pxc, pxr]].to_numpy()

#添加image
import json
import os
from PIL import Image
with open(os.path.join('./CTR4_processed_data/spatial/scalefactors_json.json'), "r") as fh:
    scales = json.load(fh)
img_hires = np.array(Image.open(os.path.join('./CTR4_processed_data/spatial/tissue_hires_image.png')))
img_low   = np.array(Image.open(os.path.join('./CTR4_processed_data/spatial/tissue_lowres_image.png')))
#加入adata
lib_id = 'CTR4'
adata.uns["spatial"] = {
    lib_id: {"images": {"hires": img_hires, "lowres": img_low}, "scalefactors": scales, "metadata": {}}
}

adata

AnnData object with n_obs × n_vars = 2018 × 36601
    obs: 'in_tissue', 'array_row', 'array_col', 'pxl_row_in_fullres', 'pxl_col_in_fullres'
    var: 'gene_ids', 'feature_types'
    uns: 'spatial'
    obsm: 'spatial'

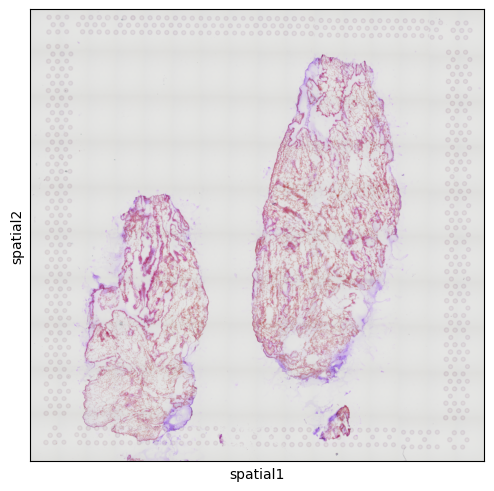

sq.pl.spatial_scatter(adata)

adata1 = ks_read_visium_mtx(count_dir='./CTR4_processed_data/filtered_feature_bc_matrix/',
                           spatial_dir='./CTR4_processed_data/spatial/',
                           lib_id='CTR4')
adata1

AnnData object with n_obs × n_vars = 2018 × 36601
    obs: 'in_tissue', 'array_row', 'array_col', 'pxl_row_in_fullres', 'pxl_col_in_fullres'
    var: 'gene_ids', 'feature_types'
    uns: 'spatial'
    obsm: 'spatial'

#读取数据没有问题
sq.pl.spatial_scatter(adata1)

#计算线粒体基因
adata.var["mt"] = adata.var_names.str.startswith("MT-")
sc.pp.calculate_qc_metrics(adata, qc_vars=["mt"], inplace=True)

#直方图可视化质控前数据情况
import seaborn as sns
fig, axs = plt.subplots(1, 4, figsize=(15, 4))
sns.histplot(adata.obs["total_counts"], kde=False, ax=axs[0])
sns.histplot(
    adata.obs["total_counts"][adata.obs["total_counts"] > 500],
    kde=False,
    bins=40,
    ax=axs[1],
)
sns.histplot(adata.obs["n_genes_by_counts"], kde=False, bins=60, ax=axs[2])
sns.histplot(
    adata.obs["n_genes_by_counts"][adata.obs["n_genes_by_counts"] < 6000],
    kde=False,
    bins=60,
    ax=axs[3],
)

#QC，过滤基因及spots
#质控指标这里是我们自定设定，实际需要按照自己的数据进行设置调整，非统一标准
sc.pp.filter_cells(adata, min_counts=500)
adata = adata[adata.obs["pct_counts_mt"] < 20].copy()
sc.pp.filter_genes(adata, min_cells=10)

#对比seurat读取的情况，这个结果与seurat运行结果一致

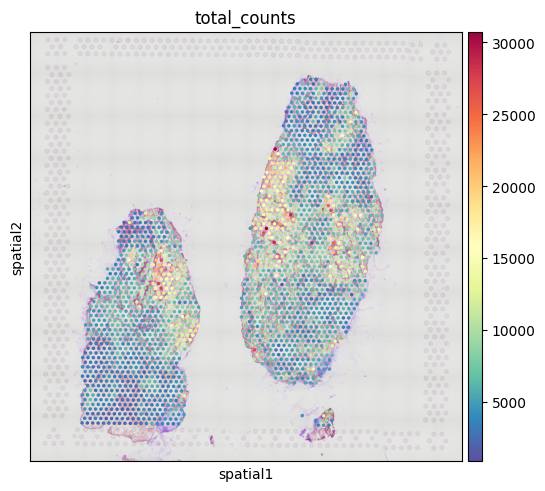

sq.pl.spatial_scatter(
    adata,
    color="total_counts",
    cmap='Spectral_r',
    size=1,
)

sc.pp.normalize_total(adata, target_sum=1e4)
sc.pp.log1p(adata)
sc.pp.highly_variable_genes(adata, n_top_genes=3000, flavor="seurat")

# Run PCA
sc.pp.pca(adata, n_comps=50)
# Calculate neighbors
sc.pp.neighbors(adata, n_neighbors=15, n_pcs=30)
# Leiden clustering
sc.tl.leiden(adata, resolution=0.8, key_added="clusters")
# Computing UMAP
sc.tl.umap(adata)

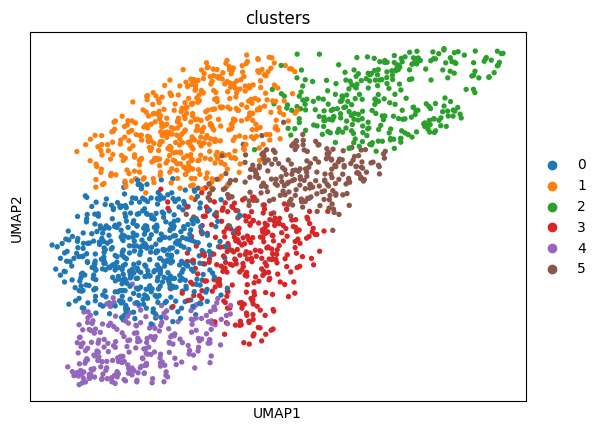

sc.pl.umap(adata, color=["clusters"], wspace=0.4)

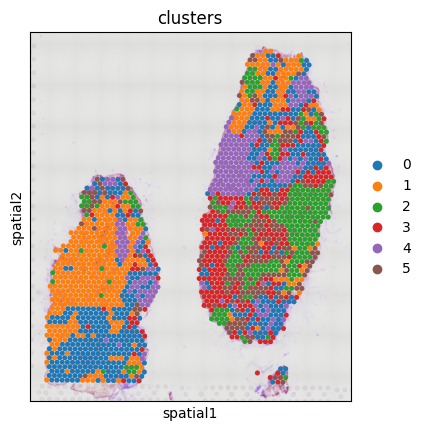

sc.pl.spatial(adata, img_key="lowres", color="clusters", size=1.5)

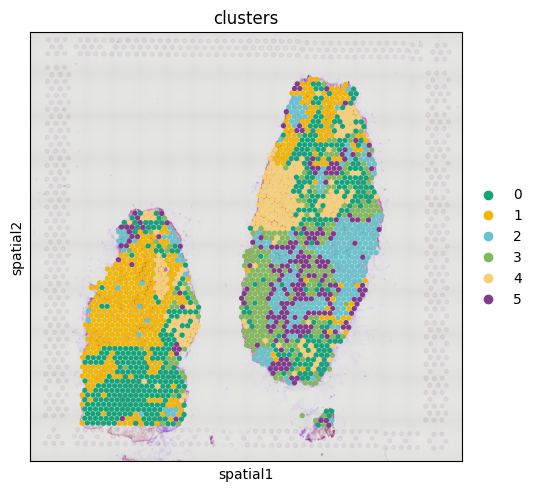

#可视化clsuter
from matplotlib.colors import ListedColormap
sq.pl.spatial_scatter(adata,color="clusters",size=1.5,
                      palette=ListedColormap(["#11A579", "#F2B701", "#66C5CC", "#80BA5A", "#F6CF71", "#7F3C8D"]))

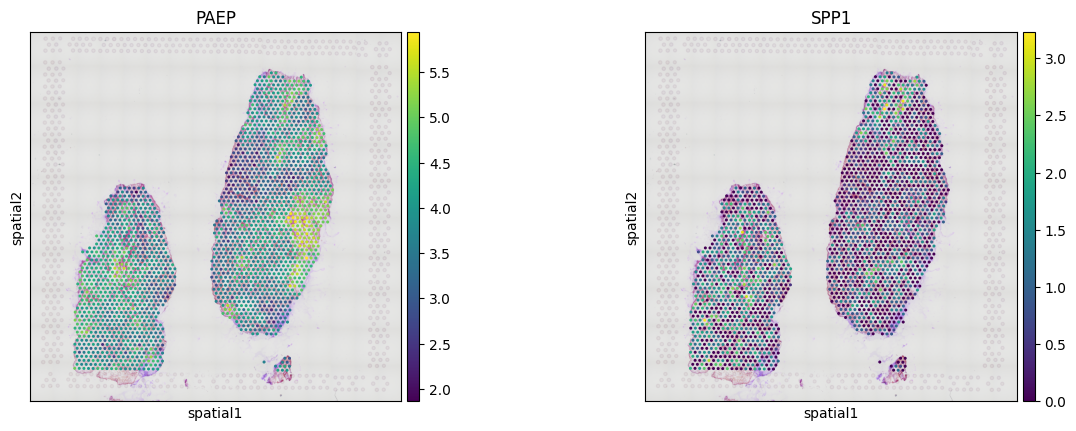

#可视化gene expression
sq.pl.spatial_scatter(adata, color=["PAEP", "SPP1"])

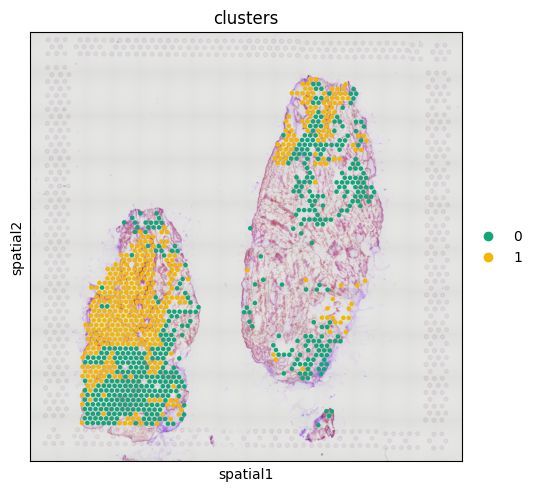

#选择性展示部分clusters
sq.pl.spatial_scatter(
    adata,
    color="clusters",
    groups=["0", "1"],
    size=1.3,
)

sc.tl.rank_genes_groups(adata, groupby = "clusters", method="wilcoxon")

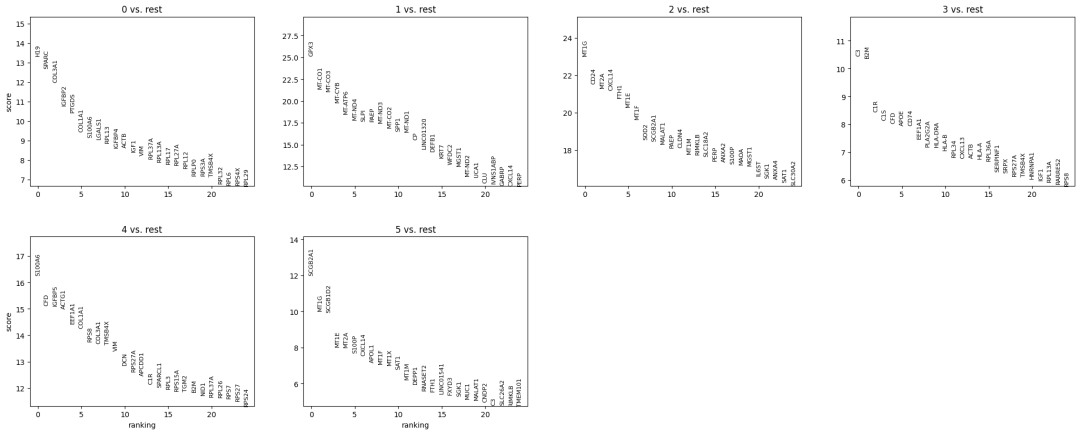

sc.pl.rank_genes_groups(adata, n_genes=25, sharey=False)

# 将结果转换为 DataFrame.
marker_genes_df = sc.get.rank_genes_groups_df(adata, group=None, key='rank_genes_groups')
print(marker_genes_df.head())

#筛选显著性的结果
significant_markers = marker_genes_df[(marker_genes_df['pvals_adj'] < 0.05) & (marker_genes_df['logfoldchanges'] > 1)]
significant_markers

#保存结果
adata.write_h5ad('./adata_spatial_endometrium.h5ad')
