Multi-Agent全面爆发！一文详解多智能体核心架构及LangGraph框架

pip install -U langgraph

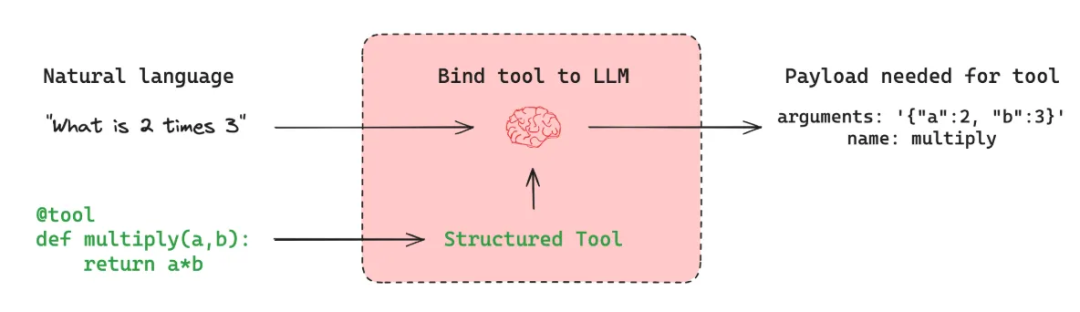

def get_weather(city: str) -> str:
    """获取指定城市的天气信息。
    Args:
        city: 城市名称
    Returns:
        返回该城市的天气描述
    """
    return f"今天{city}是晴天"
# 创建模型
model = ChatOpenAI(
    model_name=model_name,
    base_url=base_url,
    api_key=api_key
)

# 使用LangGraph提供的API创建Agent
agent = create_react_agent(
    model=model,          # 添加模型
    tools=[get_weather],  # 添加工具
    prompt="你是一个天气助手"
)
human_message = HumanMessage(content="今天深圳天气怎么样？")
response = agent.invoke(
    {"messages": [human_message]}
)

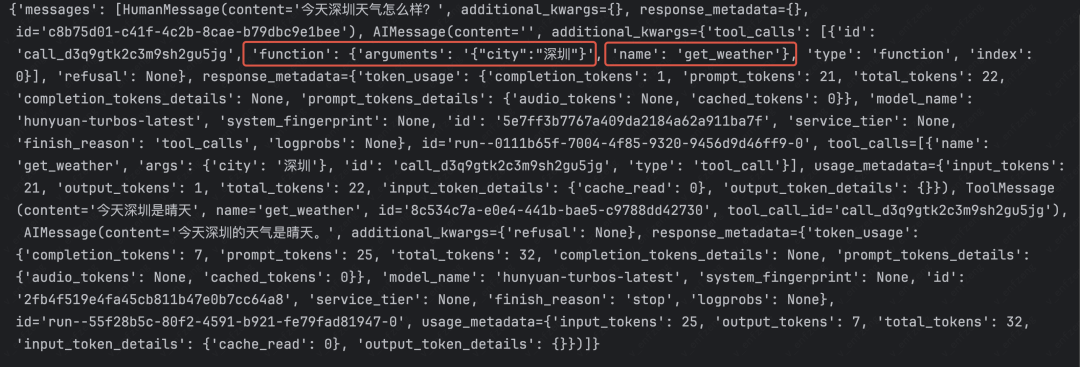

print(response)

response = agent.invoke(
    {"messages": [{"role": "user", "content": "预定一个深圳到北京的机票"}]},
    {"recursion_limit": 10}   # 指定最大迭代次数
)

# 定义状态
class GraphState(TypedDict):
    process_data: dict # 默认更新策略为替换（后续会讲更新策略）
# 创建一个状态图，并指定状态
graph = StateGraph(GraphState)

# 定义一个节点，入参为state
def input_node(state: GraphState) -> GraphState:
    print(state)
    return {"process_data": {"input": "input_value"}}
# 定义带参数的node节点
def process_node(state: dict, param1: int, param2: str) -> dict:
    print(state, param1, param2)
    return {"process_data": {"process": "process_value"}}
graph = StateGraph(GraphState)
# 添加inpu节点
graph.add_node("input", input_node)
# 给process_node节点绑定参数
process_with_params = partial(process_node, param1=100, param2="test")
# 添加带参数的node节点
graph.add_node("process", process_with_params)

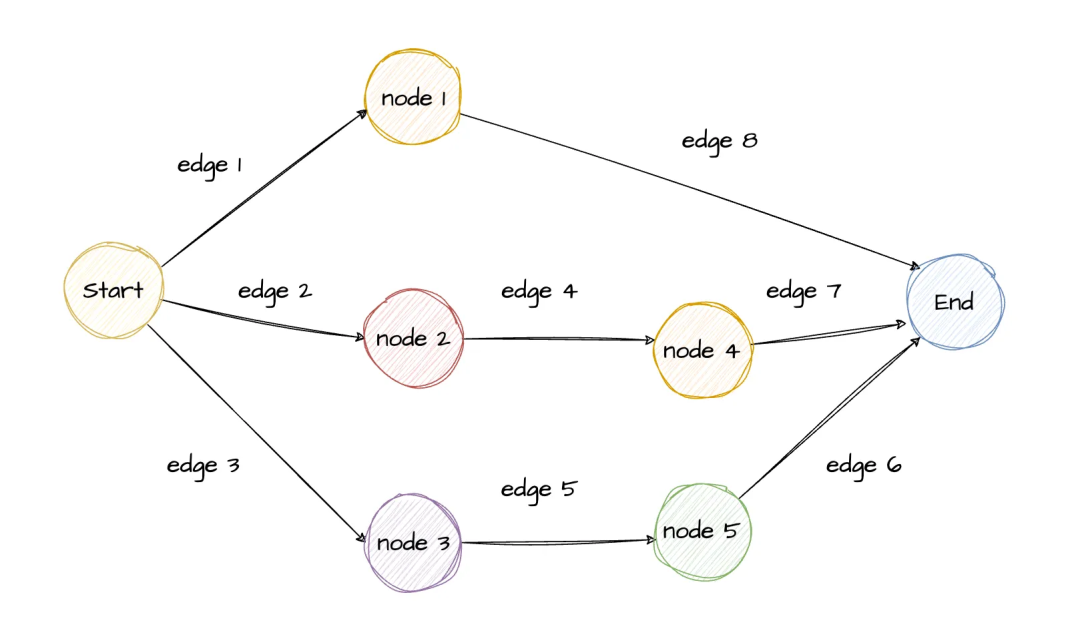

from langgraph.graph import START

# 第一个执行的节点是 node_start
graph.add_edge(START, "node_start")

from langgraph.graph import END

# node_end 节点执行后，没有后续节点了
graph.add_edge("node_a", END)

# 重试策略
retry_policy = RetryPolicy(
    max_attempts=3,                       # 最大重试次数
    initial_interval=1,                   # 初始间隔
    jitter=True,                          # 抖动（添加随机性避免重试风暴）
    backoff_factor=2,                     # 退避乘数（每次重试间隔时间的增长倍数）
    retry_on=[RequestException, Timeout]  # 只重试这些异常
)
graph.add_node("process", process_node, retry=retry_policy)

class State(TypedDict):
    x: int
    result: int

builder = StateGraph(State)
def expensive_node(state: State) -> dict[str, int]:
    # 模拟耗时
    time.sleep(2)
    return {"result": state["x"] * 2}
#添加节点，并指定缓存策略
builder.add_node("expensive_node", expensive_node, cache_policy=CachePolicy(ttl=3))
builder.set_entry_point("expensive_node")
builder.set_finish_point("expensive_node")
graph = builder.compile(cache=InMemoryCache())

# 添加固定边，执行顺序：start -> input -> process -> output -> end
graph.add_edge(START, "input")
graph.add_edge("input", "process")
graph.add_edge("process", "output")
graph.add_edge("output", END)
# 编译图，保证生成的图是正确的，如果添加了边，没添加节点，会报错

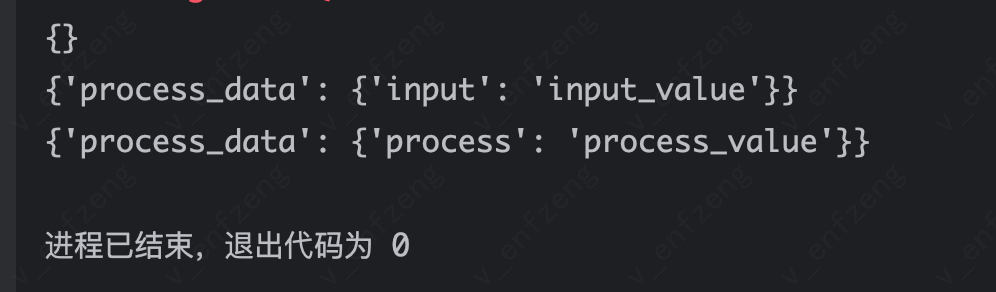

app = graph.compile()
app.invoke({})

# 定义状态
class GraphState(TypedDict):
    process_data: dict
def input_node(state: GraphState) -> GraphState:
    print(state)
    return {"process_data": {"input": "input_value"}}
def output_node(state: GraphState) -> GraphState:
    print(state)
    return {"process_data": {"output": "output_value"}}
def process_node(state: dict) -> dict:
    print(state)
    return {"process_data": {"process": "process_value"}}
# 创建一个状态图，并指定状态
graph = StateGraph(GraphState)
# 添加input、process、output节点
graph.add_node("input", input_node)
graph.add_node("process", process_node)
graph.add_node("output", output_node)
# 添加固定边，执行顺序：start -> input -> process -> output -> end
graph.add_edge(START, "input")
graph.add_edge("input", "process")
graph.add_edge("process", "output")
graph.add_edge("output", END)
# 编译图，保证生成的图是正确的，如果添加了边，没添加节点，会报错
app = graph.compile()# 执行
app.invoke({})

class OverrideState(TypedDict):
    process_data : dict  # 未指定合并策略，默认覆盖，上一个节点的返回是下一个节点的值

class AddState(TypedDict):
    data_int: Annotated[int, add]   # 数字相加
    data_list: Annotated[list, add] # 合并两个列表
    data_str: Annotated[str, add]   # 字符串拼接
def add_node1(state: AddState) -> AddState:
    print(state)
    return {"data_int": 1, "data_list": [1], "data_str": "hello "}
def add_node2(state: AddState) -> AddState:
    print(state)
    return {"data_int": 2, "data_list": [2], "data_str": "world"}

class MessageState(TypedDict):
    # 消息列表,使用add_messages合并消息列表
    messages: Annotated[list, add_messages]

def system_node(state: MessageState) -> dict:
    return {"messages": [SystemMessage(content="你是一个精通LangGraph的专家工程师.")]}

def user_input_node(state: MessageState) -> dict:
    return {"messages": [HumanMessage(content="什么是LangGraph?")]}

def ai_response_node(state: MessageState) -> dict:
    return {"messages": [AIMessage(content="LangGraph是一个...")]}

def tool_node(state: MessageState) -> dict:
    return {"messages": [ToolMessage(content="工具调用参数params1", tool_call_id="tool_call_id")]}

def merge_dict_reducer(source: dict, new: dict) -> dict:
    # 自定义合并逻辑
    result = source.copy()
    result.update(new)
    return result

def max_reducer(source: int, new: int) -> int:
    # 自定义合并逻辑
    return max(source, new)

class CustomReducerState(TypedDict):
    # 使用自定义Reducer的状态
    max_score: Annotated[int, max_reducer]  # 保留最大值
    metadata: Annotated[dict, merge_dict_reducer]  # 字典合并

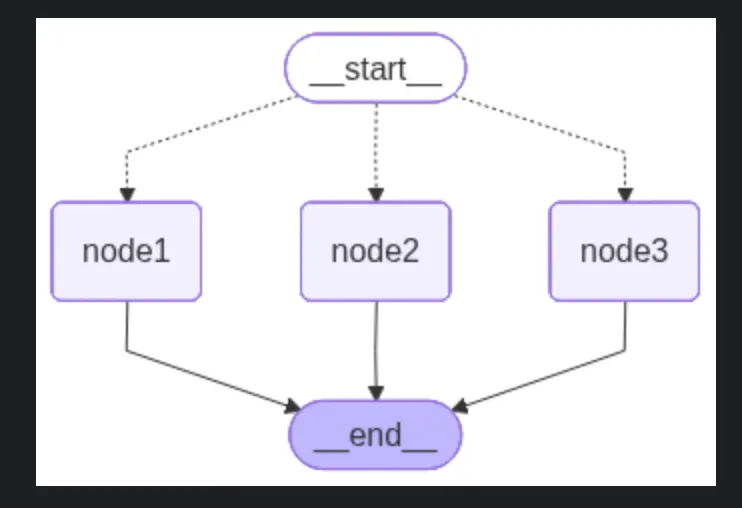

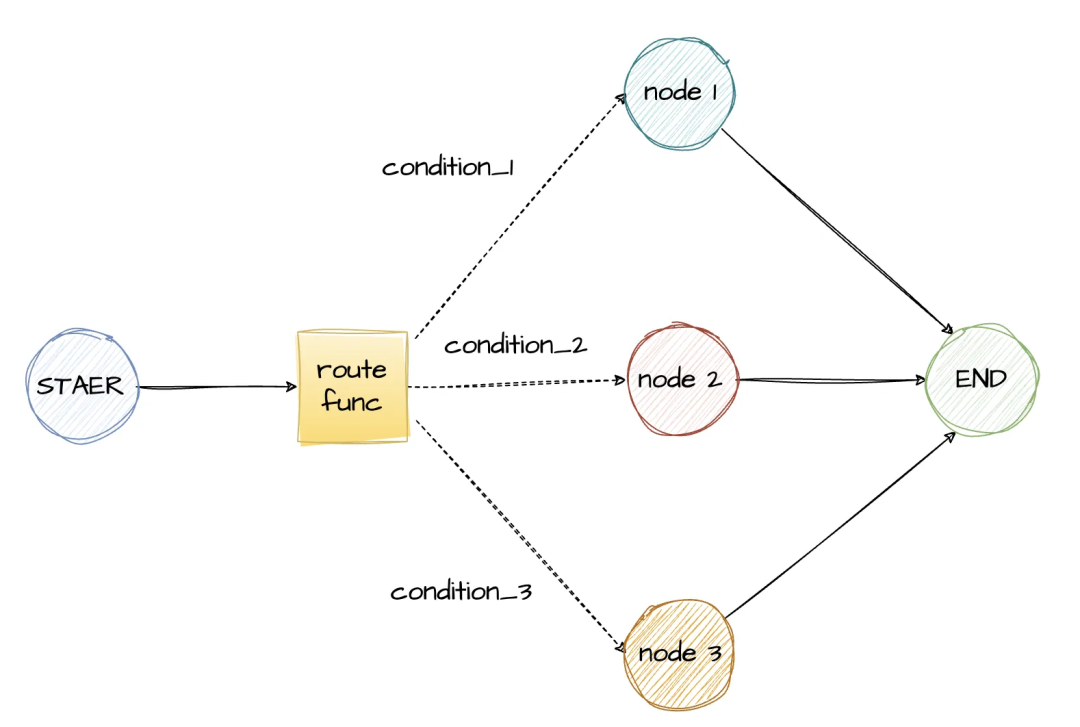

def route_by_sentiment(state: GraphState) -> str:
    # 路由逻辑...返回最终的条件
    return "condition_1"

graph = StateGraph(GraphState)
graph.add_node("node1", node1)
graph.add_node("node2", node2)
graph.add_node("node3", node3)
# 添加路由函数，参数：当前节点，路由函数，路由函数返回的条件与node的映射
graph.add_conditional_edges(
    START,
    route_by_sentiment,
    {
        "condition_1": "node1",
        "condition_2": "node2",
        "condition_3": "node3"
    }
)

# 所有处理节点都连接到END
graph.add_edge("node1", END)
graph.add_edge("node2", END)
graph.add_edge("node3", END)
app = graph.compile()

png_data = app.get_graph().draw_mermaid_png()
with open("graph.png", "wb") as f:
    f.write(png_data)

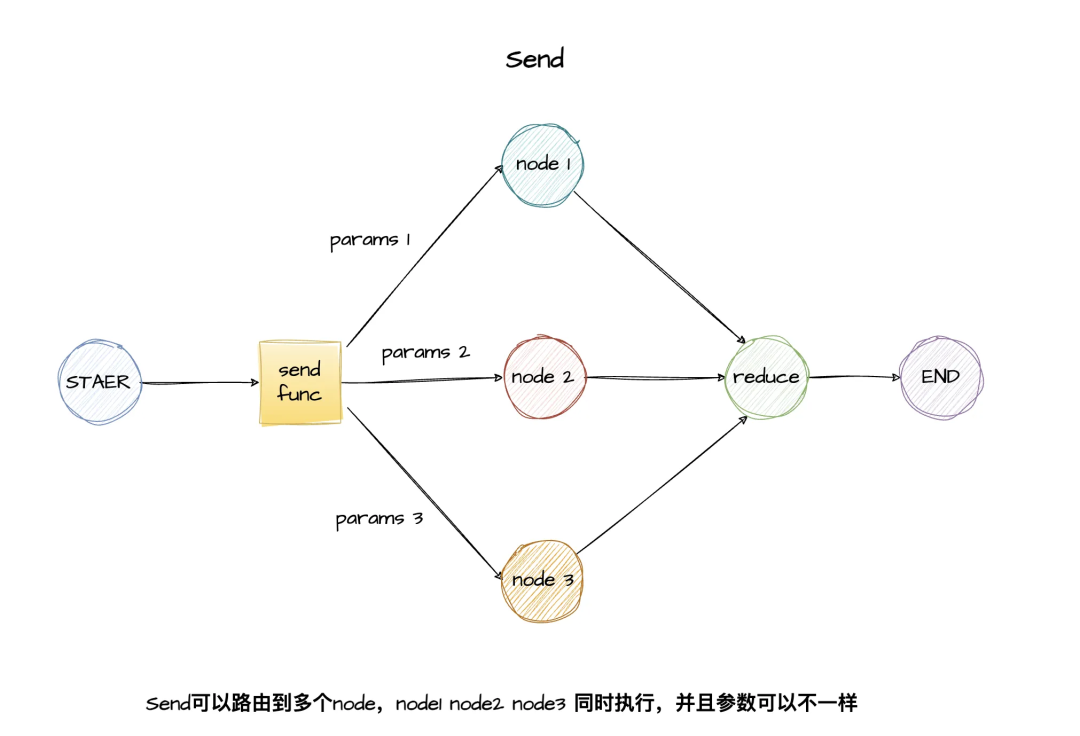

def route_tasks(state: MapReduceState) -> list[Send]:
    # 为每个任务创建一个Send对象
    sends = []
    for idx, task in enumerate(state['tasks']):
        # 创建node任务及相应的参数
        send = Send("process_task",{"task_id": idx,"task_name": task})
        sends.append(send)
    # 返回所有的目标节点
    return sends
# 路由函数，返回 Send 列表
graph.add_conditional_edges("generate_tasks", route_tasks)
# 所有process_task完成后，汇总结果
graph.add_edge("process_task", "reduce_results")

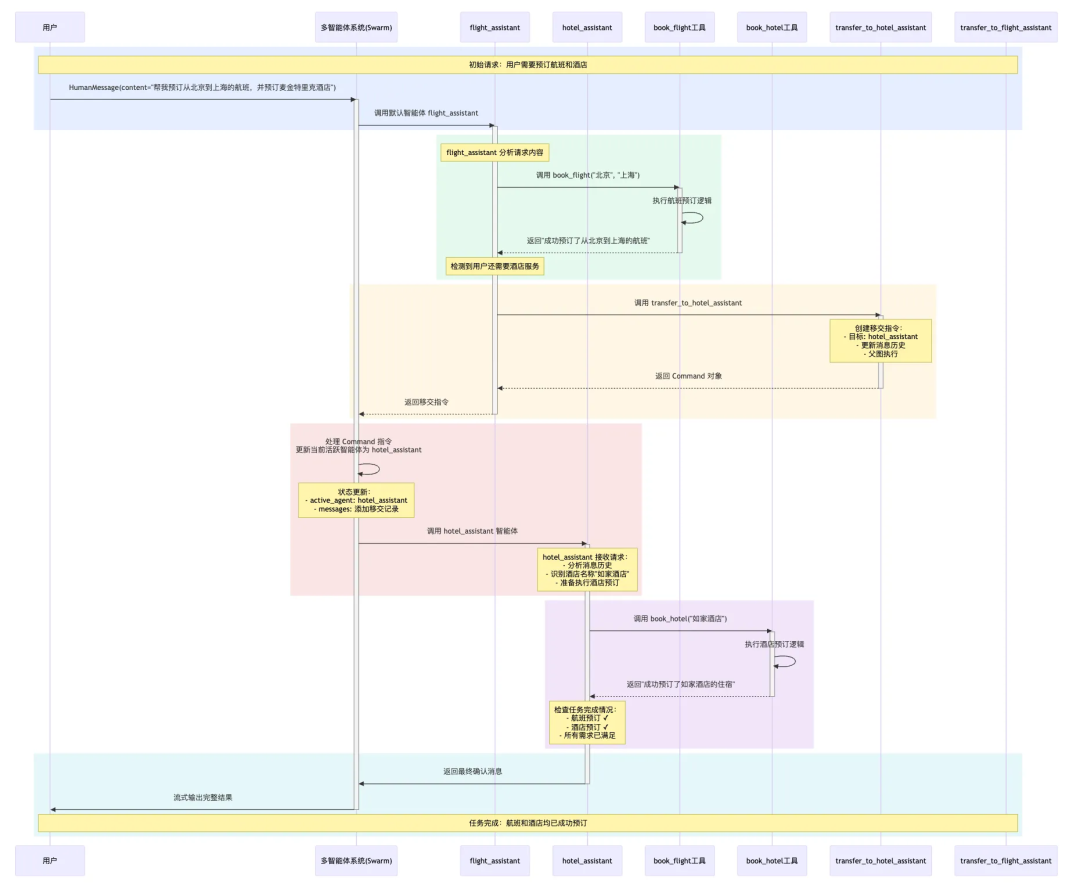

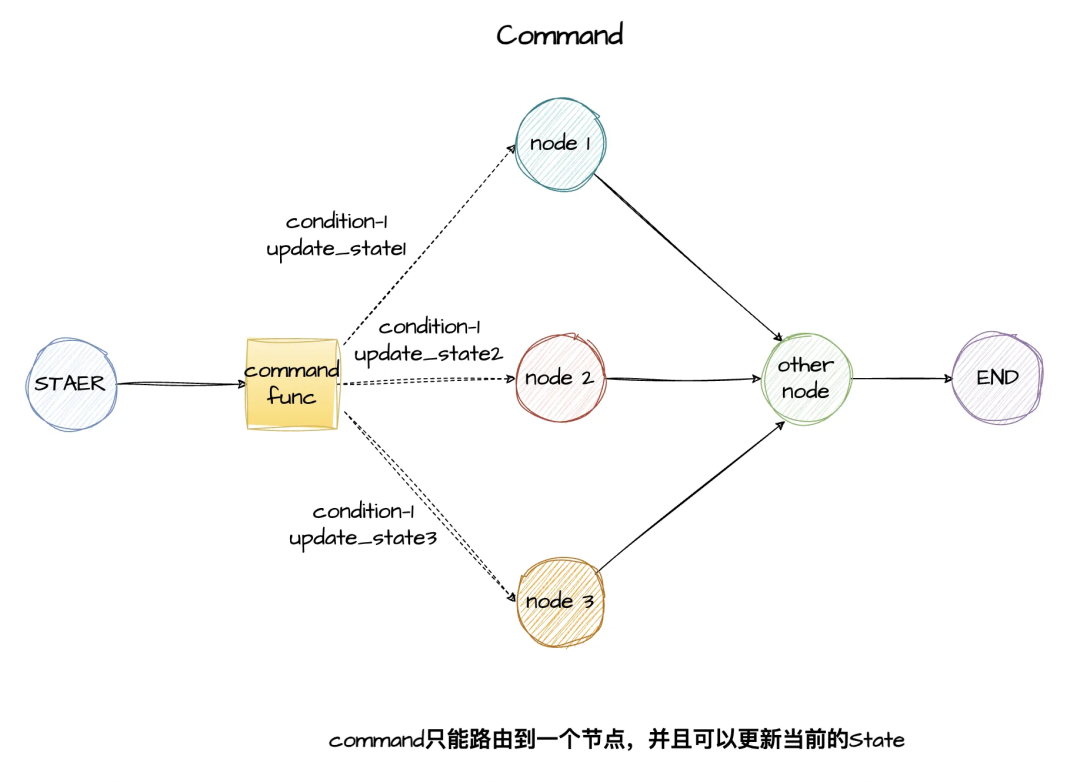

# 在节点函数中返回 Command 来实现动态路由
def agent_node(state: State) -> Command:
    if need_help(state):
        # 决定将任务移交给另一个node，并更新状态
        return Command(
            goto="expert_agent",
            update={"messages": state["messages"] + [new_message]}
        )
    else:
        return Command(goto="END")

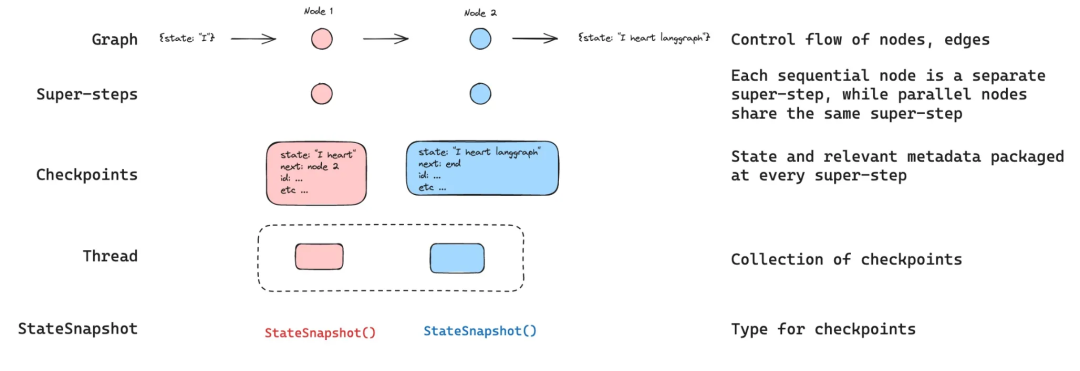

memory = MemorySaver()
app = graph.compile(checkpointer=memory)   # 使用内存保存检查点
config = {"configurable": {"thread_id": "recovery_thread"}}  # 必须配置会话ID
result = app.invoke({"value": 5, "operations": []}, config=config)

# 获取所有的检查点
checkpoints = list(app.get_state_history(config))

# 恢复：从指定检查点继续执行
recovery_config = checkpoints[2].config
recovered_result = app.invoke(None, config=recovery_config)

class StateSnapshot(NamedTuple):
    """Snapshot of the state of the graph at the beginning of a step."""

    values: dict[str, Any] | Any
    """Current values of channels."""
    next: tuple[str, ...]
    """The name of the node to execute in each task for this step."""
    config: RunnableConfig
    """Config used to fetch this snapshot."""
    metadata: CheckpointMetadata | None
    """Metadata associated with this snapshot."""
    created_at: str | None
    """Timestamp of snapshot creation."""
    parent_config: RunnableConfig | None
    """Config used to fetch the parent snapshot, if any."""
    tasks: tuple[PregelTask, ...]
    """Tasks to execute in this step. If already attempted, may contain an error."""
    interrupts: tuple[Interrupt, ...]
    """Interrupts that occurred in this step that are pending resolution."""

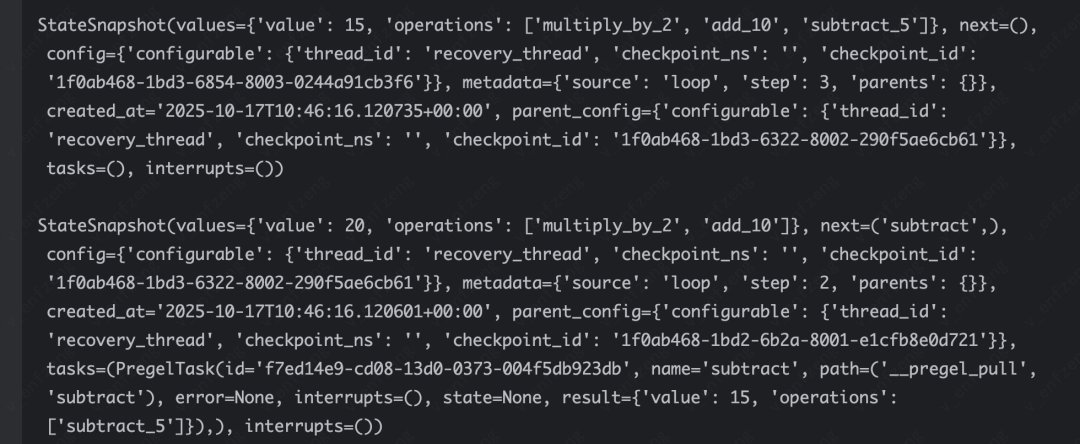

checkpoints = list(app.get_state_history(config))
# 查看所有的步骤，注意，checkpoints的第一个值是Graph执行的最后一个节点（顺序是反的）
for i, checkpoint in enumerate(checkpoints):
    print(f"步骤 {i}: 下一节点 {checkpoint.next}, 状态值 {checkpoint.values}")

# 获取一个检查点
checkpoint = checkpoints[2]
# 更新状态，这会替换整个data_list
app.update_state(
    checkpoint.config,
    {"data_list": ["updated_value"]}  # 完全替换状态
)
# 从更新后的检查点继续执行
result = app.invoke(None, config=checkpoint.config)

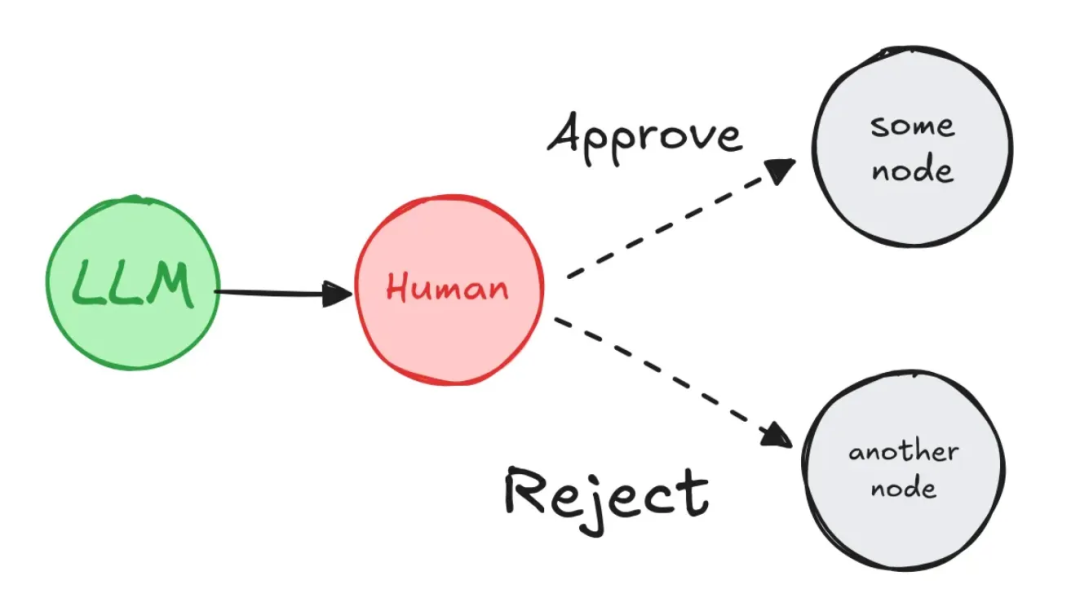

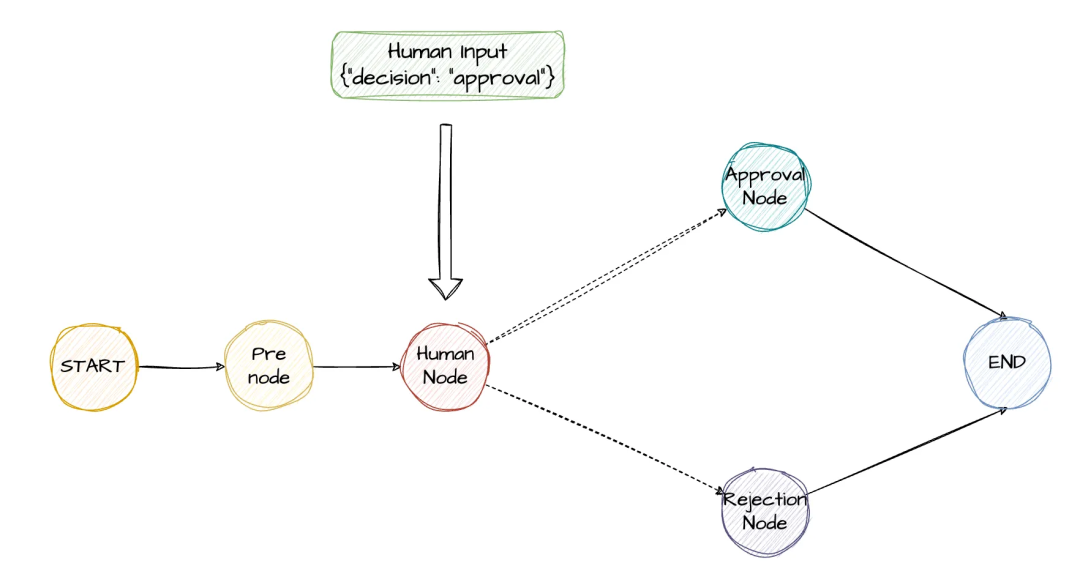

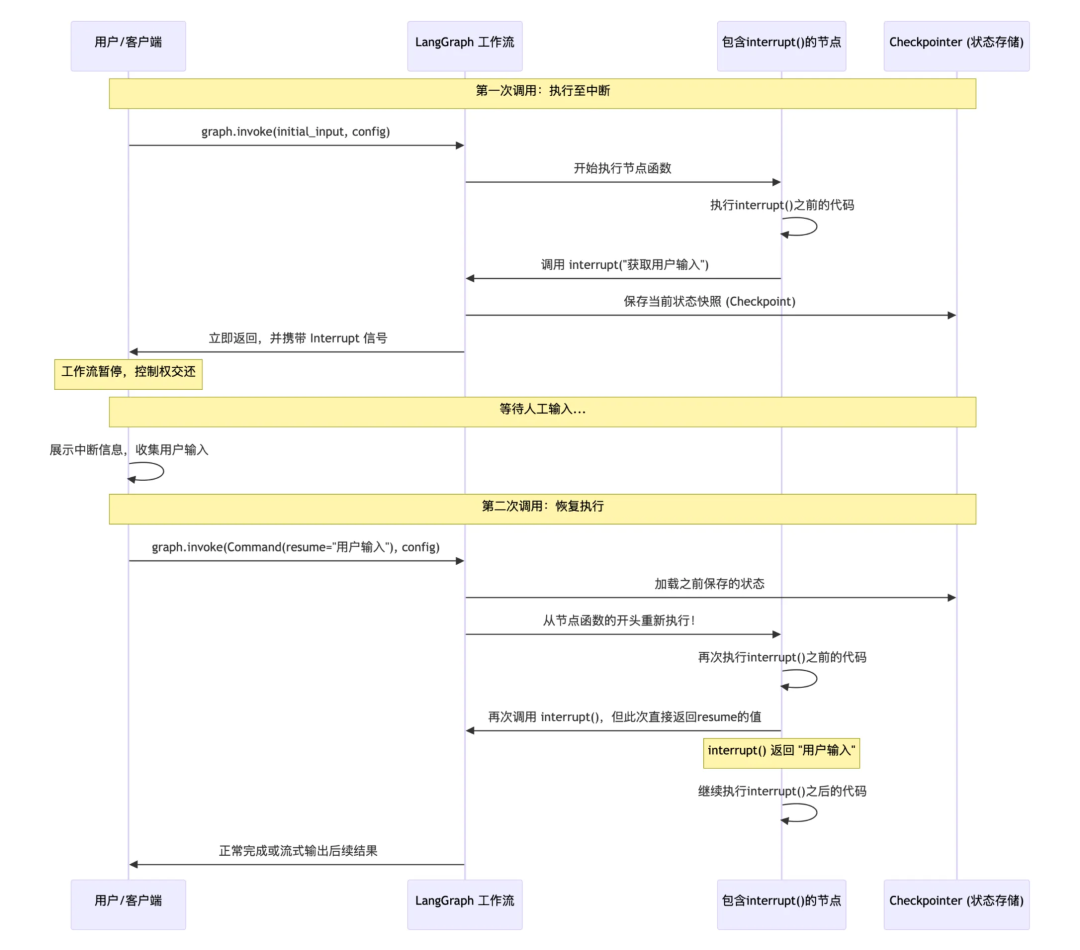

def human_feedback_node(state: HumanInLoopState) -> dict:
    # 定义中断信息，告诉外界为何中断以及需要什么样的输入来恢复
    interrupt_data = {
        "type": "human_review",
        "request": state['request'],
        "analysis": state['analysis'],
        "prompt": "请输入: 同意 / 拒绝"
    }
    # 使用interrupt()函数暂停工作流，等待人工输入
    human_response = interrupt(interrupt_data)
    print(f"收到用户输入: {human_response}")
    # 解析人工输入，其他业务逻辑
    # ...

    return {
        "human_feedback": human_response.get("feedback"),
        "approved": human_response.get("decision"),
        "messages": [f"人工反馈: {human_response.get('feedback')}"]
    }

# 添加人工反馈节点，其他节点省略
graph.add_node("human_feedback", human_feedback_node)
# 添加人工反馈边，其他节点省略
graph.add_edge("analyze", "human_feedback")
# 添加条件边，根据用户反馈来选择调用后续的节点
builder.add_conditional_edges(
    "human_feedback",
    route_by_human_decision,
    {
        "process_approval": "process_approval",
        "process_rejection": "process_rejection"
    }
)

memory = MemorySaver()
# 编译图并启用检查点
app = graph.compile(checkpointer=memory)

# 配置会话id，用于区分不同的会话
config = {"configurable": {"thread_id": str(uuid.uuid4())}}
# 首次执行图，执行到human_feedback节点会中断，invoke立即返回# 返回的结果会包含中断信息，result.get(__interrupt__)
result = graph.invoke(initial_input, config)

# 模拟人工输入（实际应用中来自用户界面）
human_decision = {
    "decision": "同意",
    "feedback": "用户反馈"
}

# 重新恢复工作流，继续执行后续节点
resume_command = Command(resume=human_decision)
final_result = graph.invoke(resume_command, config)

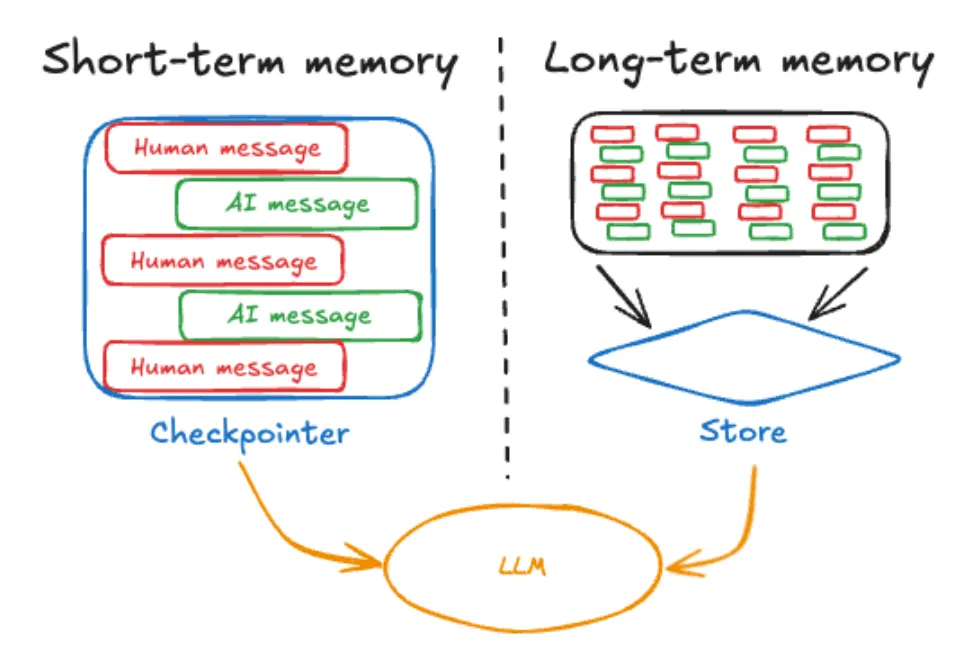

# 1. 初始化一个内存检查点
checkpointer = InMemorySaver()
# 2. 在编译图时传入检查点
graph = builder.compile(checkpointer=checkpointer)
# 3. 调用时通过 thread_id 指定会话线程
config = {"configurable": {"thread_id": "thread_123"}}
result = graph.invoke({"messages": [{"role": "user", "content": "你好"}]}, config=config)

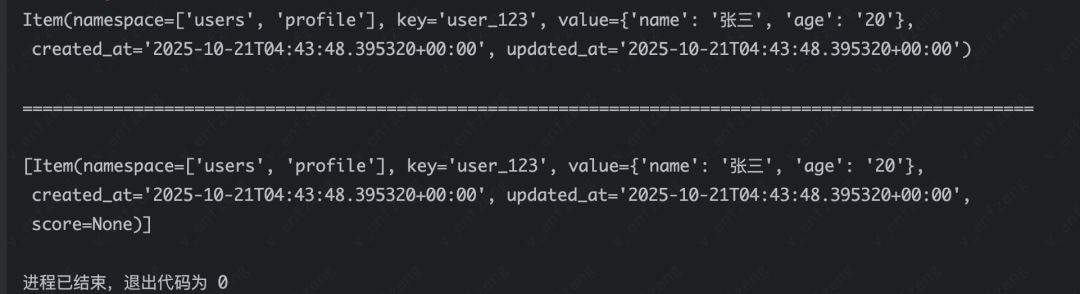

def write_node(state: dict) -> dict:
    # 获取全局存储实例
    store = get_store()
    # 存储数据到指定命名空间
    store.put(namespace, "user_123", {"name": "张三", "age": "20"})
    return {}

def read_node(state: dict) -> dict:
    # 获取全局存储实例
    store = get_store()
    # 根据键获取指定用户数据
    user_info = store.get(namespace, "user_123")
    print(user_info)

    # 在命名空间中搜索包含"张三"的数据
    # query: 搜索关键词
    # limit: 返回结果的最大数量限制
    user_info = store.search(namespace, query="张三", limit=10)
    print(user_info)
    return {}

# 初始化一个内存存储
store = InMemoryStore()
# 定义命名空间，命名空间元组，用于数据分类和隔离
namespace = ("users", "profile")
# 创建图
graph = StateGraph(dict)
graph.add_node("write_node", write_node)
graph.add_node("read_node", read_node)
graph.add_edge(START, "write_node")
graph.add_edge("write_node", "read_node")
graph.add_edge("read_node", END)

# 编译图，并指定存储
app = graph.compile(store=store)
app.invoke({})

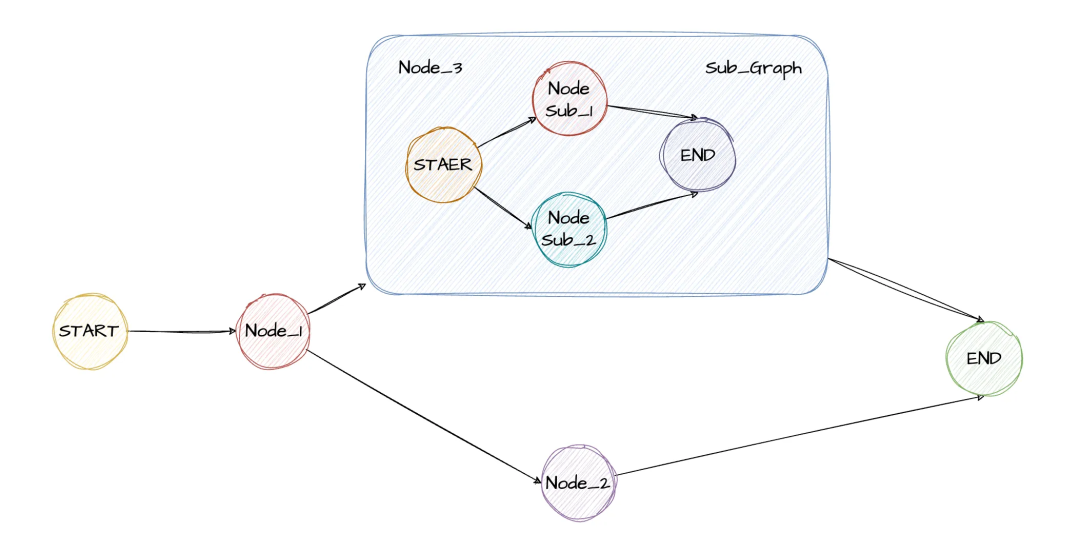

# 定义父图状态
class ParentState(TypedDict):
    parent_messages: list  # 与子图共享数据
# 定义子图状态
class SubgraphState(TypedDict):
    parent_messages: list  # 与父图共享的数据
    sub_message: str  # 子图私有数据
# 创建子图，添加node、edge等
sub_builder = StateGraph(SubgraphState)
sub_builder.add_node("sub_node", subgraph_node)
sub_builder.add_edge(START, "sub_node")
compiled_subgraph = sub_builder.compile()
# 创建父图
builder = StateGraph(ParentState)
# 添加子图添加为父图的节点
builder.add_node("subgraph_node", compiled_subgraph)
# 将子图连接起来
builder.add_edge("parent_node", "subgraph_node")
# 编译父图并执行
parent_graph = builder.compile()
parent_graph.invoke({"messages": ["init message"]})

# 在父图中创建代理节点处理状态转换
def call_subgraph(state: ParentState):
    # 将父图状态转换为子图的输入
    subgraph_input = {"analysis_input": state["user_query"]}
    # 调用子图
    subgraph_response = compiled_subgraph.invoke(subgraph_input)
    # 将子图的输出映射回父图状态
    return {"final_answer": subgraph_response["analysis_result"]}

builder = StateGraph(ParentState)
# 父图中添加的是代理节点，而不是直接添加子图
builder.add_node("call_subgraph_node", call_subgraph)
builder.add_edge(START, "call_subgraph_node")
parent_graph = builder.compile()

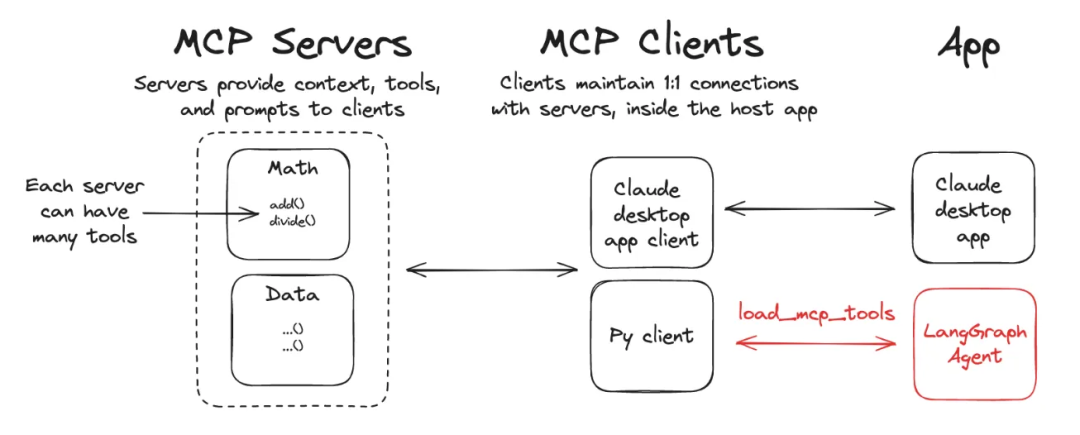

# 安装
pip install langchain-mcp-adapters

# 创建名为"MCP_Tools"的MCP服务器
mcp = FastMCP("MCP_Tools")

@mcp.tool()
def get_weather(location: str) -> str:
    """获取指定位置的天气信息"""
    return "晴天"
@mcp.tool()
def get_time() -> str:
    """获取当前时间"""
    return datetime.now().strftime('%Y-%m-%d %H:%M:%S')
@mcp.tool()
def add(a: int, b: int) -> int:
    """对两个整数相加"""
    return a + b
@mcp.tool()
def multiply(a: int, b: int) -> int:
    """对两个整数相乘"""
    return a * b
@mcp.tool()
def subtract(a: int, b: int) -> int:
    """对两个整数相减"""
    return a - b

if __name__ == "__main__":
    # 使用HTTP协议传输
    mcp.run(transport="streamable-http")

async def get_agent():
    # 初始化MCP客户端，可以连接多个服务器
    client = MultiServerMCPClient(
        {
            "weather": {
                "url": "http://localhost:8000/mcp",
                "transport": "streamable_http",
            }
        }
    )
    # 获取所有可用的工具
    tools = await client.get_tools()
    print(f"已加载工具: {[tool.name for tool in tools]}")

    # 初始化聊天模型
    model = ChatOpenAI(
        model_name=model_name,
        base_url=base_url,
        api_key=api_key
    )
    # 创建React智能体
    return create_react_agent(model, tools)

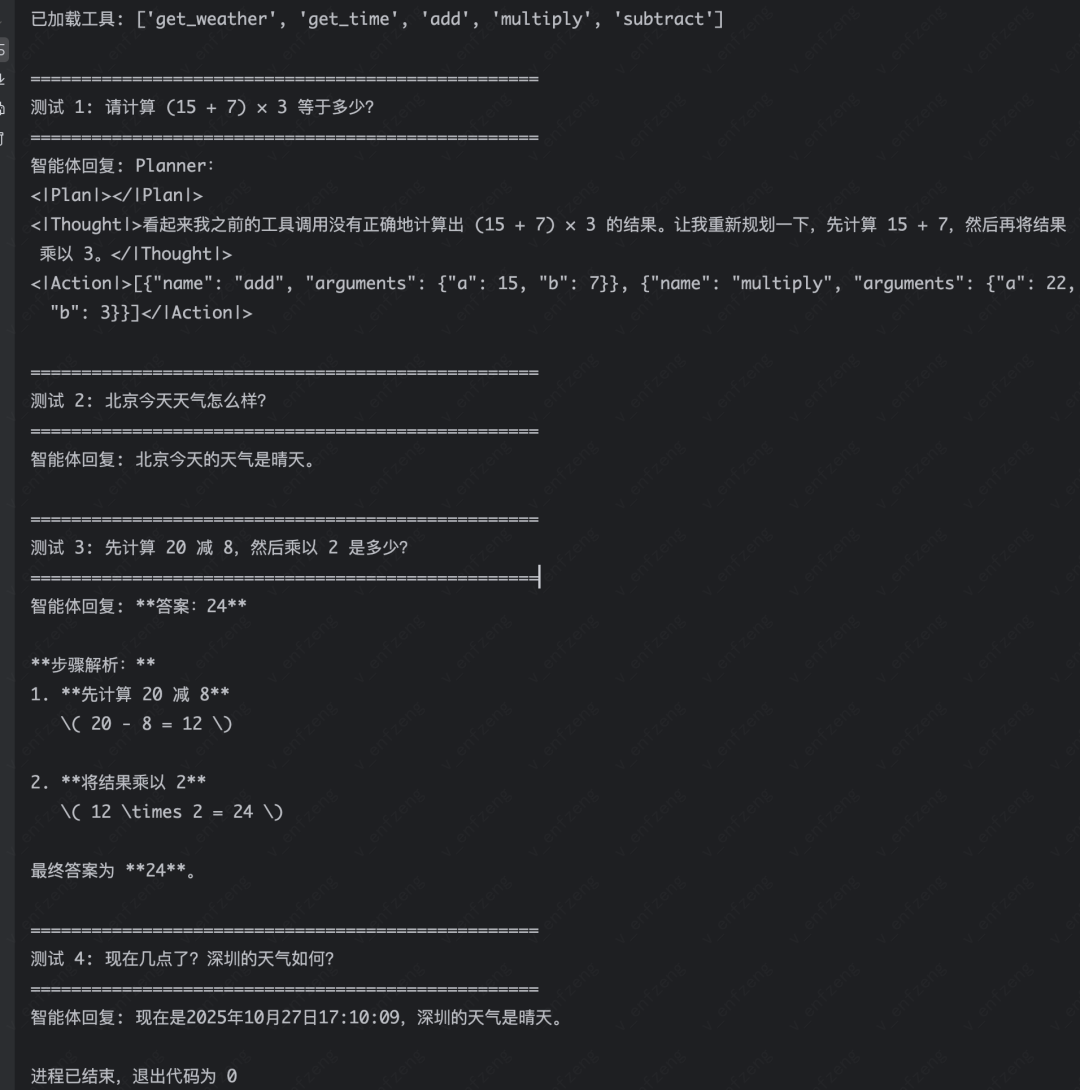

async def test_agent():
    # 获取智能体
    agent = await get_agent()

    # 测试用例
    test_cases = [
        "计算 (15 + 7) × 3 等于多少？",
        "先计算 20 减 8，然后乘以 2 是多少？",
        "现在几点了？深圳的天气如何？"
    ]

    for i, question in enumerate(test_cases, 1):
        print(f"\n{'=' * 50}")
        print(f"测试 {i}: {question}")
        print(f"{'=' * 50}")

        # 调用智能体
        response = await agent.ainvoke(
            {"messages": [HumanMessage(content=question)]}
        )

        # 获取最后一条消息（智能体的回复）
        last_message = response["messages"][-1]
        print(f"智能体回复: {last_message.content}")

if __name__ == "__main__":
    asyncio.run(test_agent())

@dataclass
class ContextSchema:    # 定义上下文schema
    llm_provider: str = "openai"
def node_a(state: State, runtime: Runtime[ContextSchema]):
    # 获取上下文信息
    llm = get_llm(runtime.context.llm_provider)
    return state

graph = StateGraph(State, context_schema=ContextSchema)
# 执行时指定上下文信息
graph.invoke(inputs, context={"llm_provider": "DeepSeek-R1-Online-0120"})

try:
    result = graph.invoke(
        {"input": "开始执行"},
        config={"recursion_limit": 50}  # 设置递归限制为50次
    )
except GraphRecursionError:
    print("执行步数超过限制，抛出异常")
    # 异常处理...

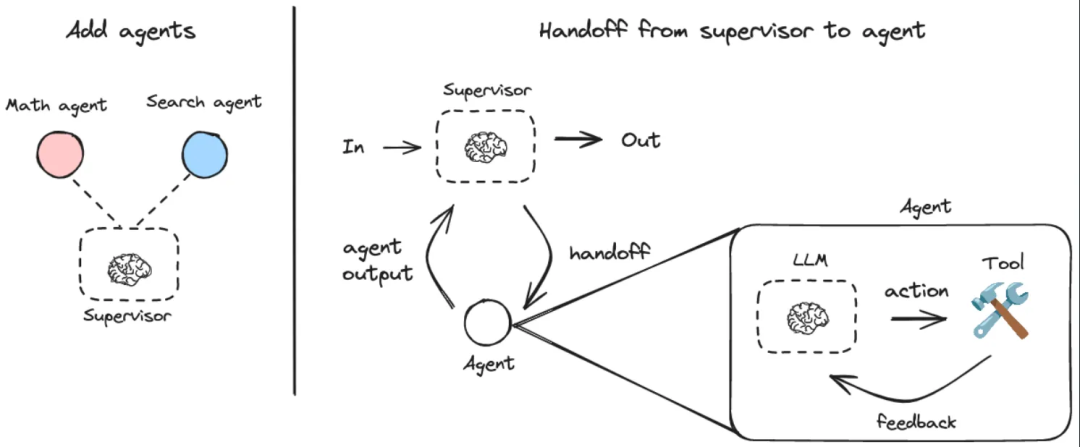

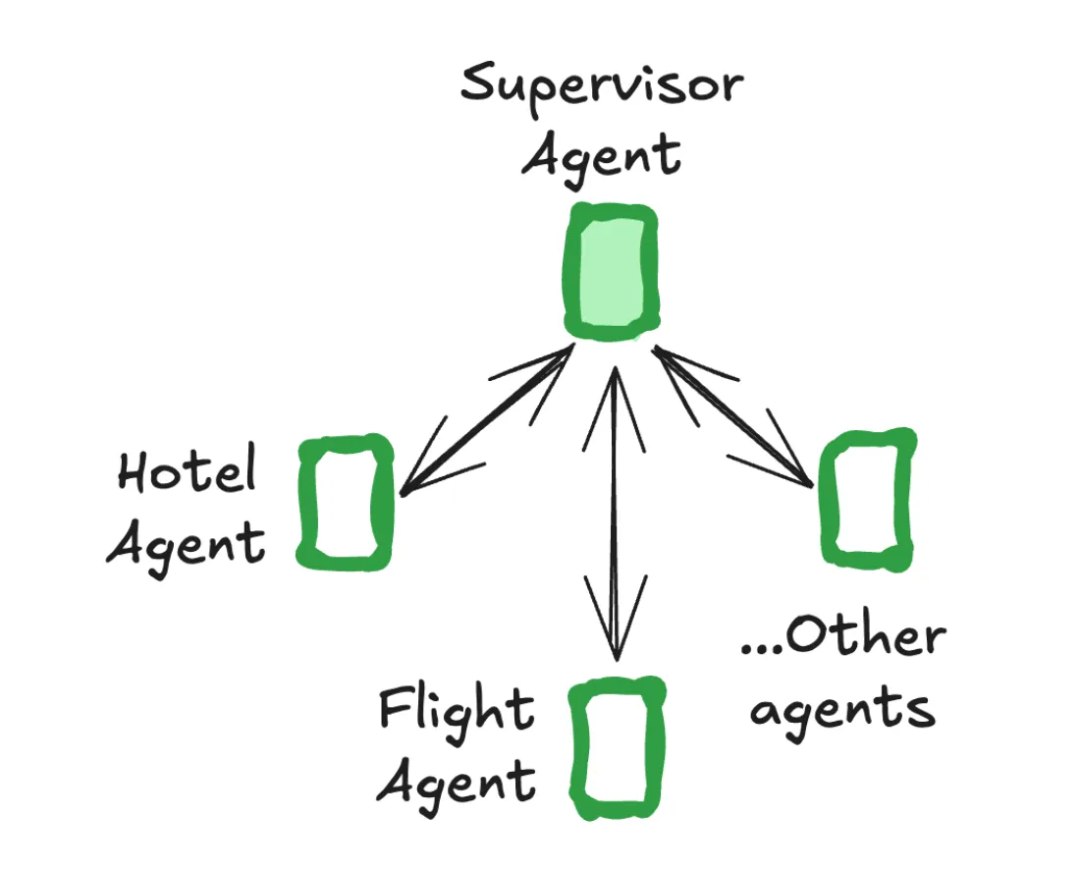

pip install langgraph-supervisor

def book_hotel(hotel_name: str):
    """预订酒店"""
    print(f"✅ 成功预订了 {hotel_name} 的住宿")
    return f"成功预订了 {hotel_name} 的住宿。"
def book_flight(from_airport: str, to_airport: str):
    """预订航班"""
    print(f"✅ 成功预订了从 {from_airport} 到 {to_airport} 的航班")
    return f"成功预订了从 {from_airport} 到 {to_airport} 的航班。"
flight_assistant = create_react_agent(
    model=model,
    tools=[book_flight],
    prompt=(
        "你是专业的航班预订助手，专注于帮助用户预订机票。\n"
        "工作流程：\n"
        "1. 从用户需求中提取出发地和目的地信息\n"
        "2. 调用book_flight工具完成预订\n"
        "3. 收到预订成功的确认后，向主管汇报结果并结束\n"
        "注意：每次只处理一个预订请求，完成后立即结束，不要重复调用工具。"
    ),
    name="flight_assistant"
)
hotel_assistant = create_react_agent(
    model=model,
    tools=[book_hotel],
    prompt=(
        "你是专业的酒店预订助手，专注于帮助用户预订酒店。\n"
        "工作流程：\n"
        "1. 从用户需求中提取酒店信息（如果未指定，选择经济型酒店）\n"
        "2. 调用book_hotel工具完成预订\n"
        "3. 收到预订成功的确认后，向主管汇报结果并结束\n"
        "注意：每次只处理一个预订请求，完成后立即结束，不要重复调用工具。"
    ),
    name="hotel_assistant"
)

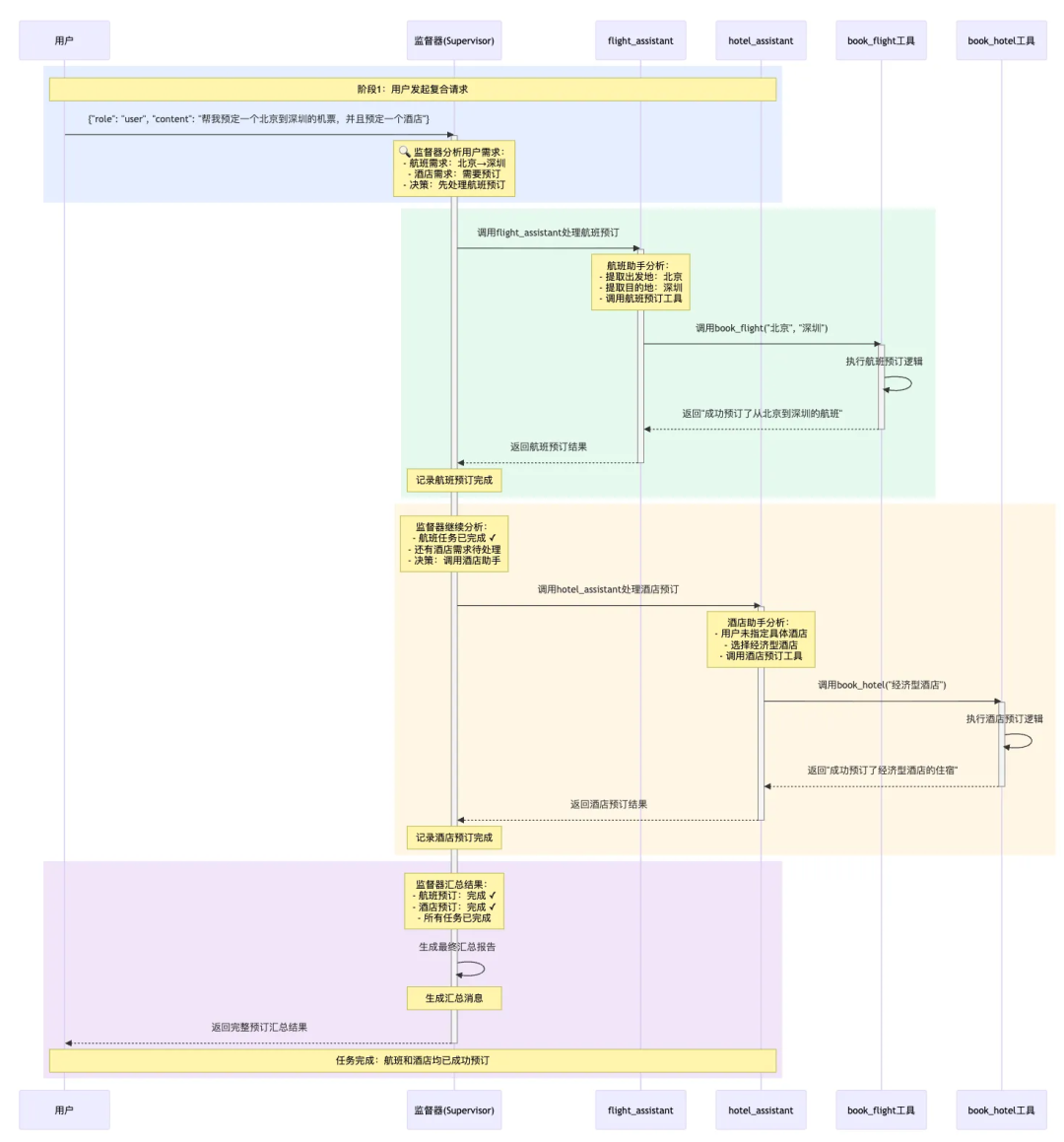

supervisor = create_supervisor(
    agents=[flight_assistant, hotel_assistant],
    model=model,
    prompt=(
        "你是一个智能任务调度主管，负责协调航班预订助手(flight_assistant)和酒店预订助手(hotel_assistant)。\n\n"
        "工作流程：\n"
        "1. 分析用户需求，确定需要哪些服务（航班、酒店或两者）\n"
        "2. 如果需要预订航班，调用flight_assistant一次\n"
        "3. 如果需要预订酒店，调用hotel_assistant一次\n"
        "4. 收到助手的预订确认后，记录结果\n"
        "5. 当所有任务都完成后，向用户汇总所有预订结果，然后立即结束\n\n"
        "关键规则：\n"
        "- 每个助手只能调用一次，不要重复调用\n"
        "- 看到'成功预订'的消息后，该任务就已完成\n"
        "- 所有任务完成后，必须直接结束，不要再调用任何助手\n"
        "- 如果已经看到航班和酒店的预订确认，立即汇总并结束"
    )
).compile()
for chunk in supervisor.stream(
    {
        "messages": [
            {
                "role": "user",
                "content": "帮我预定一个北京到深圳的机票，并且预定一个酒店"
            }
        ]
    }
):
    print(chunk)
    print("\n")

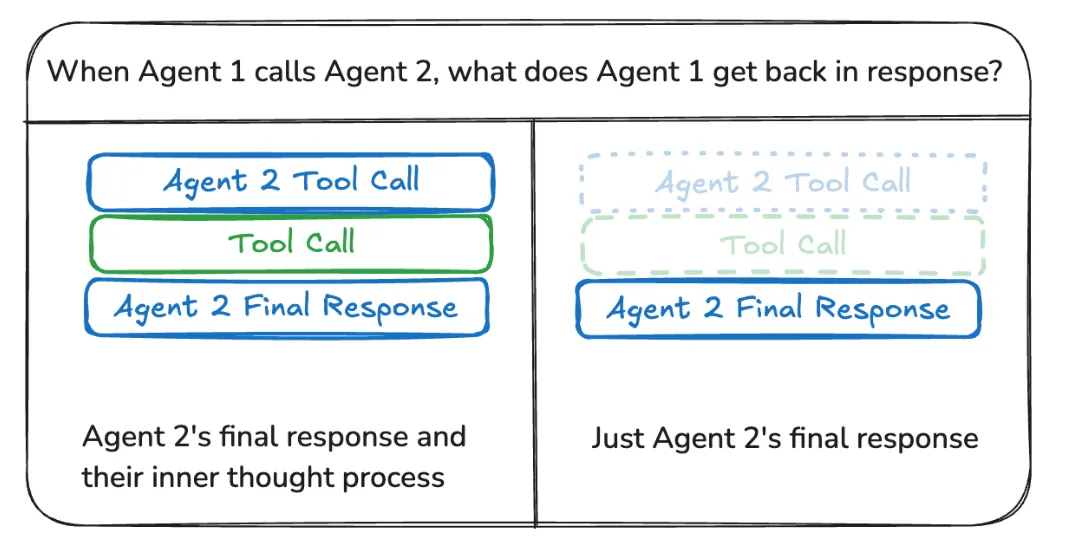

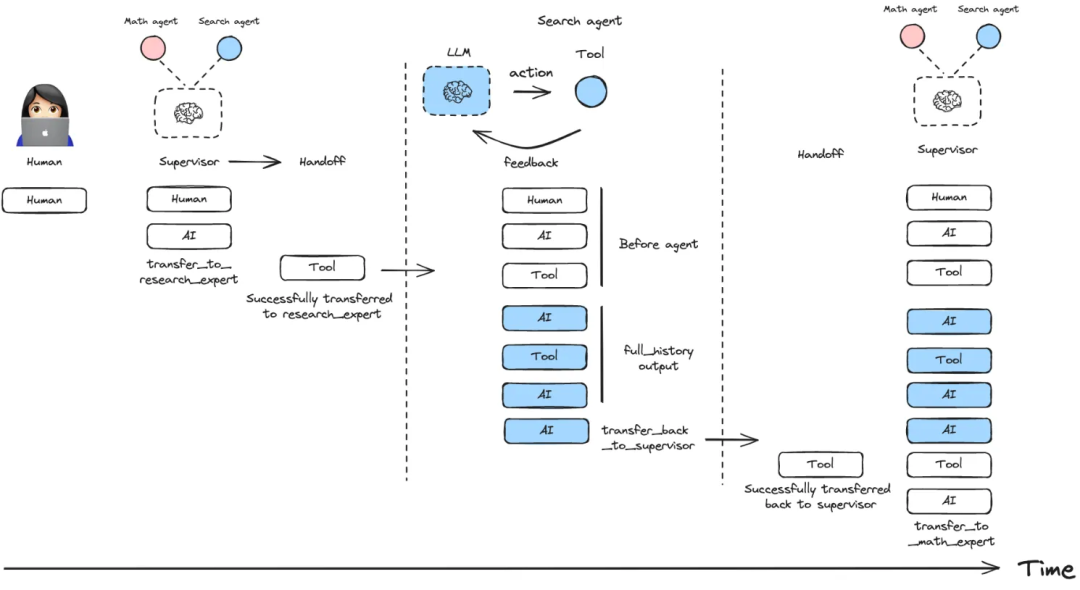

# 添加所有消息
workflow = create_supervisor(
    agents=[agent1, agent2],
    output_mode="full_history"
)
# 添加最后一条消息
workflow = create_supervisor(
    agents=[agent1, agent2],
    output_mode="last_message"
)

research_team = create_supervisor(
    [research_agent, math_agent],
    model=model,
    supervisor_name="research_supervisor"
).compile(name="research_team")
writing_team = create_supervisor(
    [writing_agent, publishing_agent],
    model=model,
    supervisor_name="writing_supervisor"
).compile(name="writing_team")
top_level_supervisor = create_supervisor(
    [research_team, writing_team],
    model=model,
    supervisor_name="top_level_supervisor"
).compile(name="top_level_supervisor")

# 短期记忆
checkpointer = InMemorySaver()
# 长期记忆
store = InMemoryStore()
swarm = create_supervisor(
    agents=[flight_assistant, hotel_assistant],
    model=model,
).compile(checkpointer=checkpointer, store=store)

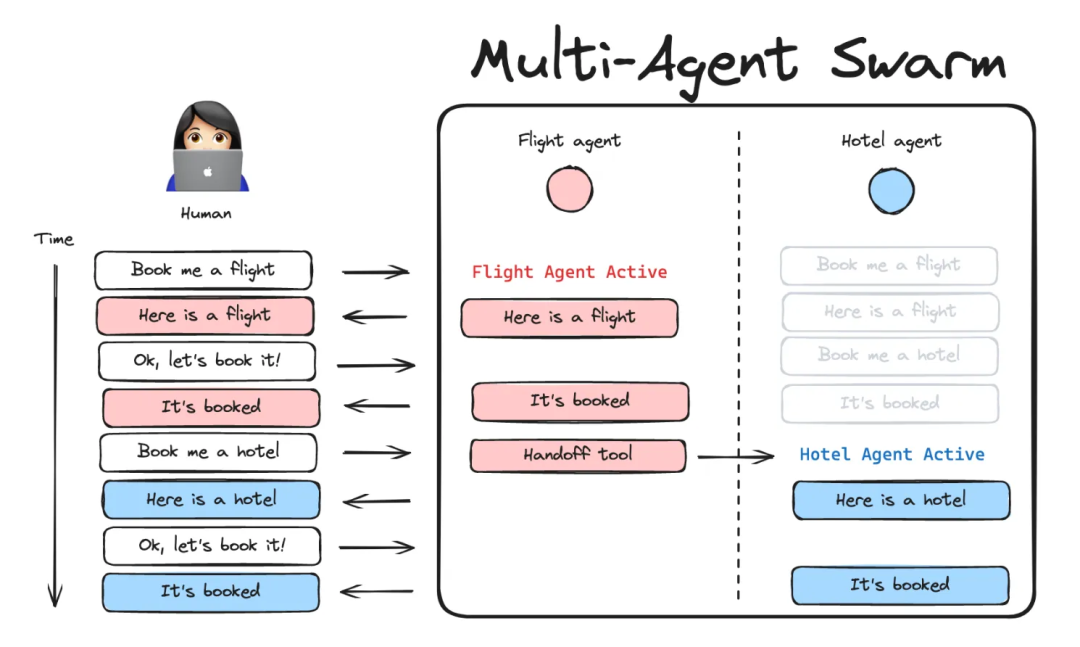

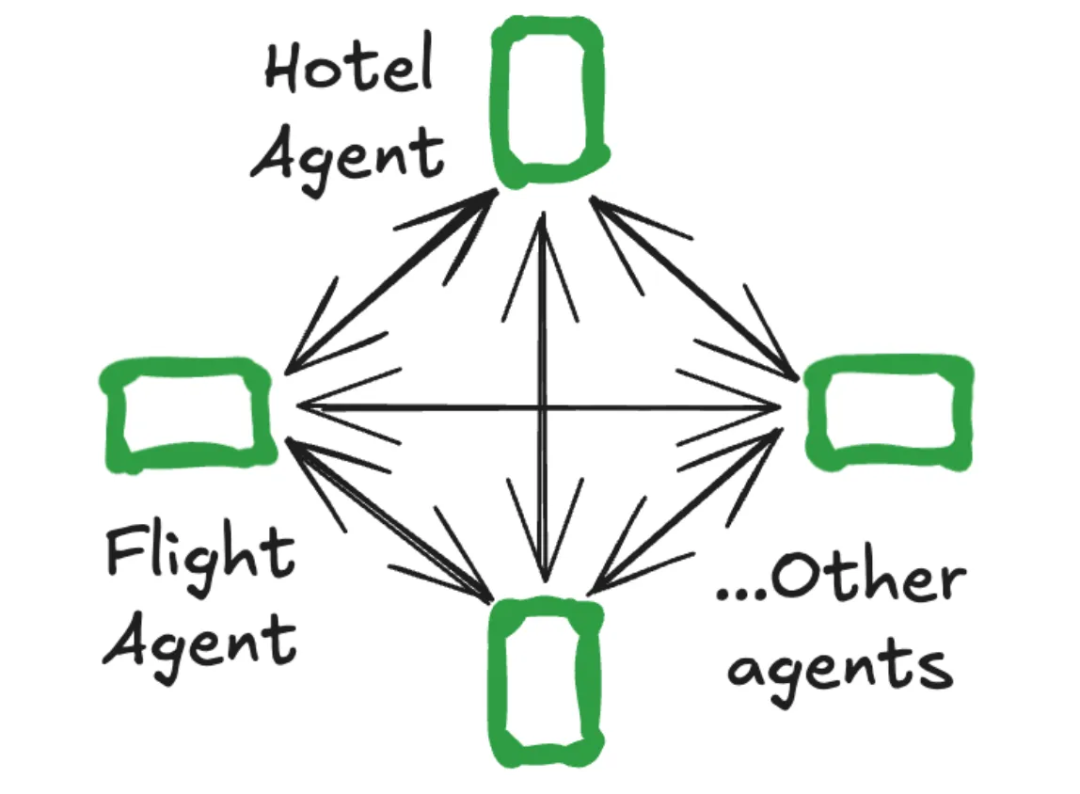

pip install langgraph-swarm

def book_hotel(hotel_name: str):
    """预订酒店"""
    print(f"✅ 成功预订了 {hotel_name} 的住宿")
    return f"成功预订了 {hotel_name} 的住宿。"
def book_flight(from_airport: str, to_airport: str):
    """预订航班"""
    print(f"✅ 成功预订了从 {from_airport} 到 {to_airport} 的航班")
    return f"成功预订了从 {from_airport} 到 {to_airport} 的航班。"
transfer_to_hotel_assistant = create_handoff_tool(
    agent_name="hotel_assistant",
    description="将用户转接给酒店预订助手。当用户需要预订酒店时使用此工具。",
)
transfer_to_flight_assistant = create_handoff_tool(
    agent_name="flight_assistant",
    description="将用户转接给航班预订助手。当用户需要预订航班时使用此工具。",
)
flight_assistant = create_react_agent(
    model=flight_assistant_model,
    tools=[book_flight, transfer_to_hotel_assistant],
    prompt=(
        "你是一个航班预订助手，负责帮助用户预订航班。"
        "当用户需要预订航班时，使用 book_flight 工具完成预订。"
        "如果用户还需要预订酒店，完成航班预订后，必须使用 transfer_to_hotel_assistant 工具将用户转接给酒店预订助手。"
        "重要：不要直接结束对话，确保所有用户需求都得到处理。"
    ),
    name="flight_assistant"
)
hotel_assistant = create_react_agent(
    model=hotel_assistant_model,
    tools=[book_hotel, transfer_to_flight_assistant],
    prompt=(
        "你是一个酒店预订助手，负责帮助用户预订酒店。"
        "当用户需要预订酒店时，使用 book_hotel 工具完成预订。"
        "如果用户还需要预订航班，完成酒店预订后，必须使用 transfer_to_flight_assistant 工具将用户转接给航班预订助手。"
        "完成所有预订后，向用户确认所有任务已完成。"
    ),
    name="hotel_assistant"
)
swarm = create_swarm(
    agents=[flight_assistant, hotel_assistant],
    default_active_agent="flight_assistant"
).compile()
for chunk in swarm.stream(
    {
        "messages": [
            HumanMessage(content="帮我预订从北京到上海的航班，并预订如家酒店")
        ]
    }
):
    print(chunk)
    print("\n")

# 短期记忆
checkpointer = InMemorySaver()
# 长期记忆
store = InMemoryStore()
swarm = create_swarm(
    agents=[flight_assistant, hotel_assistant],
    default_active_agent="flight_assistant"
).compile(checkpointer=checkpointer, store=store)

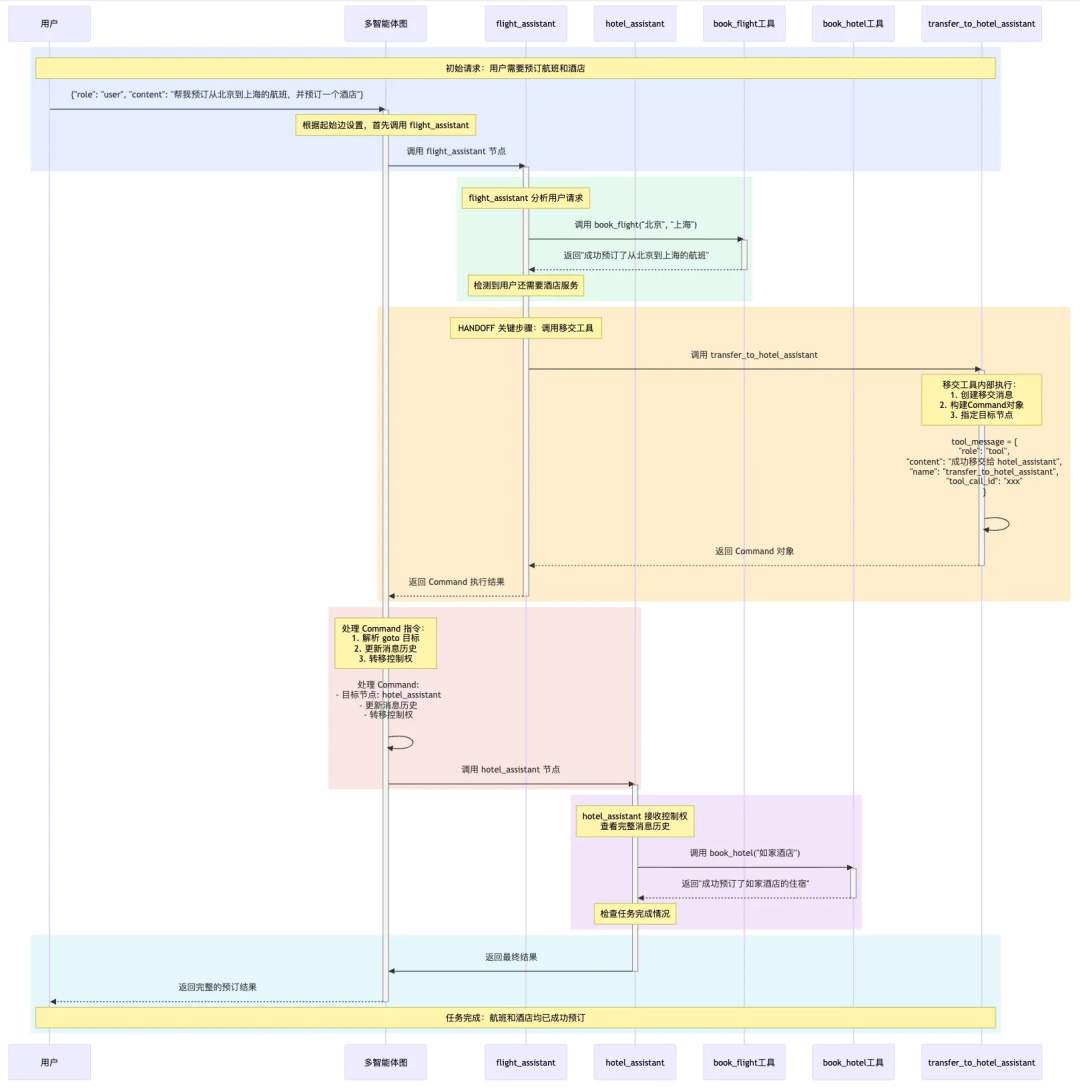

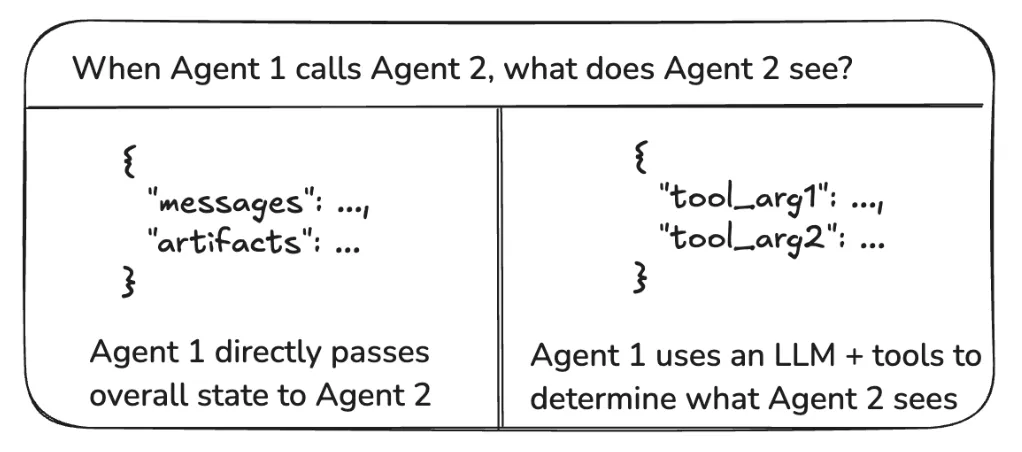

def create_task_description_handoff_tool(*, agent_name: str, description: str | None = None):
    name = f"transfer_to_{agent_name}"
    description = description or f"移交给 {agent_name}"
    @tool(name, description=description)
    def handoff_tool(
        task_description: Annotated[str, "描述下一个Agent应该做什么，包括所有相关信息。"],
        state: Annotated[MessagesState, InjectedState],
    ) -> Command:
        task_description_message = {"role": "user", "content": task_description}
        agent_input = {**state, "messages": [task_description_message]}
        return Command(
            goto=[Send(agent_name, agent_input)],
            graph=Command.PARENT,
        )
    return handoff_tool
# 自定义移交工具
transfer_to_hotel_assistant = create_task_description_handoff_tool(
    agent_name="hotel_assistant",
    description="将执行权移交给酒店预订助手",
)
transfer_to_flight_assistant = create_task_description_handoff_tool(
    agent_name="flight_assistant",
    description="将执行权移交给航班预订助手",
)
@tool("book_hotel")
def book_hotel(hotel_name: str):
    """预订酒店 - 当用户需要预订酒店时必须调用此工具"""
    print(f"✅ 成功预订了 {hotel_name} 的住宿")
    return f"成功预订了 {hotel_name} 的住宿。"
@tool("book_flight")
def book_flight(from_airport: str, to_airport: str):
    """预订航班"""
    print(f"✅ 成功预订了从 {from_airport} 到 {to_airport} 的航班")
    return f"成功预订了从 {from_airport} 到 {to_airport} 的航班。"
# 定义智能体
flight_assistant = create_react_agent(
    model=model,
    tools=[book_flight, transfer_to_hotel_assistant],
    prompt="你是一个航班预订助手，专门负责帮助用户预订航班。",
    name="flight_assistant"
)
hotel_assistant = create_react_agent(
    model=model,
    tools=[book_hotel, transfer_to_flight_assistant],
    prompt="你是酒店预订助手，专门负责帮助用户预订酒店。",
    name="hotel_assistant"
)
# 定义多智能体图
multi_agent_graph = (
    StateGraph(MessagesState)
    .add_node(flight_assistant)
    .add_node(hotel_assistant)
    .add_edge(START, "flight_assistant")
    .compile()
)
multi_agent_graph.invoke(
    {
        "messages": [
            HumanMessage(content="帮我预订从北京到上海的航班，并预订如家酒店")
        ]
    }
)

<!-- LangChain4j -->
<dependency>
    <groupId>dev.langchain4j</groupId>
    <artifactId>langchain4j</artifactId>
    <version>1.6.0</version>
</dependency>
<!-- LangChain4j OpenAI -->
<dependency>
    <groupId>dev.langchain4j</groupId>
    <artifactId>langchain4j-open-ai</artifactId>
    <version>1.2.0</version>
</dependency>
<!-- LangGraph4J -->
<dependency>
    <groupId>org.bsc.langgraph4j</groupId>
    <artifactId>langgraph4j-core</artifactId>
    <version>1.5.2</version>
</dependency>

public static void main(String[] args) {
    // 构建聊天模型实例
    ChatModel chatModel = OpenAiChatModel.builder()
            .baseUrl(BASE_URL)              // 设置 API 基础地址
            .apiKey(API_KEY)                // 设置 API 密钥
            .modelName("hunyuan-turbo")     // 指定模型名称
            .timeout(Duration.ofSeconds(60)) // 设置请求超时时间为 60 秒
            .logRequests(true)              // 开启请求日志，便于调试
            .logResponses(true)             // 开启响应日志，便于调试
            .maxRetries(3)                  // 设置最大重试次数为 3 次
            .temperature(0.8)               // 设置温度参数（0.0-1.0），控制输出的随机性
            .returnThinking(true)           // 返回模型的思考过程（针对深思考模型）
            .build();

    // 创建系统消息，定义 AI 助手的角色和行为
    SystemMessage systemMessage = SystemMessage.from("你是一个LangChain和LangGraph专家，用于解答开发者的问题。");
    // 创建用户消息，包含具体的问题
    UserMessage userMessage = UserMessage.from("介绍一下LangGraph");
    // 模型调用
    ChatResponse chatResponse = chatModel.chat(systemMessage, userMessage);
    // 从响应中提取 AI 消息
    AiMessage aiMessage = chatResponse.aiMessage();
    // 输出模型的思考过程（如果模型支持并返回）
    System.out.println(aiMessage.thinking());
    // 输出模型的最终回答
    System.out.println(aiMessage.text());
}

# 创建提示词模版
PromptTemplate promptTemplate = PromptTemplate.from("你是一个{{domain}}领域的专家，用于解答关于{{question}}的开发者问题。");
# 填充参数
String prompt = promptTemplate.apply(Map.of(
        "domain", "LangChain和LangGraph",
        "question", "LangGraph"
)).text();
chatModel.chat(prompt);

// 定义一个反洗钱助手接口
interface RiskAssistant {
    @SystemMessage("你是一个专注于反洗钱业务的专家助手")
    @UserMessage("请回答用户关于反洗钱的提问，问题：{{question}}")
    String answer(@V("question") String question);
}
public static void main(String[] args) {
    // 构建聊天模型实例
    ChatModel chatModel = OpenAiChatModel.builder().baseUrl(BASE_URL)
            .apiKey(API_KEY)
            .modelName("hunyuan-turbo")
            .build();
    // 通过 AiServices 创建实例
    RiskAssistant riskAssistant = AiServices.create(RiskAssistant.class, chatModel);
    String answer = riskAssistant.answer("什么是EDD？");
    System.out.println(answer);
}

RiskAssistant riskAssistant = AiServices.builder(RiskAssistant.class)
        .chatModel(chatModel)
        // 添加记忆能力，保存用户最近 10 条对话，也可以自定义记忆能力
        .chatMemory(MessageWindowChatMemory.withMaxMessages(10))
        .build();

public static class StockTools {
    @Tool("查询公司股价")
    public String getStockPrice(@P("公司名称") String company) {
        return "1000";
    }
}
public static void main(String[] args) {
    StockAssistant assistant = AiServices.builder(StockAssistant.class)
            .chatModel(chatModel)
            // 添加工具
            .tools(new StockTools())
            .build();
}

// 输出 Guardrail
public static class SensitiveInputGuardrail implements InputGuardrail {
    private static final Set<String> SENSITIVE_WORDS = Set.of("作弊", "开挂", "攻击");
    @Override
    public InputGuardrailResult validate(UserMessage userMessage) {
        String userInput = userMessage.singleText();
        for (String word : SENSITIVE_WORDS) {
            if (userInput.contains(word)) {
                // 发现敏感词，立即终止请求
                return fatal("您的请求包含违规内容，已被拦截。");
            }
        }
        // 输入合法，放行
        return InputGuardrailResult.success();
    }
}
// 输出 Guardrail
public static class ContentSafetyOutputGuardrail implements OutputGuardrail {
    private static final Set<String> SENSITIVE_WORDS = Set.of("作弊", "开挂", "攻击");
    @Override
    public OutputGuardrailResult validate(AiMessage aiMessage) {
        String aiResponse = aiMessage.text();
        // 判断输出内容是否合法，自定义函数
        if (isSensitiveContent(aiResponse)) {
            // 策略1：直接拦截并报错
            // return failure("输出内容不合规");
            // 策略2：要求模型重试，给予一次修正机会
            return retry("请以更安全、中立的方式重新生成回答");
        }
        return OutputGuardrailResult.success();
    }
}
// 使用注解将Guardrail应用于整个AI服务
@InputGuardrails(SensitiveInputGuardrail.class)
@OutputGuardrails(ContentSafetyOutputGuardrail.class)
public interface MyAIService {
    String chat(String userMessage);
}
public static void main(String[] args) {
    ChatModel chatModel = OpenAiChatModel.builder()
            .baseUrl(BASE_URL)
            .apiKey(API_KEY)
            .modelName("hunyuan-turbo")
            .build();
    MyAIService myAI = AiServices.builder(MyAIService.class)
            .chatModel(chatModel)
            // 使用注解或构造器的方式指定Guardrail
            // .inputGuardrails(new SensitiveInputGuardrail())
            // .outputGuardrails(new ContentSafetyOutputGuardrail())
            .build();
}

ChatModel chatModel = OpenAiChatModel.builder()
        .baseUrl(BASE_URL)
        .apiKey(API_KEY)
        .modelName("hunyuan-ocr")          // 设置模型名称，需支持多模态
        .build();
byte[] imageBytes = Files.readAllBytes(Paths.get(IMAGE_PATH));
String base64ImageData = Base64.getEncoder().encodeToString(imageBytes);
// 创建包含文本和图片内容的用户消息
// 使用 TextContent 和 ImageContent 组合构建多模态消息
UserMessage userMessage = UserMessage.from(
        TextContent.from("描述图片的内容"),
        ImageContent.from(base64ImageData, "image/png"));
ChatResponse chat = chatModel.chat(userMessage);

public static void main(String[] args) throws GraphStateException {
    StateGraph<AgentState> graph = new StateGraph<>(AgentState::new);
    // 添加节点，node_async表示同步执行
    graph.addNode("input_node", AsyncNodeAction.node_async(state -> {
        System.out.println("[input_node] 接收到状态: " + state.data());
        // 返回要更新的数据，默认规则与上一个节点的数据合并
        return Map.of("input_node", "input_node");
    }));
    graph.addNode("process_node", AsyncNodeAction.node_async(state -> {
        System.out.println("[process_node] 接收到状态: " + state.data());
        return Map.of("process_node", "process_node");
    }));
    // 添加边， START -> input_node -> process_node -> END
    graph.addEdge(StateGraph.START, "input_node");
    graph.addEdge("input_node", "process_node");
    graph.addEdge("process_node", StateGraph.END);
    // 编译图
    CompiledGraph<AgentState> compile = graph.compile();

    // 初始状态
    Map<String, Object> initialData = new HashMap<>();
    initialData.put("init_data", "init_data");
    // 执行图
    Optional<AgentState> invoke = compile.invoke(initialData);
    invoke.ifPresent(state -> System.out.println("最终状态: " + state.data()));
}

public static void main(String[] args) throws GraphStateException {
    // 定义Channels，指定每个状态字段的合并策略
    Map<String, Channel<?>> channels = new LinkedHashMap<>();
    // 集合追加
    channels.put("messages", Channels.appender(ArrayList::new));
    // 返回两数之和
    channels.put("counter", Channels.base(Integer::sum, () -> 0));
    // 返回最大值
    channels.put("max_score", Channels.base(Math::max, () -> 0));
    // 创建图，并指定状态字段合并策略
    StateGraph<AgentState> graph = new StateGraph<>(channels, AgentState::new);
    // 添加节点
    graph.addNode("node1", AsyncNodeAction.node_async(state -> {
        System.out.println("node1 -> " + state);
        return Map.of("messages", "node1", "counter", 3, "max_score", 85, "current_step", "node2");
    }));
    graph.addNode("node2", AsyncNodeAction.node_async(state -> {
        System.out.println("node2 -> " + state);
        return Map.of("messages", "node2", "counter", 5, "max_score", 72, "current_step", "node2");
    }));
    graph.addNode("node3", AsyncNodeAction.node_async(state -> {
        System.out.println("node3 -> " + state);
        return Map.of("messages", "node3", "counter", 2, "max_score", 95, "current_step", "node3");
    }));
    // 添加边
    graph.addEdge(StateGraph.START, "node1");
    graph.addEdge("node1", "node2");
    graph.addEdge("node2", "node3");
    graph.addEdge("node3", StateGraph.END);
    // 编译并执行
    CompiledGraph<AgentState> compile = graph.compile();
    compile.invoke(new HashMap<>()).ifPresent(state -> {
        System.out.println("final state: " + state);
    });
}

public static void main(String[] args) throws GraphStateException {
    StateGraph<AgentState> graph = new StateGraph<>(AgentState::new);

    // 添加节点、其他边...

    // 定义条件映射关系，key为条件，value为目标节点名
    Map<String, String> mappings = new HashMap<>();
    mappings.put("pass", "pass_handler");
    mappings.put("fail", "fail_handler");
    graph.addConditionalEdges("node", agentState -> {
        // 自定义路由条件...
        // 通过State中获取条件，然后判断需要路由的下一个节点
        int score = (Integer) agentState.value("score").orElse(0);
        return CompletableFuture.completedFuture(score >= 90 ? "pass" : "fail");
    }, mappings);
}

public static void main(String[] args) throws GraphStateException {
    // 定义检查点保存器
    MemorySaver checkpoint = new MemorySaver();
    CompileConfig config = CompileConfig.builder()
            .checkpointSaver(checkpoint)
            .build();
    StateGraph<AgentState> graph = new StateGraph<>( AgentState::new);

    // 添加节点、边...

    // 编译图时指定检查点保存器
    CompiledGraph<AgentState> compile = graph.compile(config);
    compile.invoke(new HashMap<>());
}

public static void main(String[] args) throws Exception {
    MemorySaver checkpointer = new MemorySaver();
    StateGraph<AgentState> graph = new StateGraph<>(AgentState::new);
    // 节点1: 接收用户问题
    graph.addNode("receive_question", AsyncNodeAction.node_async(state -> {
        // 业务逻辑...
        return Map.of("status", "received", "timestamp", System.currentTimeMillis());
    }));
    // 节点2: AI尝试回答
    graph.addNode("ai_answer", AsyncNodeAction.node_async(state -> {
        // 业务逻辑...
        return Map.of("status", "ai_answered", "ai_response", "转人工", "confidence", 40);
    }));
    // 节点3: 人工介入
    graph.addNode("human_agent", AsyncNodeAction.node_async(state -> {
        // 业务逻辑...
        return Map.of("human_response", "人工回复...", "handled_by", "human", "status", "human_handled");
    }));
    // 节点4: 完成并汇总
    graph.addNode("complete", AsyncNodeAction.node_async(state -> {
        // 业务逻辑...
        return Map.of("status", "completed", "completion_time", System.currentTimeMillis());
    }));
    // 添加边
    graph.addEdge(StateGraph.START, "receive_question");
    graph.addEdge("receive_question", "ai_answer");
    // 条件边：根据AI置信度决定是否需要人工
    graph.addConditionalEdges(
            "ai_answer",
            state -> CompletableFuture.completedFuture(
                    (Integer) state.value("confidence").orElse(0) < 60 ? "human" : "complete"
            ),
            Map.of("human", "human_agent", "complete", "complete")
    );
    graph.addEdge("human_agent", "complete");
    graph.addEdge("complete", StateGraph.END);
    // 配置：在human_agent执行前前中断
    CompileConfig config = CompileConfig.builder()
            .checkpointSaver(checkpointer)
            .interruptBefore("human_agent")
            .build();
    CompiledGraph<AgentState> compile = graph.compile(config);
    RunnableConfig runnableConfig = RunnableConfig.builder().threadId("thread1").build();
    // 首次执行，执行human_agent前会中断
    Optional<AgentState> invoke = compile.invoke(Map.of("user_question", "如何退款？"), runnableConfig);
    invoke.ifPresent(state -> System.out.println("final state: " + state));
    // 模拟用户输入....
    Map<String, Object> humanInput = new HashMap<>();
    humanInput.put("human_response", "人工回复");
    humanInput.put("agent_name", "human_agent");
    RunnableConfig updatedConfig2 = compile.updateState(runnableConfig, humanInput);
    // 用户输入后再次执行，从human_agent开始执行
    Optional<AgentState> invoke1 = compile.invoke(null, updatedConfig2);
    invoke1.ifPresent(state -> System.out.println("final state: " + state));
}
