自定义 MyBatis 插件，让 SQL 查询与 Milvus Java SDK 完美融合

javpower

发布于 2025-11-17 19:25:13

880

自定义 MyBatis 插件，让 SQL 查询与 Milvus Java SDK 完美融合

概念与架构

MyBatis 插件机制深度解析

MyBatis 插件本质上是一种基于 Java 动态代理和责任链模式的拦截器机制，其核心原理是通过拦截器（Interceptor）对 MyBatis 四大核心组件（Executor、StatementHandler、ParameterHandler、ResultSetHandler）的方法调用进行拦截和增强。具体实现需通过 @Intercepts 和 @Signature 注解声明拦截目标，并实现 Interceptor 接口的 intercept 方法。

技术实现要点：

拦截时机：可在 SQL 执行前（参数处理）、执行中（语句执行）或执行后（结果集映射）插入自定义逻辑
代理链构建：通过 Plugin.wrap() 方法创建代理对象，形成嵌套代理链
元数据访问：通过 MappedStatement 获取执行的 SQL 类型、ID 等元数据
参数修改：可直接修改 BoundSql 中的原始 SQL 和参数映射

@Intercepts({
    @Signature(type = Executor.class, method = "query",
               args = {MappedStatement.class, Object.class, RowBounds.class, ResultHandler.class})
})
public class VectorSearchInterceptor implements Interceptor {
    @Override
    public Object intercept(Invocation invocation) throws Throwable {
        // 拦截逻辑实现
        MappedStatement ms = (MappedStatement) invocation.getArgs()[0];
        Object parameter = invocation.getArgs()[1];
        // 解析并增强原始 SQL
        return enhancedQuery(invocation, ms, parameter);
    }
}

Milvus 向量数据库核心技术剖析

Milvus 作为专为向量相似度搜索设计的分布式数据库，其架构核心包含以下几个关键组件：

1. 数据模型与存储引擎

集合（Collection）：类比关系数据库的表，包含向量字段和标量字段
分区（Partition）：支持数据物理分片，提升查询并行度
段（Segment）：数据持久化的最小单元，支持自动合并与压缩

2. 索引与搜索算法

近似最近邻搜索（ANNS）：支持 HNSW、IVF_FLAT、IVF_PQ 等多种索引类型
度量方式：支持 L2 距离、内积、杰卡德相似度等多种相似度计算
混合查询：支持向量相似度过滤与标量属性过滤的组合查询

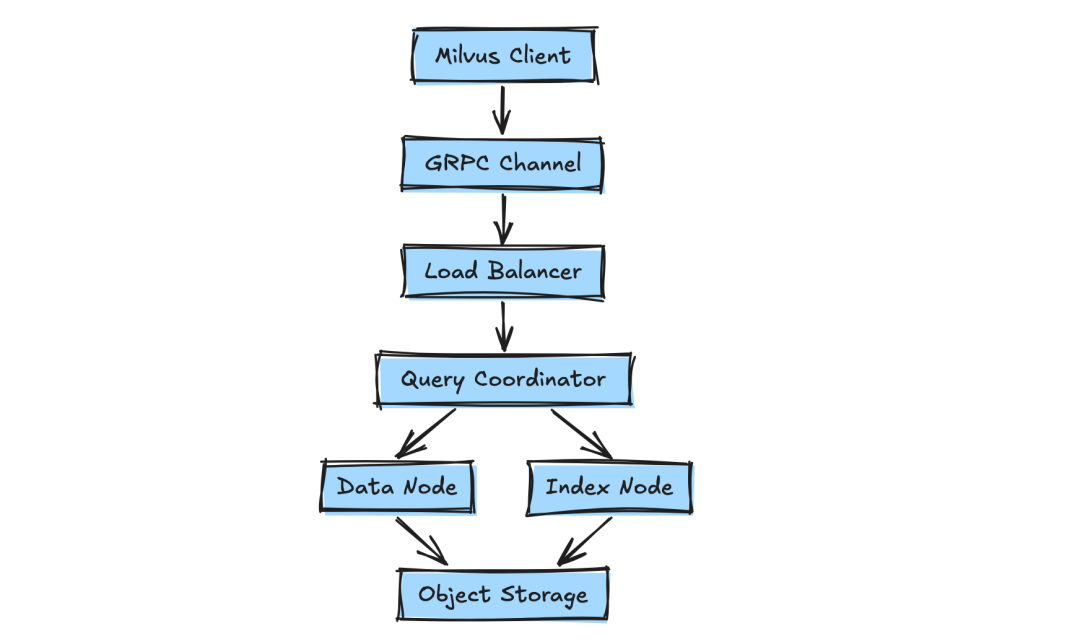

3. Java SDK 架构设计

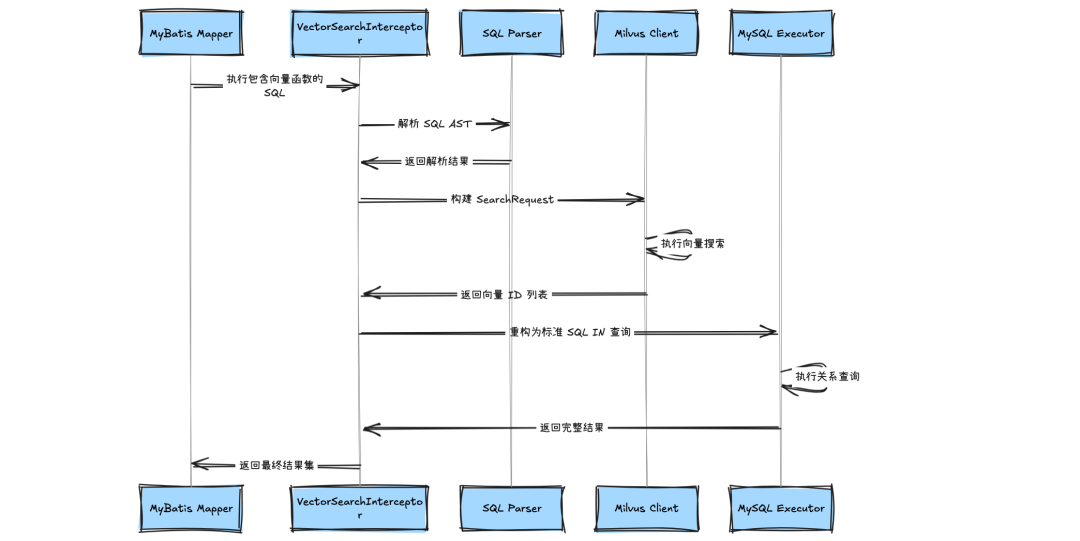

融合架构设计：SQL 与向量搜索的无缝集成

架构设计目标：

保持 MyBatis 原生开发体验，无需修改现有 DAO 层代码
实现传统关系查询与向量相似度搜索的透明融合
支持动态切换查询模式（纯 SQL/混合查询/纯向量搜索）

核心架构组件：

1. SQL 解析与增强层

基于 JSqlParser 解析原始 SQL 的抽象语法树（AST）
识别自定义的向量搜索函数（如 vector_search(feature_column, query_vector, top_k)）
将向量函数转换为 Milvus SearchRequest 的构建参数

2. 双引擎查询协调器

3. 数据映射与结果合并器

向量搜索结果与关系查询结果的自动关联
支持分页、排序等标准 SQL 特性的统一处理
维护查询上下文，确保事务一致性

技术实现关键点：

动态 SQL 重写策略

public class VectorSQLRewriter {
    public String rewrite(String originalSQL, List<Long> vectorIds) {
        // 将 vector_search() 函数替换为标准的 IN 查询
        // 示例：WHERE vector_search(features, ?, 10) AND category = 'A'
        // 重写为：WHERE id IN (?,?,...) AND category = 'A'
    }
}

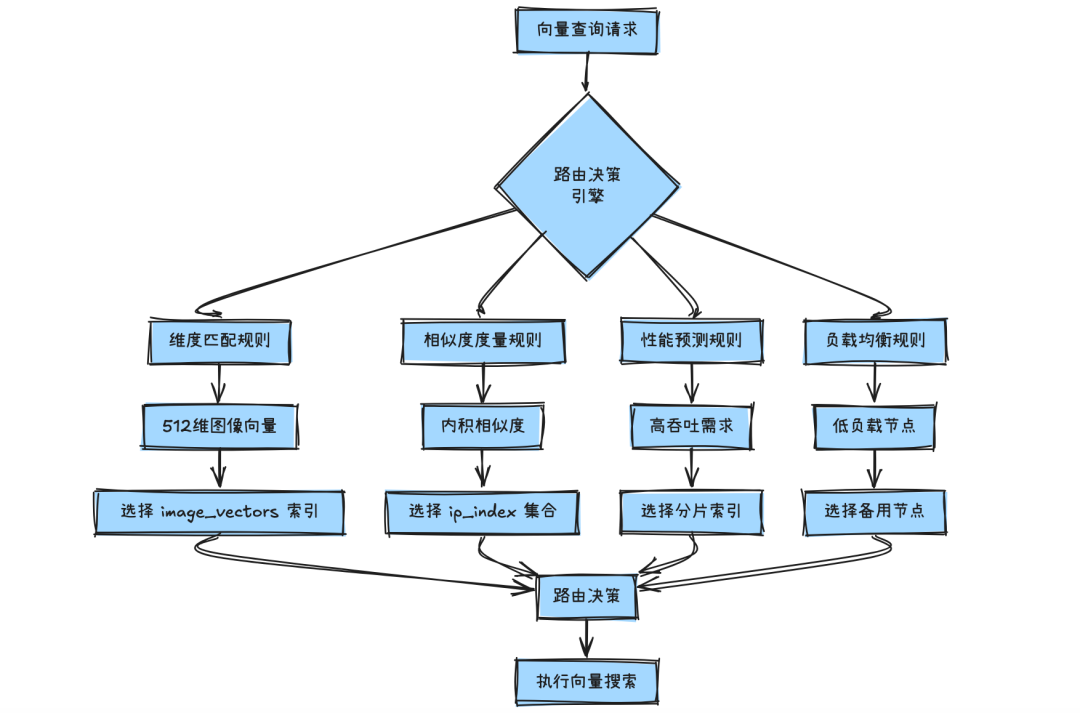

混合查询优化器

根据查询条件自动选择最优执行路径
支持向量搜索结果的二次过滤（标量条件）
实现查询结果的智能缓存机制

性能考量与优化策略

向量搜索与关系查询的并行执行
连接池管理与资源复用
批量操作的支持与优化

这种架构设计不仅保持了 MyBatis 开发的简洁性，还充分利用了 Milvus 的高性能向量搜索能力，为传统关系型数据库注入了 AI 原生能力，实现了从"数据查询"到"智能检索"的范式转变。

实现

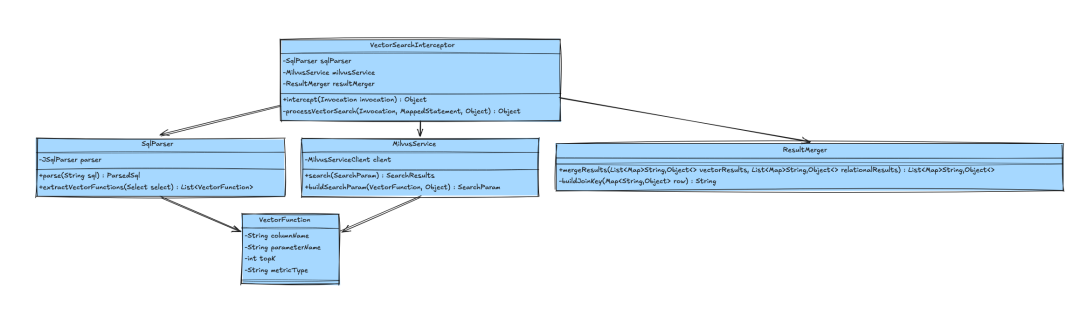

插件核心实现架构

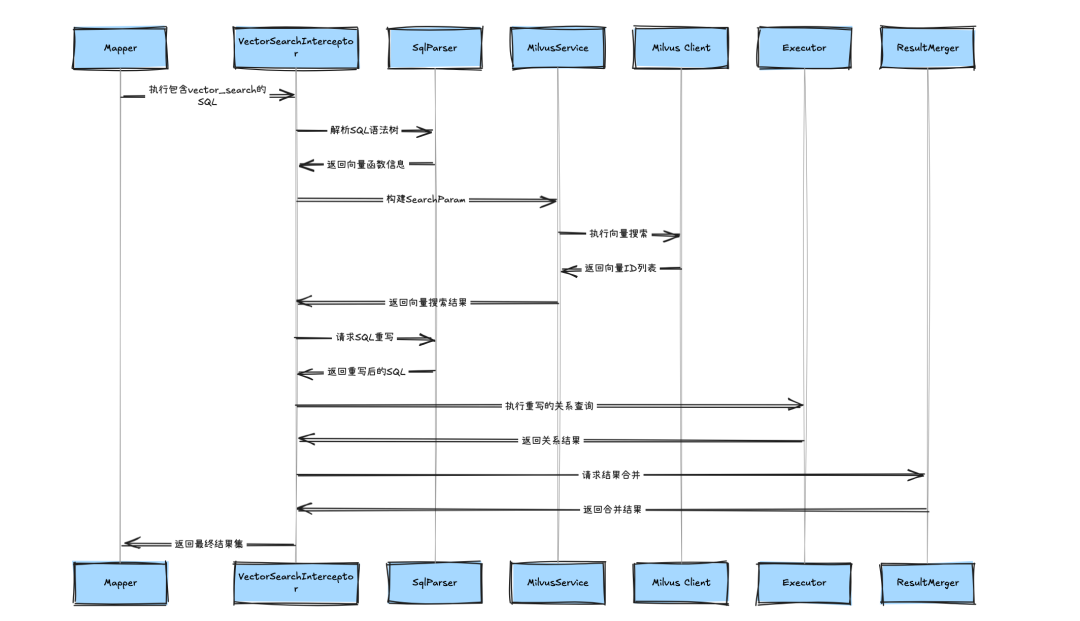

在深入代码实现之前，我们需要构建完整的插件架构。该架构围绕 VectorSearchInterceptor 核心拦截器展开，通过多个协作类完成从 SQL 拦截到向量搜索再到结果映射的完整流程。

拦截器核心实现

VectorSearchInterceptor 是整个插件的入口点，负责拦截 MyBatis 的查询执行流程。

@Intercepts({
    @Signature(type = Executor.class, method = "query",
               args = {MappedStatement.class, Object.class, RowBounds.class, ResultHandler.class}),
    @Signature(type = Executor.class, method = "query",
               args = {MappedStatement.class, Object.class, RowBounds.class, ResultHandler.class, CacheKey.class, BoundSql.class})
})
@Component
@Slf4j
public class VectorSearchInterceptor implements Interceptor {

    @Autowired
    private SqlParser sqlParser;

    @Autowired
    private MilvusService milvusService;

    @Autowired
    private ResultMerger resultMerger;

    privatefinal ThreadLocal<Boolean> inProcessing = ThreadLocal.withInitial(() -> false);

    @Override
    public Object intercept(Invocation invocation) throws Throwable {
        // 防止递归拦截
        if (inProcessing.get()) {
            return invocation.proceed();
        }

        try {
            inProcessing.set(true);
            MappedStatement ms = (MappedStatement) invocation.getArgs()[0];
            Object parameter = invocation.getArgs()[1];

            // 获取原始SQL
            BoundSql boundSql = ms.getBoundSql(parameter);
            String originalSql = boundSql.getSql();

            // 解析SQL，检测是否包含向量搜索函数
            ParsedSql parsedSql = sqlParser.parse(originalSql);
            if (!parsedSql.hasVectorFunctions()) {
                return invocation.proceed();
            }

            log.debug("检测到向量搜索SQL: {}", originalSql);
            return processVectorSearch(invocation, ms, parameter, parsedSql);

        } finally {
            inProcessing.set(false);
        }
    }

    private Object processVectorSearch(Invocation invocation, MappedStatement ms,
                                     Object parameter, ParsedSql parsedSql) throws Exception {
        // 提取向量函数信息
        List<VectorFunction> vectorFunctions = parsedSql.getVectorFunctions();

        // 执行向量搜索获取ID列表
        List<Long> vectorIds = executeVectorSearch(vectorFunctions, parameter, boundSql);

        // 重写SQL，将向量函数替换为IN查询
        String rewrittenSql = sqlParser.rewriteSql(parsedSql, vectorIds);

        // 创建新的BoundSql执行关系查询
        BoundSql newBoundSql = createNewBoundSql(ms, boundSql, rewrittenSql, parameter);

        // 替换invocation参数
        Object[] args = invocation.getArgs();
        args[0] = copyMappedStatement(ms, newBoundSql);

        // 执行重写后的SQL
        List<Map<String, Object>> relationalResults = (List<Map<String, Object>>) invocation.proceed();

        // 合并向量搜索结果和关系查询结果
        return resultMerger.mergeResults(vectorSearchResults, relationalResults);
    }
}

SQL 解析与向量函数识别

SqlParser 负责解析原始 SQL，识别其中的向量搜索函数，并在获取向量搜索结果后重写 SQL。

@Component
publicclass SqlParser {

    privatefinal CCJSqlParserManager parser = new CCJSqlParserManager();

    public ParsedSql parse(String sql) throws JSQLParserException {
        Statement statement = parser.parse(new StringReader(sql));

        if (!(statement instanceof Select)) {
            thrownew IllegalArgumentException("仅支持SELECT语句的向量搜索");
        }

        Select select = (Select) statement;
        ParsedSql parsedSql = new ParsedSql();
        parsedSql.setOriginalSql(sql);
        parsedSql.setSelect(select);

        // 提取向量函数
        List<VectorFunction> vectorFunctions = extractVectorFunctions(select);
        parsedSql.setVectorFunctions(vectorFunctions);

        return parsedSql;
    }

    private List<VectorFunction> extractVectorFunctions(Select select) {
        List<VectorFunction> functions = new ArrayList<>();
        SelectBody selectBody = select.getSelectBody();

        if (selectBody instanceof PlainSelect) {
            PlainSelect plainSelect = (PlainSelect) selectBody;
            WhereClauseVisitor visitor = new WhereClauseVisitor();
            plainSelect.getWhere().accept(visitor);
            functions = visitor.getVectorFunctions();
        }

        return functions;
    }

    public String rewriteSql(ParsedSql parsedSql, List<Long> vectorIds) {
        Select select = parsedSql.getSelect();
        SqlRewriteVisitor rewriteVisitor = new SqlRewriteVisitor(vectorIds);
        select.accept(rewriteVisitor);
        return select.toString();
    }

    // 自定义Visitor用于识别WHERE子句中的向量函数
    privatestaticclass WhereClauseVisitor extends ExpressionVisitorAdapter {
        privatefinal List<VectorFunction> vectorFunctions = new ArrayList<>();

        @Override
        public void visit(Function function) {
            if ("vector_search".equalsIgnoreCase(function.getName())) {
                VectorFunction vf = parseVectorFunction(function);
                vectorFunctions.add(vf);
            }
        }

        private VectorFunction parseVectorFunction(Function function) {
            VectorFunction vf = new VectorFunction();
            List<Expression> parameters = function.getParameters().getExpressions();

            // 解析参数：column_name, query_vector, top_k, [metric_type]
            if (parameters.size() >= 3) {
                vf.setColumnName(extractColumnName(parameters.get(0)));
                vf.setParameterName(extractParameterName(parameters.get(1)));
                vf.setTopK(extractTopK(parameters.get(2)));

                if (parameters.size() > 3) {
                    vf.setMetricType(extractMetricType(parameters.get(3)));
                }
            }

            return vf;
        }
    }
}

Milvus 服务集成层

MilvusService 封装了与 Milvus Java SDK 的交互，负责构建搜索参数并执行向量查询。

@Service
@Slf4j
publicclass MilvusService {

    @Value("${milvus.collection.name:default_collection}")
    private String collectionName;

    @Autowired
    private MilvusServiceClient milvusClient;

    public List<Long> search(SearchParam searchParam) {
        try {
            R<SearchResults> response = milvusClient.search(searchParam);

            if (response.getStatus() != R.Status.Success.getCode()) {
                thrownew RuntimeException("Milvus搜索失败: " + response.getMessage());
            }

            SearchResults results = response.getData();
            return extractEntityIds(results);

        } catch (Exception e) {
            log.error("Milvus向量搜索异常", e);
            thrownew RuntimeException("向量搜索执行失败", e);
        }
    }

    public SearchParam buildSearchParam(VectorFunction vectorFunction,
                                      Object parameterObject,
                                      Map<String, Object> additionalParams) {

        List<?> queryVectors = resolveQueryVector(vectorFunction, parameterObject, additionalParams);

        String expr = buildFilterExpression(additionalParams);

        List<String> outputFields = Arrays.asList("id", vectorFunction.getColumnName());

        SearchParam searchParam = SearchParam.newBuilder()
            .withCollectionName(collectionName)
            .withMetricType(vectorFunction.getMetricType())
            .withTopK(vectorFunction.getTopK())
            .withVectors(queryVectors)
            .withVectorFieldName(vectorFunction.getColumnName())
            .withExpr(expr)
            .withOutFields(outputFields)
            .withParams(buildSearchParams(vectorFunction))
            .build();

        return searchParam;
    }

    private List<?> resolveQueryVector(VectorFunction vectorFunction,
                                     Object parameterObject,
                                     Map<String, Object> additionalParams) {
        // 从MyBatis参数中解析查询向量
        // 支持多种参数类型：Map、实体对象、@Param注解参数等
        String paramName = vectorFunction.getParameterName();
        Object vectorValue = ParameterResolver.resolve(parameterObject, paramName);

        if (vectorValue == null) {
            thrownew IllegalArgumentException("未找到向量参数: " + paramName);
        }

        return convertToVectorList(vectorValue);
    }

    private List<Long> extractEntityIds(SearchResults results) {
        List<Long> ids = new ArrayList<>();
        for (QueryResultsWrapper wrapper : results) {
            List<Long> chunkIds = wrapper.getFieldData("id", 0).get(Long.class);
            ids.addAll(chunkIds);
        }
        return ids;
    }
}

结果合并与映射处理

ResultMerger 负责将向量搜索结果与关系查询结果进行智能合并，确保数据一致性。

@Service
publicclass ResultMerger {

    public List<Map<String, Object>> mergeResults(List<SearchResults> vectorResults,
                                                List<Map<String, Object>> relationalResults) {
        if (vectorResults == null || vectorResults.isEmpty()) {
            return relationalResults;
        }

        // 构建向量结果的ID到完整数据的映射
        Map<Long, Map<String, Object>> vectorResultMap = buildVectorResultMap(vectorResults);

        // 按照ID关联合并结果
        List<Map<String, Object>> mergedResults = new ArrayList<>();
        for (Map<String, Object> relationalRow : relationalResults) {
            Long entityId = (Long) relationalRow.get("id");
            Map<String, Object> vectorData = vectorResultMap.get(entityId);

            if (vectorData != null) {
                Map<String, Object> mergedRow = new LinkedHashMap<>();
                // 优先使用关系查询的结果，补充向量数据
                mergedRow.putAll(relationalRow);
                mergedRow.putAll(vectorData);
                mergedResults.add(mergedRow);
            }
        }

        // 根据向量相似度排序
        return sortBySimilarity(mergedResults);
    }

    private Map<Long, Map<String, Object>> buildVectorResultMap(List<SearchResults> vectorResults) {
        Map<Long, Map<String, Object>> resultMap = new HashMap<>();

        for (SearchResults results : vectorResults) {
            for (QueryResultsWrapper wrapper : results) {
                List<Long> ids = wrapper.getFieldData("id", 0).get(Long.class);
                List<Float> distances = wrapper.getScores();

                for (int i = 0; i < ids.size(); i++) {
                    Map<String, Object> vectorData = new HashMap<>();
                    vectorData.put("id", ids.get(i));
                    vectorData.put("similarity_score", 1 - distances.get(i)); // 转换为相似度分数
                    resultMap.put(ids.get(i), vectorData);
                }
            }
        }

        return resultMap;
    }

    private List<Map<String, Object>> sortBySimilarity(List<Map<String, Object>> results) {
        return results.stream()
            .sorted((r1, r2) -> {
                Double score1 = (Double) r1.getOrDefault("similarity_score", 0.0);
                Double score2 = (Double) r2.getOrDefault("similarity_score", 0.0);
                return score2.compareTo(score1); // 降序排列
            })
            .collect(Collectors.toList());
    }
}

参数解析与类型处理

ParameterResolver 负责处理 MyBatis 的各种参数类型，确保正确提取向量参数。

public class ParameterResolver {

    public static Object resolve(Object parameterObject, String paramName) {
        if (parameterObject == null) {
            returnnull;
        }

        if (parameterObject instanceof Map) {
            // 处理@Param注解或Map参数
            return ((Map<?, ?>) parameterObject).get(paramName);
        } elseif (isPrimitiveOrWrapper(parameterObject.getClass())) {
            // 处理基本类型参数
            return parameterObject;
        } else {
            // 处理实体对象参数
            return resolveFromEntity(parameterObject, paramName);
        }
    }

    private static Object resolveFromEntity(Object entity, String fieldName) {
        try {
            Field field = entity.getClass().getDeclaredField(fieldName);
            field.setAccessible(true);
            return field.get(entity);
        } catch (Exception e) {
            // 尝试通过getter方法获取
            String getterName = "get" + capitalize(fieldName);
            try {
                Method getter = entity.getClass().getMethod(getterName);
                return getter.invoke(entity);
            } catch (Exception ex) {
                thrownew IllegalArgumentException("无法解析参数: " + fieldName, ex);
            }
        }
    }

    privatestatic List<?> convertToVectorList(Object vectorValue) {
        if (vectorValue instanceof List) {
            return (List<?>) vectorValue;
        } elseif (vectorValue instanceoffloat[]) {
            return Arrays.stream((float[]) vectorValue)
                       .boxed()
                       .collect(Collectors.toList());
        } elseif (vectorValue instanceofdouble[]) {
            return Arrays.stream((double[]) vectorValue)
                       .boxed()
                       .collect(Collectors.toList());
        } else {
            thrownew IllegalArgumentException("不支持的向量数据类型: " + vectorValue.getClass());
        }
    }
}

配置与注册机制

最后，我们需要在 MyBatis 配置中注册插件，并配置相关的 Bean。

@Configuration
@AutoConfigureAfter(MybatisAutoConfiguration.class)
public class VectorSearchConfig {

    @Bean
    public VectorSearchInterceptor vectorSearchInterceptor() {
        returnnew VectorSearchInterceptor();
    }

    @Bean
    @ConditionalOnMissingBean
    public MilvusServiceClient milvusServiceClient(
            @Value("${milvus.host:localhost}") String host,
            @Value("${milvus.port:19530}") int port) {

        ConnectParam connectParam = ConnectParam.newBuilder()
            .withHost(host)
            .withPort(port)
            .build();

        returnnew MilvusServiceClient(connectParam);
    }
}

// 在MyBatis配置中注册拦截器
@Bean
public ConfigurationCustomizer configurationCustomizer() {
    return configuration -> {
        configuration.addInterceptor(vectorSearchInterceptor());
    };
}

执行流程详解

整个插件的执行流程可以通过以下序列图清晰展示：

通过上述完整实现，我们构建了一个功能完备的 MyBatis 插件，能够无缝集成 SQL 查询与 Milvus 向量搜索。该实现不仅保持了 MyBatis 的原生开发体验，还提供了强大的向量搜索能力，为传统应用注入了 AI 原生能力。

高级特性

动态 SQL 扩展机制

在基础实现之上，我们引入了强大的动态 SQL 扩展机制，使得向量搜索能够与 MyBatis 的动态 SQL 标签无缝协作。这种扩展不仅支持传统的 <if>、<choose> 等标签，还专门针对向量搜索场景设计了智能优化策略。

动态向量参数解析器

@Component
publicclass DynamicVectorParameterResolver {

    public List<VectorSearchCondition> resolveDynamicConditions(
            MappedStatement ms, Object parameter, BoundSql boundSql) {

        List<VectorSearchCondition> conditions = new ArrayList<>();
        SqlNode rootSqlNode = getSqlSourceRoot(ms);

        // 深度优先遍历动态SQL节点树
        traverseSqlNode(rootSqlNode, parameter, conditions, new HashMap<>());

        return optimizeConditions(conditions);
    }

    private void traverseSqlNode(SqlNode node, Object parameter,
                               List<VectorSearchCondition> conditions,
                               Map<String, Object> context) {

        if (node instanceof IfSqlNode) {
            processIfNode((IfSqlNode) node, parameter, conditions, context);
        } elseif (node instanceof ChooseSqlNode) {
            processChooseNode((ChooseSqlNode) node, parameter, conditions, context);
        } elseif (node instanceof ForEachSqlNode) {
            processForEachNode((ForEachSqlNode) node, parameter, conditions, context);
        } elseif (node instanceof MixedSqlNode) {
            processMixedNode((MixedSqlNode) node, parameter, conditions, context);
        }
    }

    private void processIfNode(IfSqlNode ifNode, Object parameter,
                             List<VectorSearchCondition> conditions,
                             Map<String, Object> context) {

        try {
            OgnlClassResolver resolver = new OgnlClassResolver();
            OgnlContext ognlContext = (OgnlContext) Ognl.createDefaultContext(parameter, resolver);

            Boolean testResult = (Boolean) Ognl.getValue(ifNode.getTest(), ognlContext, parameter);
            if (Boolean.TRUE.equals(testResult)) {
                traverseSqlNode(ifNode.getContents(), parameter, conditions, context);
            }
        } catch (OgnlException e) {
            thrownew RuntimeException("动态SQL条件解析失败", e);
        }
    }
}

智能条件优化器

动态 SQL 扩展的核心在于条件优化，系统能够根据查询条件的组合自动选择最优执行路径：

public class VectorConditionOptimizer {

    public ExecutionPlan optimizeExecution(List<VectorSearchCondition> conditions,
                                         QueryStatistics statistics) {

        ExecutionPlan plan = new ExecutionPlan();

        // 分析条件类型分布
        ConditionAnalysis analysis = analyzeConditions(conditions);

        if (analysis.getVectorRatio() > 0.7) {
            // 向量条件占主导，优先执行向量搜索
            plan.setPrimaryExecutor(ExecutorType.VECTOR);
            plan.setSecondaryExecutor(ExecutorType.RELATIONAL);
        } elseif (analysis.getScalarRatio() > 0.7) {
            // 标量条件占主导，优先执行关系查询
            plan.setPrimaryExecutor(ExecutorType.RELATIONAL);
            plan.setSecondaryExecutor(ExecutorType.VECTOR);
        } else {
            // 混合条件，采用并行执行策略
            plan.setPrimaryExecutor(ExecutorType.PARALLEL);
        }

        // 基于历史统计信息调整执行策略
        if (statistics != null) {
            adjustPlanByStatistics(plan, statistics);
        }

        return plan;
    }

    private ConditionAnalysis analyzeConditions(List<VectorSearchCondition> conditions) {
        ConditionAnalysis analysis = new ConditionAnalysis();

        for (VectorSearchCondition condition : conditions) {
            if (condition.isVectorCondition()) {
                analysis.incrementVectorCount();
            } elseif (condition.isScalarCondition()) {
                analysis.incrementScalarCount();
            }

            // 分析条件选择性
            analysis.analyzeSelectivity(condition);
        }

        return analysis;
    }
}

多向量索引智能路由

现代向量搜索场景往往需要在同一系统中处理多种类型的向量数据，我们的插件支持基于多向量索引的智能路由机制。

索引元数据管理

@Service
publicclass VectorIndexRegistry {

    privatefinal Map<String, IndexMetadata> indexMetadataMap = new ConcurrentHashMap<>();
    privatefinal IndexRouter indexRouter;

    @PostConstruct
    public void initialize() {
        refreshIndexMetadata();
        startMetadataRefreshTask();
    }

    public String routeToIndex(VectorSearchContext context) {
        return indexRouter.route(context);
    }

    public IndexMetadata getIndexMetadata(String indexName) {
        return indexMetadataMap.get(indexName);
    }

    private void refreshIndexMetadata() {
        ListCollectionsParam param = ListCollectionsParam.newBuilder().build();
        R<List<String>> response = milvusClient.listCollections(param);

        if (response.getStatus() == R.Status.Success.getCode()) {
            for (String collectionName : response.getData()) {
                loadCollectionMetadata(collectionName);
            }
        }
    }

    private void loadCollectionMetadata(String collectionName) {
        DescribeCollectionParam param = DescribeCollectionParam.newBuilder()
            .withCollectionName(collectionName)
            .build();

        R<DescribeCollectionResponse> response = milvusClient.describeCollection(param);
        if (response.getStatus() == R.Status.Success.getCode()) {
            IndexMetadata metadata = buildIndexMetadata(response.getData());
            indexMetadataMap.put(collectionName, metadata);
        }
    }
}

基于规则的智能路由

动态索引选择算法

public class AdaptiveIndexSelector {

    public SelectedIndex selectOptimalIndex(VectorSearchRequest request,
                                          List<IndexMetadata> candidates) {

        List<IndexScore> scores = candidates.stream()
            .map(index -> calculateIndexScore(index, request))
            .sorted(Comparator.comparing(IndexScore::getScore).reversed())
            .collect(Collectors.toList());

        return scores.get(0).getIndex();
    }

    private IndexScore calculateIndexScore(IndexMetadata index, VectorSearchRequest request) {
        double score = 0.0;

        // 维度匹配度 (权重: 0.3)
        score += 0.3 * calculateDimensionScore(index, request);

        // 度量类型匹配度 (权重: 0.25)
        score += 0.25 * calculateMetricScore(index, request);

        // 性能预测分数 (权重: 0.25)
        score += 0.25 * calculatePerformanceScore(index, request);

        // 负载均衡分数 (权重: 0.2)
        score += 0.2 * calculateLoadScore(index);

        returnnew IndexScore(index, score);
    }

    private double calculateDimensionScore(IndexMetadata index, VectorSearchRequest request) {
        int indexDim = index.getDimension();
        int requestDim = request.getVectorDimension();

        if (indexDim == requestDim) {
            return1.0;
        } else {
            return1.0 - (Math.abs(indexDim - requestDim) / (double) Math.max(indexDim, requestDim));
        }
    }
}

分布式错误处理与重试机制

在分布式环境中，健壮的错误处理是保证系统可靠性的关键。我们实现了分层的错误处理策略。

错误分类与处理策略

public enum ErrorCategory {
    NETWORK_ERROR(1, "网络通信错误", RetryStrategy.EXPONENTIAL_BACKOFF),
    TIMEOUT_ERROR(2, "请求超时错误", RetryStrategy.FIXED_DELAY),
    RATE_LIMIT_ERROR(3, "限流错误", RetryStrategy.EXPONENTIAL_BACKOFF),
    DATA_ERROR(4, "数据格式错误", RetryStrategy.NO_RETRY),
    SERVER_ERROR(5, "服务器内部错误", RetryStrategy.FIXED_DELAY),
    UNKNOWN_ERROR(6, "未知错误", RetryStrategy.NO_RETRY);

    privatefinalint code;
    privatefinal String description;
    privatefinal RetryStrategy defaultStrategy;

}

@Component
publicclass ErrorHandler {

    privatefinal Map<ErrorCategory, ErrorHandlerStrategy> strategies;
    privatefinal CircuitBreaker circuitBreaker;

    public <T> T executeWithRetry(Supplier<T> operation, String operationName) {
        int attempt = 0;
        Exception lastException = null;

        while (attempt < getMaxRetries()) {
            try {
                // 检查熔断器状态
                if (!circuitBreaker.allowRequest()) {
                    thrownew CircuitBreakerOpenException("熔断器已开启");
                }

                T result = operation.get();
                circuitBreaker.recordSuccess();
                return result;

            } catch (Exception e) {
                lastException = e;
                attempt++;

                ErrorCategory category = classifyError(e);
                if (!shouldRetry(category, attempt)) {
                    break;
                }

                circuitBreaker.recordFailure();
                waitBeforeRetry(category, attempt);
            }
        }

        thrownew OperationFailedException("操作失败 after " + attempt + " 次重试", lastException);
    }

    private ErrorCategory classifyError(Exception e) {
        if (e instanceof ConnectException || e instanceof SocketTimeoutException) {
            return ErrorCategory.NETWORK_ERROR;
        } elseif (e instanceof TimeoutException) {
            return ErrorCategory.TIMEOUT_ERROR;
        } elseif (e instanceof RpcException) {
            RpcException rpcException = (RpcException) e;
            if (rpcException.getStatus().getCode() == Status.Code.RESOURCE_EXHAUSTED) {
                return ErrorCategory.RATE_LIMIT_ERROR;
            }
        }

        return ErrorCategory.UNKNOWN_ERROR;
    }
}

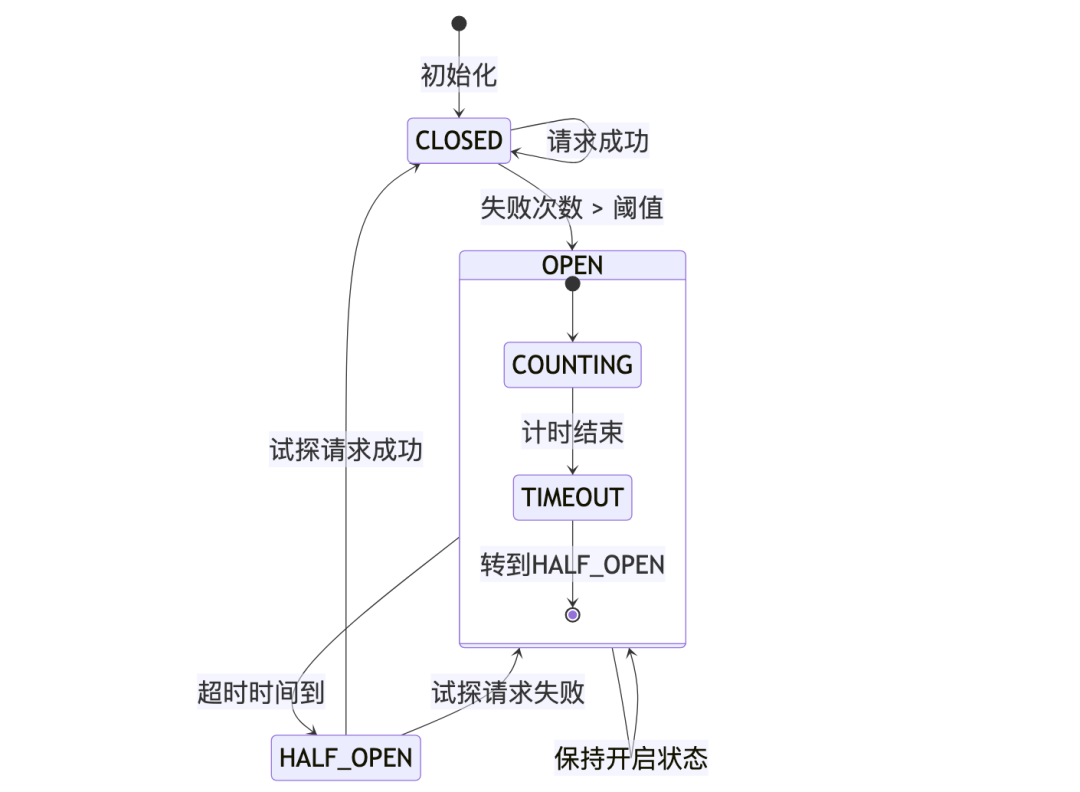

熔断器状态管理

分布式事务一致性保障

在混合查询场景中，保证向量搜索与关系查询的事务一致性是极具挑战性的任务。我们通过多阶段的协调机制来实现最终一致性。

混合事务协调器

@Component
publicclass HybridTransactionCoordinator {

    privatefinal VectorTransactionManager vectorTM;
    privatefinal RelationalTransactionManager relationalTM;
    privatefinal TransactionLogStore logStore;

    public <T> T executeInHybridTransaction(TransactionCallback<T> callback) {
        String transactionId = generateTransactionId();
        TransactionContext context = new TransactionContext(transactionId);

        try {
            // 阶段1: 预执行检查
            preExecuteCheck(context);

            // 阶段2: 并行执行
            CompletableFuture<VectorTransaction> vectorFuture =
                CompletableFuture.supplyAsync(() -> vectorTM.beginTransaction(context));

            CompletableFuture<RelationalTransaction> relationalFuture =
                CompletableFuture.supplyAsync(() -> relationalTM.beginTransaction(context));

            CompletableFuture.allOf(vectorFuture, relationalFuture).join();

            // 阶段3: 业务逻辑执行
            T result = callback.doInTransaction(context);

            // 阶段4: 两阶段提交
            if (shouldCommit(context)) {
                commitTransaction(vectorFuture.get(), relationalFuture.get(), context);
            } else {
                rollbackTransaction(vectorFuture.get(), relationalFuture.get(), context);
            }

            return result;

        } catch (Exception e) {
            // 阶段5: 异常处理与恢复
            handleTransactionException(context, e);
            thrownew TransactionException("混合事务执行失败", e);
        }
    }

    private void commitTransaction(VectorTransaction vt,
                                 RelationalTransaction rt,
                                 TransactionContext context) {

        // 阶段4.1: 预提交
        vectorTM.prepareCommit(vt);
        relationalTM.prepareCommit(rt);

        // 阶段4.2: 提交
        try {
            vectorTM.commit(vt);
            relationalTM.commit(rt);
            logStore.logTransactionSuccess(context.getTransactionId());
        } catch (Exception e) {
            // 阶段4.3: 提交失败处理
            handleCommitFailure(vt, rt, context, e);
        }
    }
}

一致性状态追踪

public class ConsistencyTracker {

    privatefinal Map<String, QueryConsistency> consistencyMap = new ConcurrentHashMap<>();
    privatefinal ConsistencyVerifier verifier;

    public void trackQueryExecution(String queryId, List<ExecutionStep> steps) {
        QueryConsistency consistency = new QueryConsistency(queryId);

        for (ExecutionStep step : steps) {
            consistency.addStep(step);

            // 实时验证一致性
            if (needsImmediateVerification(step)) {
                VerificationResult result = verifier.verifyStepConsistency(step);
                if (!result.isConsistent()) {
                    triggerConsistencyRepair(consistency, step, result);
                }
            }
        }

        consistencyMap.put(queryId, consistency);
    }

    public void verifyFinalConsistency(String queryId) {
        QueryConsistency consistency = consistencyMap.get(queryId);
        if (consistency == null) return;

        CompletableFuture<VerificationResult> vectorFuture =
            CompletableFuture.supplyAsync(() ->
                verifier.verifyVectorResults(consistency));

        CompletableFuture<VerificationResult> relationalFuture =
            CompletableFuture.supplyAsync(() ->
                verifier.verifyRelationalResults(consistency));

        try {
            CompletableFuture.allOf(vectorFuture, relationalFuture).get(30, TimeUnit.SECONDS);

            VerificationResult vectorResult = vectorFuture.get();
            VerificationResult relationalResult = relationalFuture.get();

            if (!vectorResult.isConsistent() || !relationalResult.isConsistent()) {
                scheduleConsistencyRepair(consistency, vectorResult, relationalResult);
            }

        } catch (TimeoutException e) {
            log.warn("一致性验证超时，将异步处理: {}", queryId);
            scheduleAsyncVerification(queryId);
        } catch (Exception e) {
            log.error("一致性验证异常: {}", queryId, e);
        }
    }
}

性能监控与自适应优化

为了确保系统长期稳定运行，我们实现了全面的性能监控和自适应优化机制。

运行时指标收集

@Component
publicclass PerformanceMonitor {

    privatefinal MetricsRegistry registry;
    privatefinal List<PerformanceAlert> alerts;

    @EventListener
    public void onQueryExecution(QueryExecutionEvent event) {
        // 收集执行时间指标
        registry.timer("query.execution.time")
               .record(event.getExecutionTime(), TimeUnit.MILLISECONDS);

        // 收集资源使用指标
        registry.gauge("query.memory.usage", event.getMemoryUsage());
        registry.gauge("query.cpu.usage", event.getCpuUsage());

        // 检查性能异常
        checkPerformanceAnomalies(event);
    }

    private void checkPerformanceAnomalies(QueryExecutionEvent event) {
        for (PerformanceAlert alert : alerts) {
            if (alert.shouldTrigger(event)) {
                handlePerformanceAlert(alert, event);

                // 触发自适应优化
                if (alert.requiresOptimization()) {
                    adaptiveOptimizer.optimize(alert.getOptimizationContext());
                }
            }
        }
    }
}

@Component
publicclass AdaptiveOptimizer {

    public void optimize(OptimizationContext context) {
        // 基于历史数据的学习优化
        OptimizationPlan plan = learningOptimizer.generatePlan(context);

        // 执行优化措施
        executeOptimizationPlan(plan);

        // 验证优化效果
        validateOptimizationEffect(plan);
    }

    private void executeOptimizationPlan(OptimizationPlan plan) {
        for (OptimizationAction action : plan.getActions()) {
            switch (action.getType()) {
                case INDEX_REBUILD:
                    rebuildIndex(action.getParameters());
                    break;
                case CACHE_ADJUSTMENT:
                    adjustCacheStrategy(action.getParameters());
                    break;
                case QUERY_REWRITE:
                    updateQueryRewriteRules(action.getParameters());
                    break;
                case RESOURCE_REALLOCATION:
                    reallocateResources(action.getParameters());
                    break;
            }
        }
    }
}

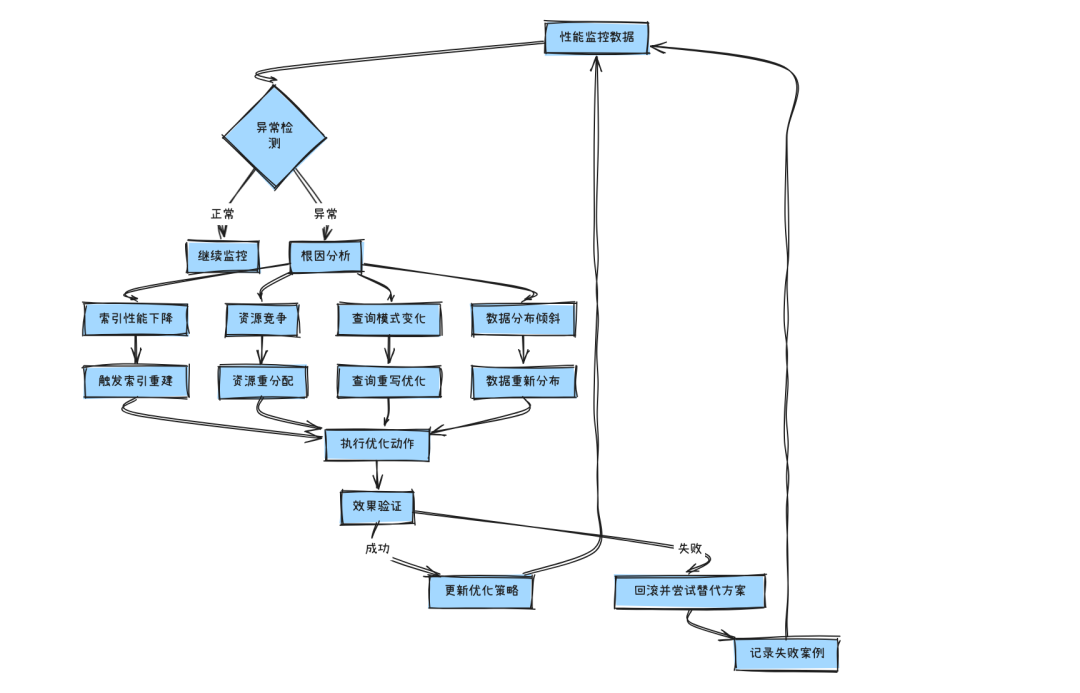

自适应优化决策流程
