脚本复习--高精度空转（Xenium、CosMx）的细胞邻域分析（R版本）

#zhaoyunfei
###20251109

library(dplyr)
library(tidyr)
library(ggplot2)
library(sp)
library(reshape2)

# 设置参数
neighborhood_radius <- 80  # 邻域半径 80 μm

xenium_data <- readRDS("xenium_data.rds")

# 提取坐标和细胞类型信息
# 坐标在obj@meta.data的x,y列，细胞类型在celltype列
coordinates <- xenium_data@meta.data[, c("x", "y")]
celltypes <- xenium_data@meta.data$celltype

# 为每个细胞创建唯一标识符
cell_ids <- rownames(xenium_data@meta.data)

# 函数：计算两个点之间的欧几里得距离
calculate_distance <- function(point1, point2) {
  sqrt((point1[1] - point2[1])^2 + (point1[2] - point2[2])^2)
}

# 函数：找到指定细胞周围80μm内的邻居细胞
find_neighbors <- function(center_cell_index, coordinates, radius) {
  center_coord <- coordinates[center_cell_index, ]
  distances <- apply(coordinates, 1, function(coord) {
    calculate_distance(center_coord, coord)
  })
  neighbor_indices <- which(distances <= radius & distances > 0)  # 排除自身
  return(neighbor_indices)
}

# 创建细胞状态计数函数
count_cell_states <- function(neighbor_indices, celltypes) {
  neighbor_celltypes <- celltypes[neighbor_indices]
  celltype_table <- table(neighbor_celltypes)
  return(celltype_table)
}

###构建细胞-by-细胞状态组成矩阵

# 初始化结果矩阵
all_celltypes <- unique(celltypes)
cell_state_matrix <- matrix(0,
                           nrow = length(all_celltypes),
                           ncol = length(cell_ids),
                           dimnames = list(all_celltypes, cell_ids))

#### 为每个细胞计算邻域组成
for (i in 1:length(cell_ids)) {
  if (i %% 1000 == 0) cat("处理细胞:", i, "/", length(cell_ids), "\n")

  ##### 找到当前细胞的邻居
  neighbor_indices <- find_neighbors(i, coordinates, neighborhood_radius)

  if (length(neighbor_indices) > 0) {
    # 计算邻域中的细胞状态组成
    cellstate_counts <- count_cell_states(neighbor_indices, celltypes)

    # 更新矩阵
    for (celltype in names(cellstate_counts)) {
      cell_state_matrix[celltype, i] <- cellstate_counts[celltype]
    }
  }
}

cat("细胞邻域组成矩阵构建完成!\n")

# 将矩阵转换为数据框便于分析
cell_state_df <- as.data.frame(t(cell_state_matrix))
cell_state_df$cell_id <- cell_ids
cell_state_df$center_celltype <- celltypes
cell_state_df$center_x <- coordinates$x
cell_state_df$center_y <- coordinates$y

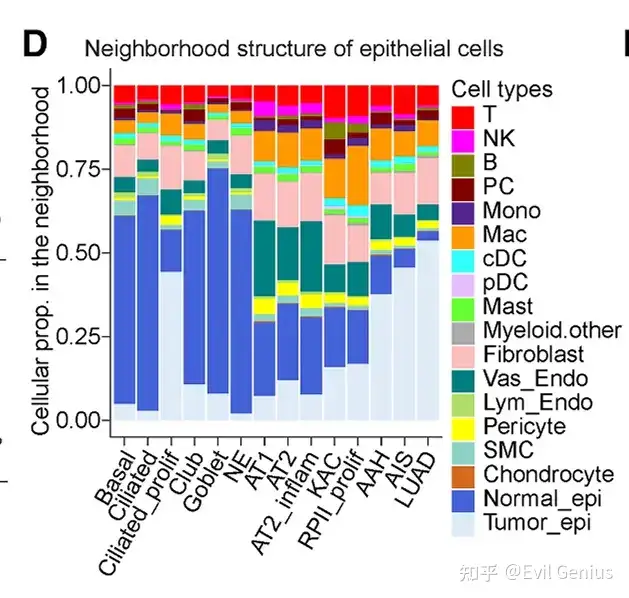

# 分析特定上皮细胞谱系的邻域组成
# 假设我们关注的上皮细胞类型
epithelial_lineages <- c("Tumor_Epithelial", "Atypical_Epithelial", "Normal_Epithelial")
epithelial_lineages <- epithelial_lineages[epithelial_lineages %in% unique(celltypes)]

# 提取上皮细胞的邻域数据
epithelial_neighborhoods <- cell_state_df[cell_state_df$center_celltype %in% epithelial_lineages, ]

# 计算每种上皮细胞类型的平均邻域组成
epithelial_summary <- epithelial_neighborhoods %>%
  group_by(center_celltype) %>%
  summarise(across(all_celltypes, list(mean = mean, sd = sd), .names = "{.col}_{.fn}"))

# 可视化：比较不同上皮细胞类型的邻域组成
plot_data <- epithelial_neighborhoods %>%
  select(center_celltype, all_of(all_celltypes)) %>%
  pivot_longer(cols = all_of(all_celltypes),
               names_to = "neighbor_celltype",
               values_to = "count") %>%
  group_by(center_celltype, neighbor_celltype) %>%
  summarise(mean_count = mean(count),
            se_count = sd(count) / sqrt(n()))

# 绘制热图显示邻域组成
heatmap_plot <- ggplot(plot_data, aes(x = center_celltype, y = neighbor_celltype, fill = mean_count)) +
  geom_tile() +
  scale_fill_gradient2(low = "blue", mid = "white", high = "red",
                       midpoint = mean(plot_data$mean_count)) +
  labs(title = "细胞邻域组成热图",
       x = "中心细胞类型",
       y = "邻居细胞类型",
       fill = "平均数量") +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 45, hjust = 1))

print(heatmap_plot)

# 绘制条形图比较主要细胞类型的分布
bar_plot <- ggplot(plot_data, aes(x = neighbor_celltype, y = mean_count, fill = center_celltype)) +
  geom_bar(stat = "identity", position = "dodge") +
  labs(title = "不同上皮细胞类型的邻域组成比较",
       x = "邻居细胞类型",
       y = "平均数量",
       fill = "中心细胞类型") +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 45, hjust = 1))

print(bar_plot)

# 统计检验：比较不同上皮细胞类型的邻域组成差异
# 例如，比较肿瘤上皮细胞和非典型上皮细胞的邻域差异
if ("Tumor_Epithelial" %in% epithelial_lineages & "Atypical_Epithelial" %in% epithelial_lineages) {

  # 对每种邻居细胞类型进行t检验
  significant_differences <- list()

  for (neighbor_type in all_celltypes) {
    tumor_data <- epithelial_neighborhoods[epithelial_neighborhoods$center_celltype == "Tumor_Epithelial", neighbor_type]
    atypical_data <- epithelial_neighborhoods[epithelial_neighborhoods$center_celltype == "Atypical_Epithelial", neighbor_type]

    if (length(tumor_data) > 1 & length(atypical_data) > 1) {
      t_test_result <- t.test(tumor_data, atypical_data)

      if (t_test_result$p.value < 0.05) {
        significant_differences[[neighbor_type]] <- list(
          p_value = t_test_result$p.value,
          mean_tumor = mean(tumor_data),
          mean_atypical = mean(atypical_data)
        )
      }
    }
  }

  cat("\n显著差异的邻居细胞类型:\n")
  if (length(significant_differences) > 0) {
    for (celltype in names(significant_differences)) {
      cat(celltype, ": p =", significant_differences[[celltype]]$p_value,
          "(Tumor:", round(significant_differences[[celltype]]$mean_tumor, 2),
          "vs Atypical:", round(significant_differences[[celltype]]$mean_atypical, 2), ")\n")
    }
  } else {
    cat("未发现显著差异\n")
  }
}

# 保存结果
write.csv(cell_state_df, "cellular_neighborhood_composition.csv", row.names = FALSE)
write.csv(epithelial_summary, "epithelial_neighborhood_summary.csv", row.names = FALSE)

# 保存图表
ggsave("neighborhood_heatmap.png", heatmap_plot, width = 10, height = 8, dpi = 300)
ggsave("neighborhood_barchart.png", bar_plot, width = 12, height = 6, dpi = 300)

cat("分析完成! 结果已保存到当前工作目录。\n")
