springboot项目集成dolphinscheduler调度器 实现datax数据同步任务

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.geespace.microservices.bd-platform</groupId>
        <artifactId>all</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>data-sync-config</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <java.version>1.8</java.version>
        <gson.version>2.8.1</gson.version>
    </properties>

    <dependencies>

        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>com.google.code.gson</groupId>
            <artifactId>gson</artifactId>
            <version>${gson.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--elasticsearch-->
        <dependency>
            <groupId>org.elasticsearch</groupId>
            <artifactId>elasticsearch</artifactId>
            <version>6.8.12</version>
        </dependency>
        <dependency>
            <groupId>org.elasticsearch.client</groupId>
            <artifactId>elasticsearch-rest-client</artifactId>
            <version>6.8.12</version>
        </dependency>
        <dependency>
            <groupId>org.elasticsearch.client</groupId>
            <artifactId>elasticsearch-rest-high-level-client</artifactId>
            <version>6.8.12</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
        </dependency>
        <dependency>
            <groupId>org.codehaus.jackson</groupId>
            <artifactId>jackson-core-asl</artifactId>
            <version>1.9.13</version>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>com.geespace.microservices.bd-platform</groupId>
            <artifactId>data-config</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>
        <!--httpclient-->
        <dependency>
            <groupId>commons-httpclient</groupId>
            <artifactId>commons-httpclient</artifactId>
            <version>3.1</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-shade-plugin</artifactId>
                <version>2.2</version>
                <dependencies>
                    <dependency>
                        <groupId>org.springframework.boot</groupId>
                        <artifactId>spring-boot-maven-plugin</artifactId>
                        <version>2.1.4.RELEASE</version>
                    </dependency>
                </dependencies>
                <configuration>
                    <keepDependenciesWithProvidedScope>false</keepDependenciesWithProvidedScope>
                    <createDependencyReducedPom>true</createDependencyReducedPom>
                    <filters>
                        <filter>
                            <artifact>*:*</artifact>
                            <excludes>
                                <exclude>META-INF/*.SF</exclude>
                                <exclude>META-INF/*.DSA</exclude>
                                <exclude>META-INF/*.RSA</exclude>
                            </excludes>
                        </filter>
                    </filters>
                </configuration>
                <executions>
                    <execution>
                        <phase>package</phase>
                        <goals>
                            <goal>shade</goal>
                        </goals>
                        <configuration>
                            <transformers>
                                <transformer
                                        implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                    <resource>META-INF/spring.handlers</resource>
                                </transformer>
                                <transformer
                                        implementation="org.springframework.boot.maven.PropertiesMergingResourceTransformer">
                                    <resource>META-INF/spring.factories</resource>
                                </transformer>
                                <transformer
                                        implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                    <resource>META-INF/spring.schemas</resource>
                                </transformer>
                                <transformer
                                        implementation="org.apache.maven.plugins.shade.resource.ServicesResourceTransformer"/>
                                <transformer
                                        implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
                                    <mainClass>com.geespace.microservices.dispatcher.DispatchApplication</mainClass>
                                </transformer>
                            </transformers>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

</project>

import java.io.IOException;
import java.io.UnsupportedEncodingException;
import java.net.URLEncoder;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;

import javax.servlet.http.HttpServletRequest;

import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;
import com.geespace.microservices.builder.dto.ProcessDto;
import com.geespace.microservices.builder.dto.SyncConfigDto;
import com.geespace.microservices.builder.enums.DictionaryEnum;
import com.geespace.microservices.builder.request.ConfigAddForm;
import com.geespace.microservices.builder.request.ConfigSelectForm;
import com.geespace.microservices.builder.request.ConfigUpdateForm;
import com.geespace.microservices.builder.response.BizCode;
import com.geespace.microservices.builder.response.DolphinschedulerResponse;
import com.geespace.microservices.builder.response.Msg;
import com.geespace.microservices.builder.response.PageResult;
import com.geespace.microservices.builder.response.ReturnResult;
import com.geespace.microservices.builder.service.SyncConfigService;
import com.geespace.microservices.builder.tools.JsonTools;

import lombok.extern.slf4j.Slf4j;

import org.apache.commons.httpclient.HttpException;
import org.apache.commons.httpclient.NameValuePair;
import org.apache.commons.httpclient.methods.PostMethod;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.http.HttpEntity;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpMethod;
import org.springframework.http.ResponseEntity;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.util.StringUtils;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.annotation.DeleteMapping;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.PutMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

/**
 * 迁移dolphinscheduler调度器
 *
 * @author: liudz
 * @date: 2021/5/7
 */
@Slf4j
@RestController
@RequestMapping("/dolphinscheduler/v1")
public class DataxDolphinschedulerController {
    @Autowired
    private RestTemplate restTemplate;

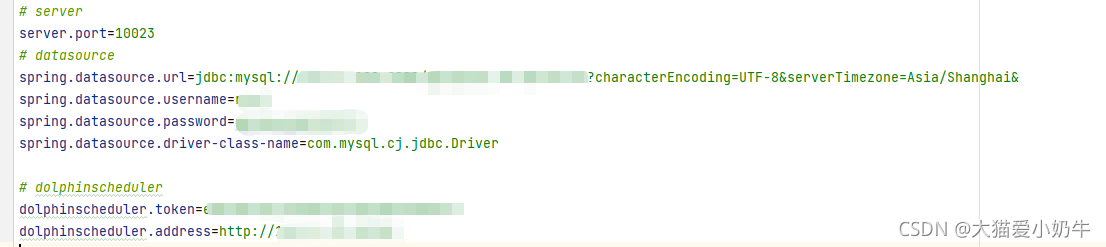

    @Value("${dolphinscheduler.token}")
    String token;
    @Value("${dolphinscheduler.address}")
    String address;
    public static final int ZERO = 0;
    public static final int SUCCESS = 200;
    public static final String CREATE = "create";
    public static final String UPDATE = "update";
    public static final String ADD = "add";
    public static final String DELETE = "delete";
    public static final String ONLINE = "ONLINE";
    public static final String OFFLINE = "OFFLINE";
    public static final int ONE_THOUSAND_AND_FIVE_HUNDRED = 1500;
    public static final int SIX = 6;
    public static final int EIGHTY = 80;
    public static final int THREE = 3;
    @Autowired
    private SyncConfigService syncConfigService;


    /**
     * 创建任务-创建用户下唯一工作流，无则创建有则并排添加
     * @param request request
     * @param form 任务参数
     * @author liudz
     * @date 2021/5/8
     * @return 执行结果
     **/
    @PostMapping("/project/process/datax")
    @Transactional(rollbackFor = Exception.class)
    public ReturnResult operatorDataxTask(HttpServletRequest request, @RequestBody @Validated ConfigAddForm form) {
        Long userId = Long.valueOf(request.getUserPrincipal().getName());
        form.setUserId(userId);

        ReturnResult<SyncConfigDto> dataxTaskReturnResult = syncConfigService.addConfig(form);
        if (dataxTaskReturnResult.getCode() != SUCCESS) {
            return dataxTaskReturnResult;
        }
        log.info("--(1)addDataxTaskResult--success");
        form.setId(dataxTaskReturnResult.getData().getId());
        if (dataxTaskReturnResult.getCode() == SUCCESS) {
            Boolean verifyResult = verifyProcessExist(userId + "-dataxTask", form.getProjectName());
            log.info("--(2)verifyProcessExist--success:{}", verifyResult);
            if (!verifyResult) {
                ProcessDto processDto = packageProcessParam(
                        "create", userId + "-dataxTask", dataxTaskReturnResult.getData(), null);
                log.info("--(3)packageProcessParam--success");
                processDto.setProjectName(form.getProjectName());
                processDto.setProjectId(form.getProjectId());
                dataxTaskReturnResult =  createProcess(processDto);
            } else {
                //获取用户下唯一工作流ID
                DolphinschedulerResponse processInfoList = getUserProcess(form.getProjectName());
                JSONObject processJson = new JSONObject();
                log.info("--(3)getUserProcess--success:{}", processInfoList);
                List<Map<String, Object>> list = (List<Map<String, Object>>) processInfoList.getData();
                for (Map<String, Object> map : list) {
                    if (map.get("name").equals(userId + "-dataxTask")) {
                        processJson.fluentPutAll(map);
                    }
                }
                ProcessDto processDto = packageProcessParam(
                        "add", userId + "-dataxTask", dataxTaskReturnResult.getData(), processJson);
                processDto.setId(processJson.getInteger("id"));
                log.info("--(4)packageProcessParam--success");
                if (processJson.getString(DictionaryEnum.RELEASE_STATE.getFiledString()).equals(ONLINE)) {
                    releaseProcessDefinition(form.getProjectName(), userId + "-dataxTask",
                            processDto.getId(), 0);
                    log.info("--(5)releaseProcessDefinition--OFFLINE--success");
                }
                dataxTaskReturnResult =  updateProcess(form, processDto);
            }
        }
        return dataxTaskReturnResult;
    }
    /**
     * 更新任务
     * @param request request
     * @param form 任务参数
     * @author liudz
     * @date 2021/5/8
     * @return 执行结果
     **/
    @PutMapping("/project/process/datax")
    @Transactional(rollbackFor = Exception.class)
    public ReturnResult updateDataxTask(HttpServletRequest request, @RequestBody @Validated ConfigUpdateForm form) {
        Long userId = Long.valueOf(request.getUserPrincipal().getName());
        form.setUserId(userId);
        ReturnResult<SyncConfigDto> dataxTaskReturnResult = syncConfigService.updateConfig(form);
        log.info("--(1)updateDataxTaskResult--mysql--success");
        if (dataxTaskReturnResult.getCode() == SUCCESS) {
            //获取用户下唯一工作流ID
            DolphinschedulerResponse processInfoList = getUserProcess(form.getProjectName());
            JSONObject processJson = new JSONObject();
            log.info("--(2)getUserProcess--success:{}", processInfoList);
            List<Map<String, Object>> list = (List<Map<String, Object>>) processInfoList.getData();
            for (Map<String, Object> map : list) {
                if (map.get("name").equals(userId + "-dataxTask")) {
                    processJson.fluentPutAll(map);
                }
            }
            ProcessDto processDto = packageProcessParam(
                    "update", userId + "-dataxTask", dataxTaskReturnResult.getData(), processJson);
            processDto.setProjectName(form.getProjectName());
            processDto.setProjectId(form.getProjectId());
            processDto.setId(processJson.getInteger("id"));
            log.info("--(3)packageProcessParam--success");
            if (processJson.getString(DictionaryEnum.RELEASE_STATE.getFiledString()).equals(ONLINE)) {
                releaseProcessDefinition(form.getProjectName(), userId + "-dataxTask",
                        processDto.getId(), 0);
                log.info("--(4)releaseProcessDefinition--OFFLINE--success");
            }
            ConfigAddForm configAddForm = new ConfigAddForm();
            BeanUtils.copyProperties(form, configAddForm);
            return updateProcess(configAddForm, processDto);
        }
        return dataxTaskReturnResult;
    }
    /**

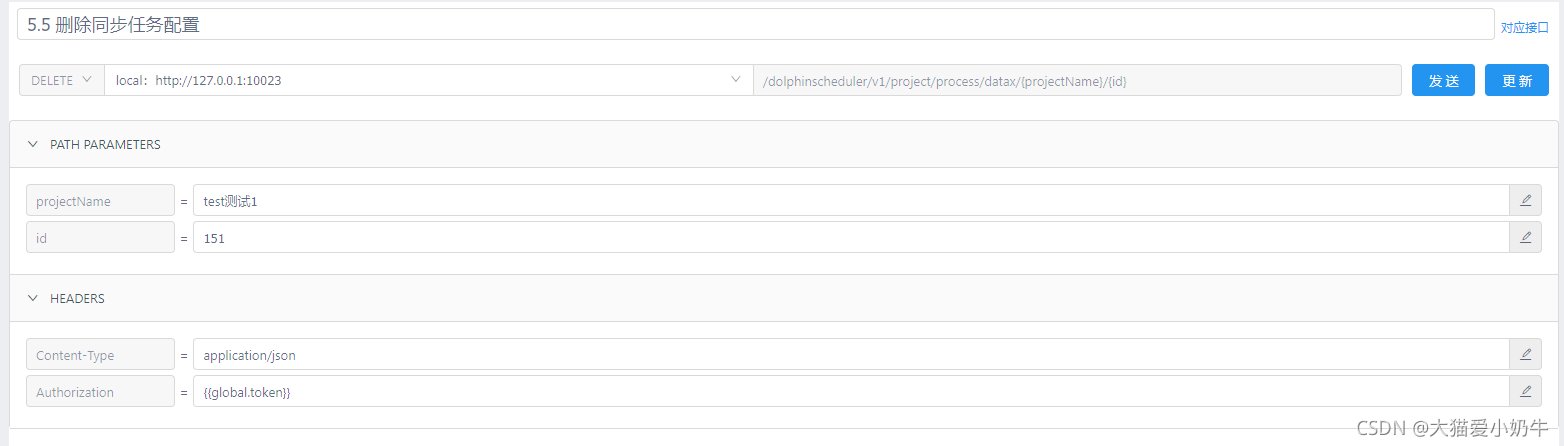

     * 删除任务
     * @param request request
     * @param projectName 项目名称
     * @param id 任务ID
     * @author liudz
     * @date 2021/5/8
     * @return 执行结果
     **/
    @DeleteMapping("/project/process/datax/{projectName}/{id}")
    @Transactional(rollbackFor = Exception.class)
    public ReturnResult deleteDataxTask(HttpServletRequest request, @PathVariable("projectName") String projectName,
                                        @PathVariable("id") Long id) {
        Long userId = Long.valueOf(request.getUserPrincipal().getName());
        SyncConfigDto syncConfigDto = new SyncConfigDto();
        syncConfigDto.setId(id);
        ConfigAddForm configAddForm = new ConfigAddForm();
        configAddForm.setProjectName(projectName);
        ReturnResult dataxTaskReturnResult = syncConfigService.delete(id, userId);
        log.info("--(1)deleteDataxTask--mysql--success");
        if (dataxTaskReturnResult.getCode() == SUCCESS) {
            //获取用户下唯一工作流ID
            DolphinschedulerResponse processInfoList = getUserProcess(projectName);
            JSONObject processJson = new JSONObject();
            log.info("--(2)getUserProcess--success:{}", processInfoList);
            List<Map<String, Object>> list = (List<Map<String, Object>>) processInfoList.getData();
            for (Map<String, Object> map : list) {
                if (map.get("name").equals(userId + "-dataxTask")) {
                    processJson.fluentPutAll(map);
                }
            }
            ProcessDto processDto = packageProcessParam(
                    "delete", userId + "-dataxTask", syncConfigDto, processJson);
            processDto.setId(processJson.getInteger("id"));
            log.info("--(3)packageProcessParam--success");
            if (processJson.getString(DictionaryEnum.RELEASE_STATE.getFiledString()).equals(ONLINE)) {
                releaseProcessDefinition(projectName, userId + "-dataxTask",
                        processDto.getId(), 0);
                log.info("--(4)releaseProcessDefinition--OFFLINE--success");
            }
            if (JSONObject.parseObject(processDto.getLocations()).keySet().size() == 0) {
                //删除工作流
                deleteProcess(configAddForm, processDto);
            } else {
                //更新工作流
                updateProcess(configAddForm, processDto);
            }
        }
        return dataxTaskReturnResult;
    }

    /**
     * 校验工作流是否存在
     *
     * @param processName
     *            工作流名称
     * @param projectName 项目名称
     * @author liudz
     * @date 2021/5/8
     * @return boolean
     **/
    public Boolean verifyProcessExist(String processName, String projectName) {
        HttpHeaders headers = new HttpHeaders();
        headers.set("token", token);
        headers.set("Content-Type", "application/json");
        HttpEntity requestEntity = new HttpEntity(headers);
        ResponseEntity<DolphinschedulerResponse> returnResult =
            restTemplate.exchange(address + "/dolphinscheduler/projects/" + projectName
                            + "/process/verify-name?name=" + processName,
                HttpMethod.GET, requestEntity, DolphinschedulerResponse.class);
        if (returnResult.getBody().getCode() == ZERO) {
            return false;
        }
        return true;
    }

    /**
     * 创建工作流
     * @param processDto processDto
     * @author liudz
     * @date 2021/5/7
     * @return 执行结果
     **/
    public ReturnResult createProcess(ProcessDto processDto) {
        try {
            String postURL = address + "/dolphinscheduler/projects/"
                   + URLEncoder.encode(processDto.getProjectName(), "utf-8") + "/process/save";
            PostMethod postMethod = new PostMethod(postURL);
            postMethod.setRequestHeader("Content-Type",
                    "application/x-www-form-urlencoded;charset=utf-8");
            postMethod.setRequestHeader("token", token);
            NameValuePair[] data = {new NameValuePair("connects", processDto.getConnects()),
                new NameValuePair("name", processDto.getName()),
                new NameValuePair("locations", processDto.getLocations()),
                new NameValuePair("processDefinitionJson", processDto.getProcessDefinitionJson())};
            postMethod.setRequestBody(data);
            org.apache.commons.httpclient.HttpClient httpClient = new org.apache.commons.httpclient.HttpClient();
            httpClient.executeMethod(postMethod);
            JSONObject result = JSONObject.parseObject(postMethod.getResponseBodyAsString());
            log.info("--(5)httpCreateProcess:{}", result);
            if (!result.get(DictionaryEnum.CODE.getFiledString()).equals(ZERO)) {
                return ReturnResult.error(BizCode.DB_INSERT_ERROR, result.getString("msg"));
            }
        } catch (Exception e) {
            log.info("请求异常:{}", e);
        }
        return ReturnResult.success();
    }

    /**
     * 更新工作流
     * @param vo vo
     * @param processDto processDto
     * @author liudz
     * @date 2021/5/7
     * @return 执行结果
     **/
    public ReturnResult updateProcess(ConfigAddForm vo, ProcessDto processDto) {
        try {

            String postURL = address + "/dolphinscheduler/projects/"
                   + URLEncoder.encode(vo.getProjectName(), "utf-8") + "/process/update";
            PostMethod postMethod = new PostMethod(postURL);
            postMethod.setRequestHeader("Content-Type",
                    "application/x-www-form-urlencoded;charset=utf-8");
            postMethod.setRequestHeader("token", token);
            // 参数设置，需要注意的就是里边不能传NULL，要传空字符串
            NameValuePair[] data = {new NameValuePair("connects", processDto.getConnects()),
                new NameValuePair("name", processDto.getName()),
                new NameValuePair("locations", processDto.getLocations()),
                new NameValuePair("id", processDto.getId().toString()),
                new NameValuePair("processDefinitionJson", processDto.getProcessDefinitionJson())};
            postMethod.setRequestBody(data);
            org.apache.commons.httpclient.HttpClient httpClient = new org.apache.commons.httpclient.HttpClient();
            httpClient.executeMethod(postMethod);
            JSONObject result = JSONObject.parseObject(postMethod.getResponseBodyAsString());
            log.info("--(5)httpUpdateProcess:{}", result);
            if (!result.get(DictionaryEnum.CODE.getFiledString()).equals(ZERO)) {
                return ReturnResult.error(BizCode.DB_INSERT_ERROR, result.getString("msg"));
            }
        } catch (Exception e) {
            log.info("请求异常:{}", e);
        }
        return ReturnResult.success();
    }
    /**
     * 删除工作流
     * @param dto dto
     * @param processDto processDto
     * @author liudz
     * @date 2021/5/7
     * @return 执行结果
     **/
    public DolphinschedulerResponse deleteProcess(ConfigAddForm dto, ProcessDto processDto) {
            HttpHeaders headers = new HttpHeaders();
            headers.set("token", token);
            headers.set("Content-Type", "application/json");
            HttpEntity requestEntity = new HttpEntity(headers);
            ResponseEntity<DolphinschedulerResponse> returnResult =
                    restTemplate.exchange(address + "/dolphinscheduler/projects/" + dto.getProjectName()
                                   + "/process/delete?processDefinitionId=" + processDto.getId(),
                            HttpMethod.GET, requestEntity, DolphinschedulerResponse.class);
            log.info("--(5)httpDeleteProcess:{}", returnResult);
        return returnResult.getBody();
    }

    /**
     * 获取dolphinscheduler上的资源spark可拖拽jar的id
     *
     * @author liudz
     * @date 2021/5/8
     * @return id
     **/
    public Integer getSparkResourceJarId() {
        Integer resourceId = null;
        HttpHeaders headers = new HttpHeaders();
        headers.set("token", token);
        headers.set("Content-Type", "application/json");
        HttpEntity requestEntity = new HttpEntity(headers);
        ResponseEntity<DolphinschedulerResponse> returnResult =
            restTemplate.exchange(address + "/dolphinscheduler/resources/authorize-resource-tree?userId=1",
                HttpMethod.GET, requestEntity, DolphinschedulerResponse.class);
        List<Map<String, Object>> list = (List<Map<String, Object>>) returnResult.getBody().getData();
        for (Map<String, Object> map : list) {
            if (map.get("name").equals("big_data02.jar")) {
                resourceId = Integer.valueOf(map.get("id").toString());
            }
        }
        return resourceId;
    }
    /**
     * 获取dolphinscheduler上的某用户下唯一工作流
     * @param projectName 项目名称
     * @author liudz
     * @date 2021/5/8
     * @return id
     **/
    public DolphinschedulerResponse getUserProcess(String projectName) {
        HttpHeaders headers = new HttpHeaders();
        headers.set("token", token);
        headers.set("Content-Type", "application/json");
        HttpEntity requestEntity = new HttpEntity(headers);
        ResponseEntity<DolphinschedulerResponse> returnResult =
            restTemplate.exchange(address + "/dolphinscheduler/projects/" + projectName + "/process/list",
                HttpMethod.GET, requestEntity, DolphinschedulerResponse.class);
        return returnResult.getBody();
    }
    /**
     *  封装参数
     * @param type 操作类型
     * @param processName 用户工作流名称
     * @param dto 任务参数
     * @param processJson 工作流json
     * @author liudz
     * @date 2021/5/13
     * @return ProcessDto
     **/
    public ProcessDto packageProcessParam(String type, String processName, SyncConfigDto dto, JSONObject processJson) {
        ProcessDto processDto = new ProcessDto();
        processDto.setConnects("[]");
        processDto.setName(processName);
        JSONObject locationsOne = new JSONObject();
        JSONObject locationsTwo = new JSONObject();
        locationsTwo.fluentPut("name", "datax-" + dto.getId()).fluentPut("targetarr", "").fluentPut("nodenumber", "0");
        locationsTwo.fluentPut("x", 0).fluentPut("y", 0);
        locationsOne.put("datax-" + dto.getId(), locationsTwo);

        // 创建工作流
        if (CREATE.equals(type)) {
            processDto = packageProcessParamOfCreate(processDto, dto, locationsOne);
         } else if (ADD.equals(type)) {
            //工作流添加节点
            processDto = packageProcessParamOfAdd(processDto, dto, processJson, locationsOne, locationsTwo);
        } else if (UPDATE.equals(type)) {
            //更新工作流-只更新参数processDefinitionJson的tasks参数
            processDto = packageProcessParamOfUpdate(processDto, processJson, dto);
        } else if (DELETE.equals(type)) {
            //更新工作流或删除工作流-更新则删除参数processDefinitionJson的tasks参数
            processDto = packageProcessParamOfDelete(processDto, processJson, dto);
        }
        return processDto;
    }
    /**
     * packageProcessParamOfCreate
     * @param processDto 工作流参数
     * @param dto 任务参数
     * @param locationsOne locationsOne
     * @author liudz
     * @date 2021/5/7
     * @return ProcessDto
     **/
    public ProcessDto packageProcessParamOfCreate(ProcessDto processDto, SyncConfigDto dto, JSONObject locationsOne) {
        processDto.setLocations(locationsOne.toString());
        JSONObject processOne = new JSONObject();
        processOne.fluentPut("globalParams", new ArrayList<>()).fluentPut("tenantId", THREE).fluentPut("timeout", 0);
        JSONObject processTwo = new JSONObject();
        processTwo.fluentPut("type", "DATAX").fluentPut("id", "datax-" + dto.getId());
        processTwo.fluentPut("name", "datax-" + dto.getId()).fluentPut("description", "");

        String taskJsonString = dto.getContent().toString();
        processTwo.put("params", JSONObject.parseObject("{\"localParams\":[],\"customConfig\":1,"
               + "\"json\":\"" + taskJsonString.replace("\"", "\\\"") + "\"}"));

        JSONObject jsonTimeout = new JSONObject();
        jsonTimeout.fluentPut("strategy", "").fluentPut("interval", null).fluentPut("enable", false);
        processTwo.fluentPut("timeout", jsonTimeout).fluentPut("runFlag", "NORMAL");
        JSONObject processTree = new JSONObject();
        processTree.fluentPut("successNode", new ArrayList<>()).fluentPut("failedNode", new ArrayList<>());
        JSONObject jsonconditionResult = new JSONObject();
        jsonconditionResult.put("successNode", new ArrayList<>());
        jsonconditionResult.put("failedNode", new ArrayList<>());
        processTwo.fluentPut("conditionResult", jsonconditionResult).fluentPut("dependence", new JSONObject());
        processTwo.fluentPut("maxRetryTimes", "0").fluentPut("retryInterval", "1");
        processTwo.fluentPut("taskInstancePriority", "MEDIUM").fluentPut("workerGroup", "default");
        processTwo.fluentPut("preTasks", new ArrayList<>());
        JSONArray processTaskArray = new JSONArray();
        processTaskArray.add(processTwo);
        processOne.put("tasks", processTaskArray);
        processDto.setProcessDefinitionJson(processOne.toString());
        return processDto;
    }
    /**
     * packageProcessParamOfAdd
     * @param processDto 工作流参数
     * @param locationsOne locationsOne
     * @param locationsTwo locationsTwo
     * @param dto 任务参数
     * @param processJson 工作流json
     * @author liudz
     * @date 2021/5/7
     * @return ProcessDto
     **/
    public ProcessDto packageProcessParamOfAdd(ProcessDto processDto, SyncConfigDto dto, JSONObject processJson,
                                               JSONObject locationsOne, JSONObject locationsTwo) {
        String maxTaskKey = JsonTools.getJsonStringMaxKey(processJson.getString("locations"));
        Integer x = processJson.getJSONObject("locations").getJSONObject(maxTaskKey).getInteger("x");
        Integer y = processJson.getJSONObject("locations").getJSONObject(maxTaskKey).getInteger("y");
        if (x < ONE_THOUSAND_AND_FIVE_HUNDRED) {
            locationsTwo.fluentPut("x", x + EIGHTY).fluentPut("y", y);
        } else if (x >= ONE_THOUSAND_AND_FIVE_HUNDRED) {
            locationsTwo.fluentPut("y", y + EIGHTY).fluentPut("x", 0);
        }
        locationsOne = processJson.getJSONObject("locations").fluentPut("datax-" + dto.getId(), locationsTwo);
        processDto.setLocations(locationsOne.toString());
        processDto.setId(processJson.getInteger("id"));
        JSONObject processTwo = new JSONObject();
        processTwo.fluentPut("type", "DATAX").fluentPut("id", "datax-" + dto.getId());
        processTwo.fluentPut("name", "datax-" + dto.getId()).fluentPut("description", "");
        String taskJsonString = dto.getContent().toString().replace("}}", "} }").replace("{{", "{ {");
        processTwo.put("params", JSONObject.parseObject("{\"localParams\":[],\"customConfig\":1,"
                + "\"json\":\"" + taskJsonString.replace("\"", "\\\"") + "\"}"));
        JSONObject jsonTimeout = new JSONObject();
        jsonTimeout.fluentPut("strategy", "").fluentPut("interval", null).fluentPut("enable", false);
        processTwo.fluentPut("timeout", jsonTimeout).fluentPut("runFlag", "NORMAL");
        JSONObject processTree = new JSONObject();
        processTree.fluentPut("successNode", new ArrayList<>()).fluentPut("failedNode", new ArrayList<>());
        JSONObject jsonconditionResult = new JSONObject();
        jsonconditionResult.put("successNode", new ArrayList<>());
        jsonconditionResult.put("failedNode", new ArrayList<>());
        processTwo.fluentPut("conditionResult", jsonconditionResult).fluentPut("dependence", new JSONObject());
        processTwo.fluentPut("maxRetryTimes", "0").fluentPut("retryInterval", "1");
        processTwo.fluentPut("taskInstancePriority", "MEDIUM").fluentPut("workerGroup", "default");
        processTwo.fluentPut("preTasks", new ArrayList<>());
        JSONObject jsonNew = processJson.getJSONObject("processDefinitionJson");
        JSONArray jsonArray = jsonNew.getJSONArray("tasks");
        jsonArray.add(processTwo);
        jsonNew.put("tasks", jsonArray);
        processDto.setProcessDefinitionJson(jsonNew.toString());
        return processDto;
    }
    /**
     * packageProcessParamOfUpdate
     * @param processDto 工作流参数
     * @param dto 任务参数
     * @param processJson 工作流json
     * @author liudz
     * @date 2021/5/7
     * @return ProcessDto
     **/
    public ProcessDto packageProcessParamOfUpdate(ProcessDto processDto, JSONObject processJson, SyncConfigDto dto) {
        processDto.setLocations(processJson.getString("locations"));
        processDto.setId(processJson.getInteger("id"));
        JSONArray jsonTasksArray = processJson.getJSONObject("processDefinitionJson").getJSONArray("tasks");
        JSONArray copyJsonTasksArray = new JSONArray();
        copyJsonTasksArray.addAll(jsonTasksArray);
        JSONObject processDefinitionJson = new JSONObject();
        String taskJsonString = dto.getContent().toString();
        for (Object object : jsonTasksArray) {
            JSONObject jsonObject = JSONObject.parseObject(object.toString());
            if (Long.valueOf(jsonObject.getString("id").substring(SIX)) == dto.getId()) {
                String json = jsonObject.getString("json");
                json = taskJsonString;
                copyJsonTasksArray.remove(jsonObject);
                jsonObject.getJSONObject("params").put("json", json);
                copyJsonTasksArray.add(jsonObject);
                processDefinitionJson = processJson.getJSONObject("processDefinitionJson");
                processDefinitionJson.put("tasks", copyJsonTasksArray);
            }
        }
        processDto.setProcessDefinitionJson(processDefinitionJson.toString());
        return processDto;
    }
    /**
     * packageProcessParamOfDelete
     * @param processDto 工作流参数
     * @param dto 任务参数
     * @param processJson 工作流json
     * @author liudz
     * @date 2021/5/7
     * @return ProcessDto
     **/
    public ProcessDto packageProcessParamOfDelete(ProcessDto processDto, JSONObject processJson, SyncConfigDto dto) {
        processDto.setId(processJson.getInteger("id"));
        JSONObject locationsJson = processJson.getJSONObject("locations");
        JSONObject processDefinitionJson = processJson.getJSONObject("processDefinitionJson");
        JSONArray processDefinitionArray = processDefinitionJson.getJSONArray("tasks");
        JSONArray copyProcessDefinitionArray = new JSONArray();
        copyProcessDefinitionArray.addAll(processDefinitionArray);
        if (locationsJson.containsKey(DictionaryEnum.DATAX.getFiledString() + dto.getId())) {
            locationsJson.remove("datax-" + dto.getId());
            for (Object object : processDefinitionArray) {
                if (JSONObject.parseObject(object.toString()).getString("id").equals("datax-" + dto.getId())) {
                    copyProcessDefinitionArray.remove(object);
                }
            }
            processDefinitionJson.put("tasks", copyProcessDefinitionArray);
        }
        processDto.setLocations(locationsJson.toString());
        processDto.setProcessDefinitionJson(processDefinitionJson.toString());
        return processDto;
    }

    /**
     * 工作流【上线或者下线】
     * @param projectName 项目名称
     * @param processName 用户工作流名称
     * @param processId 工作流ID
     * @param releaseState 上下线状态操作【0：下线，1：上线】
     * @author liudz
     * @date 2021/5/7
     * @return 执行结果
     **/
    public ReturnResult releaseProcessDefinition(String projectName, String processName, Integer processId,
                  Integer releaseState) {
        try {
            String postURL = address + "/dolphinscheduler/projects/"
                   + URLEncoder.encode(projectName, "utf-8") + "/process/release";
            PostMethod postMethod = new PostMethod(postURL);
            postMethod.setRequestHeader("Content-Type",
                    "application/x-www-form-urlencoded;charset=utf-8");
            postMethod.setRequestHeader("token", token);
            // 参数设置，需要注意的就是里边不能传NULL，要传空字符串
            NameValuePair[] data = {new NameValuePair("name", processName),
                    new NameValuePair("processId", processId.toString()),
                    new NameValuePair("releaseState", releaseState.toString())};
            postMethod.setRequestBody(data);
            org.apache.commons.httpclient.HttpClient httpClient = new org.apache.commons.httpclient.HttpClient();
            httpClient.executeMethod(postMethod);
            JSONObject result = JSONObject.parseObject(postMethod.getResponseBodyAsString());
            if (!result.get(DictionaryEnum.CODE.getFiledString()).equals(ZERO)) {
                return ReturnResult.error(BizCode.DB_INSERT_ERROR, result.getString("msg"));
            }
        } catch (Exception e) {
            log.info("请求异常:{}", e);
        }
        return ReturnResult.success();
    }
    /**
     * 运行流程实例
     * @param projectName 项目名称
     * @param request request
     * @param id 数据同步任务ID
     * @author liudz
     * @date 2021/5/7
     * @return 执行结果
     **/
    @GetMapping("/project/process/datax/start")
    public DolphinschedulerResponse startProcessDataxTask(
            @RequestParam("projectName") String projectName, @RequestParam("id") Integer id,
            HttpServletRequest request) {
        try {
            Long userId = Long.valueOf(request.getUserPrincipal().getName());
            DolphinschedulerResponse processInfoList = getUserProcess(projectName);
            if (processInfoList.getCode() != ZERO) {
                return processInfoList;
            }
            JSONObject processJson = new JSONObject();
            log.info("--(1)getUserProcess--success:{}", processInfoList);
            List<Map<String, Object>> list = (List<Map<String, Object>>) processInfoList.getData();
            for (Map<String, Object> map : list) {
                if (map.get("name").equals(userId + "-dataxTask")) {
                    processJson.fluentPutAll(map);
                }
            }
            if (processJson.getString(DictionaryEnum.RELEASE_STATE.getFiledString()).equals(OFFLINE)) {
                releaseProcessDefinition(projectName, userId + "-dataxTask",
                        processJson.getInteger("id"), 1);
                log.info("--(2)releaseProcessDefinition--ONLINE--success");
            }
            String postURL = address + "/dolphinscheduler/projects/" + URLEncoder.encode(projectName, "utf-8")
                   + "/executors/start-process-instance";
            PostMethod postMethod = new PostMethod(postURL);
            postMethod.setRequestHeader("Content-Type",
                    "application/x-www-form-urlencoded;charset=utf-8");
            postMethod.setRequestHeader("token", token);
            // 参数设置，需要注意的就是里边不能传NULL，要传空字符串
            NameValuePair[] data = packageNameValuePair(processJson, id);
            postMethod.setRequestBody(data);
            org.apache.commons.httpclient.HttpClient httpClient = new org.apache.commons.httpclient.HttpClient();
            httpClient.executeMethod(postMethod);
            JSONObject result = JSONObject.parseObject(postMethod.getResponseBodyAsString());
            log.info("--(2)startProcessInstance--result:{}", result);
            if (!result.get(DictionaryEnum.CODE.getFiledString()).equals(ZERO)) {
                return DolphinschedulerResponse.error(result.getInteger("code"), result.getString("msg"));
            }
        } catch (Exception e) {
            log.info("请求异常:{}", e);
        }
        return DolphinschedulerResponse.success();
    }
    /**
     *  packageNameValuePair封装参数
     * @param processJson 工作流json
     * @param dragSparkTaskId 任务ID
     * @author liudz
     * @date 2021/5/14
     * @return NameValuePair
     **/
    public NameValuePair[] packageNameValuePair(JSONObject processJson, Integer dragSparkTaskId) {
        NameValuePair[] data = {
                new NameValuePair("failureStrategy", "CONTINUE"),
                new NameValuePair("processDefinitionId", processJson.getString("id")),
                new NameValuePair("processInstancePriority", "MEDIUM"),
                new NameValuePair("warningGroupId", "0"),
                new NameValuePair("warningType", "NONE"),
                new NameValuePair("runMode", "RUN_MODE_SERIAL"),
                new NameValuePair("startNodeList", "datax-" + dragSparkTaskId),
                new NameValuePair("taskDependType", "TASK_POST"),
                new NameValuePair("workerGroup", "default")};
        return data;
    }


    /**

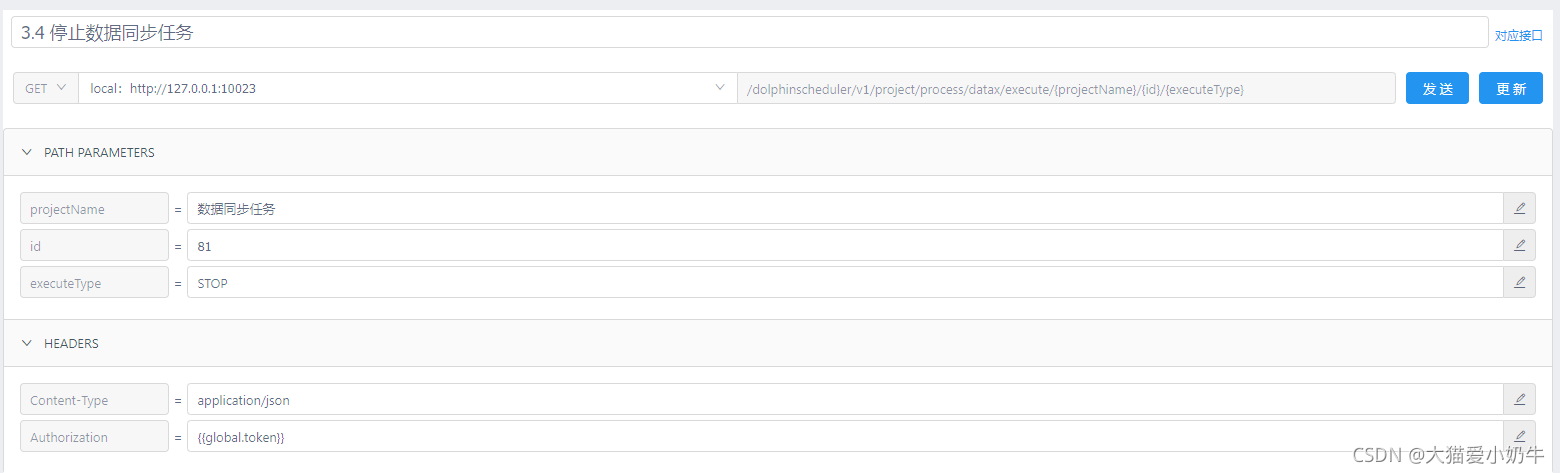

     * stopProcessDataxTask
     * @param id id
     * @param executeType executeType
     * @param projectName 项目名称
     * @return ReturnResult
     * @author: liudz
     * @author: lty update 2020/5/27
     * @date: 2020/4/28 10:31
     */
    @GetMapping(value = "/project/process/datax/execute/{projectName}/{id}/{executeType}")
    public DolphinschedulerResponse<String> stopProcessDataxTask(@PathVariable("projectName") String projectName,
                                 @PathVariable("id") Long id, @PathVariable("executeType") String executeType) {
        log.info("--(1)stopProcessDataxTask--begin--projectName:{},id:{},executeType:{}", projectName, id, executeType);
        try {
            HttpHeaders headers = new HttpHeaders();
            headers.set("token", token);
            headers.set("Content-Type", "application/json");
            HttpEntity requestEntity = new HttpEntity(headers);
            ResponseEntity<JSONObject> returnResult = restTemplate.exchange(address + "/"
   + "dolphinscheduler/projects/" + projectName + "/task-instance/list-paging?"
   + "pageNo=1&pageSize=100&taskName=datax-" + id, HttpMethod.GET, requestEntity, JSONObject.class);
            List<Map<String, Object>> list =
                    (List<Map<String, Object>>) returnResult.getBody().getJSONObject("data").get("totalList");
            Integer processInstanceId = null;
            for (Map<String, Object> map : list) {
                if (map.get("state").equals("RUNNING_EXEUTION")) {
                    processInstanceId = Integer.valueOf(map.get("processInstanceId").toString());
                }

            }
            if (StringUtils.isEmpty(processInstanceId)) {
                return DolphinschedulerResponse.error(Msg.TASK_HAS_BEEN_STOPPED);
            }
            log.info("--(2)getProcessInstanceId--success--:{}", processInstanceId);
            String postURL = address + "/dolphinscheduler/projects/"
                    + URLEncoder.encode(projectName, "utf-8") + "/executors/execute";
            PostMethod postMethod = new PostMethod(postURL);
            postMethod.setRequestHeader("Content-Type",
                    "application/x-www-form-urlencoded;charset=utf-8");
            postMethod.setRequestHeader("token", token);
            NameValuePair[] data = {new NameValuePair("executeType", executeType),
                    new NameValuePair("processInstanceId", processInstanceId.toString())};
            postMethod.setRequestBody(data);
            org.apache.commons.httpclient.HttpClient httpClient = new org.apache.commons.httpclient.HttpClient();
            httpClient.executeMethod(postMethod);
            JSONObject result = JSONObject.parseObject(postMethod.getResponseBodyAsString());
            if (!result.get(DictionaryEnum.CODE.getFiledString()).equals(ZERO)) {
                return DolphinschedulerResponse.error(result.getInteger("code"), result.getString("msg"));
            }
            log.info("--(3)stopProcessSparkTask--success--:{}", result);
        } catch (UnsupportedEncodingException e) {
            log.info("UnsupportedEncodingException:{}", e);
        } catch (HttpException e) {
            log.info("HttpException:{}", e);
        } catch (IOException e) {
            log.info("IOException:{}", e);
        }
        return DolphinschedulerResponse.success();
    }

    /**
     * 查询全部同步任务配置（分页）
     *
     * @param form
     *            name
     * @param request
     *            含有用户id
     * @return 分页结果
     */
    @RequestMapping(value = "/project/process/datax/list", method = RequestMethod.POST)
    public ReturnResult<PageResult<SyncConfigDto>> findAll(@RequestBody @Validated ConfigSelectForm form,
                                                           HttpServletRequest request) {
        Long userId = Long.valueOf(request.getUserPrincipal().getName());
        return syncConfigService.list(form, userId);
    }

    /**

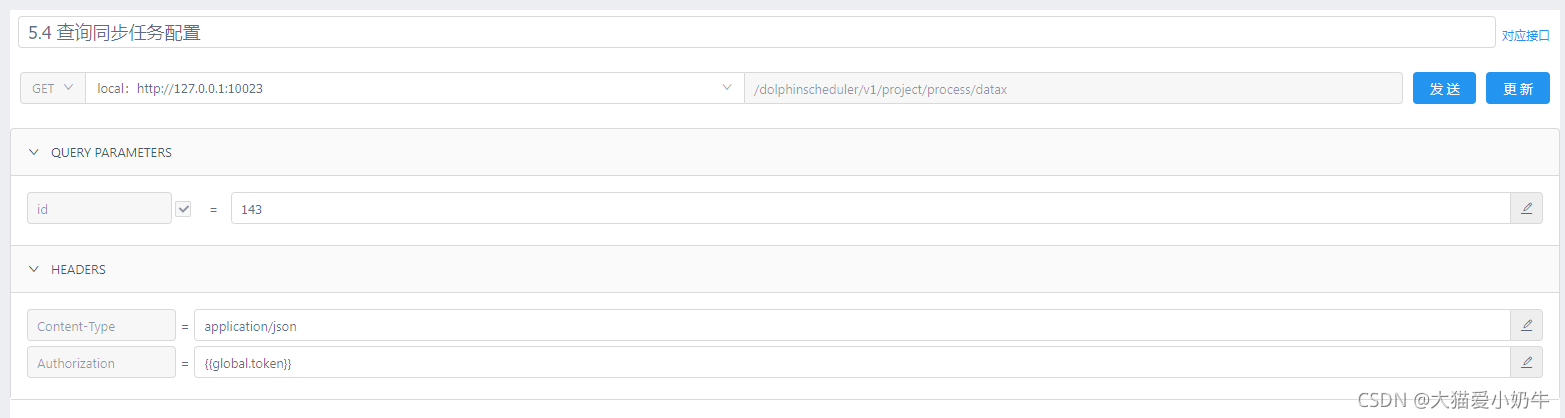

     * 获取同步任务配置
     *
     * @param id
     *            配置id
     * @param request
     *            用户id
     * @return 添加结果
     */
    @RequestMapping(value = "/project/process/datax", method = RequestMethod.GET)
    public ReturnResult<SyncConfigDto> findById(@RequestParam Long id, HttpServletRequest request) {
        Long userId = Long.valueOf(request.getUserPrincipal().getName());
        return syncConfigService.findById(id, userId);
    }
}

package com.geespace.microservices.builder.request;

import javax.validation.constraints.NotEmpty;
import javax.validation.constraints.NotNull;

import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;

import lombok.Data;

/**
 * @Author: zjr
 * @Date: 2020-05-06 09:42
 * @Version 1.0
 */
@Data
public class ConfigAddForm {

    /**
     * 配置名称
     */
    @NotEmpty(message = "name不能为空")
    private String name;
    /**
     * 配置描述
     */
    private String description;
    /**
     * 实时/全量/增量
     */
    @NotNull(message = "同步方式不能为空")
    private int syncType;
    /**
     * reader 选择的数据源id
     */
    @NotNull(message = "读取数据源id不能为空")
    private Long readerConfigId;
    /**
     * reader
     */
    @NotEmpty(message = "读取参数不能为空")
    private JSONObject readerParam;
    /**
     * writer 选择的数据源id
     */
    @NotNull(message = "写入数据源id不能为空")
    private Long writerConfigId;
    /**
     * writer
     */
    @NotEmpty(message = "写入参数不能为空")
    private JSONObject writerParam;
    /**
     * reader:column left,writer:column right
     */
    @NotEmpty(message = "字段对照表不能为空")
    private JSONArray columnMap;

    private Long userId;
    /**
     *  项目名称
     **/
    String projectName;
    /**
     *  项目id
     **/
    @NotNull(message = "projectId not null")
    Long projectId;
    Long id;
}

package com.geespace.microservices.builder.request;

import javax.validation.constraints.NotEmpty;
import javax.validation.constraints.NotNull;

import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;

import lombok.Data;

/**
 * @Author: zjr
 * @Date: 2020-05-06 09:42
 * @Version 1.0
 */
@Data
public class ConfigUpdateForm {
    @NotNull(message = "同步配置id不能为空")
    private Long id;
    /**
     * 配置名称
     */
    @NotEmpty(message = "name不能为空")
    private String name;
    /**
     * 配置描述
     */
    private String description;
    /**
     * 实时/全量/增量
     */
    @NotNull(message = "同步方式不能为空")
    private int syncType;
    /**
     * reader 选择的数据源id
     */
    @NotNull(message = "读取数据源id不能为空")
    private Long readerConfigId;
    /**
     * reader
     */
    @NotEmpty(message = "读取参数不能为空")
    private JSONObject readerParam;
    /**
     * writer 选择的数据源id
     */
    @NotNull(message = "写入数据源id不能为空")
    private Long writerConfigId;
    /**
     * writer
     */
    @NotEmpty(message = "写入参数不能为空")
    private JSONObject writerParam;
    /**
     * reader:column left,writer:column right
     */
    @NotEmpty(message = "字段对照表不能为空")
    private JSONArray columnMap;

    private Long userId;
    /**
     *  项目id
     **/
    @NotNull(message = "projectId not null")
    Long projectId;
    /**
     *  项目名称
     **/
    String projectName;

}

package com.geespace.microservices.builder.dto;

import lombok.Data;
import lombok.EqualsAndHashCode;
import lombok.ToString;

/**
 * dolphinscheduler调度器中工作流参数
 * @Author: liudz
 * @Date: 2020-03-23
 **/
@Data
@EqualsAndHashCode(callSuper = false)
@ToString(callSuper = true)
public class ProcessDto {
    /**
     * 流程定义ID
     **/
    private Integer id;
    /**
     * 流程定义节点图标连接信息(json格式)
     **/
    private String connects;
    /**
     * 流程定义节点坐标位置信息(json格式)
     **/
    private String locations;
    /**
     * 流程定义名称
     **/
    private String name;
    /**
     * 流程定义详细信息(json格式)
     **/
    private String processDefinitionJson;
    /**
     *  项目名称
     **/
    String projectName;
    /**
     *  项目id
     **/
    Long projectId;
}

package com.geespace.microservices.builder.dto;

import com.alibaba.fastjson.JSONObject;

import lombok.Data;

/**
 * @Author: zjr
 * @Date: 2020-05-05 17:03
 * @Version 1.0
 */
@Data
public class SyncConfigDto {
    private Long id;

    /**
     * 配置名称
     */
    private String name;

    /**
     * 配置描述
     */
    private String description;

    /**
     * 实时/全量/增量
     */
    private int syncType;
    /**
     * json base64
     */
    private JSONObject content;
    /**
     *  项目名称
     **/
    String projectName;
    /**
     *  项目id
     **/
    Long projectId;
}

package com.geespace.microservices.builder.service;

import com.geespace.microservices.builder.dto.SyncConfigDto;
import com.geespace.microservices.builder.request.ConfigAddForm;
import com.geespace.microservices.builder.request.ConfigSelectForm;
import com.geespace.microservices.builder.request.ConfigUpdateForm;
import com.geespace.microservices.builder.response.PageResult;
import com.geespace.microservices.builder.response.ReturnResult;

/**
 * @Author: zjr
 * @Date: 2020-05-05 13:59
 * @Version 1.0
 */
public interface SyncConfigService {
    /**
     * 添加同步任务配置
     *
     * @param form
     *            任务配置参数
     * @return 添加结果
     */
    ReturnResult<SyncConfigDto> addConfig(ConfigAddForm form);

    /**
     * 修改同步任务配置
     *
     * @param form
     *            任务配置参数（含id）
     * @return 修改结果
     */
    ReturnResult<SyncConfigDto> updateConfig(ConfigUpdateForm form);

    /**
     * 查找同步任务配置
     *
     * @param id
     *            同步任务配置id
     * @param userId
     *            用户id
     * @return 查询结果
     */
    ReturnResult<SyncConfigDto> findById(Long id, Long userId);

    /**
     * 删除同步任务配置
     *
     * @param id
     *            任务配置id
     * @param userId
     *            用户id
     * @return 删除结果
     */
    ReturnResult delete(Long id, Long userId);

    /**
     * 查询全部同步任务配置（分页）
     *
     * @param form
     *            name
     * @param userId
     *            用户id
     * @return 分页结果
     */
    ReturnResult<PageResult<SyncConfigDto>> list(ConfigSelectForm form, Long userId);
}
