【生信分析】免疫组库基础分析9-CDR3 motif分析

library(tidyr)
library(tidyverse)
files <-list.files(path = "./samples/HC", pattern = "\\clones.txt$",full.names = TRUE)
# 创建一个空列表用于存储不同长度的数据框
CDR3_data_list <- list()
for (length_val in c(13, 14, 15,16, 17, 18,19,20, 21,26)) {
  # 创建对应长度的数据框
  CDR3_data_list[[paste0("CDR3of", length_val, "AAA")]] <- data.frame(length = 1:500)
}
# 在循环中动态填充数据
for (file_path in files) {
  raw <- file_path
  # 提取文件名和目录名称
  out <- basename(raw)
  nam <- tools::file_path_sans_ext(out)
  mycounts <- read.table(raw, sep = "\t", header = TRUE)
  new_data <- mycounts[, c("cloneId", "cloneCount", "targetSequences",
                           "allVHitsWithScore","allDHitsWithScore",
                           "allJHitsWithScore","allCHitsWithScore","aaSeqCDR3")]
  # 假设data是你的数据框，columns是需要处理的列名
  columns <- c("allVHitsWithScore", "allDHitsWithScore", "allJHitsWithScore", "allCHitsWithScore")
  # 使用lapply遍历每个列并应用相同的操作
  new_data[columns] <- lapply(new_data[columns], function(x) sub("\\*(.*)", "", x))
  new_data <- new_data[!grepl("[*|_]", new_data[["aaSeqCDR3"]]), ]
  ##计算CDR3 碱基长度
  new_data$CDR3AA_length <- nchar(as.character(new_data$aaSeqCDR3))
  for (length_val in c(13,14,15,16,17,18,19,20,21,26)) {
    matches <- (length_val == new_data$CDR3AA_length)
    matched_rows <- new_data[matches, ]
    CDR3_data_list[[paste0("CDR3of", length_val, "AAA")]][[nam]] <- matched_rows$aaSeqCDR3[1:500]
  }
  }
files_to_process <- c("CDR3of13AAA", "CDR3of14AAA","CDR3of15AAA","CDR3of16AAA", "CDR3of17AAA",
                           "CDR3of18AAA","CDR3of19AAA", "CDR3of20AAA","CDR3of21AAA","CDR3of26AAA")
for (file_name in files_to_process) {
  # 从CDR3_data_list中获取对应的数据框
  file_data <- CDR3_data_list[[file_name]]
  file_data <-file_data[-1]
  merged_df <- list()
  # 遍历文件的前500行数据
  for (i in 1:500) {
    row_data <- file_data[i, ]
    merged_df[[i]] <- row_data
  }
  # 转换并保存数据
  merged_df2 <- t(as.data.frame(merged_df))
  rownames(merged_df2) <- NULL
  merged_df2 <- merged_df2[complete.cases(merged_df2), ]
  new_file_name <- paste("./CDR3", file_name, "5K.txt", sep="")
  write.table(merged_df2, new_file_name, sep = "\t", quote = FALSE, row.names = FALSE)
}

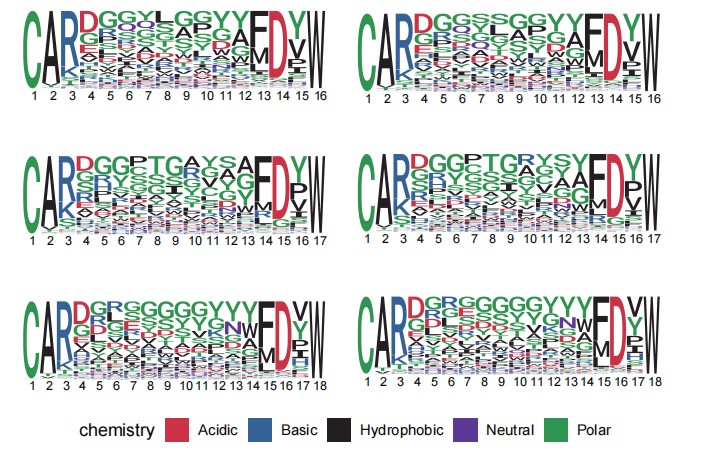

####特定CDR3 length AA sequence to motif
#加载包
library(ggseqlogo)
files <-list.files(path = "CDR3", pattern = "5K.txt$",full.names = TRUE)
if (!dir.exists("motifigure")) {
  dir.create("motifigure")
}
for (file_path in files) {
  raw <- file_path
  # 提取无后缀的文件名作为输出名称
  out <- basename(raw)
  nam <- tools::file_path_sans_ext(out)
  # 读取数据
  mycounts <- read.table(raw, sep = "\t", header = TRUE)
  # 生成序列标识图
  p <- ggseqlogo(mycounts,method="probability")
  # 保存为PDF（自动关闭图形设备）
  ggsave(
    filename = paste0("motifigure/", nam, ".pdf"),  # 动态文件名
    plot = p,                        # 指定要保存的图形对象
    device = "pdf",                  # 设备类型
    width = 8,                       # 宽度（英寸）
    height = 3                       # 高度（英寸）
  )
}

df <- read.table("AA-sigclone.txt", sep='\t', header = TRUE)
# 定义样本列名
sample_columns <- c("HC1", "HC2", "HC3", "HC4", "AA1", "AA2", "AA3", "AA4", "AA5"）
# 定义过滤条件
filter_conditions <- list(
 AAhighVSHC = subset(df, Sig_AAvsHC != "ns" & log2FC_AAvsHC > 0),)
)
# 定义扩展范围（示例为-2到+2，共5个位置）
 positions <- c(-2, -1, 0, 1, 2) # 相对CDR3中心的偏移位置，0为中心，-2/-1为左侧，1/2为右侧 # 直接定义法
 aa_order <- c("I", "V", "L", "F", "C", "M", "A",  "W", "G",
  "T", "S", "Y", "P", "H", "N", "D", "Q", "E", "K", "R")
  # 定义一个函数来处理和绘制每个样本的HC_mean向量

# 定义函数：处理样本数据并绘制logo图
process_and_plot <- function(filtered_data, sample) {
# 初始化结果矩阵（氨基酸×位置）
result <- matrix(0,
nrow = length(aa_order),
ncol = length(positions),
dimnames = list(aa_order, positions))
# 数据校验
frequencies <- filtered_data[[sample]]
if (any(is.na(frequencies)) || sum(frequencies) == 0) {
next # 跳过无效样本
}
# 权重归一化处理
total_weight <- sum(frequencies)
# 遍历每条CDR3序列
for (i in 1:nrow(filtered_data)) {
cdr3 <- filtered_data[i, 1] # 提取序列
weight <- frequencies[i] / total_weight # 计算归一化权重
# 确定序列中心位置
seq_length <- nchar(cdr3)
center <- ifelse(seq_length %% 2 == 1,
(seq_length + 1) / 2,
seq_length / 2)
# 遍历目标相对位置
for (p in positions) {
actual_pos <- center + p
# 边界检查
if (between(actual_pos, 1, seq_length)) {
aa <- substr(cdr3, actual_pos, actual_pos)
# 有效氨基酸权重累加
if (aa %in% aa_order) {
result[aa, as.character(p)] <-
result[aa, as.character(p)] + weight
}
}
}
}

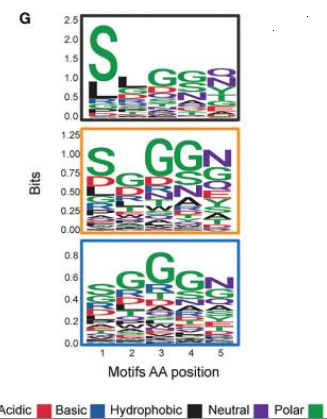

# 生成序列logo图（两种展示方式）
plot_bits <- ggseqlogo(result, method = 'bits') +
ggtitle(paste0(sample, " - bits"))
plot_prob <- ggseqlogo(result, method = 'prob') +
ggtitle(paste0(sample, " - prob"))
return(list(bits_plot = plot_bits, prob_plot = plot_prob))
}
# 处理不同过滤条件数据集
analysis_pipeline <- function(filter_conditions) {
results <- list()
for (condition_name in names(filter_conditions)) {
filtered_data <- filter_conditions[[condition_name]]
# 可添加样本遍历逻辑
# for (sample in colnames(filtered_data)[-1]) {
# results[[paste(condition_name, sample)]] <-
# process_and_plot(filtered_data, sample)
# }
}
return(results)
}
##循环构建
  for (sample in sample_columns) {
    p<- process_and_plot(filtered_data,sample)
    all_plots[[length(all_plots) + 1]] <- p
  }

  # 每页20张图（4列5行），总共分几页
  num_plots <- length(all_plots)
  plots_per_page <- 10
  total_pages <- ceiling(num_plots / plots_per_page)

  # 创建一个空的 grob 列表来存储每一页的内容
  page_grobs <- list()

  for (i in seq(1, num_plots, by = plots_per_page)) {
    page_plots <- all_plots[i:min(i + plots_per_page - 1, num_plots)]
    combined_plot <- wrap_plots(page_plots, ncol = 2, nrow = 5) +
      plot_annotation(tag_levels = "A")
    page_grobs[[length(page_grobs) + 1]] <- combined_plot
  }

  # 将所有页面组合成一个 PDF 文件
  pdf(paste0(condition_name,".png"), width = 9, height = 14)  # A4 size in inches
  for (page_grob in page_grobs) {
    print(page_grob)
  }
  dev.off()
}
