[数据分析]合成控制法：当没有完美对照组时该怎么办？

import numpy as np
import pandas as pd
from scipy.optimize import minimize
import matplotlib.pyplot as plt

class SyntheticControl:
    def __init__(self):
        self.weights = None
        self.v_matrix = None
        self.synthetic_control = None

    def fit(self, treated_pre, control_pre, predictors=None, V=None):
        """
        拟合合成控制模型

        参数:
        treated_pre: 处理单元预处理期数据 (T0,)
        control_pre: 控制单元预处理期数据 (T0, J)
        predictors: 预测变量矩阵 (K, J+1)，第一列是处理单元
        V: 预测变量权重矩阵，如果为None则自动选择
        """
        self.T0 = treated_pre.shape[0]
        self.J = control_pre.shape[1]

        # 如果没有提供预测变量，使用预处理期结果变量的均值
        if predictors is None:
            predictors = np.vstack([treated_pre.mean(), control_pre.mean(axis=0)]).T
            predictors = np.vstack([predictors, treated_pre[-3:].mean(), control_pre[-3:,:].mean(axis=0)]).T

        # 分离处理单元和控制单元的预测变量
        X1 = predictors[:, 0]  # 处理单元预测变量
        X0 = predictors[:, 1:] # 控制单元预测变量

        # 如果没有提供V矩阵，使用均等权重或基于回归的权重
        if V is None:
            # 简单方法：使用均等权重
            V = np.diag(np.ones(len(X1)) / len(X1))

        self.V = V

        # 定义优化问题
        def objective(W):
            return np.sqrt((X1 - X0 @ W).T @ V @ (X1 - X0 @ W))

        # 约束条件：权重非负且和为1
        constraints = ({'type': 'eq', 'fun': lambda W: np.sum(W) - 1})
        bounds = [(0, 1) for _ in range(self.J)]

        # 初始值：均等权重
        W0 = np.ones(self.J) / self.J

        # 优化
        result = minimize(objective, W0, method='SLSQP',
                         bounds=bounds, constraints=constraints)

        if result.success:
            self.weights = result.x
        else:
            raise ValueError("权重优化失败")

        return self

    def predict(self, control_post):
        """预测处理后的合成控制结果"""
        if self.weights is None:
            raise ValueError("需要先拟合模型")

        self.synthetic_control = control_post @ self.weights
        return self.synthetic_control

    def calculate_effect(self, treated_post, control_post):
        """计算处理效应"""
        synthetic_post = self.predict(control_post)
        effect = treated_post - synthetic_post
        return effect

    def plot_results(self, treated_pre, treated_post, control_pre, control_post, event_time=None):
        """绘制合成控制结果"""
        if event_time is None:
            event_time = list(range(-len(treated_pre), len(treated_post)))

        # 计算合成控制组在整个时期的轨迹
        synthetic_pre = control_pre @ self.weights
        synthetic_post = control_post @ self.weights

        # 合并预处理期和处理后期
        treated_full = np.concatenate([treated_pre, treated_post])
        synthetic_full = np.concatenate([synthetic_pre, synthetic_post])

        plt.figure(figsize=(12, 6))
        plt.plot(event_time, treated_full, 'b-', linewidth=2, label='处理单元')
        plt.plot(event_time, synthetic_full, 'r--', linewidth=2, label='合成控制组')
        plt.axvline(x=0, color='gray', linestyle='-', alpha=0.7, label='政策实施')
        plt.xlabel('时间（相对政策实施）')
        plt.ylabel('结果变量')
        plt.title('合成控制法分析结果')
        plt.legend()
        plt.grid(True, alpha=0.3)
        plt.show()

        # 绘制处理效应
        effect = treated_full - synthetic_full
        plt.figure(figsize=(12, 4))
        plt.bar(event_time, effect, alpha=0.7, color='orange')
        plt.axhline(y=0, color='gray', linestyle='-', alpha=0.7)
        plt.axvline(x=0, color='gray', linestyle='-', alpha=0.7)
        plt.xlabel('时间（相对政策实施）')
        plt.ylabel('处理效应')
        plt.title('处理效应随时间变化')
        plt.grid(True, alpha=0.3)
        plt.show()

        return effect

# 示例使用
def example_synthetic_control():
    """合成控制法示例"""
    np.random.seed(42)

    # 生成模拟数据
    T0 = 20  # 预处理期
    T1 = 10  # 处理后期
    J = 20   # 控制单元数量

    # 生成共同趋势和个体固定效应
    common_trend = np.linspace(0, 10, T0 + T1)
    unit_effects = np.random.normal(0, 2, J + 1)

    # 生成预处理期数据
    control_pre = np.zeros((T0, J))
    for j in range(J):
        control_pre[:, j] = common_trend[:T0] + unit_effects[j+1] + np.random.normal(0, 0.5, T0)

    treated_pre = common_trend[:T0] + unit_effects[0] + np.random.normal(0, 0.5, T0)

    # 生成处理后期数据（真实效应为2）
    control_post = np.zeros((T1, J))
    for j in range(J):
        control_post[:, j] = common_trend[T0:] + unit_effects[j+1] + np.random.normal(0, 0.5, T1)

    treated_post = common_trend[T0:] + unit_effects[0] + 2 + np.random.normal(0, 0.5, T1)  # 真实效应为2

    # 应用合成控制法
    scm = SyntheticControl()
    scm.fit(treated_pre, control_pre)

    effect = scm.calculate_effect(treated_post, control_post)
    avg_effect = np.mean(effect)

    print(f"估计的平均处理效应: {avg_effect:.3f}")
    print(f"真实处理效应: 2.000")
    print(f"估计偏差: {avg_effect - 2:.3f}")

    # 绘制结果
    event_time = list(range(-T0, T1))
    scm.plot_results(treated_pre, treated_post, control_pre, control_post, event_time)

    return scm, effect

# 运行示例
scm, effect = example_synthetic_control()

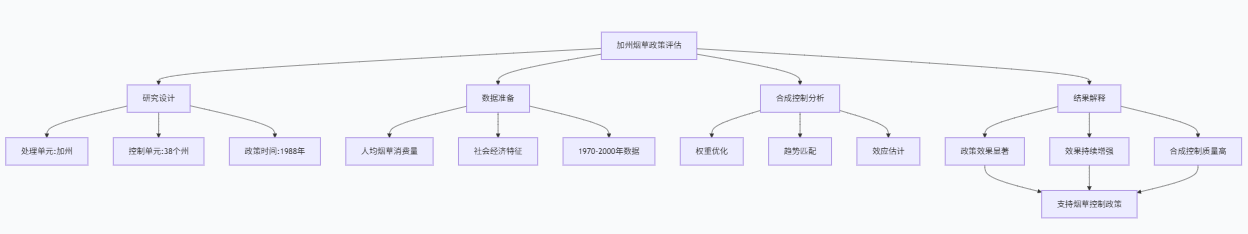

def run_california_analysis():
    """运行加州烟草政策评估"""
    # 准备数据
    study = CaliforniaTobaccoStudy()
    scm_data = study.prepare_scm_data()

    # 应用合成控制法
    scm = SyntheticControl()

    # 使用特征矩阵作为预测变量
    scm.fit(scm_data['treated_pre'],
            scm_data['control_pre'],
            predictors=np.vstack([scm_data['X1'], scm_data['X0']]).T)

    # 计算处理效应
    effect = scm.calculate_effect(scm_data['treated_post'],
                                 scm_data['control_post'])

    # 绘制结果
    years = study.pre_period + study.post_period
    event_time = [year - study.data['treatment_year'] for year in years]

    effect_plot = scm.plot_results(scm_data['treated_pre'],
                                  scm_data['treated_post'],
                                  scm_data['control_pre'],
                                  scm_data['control_post'],
                                  event_time)

    # 计算平均处理效应和累计效应
    avg_effect = np.mean(effect)
    cumulative_effect = np.sum(effect)

    print("加州烟草控制政策评估结果:")
    print(f"平均年度处理效应: {avg_effect:.2f} 包/人/年")
    print(f"累计处理效应 (1989-2000): {cumulative_effect:.2f} 包/人")
    print(f"相当于平均减少: {avg_effect/scm_data['treated_pre'][-1]*100:.1f}%")

    # 显示权重分布
    print("\n合成控制组权重分布:")
    weights_df = pd.DataFrame({
        'State': study.control_states,
        'Weight': scm.weights
    }).sort_values('Weight', ascending=False)

    print(weights_df.head(10))  # 显示前10个最重要控制州

    return scm, effect, weights_df

# 运行分析
scm_ca, effect_ca, weights_df = run_california_analysis()

import numpy as np
import pandas as pd
from scipy.optimize import minimize
import matplotlib.pyplot as plt
from matplotlib.gridspec import GridSpec
import seaborn as sns

class AdvancedSyntheticControl:
    def __init__(self, treated_unit, donor_pool, time_index=None):
        """
        初始化高级合成控制模型

        参数:
        treated_unit: 处理单元名称或标识
        donor_pool: 捐赠池单元列表
        time_index: 时间索引
        """
        self.treated_unit = treated_unit
        self.donor_pool = donor_pool
        self.time_index = time_index
        self.weights = None
        self.V_matrix = None
        self.prediction = None
        self.effect = None

    def fit(self, data, treatment_time, predictors=None,
            V_method='equal', custom_V=None, optimizer_options=None):
        """
        拟合合成控制模型

        参数:
        data: 面板数据，索引为时间，列为单元
        treatment_time: 处理开始时间
        predictors: 预测变量，如果为None则使用预处理期数据
        V_method: V矩阵选择方法 ('equal', 'regression', 'custom')
        custom_V: 自定义V矩阵
        optimizer_options: 优化器选项
        """
        self.data = data
        self.treatment_time = treatment_time
        self.pre_period = data.index[data.index < treatment_time]
        self.post_period = data.index[data.index >= treatment_time]

        if len(self.pre_period) == 0:
            raise ValueError("预处理期数据不足")

        # 准备数据
        self._prepare_data(predictors)

        # 选择V矩阵
        self._choose_V_matrix(V_method, custom_V)

        # 优化权重
        self._optimize_weights(optimizer_options)

        return self

    def _prepare_data(self, predictors):
        """准备数据"""
        # 处理单元数据
        self.y_treated_pre = self.data.loc[self.pre_period, self.treated_unit].values
        self.y_treated_post = self.data.loc[self.post_period, self.treated_unit].values

        # 控制单元数据
        self.y_donor_pre = self.data.loc[self.pre_period, self.donor_pool].values
        self.y_donor_post = self.data.loc[self.post_period, self.donor_pool].values

        # 预测变量
        if predictors is None:
            # 使用预处理期数据的各种统计量作为预测变量
            pre_means = self.data.loc[self.pre_period].mean()
            pre_early = self.data.loc[self.pre_period[:len(self.pre_period)//2]].mean()
            pre_late = self.data.loc[self.pre_period[len(self.pre_period)//2:]].mean()
            pre_trend = np.polyfit(range(len(self.pre_period)),
                                  self.data.loc[self.pre_period, self.treated_unit], 1)[0]

            self.X1 = np.array([pre_means[self.treated_unit],
                              pre_early[self.treated_unit],
                              pre_late[self.treated_unit], pre_trend])

            self.X0 = np.vstack([
                pre_means[self.donor_pool].values,
                pre_early[self.donor_pool].values,
                pre_late[self.donor_pool].values,
                [np.polyfit(range(len(self.pre_period)),
                           self.data.loc[self.pre_period, donor], 1)[0]
                 for donor in self.donor_pool]
            ])
        else:
            # 使用提供的预测变量
            self.X1 = predictors.loc[self.treated_unit].values
            self.X0 = predictors.loc[self.donor_pool].values.T

    def _choose_V_matrix(self, method, custom_V):
        """选择V矩阵"""
        if method == 'equal':
            # 均等权重
            self.V_matrix = np.diag(np.ones(len(self.X1)) / len(self.X1))

        elif method == 'regression':
            # 基于回归的权重（预测变量对结果的影响）
            # 简化实现：使用预处理期结果与预测变量的相关性
            correlations = []
            for i in range(len(self.X1)):
                corr = np.corrcoef(self.X0[i], self.y_donor_pre.mean(axis=0))[0, 1]
                correlations.append(abs(corr) if not np.isnan(corr) else 0)

            weights = np.array(correlations)
            if weights.sum() > 0:
                weights = weights / weights.sum()
            else:
                weights = np.ones(len(self.X1)) / len(self.X1)

            self.V_matrix = np.diag(weights)

        elif method == 'custom' and custom_V is not None:
            self.V_matrix = custom_V
        else:
            raise ValueError("不支持的V矩阵选择方法")

    def _optimize_weights(self, options):
        """优化权重"""
        if options is None:
            options = {'method': 'SLSQP', 'options': {'ftol': 1e-9}}

        # 目标函数
        def objective(W):
            return np.sqrt((self.X1 - self.X0 @ W).T @ self.V_matrix @ (self.X1 - self.X0 @ W))

        # 约束：权重非负且和为1
        constraints = ({'type': 'eq', 'fun': lambda W: np.sum(W) - 1})
        bounds = [(0, 1) for _ in range(len(self.donor_pool))]

        # 初始值
        W0 = np.ones(len(self.donor_pool)) / len(self.donor_pool)

        # 优化
        result = minimize(objective, W0, method=options.get('method', 'SLSQP'),
                         bounds=bounds, constraints=constraints,
                         options=options.get('options', {}))

        if result.success:
            self.weights = result.x
            self.optimization_result = result
        else:
            raise ValueError(f"权重优化失败: {result.message}")

    def predict(self, period='all'):
        """预测合成控制结果"""
        if self.weights is None:
            raise ValueError("需要先拟合模型")

        if period == 'all':
            donor_data = self.data[self.donor_pool].values
            self.prediction = donor_data @ self.weights
        elif period == 'pre':
            self.prediction_pre = self.y_donor_pre @ self.weights
            return self.prediction_pre
        elif period == 'post':
            self.prediction_post = self.y_donor_post @ self.weights
            return self.prediction_post
        else:
            raise ValueError("period参数应为 'all', 'pre' 或 'post'")

    def calculate_effect(self):
        """计算处理效应"""
        if self.prediction is None:
            self.predict('all')

        treated = self.data[self.treated_unit].values
        self.effect = treated - self.prediction

        # 分离预处理期和处理后期效应
        pre_idx = len(self.pre_period)
        self.effect_pre = self.effect[:pre_idx]
        self.effect_post = self.effect[pre_idx:]

        return self.effect

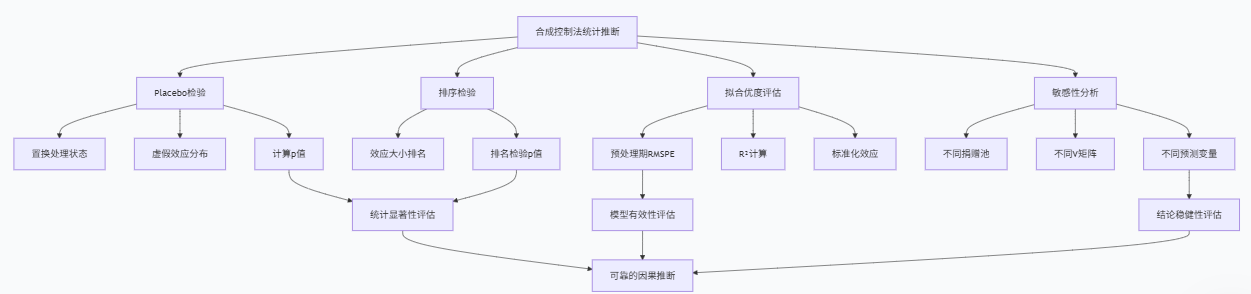

    def inference_placebo(self, n_permutations=1000):
        """Placebo检验：置换检验"""
        placebo_effects = []

        # 将处理单元也加入捐赠池进行Placebo检验
        all_units = [self.treated_unit] + self.donor_pool

        for unit in all_units:
            # 将当前单元作为假想的处理单元
            placebo_donor = [u for u in all_units if u != unit]

            try:
                # 拟合Placebo模型
                placebo_sc = AdvancedSyntheticControl(unit, placebo_donor, self.time_index)
                placebo_sc.fit(self.data, self.treatment_time,
                              V_method='equal', optimizer_options={'method': 'SLSQP'})

                placebo_effect = placebo_sc.calculate_effect()
                placebo_post_effect = placebo_sc.effect_post

                if len(placebo_post_effect) > 0:
                    placebo_effects.append({
                        'unit': unit,
                        'effect': np.mean(placebo_post_effect),
                        'rmse_pre': np.sqrt(np.mean(placebo_sc.effect_pre**2))
                    })
            except:
                continue

        self.placebo_results = pd.DataFrame(placebo_effects)
        return self.placebo_results

    def plot_diagnostic(self, figsize=(15, 10)):
        """绘制诊断图"""
        fig = plt.figure(figsize=figsize)
        gs = GridSpec(3, 2, figure=fig)

        # 1. 趋势比较图
        ax1 = fig.add_subplot(gs[0, :])
        self._plot_trend_comparison(ax1)

        # 2. 处理效应图
        ax2 = fig.add_subplot(gs[1, 0])
        self._plot_effect(ax2)

        # 3. 权重分布图
        ax3 = fig.add_subplot(gs[1, 1])
        self._plot_weights(ax3)

        # 4. Placebo检验图
        if hasattr(self, 'placebo_results'):
            ax4 = fig.add_subplot(gs[2, 0])
            self._plot_placebo(ax4)

        # 5. 预测变量平衡图
        ax5 = fig.add_subplot(gs[2, 1])
        self._plot_predictor_balance(ax5)

        plt.tight_layout()
        plt.show()

    def _plot_trend_comparison(self, ax):
        """绘制趋势比较图"""
        time_idx = range(len(self.data))

        ax.plot(time_idx, self.data[self.treated_unit].values,
               'b-', linewidth=2, label=f'处理单元 ({self.treated_unit})')
        ax.plot(time_idx, self.prediction, 'r--', linewidth=2, label='合成控制组')

        # 标记处理时间
        treatment_idx = len(self.pre_period)
        ax.axvline(x=treatment_idx, color='gray', linestyle='-', alpha=0.7)
        ax.text(treatment_idx, ax.get_ylim()[0], '政策实施',
               ha='center', va='bottom', rotation=90)

        ax.set_xlabel('时间')
        ax.set_ylabel('结果变量')
        ax.set_title('处理单元 vs 合成控制组')
        ax.legend()
        ax.grid(True, alpha=0.3)

    def _plot_effect(self, ax):
        """绘制处理效应图"""
        time_idx = range(len(self.effect))

        ax.bar(time_idx, self.effect, alpha=0.7, color='orange')
        ax.axhline(y=0, color='gray', linestyle='-')
        ax.axvline(x=len(self.pre_period), color='gray', linestyle='-')

        ax.set_xlabel('时间')
        ax.set_ylabel('处理效应')
        ax.set_title('处理效应随时间变化')
        ax.grid(True, alpha=0.3)

    def _plot_weights(self, ax):
        """绘制权重分布图"""
        # 只显示权重大于0.01的单元
        significant_weights = [(i, w) for i, w in enumerate(self.weights) if w > 0.01]
        if not significant_weights:
            significant_weights = [(i, w) for i, w in enumerate(self.weights) if w > 0]

        indices, weights = zip(*significant_weights)
        units = [self.donor_pool[i] for i in indices]

        ax.barh(units, weights, color='skyblue')
        ax.set_xlabel('权重')
        ax.set_title('合成控制组权重分布')
        ax.grid(True, alpha=0.3)

    def _plot_placebo(self, ax):
        """绘制Placebo检验图"""
        if not hasattr(self, 'placebo_results'):
            return

        # 真实处理效应的位置
        real_effect = np.mean(self.effect_post)

        ax.hist(self.placebo_results['effect'], bins=20, alpha=0.7, color='lightblue')
        ax.axvline(x=real_effect, color='red', linestyle='--', linewidth=2,
                  label='真实处理效应')
        ax.set_xlabel('Placebo处理效应')
        ax.set_ylabel('频数')
        ax.set_title('Placebo检验')
        ax.legend()
        ax.grid(True, alpha=0.3)

    def _plot_predictor_balance(self, ax):
        """绘制预测变量平衡图"""
        # 计算处理单元和合成控制组的预测变量值
        treated_predictors = self.X1
        synthetic_predictors = self.X0 @ self.weights

        predictors = [f'Predictor {i+1}' for i in range(len(treated_predictors))]

        x = np.arange(len(predictors))
        width = 0.35

        ax.bar(x - width/2, treated_predictors, width, label='处理单元', alpha=0.7)
        ax.bar(x + width/2, synthetic_predictors, width, label='合成控制组', alpha=0.7)

        ax.set_xlabel('预测变量')
        ax.set_ylabel('值')
        ax.set_title('预测变量平衡性')
        ax.set_xticks(x)
        ax.set_xticklabels(predictors, rotation=45)
        ax.legend()
        ax.grid(True, alpha=0.3)

# 使用示例
def example_advanced_scm():
    """高级合成控制法示例"""
    # 生成模拟数据
    np.random.seed(42)
    n_time = 30
    n_units = 20

    # 创建时间索引
    time_index = pd.date_range('1990-01-01', periods=n_time, freq='Y')

    # 生成单元名称
    units = [f'Unit_{i}' for i in range(n_units)]
    treated_unit = 'Unit_0'
    donor_pool = units[1:]

    # 生成数据
    data = pd.DataFrame(index=time_index, columns=units)

    # 共同趋势
    common_trend = np.linspace(100, 120, n_time)

    for i, unit in enumerate(units):
        # 单元特定特征
        unit_effect = np.random.normal(0, 5)
        unit_trend = common_trend + unit_effect + np.random.normal(0, 2, n_time)

        # 对处理单元添加处理效应
        if unit == treated_unit:
            treatment_time = '2000-01-01'
            treatment_idx = time_index.get_loc(treatment_time)
            unit_trend[treatment_idx:] += np.linspace(-5, -15, n_time - treatment_idx)

        data[unit] = unit_trend

    # 应用高级合成控制法
    scm = AdvancedSyntheticControl(treated_unit, donor_pool, time_index)
    scm.fit(data, treatment_time, V_method='equal')

    # 计算效应
    effect = scm.calculate_effect()

    # Placebo检验
    placebo_results = scm.inference_placebo(n_permutations=100)

    # 绘制诊断图
    scm.plot_diagnostic()

    # 计算统计显著性
    real_effect = np.mean(scm.effect_post)
    placebo_effects = placebo_results['effect'].values
    p_value = np.mean(np.abs(placebo_effects) >= np.abs(real_effect))

    print(f"真实处理效应: {real_effect:.3f}")
    print(f"Placebo检验p值: {p_value:.3f}")
    print(f"预处理期RMSE: {np.sqrt(np.mean(scm.effect_pre**2)):.3f}")

    return scm, effect, placebo_results

# 运行示例
scm_advanced, effect_advanced, placebo_results = example_advanced_scm()

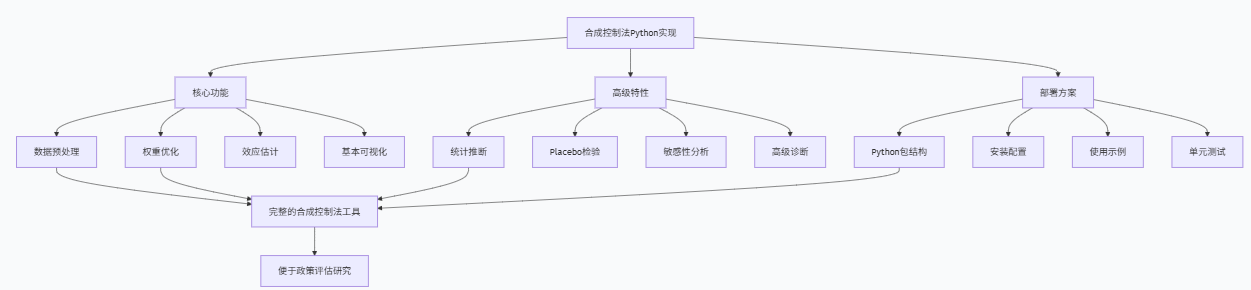

synthetic-control/
│
├── __init__.py
├── core/
│   ├── __init__.py
│   ├── scm.py              # 主要合成控制法实现
│   ├── inference.py        # 统计推断方法
│   └── diagnostics.py      # 诊断工具
├── utils/
│   ├── __init__.py
│   ├── data_utils.py       # 数据工具
│   └── visualization.py    # 可视化工具
├── examples/
│   ├── __init__.py
│   ├── california_tobacco.py  # 加州烟草案例
│   └── german_reunification.py # 德国统一案例
└── tests/
    ├── __init__.py
    └── test_scm.py         # 单元测试

from setuptools import setup, find_packages

setup(
    name="synthetic-control",
    version="0.1.0",
    description="A comprehensive Python implementation of Synthetic Control Method",
    author="Your Name",
    author_email="your.email@example.com",
    packages=find_packages(),
    install_requires=[
        "numpy>=1.20.0",
        "pandas>=1.3.0",
        "scipy>=1.7.0",
        "matplotlib>=3.5.0",
        "seaborn>=0.11.0",
    ],
    python_requires=">=3.8",
)

from synthetic_control import AdvancedSyntheticControl
from synthetic_control.utils.visualization import plot_scm_diagnostics

# 加载数据
data = pd.read_csv('policy_data.csv', index_col=0)

# 创建合成控制模型
scm = AdvancedSyntheticControl(
    treated_unit='California',
    donor_pool=['New York', 'Texas', 'Florida', 'Illinois', 'Ohio'],
    time_index=data.index
)

# 拟合模型
scm.fit(data, treatment_time='2005-01-01', V_method='regression')

# 进行统计推断
placebo_results = scm.inference_placebo(n_permutations=1000)

# 生成诊断报告
plot_scm_diagnostics(scm, save_path='scm_diagnostic.png')

def placebo_test(scm, data, treatment_time, n_permutations=1000):
    """
    执行Placebo检验

    参数:
    scm: 合成控制模型实例
    data: 面板数据
    treatment_time: 处理时间
    n_permutations: 置换次数

    返回:
    placebo_distribution: Placebo效应分布
    p_value: 统计显著性p值
    """
    # 真实处理效应
    real_effect = np.mean(scm.effect_post)

    # 所有单元（包括处理单元）
    all_units = [scm.treated_unit] + scm.donor_pool

    placebo_effects = []
    placebo_rmspe = []  # 预处理期均方预测误差

    for _ in range(n_permutations):
        # 随机选择一个单元作为假想的处理单元
        placebo_treated = np.random.choice(all_units)
        placebo_donor = [u for u in all_units if u != placebo_treated]

        try:
            # 拟合Placebo模型
            placebo_model = AdvancedSyntheticControl(placebo_treated, placebo_donor)
            placebo_model.fit(data, treatment_time, V_method='equal')
            placebo_effect = placebo_model.calculate_effect()

            # 只保留成功的拟合
            if len(placebo_model.effect_post) > 0:
                placebo_post_effect = np.mean(placebo_model.effect_post)
                placebo_pre_rmse = np.sqrt(np.mean(placebo_model.effect_pre**2))

                placebo_effects.append(placebo_post_effect)
                placebo_rmspe.append(placebo_pre_rmse)

        except:
            continue

    # 计算p值（双边检验）
    extreme_count = sum(np.abs(placebo_effects) >= np.abs(real_effect))
    p_value = extreme_count / len(placebo_effects) if len(placebo_effects) > 0 else 1.0

    return {
        'real_effect': real_effect,
        'placebo_effects': np.array(placebo_effects),
        'placebo_rmspe': np.array(placebo_rmspe),
        'p_value': p_value,
        'n_successful': len(placebo_effects)
    }

def plot_placebo_results(placebo_results, figsize=(12, 5)):
    """绘制Placebo检验结果"""
    fig, (ax1, ax2) = plt.subplots(1, 2, figsize=figsize)

    # Placebo效应分布
    ax1.hist(placebo_results['placebo_effects'], bins=20, alpha=0.7, color='lightblue')
    ax1.axvline(x=placebo_results['real_effect'], color='red', linestyle='--',
                linewidth=2, label=f'真实效应: {placebo_results["real_effect"]:.3f}')
    ax1.set_xlabel('Placebo处理效应')
    ax1.set_ylabel('频数')
    ax1.set_title('Placebo效应分布')
    ax1.legend()
    ax1.grid(True, alpha=0.3)

    # 效应 vs 预处理期拟合质量
    ax2.scatter(placebo_results['placebo_rmspe'], placebo_results['placebo_effects'],
               alpha=0.6, color='blue')
    ax2.axhline(y=0, color='gray', linestyle='-', alpha=0.7)
    ax2.set_xlabel('预处理期RMSPE')
    ax2.set_ylabel('Placebo处理效应')
    ax2.set_title('效应大小 vs 拟合质量')
    ax2.grid(True, alpha=0.3)

    plt.tight_layout()
    plt.show()

    print(f"真实处理效应: {placebo_results['real_effect']:.3f}")
    print(f"Placebo检验p值: {placebo_results['p_value']:.3f}")
    print(f"成功Placebo检验次数: {placebo_results['n_successful']}")

# 使用示例
placebo_results = placebo_test(scm_advanced, data, '2000-01-01', n_permutations=500)
plot_placebo_results(placebo_results)

def rank_test(placebo_results, alternative='two-sided'):
    """
    排序检验

    参数:
    placebo_results: Placebo检验结果
    alternative: 检验类型 ('two-sided', 'less', 'greater')

    返回:
    rank: 真实效应在分布中的排名
    p_value: 排序检验p值
    """
    real_effect = placebo_results['real_effect']
    placebo_effects = placebo_results['placebo_effects']

    if len(placebo_effects) == 0:
        return None, 1.0

    # 合并真实效应和Placebo效应
    all_effects = np.concatenate([[real_effect], placebo_effects])

    # 计算排名（从大到小）
    ranks = len(all_effects) - np.argsort(np.argsort(np.abs(all_effects))) if alternative == 'two-sided' else \
            len(all_effects) - np.argsort(np.argsort(all_effects))

    real_rank = ranks[0]  # 真实效应的排名

    # 计算p值
    if alternative == 'two-sided':
        p_value = (real_rank) / len(all_effects)
    elif alternative == 'greater':
        p_value = (len(all_effects) - real_rank + 1) / len(all_effects)
    elif alternative == 'less':
        p_value = real_rank / len(all_effects)
    else:
        raise ValueError("alternative参数应为 'two-sided', 'less' 或 'greater'")

    return real_rank, p_value

# 使用示例
rank, p_value_rank = rank_test(placebo_results, alternative='two-sided')
print(f"真实效应排名: {rank}/{len(placebo_results['placebo_effects']) + 1}")
print(f"排序检验p值: {p_value_rank:.3f}")

def evaluate_fit_quality(scm, threshold=0.1):
    """
    评估拟合优度

    参数:
    scm: 合成控制模型
    threshold: RMSPE阈值

    返回:
    fit_metrics: 拟合优度指标
    """
    # 计算预处理期均方预测误差（RMSPE）
    rmspe_pre = np.sqrt(np.mean(scm.effect_pre**2))

    # 计算R²
    ss_total = np.sum((scm.y_treated_pre - np.mean(scm.y_treated_pre))**2)
    ss_residual = np.sum(scm.effect_pre**2)
    r_squared = 1 - (ss_residual / ss_total) if ss_total > 0 else 0

    # 计算平均绝对误差（MAE）
    mae_pre = np.mean(np.abs(scm.effect_pre))

    # 标准化处理效应（相对于预处理期波动）
    pre_std = np.std(scm.y_treated_pre)
    standardized_effect = np.mean(scm.effect_post) / pre_std if pre_std > 0 else 0

    fit_metrics = {
        'rmspe_pre': rmspe_pre,
        'r_squared': r_squared,
        'mae_pre': mae_pre,
        'standardized_effect': standardized_effect,
        'good_fit': rmspe_pre < threshold
    }

    return fit_metrics

# 使用示例
fit_metrics = evaluate_fit_quality(scm_advanced)
print("拟合优度评估:")
for metric, value in fit_metrics.items():
    if metric != 'good_fit':
        print(f"{metric}: {value:.3f}")
print(f"拟合质量良好: {fit_metrics['good_fit']}")

def sensitivity_analysis(scm, data, treatment_time, variations):
    """
    敏感性分析

    参数:
    scm: 基础模型
    data: 数据
    treatment_time: 处理时间
    variations: 敏感性分析变体列表

    返回:
    sensitivity_results: 敏感性分析结果
    """
    sensitivity_results = []

    base_effect = np.mean(scm.effect_post)

    for variation in variations:
        try:
            # 创建变体模型
            if variation['type'] == 'donor_pool':
                # 改变捐赠池
                donor_pool_var = variation['donor_pool']
                scm_var = AdvancedSyntheticControl(scm.treated_unit, donor_pool_var)
                scm_var.fit(data, treatment_time, V_method='equal')

            elif variation['type'] == 'V_matrix':
                # 改变V矩阵
                scm_var = AdvancedSyntheticControl(scm.treated_unit, scm.donor_pool)
                scm_var.fit(data, treatment_time, V_method=variation['method'])

            elif variation['type'] == 'predictors':
                # 改变预测变量
                scm_var = AdvancedSyntheticControl(scm.treated_unit, scm.donor_pool)
                # 这里需要实现特定的预测变量选择
                pass

            else:
                continue

            effect_var = np.mean(scm_var.effect_post)
            rmspe_pre_var = np.sqrt(np.mean(scm_var.effect_pre**2))

            sensitivity_results.append({
                'variation': variation['name'],
                'effect': effect_var,
                'rmspe_pre': rmspe_pre_var,
                'difference': effect_var - base_effect,
                'relative_diff': (effect_var - base_effect) / abs(base_effect) if base_effect != 0 else 0
            })

        except Exception as e:
            print(f"变体 {variation['name']} 失败: {str(e)}")
            continue

    return pd.DataFrame(sensitivity_results)

# 敏感性分析示例
variations = [
    {'type': 'V_matrix', 'method': 'equal', 'name': '均等权重V矩阵'},
    {'type': 'V_matrix', 'method': 'regression', 'name': '回归权重V矩阵'},
    {'type': 'donor_pool', 'donor_pool': scm_advanced.donor_pool[:10], 'name': '前10个捐赠单元'},
    {'type': 'donor_pool', 'donor_pool': scm_advanced.donor_pool[5:15], 'name': '中间10个捐赠单元'}
]

sensitivity_results = sensitivity_analysis(scm_advanced, data, '2000-01-01', variations)
print("敏感性分析结果:")
print(sensitivity_results.round(4))

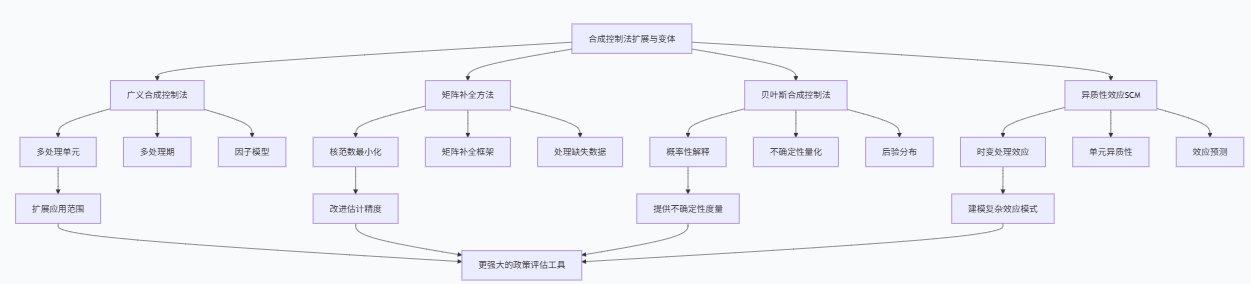

class GeneralizedSyntheticControl:
    def __init__(self):
        self.weights = None
        self.unit_effects = None
        self.time_effects = None

    def fit(self, data, treatment_mask, factors=2, max_iter=100):
        """
        拟合广义合成控制模型

        参数:
        data: 面板数据 (时间 × 单元)
        treatment_mask: 处理指示矩阵 (时间 × 单元)
        factors: 潜在因子数量
        max_iter: 最大迭代次数
        """
        from sklearn.decomposition import NMF
        import numpy as np

        self.data = data.values
        self.treatment_mask = treatment_mask.values
        self.n_time, self.n_units = self.data.shape

        # 初始化因子和权重
        np.random.seed(42)
        self.unit_effects = np.random.normal(0, 1, (self.n_units, factors))
        self.time_effects = np.random.normal(0, 1, (self.n_time, factors))

        # 迭代优化（简化实现）
        for iteration in range(max_iter):
            # 更新单元效应（固定时间效应）
            for i in range(self.n_units):
                # 只使用未处理期的数据
                control_periods = ~self.treatment_mask[:, i]
                if np.sum(control_periods) > 0:
                    X = self.time_effects[control_periods]
                    y = self.data[control_periods, i]
                    self.unit_effects[i] = np.linalg.lstsq(X, y, rcond=None)[0]

            # 更新时间效应（固定单元效应）
            for t in range(self.n_time):
                # 只使用未处理单元的数据
                control_units = ~self.treatment_mask[t, :]
                if np.sum(control_units) > 0:
                    X = self.unit_effects[control_units]
                    y = self.data[t, control_units]
                    self.time_effects[t] = np.linalg.lstsq(X, y, rcond=None)[0]

        # 预测反事实结果
        self.predicted = self.time_effects @ self.unit_effects.T
        self.effect = self.data - self.predicted

        return self

    def calculate_effect(self, units=None, periods=None):
        """计算处理效应"""
        if units is None and periods is None:
            return self.effect

        effect_subset = self.effect.copy()
        if units is not None:
            effect_subset = effect_subset[:, units]
        if periods is not None:
            effect_subset = effect_subset[periods, :]

        return effect_subset

# 使用示例（简化）
def example_gscm():
    """广义合成控制法示例"""
    np.random.seed(42)
    n_time, n_units = 30, 15

    # 生成数据
    data = np.random.normal(0, 1, (n_time, n_units))

    # 添加共同趋势和个体效应
    common_trend = np.linspace(0, 2, n_time)
    for i in range(n_units):
        data[:, i] += common_trend + np.random.normal(0, 0.5)

    # 创建处理掩码（部分单元在后期接受处理）
    treatment_mask = np.zeros((n_time, n_units), dtype=bool)
    treatment_mask[20:, :5] = True  # 最后5个单元在后期接受处理

    # 添加处理效应
    data[treatment_mask] += -1.5  # 处理效应为-1.5

    # 应用广义合成控制法
    gscm = GeneralizedSyntheticControl()
    gscm.fit(pd.DataFrame(data), pd.DataFrame(treatment_mask), factors=2)

    # 计算平均处理效应
    effect = gscm.calculate_effect()
    avg_effect = np.mean(effect[treatment_mask])

    print(f"估计的平均处理效应: {avg_effect:.3f}")
    print(f"真实处理效应: -1.500")

    return gscm, effect

gscm, effect_gscm = example_gscm()

class MatrixCompletionSCM:
    def __init__(self, lambda_param=1.0):
        self.lambda_param = lambda_param
        self.completed_matrix = None

    def fit(self, data, treatment_mask, max_iter=1000, tol=1e-6):
        """
        矩阵补全合成控制法

        参数:
        data: 面板数据
        treatment_mask: 处理指示矩阵
        lambda_param: 正则化参数
        max_iter: 最大迭代次数
        tol: 收敛容忍度
        """
        from scipy.linalg import svd
        import numpy as np

        Y = data.values.copy()
        M = treatment_mask.values  # 1表示缺失（处理期），0表示观测

        # 初始化
        X = Y.copy()
        X[M] = 0  # 初始时用0填充缺失值

        for iteration in range(max_iter):
            # SVD分解
            U, s, Vt = svd(X, full_matrices=False)

            # 软阈值收缩
            s_shrink = np.maximum(s - self.lambda_param, 0)

            # 更新矩阵
            X_new = U @ np.diag(s_shrink) @ Vt

            # 保持观测值不变
            X_new[~M] = Y[~M]

            # 检查收敛
            if np.linalg.norm(X_new - X) < tol:
                break

            X = X_new

        self.completed_matrix = X
        self.effect = Y - X

        return self

# 使用示例
def example_matrix_completion():
    """矩阵补全SCM示例"""
    np.random.seed(42)
    n_time, n_units = 25, 10

    # 生成低秩数据
    rank = 3
    U = np.random.normal(0, 1, (n_time, rank))
    V = np.random.normal(0, 1, (n_units, rank))
    data = U @ V.T + np.random.normal(0, 0.5, (n_time, n_units))

    # 创建处理
    treatment_mask = np.zeros((n_time, n_units), dtype=bool)
    treatment_mask[15:, 0] = True  # 第一个单元在后期接受处理
    data[treatment_mask] += -2.0  # 添加处理效应

    # 应用矩阵补全方法
    mc_scm = MatrixCompletionSCM(lambda_param=0.5)
    mc_scm.fit(pd.DataFrame(data), pd.DataFrame(treatment_mask))

    # 计算处理效应
    effect = mc_scm.effect
    avg_effect = np.mean(effect[treatment_mask])

    print(f"矩阵补全SCM估计效应: {avg_effect:.3f}")
    print(f"真实处理效应: -2.000")

    return mc_scm, effect

mc_scm, effect_mc = example_matrix_completion()

class BayesianSyntheticControl:
    def __init__(self, n_samples=1000, warmup=500):
        self.n_samples = n_samples
        self.warmup = warmup
        self.samples = None

    def fit(self, treated_pre, control_pre, treated_post, control_post):
        """
        贝叶斯合成控制法（简化实现）

        注意：完整实现需要使用PyMC3或Stan
        """
        import numpy as np
        from scipy.optimize import minimize

        # 简化实现：使用Bootstrap近似贝叶斯后验
        n_pre = len(treated_pre)
        n_post = len(treated_post)
        n_donor = control_pre.shape[1]

        # Bootstrap采样
        bootstrap_weights = []
        bootstrap_effects = []

        for _ in range(self.n_samples + self.warmup):
            # 对预处理期进行Bootstrap重采样
            indices = np.random.choice(n_pre, n_pre, replace=True)
            treated_boot = treated_pre[indices]
            control_boot = control_pre[indices, :]

            try:
                # 估计权重
                def objective(W):
                    return np.mean((treated_boot - control_boot @ W)**2)

                constraints = ({'type': 'eq', 'fun': lambda W: np.sum(W) - 1})
                bounds = [(0, 1) for _ in range(n_donor)]
                W0 = np.ones(n_donor) / n_donor

                result = minimize(objective, W0, method='SLSQP',
                                 bounds=bounds, constraints=constraints)

                if result.success:
                    weights = result.x
                    # 预测处理后期
                    synthetic_post = control_post @ weights
                    effect = treated_post - synthetic_post

                    bootstrap_weights.append(weights)
                    bootstrap_effects.append(effect)

            except:
                continue

        # 丢弃warmup期
        self.samples = {
            'weights': np.array(bootstrap_weights[self.warmup:]),
            'effects': np.array(bootstrap_effects[self.warmup:])
        }

        return self

    def summary(self):
        """后验总结"""
        if self.samples is None:
            raise ValueError("需要先拟合模型")

        effect_samples = self.samples['effects']
        avg_effects = effect_samples.mean(axis=1)

        summary = {
            'mean_effect': np.mean(avg_effects),
            'effect_sd': np.std(avg_effects),
            'effect_ci_95': np.percentile(avg_effects, [2.5, 97.5]),
            'prob_positive': np.mean(avg_effects > 0),
            'prob_negative': np.mean(avg_effects < 0)
        }

        return summary

# 使用示例
def example_bayesian_scm():
    """贝叶斯SCM示例"""
    np.random.seed(42)

    # 生成数据
    n_pre, n_post, n_donor = 20, 10, 15
    treated_pre = np.cumsum(np.random.normal(0, 0.5, n_pre)) + 10
    control_pre = np.zeros((n_pre, n_donor))

    for j in range(n_donor):
        control_pre[:, j] = np.cumsum(np.random.normal(0, 0.5, n_pre)) + 10 + np.random.normal(0, 1)

    treated_post = np.cumsum(np.random.normal(0, 0.5, n_post)) + 10 - 1.5  # 处理效应-1.5
    control_post = np.zeros((n_post, n_donor))

    for j in range(n_donor):
        control_post[:, j] = np.cumsum(np.random.normal(0, 0.5, n_post)) + 10 + np.random.normal(0, 1)

    # 应用贝叶斯SCM
    bayesian_scm = BayesianSyntheticControl(n_samples=500, warmup=100)
    bayesian_scm.fit(treated_pre, control_pre, treated_post, control_post)

    summary = bayesian_scm.summary()

    print("贝叶斯合成控制法结果:")
    print(f"平均处理效应: {summary['mean_effect']:.3f}")
    print(f"95%置信区间: ({summary['effect_ci_95'][0]:.3f}, {summary['effect_ci_95'][1]:.3f})")
    print(f"效应为负的概率: {summary['prob_negative']:.3f}")

    return bayesian_scm, summary

bayesian_scm, summary_bayesian = example_bayesian_scm()

class HeterogeneousEffectSCM:
    def __init__(self):
        self.weights = None
        self.effect_model = None

    def fit(self, data, treatment_time, unit_covariates=None):
        """
        异质性处理效应合成控制法

        参数:
        data: 面板数据
        treatment_time: 处理时间
        unit_covariates: 单元特征，用于建模效应异质性
        """
        from sklearn.linear_model import LinearRegression
        import numpy as np

        self.data = data
        self.treatment_time = treatment_time
        self.pre_period = data.index[data.index < treatment_time]
        self.post_period = data.index[data.index >= treatment_time]

        # 第一步：标准合成控制法
        treated_unit = data.columns[0]  # 假设第一列是处理单元
        donor_pool = data.columns[1:]

        scm = AdvancedSyntheticControl(treated_unit, donor_pool)
        scm.fit(data, treatment_time)
        scm_effect = scm.calculate_effect()

        # 第二步：建模效应异质性（如果有单元特征）
        if unit_covariates is not None and len(self.post_period) > 1:
            # 使用处理后期效应与单元特征的关系
            post_effects = scm_effect[len(self.pre_period):]

            # 平均处理效应作为基线
            avg_effect = np.mean(post_effects)

            # 如果有多个处理后期，可以建模效应随时间的变化
            if len(post_effects) > 2:
                time_since_treatment = np.arange(len(post_effects))

                # 简单线性趋势模型
                effect_trend = LinearRegression()
                effect_trend.fit(time_since_treatment.reshape(-1, 1), post_effects)

                self.effect_model = {
                    'type': 'linear_trend',
                    'intercept': effect_trend.intercept_,
                    'slope': effect_trend.coef_[0],
                    'avg_effect': avg_effect
                }
            else:
                self.effect_model = {
                    'type': 'constant',
                    'avg_effect': avg_effect
                }
        else:
            self.effect_model = {
                'type': 'constant',
                'avg_effect': np.mean(scm_effect[len(self.pre_period):])
            }

        self.weights = scm.weights
        self.effect = scm_effect

        return self

    def predict_effect(self, time_points=None, unit_features=None):
        """预测处理效应"""
        if self.effect_model is None:
            raise ValueError("需要先拟合模型")

        if self.effect_model['type'] == 'constant':
            return np.full_like(time_points, self.effect_model['avg_effect'], dtype=float)

        elif self.effect_model['type'] == 'linear_trend':
            effects = (self.effect_model['intercept'] +
                      self.effect_model['slope'] * time_points)
            return effects

        else:
            raise ValueError("不支持的效应模型类型")

# 使用示例
def example_heterogeneous_scm():
    """异质性效应SCM示例"""
    np.random.seed(42)
    n_time, n_units = 30, 10

    # 生成数据
    time_index = pd.date_range('2000-01-01', periods=n_time, freq='Y')
    data = pd.DataFrame(index=time_index)

    # 生成单元数据
    for i in range(n_units):
        trend = np.linspace(100, 120, n_time) + np.random.normal(0, 5, n_time)
        data[f'Unit_{i}'] = trend

    # 添加处理效应（随时间增强）
    treatment_time = '2010-01-01'
    treatment_idx = time_index.get_loc(treatment_time)

    # 处理效应随时间线性增长
    for i in range(treatment_idx, n_time):
        effect = -2 - 0.5 * (i - treatment_idx)  # 从-2开始，每期减少0.5
        data.iloc[i, 0] += effect

    # 应用异质性效应SCM
    hescm = HeterogeneousEffectSCM()
    hescm.fit(data, treatment_time)

    # 预测未来效应
    future_periods = 5
    future_time_points = np.arange(len(hescm.post_period),
                                  len(hescm.post_period) + future_periods)
    future_effects = hescm.predict_effect(future_time_points)

    print("异质性处理效应SCM结果:")
    print(f"当前平均效应: {hescm.effect_model['avg_effect']:.3f}")
    print(f"预测未来效应: {future_effects}")

    return hescm, future_effects

hescm, future_effects = example_heterogeneous_scm()
