SAP EWM初阶之STOCK TYPE

SAP EWM初阶之STOCK TYPE

不同于SAP ECC/S4HANA系统上的STOCK TYPE(UU/BLOCKED/QI/RETURNS etc), SAP EWM系统上的STOCK TYPE的定义更为复杂，它是任何EWM初学者都感兴趣和会困惑的概念。

笔者作为一个EWM初学者，也未免对EWM里面的STOCK TYPE好奇。

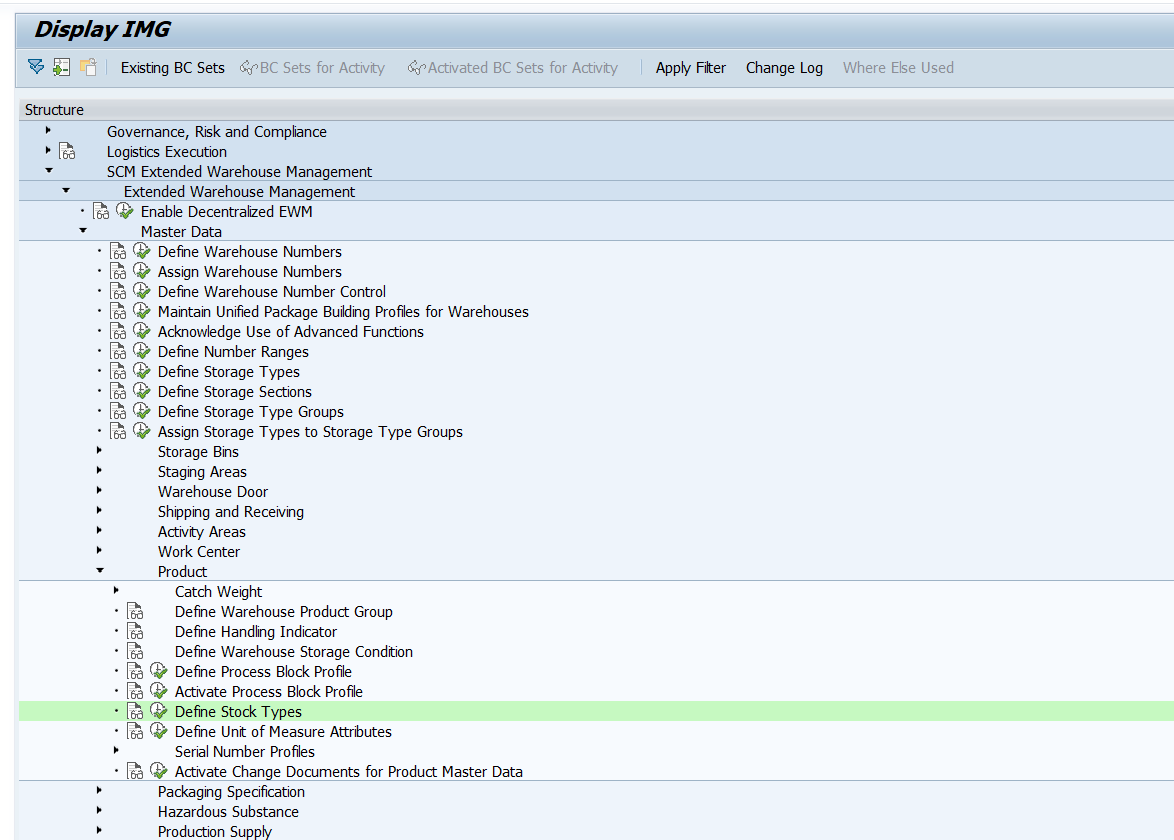

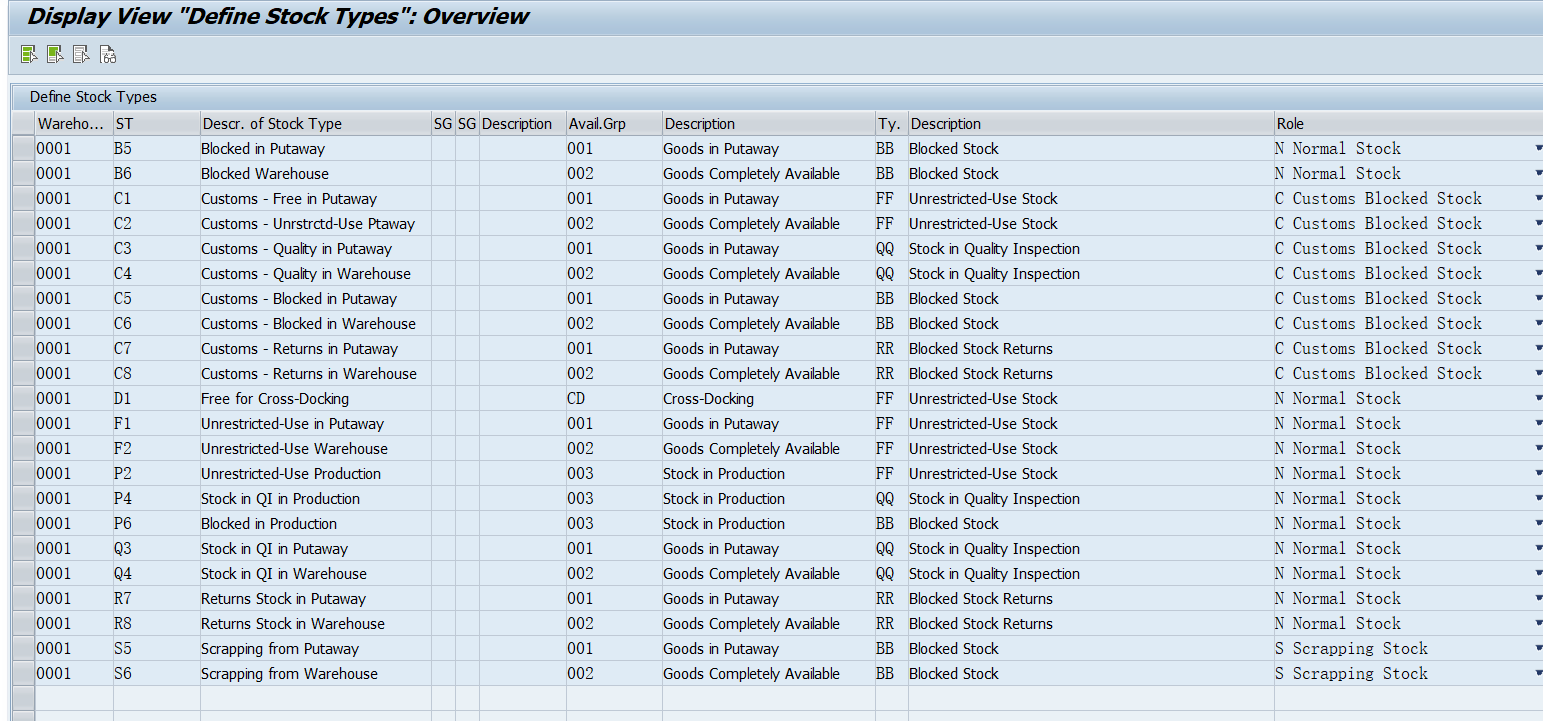

标准仓库号0001下的stock type的配置如下：

SAP EWM标准系统预定义了如下六种stock type:

F1: Unrestricted-Use in Putaway,

F2: Unrestricted-Use Warehouse,

Q1: Stock in Quality Inspection in Putaway,

Q2: Stock in QI in Warehouse,

B1: Blocked in Putaway,

B2: Blocked Warehouse.

EWM系统上的Stock Type的帮助文档：

Stock Type

Use

The stock type is an attribute of a stock quantity in the warehouse. It defines the quality of a stock in the warehouse. For example, this quality can be unrestricted-use, in quality inspection, or blocked.

Dependencies

The stock type is assigned to a location-independent stock type, representing the Inventory Management (MM-IM) stock type, and to an availability group, representing the plant and storage location.

Example

Stock type F1 in warehouse W001 is assigned to the location-independent stock type FF (unrestricted-use stock) and availability group PL01/0001. You use this stock type to manage unrestricted-use stock in plant PL01 and storage location 0001.

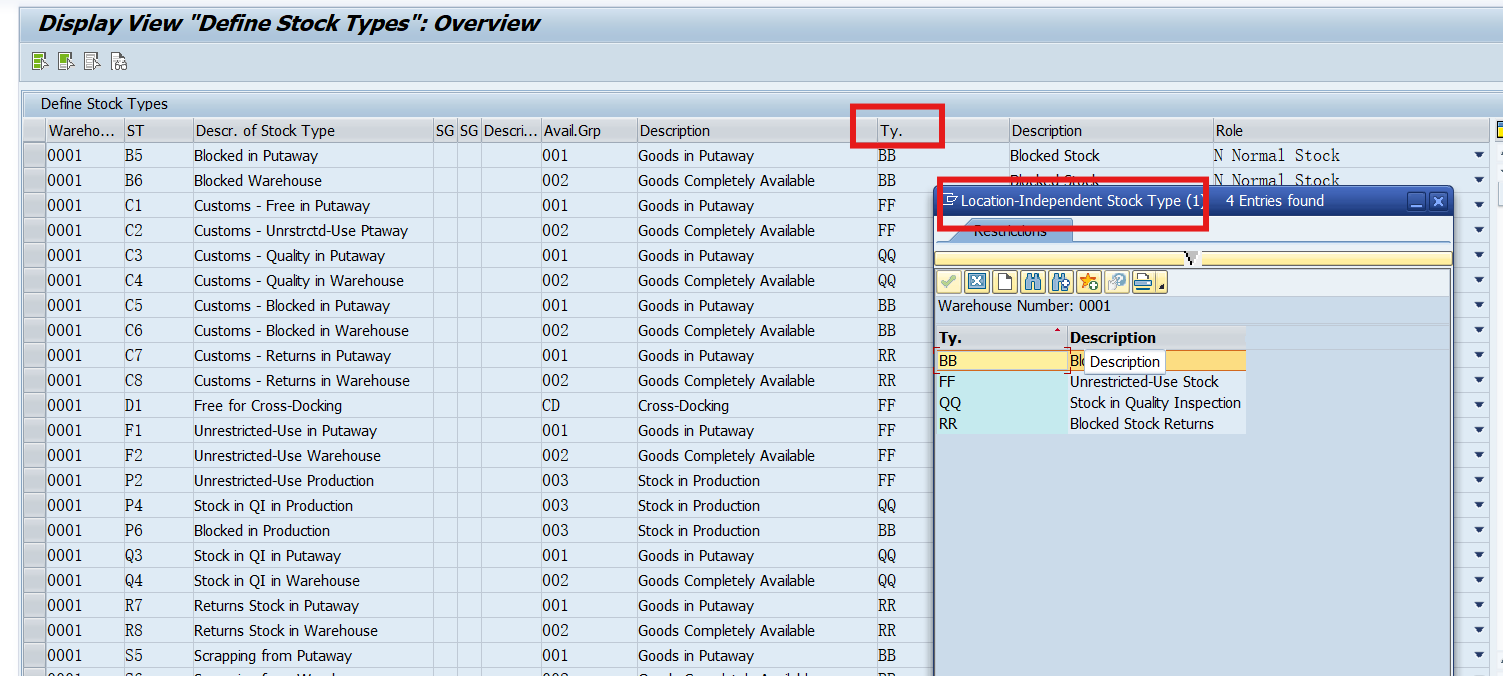

还有一个叫做Location-Independent Stock Type的概念，如下图示：

SAP EWM系统对于Location-independent stock type的F1帮助文档

Location-Independent Stock Type

Definition

Defines the quality (unrestricted-use, in quality inspection, or blocked) of a stock, regardless of the availability group of the storage type.

Use

The location-independent stock type is assigned in Customizing for Extended Warehouse Management (EWM) to an EWM stock type, and is used for the following functions:

Determining the subsequent stock type for a transfer between two storage types that belong to different availability groups.

(For more information, see Availability Group for Putaway.)

Mapping between EWM stock type and the stock type in the back-end system

Dependencies

The location-independent stock type points uniquely to one stock type in your enterprise management system, for example, SAP ERP or SAP S/4HANA:

FF: Unrestricted-use stock

QQ: Quality inspection stock

BB: Blocked stock

RR: Returns blocked stock (non-valuated, not visible in material requirements planning or available-to-promise in the back-end system)

SAP ERP or SAP S/4HANA only recognizes the above stock types. You can define other location-independent stock types in decentralized EWM, if you do not need to communicate them to SAP ERP or SAP S/4HANA.

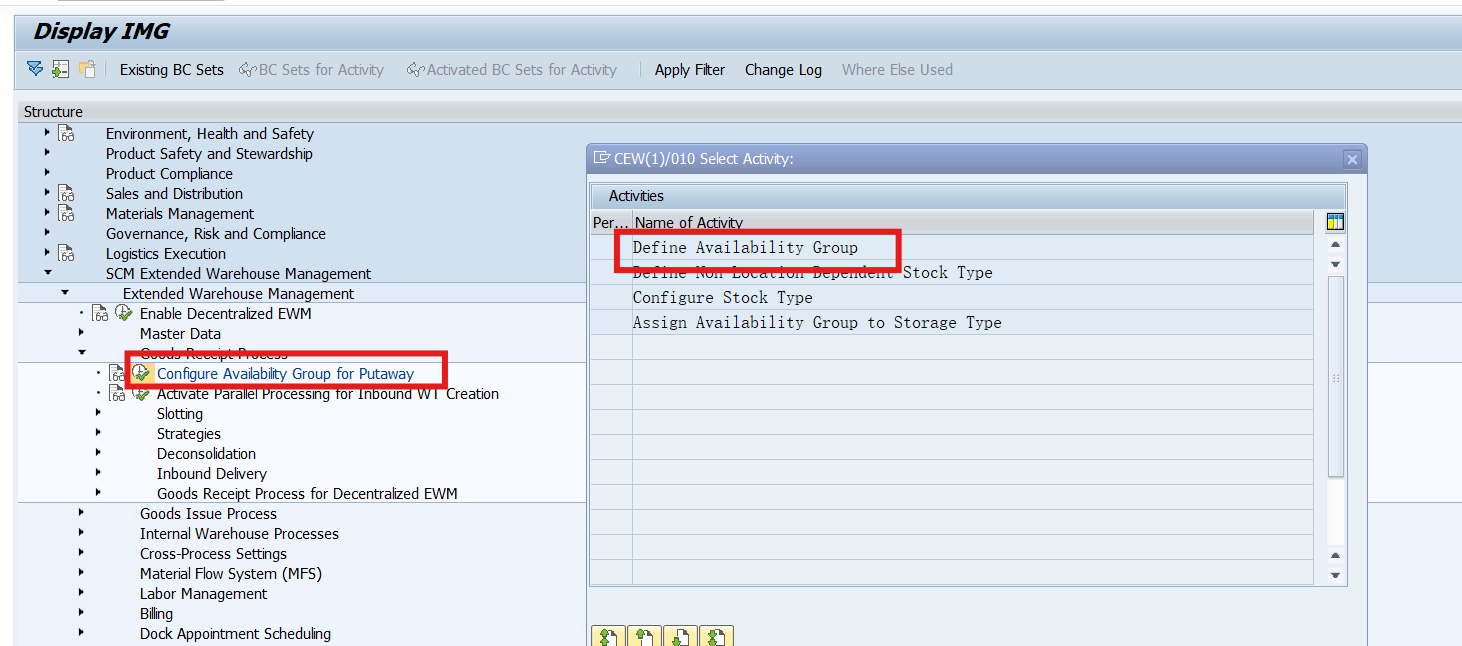

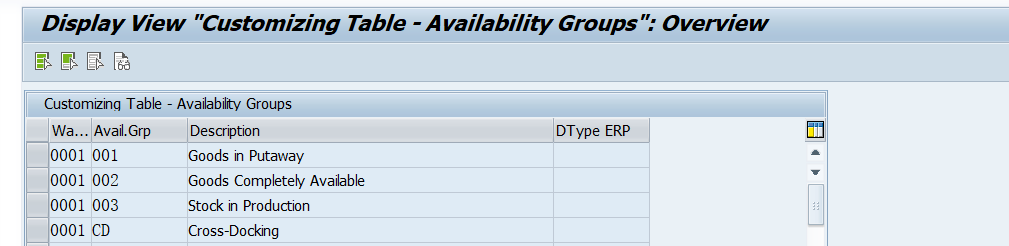

EWM中 Define availability group的配置，

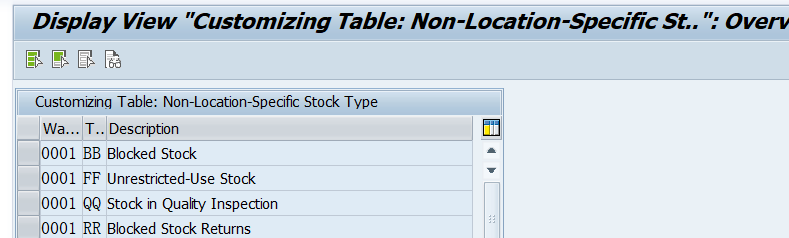

EWM中 Define Non-Location-Dependent Stock Type的配置，

2025-9-14 写于杭州市
