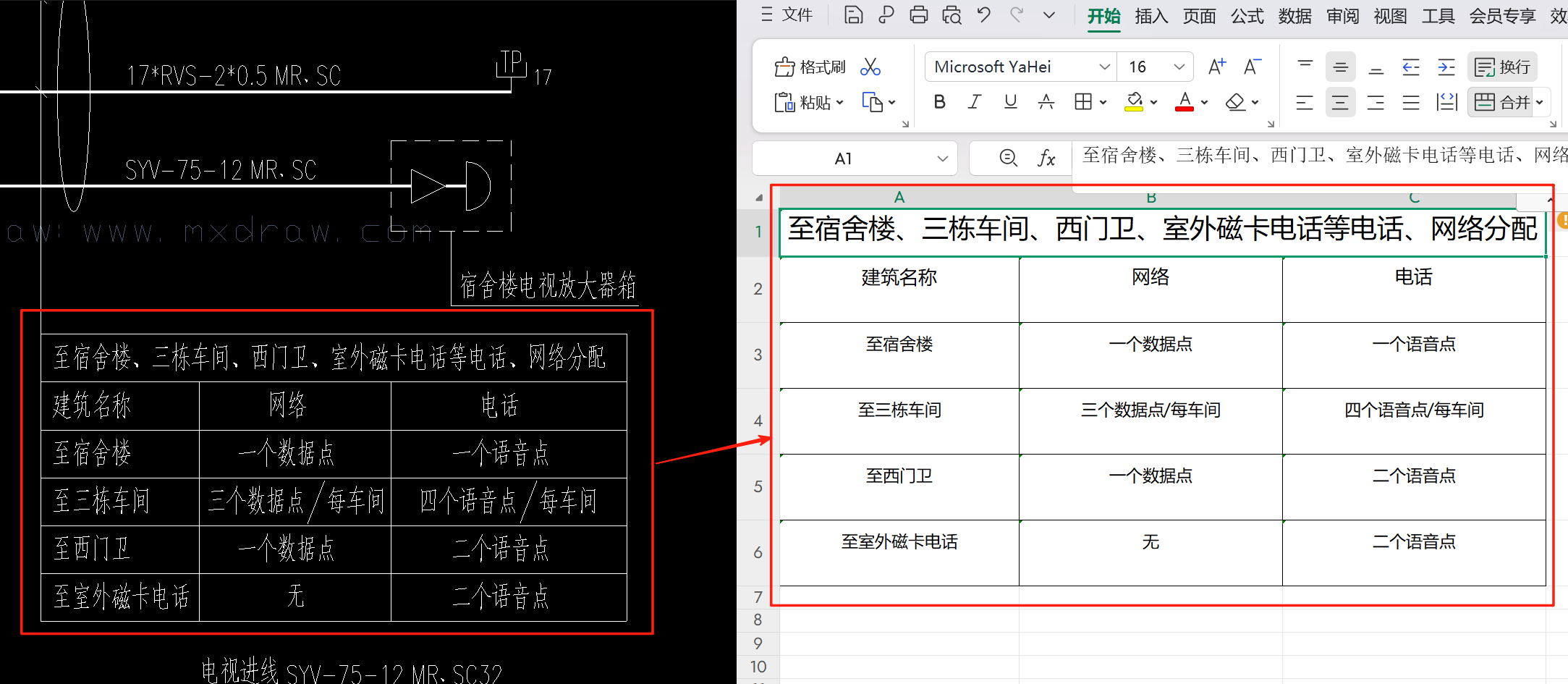

(web cad viewer)WEB CAD enables the extraction of drawing tables into EXCEL

const ss = new MxCADSelectionSet();
await ss.crossingSelect(corner1.x, corner1.y, corner2.x, corner2.y);

const needTransformEntity: { handle: string, mart: McGeMatrix3d }[] = [];
const Mx_getBlokEntity = (blkRec: McDbBlockTableRecord, mart: McGeMatrix3d) => {
    blkRec.getAllEntityId().forEach(id => {
        let ent = id.getMcDbEntity();
        if (ent instanceof McDbBlockReference) {
            let blkref = ent as McDbBlockReference;
            let mat = blkref.blockTransform.clone();
            mat.preMultBy(mart);
            Mx_getBlokEntity(blkref.blockTableRecordId.getMcDbBlockTableRecord(), mat);
        } else {
            needTransformEntity.push({ handle: ent.getHandle(), mart });
            ...
        }
    })
}

const explodePl = (ent: McDbPolyline, mart?: McGeMatrix3d): McDbEntity[] => {
    // If it is a polyline, it needs to be broken down into line segments.
    const numVert = ent.numVerts();
    const entsArr: McDbEntity[] = [];
    for (let i = 0; i < numVert; i++) {
        if (i < numVert - 1) {
            const convexity = ent.getBulgeAt(i);
            const pt1 = ent.getPointAt(i).val;
            const pt2 = ent.getPointAt(i + 1).val;
            if (mart) {
                pt1.transformBy(mart);
                pt2.transformBy(mart);
            }
            if (!convexity) {
                const line = new McDbLine(pt1, pt2);
                entsArr.push(line)
            } else {
                const d = (ent.getDistAtPoint(pt1).val + ent.getDistAtPoint(pt2).val) / 2;
                const midPt = ent.getPointAtDist(d).val;
                const arc = new McDbArc();
                arc.computeArc(pt1.x, pt1.y, midPt.x, midPt.y, pt2.x, pt2.y);
                entsArr.push(arc)
            }
        } else {
            if (ent.isClosed) entsArr.push(new McDbLine(ent.getPointAt(0).val, ent.getPointAt(numVert - 1).val))
        }
    }
    return entsArr;
}

const horizontalLineArr: McDbLine[] = []; // Horizontal
const verticalLineArr: McDbLine[] = []; // Vertical
lineArr.forEach(item => {
    const vec_x = McGeVector3d.kXAxis;
    const vec_y = McGeVector3d.kYAxis;
    const line = item.clone() as McDbLine;
// Determine if the line is an entity within a block. If so, the transformation matrix needs to be used to restore the true coordinate position.
const res = needTransformEntity.find(i => i.handle === item.getHandle());
    if (res) {
        line.startPoint = line.startPoint.clone().transformBy(res.mart);
        line.endPoint = line.endPoint.transformBy(res.mart);
    }
    const _vec = line.startPoint.sub(line.endPoint).normalize().mult(precision);
    if (vec_x.angleTo1(_vec) < precision || Math.abs((vec_x.angleTo1(_vec) - Math.PI)) < precision) {
        horizontalLineArr.push(new McDbLine(line.startPoint.addvec(_vec), line.endPoint.subvec(_vec)))
    }
    if (vec_y.angleTo1(_vec) < precision || Math.abs((vec_y.angleTo1(_vec) - Math.PI)) < precision) {
        verticalLineArr.push(new McDbLine(line.startPoint.addvec(_vec), line.endPoint.subvec(_vec)))
    };
});

// Remove duplicates from the point array
const deduplicatePoints = (points: McGePoint3d[]): McGePoint3d[]=> {
    const allPoints: McGePoint3d[] = [];
    points.forEach((item, index) => {
        const res = points.filter((j, ind) => {
            return ind > index && item.distanceTo(j) < 0.00001
        });
        if (!res.length) allPoints.push(item)
    });
    return allPoints;
}
// Retrieve all the points based on the line
const roundToPrecision = (num, precision = 0.0001): number => {
    const decimals = Math.abs(Math.floor(Math.log10(precision))); // The number of decimal places corresponding to the calculation precisionconst factor = Math.pow(10, decimals);
    return Math.round(num * factor) / factor;
}
let allPoints: McGePoint3d[] = [];
horizontalLineArr.forEach(line1 => {
    verticalLineArr.forEach(line2 => {
        const res = line1.IntersectWith(line2, McDb.Intersect.kOnBothOperands);
        if (res.length()) res.forEach(pt => {
            pt.x = roundToPrecision(pt.x, precision);
            pt.y = roundToPrecision(pt.y, precision);
            if (arePointsInRectangle([new_corner1, new McGePoint3d(new_corner1.x, new_corner2.y), new_corner2, new McGePoint3d(new_corner2.x, new_corner1.y)], [pt])) {
                allPoints.push(pt)
            }
        })
    })
});
allPoints = deduplicatePoints(allPoints);//Remove duplicates from the point array;

[
  [A1, B1, null, D1],
  [A2, B2, C2, D2],
  [null, B3, C3, D3]
]

const _x = Array.from(new Set(allPoints.map(item => item.x))).sort((a, b) => a - b);
const _y = Array.from(new Set(allPoints.map(item => item.y))).sort((a, b) => b - a);
const cellPointsArr: (McGePoint3d | null)[][] = [];
_y.forEach((y, row) => {
    const arr: (McGePoint3d | null)[] = [];
    const pts = allPoints.filter(item => item.y === y);
    if (pts.length) {
        _x.forEach((x, col) => {
            const index = pts.findIndex(item => item.x === x);
// If the four corners of the table are missing, manually fill in the data to make the table complete.
if (index === -1) {
                if ((row === 0 || row === _y.length - 1) && (col === 0 || row === _x.length - 1)) {
                    arr.push(new McGePoint3d(x, y));
                } else {
                    arr.push(null)
                }
            } else {
                arr.push(pts[index])
            }
        });
        cellPointsArr.push(arr)
    } else {
        cellPointsArr.push(null);
    }
});

// Merge tablesfunction solveWithMerging(input: MatrixValue[][]): MergeResult[] {
    const rows = input.length;
    const cols = input[0].length;
    if (rows < 2 || cols < 2) {
        return;
    }
    // 1. Extract all 2x2 submatrices
    const blocks: Record<string, MatrixValue[][]> = {};
    const positions: Record<string, Position> = {};
    for (let r = 0; r <= rows - 2; r++) {
        for (let c = 0; c <= cols - 2; c++) {
            const key = `${String.fromCharCode(65 + c)}${r + 1}`;
            blocks[key] = [
                [input[r][c], input[r][c + 1]],
                [input[r + 1][c], input[r + 1][c + 1]]
            ];
            positions[key] = { row: r, col: c };
        }
    }
    // Tool: Determine if there is a null value
    const hasNull = (mat: MatrixValue[][]): boolean =>
        mat.some(row => row.some(cell => cell === null));
    const processed = new Set<string>(); // Blocks that have participated in the merger
    const results: MergeResult[] = [];
// Select all blocks     const getAllBlockNames = (visited: Set<string>): { fullRangeKeys: string[], newMatrix: MatrixValue[][] } => {
// Obtain the bounding box (the original merged area)
        let minRow = Infinity, maxRow = -Infinity;
        let minCol = Infinity, maxCol = -Infinity;
        Array.from(visited).forEach(key => {
            const { row, col } = positions[key];
            minRow = Math.min(minRow, row);
            maxRow = Math.max(maxRow, row);
            minCol = Math.min(minCol, col);
            maxCol = Math.max(maxCol, col);
        });
// ===== Expansion: Generate all 2×2 blocks within the bounding box (complete rectangular area) =====        const fullRangeKeys: string[] = [];
        for (let r = minRow; r <= maxRow; r++) {
            for (let c = minCol; c <= maxCol; c++) {
                const key = `${String.fromCharCode(65 + c)}${r + 1}`;
                fullRangeKeys.push(key);
           // Mark these blocks as processed (to prevent repetition in separate blocks)
                processed.add(key);
            }
        };
// Extract the new 2x2 matrix (the four corners)
        const safeGet = (r: number, c: number): MatrixValue =>
            r < rows && c < cols ? input[r][c] : null;
        const newMatrix: MatrixValue[][] = [
            [safeGet(minRow, minCol), safeGet(minRow, maxCol + 1)],
            [safeGet(maxRow + 1, minCol), safeGet(maxRow + 1, maxCol + 1)]
        ];
        return { fullRangeKeys, newMatrix }
    }
 // ===== Stage 1: Handling merged groups containing null values =====
    for (const startKey in blocks) {
        if (processed.has(startKey) || !hasNull(blocks[startKey])) continue;
        const visited = new Set<string>();
        const queue: string[] = [startKey];
        visited.add(startKey);
        processed.add(startKey);
        while (queue.length > 0) {
            const key = queue.shift()!;
            const { row, col } = positions[key];
            const block = blocks[key];
            const [a, b] = block[0];
            const [c, d] = block[1];
            const leftKey = col > 0 ? `${String.fromCharCode(64 + col)}${row + 1}` : null;
            const rightKey = col < cols - 2 ? `${String.fromCharCode(66 + col)}${row + 1}` : null;
// First, perform horizontal merging. If the condition is met, exit the loop.
// Rule 1: The first element is null → it should be replaced by the third element above or the second element on the left.            if (a === null) {
                if (leftKey && blocks[leftKey] && !visited.has(leftKey) && blocks[leftKey][0][1] === null) {
                    visited.add(leftKey);
                    queue.push(leftKey);
                    processed.add(leftKey);
                }
            }
// Rule 2: The second element, null → The fourth element on the top or the first element on the right
            if (b === null) {
                if (rightKey && blocks[rightKey] && !visited.has(rightKey) && blocks[rightKey][0][0] === null) {
                    visited.add(rightKey);
                    queue.push(rightKey);
                    processed.add(rightKey);
                }
            }
// Rule 3: The third element (null) → The first element below or the fourth element on the left            if (c === null) {
                if (leftKey && blocks[leftKey] && !visited.has(leftKey) && blocks[leftKey][1][1] === null) {
                    visited.add(leftKey);
                    queue.push(leftKey);
                    processed.add(leftKey);
                }
            }
          // Rule 4: The fourth element (null) → The second element below or the third element on the right
            if (d === null) {
                if (rightKey && blocks[rightKey] && !visited.has(rightKey) && blocks[rightKey][1][0] === null) {
                    visited.add(rightKey);
                    queue.push(rightKey);
                    processed.add(rightKey);
                }
            };
        }
        if (visited.size === 1) queue.push(startKey);
        if (!getAllBlockNames(visited).newMatrix.flat().every(item => item !== null)) {
            while (queue.length > 0) {
                const key = queue.shift()!;
                const { row, col } = positions[key];
                const block = blocks[key];
                const [a, b] = block[0];
                const [c, d] = block[1];
                const upKey = row > 0 ? `${String.fromCharCode(65 + col)}${row}` : null;
                const downKey = row < rows - 2 ? `${String.fromCharCode(65 + col)}${row + 2}` : null;
            // Rule 1: The first element is null → The third element above or the second element on the left
                if (a === null) {
                    if (upKey && blocks[upKey] && !visited.has(upKey) && blocks[upKey][1][0] === null) {
                        visited.add(upKey);
                        queue.push(upKey);
                        processed.add(upKey);
                    }
                }
// Rule 2: The second element, null → The fourth element on the top or the first element on the right
if (b === null) {
                    if (upKey && blocks[upKey] && !visited.has(upKey) && blocks[upKey][1][1] === null) {
                        visited.add(upKey);
                        queue.push(upKey);
                        processed.add(upKey);
                    }
                }

// Rule 3: The third element (null) → The first element below or the fourth element on the left

                if (c === null) {
                    if (downKey && blocks[downKey] && !visited.has(downKey) && blocks[downKey][0][0] === null) {
                        visited.add(downKey);
                        queue.push(downKey);
                        processed.add(downKey);
                    }
                }
               // Rule 4: The fourth element (null) → The second element below or the third element on the right
                if (d === null) {
                    if (downKey && blocks[downKey] && !visited.has(downKey) && blocks[downKey][0][1] === null) {
                        visited.add(downKey);
                        queue.push(downKey);
                        processed.add(downKey);
                    }
                };
            }
        }
        const { fullRangeKeys, newMatrix } = getAllBlockNames(visited);
        const isOnlyCol = (cells: string[]): Boolean => {
            const prefixes = new Set<string>();
            for (const cell of cells) {
               // Extract the initial letter portion (consecutive uppercase A-Z)
                const match = cell.match(/^[A-Z]+/);
                if (match) {
                    prefixes.add(match[0]);
                }
            }
            return prefixes.size === 1;
        }
        if (isOnlyCol(fullRangeKeys)) {
            results.push({
                merged: {
                    fullRangeKeys: fullRangeKeys, // The complete range after renaming
                    matrix: newMatrix
                }
            });
        } else {
            // After obtaining all the merged elements, recombine them.
            const res = combineSubMatrices(input, fullRangeKeys);
            res.forEach(item => {
                results.push({
                    merged: {
                        fullRangeKeys: getAllBlockNames(new Set(item.name.split('+'))).fullRangeKeys, // The complete range after renaming
                        matrix: item.data
                    }
                });
            })
        }
    }
    // ===== Stage 2: Processing Independent Blocks (Not Merged and Not Overwritten) =====
    for (const key in blocks) {
        if (!processed.has(key)) {
            results.push({
                standalone: {
                    key,
                    matrix: blocks[key]
                }
            });
        }
    }
    return results
}
type Matrix = any[][];
type SubMatrix2x2 = MatrixValue[][];

interface CombineResult<T> {
    name: string;
    data: SubMatrix2x2;
}
/**
* Generate all combinations of left block and right block, retaining only those where the row number of the left block is ≤ the row number of the right block.
* Rules:
* - Left block: Submatrix of the leftmost column (Column A)
* - Right block: Submatrix of the rightmost column (Column C)
* - Combination: Xr + Ys, where r ≤ s
* - Output: All combinations that meet the conditions
*/
// Changed to support any type T
function combineSubMatrices<T>(matrix: Matrix, inputNames: string[]): CombineResult<T>[] {
    if (!matrix || matrix.length === 0 || matrix[0].length < 2) {
        throw new Error("Matrix must be at least 1x2");
    }
    const nameToPosition = new Map<string, { row: number; col: number }>();
// Parse input name
    for (const rawName of inputNames) {
        const name = rawName.trim().toUpperCase();
        const match = name.match(/^([A-Z])(\d+)$/);
        if (!match) continue;
        const colIndex = match[1].charCodeAt(0) - 65;
        const rowIndex = parseInt(match[2], 10) - 1;
        if (rowIndex >= 0 && colIndex >= 0 &&
            rowIndex <= matrix.length - 2 && colIndex <= matrix[0].length - 2) {
            nameToPosition.set(name, { row: rowIndex, col: colIndex });
        }
    }

    if (nameToPosition.size === 0) {
        console.log("No valid submatrices found in input.");
        return [];
    }
    // Group by column
    const colGroups = new Map<number, Map<number, string>>(); // col -> row -> name
    nameToPosition.forEach((pos, name) => {
        if (!colGroups.has(pos.col)) {
            colGroups.set(pos.col, new Map());
        }
        colGroups.get(pos.col)!.set(pos.row, name);
    })
    // Identify the leftmost column (the left block) and the rightmost column (the right block)
    const cols = Array.from(colGroups.keys()).sort((a, b) => a - b);
    if (cols.length < 2) {
        console.log("Need at least two columns for combination.");
        return [];
    }
    const leftCol = cols[0];
    const rightCol = cols[cols.length - 1];
    const leftColMap = colGroups.get(leftCol)!;
    const rightColMap = colGroups.get(rightCol)!;
    // Obtain all line numbers
    const leftRows = Array.from(leftColMap.keys()).sort((a, b) => a - b);
    const rightRows = Array.from(rightColMap.keys()).sort((a, b) => a - b);
    const results: CombineResult<T>[] = [];
    // Generate all combinations of left block and right block, and retain only those where the row number of the left block is less than or equal to that of the right block.
    for (const leftRow of leftRows) {
        const leftName = leftColMap.get(leftRow)!;
        const leftRowNum = leftRow + 1; // 0-based to 1-based
        for (const rightRow of rightRows) {
            const rightName = rightColMap.get(rightRow)!;
            const rightRowNum = rightRow + 1;
            // Only retain the combinations where the left block row number is less than or equal to the right block row number.
            if (leftRowNum > rightRowNum) continue;
            const combinedName = `${leftName}+${rightName}`;
            try {
         // Unified rule: For Xr + Ys
                // - [0][0]: Top-left corner of Xr
                // - [0][1]: Top-right corner of Yr (same as the row number of the left block)
                // - [1][0]: Bottom-left corner of Ys (same as the row number of the right block)
                // - [1][1]: Bottom-right corner of Ys
                const yRowName = `${String.fromCharCode(65 + rightCol)}${leftRowNum}`;
                const xSRowName = `${String.fromCharCode(65 + leftCol)}${rightRowNum}`;
                if (!nameToPosition.has(yRowName) || !nameToPosition.has(xSRowName)) {
                    console.warn(`Required blocks not found for ${combinedName}: ${yRowName}, ${xSRowName}`);
                    continue;
                }
                const yRowPos = nameToPosition.get(yRowName)!;
                const xSRowPos = nameToPosition.get(xSRowName)!;
                const topLeft = matrix[leftRow][leftCol];
                const topRight = matrix[yRowPos.row][yRowPos.col + 1];
                const bottomLeft = matrix[xSRowPos.row + 1][xSRowPos.col];
                const bottomRight = matrix[rightRow + 1][rightCol + 1];
                const data: SubMatrix2x2 = [
                    [topLeft, topRight],
                    [bottomLeft, bottomRight]
                ];
                if (!data.flat().filter(item => !item).length) {
                    results.push({ name: combinedName, data });
                    break;
                }
            } catch (error) {
                console.warn(`Error processing ${combinedName}:`, error);
                continue;
            }
        }
    }
    return results;
}

/**
* Determine whether all the points are within the rectangular area (including the boundaries)
* @param rectPoints - The four vertices of the rectangle (the order does not matter, it should be an axis-aligned rectangle)
* @param points - Array of points
* @returns True if both points are within the rectangle, otherwise false
*/ function arePointsInRectangle(
    rectPoints: McGePoint3d[],
    points: McGePoint3d[],
): boolean {
// Extract all x and y coordinates
    const xs = rectPoints.map(p => p.x);
    const ys = rectPoints.map(p => p.y);
    const minX = Math.min(...xs);
    const maxX = Math.max(...xs);
    const minY = Math.min(...ys);
    const maxY = Math.max(...ys);
    /**
 * Check whether a single point is within the rectangular boundary (including the boundary)     const isPointInRect = (p: McGePoint3d): boolean => {
        return p.x >= minX && p.x <= maxX && p.y >= minY && p.y <= maxY;
};
// Both points must be within the rectangle.     return points.every(pt => isPointInRect(pt));
}
// Filter out all the table data
    const tableDataArr: CellInput[] = []
    const results = solveWithMerging(cellPointsArr);
    const getTextContent = (matrix: McGePoint3d[][]): string => {
        let str: string = '';
        const textArr = scopeAllEntity.filter(item => {
            const ent = item.clone() as McDbEntity;
            let _minPt: McGePoint3d, _maxPt: McGePoint3d
            if (ent instanceof McDbText) {
                const { minPt, maxPt } = ent.getBoundingBox();
                _minPt = minPt;
                _maxPt = maxPt;
            } else if (item instanceof McDbMText) {
                const textStyleId = MxCpp.getCurrentMxCAD().getDatabase().getCurrentlyTextStyleId();
                ent.textStyleId = textStyleId;
                (ent as McDbMText).reCompute();
                const { minPt, maxPt } = MxCADUtility.getTextEntityBox(ent, false);
                _minPt = minPt;
                _maxPt = maxPt;
            }
            if (_maxPt && _minPt) {
                // matrix flattening
                const res = needTransformEntity.find(i => i.handle === item.getHandle())
                if (res) {
                    _minPt.transformBy(res.mart);
                    _maxPt.transformBy(res.mart);
                }
                return arePointsInRectangle(matrix.flat(), [_minPt.clone().addvec(_maxPt.sub(_minPt).mult(1 / 2))])
            } else {
                return false
            }
        })
        if (textArr.length) {
            textArr.forEach(text => {
                if (text instanceof McDbText) {
                    str += `${text.textString}\n`
                } else if (text instanceof McDbMText) {
                    str += `${text.contents}\n`
                }
            })
        };
        return str
    }
    results.forEach(async res => {
        if (res.merged) {
            const { fullRangeKeys, matrix } = res.merged;
            const str = getTextContent(matrix);
            tableDataArr.push({ type: DataType.merged, content: str, name: fullRangeKeys.join('+') })
        } else if (res.standalone) {
            const { key, matrix } = res.standalone;
            const str = getTextContent(matrix);
            tableDataArr.push({ type: DataType.standalone, content: str, name: key });
        }
    });

/**
Export the cell data to Excel
 */
async function exportExcelFromCells(
    data: CellInput[],
    filename: string = 'tableData.xlsx'
) {
    const workbook = new ExcelJS.Workbook();
    const worksheet = workbook.addWorksheet('Sheet1');
    const cellRegex = /^([A-Z]+)(\d+)$/;
    const parsedMerges: { start: { row: number; col: number }; end: { row: number; col: number } }[] = [];
    const cellsToSet: { row: number; col: number; value: string }[] = [];
    /**
     * The format of A1 is {row, col}
     */
    function parseCellRef(cellName: string): { row: number; col: number } {
        const match = cellName.match(cellRegex);
        if (!match) throw new Error(`Invalid cell name: ${cellName}`);
        const [, colStr, rowStr] = match;
        let col = 0;
        for (let i = 0; i < colStr.length; i++) {
            col = col * 26 + (colStr.charCodeAt(i) - 64);
        }
        return { row: parseInt(rowStr), col };
    }
    // Step 1: Process all the data
    for (const item of data) {
        if (item.type === DataType.merged) {
            const cellNames = item.name.split('+').map(s => s.trim());
            const positions = cellNames.map(parseCellRef);
            const startRow = Math.min(...positions.map(p => p.row));
            const endRow = Math.max(...positions.map(p => p.row));
            const startCol = Math.min(...positions.map(p => p.col));
            const endCol = Math.max(...positions.map(p => p.col));
            parsedMerges.push({
                start: { row: startRow, col: startCol },
                end: { row: endRow, col: endCol }
            });
            worksheet.mergeCells(startRow, startCol, endRow, endCol);
            const masterCell = worksheet.getCell(startRow, startCol);
            masterCell.value = item.content;
            masterCell.alignment = { horizontal: 'center', vertical: 'middle' };
        } else if (item.type === DataType.standalone) {
            const pos = parseCellRef(item.name);
            cellsToSet.push({ row: pos.row, col: pos.col, value: item.content });
        }
    }
    // Step 2: Set up separate cells (skip merged areas)
    for (const cell of cellsToSet) {
        const isOverlapped = parsedMerges.some(merge =>
            cell.row >= merge.start.row &&
            cell.row <= merge.end.row &&
            cell.col >= merge.start.col &&
            cell.col <= merge.end.col
        );
        if (!isOverlapped) {
            const wsCell = worksheet.getCell(cell.row, cell.col);
            wsCell.value = cell.value;
        }
    }
// Step 3: Add border styles to all used cells
// Correct syntax: TypeScript compatible
    const borderStyle = {
        top: { style: 'thin' as const, color: { argb: 'FF000000' } },
        left: { style: 'thin' as const, color: { argb: 'FF000000' } },
        bottom: { style: 'thin' as const, color: { argb: 'FF000000' } },
        right: { style: 'thin' as const, color: { argb: 'FF000000' } }
    };
    // Obtain the maximum row and column range
    let maxRow = 1;
    let maxCol = 1;
    [...cellsToSet, ...parsedMerges.flatMap(merge => [
        merge.start, { row: merge.end.row, col: merge.end.col }
    ])].forEach(pos => {
        maxRow = Math.max(maxRow, pos.row);
        maxCol = Math.max(maxCol, pos.col);
    });
    //  Add borders to all the cells that might be used
    for (let row = 1; row <= maxRow; row++) {
        for (let col = 1; col <= maxCol; col++) {
            const cell = worksheet.getCell(row, col);
            if (cell.value !== null && cell.value !== undefined) {
                cell.border = borderStyle;
                // Optional: Default to center alignment
                if (!cell.alignment) {
                    cell.alignment = { horizontal: 'center', vertical: 'middle', wrapText: true };
                }
            }
        }
    }
    // Browser environment
    const buffer = await workbook.xlsx.writeBuffer();
    const blob = new Blob([buffer], {
        type: 'application/vnd.openxmlformats-officedocument.spreadsheetml.sheet',
    });
    // @ts-ignore
    saveAs(blob, filename);
}
worksheet.mergeCells(startRow, startCol, endRow, endCol);
masterCell.value = item.content;
masterCell.alignment = { horizontal: 'center', vertical: 'middle' };
