【CMake】使用 SDCC 构建 8051 工程并生成 HEX 文件

your-project/
├── CMakeLists.txt         # CMake 配置文件（顶层构建脚本）
├── README.md              # 项目说明文档
│
├── build/                 # 构建输出目录（由 CMake 自动生成）
│   └── MySDCCProject.hex  # 最终生成的十六进制固件文件
│
├── cmake/                 # 自定义 CMake 脚本目录
│   └── convert_hex.cmake  # 用于将 .ihx 转换为 .hex 的脚本
│
├── include/               # 公共头文件目录
│   ├── delay.h            # 延时函数头文件

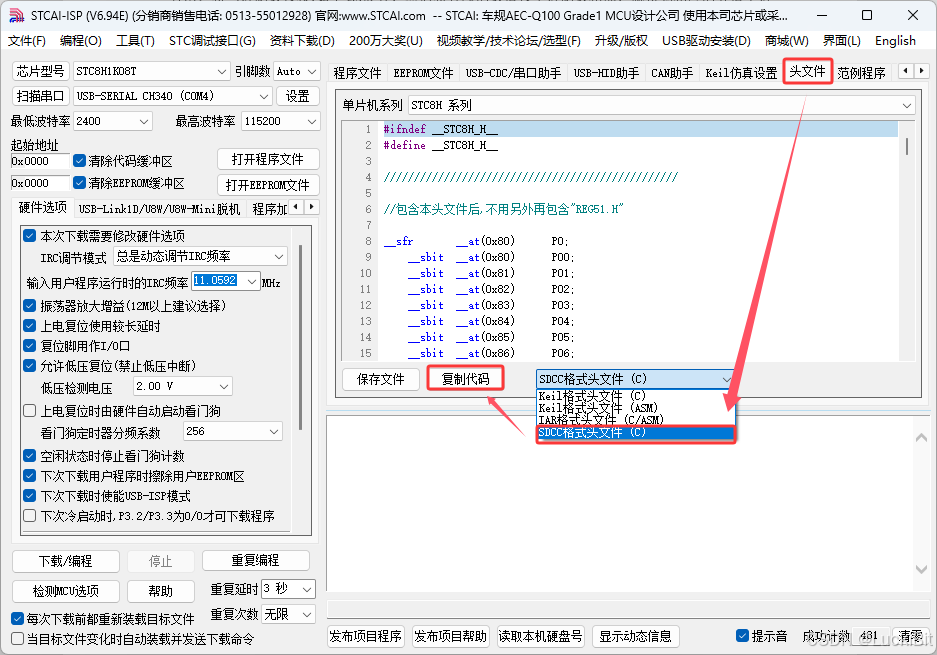

│   └── stc8h.h            # STC8H 寄存器定义头文件
│
└── src/                   # 源代码目录
    ├── delay.c            # 延时函数实现
    └── main.c             # 主程序，控制 LED 闪烁

#include "stc8h.h"
#include "delay.h"

void main(void)
{
    P1M0 = 0x01;  // Set P1.0 as push-pull output mode
    P1M1 = 0x00;

    while(1)
    {
        P10 ^= 0x01;
        delay_ms(500);
    }
}

void delay_ms(unsigned int ms) {
    volatile unsigned int i, j;
    for (i = 0; i < ms; i++)
    {
        for (j = 0; j < 123; j++);
    }
}

#ifndef DELAY_H
#define DELAY_H

void delay_ms(unsigned int ms);

#endif

# CMakeLists.txt
cmake_minimum_required(VERSION 3.15)
project(MySDCCProject NONE)

# === Step 1: Find SDCC ===
if(NOT DEFINED SDCC_PATH)
    find_program(SDCC_EXECUTABLE sdcc)
    if(SDCC_EXECUTABLE)
        get_filename_component(SDCC_BIN_DIR "${SDCC_EXECUTABLE}" DIRECTORY)
        if(WIN32)
            get_filename_component(SDCC_ROOT "${SDCC_BIN_DIR}/.." ABSOLUTE)
            set(SDCC_PATH "${SDCC_ROOT}/bin")
            set(SDCC_INCLUDE_PATH "${SDCC_ROOT}/include")
        else()
            set(SDCC_PATH "${SDCC_BIN_DIR}")
            if(APPLE)
                set(SDCC_INCLUDE_PATH "/usr/local/share/sdcc/include")
            else()
                set(SDCC_INCLUDE_PATH "/usr/share/sdcc/include")
            endif()
        endif()
    else()
        message(FATAL_ERROR "SDCC not found. Please install SDCC or set -DSDCC_PATH manually.")
    endif()
else()
    if(NOT IS_ABSOLUTE "${SDCC_PATH}")
        set(SDCC_PATH "${CMAKE_SOURCE_DIR}/${SDCC_PATH}")
    endif()
    if(NOT DEFINED SDCC_INCLUDE_PATH)
        if(WIN32)
            set(SDCC_INCLUDE_PATH "${SDCC_PATH}/../include")
        elseif(APPLE)
            set(SDCC_INCLUDE_PATH "/usr/local/share/sdcc/include")
        else()
            set(SDCC_INCLUDE_PATH "/usr/share/sdcc/include")
        endif()
    endif()
endif()

file(TO_CMAKE_PATH "${SDCC_PATH}" SDCC_PATH)
file(TO_CMAKE_PATH "${SDCC_INCLUDE_PATH}" SDCC_INCLUDE_PATH)

if(NOT EXISTS "${SDCC_PATH}/sdcc" AND NOT EXISTS "${SDCC_PATH}/sdcc.exe")
    message(FATAL_ERROR "SDCC executable not found at ${SDCC_PATH}")
endif()

message(STATUS "Using SDCC from: ${SDCC_PATH}")
message(STATUS "Using SDCC include: ${SDCC_INCLUDE_PATH}")

# === Step 2: Include paths ===
include_directories(${SDCC_INCLUDE_PATH} ${CMAKE_SOURCE_DIR}/include)

# === Step 3: Source files ===
set(SRC_DIR ${CMAKE_SOURCE_DIR}/src)
set(SRC_FILES
    ${SRC_DIR}/main.c
    ${SRC_DIR}/delay.c
)

# === Step 4: Compile .c to .rel ===
set(REL_FILES "")
foreach(SRC_FILE ${SRC_FILES})
    get_filename_component(FILE_NAME ${SRC_FILE} NAME_WE)
    set(REL_FILE "${CMAKE_CURRENT_BINARY_DIR}/${FILE_NAME}.rel")

    if(FILE_NAME STREQUAL "main")
        set(MAIN_REL ${REL_FILE})
    else()
        list(APPEND REL_FILES ${REL_FILE})
    endif()

    add_custom_command(
        OUTPUT ${REL_FILE}
        COMMAND ${SDCC_PATH}/sdcc
            -mmcs51
            --std-c99
            --opt-code-size
            --debug
            -I${SDCC_INCLUDE_PATH}
            -I${CMAKE_SOURCE_DIR}/include
            -c ${SRC_FILE}
        DEPENDS ${SRC_FILE}
        COMMENT "[Compiling] ${FILE_NAME}.c -> ${FILE_NAME}.rel"
        VERBATIM
    )
endforeach()

# === Step 5: Link to .ihx ===
set(IHX_FILE main.ihx)
add_custom_command(
    OUTPUT ${IHX_FILE}
    COMMAND ${SDCC_PATH}/sdcc
        -mmcs51
        --std-c99
        --opt-code-size
        --debug
        ${MAIN_REL} ${REL_FILES}
    DEPENDS ${MAIN_REL} ${REL_FILES}
    COMMENT "[Linking] .rel files -> ${IHX_FILE}"
    VERBATIM
)

# === Step 6: Convert IHX to HEX ===
set(HEX_FILE ${PROJECT_NAME}.hex)
add_custom_command(
    OUTPUT ${HEX_FILE}
    COMMAND ${CMAKE_COMMAND}
        -DINPUT=${IHX_FILE}
        -DOUTPUT=${HEX_FILE}
        -DSDCC_PATH=${SDCC_PATH}
        -P ${CMAKE_SOURCE_DIR}/cmake/convert_hex.cmake
    DEPENDS ${IHX_FILE}
    COMMENT "[Post] Converting ${IHX_FILE} -> ${HEX_FILE}"
)

# === Step 7: Final build target ===
add_custom_target(${PROJECT_NAME} ALL
    DEPENDS ${HEX_FILE}
    COMMENT "[Target] Building project: ${PROJECT_NAME}"
)

# convert_hex.cmake
cmake_minimum_required(VERSION 3.10)

# === Validate Required Variables ===
if(NOT DEFINED INPUT OR NOT DEFINED OUTPUT)
    message(FATAL_ERROR "Missing required variables: INPUT or OUTPUT")
endif()

# === Normalize Paths to Absolute ===
get_filename_component(INPUT "${INPUT}" ABSOLUTE)
get_filename_component(OUTPUT "${OUTPUT}" ABSOLUTE)

# === Validate Input File Existence ===
if(NOT EXISTS "${INPUT}")
    message(FATAL_ERROR "Input file not found: ${INPUT}")
endif()

# === Find packihx ===
if(DEFINED SDCC_PATH)
    find_program(PACKIHX_EXECUTABLE packihx PATHS "${SDCC_PATH}" NO_DEFAULT_PATH)
else()
    find_program(PACKIHX_EXECUTABLE packihx)
endif()

if(NOT PACKIHX_EXECUTABLE)
    message(FATAL_ERROR "Could not find 'packihx'. Please set SDCC_PATH or ensure it is in the system PATH.")
endif()

# === Logging (Optional Debug Info) ===
message(STATUS "Converting IHX to HEX")
message(STATUS "Input IHX: ${INPUT}")
message(STATUS "Output HEX: ${OUTPUT}")
message(STATUS "Using packihx: ${PACKIHX_EXECUTABLE}")

# === Execute Conversion ===
execute_process(
    COMMAND "${PACKIHX_EXECUTABLE}" "${INPUT}"
    OUTPUT_FILE "${OUTPUT}"
    RESULT_VARIABLE result
    WORKING_DIRECTORY "${CMAKE_CURRENT_BINARY_DIR}"
    ERROR_VARIABLE error_output
)

# === Handle Result ===
if(NOT result EQUAL 0)
    message(FATAL_ERROR "packihx failed with exit code: ${result}\nError output:\n${error_output}")
else()
    message(STATUS "Successfully generated HEX file: ${OUTPUT}")
endif()

cmake -B build -G "MinGW Makefiles" -DSDCC_PATH="D:/sdcc/bin"
cmake --build build

cmake -B build -G "Unix Makefiles" -DSDCC_PATH="/usr/bin"
cmake --build build

cmake -B build -G "Ninja" -DSDCC_PATH="..."
cmake --build build

cmake -B build -G "Ninja"
cmake --build build

PS D:\B> cmake -B build -G "Ninja"
-- Using SDCC from: D:/sdcc/bin
-- Using SDCC include: D:/sdcc/include
-- Configuring done (0.3s)
-- Generating done (0.1s)
-- Build files have been written to: D:/B/build
PS D:\B> cmake --build build
[4/4] [Post] Converting main.ihx -> MySDCCProject.hex
-- Converting IHX to HEX
-- Input IHX: D:/B/build/main.ihx
-- Output HEX: D:/B/build/MySDCCProject.hex
-- Using packihx: D:/sdcc/bin/packihx.exe
-- Successfully generated HEX file: D:/B/build/MySDCCProject.hex

build/MySDCCProject.hex
