最近我们的空转单细胞专辑会更新一篇文章复现学习，这篇文章于2023年发表在高分杂志Cancer Res上，文献标题为《Spatial Transcriptomics Depict Ligand–Receptor Cross-talk Heterogeneity at the Tumor-Stroma Interface in Long-Term Ovarian Cancer Survivors》。

数据背景和空转数据读取以及基本的降维聚类分群见：

IF10+空转文献复现（一）：4例HGSC患者的空转数据读取与降维聚类（文末有学习交流群）
IF10+空转文献复现（二）：空转聚类结果与空转切片结合
IF10+空转文献复现（三）：空转注释需要的参考单细胞数据处理与注释
代码保存在著名的codeocean上：https://codeocean.com/capsule/1912679/tree/v1
进空转学习交流群方式见：空间转录组数据分析交流群2025

今天的学习内容为，对空转的数据进行注释，使用MIA的方法，处理步骤如下：

Load DEG of scRNAseq from PLoS One. 2018; 13(11): e0206785
Load DEG of ST data
Compute MIA (multi-modal intersection analysis)
Make heatmap of MIA

即得到Fig1中的C图结果。

0.定义一些函数

单细胞数据来自 Shih et al PLoS ONE 13(11): e0206785， GEO编号：https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE118828。

注释以及差异分析见帖子：IF10+空转文献复现（三）：空转注释需要的参考单细胞数据处理与注释

现在先创建目录，加载空转的分析结果：空转分析见前面的帖子一、二

save_dir = '../results'
load("../results/seurat_object.RData")

############# save results to the folder ###############
folder = paste0(save_dir,'/MIA')
if (!file.exists(folder)){
  dir.create(folder)
}

定义两个加载差异结果的函数：

note：这里原代码会有一点点问题修改为avg_log2FC

###### load scRNAseq differentially expressed genes Shih 2018 PLoS One. 2018; 13(11): e0206785 ######
load_scRNA_DEG <- function(){
  fnm = paste0(save_dir,'/scRNAseq/scRNAseq_differentially_expressed_genes_shih_2018.xls')
  tmp1 = read.table(fnm,header = TRUE, stringsAsFactors = F, check.names=F)
  scRNA = tmp1[tmp1$p_val<10^(-5),]
  clusters = unique(scRNA$cluster)
  n_sc = length(clusters)
  scgenelist = list()
for (i in seq(1,n_sc)){
    scgenelist[i] = list(scRNA[scRNA$cluster==clusters[i],"gene"])
  }
return(scgenelist)
}

###### load ST differentially expressed genes ######
load_ST_DEG <- function(SOE){
  tmp = SOE@meta.data$seurat_clusters
  n_st = nlevels(tmp)
  stgenelist = list()
for (i in seq(0,n_st-1,by = 1)){
    tmp_marker <- FindMarkers(SOE, ident.1 = i, min.pct = 0.25)
    tmp_marker$gene <- rownames(tmp_marker)
    tmp_mk <- tmp_marker %>% select(gene, everything())
    tmp_mk <- tmp_mk[order(-tmp_mk$avg_log2FC),] # 这里原代码会有一点点问题修改为avg_log2FC
    tmp_mk <- tmp_mk[tmp_mk$p_val<0.01,]
    tmp_mk <- tmp_mk[tmp_mk$avg_log2FC>0,] # 这里原代码会有一点点问题修改为avg_log2FC
    stgenelist[i+1] = list(tmp_mk$gene)
  }
return(stgenelist)
}

定义MIA函数

这里的核心主要在于：phyper(N_intersect, N_scRNA, N_tot-N_scRNA, N_ST, lower.tail = FALSE, log.p = FALSE)

使用的原理为累积超几何分布，注意参数 lower.tail 的含义。

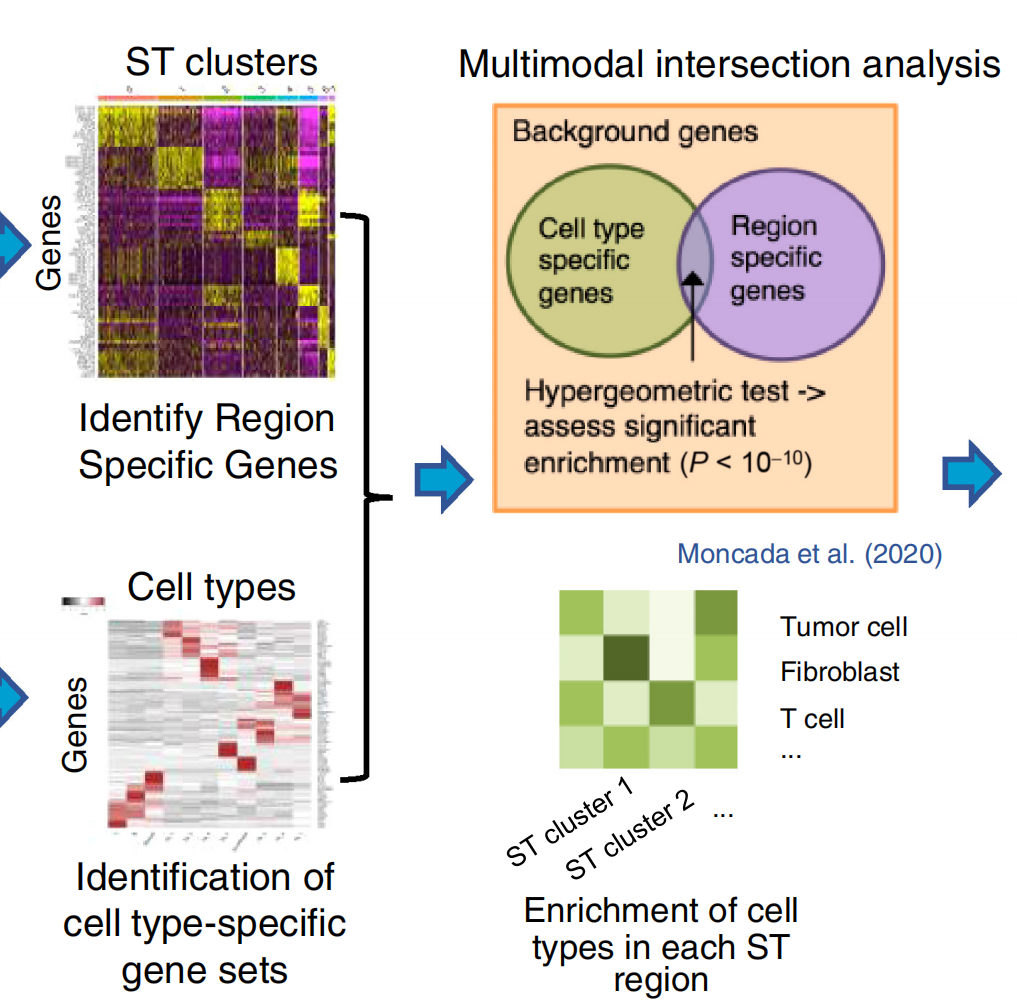

图示理解：

###### compute MIA ######
compute_MIA <- function(scgenelist,stgenelist,SOE,SID){
  n_sc = length(scgenelist)
  n_st = length(stgenelist)
  MIA_enrich = matrix(0,n_sc,n_st)
  MIA_deplete = matrix(0,n_sc,n_st)
  MIA = matrix(0,n_sc,n_st)
#N_tot = SOE@assays$RNA@counts@Dim[1] # 这里因为版本也修改了一下
  N_tot = SOE@assays$RNA$counts@Dim[1]
for (i in seq(1,n_sc)){
    for (j in seq(1,n_st)){
      N_scRNA = length(scgenelist[[i]])
      N_ST = length(stgenelist[[j]])
      N_intersect = length(intersect(scgenelist[[i]],stgenelist[[j]]))
      P = phyper(N_intersect, N_scRNA, N_tot-N_scRNA, N_ST, lower.tail = FALSE, log.p = FALSE)
      MIA_enrich[i,j] = -log10(P)
      MIA_deplete[i,j] = -log10(1-P)
      if (MIA_enrich[i,j]>=MIA_deplete[i,j]){
        MIA[i,j] = MIA_enrich[i,j]
      } else { MIA[i,j] = -MIA_deplete[i,j]
      }
    }
  }

  MIA = data.frame(MIA)
  rownames(MIA) = c("Ep_1","FB_1","T","Ep_2","Myeloid","Ep_3","FB_2","Ep_4","Endothelial","B","FB_3")
  colnames(MIA) = levels(SOE@meta.data$seurat_clusters)
  fnm = paste0(folder,'/',SID,'.xls')
  MIA = format(MIA,digits = 3)
  write.table(MIA,fnm,quote=F,sep="\t", col.names = NA)
}

1.加载单细胞DEG

有了函数，这里就特别快：

scgenelist = load_scRNA_DEG()

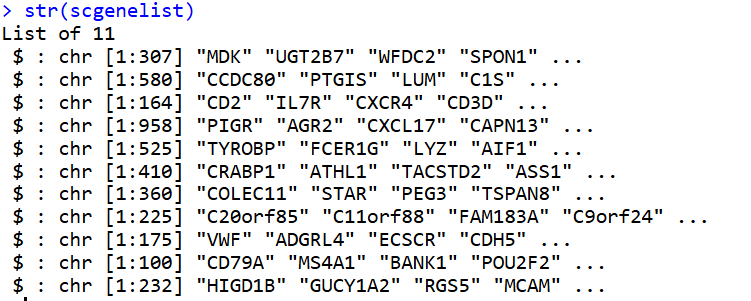

str(scgenelist)

11个亚群的差异基因列表。

2.计算每个空转样本与单细胞的MIA

A4样本：

有了预定义函数就特别快：

SOE = sample4
SID = "A4"
stgenelist = load_ST_DEG(SOE)

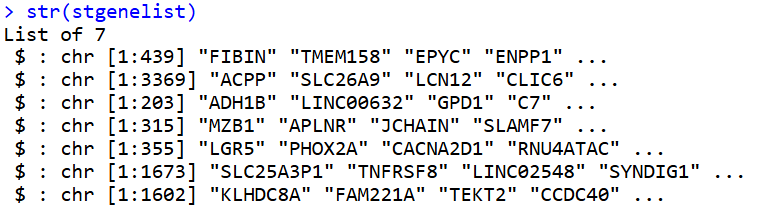

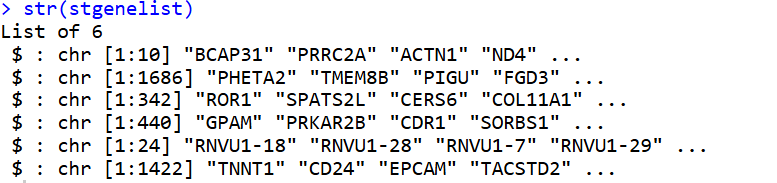

str(stgenelist)
compute_MIA(scgenelist,stgenelist,SOE,SID)

A5样本：

SOE = sample5
SID = "A5"
stgenelist = load_ST_DEG(SOE)
compute_MIA(scgenelist,stgenelist,SOE,SID)

A10样本：

SOE = sample10
SID = "A10"
stgenelist = load_ST_DEG(SOE)

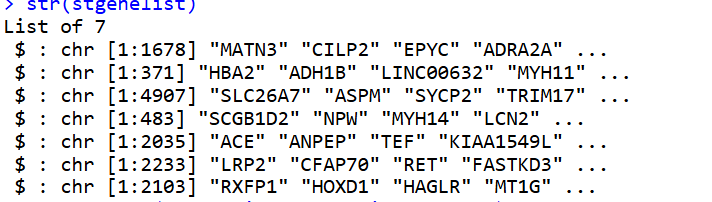

str(stgenelist)
compute_MIA(scgenelist,stgenelist,SOE,SID)

A12样本：

SOE = sample12
SID = "A12"
stgenelist = load_ST_DEG(SOE)

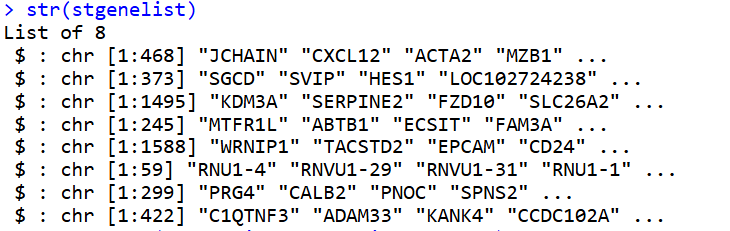

str(stgenelist)
compute_MIA(scgenelist,stgenelist,SOE,SID)

MIA热图结果可视化

首先将4个空转的MIA结果合并在一起：

######### display MIA for multiple samples ##########
load_MIA <- function(SID){
  fnm = paste0(folder,'/',SID,'.xls')
  temp1 = read.table(fnm,header = TRUE, stringsAsFactors = F, check.names=F)
  cnames = colnames(temp1)
  cnames1 = paste0(SID,'_c',cnames)
  colnames(temp1) = cnames1
return(temp1)
}

#### merge MIA from different samples into one matrix
temp = load_MIA('A4')
for (id in c('A5','A10','A12')){
  temp1 = load_MIA(id)
  temp = merge(temp,temp1,by = 0)
  rownames(temp) = temp[,1]
  temp = temp[,-1]
}

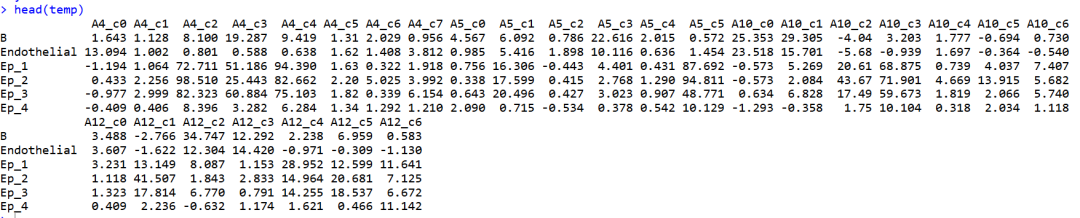

head(temp)

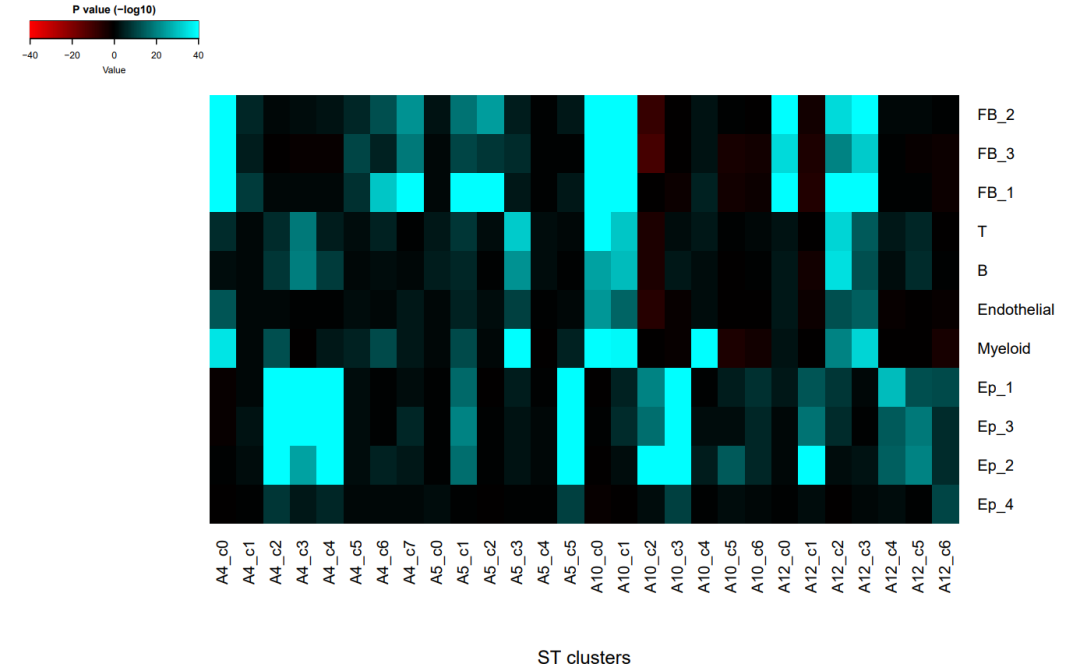

绘制热图：

######### make heatmap #########
library('RColorBrewer')
my_palette <- colorRampPalette(c("red", "black", "cyan"))(n = 100)

data = data.matrix(temp)
data[data>40] = 40
# 将INF值替换为0
data[data == -Inf] <- 0

filename = paste0(folder,'/MIA_heatmap.pdf')
pdf(filename,10,6)
heatmap.2(data,
          Colv="none",
          dendrogram='none',
          col = my_palette,
          trace="none",
          scale = "none",
          density.info="none",
          lhei=c(1,6), lwid=c(1,4),
          keysize=0.3, key.par = list(cex=0.5),
          margins = c(8,8),
          cexRow=1,cexCol=1,srtCol=90,
          key.title = 'P value (-log10)',
          xlab = 'ST clusters'
)
dev.off()
