【k8s】国产化arm架构离线环境三条命令部署k8s1.32.7+ks3.4.1

./kt create config --with-kubernetes v1.32.7

kind: Cluster
metadata:
  name: sample
spec:
  hosts:
    - {name: master, address: 192.168.0.58, internalAddress: 192.168.0.58, user: root, password: "123456", arch: arm64}
    - {name: node1, address: 192.168.0.54, internalAddress: 192.168.0.54, user: root, password: "123456", arch: arm64}
  roleGroups:
    etcd:
    - master
    control-plane:
    - master
    worker:
    - node1
    # 如需使用 kk 自动部署镜像仓库，请设置该主机组 （建议仓库与集群分离部署，减少相互影响）
    # 如果需要部署 harbor 并且 containerManager 为 containerd 时，由于部署 harbor 依赖 docker，建议单独节点部署 harbor
    registry:
    - master
  controlPlaneEndpoint:
    ## Internal loadbalancer for apiservers
    # internalLoadbalancer: haproxy

    domain: lb.kubesphere.local
    address: ""
    port: 6443
  kubernetes:
    version: v1.32.7
    clusterName: cluster.local
    autoRenewCerts: true
    containerManager: docker
  etcd:
    type: kubekey
  network:
    plugin: flannel
    kubePodsCIDR: 10.233.64.0/18
    kubeServiceCIDR: 10.233.0.0/18
    ## multus support. https://github.com/k8snetworkplumbingwg/multus-cni
    multusCNI:
      enabled: false
  storage:
    openebs:
      basePath: /var/openebs/local # base path of the local PV provisioner
  registry:
    type: harbor
    registryMirrors: []
    insecureRegistries: []
    privateRegistry: "dockerhub.kubekey.local"
    namespaceOverride: "kubesphereio"
    auths: # if docker add by `docker login`, if containerd append to `/etc/containerd/config.toml`
      "dockerhub.kubekey.local":
        username: "admin"
        password: Harbor@123 # 此处可自定义，kk3.1.8新特性
        skipTLSVerify: true # Allow contacting registries over HTTPS with failed TLS verification.
        plainHTTP: false # Allow contacting registries over HTTP.
        certsPath: "/etc/docker/certs.d/dockerhub.kubekey.local"
  addons: []
---

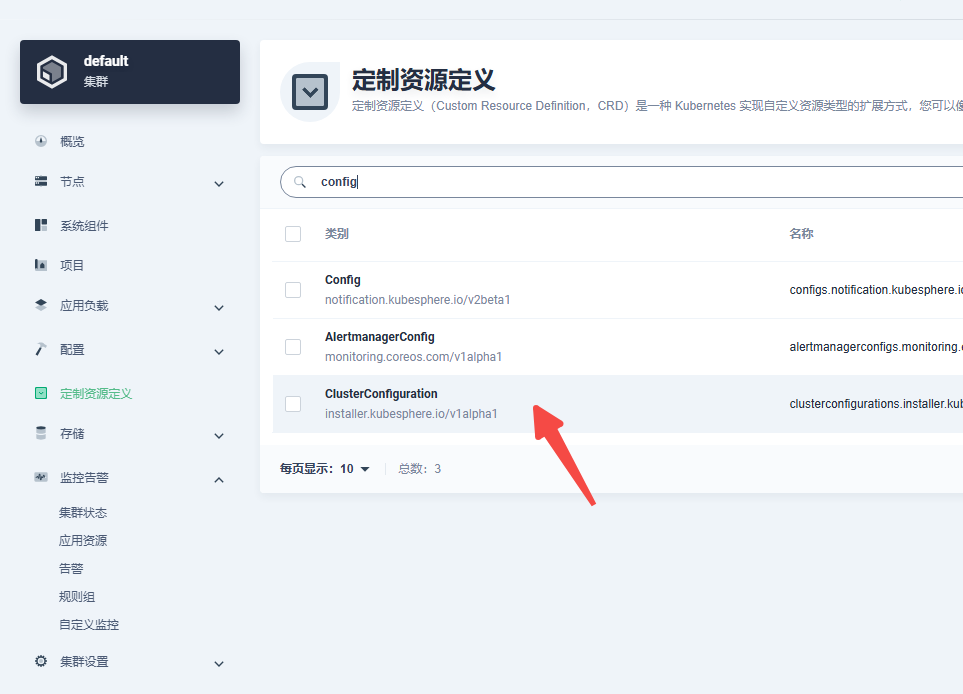

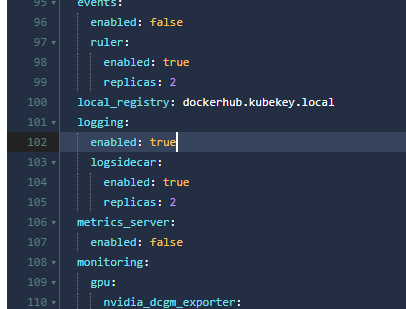

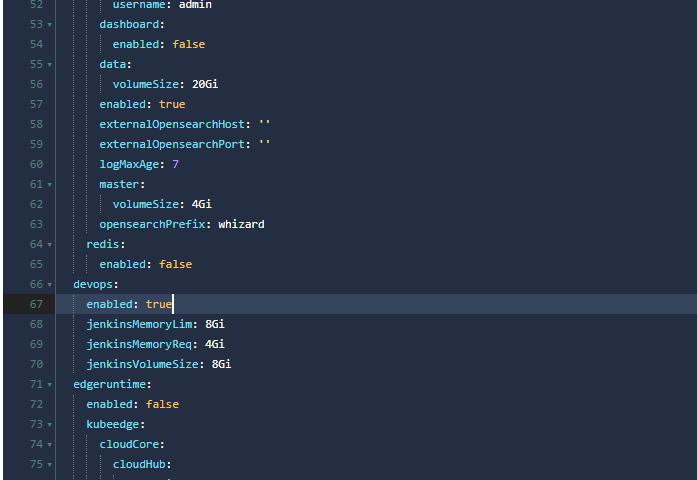

apiVersion: installer.kubesphere.io/v1alpha1

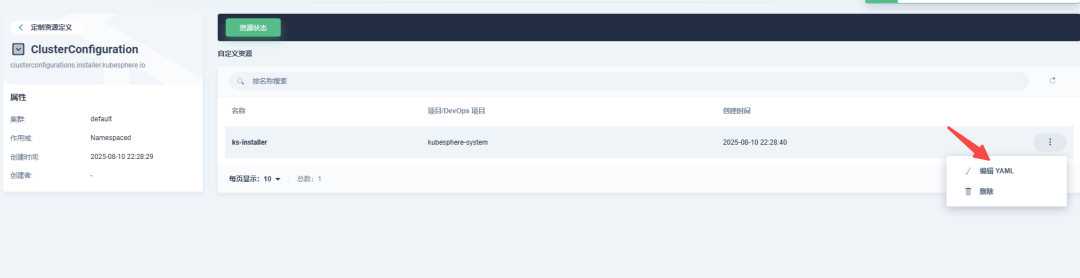

kind: ClusterConfiguration
metadata:
  name: ks-installer
  namespace: kubesphere-system
  labels:
    version: v3.4.1

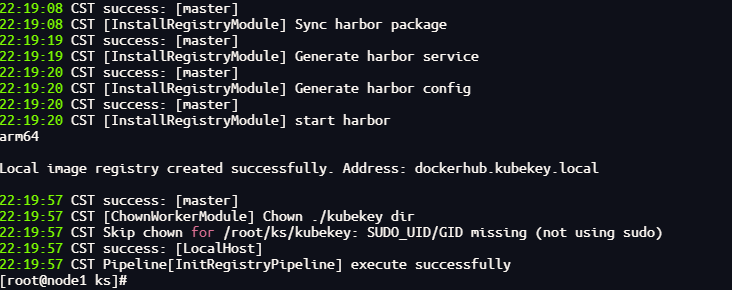

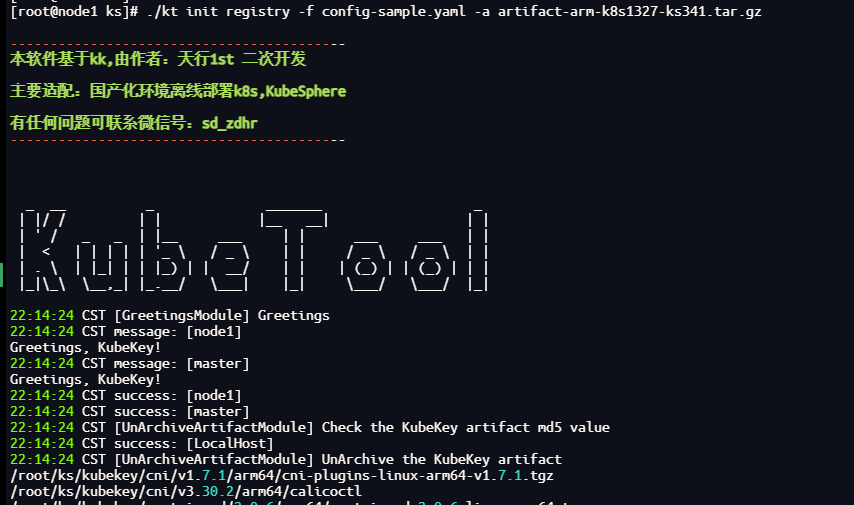

./kt init registry -f config-sample.yaml -a artifact-arm-k8s1327-ks341.tar.gz

vi create_project_harbor.sh

#!/usr/bin/env bash

url="https://dockerhub.kubekey.local"# 或修改为实际镜像仓库地址
user="admin"
passwd="Harbor@123"

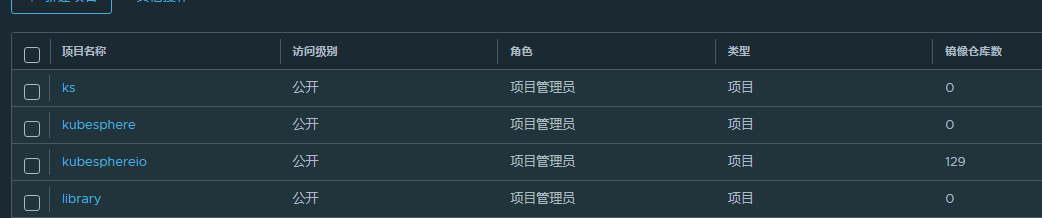

harbor_projects=(
        ks
        kubesphere
        kubesphereio
        tx1st
)

for project in"${harbor_projects[@]}"; do
    echo"creating $project"
    curl -u "${user}:${passwd}" -X POST -H "Content-Type: application/json""${url}/api/v2.0/projects" -d "{ \"project_name\": \"${project}\", \"public\": true}" -k  # 注意在 curl 命令末尾加上 -k
done

chmod +x create_project_harbor.sh

./create_project_harbor.sh

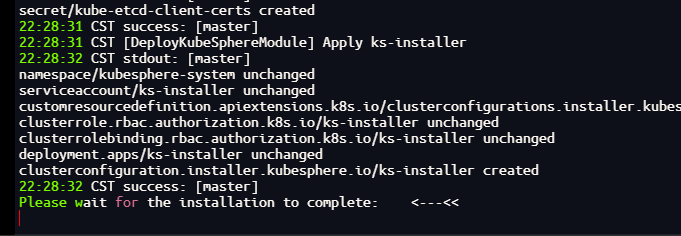

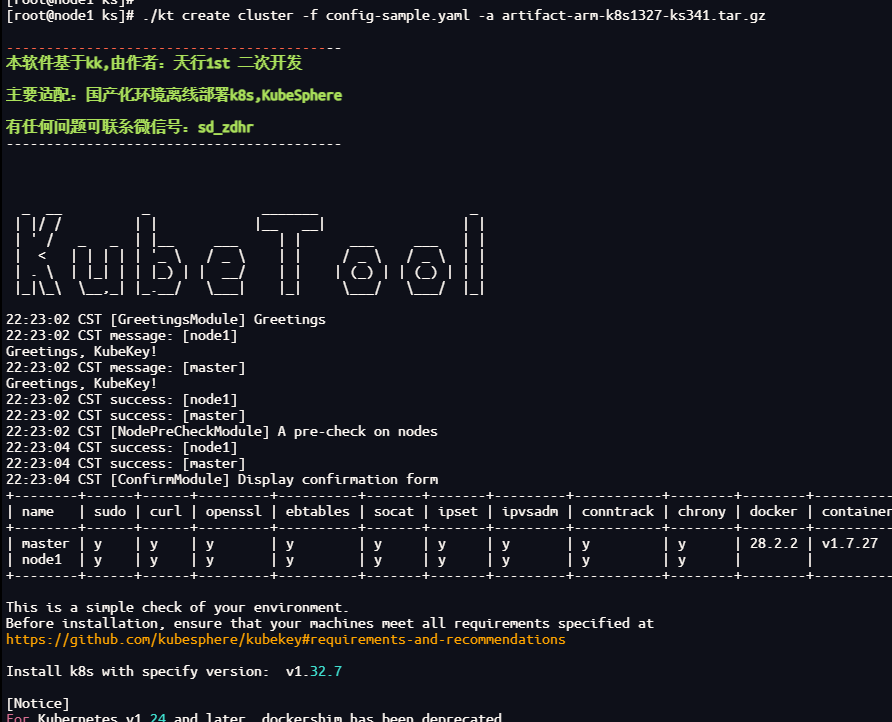

./kt create cluster -f config-sample.yaml -a artifact-arm-k8s1327-ks341.tar.gz

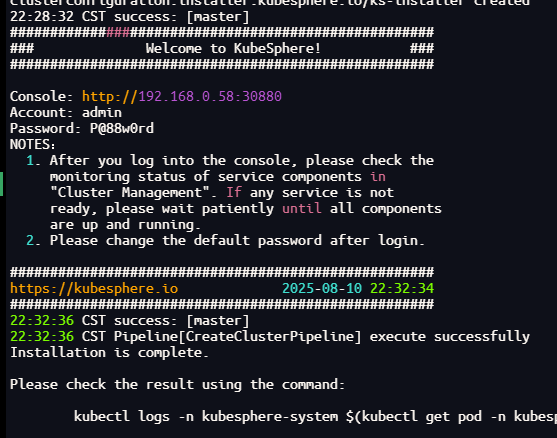

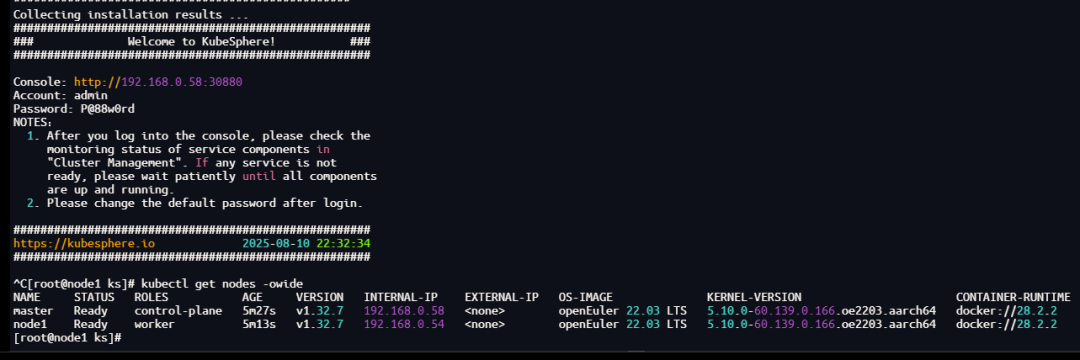

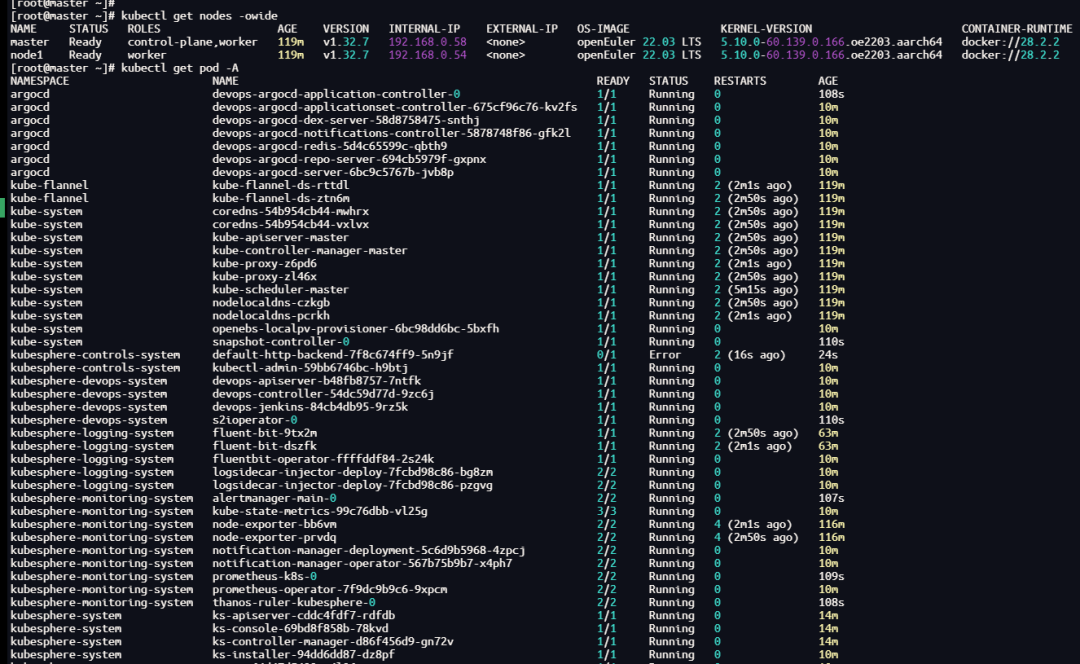

kubectl logs -n kubesphere-system $(kubectl get pod -n kubesphere-system -l 'app in (ks-install, ks-installer)' -o jsonpath='{.items[0].metadata.name}') -f
