大家好,我是技术UP主小傅哥。
诶,你八股背的挺好,怎么实操这么差?
哎,你算法刷的挺多,怎么编码这么烂?
啊,你不是做过微服务,怎么不知道咋引包?
这是越来越多的面试官在招聘完的真实反馈,很多伙伴的经验不是来自于实践而是背诵!
有些东西没做过就是不知道!
所有那些背的东西,都是对结果的单一描述,而不是用大量的实践验证得出的结果,那么就会缺少各种可能的回答。以及对结果的各种论点/观点。
如,很多伙伴都提到做的是微服务项目,但对于基础的 Maven 在微服务中的使用,几乎是不知道的。那么就反向说明,你没有真的做过这些。所以你才不知道。
所以,如果你想真的学习下来这些经验,就要对这些知识点一个个的实践、验证、积累。在小傅哥的编程路书中以及积累了大量的知识内容,可以学习;https://bugstack.cn/md/road-map/road-map.html
案例工程;
接下来,我们再分享下关于微服务 Maven 发包的实践知识。
“傅哥,这怎么报错了,我怎么引不到这个包?”
对于这样的报错,我估计不少伙伴碰到了都有点慌。怎么我刚下载下来的工程,什么都做没做就报错了。这个包在仓库里也没有呀?之所以你会感觉很慌,是因为没有微服务项目的开发经验。

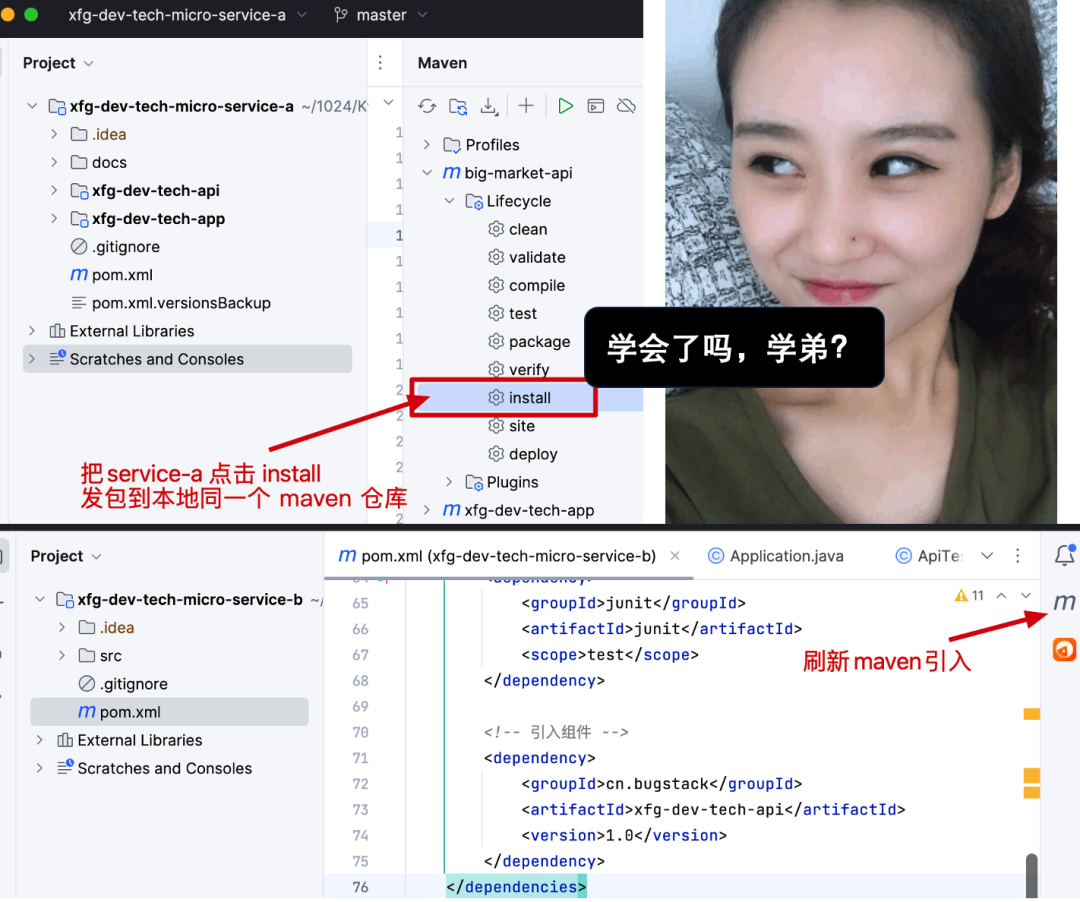

只要你碰到这样一个报错,那么在“作者/开发者/公司”的仓库中,一定会有这样一个其他的微服务,只要下载到自己本地,用 IntelliJ IDEA 打开,点击右侧的 maven install 就可以初始化包到你的本地 Maven 仓库了,这样你就能引入了。
那关于微服务的包的构建和使用有什么管理和规范吗?🤔 有的!
无论是我们个人开发还是在公司开发,都是有一套微服务包的开发和推送以及使用的规范。大家默认统一遵守,所以开发中才会非常协调的进行。

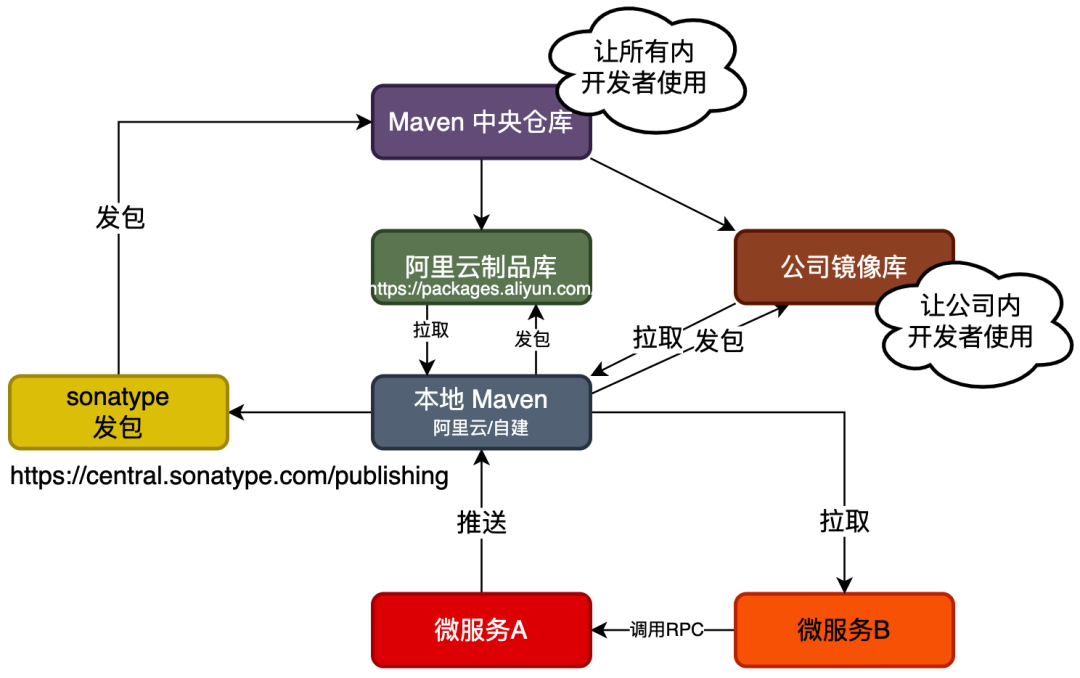

首先,公司中有很多业务,很多需求,这些东西不能都在一个工程里开发。那么势必就会拆分为多个微服务系统以及通用的技术解决方案组件。那么这些微服务和组件之间就会存在引入调用关系。尤其是一些大的互联网公司,更是会采用 RPC 的通信解决内部微服务之间的高效调用,而 RPC 通信不同于 HTTP 是需要引入接口定义包的,所以必然存在一个微服务中引入另外一个微服务的 Jar 也就是 POM 配置。
那么,如果是你个人验证阶段,是先在自己本地开发验证。这个时候不会发包到 maven 公司统一仓库或者中心仓库,那么就需要你自己本地在 A 服务中进行 install,把包发到个人的 maven 本地仓库文件夹中,之后你的 B 服务就可以引入使用了。
之后,站在整个公司的视角。你开发完的组件,不只是你使用,还有其他很多人使用。但跨部门,跨组的别人又不一定都有你的代码库权限,这个时候就需要把本地微服务的 Jar 发包到公司的 Maven 镜像库中。一般稍微大一点的公司都会有自己的 Maven 镜像库,如果公司比较小则会使用阿里云这类云厂商提供的的制品库,如;https://packages.aliyun.com/ 让公司的所有人 Maven setting 配置文件都配置这套制品库,这样就解决了一个人发包,其他人也能拉取到使用。

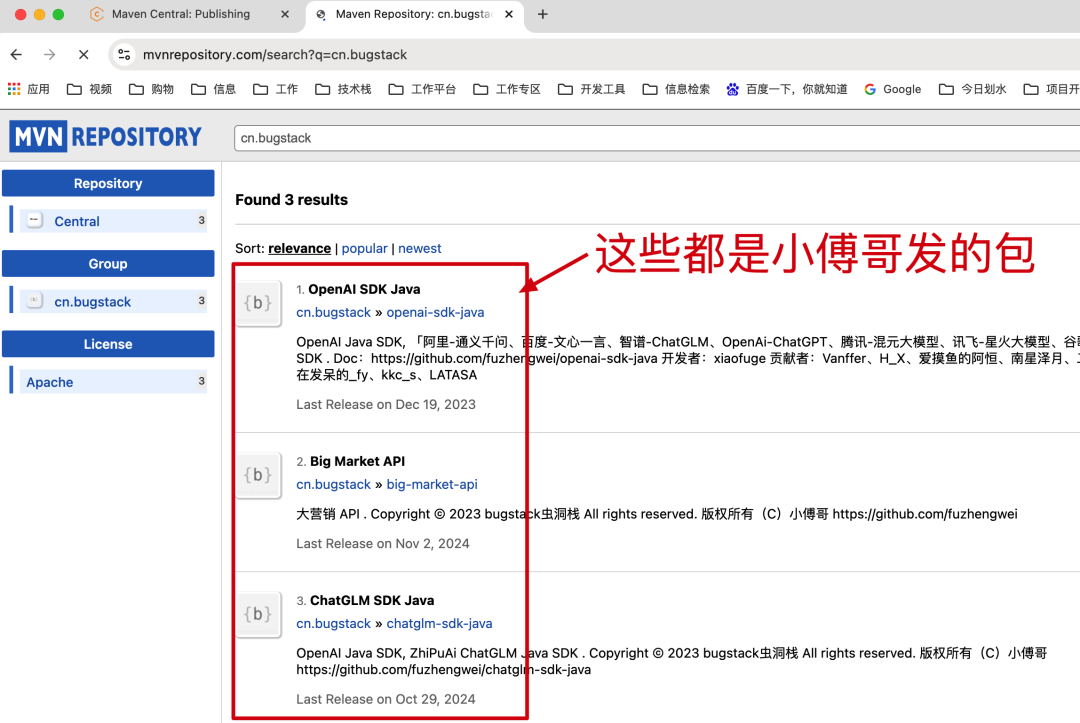

另外,如果你想你发的包,不只是你自己或公司里的人使用,那么就要把包发到 Maven 统一的中心仓库。https://central.sonatype.com/publishing 这个过程稍微有点漫长,会持续 4-12
个小时才能完全同步好。
下文会提到如何发包到阿里云制品库和 Maven 中心仓库。
工程发包会分为开发阶段的 snapshot 包和正式上线使用的 release 包,snapshot 包同一个版本发包后可以被替代,release 包,只能每次更换版本号。
<dependency>
<groupId>cn.bugstack</groupId>
<artifactId>xfg-dev-tech-api</artifactId>
<version>0.0.0-SNAPSHOT</version>
</dependency>
<dependency>
<groupId>cn.bugstack</groupId>
<artifactId>xfg-dev-tech-api</artifactId>
<version>1.0</version>
</dependency>
另外这样的微服务包的版本号,在一个工程中每个模块都需要在发包的时候一起操作修改。如果是手动的修改就容易遗漏导致问题,所以这里我们要使用 Maven 提供的插件管理包。如;
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>versions-maven-plugin</artifactId>
<version>2.7</version>
</plugin>

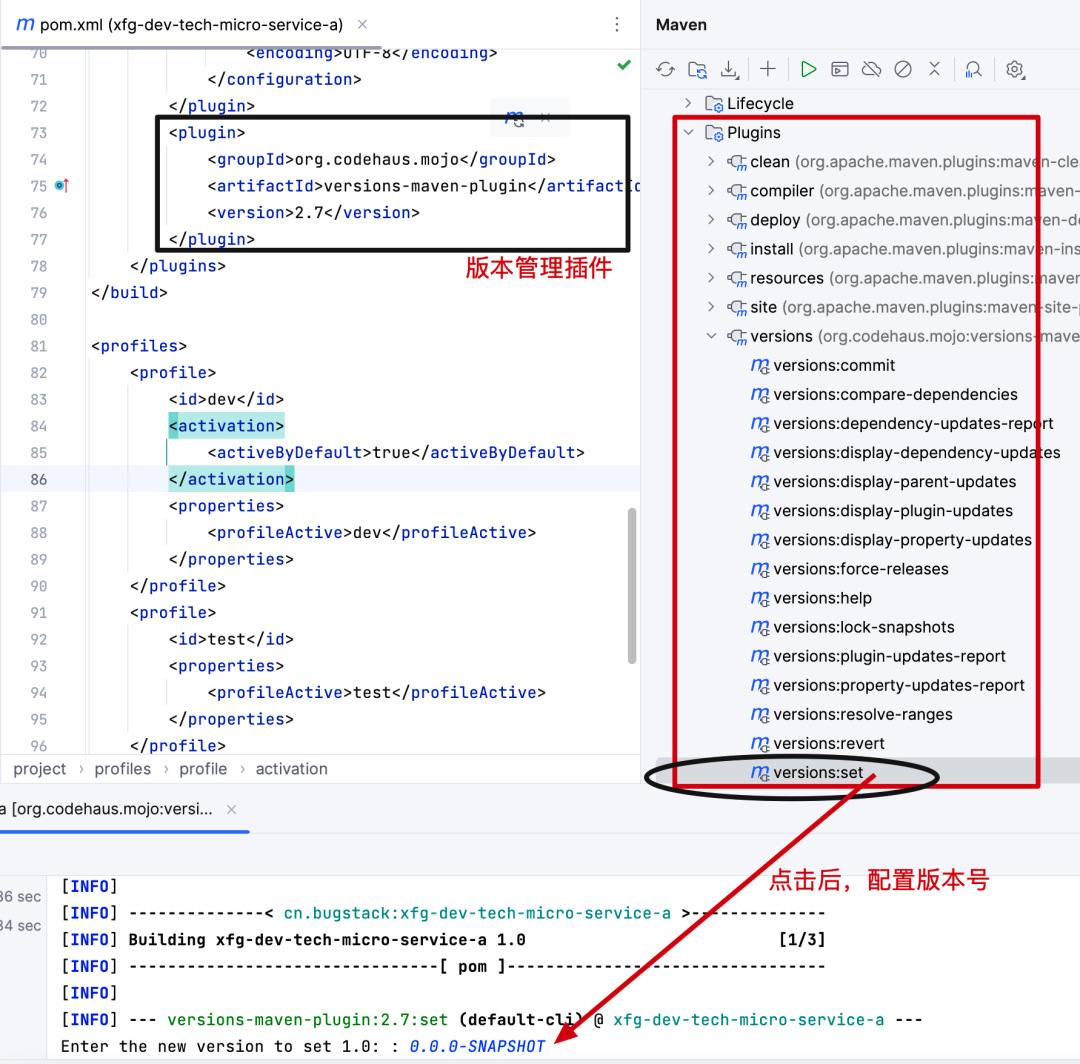

versions-maven-plugin
点击 version:set
就可以统一管理工程的版本号了。地址:https://packages.aliyun.com/ - 填写个人信息申请即可。

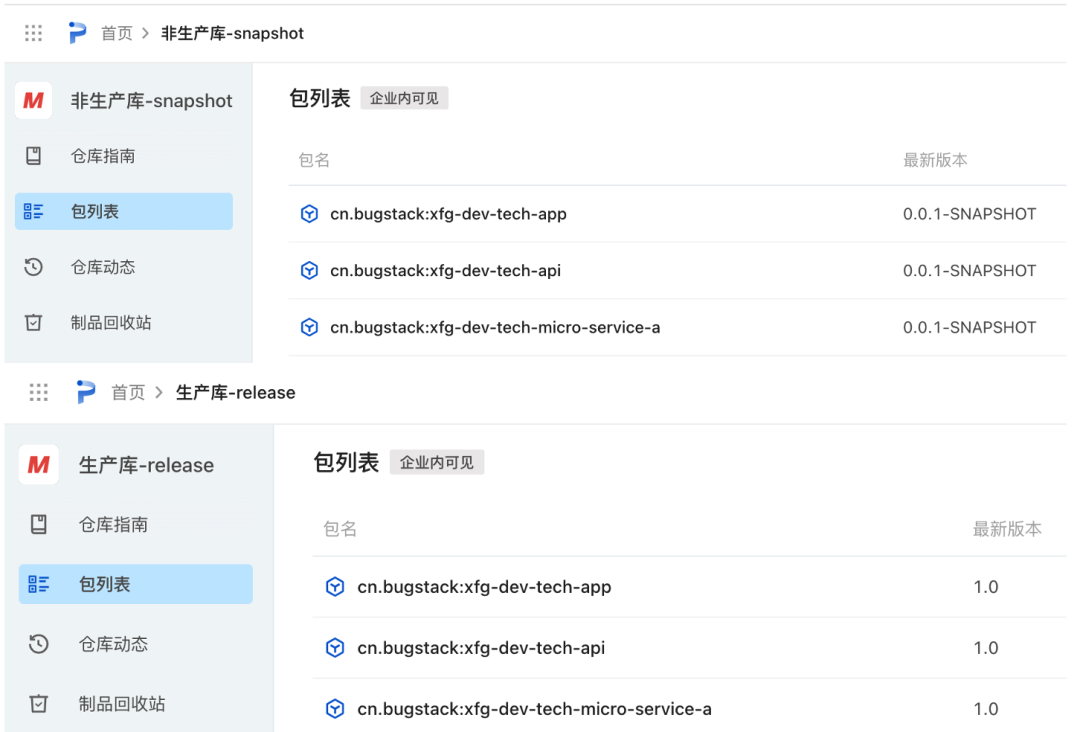

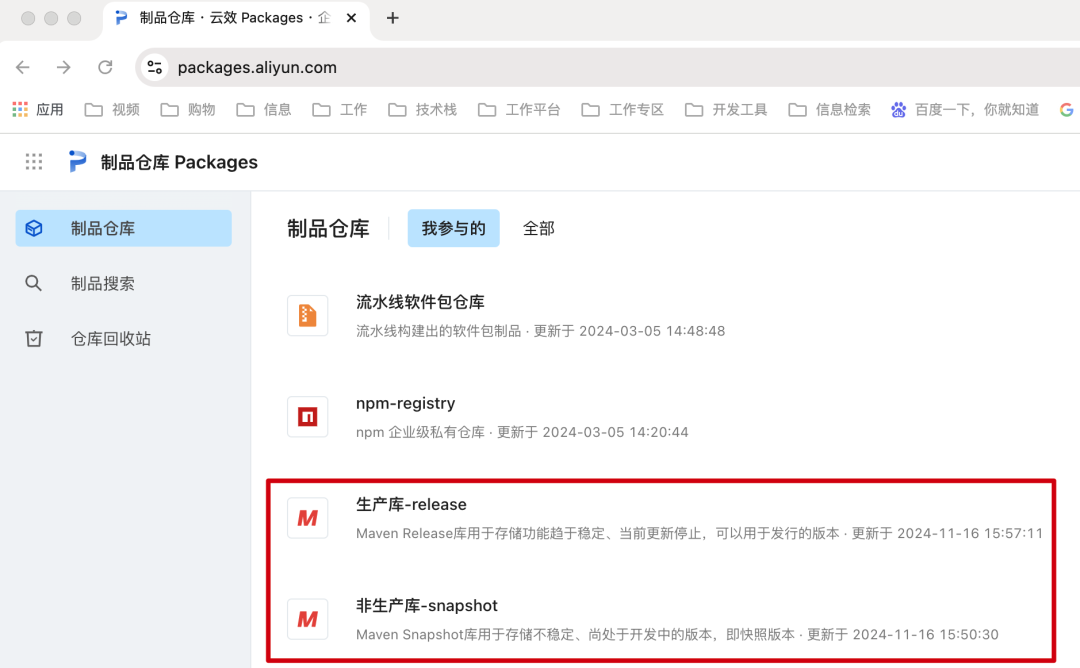

申请后,你会看到制品仓库配置,包括生产库和非生产库,他们主要负责给你提供 release、snapshot 发包和拉取。

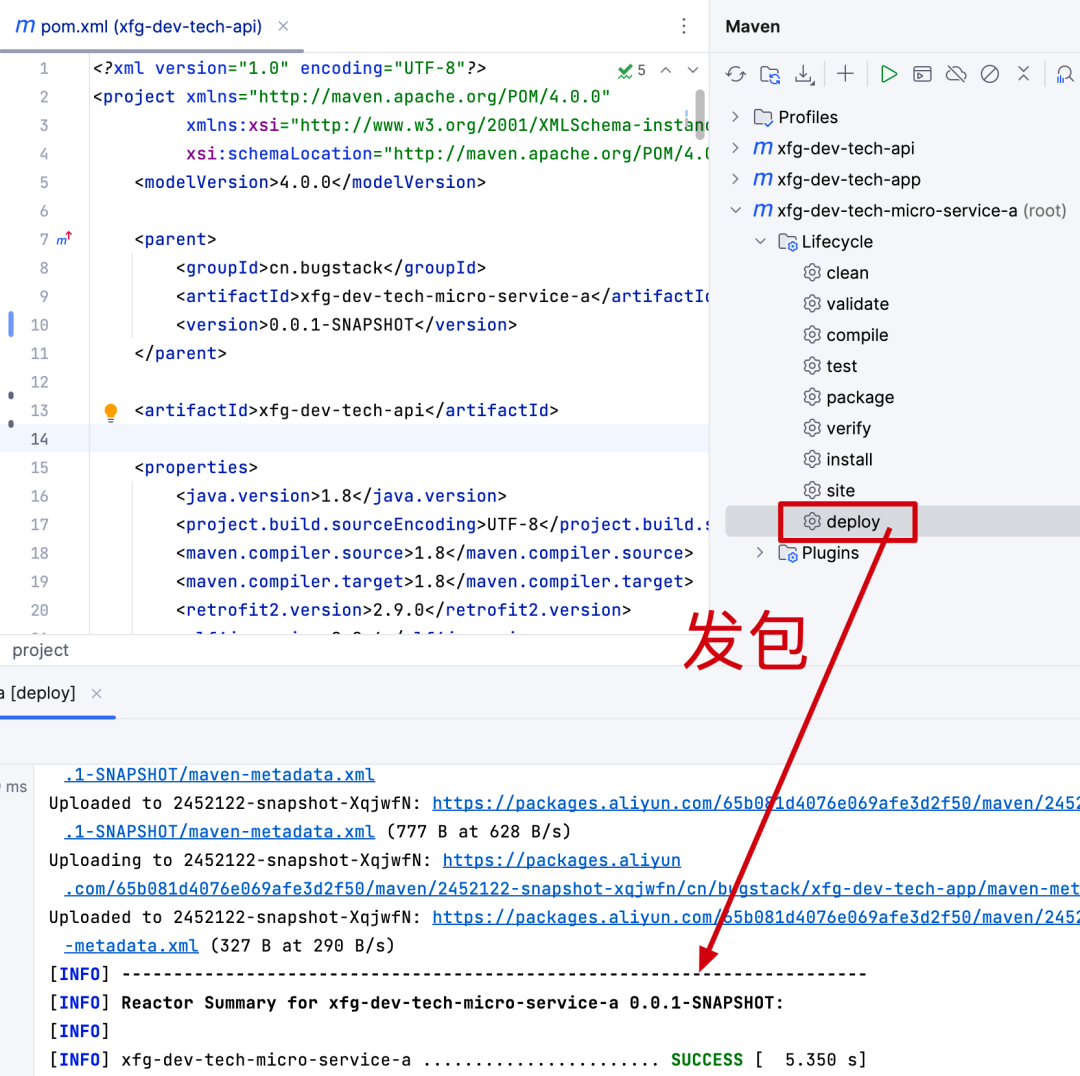

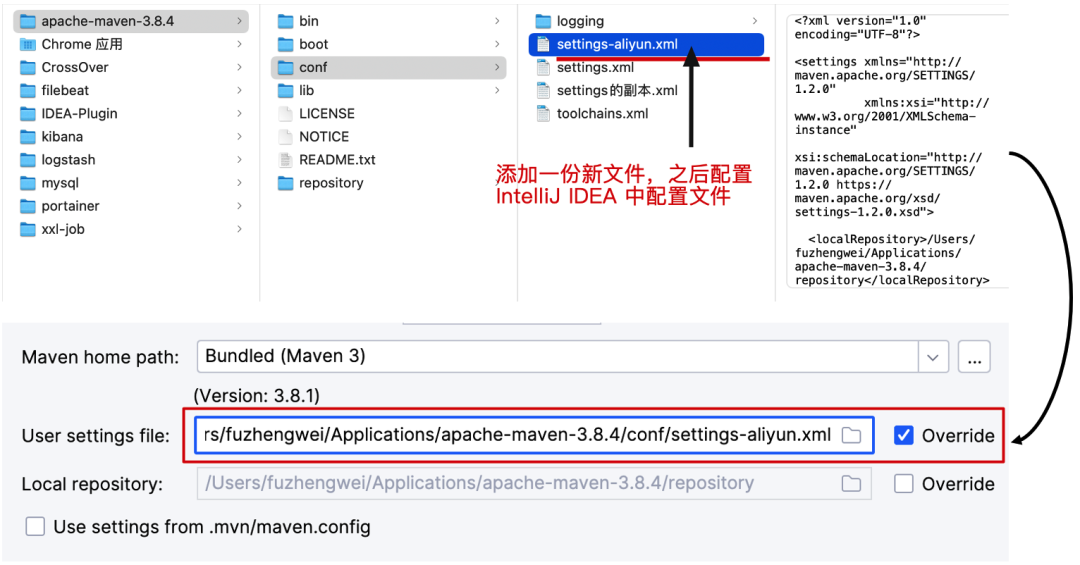

分别进入 release、snapshot,都可以获得一份 Maven settings.xml 配置文件,把两份文件夹下载后可以找到 release、snapshot 的差异,合并成一份文件。这样你就可以在本地发 release、snapshot 包了。
配置文件
样例文件
<?xml version="1.0" encoding="UTF-8"?>
<settings xmlns="http://maven.apache.org/SETTINGS/1.2.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.2.0 https://maven.apache.org/xsd/settings-1.2.0.xsd">
<localRepository>/Users/fuzhengwei/Applications/apache-maven-3.8.4/repository</localRepository>
<mirrors>
<mirror>
<id>mirror</id>
<mirrorOf>central,jcenter,!2452122-snapshot-XqjwfN</mirrorOf>
<name>mirror</name>
<url>https://maven.aliyun.com/nexus/content/groups/public</url>
</mirror>
</mirrors>
<servers>
<server>
<id>2452122-snapshot-XqjwfN</id>
<username>65b081c2242105ca211dd310</username>
<password>每个人会有自己的密码</password>
</server>
<server>
<id>2452122-release-dbuebF</id>
<username>65b081c2242105ca211dd310</username>
<password>每个人会有自己的密码</password>
</server>
</servers>
<profiles>
<profile>
<id>rdc</id>
<properties>
<altSnapshotDeploymentRepository>
2452122-snapshot-XqjwfN::default::https://packages.aliyun.com/65b081d4076e069afe3d2f50/maven/2452122-snapshot-xqjwfn
</altSnapshotDeploymentRepository>
<altReleaseDeploymentRepository>
2452122-release-dbuebF::default::https://packages.aliyun.com/65b081d4076e069afe3d2f50/maven/2452122-release-dbuebf
</altReleaseDeploymentRepository>
</properties>
<repositories>
<repository>
<id>central</id>
<url>https://maven.aliyun.com/nexus/content/groups/public</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>
<repository>
<id>snapshots</id>
<url>https://maven.aliyun.com/nexus/content/groups/public</url>
<releases>
<enabled>false</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
</snapshots>
</repository>
<repository>
<id>2452122-snapshot-XqjwfN</id>
<url>https://packages.aliyun.com/65b081d4076e069afe3d2f50/maven/2452122-snapshot-xqjwfn</url>
<releases>
<enabled>false</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
</snapshots>
</repository>
<repository>
<id>2452122-release-dbuebF</id>
<url>https://packages.aliyun.com/65b081d4076e069afe3d2f50/maven/2452122-release-dbuebf</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>
</repositories>
<pluginRepositories>
<pluginRepository>
<id>central</id>
<url>https://maven.aliyun.com/nexus/content/groups/public</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</pluginRepository>
<pluginRepository>
<id>snapshots</id>
<url>https://maven.aliyun.com/nexus/content/groups/public</url>
<releases>
<enabled>false</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
</snapshots>
</pluginRepository>
<pluginRepository>
<id>2452122-snapshot-XqjwfN</id>
<url>https://packages.aliyun.com/65b081d4076e069afe3d2f50/maven/2452122-snapshot-xqjwfn</url>
<releases>
<enabled>false</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
</snapshots>
</pluginRepository>
<pluginRepository>
<id>2452122-release-dbuebF</id>
<url>https://packages.aliyun.com/65b081d4076e069afe3d2f50/maven/2452122-release-dbuebf</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</pluginRepository>
</pluginRepositories>
</profile>
</profiles>
<activeProfiles>
<activeProfile>rdc</activeProfile>
</activeProfiles>
</settings>
官网:https://central.sonatype.com/publishing文档:https://central.sonatype.org/publish/publish-portal-upload/

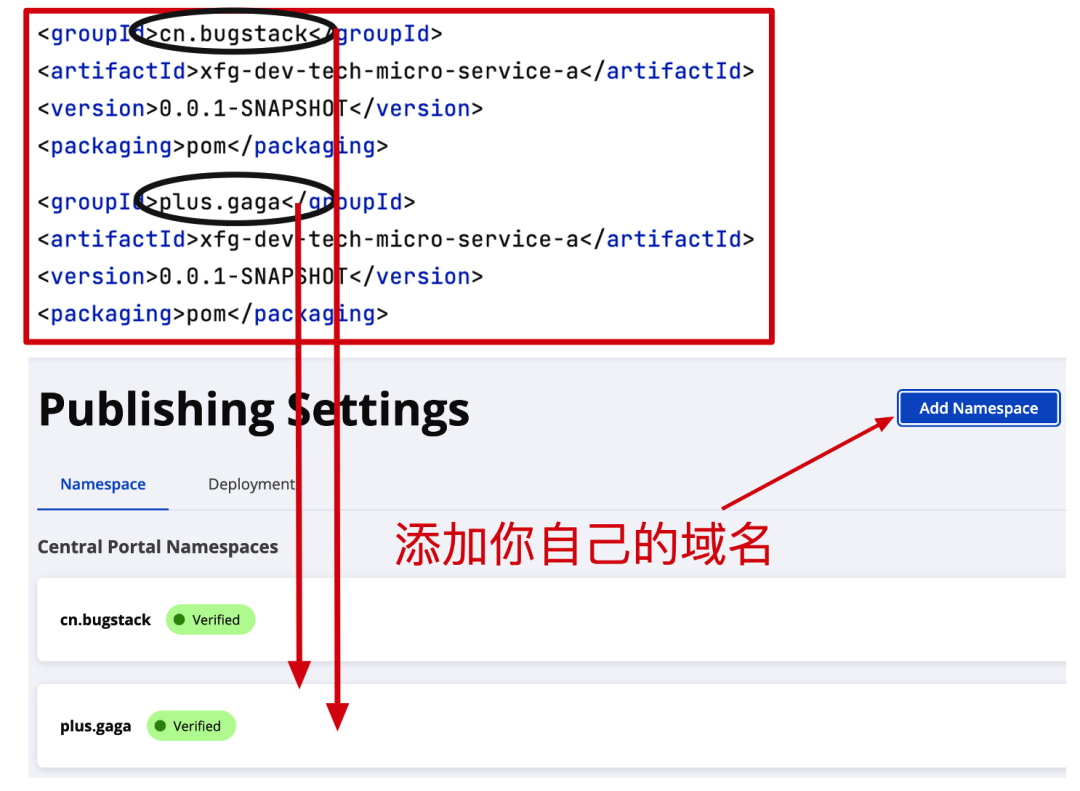

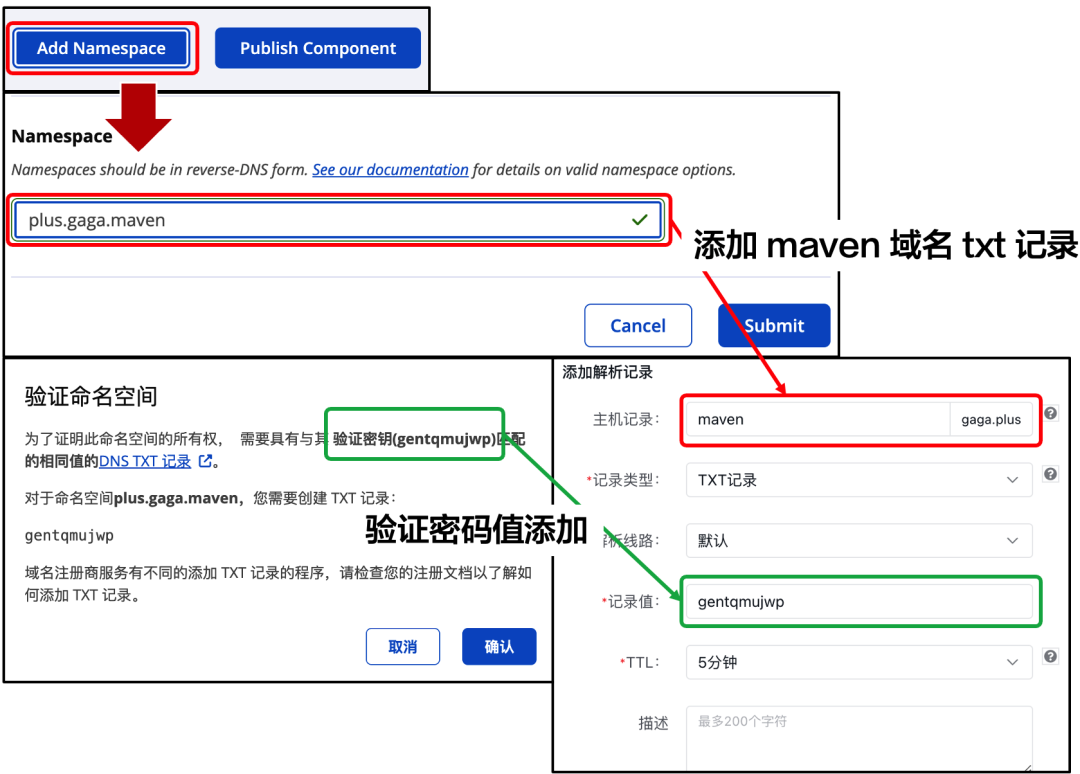

Maven 中心仓库发包需要验证你的域名,确保全世界的唯一性。如果选择 github 登录,你会有一个默认配置的 NameSpace(io.github.fuzhengwei),这个东西的作用就是要和本地工程名 groupId 保持一致的。如工程是 cn.bugstack、plus.gaga、com.liergou,那么你在的 NameSpace 就需要配置一个这样的调过来的域名。

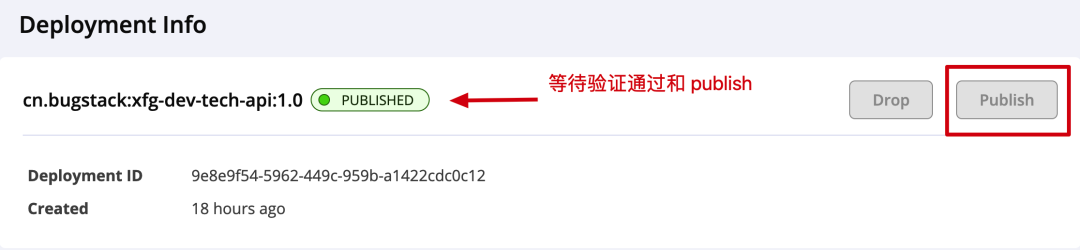

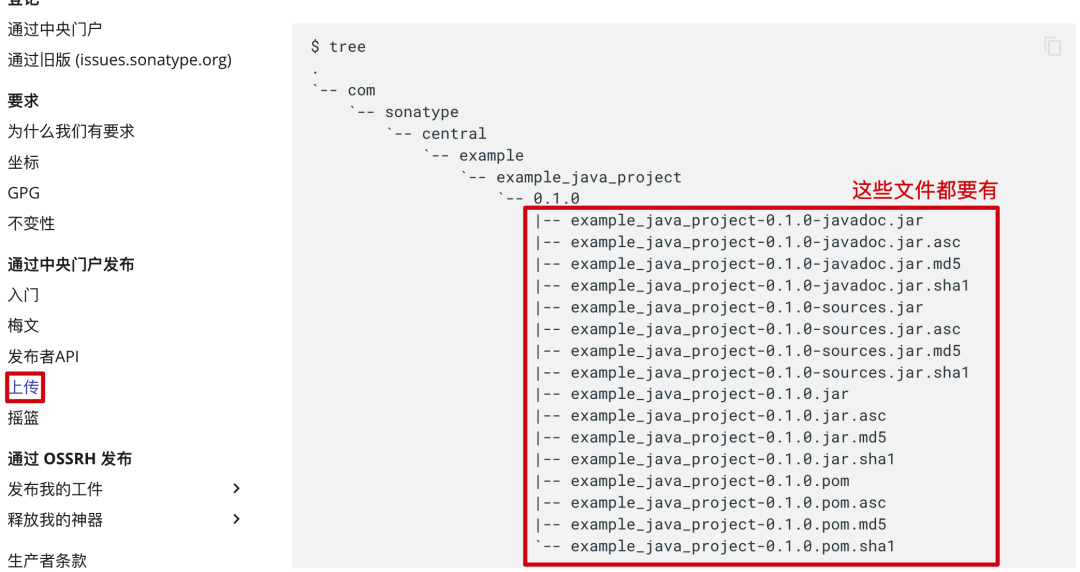

文档:https://central.sonatype.org/publish/publish-portal-upload/
源码:https://gitcode.net/KnowledgePlanet/road-map/xfg-frame-archetype-lite/-/tree/master/scaffold-lite
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<!-- <parent>-->
<!-- <groupId>cn.bugstack</groupId>-->
<!-- <artifactId>xfg-dev-tech-micro-service-a</artifactId>-->
<!-- <version>0.0.1-SNAPSHOT</version>-->
<!-- </parent>-->
<groupId>cn.bugstack</groupId>
<artifactId>xfg-dev-tech-api</artifactId>
<version>0.0.0-SNAPSHOT</version>
<properties>
<java.version>1.8</java.version>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.8</maven.compiler.source>
<maven.compiler.target>1.8</maven.compiler.target>
<retrofit2.version>2.9.0</retrofit2.version>
<slf4j.version>2.0.6</slf4j.version>
<maven-javadoc-plugin.version>3.2.0</maven-javadoc-plugin.version>
<maven-source-plugin.version>3.2.1</maven-source-plugin.version>
<maven-gpg-plugin.version>1.6</maven-gpg-plugin.version>
<maven-checksum-plugin.version>1.10</maven-checksum-plugin.version>
</properties>
<name>xfg-dev-tech-api</name>
<description>ce API . Copyright © 2023 bugstack虫洞栈 All rights reserved. 版权所有(C)小傅哥 https://github.com/fuzhengwei</description>
<url>https://github.com/fuzhengwei/xfg-dev-tech-micro-service-a</url>
<licenses>
<license>
<name>Apache License</name>
<url>https://opensource.org/license/apache-2-0/</url>
<distribution>repo</distribution>
</license>
</licenses>
<developers>
<developer>
<id>Xiaofuge</id>
<name>Xiaofuge</name>
<email>184172133@qq.com</email>
<url>https://github.com/fuzhengwei</url>
<organization>xfg-dev-tech-micro-service-a</organization>
<organizationUrl>https://github.com/fuzhengwei/xfg-dev-tech-micro-service-a</organizationUrl>
<roles>
<role>architect</role>
<role>developer</role>
</roles>
<timezone>Asia/Shanghai</timezone>
</developer>
</developers>
<scm>
<connection>scm:git:https://github.com/fuzhengwei/xfg-dev-tech-micro-service-a.git</connection>
<developerConnection>scm:git:https://github.com/fuzhengwei/xfg-dev-tech-micro-service-a.git</developerConnection>
<tag>HEAD</tag>
<url>https://github.com/fuzhengwei/xfg-dev-tech-micro-service-a</url>
</scm>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.0</version>
<configuration>
<source>${java.version}</source>
<target>${java.version}</target>
<encoding>${project.build.sourceEncoding}</encoding>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-gpg-plugin</artifactId>
<version>1.5</version>
<executions>
<execution>
<id>sign-artifacts</id>
<phase>verify</phase>
<goals>
<goal>sign</goal>
</goals>
</execution>
</executions>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.12.4</version>
<configuration>
<skipTests>true</skipTests>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-source-plugin</artifactId>
<version>2.2.1</version>
<executions>
<execution>
<id>attach-sources</id>
<goals>
<goal>jar-no-fork</goal>
</goals>
</execution>
</executions>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-javadoc-plugin</artifactId>
<version>2.9.1</version>
<configuration>
<encoding>UTF-8</encoding>
<aggregate>true</aggregate>
<charset>UTF-8</charset>
<docencoding>UTF-8</docencoding>
</configuration>
<executions>
<execution>
<id>attach-javadocs</id>
<goals>
<goal>jar</goal>
</goals>
<configuration>
<additionalparam>-Xdoclint:none</additionalparam>
<javadocExecutable>
/Library/Java/JavaVirtualMachines/jdk1.8.0_311.jdk/Contents/Home/bin/javadoc
</javadocExecutable>
</configuration>
</execution>
</executions>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-release-plugin</artifactId>
<version>2.5.3</version>
<configuration>
<autoVersionSubmodules>true</autoVersionSubmodules>
<useReleaseProfile>false</useReleaseProfile>
<releaseProfiles>release</releaseProfiles>
<goals>deploy</goals>
</configuration>
</plugin>
<plugin>
<groupId>net.nicoulaj.maven.plugins</groupId>
<artifactId>checksum-maven-plugin</artifactId>
<version>${maven-checksum-plugin.version}</version>
<executions>
<execution>
<id>create-checksums</id>
<goals>
<goal>artifacts</goal>
</goals>
</execution>
</executions>
</plugin>
</plugins>
</build>
<profiles>
<profile>
<id>release</id>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-javadoc-plugin</artifactId>
<version>2.9.1</version>
<executions>
<execution>
<id>attach-javadocs</id>
<goals>
<goal>jar</goal>
</goals>
<configuration>
<additionalparam>-Xdoclint:none</additionalparam>
<javadocExecutable>
/Library/Java/JavaVirtualMachines/jdk1.8.0_311.jdk/Contents/Home/bin/javadoc
</javadocExecutable>
</configuration>
</execution>
</executions>
</plugin>
</plugins>
</build>
</profile>
</profiles>
</project>
<groupId>cn.bugstack</groupId>
这里不能是继承。checksum-maven-plugin
需要在 maven-gpg-plugin
执行,这样就不用做下面的手动 md5 逻辑了。/Library/Java/JavaVirtualMachines/jdk1.8.0_311.jdk/Contents/Home/bin/javadoc

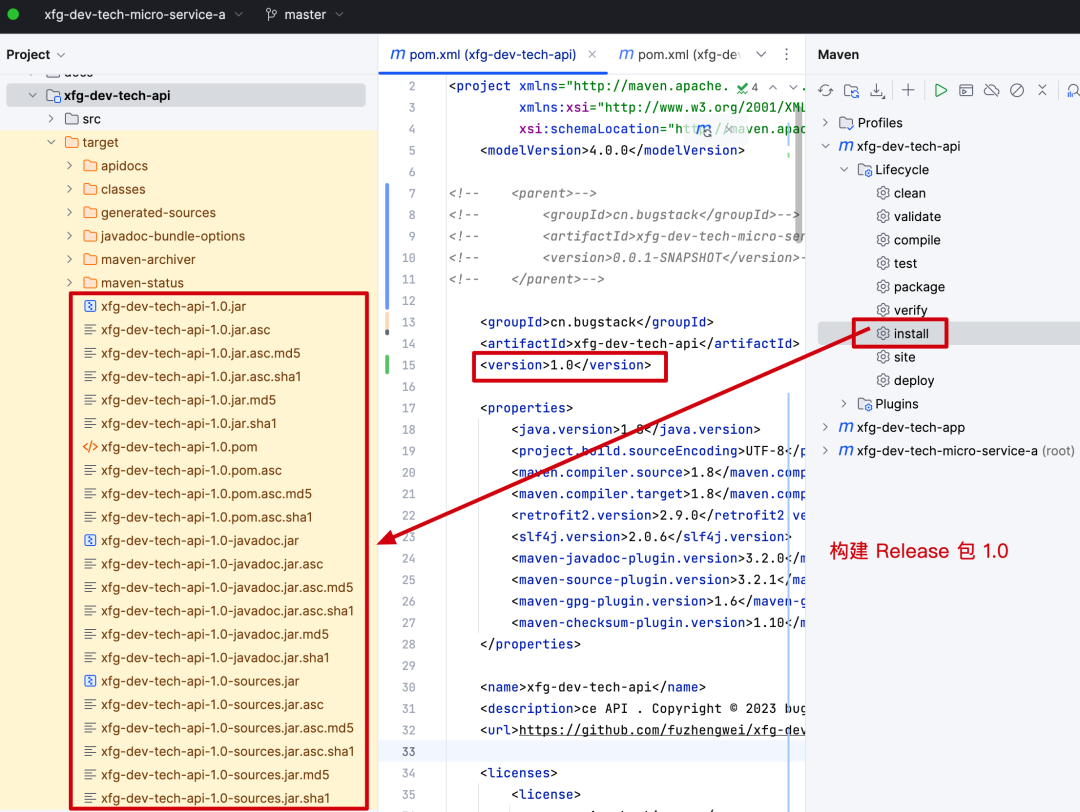

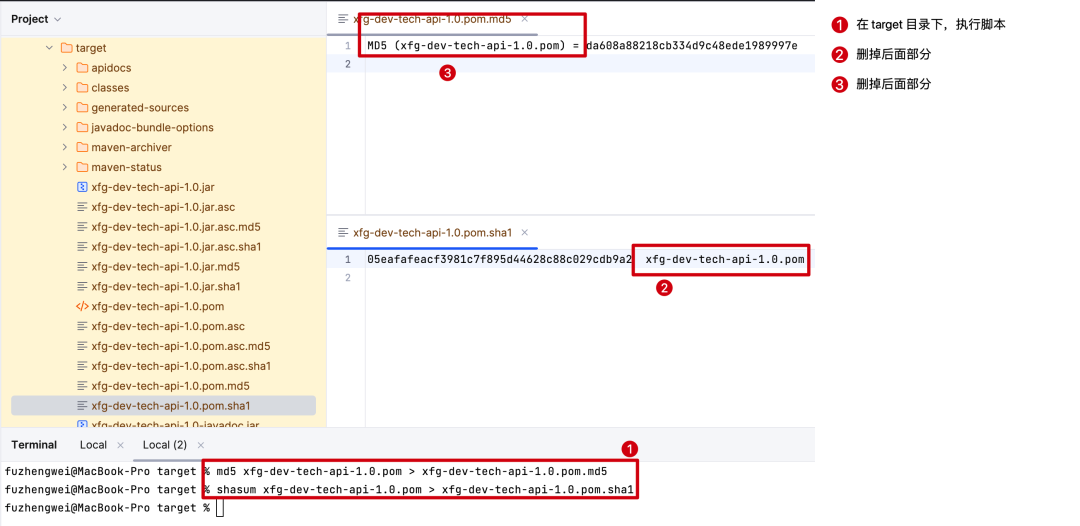

配置你自己的 jdk 地址。md5 ddd-scaffold-lite-1.0.pom > ddd-scaffold-lite-1.0.pom.md5
shasum ddd-scaffold-lite-1.0.pom > ddd-scaffold-lite-1.0.pom.sha1
md5 xfg-dev-tech-api-1.0.pom > xfg-dev-tech-api-1.0.pom.md5
shasum xfg-dev-tech-api-1.0.pom > xfg-dev-tech-api-1.0.pom.sha1
mkdir -p cn/bugstack/xfg-dev-tech-api/1.0/
- END -
加入小傅哥的星球「码农会锁」,💐斩获大厂Offer!阅读500+份简历和评审,学习6个业务项目;MVC+DDD,双架构开发小型电商
、大营销(超级大课)
、OpenAI 大模型应用
、Lottery
、IM
、AI 问答助手
。7个组件项目;OpenAI 代码评审
、BCP 透视业务监控
、动态线程池
、支付SDK设计和开发
、API网关
、SpringBoot Starter
、IDEA Plugin 插件开发
。1套源码课程、1套基础教程、1到云服务器教程以及各类场景解决方案。
小傅哥有那么多课程内容,我加入后都可以学习吗?可以!
好啦,这就是小傅哥的技术列车🚌,嘎嘎实惠!🤔 几乎没有哪个大厂架构师,用这么一个普惠的价格手把手的教大家学习了。
星球「码农会锁」- 加入后从课程入口进入项目学习
星球全程手把手指导教学,遇到技术问题帮忙排查代码。已经有很多伙伴开始学起来了,还有大家交的作业笔记。有了的项目驱动学习,清晰的目标感,大家冲起来也有了更明确的方向!干干干!!!
