企业级MCP部署实战：从开发到生产的完整DevOps流程

企业级MCP部署实战：从开发到生产的完整DevOps流程

🌟 Hello，我是摘星！

🌈 在彩虹般绚烂的技术栈中，我是那个永不停歇的色彩收集者。

🦋 每一个优化都是我培育的花朵，每一个特性都是我放飞的蝴蝶。

🔬 每一次代码审查都是我的显微镜观察，每一次重构都是我的化学实验。

🎵 在编程的交响乐中，我既是指挥家也是演奏者。让我们一起，在技术的音乐厅里，奏响属于程序员的华美乐章。

摘要

作为一名深耕AI基础设施多年的技术博主摘星，我深刻认识到Model Context Protocol（MCP）在企业级应用中的巨大潜力和部署挑战。随着AI Agent技术的快速发展，越来越多的企业开始将MCP集成到其核心业务系统中，但从开发环境到生产环境的部署过程往往充满了复杂性和不确定性。在过去的项目实践中，我见证了许多企业在MCP部署过程中遇到的各种问题：从架构设计的不合理导致的性能瓶颈，到容器化部署中的资源配置错误，再到生产环境中的监控盲区和运维困难。这些问题不仅影响了系统的稳定性和性能，更重要的是阻碍了企业AI能力的快速迭代和创新。因此，建立一套完整的企业级MCP部署DevOps流程变得至关重要。本文将从企业环境下的部署架构设计出发，深入探讨容器化部署与Kubernetes集成的最佳实践，详细介绍CI/CD流水线配置与自动化测试的实施方案，并提供生产环境监控与运维管理的完整解决方案。通过系统性的方法论和实战经验分享，帮助企业技术团队构建稳定、高效、可扩展的MCP部署体系，实现从开发到生产的无缝衔接，为企业AI能力的持续发展奠定坚实的基础设施基础。

1. 企业级MCP部署架构设计

1.1 整体架构概览

企业级MCP部署需要考虑高可用性、可扩展性、安全性和可维护性等多个维度。以下是推荐的整体架构设计：

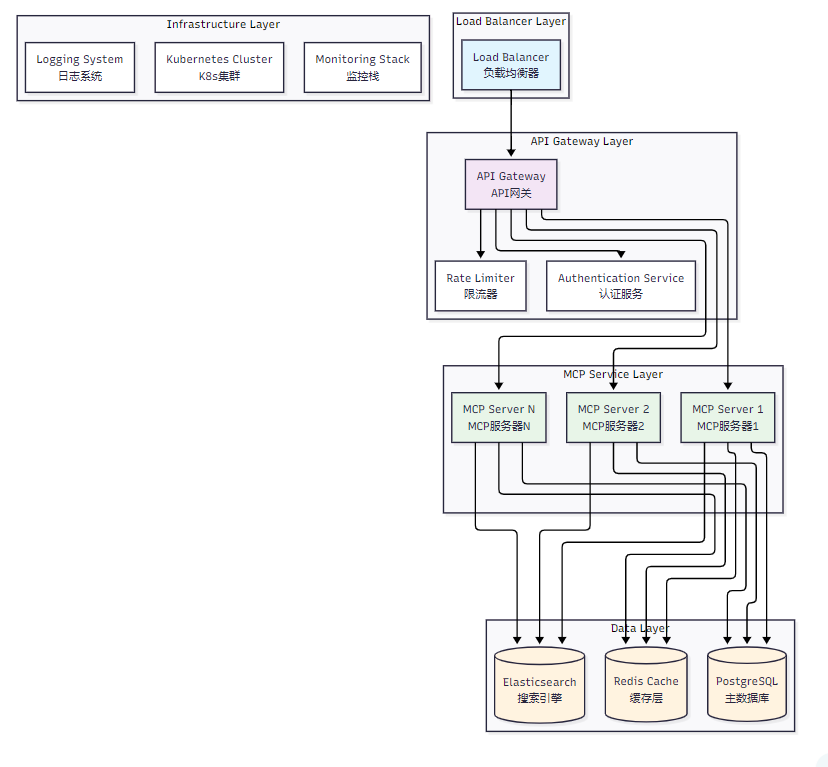

图1：企业级MCP部署整体架构图

1.2 核心组件设计

1.2.1 MCP服务器集群配置

// mcp-server-config.ts interface MCPServerConfig { server: { port: number; host: string; maxConnections: number; timeout: number; }; cluster: { instances: number; loadBalancing: 'round-robin' | 'least-connections' | 'ip-hash'; healthCheck: { interval: number; timeout: number; retries: number; }; }; resources: { memory: string; cpu: string; storage: string; }; } const productionConfig: MCPServerConfig = { server: { port: 8080, host: '0.0.0.0', maxConnections: 1000, timeout: 30000 }, cluster: { instances: 3, loadBalancing: 'least-connections', healthCheck: { interval: 10000, timeout: 5000, retries: 3 } }, resources: { memory: '2Gi', cpu: '1000m', storage: '10Gi' } };

1.2.2 高可用性设计模式

1.3 安全架构设计

# security-config.yaml apiVersion: v1 kind: ConfigMap metadata: name: mcp-security-config data: security.yaml: | authentication: type: "jwt" secret: "${JWT_SECRET}" expiration: "24h" authorization: rbac: enabled: true policies: - role: "admin" permissions: ["read", "write", "delete"] - role: "user" permissions: ["read"] encryption: tls: enabled: true cert: "/etc/ssl/certs/mcp.crt" key: "/etc/ssl/private/mcp.key" network: allowedOrigins: - "https://app.company.com" - "https://admin.company.com" rateLimiting: requests: 1000 window: "1h"

2. 容器化部署与Kubernetes集成

2.1 Docker容器化配置

2.1.1 多阶段构建Dockerfile

# Dockerfile # 第一阶段：构建阶段 FROM node:18-alpine AS builder WORKDIR /app # 复制依赖文件 COPY package*.json ./ COPY tsconfig.json ./ # 安装依赖 RUN npm ci --only=production && npm cache clean --force # 复制源代码 COPY src/ ./src/ # 构建应用 RUN npm run build # 第二阶段：运行阶段 FROM node:18-alpine AS runtime # 创建非root用户 RUN addgroup -g 1001 -S nodejs && \ adduser -S mcp -u 1001 WORKDIR /app # 复制构建产物 COPY --from=builder --chown=mcp:nodejs /app/dist ./dist COPY --from=builder --chown=mcp:nodejs /app/node_modules ./node_modules COPY --from=builder --chown=mcp:nodejs /app/package.json ./ # 健康检查 HEALTHCHECK --interval=30s --timeout=3s --start-period=5s --retries=3 \ CMD curl -f http://localhost:8080/health || exit 1 # 切换到非root用户 USER mcp # 暴露端口 EXPOSE 8080 # 启动命令 CMD ["node", "dist/server.js"]

2.1.2 容器优化配置

# docker-compose.yml version: '3.8' services: mcp-server: build: context: . dockerfile: Dockerfile target: runtime image: mcp-server:latest container_name: mcp-server restart: unless-stopped # 资源限制 deploy: resources: limits: memory: 2G cpus: '1.0' reservations: memory: 1G cpus: '0.5' # 环境变量 environment: - NODE_ENV=production - LOG_LEVEL=info - DB_HOST=postgres - REDIS_HOST=redis # 端口映射 ports: - "8080:8080" # 健康检查 healthcheck: test: ["CMD", "curl", "-f", "http://localhost:8080/health"] interval: 30s timeout: 10s retries: 3 start_period: 40s # 依赖服务 depends_on: postgres: condition: service_healthy redis: condition: service_healthy # 网络配置 networks: - mcp-network postgres: image: postgres:15-alpine container_name: mcp-postgres restart: unless-stopped environment: - POSTGRES_DB=mcp - POSTGRES_USER=mcp_user - POSTGRES_PASSWORD=${DB_PASSWORD} volumes: - postgres_data:/var/lib/postgresql/data healthcheck: test: ["CMD-SHELL", "pg_isready -U mcp_user -d mcp"] interval: 10s timeout: 5s retries: 5 networks: - mcp-network redis: image: redis:7-alpine container_name: mcp-redis restart: unless-stopped command: redis-server --appendonly yes --requirepass ${REDIS_PASSWORD} volumes: - redis_data:/data healthcheck: test: ["CMD", "redis-cli", "ping"] interval: 10s timeout: 3s retries: 3 networks: - mcp-network volumes: postgres_data: redis_data: networks: mcp-network: driver: bridge

2.2 Kubernetes部署配置

2.2.1 命名空间和资源配置

# k8s/namespace.yaml apiVersion: v1 kind: Namespace metadata: name: mcp-production labels: name: mcp-production environment: production --- # k8s/deployment.yaml apiVersion: apps/v1 kind: Deployment metadata: name: mcp-server namespace: mcp-production labels: app: mcp-server version: v1.0.0 spec: replicas: 3 strategy: type: RollingUpdate rollingUpdate: maxSurge: 1 maxUnavailable: 0 selector: matchLabels: app: mcp-server template: metadata: labels: app: mcp-server version: v1.0.0 spec: # 安全上下文 securityContext: runAsNonRoot: true runAsUser: 1001 fsGroup: 1001 # 容器配置 containers: - name: mcp-server image: mcp-server:v1.0.0 imagePullPolicy: Always # 端口配置 ports: - containerPort: 8080 name: http protocol: TCP # 环境变量 env: - name: NODE_ENV value: "production" - name: DB_HOST valueFrom: secretKeyRef: name: mcp-secrets key: db-host - name: DB_PASSWORD valueFrom: secretKeyRef: name: mcp-secrets key: db-password # 资源限制 resources: requests: memory: "1Gi" cpu: "500m" limits: memory: "2Gi" cpu: "1000m" # 健康检查 livenessProbe: httpGet: path: /health port: 8080 initialDelaySeconds: 30 periodSeconds: 10 timeoutSeconds: 5 failureThreshold: 3 readinessProbe: httpGet: path: /ready port: 8080 initialDelaySeconds: 5 periodSeconds: 5 timeoutSeconds: 3 failureThreshold: 3 # 卷挂载 volumeMounts: - name: config-volume mountPath: /app/config readOnly: true - name: logs-volume mountPath: /app/logs # 卷配置 volumes: - name: config-volume configMap: name: mcp-config - name: logs-volume emptyDir: {} # 节点选择 nodeSelector: kubernetes.io/os: linux # 容忍度配置 tolerations: - key: "node-role.kubernetes.io/master" operator: "Exists" effect: "NoSchedule"

2.2.2 服务和Ingress配置

# k8s/service.yaml apiVersion: v1 kind: Service metadata: name: mcp-server-service namespace: mcp-production labels: app: mcp-server spec: type: ClusterIP ports: - port: 80 targetPort: 8080 protocol: TCP name: http selector: app: mcp-server --- # k8s/ingress.yaml apiVersion: networking.k8s.io/v1 kind: Ingress metadata: name: mcp-server-ingress namespace: mcp-production annotations: kubernetes.io/ingress.class: "nginx" nginx.ingress.kubernetes.io/ssl-redirect: "true" nginx.ingress.kubernetes.io/use-regex: "true" nginx.ingress.kubernetes.io/rate-limit: "100" nginx.ingress.kubernetes.io/rate-limit-window: "1m" cert-manager.io/cluster-issuer: "letsencrypt-prod" spec: tls: - hosts: - mcp-api.company.com secretName: mcp-tls-secret rules: - host: mcp-api.company.com http: paths: - path: /api/v1/mcp pathType: Prefix backend: service: name: mcp-server-service port: number: 80

2.3 配置管理和密钥管理

# k8s/configmap.yaml apiVersion: v1 kind: ConfigMap metadata: name: mcp-config namespace: mcp-production data: app.yaml: | server: port: 8080 timeout: 30000 logging: level: info format: json features: rateLimiting: true caching: true metrics: true --- # k8s/secret.yaml apiVersion: v1 kind: Secret metadata: name: mcp-secrets namespace: mcp-production type: Opaque data: db-host: cG9zdGdyZXNxbC1zZXJ2aWNl # base64 encoded db-password: c3VwZXJfc2VjcmV0X3Bhc3N3b3Jk # base64 encoded jwt-secret: and0X3NlY3JldF9rZXlfZm9yX2F1dGg= # base64 encoded

3. CI/CD流水线配置与自动化测试

3.1 GitLab CI/CD配置

# .gitlab-ci.yml stages: - test - build - security-scan - deploy-staging - integration-test - deploy-production variables: DOCKER_REGISTRY: registry.company.com IMAGE_NAME: mcp-server KUBERNETES_NAMESPACE_STAGING: mcp-staging KUBERNETES_NAMESPACE_PRODUCTION: mcp-production # 单元测试阶段 unit-test: stage: test image: node:18-alpine cache: paths: - node_modules/ script: - npm ci - npm run test:unit - npm run test:coverage coverage: '/Lines\s*:\s*(\d+\.\d+)%/' artifacts: reports: coverage_report: coverage_format: cobertura path: coverage/cobertura-coverage.xml paths: - coverage/ expire_in: 1 week only: - merge_requests - main - develop # 代码质量检查 code-quality: stage: test image: node:18-alpine script: - npm ci - npm run lint - npm run type-check - npm audit --audit-level moderate artifacts: reports: codequality: gl-code-quality-report.json only: - merge_requests - main # 构建Docker镜像 build-image: stage: build image: docker:20.10.16 services: - docker:20.10.16-dind variables: DOCKER_TLS_CERTDIR: "/certs" before_script: - echo $CI_REGISTRY_PASSWORD | docker login -u $CI_REGISTRY_USER --password-stdin $CI_REGISTRY script: - docker build -t $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA . - docker build -t $CI_REGISTRY_IMAGE:latest . - docker push $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA - docker push $CI_REGISTRY_IMAGE:latest only: - main - develop # 安全扫描 security-scan: stage: security-scan image: name: aquasec/trivy:latest entrypoint: [""] script: - trivy image --exit-code 0 --format template --template "@contrib/sarif.tpl" -o gl-sast-report.json $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA - trivy image --exit-code 1 --severity HIGH,CRITICAL $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA artifacts: reports: sast: gl-sast-report.json only: - main - develop # 部署到测试环境 deploy-staging: stage: deploy-staging image: bitnami/kubectl:latest environment: name: staging url: https://mcp-staging.company.com script: - kubectl config use-context $KUBE_CONTEXT_STAGING - kubectl set image deployment/mcp-server mcp-server=$CI_REGISTRY_IMAGE:$CI_COMMIT_SHA -n $KUBERNETES_NAMESPACE_STAGING - kubectl rollout status deployment/mcp-server -n $KUBERNETES_NAMESPACE_STAGING --timeout=300s only: - develop # 集成测试 integration-test: stage: integration-test image: node:18-alpine services: - postgres:13-alpine - redis:6-alpine variables: POSTGRES_DB: mcp_test POSTGRES_USER: test_user POSTGRES_PASSWORD: test_password REDIS_URL: redis://redis:6379 script: - npm ci - npm run test:integration - npm run test:e2e artifacts: reports: junit: test-results.xml only: - develop - main # 生产环境部署 deploy-production: stage: deploy-production image: bitnami/kubectl:latest environment: name: production url: https://mcp-api.company.com script: - kubectl config use-context $KUBE_CONTEXT_PRODUCTION - kubectl set image deployment/mcp-server mcp-server=$CI_REGISTRY_IMAGE:$CI_COMMIT_SHA -n $KUBERNETES_NAMESPACE_PRODUCTION - kubectl rollout status deployment/mcp-server -n $KUBERNETES_NAMESPACE_PRODUCTION --timeout=600s when: manual only: - main

3.2 自动化测试策略

3.2.1 测试金字塔实现

图2：自动化测试金字塔架构图

3.2.2 单元测试配置

// tests/unit/mcp-server.test.ts import { MCPServer } from '../../src/server/mcp-server'; import { MockToolProvider } from '../mocks/tool-provider.mock'; describe('MCPServer', () => { let server: MCPServer; let mockToolProvider: MockToolProvider; beforeEach(() => { mockToolProvider = new MockToolProvider(); server = new MCPServer({ port: 8080, toolProviders: [mockToolProvider] }); }); afterEach(async () => { await server.close(); }); describe('Tool Execution', () => { it('should execute tool successfully', async () => { // Arrange const toolName = 'test-tool'; const toolArgs = { input: 'test-input' }; const expectedResult = { output: 'test-output' }; mockToolProvider.mockTool(toolName, expectedResult); // Act const result = await server.executeTool(toolName, toolArgs); // Assert expect(result).toEqual(expectedResult); expect(mockToolProvider.getCallCount(toolName)).toBe(1); }); it('should handle tool execution errors', async () => { // Arrange const toolName = 'failing-tool'; const error = new Error('Tool execution failed'); mockToolProvider.mockToolError(toolName, error); // Act & Assert await expect(server.executeTool(toolName, {})) .rejects.toThrow('Tool execution failed'); }); }); describe('Resource Management', () => { it('should list available resources', async () => { // Arrange const expectedResources = [ { uri: 'file://test.txt', name: 'Test File' }, { uri: 'db://users', name: 'Users Database' } ]; mockToolProvider.mockResources(expectedResources); // Act const resources = await server.listResources(); // Assert expect(resources).toEqual(expectedResources); }); }); });

3.2.3 集成测试配置

// tests/integration/api.integration.test.ts import request from 'supertest'; import { TestContainers, StartedTestContainer } from 'testcontainers'; import { PostgreSqlContainer } from '@testcontainers/postgresql'; import { RedisContainer } from '@testcontainers/redis'; import { createApp } from '../../src/app'; describe('MCP API Integration Tests', () => { let app: any; let postgresContainer: StartedTestContainer; let redisContainer: StartedTestContainer; beforeAll(async () => { // 启动测试容器 postgresContainer = await new PostgreSqlContainer() .withDatabase('mcp_test') .withUsername('test_user') .withPassword('test_password') .start(); redisContainer = await new RedisContainer() .start(); // 创建应用实例 app = createApp({ database: { host: postgresContainer.getHost(), port: postgresContainer.getPort(), database: 'mcp_test', username: 'test_user', password: 'test_password' }, redis: { host: redisContainer.getHost(), port: redisContainer.getPort() } }); }, 60000); afterAll(async () => { await postgresContainer.stop(); await redisContainer.stop(); }); describe('POST /api/v1/mcp/tools/execute', () => { it('should execute tool successfully', async () => { const response = await request(app) .post('/api/v1/mcp/tools/execute') .send({ name: 'file-reader', arguments: { path: '/test/file.txt' } }) .expect(200); expect(response.body).toHaveProperty('result'); expect(response.body.success).toBe(true); }); it('should return error for invalid tool', async () => { const response = await request(app) .post('/api/v1/mcp/tools/execute') .send({ name: 'non-existent-tool', arguments: {} }) .expect(404); expect(response.body.error).toContain('Tool not found'); }); }); describe('GET /api/v1/mcp/resources', () => { it('should list available resources', async () => { const response = await request(app) .get('/api/v1/mcp/resources') .expect(200); expect(response.body).toHaveProperty('resources'); expect(Array.isArray(response.body.resources)).toBe(true); }); }); });

3.3 性能测试和负载测试

3.3.1 性能测试配置

// tests/performance/load-test.js import http from 'k6/http'; import { check, sleep } from 'k6'; import { Rate } from 'k6/metrics'; // 自定义指标 const errorRate = new Rate('errors'); export const options = { stages: [ { duration: '2m', target: 100 }, // 预热阶段 { duration: '5m', target: 100 }, // 稳定负载 { duration: '2m', target: 200 }, // 增加负载 { duration: '5m', target: 200 }, // 高负载稳定 { duration: '2m', target: 0 }, // 降负载 ], thresholds: { http_req_duration: ['p(95)<500'], // 95%的请求响应时间小于500ms http_req_failed: ['rate<0.1'], // 错误率小于10% errors: ['rate<0.1'], // 自定义错误率小于10% }, }; export default function () { const payload = JSON.stringify({ name: 'test-tool', arguments: { input: 'performance test data' } }); const params = { headers: { 'Content-Type': 'application/json', 'Authorization': 'Bearer test-token' }, }; const response = http.post( 'http://mcp-staging.company.com/api/v1/mcp/tools/execute', payload, params ); const result = check(response, { 'status is 200': (r) => r.status === 200, 'response time < 500ms': (r) => r.timings.duration < 500, 'response has result': (r) => r.json('result') !== undefined, }); errorRate.add(!result); sleep(1); }

4. 生产环境监控与运维管理

4.1 监控体系架构

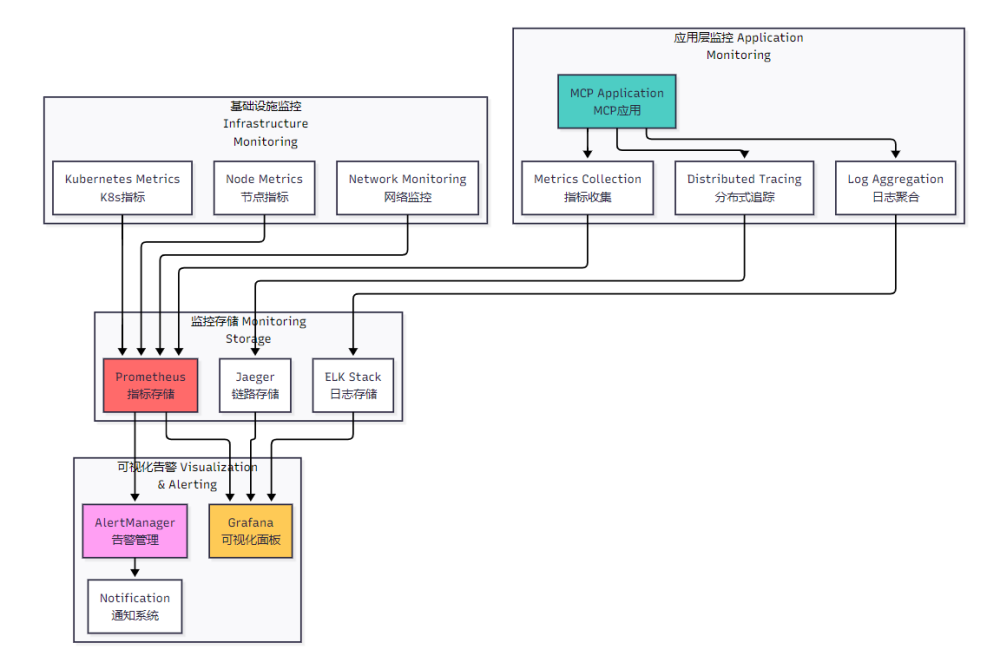

图3：生产环境监控体系架构图

4.2 Prometheus监控配置

4.2.1 监控指标定义

// src/monitoring/metrics.ts import { register, Counter, Histogram, Gauge } from 'prom-client'; export class MCPMetrics { // 请求计数器 private requestCounter = new Counter({ name: 'mcp_requests_total', help: 'Total number of MCP requests', labelNames: ['method', 'status', 'endpoint'] }); // 请求持续时间直方图 private requestDuration = new Histogram({ name: 'mcp_request_duration_seconds', help: 'Duration of MCP requests in seconds', labelNames: ['method', 'endpoint'], buckets: [0.1, 0.5, 1, 2, 5, 10] }); // 活跃连接数 private activeConnections = new Gauge({ name: 'mcp_active_connections', help: 'Number of active MCP connections' }); // 工具执行指标 private toolExecutions = new Counter({ name: 'mcp_tool_executions_total', help: 'Total number of tool executions', labelNames: ['tool_name', 'status'] }); // 资源访问指标 private resourceAccess = new Counter({ name: 'mcp_resource_access_total', help: 'Total number of resource accesses', labelNames: ['resource_type', 'operation'] }); constructor() { register.registerMetric(this.requestCounter); register.registerMetric(this.requestDuration); register.registerMetric(this.activeConnections); register.registerMetric(this.toolExecutions); register.registerMetric(this.resourceAccess); } // 记录请求指标 recordRequest(method: string, endpoint: string, status: string, duration: number) { this.requestCounter.inc({ method, endpoint, status }); this.requestDuration.observe({ method, endpoint }, duration); } // 记录工具执行 recordToolExecution(toolName: string, status: string) { this.toolExecutions.inc({ tool_name: toolName, status }); } // 记录资源访问 recordResourceAccess(resourceType: string, operation: string) { this.resourceAccess.inc({ resource_type: resourceType, operation }); } // 更新活跃连接数 setActiveConnections(count: number) { this.activeConnections.set(count); } // 获取指标端点 async getMetrics(): Promise<string> { return register.metrics(); } }

4.2.2 Prometheus配置文件

# prometheus.yml global: scrape_interval: 15s evaluation_interval: 15s rule_files: - "mcp_rules.yml" alerting: alertmanagers: - static_configs: - targets: - alertmanager:9093 scrape_configs: # MCP服务器监控 - job_name: 'mcp-server' static_configs: - targets: ['mcp-server:8080'] metrics_path: '/metrics' scrape_interval: 10s scrape_timeout: 5s # Kubernetes监控 - job_name: 'kubernetes-apiservers' kubernetes_sd_configs: - role: endpoints scheme: https tls_config: ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token relabel_configs: - source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name] action: keep regex: default;kubernetes;https # 节点监控 - job_name: 'kubernetes-nodes' kubernetes_sd_configs: - role: node scheme: https tls_config: ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token relabel_configs: - action: labelmap regex: __meta_kubernetes_node_label_(.+) # Pod监控 - job_name: 'kubernetes-pods' kubernetes_sd_configs: - role: pod relabel_configs: - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape] action: keep regex: true - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path] action: replace target_label: __metrics_path__ regex: (.+)

4.3 告警规则配置

# mcp_rules.yml groups: - name: mcp_alerts rules: # 高错误率告警 - alert: MCPHighErrorRate expr: rate(mcp_requests_total{status=~"5.."}[5m]) / rate(mcp_requests_total[5m]) > 0.05 for: 2m labels: severity: critical annotations: summary: "MCP服务器错误率过高" description: "MCP服务器在过去5分钟内错误率超过5%，当前值：{{ $value | humanizePercentage }}" # 响应时间过长告警 - alert: MCPHighLatency expr: histogram_quantile(0.95, rate(mcp_request_duration_seconds_bucket[5m])) > 1 for: 5m labels: severity: warning annotations: summary: "MCP服务器响应时间过长" description: "MCP服务器95%分位响应时间超过1秒，当前值：{{ $value }}s" # 服务不可用告警 - alert: MCPServiceDown expr: up{job="mcp-server"} == 0 for: 1m labels: severity: critical annotations: summary: "MCP服务器不可用" description: "MCP服务器 {{ $labels.instance }} 已停止响应超过1分钟" # 内存使用率过高告警 - alert: MCPHighMemoryUsage expr: (container_memory_usage_bytes{pod=~"mcp-server-.*"} / container_spec_memory_limit_bytes) > 0.85 for: 5m labels: severity: warning annotations: summary: "MCP服务器内存使用率过高" description: "Pod {{ $labels.pod }} 内存使用率超过85%，当前值：{{ $value | humanizePercentage }}" # CPU使用率过高告警 - alert: MCPHighCPUUsage expr: rate(container_cpu_usage_seconds_total{pod=~"mcp-server-.*"}[5m]) > 0.8 for: 5m labels: severity: warning annotations: summary: "MCP服务器CPU使用率过高" description: "Pod {{ $labels.pod }} CPU使用率超过80%，当前值：{{ $value | humanizePercentage }}"

4.4 Grafana仪表板配置

{ "dashboard": { "id": null, "title": "MCP服务器监控仪表板", "tags": ["mcp", "monitoring"], "timezone": "browser", "panels": [ { "id": 1, "title": "请求速率", "type": "graph", "targets": [ { "expr": "rate(mcp_requests_total[5m])", "legendFormat": "总请求速率" }, { "expr": "rate(mcp_requests_total{status=~\"2..\"}[5m])", "legendFormat": "成功请求速率" }, { "expr": "rate(mcp_requests_total{status=~\"5..\"}[5m])", "legendFormat": "错误请求速率" } ], "yAxes": [ { "label": "请求/秒", "min": 0 } ], "gridPos": { "h": 8, "w": 12, "x": 0, "y": 0 } }, { "id": 2, "title": "响应时间分布", "type": "graph", "targets": [ { "expr": "histogram_quantile(0.50, rate(mcp_request_duration_seconds_bucket[5m]))", "legendFormat": "50th percentile" }, { "expr": "histogram_quantile(0.95, rate(mcp_request_duration_seconds_bucket[5m]))", "legendFormat": "95th percentile" }, { "expr": "histogram_quantile(0.99, rate(mcp_request_duration_seconds_bucket[5m]))", "legendFormat": "99th percentile" } ], "yAxes": [ { "label": "秒", "min": 0 } ], "gridPos": { "h": 8, "w": 12, "x": 12, "y": 0 } }, { "id": 3, "title": "错误率", "type": "singlestat", "targets": [ { "expr": "rate(mcp_requests_total{status=~\"5..\"}[5m]) / rate(mcp_requests_total[5m]) * 100", "legendFormat": "错误率" } ], "valueName": "current", "format": "percent", "thresholds": "1,5", "colorBackground": true, "gridPos": { "h": 4, "w": 6, "x": 0, "y": 8 } }, { "id": 4, "title": "活跃连接数", "type": "singlestat", "targets": [ { "expr": "mcp_active_connections", "legendFormat": "活跃连接" } ], "valueName": "current", "format": "short", "gridPos": { "h": 4, "w": 6, "x": 6, "y": 8 } } ], "time": { "from": "now-1h", "to": "now" }, "refresh": "5s" } }

4.5 日志管理与分析

4.5.1 结构化日志配置

// src/logging/logger.ts import winston from 'winston'; import { ElasticsearchTransport } from 'winston-elasticsearch'; export class MCPLogger { private logger: winston.Logger; constructor() { const esTransport = new ElasticsearchTransport({ level: 'info', clientOpts: { node: process.env.ELASTICSEARCH_URL || 'http://elasticsearch:9200' }, index: 'mcp-logs', indexTemplate: { name: 'mcp-logs-template', pattern: 'mcp-logs-*', settings: { number_of_shards: 1, number_of_replicas: 1 }, mappings: { properties: { '@timestamp': { type: 'date' }, level: { type: 'keyword' }, message: { type: 'text' }, service: { type: 'keyword' }, traceId: { type: 'keyword' }, userId: { type: 'keyword' }, toolName: { type: 'keyword' }, duration: { type: 'float' } } } } }); this.logger = winston.createLogger({ level: process.env.LOG_LEVEL || 'info', format: winston.format.combine( winston.format.timestamp(), winston.format.errors({ stack: true }), winston.format.json() ), defaultMeta: { service: 'mcp-server', version: process.env.APP_VERSION || '1.0.0' }, transports: [ new winston.transports.Console({ format: winston.format.combine( winston.format.colorize(), winston.format.simple() ) }), esTransport ] }); } info(message: string, meta?: any) { this.logger.info(message, meta); } error(message: string, error?: Error, meta?: any) { this.logger.error(message, { error: error?.stack, ...meta }); } warn(message: string, meta?: any) { this.logger.warn(message, meta); } debug(message: string, meta?: any) { this.logger.debug(message, meta); } // 记录工具执行日志 logToolExecution(toolName: string, userId: string, duration: number, success: boolean, traceId?: string) { this.info('Tool execution completed', { toolName, userId, duration, success, traceId, type: 'tool_execution' }); } // 记录资源访问日志 logResourceAccess(resourceUri: string, operation: string, userId: string, traceId?: string) { this.info('Resource accessed', { resourceUri, operation, userId, traceId, type: 'resource_access' }); } }

4.5.2 分布式链路追踪

// src/tracing/tracer.ts import { NodeSDK } from '@opentelemetry/sdk-node'; import { JaegerExporter } from '@opentelemetry/exporter-jaeger'; import { Resource } from '@opentelemetry/resources'; import { SemanticResourceAttributes } from '@opentelemetry/semantic-conventions'; import { trace, context, SpanStatusCode } from '@opentelemetry/api'; export class MCPTracer { private sdk: NodeSDK; private tracer: any; constructor() { const jaegerExporter = new JaegerExporter({ endpoint: process.env.JAEGER_ENDPOINT || 'http://jaeger:14268/api/traces', }); this.sdk = new NodeSDK({ resource: new Resource({ [SemanticResourceAttributes.SERVICE_NAME]: 'mcp-server', [SemanticResourceAttributes.SERVICE_VERSION]: process.env.APP_VERSION || '1.0.0', }), traceExporter: jaegerExporter, }); this.sdk.start(); this.tracer = trace.getTracer('mcp-server'); } // 创建工具执行跨度 async traceToolExecution<T>( toolName: string, operation: () => Promise<T>, attributes?: Record<string, string | number> ): Promise<T> { return this.tracer.startActiveSpan(`tool.${toolName}`, async (span: any) => { try { span.setAttributes({ 'tool.name': toolName, 'operation.type': 'tool_execution', ...attributes }); const result = await operation(); span.setStatus({ code: SpanStatusCode.OK }); return result; } catch (error) { span.setStatus({ code: SpanStatusCode.ERROR, message: error instanceof Error ? error.message : 'Unknown error' }); span.recordException(error as Error); throw error; } finally { span.end(); } }); } // 创建资源访问跨度 async traceResourceAccess<T>( resourceUri: string, operation: string, handler: () => Promise<T> ): Promise<T> { return this.tracer.startActiveSpan(`resource.${operation}`, async (span: any) => { try { span.setAttributes({ 'resource.uri': resourceUri, 'resource.operation': operation, 'operation.type': 'resource_access' }); const result = await handler(); span.setStatus({ code: SpanStatusCode.OK }); return result; } catch (error) { span.setStatus({ code: SpanStatusCode.ERROR, message: error instanceof Error ? error.message : 'Unknown error' }); span.recordException(error as Error); throw error; } finally { span.end(); } }); } // 获取当前跟踪ID getCurrentTraceId(): string | undefined { const activeSpan = trace.getActiveSpan(); return activeSpan?.spanContext().traceId; } }

5. 运维自动化与故障处理

5.1 自动化运维脚本

#!/bin/bash # scripts/deploy.sh - 自动化部署脚本 set -e # 配置变量 NAMESPACE=${NAMESPACE:-"mcp-production"} IMAGE_TAG=${IMAGE_TAG:-"latest"} KUBECTL_TIMEOUT=${KUBECTL_TIMEOUT:-"300s"} # 颜色输出 RED='\033[0;31m' GREEN='\033[0;32m' YELLOW='\033[1;33m' NC='\033[0m' # No Color log_info() { echo -e "${GREEN}[INFO]${NC} $1" } log_warn() { echo -e "${YELLOW}[WARN]${NC} $1" } log_error() { echo -e "${RED}[ERROR]${NC} $1" } # 检查前置条件 check_prerequisites() { log_info "检查部署前置条件..." # 检查kubectl if ! command -v kubectl &> /dev/null; then log_error "kubectl 未安装" exit 1 fi # 检查集群连接 if ! kubectl cluster-info &> /dev/null; then log_error "无法连接到Kubernetes集群" exit 1 fi # 检查命名空间 if ! kubectl get namespace $NAMESPACE &> /dev/null; then log_warn "命名空间 $NAMESPACE 不存在，正在创建..." kubectl create namespace $NAMESPACE fi log_info "前置条件检查完成" } # 部署配置 deploy_configs() { log_info "部署配置文件..." kubectl apply -f k8s/configmap.yaml -n $NAMESPACE kubectl apply -f k8s/secret.yaml -n $NAMESPACE log_info "配置文件部署完成" } # 部署应用 deploy_application() { log_info "部署MCP服务器..." # 更新镜像标签 sed -i.bak "s|image: mcp-server:.*|image: mcp-server:$IMAGE_TAG|g" k8s/deployment.yaml # 应用部署配置 kubectl apply -f k8s/deployment.yaml -n $NAMESPACE kubectl apply -f k8s/service.yaml -n $NAMESPACE kubectl apply -f k8s/ingress.yaml -n $NAMESPACE # 等待部署完成 log_info "等待部署完成..." kubectl rollout status deployment/mcp-server -n $NAMESPACE --timeout=$KUBECTL_TIMEOUT # 恢复原始文件 mv k8s/deployment.yaml.bak k8s/deployment.yaml log_info "应用部署完成" } # 健康检查 health_check() { log_info "执行健康检查..." # 检查Pod状态 READY_PODS=$(kubectl get pods -n $NAMESPACE -l app=mcp-server -o jsonpath='{.items[*].status.conditions[?(@.type=="Ready")].status}' | grep -o True | wc -l) TOTAL_PODS=$(kubectl get pods -n $NAMESPACE -l app=mcp-server --no-headers | wc -l) if [ "$READY_PODS" -eq "$TOTAL_PODS" ] && [ "$TOTAL_PODS" -gt 0 ]; then log_info "健康检查通过: $READY_PODS/$TOTAL_PODS pods ready" else log_error "健康检查失败: $READY_PODS/$TOTAL_PODS pods ready" exit 1 fi # 检查服务端点 SERVICE_IP=$(kubectl get service mcp-server-service -n $NAMESPACE -o jsonpath='{.spec.clusterIP}') if curl -f http://$SERVICE_IP/health &> /dev/null; then log_info "服务端点健康检查通过" else log_warn "服务端点健康检查失败，但继续部署" fi } # 回滚函数 rollback() { log_warn "执行回滚操作..." kubectl rollout undo deployment/mcp-server -n $NAMESPACE kubectl rollout status deployment/mcp-server -n $NAMESPACE --timeout=$KUBECTL_TIMEOUT log_info "回滚完成" } # 主函数 main() { log_info "开始MCP服务器部署流程..." check_prerequisites deploy_configs deploy_application # 健康检查失败时自动回滚 if ! health_check; then log_error "部署失败，执行回滚..." rollback exit 1 fi log_info "MCP服务器部署成功完成！" # 显示部署信息 echo "" echo "部署信息:" echo "- 命名空间: $NAMESPACE" echo "- 镜像标签: $IMAGE_TAG" echo "- Pod状态:" kubectl get pods -n $NAMESPACE -l app=mcp-server echo "" echo "- 服务状态:" kubectl get services -n $NAMESPACE -l app=mcp-server } # 错误处理 trap 'log_error "部署过程中发生错误，退出码: $?"' ERR # 执行主函数 main "$@"

5.2 故障自动恢复

# scripts/auto_recovery.py - 自动故障恢复脚本 import time import logging import requests import subprocess from typing import Dict, List from dataclasses import dataclass from enum import Enum class HealthStatus(Enum): HEALTHY = "healthy" DEGRADED = "degraded" UNHEALTHY = "unhealthy" @dataclass class HealthCheck: name: str url: str timeout: int = 5 retries: int = 3 expected_status: int = 200 class AutoRecoveryManager: def __init__(self, config: Dict): self.config = config self.logger = self._setup_logging() self.health_checks = self._load_health_checks() self.recovery_actions = self._load_recovery_actions() def _setup_logging(self) -> logging.Logger: logging.basicConfig( level=logging.INFO, format='%(asctime)s - %(name)s - %(levelname)s - %(message)s' ) return logging.getLogger('auto_recovery') def _load_health_checks(self) -> List[HealthCheck]: checks = [] for check_config in self.config.get('health_checks', []): checks.append(HealthCheck(**check_config)) return checks def _load_recovery_actions(self) -> Dict: return self.config.get('recovery_actions', {}) def check_health(self, check: HealthCheck) -> bool: """执行单个健康检查""" for attempt in range(check.retries): try: response = requests.get( check.url, timeout=check.timeout ) if response.status_code == check.expected_status: return True except requests.RequestException as e: self.logger.warning( f"健康检查失败 {check.name} (尝试 {attempt + 1}/{check.retries}): {e}" ) if attempt < check.retries - 1: time.sleep(2 ** attempt) # 指数退避 return False def get_system_health(self) -> HealthStatus: """获取系统整体健康状态""" failed_checks = 0 total_checks = len(self.health_checks) for check in self.health_checks: if not self.check_health(check): failed_checks += 1 self.logger.error(f"健康检查失败: {check.name}") if failed_checks == 0: return HealthStatus.HEALTHY elif failed_checks < total_checks / 2: return HealthStatus.DEGRADED else: return HealthStatus.UNHEALTHY def execute_recovery_action(self, action_name: str) -> bool: """执行恢复操作""" action = self.recovery_actions.get(action_name) if not action: self.logger.error(f"未找到恢复操作: {action_name}") return False try: self.logger.info(f"执行恢复操作: {action_name}") if action['type'] == 'kubectl': result = subprocess.run( action['command'].split(), capture_output=True, text=True, timeout=action.get('timeout', 60) ) if result.returncode == 0: self.logger.info(f"恢复操作成功: {action_name}") return True else: self.logger.error(f"恢复操作失败: {result.stderr}") return False elif action['type'] == 'http': response = requests.post( action['url'], json=action.get('payload', {}), timeout=action.get('timeout', 30) ) if response.status_code in [200, 201, 202]: self.logger.info(f"恢复操作成功: {action_name}") return True else: self.logger.error(f"恢复操作失败: HTTP {response.status_code}") return False except Exception as e: self.logger.error(f"执行恢复操作时发生异常: {e}") return False def run_recovery_cycle(self): """运行一次恢复周期""" health_status = self.get_system_health() self.logger.info(f"系统健康状态: {health_status.value}") if health_status == HealthStatus.HEALTHY: return # 根据健康状态执行相应的恢复操作 if health_status == HealthStatus.DEGRADED: recovery_actions = ['restart_unhealthy_pods', 'clear_cache'] else: # UNHEALTHY recovery_actions = ['restart_deployment', 'scale_up', 'notify_oncall'] for action in recovery_actions: if self.execute_recovery_action(action): # 等待恢复操作生效 time.sleep(30) # 重新检查健康状态 if self.get_system_health() == HealthStatus.HEALTHY: self.logger.info("系统已恢复健康状态") return self.logger.warning("自动恢复操作完成，但系统仍未完全恢复") def start_monitoring(self, interval: int = 60): """启动持续监控""" self.logger.info(f"启动自动恢复监控，检查间隔: {interval}秒") while True: try: self.run_recovery_cycle() time.sleep(interval) except KeyboardInterrupt: self.logger.info("监控已停止") break except Exception as e: self.logger.error(f"监控过程中发生异常: {e}") time.sleep(interval) # 配置示例 config = { "health_checks": [ { "name": "mcp_server_health", "url": "http://mcp-server-service/health", "timeout": 5, "retries": 3 }, { "name": "mcp_server_ready", "url": "http://mcp-server-service/ready", "timeout": 5, "retries": 2 } ], "recovery_actions": { "restart_unhealthy_pods": { "type": "kubectl", "command": "kubectl delete pods -l app=mcp-server,status=unhealthy -n mcp-production", "timeout": 60 }, "restart_deployment": { "type": "kubectl", "command": "kubectl rollout restart deployment/mcp-server -n mcp-production", "timeout": 120 }, "scale_up": { "type": "kubectl", "command": "kubectl scale deployment/mcp-server --replicas=5 -n mcp-production", "timeout": 60 }, "clear_cache": { "type": "http", "url": "http://mcp-server-service/admin/cache/clear", "timeout": 30 }, "notify_oncall": { "type": "http", "url": "https://alerts.company.com/webhook", "payload": { "severity": "critical", "message": "MCP服务器自动恢复失败，需要人工干预" }, "timeout": 10 } } } if __name__ == "__main__": manager = AutoRecoveryManager(config) manager.start_monitoring()

5.3 性能调优与容量规划

5.3.1 资源使用分析

# scripts/capacity_planning.py - 容量规划分析 import pandas as pd import numpy as np from datetime import datetime, timedelta import matplotlib.pyplot as plt from sklearn.linear_model import LinearRegression from sklearn.preprocessing import PolynomialFeatures class CapacityPlanner: def __init__(self, prometheus_url: str): self.prometheus_url = prometheus_url self.metrics_data = {} def fetch_metrics(self, query: str, start_time: datetime, end_time: datetime) -> pd.DataFrame: """从Prometheus获取指标数据""" # 这里简化实现，实际应该调用Prometheus API # 模拟数据生成 time_range = pd.date_range(start_time, end_time, freq='5min') data = { 'timestamp': time_range, 'value': np.random.normal(50, 10, len(time_range)) # 模拟CPU使用率 } return pd.DataFrame(data) def analyze_resource_trends(self, days: int = 30) -> dict: """分析资源使用趋势""" end_time = datetime.now() start_time = end_time - timedelta(days=days) # 获取各项指标 cpu_data = self.fetch_metrics('mcp_cpu_usage', start_time, end_time) memory_data = self.fetch_metrics('mcp_memory_usage', start_time, end_time) request_data = self.fetch_metrics('mcp_requests_rate', start_time, end_time) # 趋势分析 trends = {} for name, data in [('cpu', cpu_data), ('memory', memory_data), ('requests', request_data)]: X = np.arange(len(data)).reshape(-1, 1) y = data['value'].values # 线性回归 model = LinearRegression() model.fit(X, y) # 预测未来30天 future_X = np.arange(len(data), len(data) + 8640).reshape(-1, 1) # 30天的5分钟间隔 future_y = model.predict(future_X) trends[name] = { 'current_avg': np.mean(y[-288:]), # 最近24小时平均值 'trend_slope': model.coef_[0], 'predicted_30d': future_y[-1], 'growth_rate': (future_y[-1] - np.mean(y[-288:])) / np.mean(y[-288:]) * 100 } return trends def calculate_capacity_requirements(self, target_growth: float = 50) -> dict: """计算容量需求""" trends = self.analyze_resource_trends() recommendations = {} # CPU容量规划 current_cpu = trends['cpu']['current_avg'] predicted_cpu = current_cpu * (1 + target_growth / 100) if predicted_cpu > 70: # CPU使用率阈值 cpu_scale_factor = predicted_cpu / 70 recommendations['cpu'] = { 'action': 'scale_up', 'current_usage': f"{current_cpu:.1f}%", 'predicted_usage': f"{predicted_cpu:.1f}%", 'recommended_scale': f"{cpu_scale_factor:.1f}x", 'new_replicas': int(np.ceil(3 * cpu_scale_factor)) # 当前3个副本 } else: recommendations['cpu'] = { 'action': 'maintain', 'current_usage': f"{current_cpu:.1f}%", 'predicted_usage': f"{predicted_cpu:.1f}%" } # 内存容量规划 current_memory = trends['memory']['current_avg'] predicted_memory = current_memory * (1 + target_growth / 100) if predicted_memory > 80: # 内存使用率阈值 memory_scale_factor = predicted_memory / 80 recommendations['memory'] = { 'action': 'increase_limits', 'current_usage': f"{current_memory:.1f}%", 'predicted_usage': f"{predicted_memory:.1f}%", 'recommended_memory': f"{int(2 * memory_scale_factor)}Gi" # 当前2Gi } else: recommendations['memory'] = { 'action': 'maintain', 'current_usage': f"{current_memory:.1f}%", 'predicted_usage': f"{predicted_memory:.1f}%" } # 请求量容量规划 current_rps = trends['requests']['current_avg'] predicted_rps = current_rps * (1 + target_growth / 100) if predicted_rps > 1000: # RPS阈值 rps_scale_factor = predicted_rps / 1000 recommendations['throughput'] = { 'action': 'scale_out', 'current_rps': f"{current_rps:.0f}", 'predicted_rps': f"{predicted_rps:.0f}", 'recommended_replicas': int(np.ceil(3 * rps_scale_factor)) } else: recommendations['throughput'] = { 'action': 'maintain', 'current_rps': f"{current_rps:.0f}", 'predicted_rps': f"{predicted_rps:.0f}" } return recommendations def generate_capacity_report(self) -> str: """生成容量规划报告""" recommendations = self.calculate_capacity_requirements() report = f""" # MCP服务器容量规划报告 生成时间: {datetime.now().strftime('%Y-%m-%d %H:%M:%S')} ## 当前资源使用情况 ### CPU使用率 - 当前平均使用率: {recommendations['cpu']['current_usage']} - 预测使用率: {recommendations['cpu']['predicted_usage']} - 建议操作: {recommendations['cpu']['action']} ### 内存使用率 - 当前平均使用率: {recommendations['memory']['current_usage']} - 预测使用率: {recommendations['memory']['predicted_usage']} - 建议操作: {recommendations['memory']['action']} ### 请求吞吐量 - 当前平均RPS: {recommendations['throughput']['current_rps']} - 预测RPS: {recommendations['throughput']['predicted_rps']} - 建议操作: {recommendations['throughput']['action']} ## 扩容建议 """ if recommendations['cpu']['action'] == 'scale_up': report += f"- **CPU扩容**: 建议将副本数扩展到 {recommendations['cpu']['new_replicas']} 个\n" if recommendations['memory']['action'] == 'increase_limits': report += f"- **内存扩容**: 建议将内存限制提升到 {recommendations['memory']['recommended_memory']}\n" if recommendations['throughput']['action'] == 'scale_out': report += f"- **吞吐量扩容**: 建议将副本数扩展到 {recommendations['throughput']['recommended_replicas']} 个\n" report += """ ## 实施建议 1. **监控告警**: 设置资源使用率告警阈值 2. **自动扩缩容**: 配置HPA (Horizontal Pod Autoscaler) 3. **定期评估**: 每月进行一次容量规划评估 4. **成本优化**: 在非高峰期适当缩容以节省成本 ## 风险评估 - **高风险**: CPU/内存使用率超过80% - **中风险**: 请求响应时间超过500ms - **低风险**: 资源使用率在正常范围内 """ return report # 使用示例 if __name__ == "__main__": planner = CapacityPlanner("http://prometheus:9090") report = planner.generate_capacity_report() print(report) # 保存报告 with open(f"capacity_report_{datetime.now().strftime('%Y%m%d')}.md", "w") as f: f.write(report)

总结

作为博主摘星，通过深入研究和实践企业级MCP部署的完整DevOps流程，我深刻认识到这不仅是一个技术实施过程，更是一个系统性的工程管理实践。在当今数字化转型的浪潮中，MCP作为AI应用的核心基础设施，其部署质量直接决定了企业AI能力的上限和业务创新的速度。从我多年的项目经验来看，成功的企业级MCP部署需要在架构设计、容器化实施、CI/CD流水线、监控运维等多个维度上精心规划和执行。本文详细介绍的从开发到生产的完整流程，不仅涵盖了技术实现的各个环节，更重要的是体现了现代DevOps理念在AI基础设施建设中的最佳实践。通过标准化的容器化部署、自动化的CI/CD流水线、全方位的监控体系和智能化的运维管理，我们能够构建出既稳定可靠又高效灵活的MCP服务平台。特别值得强调的是，安全性和合规性在企业级部署中的重要性不容忽视，从网络隔离到数据加密，从访问控制到审计日志，每一个环节都需要严格把控。同时，成本优化和资源管理也是企业级部署中必须考虑的现实问题，通过合理的资源配额、智能的自动扩缩容和有效的容量规划，我们可以在保证服务质量的前提下最大化资源利用效率。展望未来，随着AI技术的不断演进和企业数字化程度的持续提升，MCP部署的复杂性和重要性还将进一步增加，这也为我们技术人员提供了更多的挑战和机遇。我相信，通过持续的技术创新、流程优化和经验积累，我们能够构建出更加智能、安全、高效的企业级AI基础设施，为企业的数字化转型和智能化升级提供强有力的技术支撑，最终推动整个行业向更高水平发展。

参考资料

1. Kubernetes官方文档
2. Docker最佳实践指南
3. GitLab CI/CD文档
4. Prometheus监控指南
5. Grafana可视化文档
6. 企业级DevOps实践
7. 云原生安全最佳实践
8. Kubernetes安全加固指南

本文由博主摘星原创，专注于AI基础设施与DevOps实践的深度分析。如有技术问题或合作需求，欢迎通过评论区或私信联系。
