吊打面试官03:如何设计一个内存文件系统(多级目录)

作者头像
早起的鸟儿有虫吃
修改2025-08-15 16:21:06
修改2025-08-15 16:21:06
15100
代码可运行
举报
文章被收录于专栏:吊打面试官吊打面试官
运行总次数:0
代码可运行

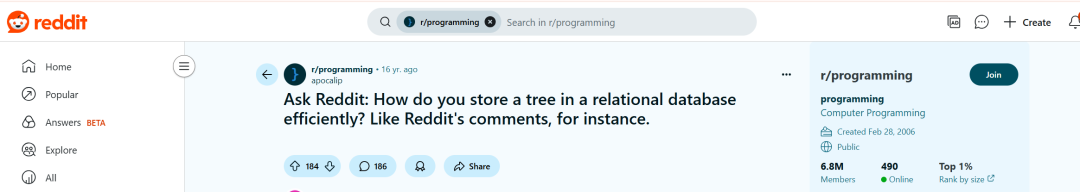

在reddit看到到一个帖子:如何把一个文件系统目录树存储到数据库,

感觉特别有意思,因此串联成一个系统设计面题,

希望帮助你从青铜晋升到王者

大纲如下

一、青铜:前端开发展示一个多级菜单(目录)

unsetunset1.1 题目描述unsetunset

树状结构或层次结构的数据在企业应用里非常常见, 例如公司的组织架构、文档库的目录结构、 仓库的库位组织以及物件的分类等等

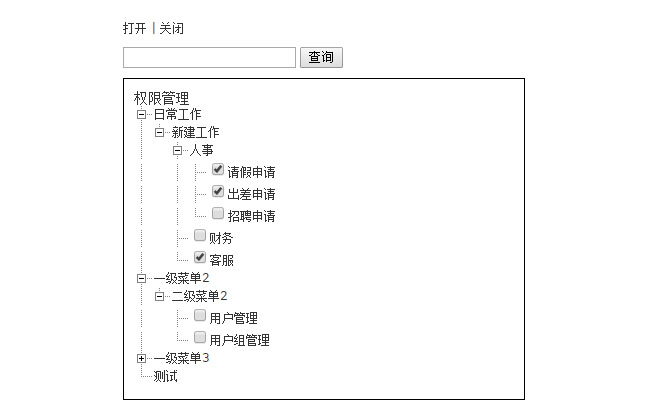

如图:

请设计一个表结构,存储多级菜单(目录)

unsetunset1.2 采用什么数据结构表示?(数据库设计)unsetunset

什么是邻接列表

邻接列表模型的特点是简单。 表中的每条记录都包含对其父级的引用,形成父子关系。 这通常是通过使用存储父节点标识符的列来实现的。 没有父节点的根节点通常由父列中的 NULL 值表示。

优点:

  • 简单直观,容易设计
  • 插入、更新、删除单节点方便

问题(在 SQL 查询中暴露):

  • 难以一次性查询出整棵树
  • 查询所有祖先或所有子孙时需要递归,而标准 SQL 不支持递归(旧版本)
  • 需要数据库支持 WITH RECURSIVE 或者通过程序端构造

例如:

category_id

parent_id

category_name

1

NULL

Electronics

2

1

Computers

3

2

Laptops

4

2

Desktops

5

1

Televisions

6

3

Gaming Laptops

7

3

Business Laptop

代码语言:javascript
代码运行次数:0
运行
复制
//表结构
CREATETABLE categories (
  category_id INT PRIMARY KEY,
  parent_id   INTNULL,
  category_name TEXTNOTNULL,
FOREIGNKEY (parent_id) REFERENCES categories(category_id)
);
CREATEINDEX idx_categories_parent ON categories(parent_id);

//插入记录
INSERTINTO categories (category_id, category_name, parent_id) VALUES
(1, 'Electronics', NULL),
(2, 'Computers', 1),
(3, 'Laptops', 2),
(4, 'Desktops', 2),
(5, 'Smartphones', 1);

邻接列表优点

📌 为什么使用邻接表模型存储多级目录?
  1. 简单直观,开发与维护友好
  2. 插入、更新、删除操作高效
  3. 查询常见访问路径高效

个人感受:✔️ 为什么一般用 parent_id 而非 child_id

  • 多级目录或分类结构中,每个节点通常只有一个父节点,但可以有多个子节点
  • parent_id 的邻接表模型符合关系型数据库范式。若用 child_id,需定义多个子字段,容易违反第一范式(1NF),难以扩展,字段冗余严重

数据库设计三大范式

(1)简单归纳:   第一范式(1NF):字段不可分;   第二范式(2NF):有主键,非主键字段依赖主键;   第三范式(3NF):非主键字段不能相互依赖。 (2)解释:   1NF:原子性。 字段不可再分,否则就不是关系数据库;;   2NF:唯一性 。一个表只说明一个事物;   3NF:每列都与主键有直接关系,不存在传递依赖。

银行的面试官问了个简单的问题,满足第二范式,但是不满足第三范式的例子

第三范式定义:所有的非主属性(非主键)都直接由其它表的主属性(主键)推导生成,而不需要传递依赖

重点:1)满足第二范式。2)不能传递依赖,非主属性不能部分或者传递依赖于码。

表: 学号, 姓名, 年龄, 学院名称, 学院电话

因为存在依赖传递: (学号) → (学生)→(所在学院) → (学院电话) 。

正确做法:

学生:(学号, 姓名, 年龄, 所在学院);

学院:(学院, 电话)。

邻接列表缺点

1. 深度遍历效率较差

要查询某个节点的所有后代(deep descendants)或完整路径,通常需要使用递归查询(如 CTE)或多次自连接。对于树深度较大时,查询非常复杂且性能低下。

“Finding all descendants of a node requires recursive queries or multiple joins”

2. 路径查询不便

想要查询某个节点从根节点到它的完整路径,需要多层连接并提前知道树深度,否则无法构造固定数量的自关联 JOIN。

“Before being able to see the full path … we have to know the level at which it resides.”

1.3 还有其他存储方式吗?

请参考:

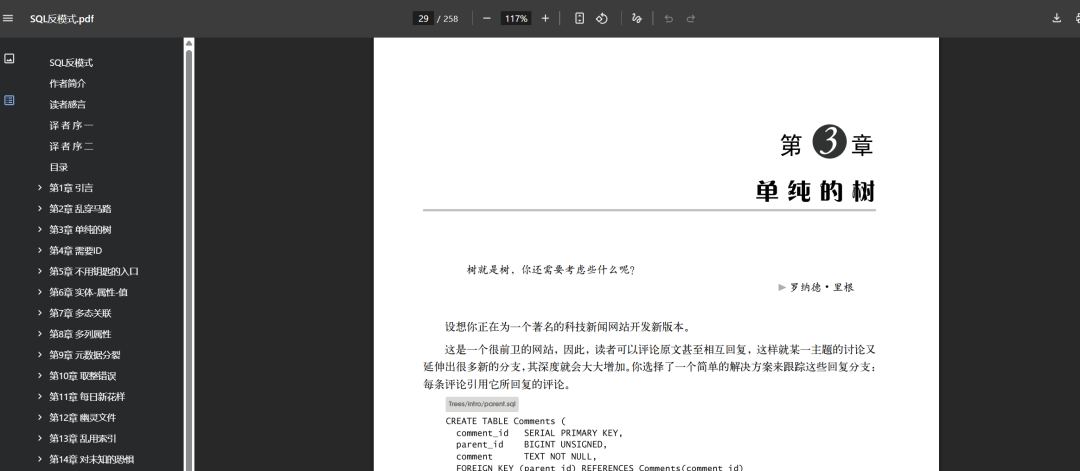

  • SQL反模式 第三章节 单 纯 的 树
  • SQL Antipatterns. Naive Trees

二、白银:后端开发 请设计表示多级目录的类和相关接口

[!NOTE] 数据库的表要读取内存中去吧 如何在内存中表示

2.1 方式1 直接用指针表示

代码语言:javascript
代码运行次数:0
运行
复制
#include <vector>
#include <memory>

class CategoryNode {
public:
    int category_id;            // 节点ID(主键)
    std::string category_name; // 分类名称
    CategoryNode* parent;      // 指向父节点的指针(弱引用,避免循环强引用)
    std::vector<std::unique_ptr<CategoryNode>> children; // 子节点列表

    // 构造函数
    CategoryNode(int id, conststd::string& name, CategoryNode* parent_ptr = nullptr)
        : category_id(id), category_name(name), parent(parent_ptr) {}
};

class CategoryTree {
private:
    std::unique_ptr<CategoryNode> root; // 根节点
    std::unordered_map<int, CategoryNode*> node_map; // ID到节点的映射(加速查找)

public:
    // 添加节点(自动关联父子关系)
    void add_node(int id, const std::string& name, int parent_id) {
        CategoryNode* parent_ptr = (parent_id == -1) ? nullptr : node_map.at(parent_id);
        auto new_node = std::make_unique<CategoryNode>(id, name, parent_ptr);

        if (parent_ptr) {
            parent_ptr->children.push_back(std::move(new_node));
        } else { // 根节点
            root = std::move(new_node);
        }
        node_map[id] = node_map.empty() ? root.get() : parent_ptr->children.back().get();
    }
};

// 获取从根节点到当前节点的路径
std::vector<CategoryNode*> get_path(int id) {
    std::vector<CategoryNode*> path;
    CategoryNode* current = get_node(id);
    while (current) {
        path.push_back(current);
        current = current->parent;
    }
    std::reverse(path.begin(), path.end()); // 从根到当前
    return path;
}

// 查找所有后代节点(广度优先)
std::vector<CategoryNode*> get_descendants(int id) {
    std::vector<CategoryNode*> result;
    std::queue<CategoryNode*> queue;
    queue.push(get_node(id));
    while (!queue.empty()) {
        auto current = queue.front();
        queue.pop();
        for (constauto& child : current->children) {
            result.push_back(child.get());
            queue.push(child.get());
        }
    }
    return result;
}

2.2 从demo到产品化(CephFS)

🧩 CephFS 的目录树结构 🔹 Metadata Server(MDS)

  • MDS 负责管理文件和目录元数据
  • 每个目录/文件是一个 inode,使用类似文件系统的树形组织
  • 目录之间通过 parentchild 关系形成层级
代码语言:javascript
代码运行次数:0
运行
复制
https://github.com/ceph/ceph/blob/main/src/mds/CInode.h
//MDS内部数据结构
class CInode {
inodeno_t ino;
snapid_t snapid;
std::map<std::string, CDentry*> dentries; // children
  CInode* parent;         // pointer to parent directory
};
//OpenFileTable 结构加速恢复:记录打开文件的路径信息,避免全量加载
CInode (根目录)
│
└── CDir (根目录内容)
    ├── CDentry ("a") ── CInode (目录"a")
    │               │
    │               └── CDir (目录"a"内容)
    │                   └── CDentry ("b.txt") ── CInode (文件"b.txt")
    │
    └── CDentry ("c") ── CInode (文件"c")

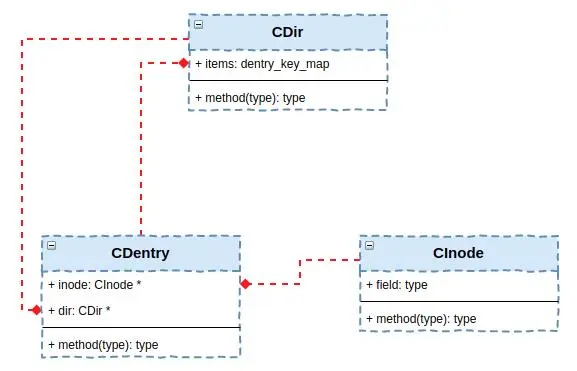

Ceph 文件系统由 MDS(Metadata Server)管理目录树结构,其内存模型核心由三种结构组成:

  • CInode:表示每个文件或目录的
  • CDentry:关联 inode 与其名称(目录项),支持同一个 inode 多个路径(硬链接);
  • CDir:仅用于目录 inode,将该目录下所有 CDentry 组织起来。当目录被碎片化时,一个 CInode 可对应多个 CDir
📌 结构特点
  • 使用 C++ 类结构:父指针 + 子集合 【基本功能】
  • 更新目录、插入文件、递归遍历都在树结构上进行

数据结构

角色

关键作用

CInode

元数据实体

存储文件/目录属性,指向数据块位置。

CDentry

名称到实体的映射

链接文件名与 CInode,构建路径层级。

CDir

目录内容容器

管理子项,支持分片以优化大规模目录性能。

三、如何体现左右子树(不体现)

没有左右子树的字段,因为目录结构是多叉树

没有左右子树的字段,因为目录结构是多叉树

没有左右子树的字段,因为目录结构是多叉树

四、Leetcode 588题

设计一个内存文件系统,模拟以下功能:

实现文件系统类:

  • FileSystem() 初始化系统对象
  • List<String> ls(String path)
  • void mkdir(String path) 根据给定的路径创建一个新目录。给定的目录路径不存在。如果路径中的中间目录不存在,您也应该创建它们。
  • void addContentToFile(String filePath, String content)
  • String readContentFromFile(String filePath) 返回 filePath下的文件内容。
代码语言:javascript
代码运行次数:0
运行
复制

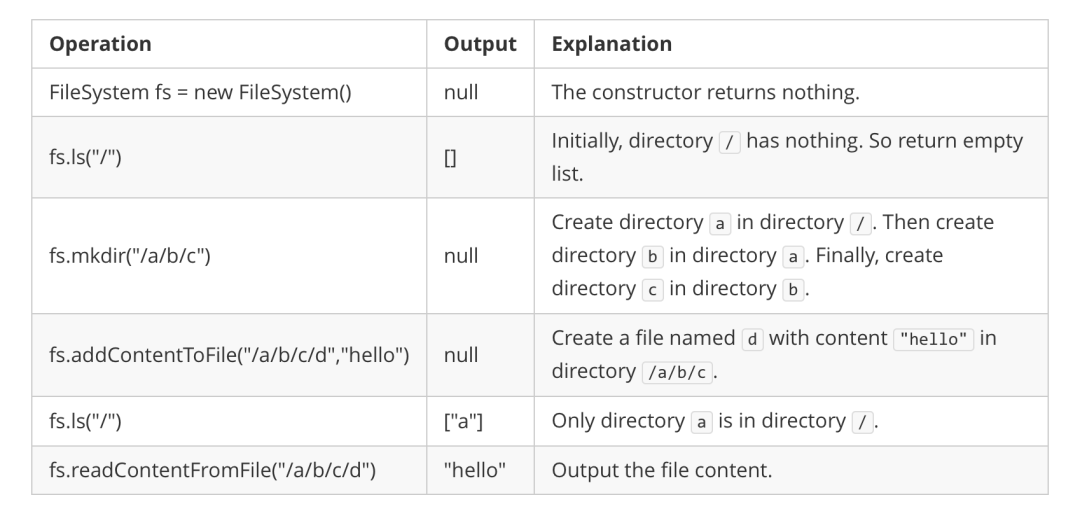

FileSystem fileSystem = new FileSystem();
fileSystem.ls("/");                         // 返回 []
fileSystem.mkdir("/a/b/c");
fileSystem.addContentToFile("/a/b/c/d", "hello");
fileSystem.ls("/");                         // 返回 ["a"]
fileSystem.readContentFromFile("/a/b/c/d"); // 返回 "hello"
代码语言:javascript
代码运行次数:0
运行
复制
#include <vector>
#include <string>
#include <unordered_map>
#include <set>
#include <sstream>
#include <algorithm>
usingnamespacestd;

class FileSystem {
private:
    // 文件系统节点结构
    struct FileNode {
        bool isFile = false;          // 是否为文件
        string content;                // 文件内容
        unordered_map<string, FileNode*> children; // 子节点映射
    };

    FileNode* root; // 根节点指针

    // 分割路径为组成部分
    vector<string> splitPath(const string& path) {
        vector<string> parts;
        if (path.empty() || path == "/") return parts;

        istringstream iss(path);
        string part;
        while (getline(iss, part, '/')) {
            if (!part.empty()) parts.push_back(part);
        }
        //
        return parts;
    }

    // 根据路径查找节点
    FileNode* traverse(const string& path) {
        if (path == "/") return root;

        vector<string> parts = splitPath(path);
        FileNode* current = root;
        for (conststring& part : parts) {
            if (!current->children.count(part)) returnnullptr;
            current = current->children[part];
        }
        return current;
    }

public:
    FileSystem() {
        root = new FileNode(); // 初始化根节点
    }

    vector<string> ls(const string& path) {
        FileNode* node = traverse(path);
        if (!node) return {};

        // 文件路径:返回文件名
        if (node->isFile) {
            int idx = path.find_last_of('/');
            return {path.substr(idx + 1)};
        }

        // 目录路径:返回排序后的子项名称
        vector<string> result;
        for (constauto& child : node->children) {
            result.push_back(child.first);
        }
        sort(result.begin(), result.end());
        return result;
    }

    void mkdir(string path) {
        vector<string> parts = splitPath(path);
        FileNode* current = root;

        for (conststring& part : parts) {
            if (!current->children.count(part)) {
                current->children[part] = new FileNode();
            }
            current = current->children[part];
        }
    }

    void addContentToFile(string filePath, string content) {
        vector<string> parts = splitPath(filePath);
        FileNode* current = root;

        // 确保目录路径存在
        for (int i = 0; i < parts.size() - 1; ++i) {
            if (!current->children.count(parts[i])) {
                current->children[parts[i]] = new FileNode();
            }
            current = current->children[parts[i]];
        }

        // 处理文件名
        string fileName = parts.back();
        if (!current->children.count(fileName)) {
            current->children[fileName] = new FileNode();
            current->children[fileName]->isFile = true;
        }
        current->children[fileName]->content += content;
    }

    string readContentFromFile(string filePath) {
        FileNode* node = traverse(filePath);
        if (node && node->isFile) {
            return node->content;
        }
        return"";
    }
};
  • 标准库中的 std::getline() 是一个用于从输入流中读取一行数据的函数。它的函数签名如下:
代码语言:javascript
代码运行次数:0
运行
复制
std::istream& getline(std::istream& is, std::string& str, char delim);

其中,is 是输入流对象,str 是存储读取数据的字符串,delim 是指定的行分隔符(默认为换行符 \n)。

unsetunset参考文章unsetunset

  • 如何在关系型数据库中存储树形结构
  • What is Third Normal Form (3NF)?

unsetunset参考数据unsetunset

  • SQL反模式 第三章 单 纯 的 树P29
  • SQL Antipatterns. Naive Trees P34
SQL反模式
SQL反模式
