腾讯云云函数事件驱动编程：构建响应式微服务架构

🌟 Hello，我是摘星！🌈 在彩虹般绚烂的技术栈中，我是那个永不停歇的色彩收集者。🦋 每一个优化都是我培育的花朵，每一个特性都是我放飞的蝴蝶。🔬 每一次代码审查都是我的显微镜观察，每一次重构都是我的化学实验。🎵 在编程的交响乐中，我既是指挥家也是演奏者。让我们一起，在技术的音乐厅里，奏响属于程序员的华美乐章。

在现代软件架构的演进历程中，事件驱动编程（Event-Driven Programming）正在成为构建高可扩展、松耦合系统的核心范式。作为一名长期专注于云原生架构设计的技术专家，我深刻认识到事件驱动架构在微服务体系中的重要价值。腾讯云SCF（Serverless Cloud Function）作为事件驱动计算的典型代表，为我们提供了构建响应式微服务架构的强大基础。在传统的请求-响应模式中，服务间的紧密耦合往往导致系统的脆弱性和扩展困难，而事件驱动架构通过异步消息传递，实现了服务间的解耦，提高了系统的弹性和可维护性。本文将深入探讨如何利用腾讯云SCF构建事件驱动的响应式微服务架构，从事件源的设计到事件处理的优化，从消息路由到错误处理，我将结合实际项目经验，为大家详细解析事件驱动编程的核心概念、设计模式和最佳实践。我们将学习如何设计高效的事件模型，如何实现可靠的事件传递机制，如何处理复杂的业务流程编排，以及如何确保系统的一致性和可靠性。通过本文的学习，相信大家能够掌握事件驱动架构的精髓，在云原生时代构建出更加灵活、可扩展的微服务系统。

1. 事件驱动架构概述

1.1 事件驱动编程核心概念

事件驱动编程是一种编程范式，程序的执行流程由事件的发生来决定。在云函数环境中，事件可以来自多种源头：

图1 事件驱动架构核心组件图

1.2 事件驱动 vs 传统架构对比

1.3 腾讯云SCF事件源类型

// SCF支持的主要事件源类型 const EVENT_SOURCES = { // API网关事件 API_GATEWAY: { type: 'apigw', description: 'HTTP请求触发', useCase: 'Web API、RESTful服务' }, // COS对象存储事件 COS: { type: 'cos', description: '文件上传/删除触发', useCase: '文件处理、数据ETL' }, // CMQ消息队列事件 CMQ: { type: 'cmq', description: '消息队列触发', useCase: '异步任务处理' }, // 定时器事件 TIMER: { type: 'timer', description: '定时触发', useCase: '定时任务、数据同步' }, // CKafka事件 CKAFKA: { type: 'ckafka', description: 'Kafka消息触发', useCase: '流数据处理' }, // 数据库事件 DATABASE: { type: 'db', description: '数据库变更触发', useCase: '数据同步、审计' } }; // 事件处理器基类 class EventHandler { constructor(eventType) { this.eventType = eventType; this.middlewares = []; } use(middleware) { this.middlewares.push(middleware); return this; } async handle(event, context) { try { // 执行中间件链 for (const middleware of this.middlewares) { await middleware(event, context); } // 执行具体的事件处理逻辑 return await this.process(event, context); } catch (error) { console.error(`Event handling failed for ${this.eventType}:`, error); throw error; } } async process(event, context) { throw new Error('Process method must be implemented by subclass'); } } // API网关事件处理器 class APIGatewayHandler extends EventHandler { constructor() { super('apigw'); } async process(event, context) { const { httpMethod, path, queryString, body, headers } = event; console.log(`Processing ${httpMethod} request to ${path}`); // 根据路径和方法路由到具体处理函数 const route = this.getRoute(httpMethod, path); if (!route) { return { statusCode: 404, body: JSON.stringify({ error: 'Route not found' }) }; } return await route.handler(event, context); } getRoute(method, path) { // 简化的路由匹配逻辑 const routes = { 'GET:/users': { handler: this.getUsers }, 'POST:/users': { handler: this.createUser }, 'PUT:/users/:id': { handler: this.updateUser }, 'DELETE:/users/:id': { handler: this.deleteUser } }; return routes[`${method}:${path}`] || null; } async getUsers(event, context) { // 获取用户列表的处理逻辑 return { statusCode: 200, headers: { 'Content-Type': 'application/json' }, body: JSON.stringify({ users: [] }) }; } async createUser(event, context) { // 创建用户的处理逻辑 const userData = JSON.parse(event.body); return { statusCode: 201, headers: { 'Content-Type': 'application/json' }, body: JSON.stringify({ user: userData, id: Date.now() }) }; } }

2. 响应式微服务架构设计

2.1 微服务事件模型

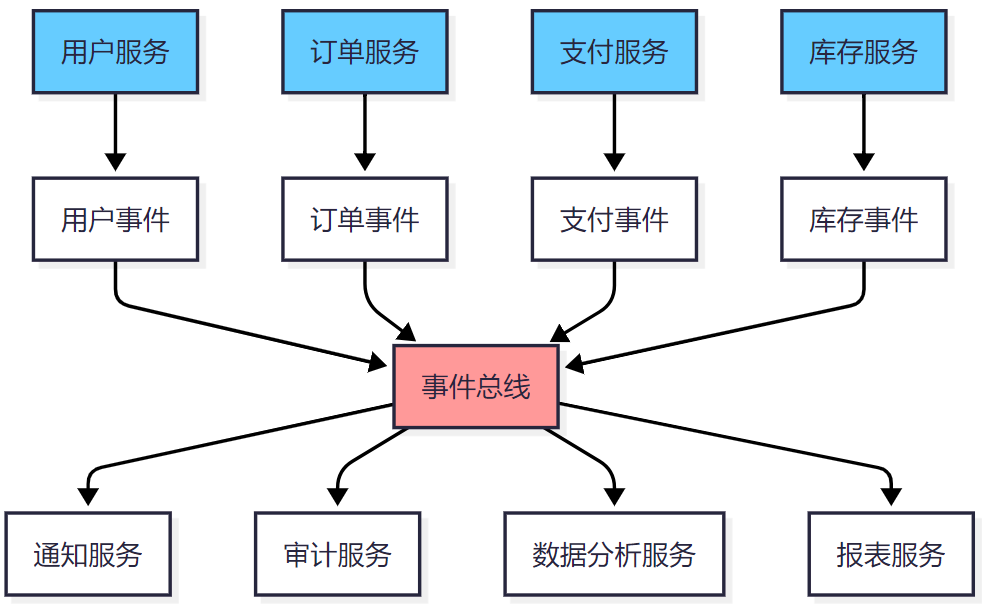

图2 微服务事件驱动架构图

2.2 事件设计模式

// 事件基类定义 class BaseEvent { constructor(eventType, aggregateId, data, metadata = {}) { this.eventId = this.generateEventId(); this.eventType = eventType; this.aggregateId = aggregateId; this.data = data; this.timestamp = new Date().toISOString(); this.version = 1; this.metadata = { source: process.env.SERVICE_NAME || 'unknown', correlationId: metadata.correlationId || this.generateCorrelationId(), causationId: metadata.causationId || null, userId: metadata.userId || null, ...metadata }; } generateEventId() { return `evt_${Date.now()}_${Math.random().toString(36).substr(2, 9)}`; } generateCorrelationId() { return `corr_${Date.now()}_${Math.random().toString(36).substr(2, 9)}`; } toJSON() { return { eventId: this.eventId, eventType: this.eventType, aggregateId: this.aggregateId, data: this.data, timestamp: this.timestamp, version: this.version, metadata: this.metadata }; } } // 用户相关事件 class UserCreatedEvent extends BaseEvent { constructor(userId, userData, metadata) { super('UserCreated', userId, userData, metadata); } } class UserUpdatedEvent extends BaseEvent { constructor(userId, changes, metadata) { super('UserUpdated', userId, changes, metadata); } } class UserDeletedEvent extends BaseEvent { constructor(userId, metadata) { super('UserDeleted', userId, { deletedAt: new Date().toISOString() }, metadata); } } // 订单相关事件 class OrderCreatedEvent extends BaseEvent { constructor(orderId, orderData, metadata) { super('OrderCreated', orderId, orderData, metadata); } } class OrderStatusChangedEvent extends BaseEvent { constructor(orderId, statusChange, metadata) { super('OrderStatusChanged', orderId, statusChange, metadata); } } // 事件发布器 class EventPublisher { constructor() { this.subscribers = new Map(); this.eventStore = []; this.publishQueue = []; this.isProcessing = false; } subscribe(eventType, handler) { if (!this.subscribers.has(eventType)) { this.subscribers.set(eventType, []); } this.subscribers.get(eventType).push(handler); } async publish(event) { try { // 存储事件 this.eventStore.push(event); // 添加到发布队列 this.publishQueue.push(event); // 异步处理发布队列 if (!this.isProcessing) { this.processPublishQueue(); } console.log(`Event published: ${event.eventType} (${event.eventId})`); } catch (error) { console.error('Failed to publish event:', error); throw error; } } async processPublishQueue() { this.isProcessing = true; while (this.publishQueue.length > 0) { const event = this.publishQueue.shift(); await this.notifySubscribers(event); } this.isProcessing = false; } async notifySubscribers(event) { const handlers = this.subscribers.get(event.eventType) || []; const promises = handlers.map(async (handler) => { try { await handler(event); } catch (error) { console.error(`Event handler failed for ${event.eventType}:`, error); // 可以在这里实现重试逻辑或死信队列 } }); await Promise.allSettled(promises); } getEventHistory(aggregateId) { return this.eventStore.filter(event => event.aggregateId === aggregateId); } } // 全局事件发布器实例 const eventPublisher = new EventPublisher(); // 用户服务示例 class UserService { constructor() { this.users = new Map(); } async createUser(userData, metadata = {}) { try { const userId = `user_${Date.now()}`; const user = { id: userId, ...userData, createdAt: new Date().toISOString(), updatedAt: new Date().toISOString() }; // 保存用户数据 this.users.set(userId, user); // 发布用户创建事件 const event = new UserCreatedEvent(userId, user, metadata); await eventPublisher.publish(event); return user; } catch (error) { console.error('Failed to create user:', error); throw error; } } async updateUser(userId, changes, metadata = {}) { try { const user = this.users.get(userId); if (!user) { throw new Error(`User not found: ${userId}`); } const updatedUser = { ...user, ...changes, updatedAt: new Date().toISOString() }; this.users.set(userId, updatedUser); // 发布用户更新事件 const event = new UserUpdatedEvent(userId, changes, metadata); await eventPublisher.publish(event); return updatedUser; } catch (error) { console.error('Failed to update user:', error); throw error; } } async deleteUser(userId, metadata = {}) { try { const user = this.users.get(userId); if (!user) { throw new Error(`User not found: ${userId}`); } this.users.delete(userId); // 发布用户删除事件 const event = new UserDeletedEvent(userId, metadata); await eventPublisher.publish(event); return { success: true, deletedUserId: userId }; } catch (error) { console.error('Failed to delete user:', error); throw error; } } } // 订单服务示例 class OrderService { constructor() { this.orders = new Map(); // 订阅用户相关事件 eventPublisher.subscribe('UserDeleted', this.handleUserDeleted.bind(this)); } async createOrder(orderData, metadata = {}) { try { const orderId = `order_${Date.now()}`; const order = { id: orderId, ...orderData, status: 'pending', createdAt: new Date().toISOString(), updatedAt: new Date().toISOString() }; this.orders.set(orderId, order); // 发布订单创建事件 const event = new OrderCreatedEvent(orderId, order, metadata); await eventPublisher.publish(event); return order; } catch (error) { console.error('Failed to create order:', error); throw error; } } async updateOrderStatus(orderId, newStatus, metadata = {}) { try { const order = this.orders.get(orderId); if (!order) { throw new Error(`Order not found: ${orderId}`); } const oldStatus = order.status; order.status = newStatus; order.updatedAt = new Date().toISOString(); this.orders.set(orderId, order); // 发布订单状态变更事件 const event = new OrderStatusChangedEvent(orderId, { oldStatus, newStatus, changedAt: order.updatedAt }, metadata); await eventPublisher.publish(event); return order; } catch (error) { console.error('Failed to update order status:', error); throw error; } } async handleUserDeleted(event) { try { const userId = event.aggregateId; console.log(`Handling user deletion for user: ${userId}`); // 查找该用户的所有订单 const userOrders = Array.from(this.orders.values()) .filter(order => order.userId === userId); // 取消用户的所有待处理订单 for (const order of userOrders) { if (order.status === 'pending') { await this.updateOrderStatus(order.id, 'cancelled', { reason: 'User account deleted', correlationId: event.metadata.correlationId }); } } } catch (error) { console.error('Failed to handle user deletion:', error); } } }

2.3 事件溯源模式

// 事件溯源聚合根基类 class AggregateRoot { constructor(id) { this.id = id; this.version = 0; this.uncommittedEvents = []; } applyEvent(event) { // 应用事件到聚合根状态 const handlerName = `apply${event.eventType}`; if (typeof this[handlerName] === 'function') { this[handlerName](event); } this.version++; } raiseEvent(event) { // 添加事件到未提交事件列表 this.uncommittedEvents.push(event); this.applyEvent(event); } markEventsAsCommitted() { this.uncommittedEvents = []; } getUncommittedEvents() { return [...this.uncommittedEvents]; } static fromHistory(id, events) { const aggregate = new this(id); events.forEach(event => { aggregate.applyEvent(event); }); return aggregate; } } // 用户聚合根 class UserAggregate extends AggregateRoot { constructor(id) { super(id); this.name = ''; this.email = ''; this.status = 'inactive'; this.createdAt = null; this.updatedAt = null; } createUser(userData, metadata = {}) { if (this.createdAt) { throw new Error('User already exists'); } const event = new UserCreatedEvent(this.id, userData, metadata); this.raiseEvent(event); } updateUser(changes, metadata = {}) { if (!this.createdAt) { throw new Error('User does not exist'); } if (this.status === 'deleted') { throw new Error('Cannot update deleted user'); } const event = new UserUpdatedEvent(this.id, changes, metadata); this.raiseEvent(event); } deleteUser(metadata = {}) { if (!this.createdAt) { throw new Error('User does not exist'); } if (this.status === 'deleted') { throw new Error('User already deleted'); } const event = new UserDeletedEvent(this.id, metadata); this.raiseEvent(event); } // 事件应用方法 applyUserCreated(event) { this.name = event.data.name; this.email = event.data.email; this.status = 'active'; this.createdAt = event.timestamp; this.updatedAt = event.timestamp; } applyUserUpdated(event) { Object.assign(this, event.data); this.updatedAt = event.timestamp; } applyUserDeleted(event) { this.status = 'deleted'; this.updatedAt = event.timestamp; } } // 事件存储 class EventStore { constructor() { this.events = new Map(); // aggregateId -> events[] this.snapshots = new Map(); // aggregateId -> snapshot } async saveEvents(aggregateId, events, expectedVersion) { const existingEvents = this.events.get(aggregateId) || []; // 检查版本冲突 if (existingEvents.length !== expectedVersion) { throw new Error(`Concurrency conflict for aggregate ${aggregateId}`); } // 保存事件 const allEvents = [...existingEvents, ...events]; this.events.set(aggregateId, allEvents); console.log(`Saved ${events.length} events for aggregate ${aggregateId}`); } async getEvents(aggregateId, fromVersion = 0) { const events = this.events.get(aggregateId) || []; return events.slice(fromVersion); } async saveSnapshot(aggregateId, snapshot) { this.snapshots.set(aggregateId, { ...snapshot, timestamp: new Date().toISOString() }); } async getSnapshot(aggregateId) { return this.snapshots.get(aggregateId); } } // 仓储模式 class UserRepository { constructor(eventStore) { this.eventStore = eventStore; } async save(userAggregate) { const uncommittedEvents = userAggregate.getUncommittedEvents(); if (uncommittedEvents.length === 0) { return; } const expectedVersion = userAggregate.version - uncommittedEvents.length; await this.eventStore.saveEvents( userAggregate.id, uncommittedEvents, expectedVersion ); userAggregate.markEventsAsCommitted(); // 发布事件到事件总线 for (const event of uncommittedEvents) { await eventPublisher.publish(event); } } async getById(userId) { // 尝试从快照加载 const snapshot = await this.eventStore.getSnapshot(userId); let fromVersion = 0; let userAggregate; if (snapshot) { userAggregate = this.createFromSnapshot(userId, snapshot); fromVersion = snapshot.version; } else { userAggregate = new UserAggregate(userId); } // 加载快照之后的事件 const events = await this.eventStore.getEvents(userId, fromVersion); events.forEach(event => { userAggregate.applyEvent(event); }); return userAggregate; } createFromSnapshot(userId, snapshot) { const userAggregate = new UserAggregate(userId); Object.assign(userAggregate, snapshot); return userAggregate; } }

3. 复杂事件处理（CEP）

3.1 事件流处理

// 事件流处理器 class EventStreamProcessor { constructor() { this.streams = new Map(); this.patterns = []; this.windows = new Map(); } createStream(streamName) { if (!this.streams.has(streamName)) { this.streams.set(streamName, []); } return new EventStream(streamName, this); } addEvent(streamName, event) { if (!this.streams.has(streamName)) { this.createStream(streamName); } const stream = this.streams.get(streamName); stream.push({ ...event, streamTimestamp: Date.now() }); // 处理事件模式匹配 this.processPatterns(streamName, event); // 维护时间窗口 this.maintainWindows(streamName); } definePattern(patternName, conditions, action) { this.patterns.push({ name: patternName, conditions, action, matches: [] }); } processPatterns(streamName, event) { for (const pattern of this.patterns) { this.checkPattern(pattern, streamName, event); } } checkPattern(pattern, streamName, event) { const stream = this.streams.get(streamName); const recentEvents = stream.slice(-pattern.conditions.length); if (this.matchesPattern(recentEvents, pattern.conditions)) { pattern.action(recentEvents, event); pattern.matches.push({ timestamp: Date.now(), events: recentEvents, triggerEvent: event }); } } matchesPattern(events, conditions) { if (events.length < conditions.length) { return false; } for (let i = 0; i < conditions.length; i++) { const event = events[events.length - conditions.length + i]; const condition = conditions[i]; if (!this.eventMatchesCondition(event, condition)) { return false; } } return true; } eventMatchesCondition(event, condition) { if (condition.eventType && event.eventType !== condition.eventType) { return false; } if (condition.predicate && !condition.predicate(event)) { return false; } return true; } maintainWindows(streamName) { const stream = this.streams.get(streamName); const now = Date.now(); const windowSize = 5 * 60 * 1000; // 5分钟窗口 // 移除超出时间窗口的事件 const validEvents = stream.filter(event => now - event.streamTimestamp < windowSize ); this.streams.set(streamName, validEvents); } } // 事件流类 class EventStream { constructor(name, processor) { this.name = name; this.processor = processor; } filter(predicate) { const filteredStream = this.processor.createStream(`${this.name}_filtered`); // 设置过滤逻辑 this.processor.definePattern(`${this.name}_filter`, [ { predicate } ], (events, triggerEvent) => { filteredStream.emit(triggerEvent); }); return filteredStream; } map(transformer) { const mappedStream = this.processor.createStream(`${this.name}_mapped`); this.processor.definePattern(`${this.name}_map`, [ { predicate: () => true } ], (events, triggerEvent) => { const transformedEvent = transformer(triggerEvent); mappedStream.emit(transformedEvent); }); return mappedStream; } window(timeMs) { const windowedStream = this.processor.createStream(`${this.name}_windowed`); setInterval(() => { const stream = this.processor.streams.get(this.name) || []; const now = Date.now(); const windowEvents = stream.filter(event => now - event.streamTimestamp < timeMs ); if (windowEvents.length > 0) { windowedStream.emit({ eventType: 'WindowAggregation', data: { events: windowEvents, count: windowEvents.length, windowStart: now - timeMs, windowEnd: now } }); } }, timeMs); return windowedStream; } emit(event) { this.processor.addEvent(this.name, event); } } // 业务场景示例：订单异常检测 class OrderAnomalyDetector { constructor() { this.processor = new EventStreamProcessor(); this.orderStream = this.processor.createStream('orders'); this.setupAnomalyPatterns(); } setupAnomalyPatterns() { // 模式1：短时间内大量订单创建 this.processor.definePattern('bulk_orders', [ { eventType: 'OrderCreated' }, { eventType: 'OrderCreated' }, { eventType: 'OrderCreated' }, { eventType: 'OrderCreated' }, { eventType: 'OrderCreated' } ], (events, triggerEvent) => { const timeSpan = events[events.length - 1].streamTimestamp - events[0].streamTimestamp; if (timeSpan < 60000) { // 1分钟内 this.handleBulkOrderAnomaly(events); } }); // 模式2：订单创建后立即取消 this.processor.definePattern('quick_cancellation', [ { eventType: 'OrderCreated' }, { eventType: 'OrderStatusChanged', predicate: (event) => event.data.newStatus === 'cancelled' } ], (events, triggerEvent) => { const createEvent = events[0]; const cancelEvent = events[1]; if (createEvent.aggregateId === cancelEvent.aggregateId) { const timeSpan = cancelEvent.streamTimestamp - createEvent.streamTimestamp; if (timeSpan < 30000) { // 30秒内取消 this.handleQuickCancellationAnomaly(createEvent, cancelEvent); } } }); // 模式3：高价值订单异常 this.processor.definePattern('high_value_order', [ { eventType: 'OrderCreated', predicate: (event) => event.data.totalAmount > 10000 } ], (events, triggerEvent) => { this.handleHighValueOrderAnomaly(triggerEvent); }); } processOrderEvent(event) { this.orderStream.emit(event); } handleBulkOrderAnomaly(events) { console.log('🚨 Bulk order anomaly detected:', { count: events.length, timeSpan: events[events.length - 1].streamTimestamp - events[0].streamTimestamp, orders: events.map(e => e.aggregateId) }); // 发送告警 this.sendAlert('BULK_ORDERS', { severity: 'HIGH', description: `${events.length} orders created within 1 minute`, orders: events.map(e => e.aggregateId) }); } handleQuickCancellationAnomaly(createEvent, cancelEvent) { console.log('🚨 Quick cancellation anomaly detected:', { orderId: createEvent.aggregateId, timeToCancel: cancelEvent.streamTimestamp - createEvent.streamTimestamp }); this.sendAlert('QUICK_CANCELLATION', { severity: 'MEDIUM', description: 'Order cancelled within 30 seconds of creation', orderId: createEvent.aggregateId }); } handleHighValueOrderAnomaly(event) { console.log('🚨 High value order detected:', { orderId: event.aggregateId, amount: event.data.totalAmount, userId: event.data.userId }); this.sendAlert('HIGH_VALUE_ORDER', { severity: 'MEDIUM', description: `High value order: $${event.data.totalAmount}`, orderId: event.aggregateId, userId: event.data.userId }); } async sendAlert(alertType, details) { // 发送告警到监控系统 const alert = { type: alertType, timestamp: new Date().toISOString(), ...details }; console.log('Sending alert:', alert); // 这里可以集成实际的告警系统 // await alertingService.send(alert); } }

4. 事件驱动的Saga模式

4.1 分布式事务处理

// Saga编排器 class SagaOrchestrator { constructor() { this.sagas = new Map(); this.sagaDefinitions = new Map(); } defineSaga(sagaType, steps) { this.sagaDefinitions.set(sagaType, { steps, compensations: steps.map(step => step.compensation).filter(Boolean) }); } async startSaga(sagaType, sagaId, initialData) { const definition = this.sagaDefinitions.get(sagaType); if (!definition) { throw new Error(`Saga type not found: ${sagaType}`); } const saga = { id: sagaId, type: sagaType, status: 'started', currentStep: 0, data: initialData, completedSteps: [], startedAt: new Date().toISOString(), updatedAt: new Date().toISOString() }; this.sagas.set(sagaId, saga); // 开始执行第一步 await this.executeNextStep(sagaId); return saga; } async executeNextStep(sagaId) { const saga = this.sagas.get(sagaId); if (!saga) { throw new Error(`Saga not found: ${sagaId}`); } const definition = this.sagaDefinitions.get(saga.type); const currentStep = definition.steps[saga.currentStep]; if (!currentStep) { // 所有步骤完成 saga.status = 'completed'; saga.updatedAt = new Date().toISOString(); console.log(`Saga ${sagaId} completed successfully`); return; } try { console.log(`Executing step ${saga.currentStep + 1} of saga ${sagaId}: ${currentStep.name}`); // 执行步骤 const result = await currentStep.execute(saga.data); // 记录完成的步骤 saga.completedSteps.push({ stepIndex: saga.currentStep, stepName: currentStep.name, result, completedAt: new Date().toISOString() }); // 更新saga数据 if (result && typeof result === 'object') { saga.data = { ...saga.data, ...result }; } saga.currentStep++; saga.updatedAt = new Date().toISOString(); // 继续下一步 await this.executeNextStep(sagaId); } catch (error) { console.error(`Saga step ${saga.currentStep + 1} failed:`, error); // 开始补偿流程 await this.startCompensation(sagaId, error); } } async startCompensation(sagaId, originalError) { const saga = this.sagas.get(sagaId); saga.status = 'compensating'; saga.error = originalError.message; saga.updatedAt = new Date().toISOString(); console.log(`Starting compensation for saga ${sagaId}`); // 逆序执行已完成步骤的补偿操作 for (let i = saga.completedSteps.length - 1; i >= 0; i--) { const completedStep = saga.completedSteps[i]; const definition = this.sagaDefinitions.get(saga.type); const stepDefinition = definition.steps[completedStep.stepIndex]; if (stepDefinition.compensation) { try { console.log(`Compensating step: ${completedStep.stepName}`); await stepDefinition.compensation(saga.data, completedStep.result); } catch (compensationError) { console.error(`Compensation failed for step ${completedStep.stepName}:`, compensationError); // 补偿失败，需要人工干预 saga.status = 'compensation_failed'; saga.compensationError = compensationError.message; return; } } } saga.status = 'compensated'; saga.updatedAt = new Date().toISOString(); console.log(`Saga ${sagaId} compensated successfully`); } getSagaStatus(sagaId) { return this.sagas.get(sagaId); } } // 订单处理Saga示例 class OrderProcessingSaga { constructor() { this.orchestrator = new SagaOrchestrator(); this.setupOrderProcessingSaga(); } setupOrderProcessingSaga() { this.orchestrator.defineSaga('order_processing', [ { name: 'validate_order', execute: this.validateOrder.bind(this), compensation: this.cancelOrderValidation.bind(this) }, { name: 'reserve_inventory', execute: this.reserveInventory.bind(this), compensation: this.releaseInventory.bind(this) }, { name: 'process_payment', execute: this.processPayment.bind(this), compensation: this.refundPayment.bind(this) }, { name: 'update_order_status', execute: this.updateOrderStatus.bind(this), compensation: this.revertOrderStatus.bind(this) }, { name: 'send_confirmation', execute: this.sendConfirmation.bind(this), compensation: this.sendCancellationNotice.bind(this) } ]); } async processOrder(orderData) { const sagaId = `saga_${orderData.orderId}_${Date.now()}`; return await this.orchestrator.startSaga('order_processing', sagaId, orderData); } // Saga步骤实现 async validateOrder(data) { console.log(`Validating order: ${data.orderId}`); // 模拟订单验证逻辑 if (!data.items || data.items.length === 0) { throw new Error('Order has no items'); } if (!data.customerId) { throw new Error('Order has no customer'); } return { validatedAt: new Date().toISOString() }; } async reserveInventory(data) { console.log(`Reserving inventory for order: ${data.orderId}`); const reservations = []; for (const item of data.items) { // 模拟库存检查和预留 const available = await this.checkInventory(item.productId); if (available < item.quantity) { throw new Error(`Insufficient inventory for product ${item.productId}`); } const reservationId = await this.reserveProduct(item.productId, item.quantity); reservations.push({ productId: item.productId, reservationId, quantity: item.quantity }); } return { reservations }; } async processPayment(data) { console.log(`Processing payment for order: ${data.orderId}`); // 模拟支付处理 const paymentResult = await this.chargeCustomer(data.customerId, data.totalAmount); if (!paymentResult.success) { throw new Error(`Payment failed: ${paymentResult.error}`); } return { paymentId: paymentResult.paymentId, paidAmount: data.totalAmount, paidAt: new Date().toISOString() }; } async updateOrderStatus(data) { console.log(`Updating order status: ${data.orderId}`); // 更新订单状态为已确认 await this.setOrderStatus(data.orderId, 'confirmed'); return { statusUpdatedAt: new Date().toISOString() }; } async sendConfirmation(data) { console.log(`Sending confirmation for order: ${data.orderId}`); // 发送确认邮件 await this.sendEmail(data.customerEmail, 'Order Confirmation', { orderId: data.orderId, items: data.items, totalAmount: data.totalAmount }); return { confirmationSentAt: new Date().toISOString() }; } // 补偿操作实现 async cancelOrderValidation(data, stepResult) { console.log(`Cancelling order validation: ${data.orderId}`); // 清理验证相关的临时数据 } async releaseInventory(data, stepResult) { console.log(`Releasing inventory for order: ${data.orderId}`); if (stepResult && stepResult.reservations) { for (const reservation of stepResult.reservations) { await this.releaseReservation(reservation.reservationId); } } } async refundPayment(data, stepResult) { console.log(`Refunding payment for order: ${data.orderId}`); if (stepResult && stepResult.paymentId) { await this.refundCustomer(stepResult.paymentId, stepResult.paidAmount); } } async revertOrderStatus(data, stepResult) { console.log(`Reverting order status: ${data.orderId}`); await this.setOrderStatus(data.orderId, 'cancelled'); } async sendCancellationNotice(data, stepResult) { console.log(`Sending cancellation notice: ${data.orderId}`); await this.sendEmail(data.customerEmail, 'Order Cancelled', { orderId: data.orderId, reason: 'Processing failed' }); } // 辅助方法（模拟外部服务调用） async checkInventory(productId) { // 模拟库存检查 return Math.floor(Math.random() * 100) + 10; } async reserveProduct(productId, quantity) { // 模拟库存预留 return `reservation_${productId}_${Date.now()}`; } async chargeCustomer(customerId, amount) { // 模拟支付处理 const success = Math.random() > 0.1; // 90%成功率 if (success) { return { success: true, paymentId: `payment_${customerId}_${Date.now()}` }; } else { return { success: false, error: 'Payment gateway error' }; } } async setOrderStatus(orderId, status) { // 模拟订单状态更新 console.log(`Order ${orderId} status updated to: ${status}`); } async sendEmail(email, subject, data) { // 模拟邮件发送 console.log(`Email sent to ${email}: ${subject}`); } async releaseReservation(reservationId) { // 模拟释放库存预留 console.log(`Released reservation: ${reservationId}`); } async refundCustomer(paymentId, amount) { // 模拟退款处理 console.log(`Refunded ${amount} for payment: ${paymentId}`); } }

5. SCF事件驱动最佳实践

5.1 错误处理与重试机制

// 错误处理和重试装饰器 class RetryableEventHandler { constructor(maxRetries = 3, backoffMs = 1000) { this.maxRetries = maxRetries; this.backoffMs = backoffMs; this.deadLetterQueue = []; } withRetry(handler) { return async (event, context) => { let lastError; for (let attempt = 1; attempt <= this.maxRetries; attempt++) { try { return await handler(event, context); } catch (error) { lastError = error; console.error(`Attempt ${attempt} failed:`, error.message); if (attempt === this.maxRetries) { // 最后一次重试失败，发送到死信队列 await this.sendToDeadLetterQueue(event, error); break; } // 指数退避 const delay = this.backoffMs * Math.pow(2, attempt - 1); await this.sleep(delay); } } throw lastError; }; } async sendToDeadLetterQueue(event, error) { const deadLetterEvent = { originalEvent: event, error: error.message, timestamp: new Date().toISOString(), retryCount: this.maxRetries }; this.deadLetterQueue.push(deadLetterEvent); console.log('Event sent to dead letter queue:', deadLetterEvent); // 这里可以集成实际的死信队列服务 // await deadLetterQueueService.send(deadLetterEvent); } sleep(ms) { return new Promise(resolve => setTimeout(resolve, ms)); } getDeadLetterQueue() { return this.deadLetterQueue; } } // 事件验证器 class EventValidator { constructor() { this.schemas = new Map(); } defineSchema(eventType, schema) { this.schemas.set(eventType, schema); } validate(event) { const schema = this.schemas.get(event.eventType); if (!schema) { throw new Error(`No schema defined for event type: ${event.eventType}`); } const errors = this.validateAgainstSchema(event, schema); if (errors.length > 0) { throw new Error(`Event validation failed: ${errors.join(', ')}`); } return true; } validateAgainstSchema(event, schema) { const errors = []; // 检查必需字段 if (schema.required) { for (const field of schema.required) { if (!(field in event)) { errors.push(`Missing required field: ${field}`); } } } // 检查字段类型 if (schema.properties) { for (const [field, fieldSchema] of Object.entries(schema.properties)) { if (field in event) { const value = event[field]; const expectedType = fieldSchema.type; if (expectedType && typeof value !== expectedType) { errors.push(`Field ${field} should be ${expectedType}, got ${typeof value}`); } // 检查字符串长度 if (expectedType === 'string' && fieldSchema.maxLength && value.length > fieldSchema.maxLength) { errors.push(`Field ${field} exceeds maximum length of ${fieldSchema.maxLength}`); } // 检查数值范围 if (expectedType === 'number' && fieldSchema.minimum && value < fieldSchema.minimum) { errors.push(`Field ${field} is below minimum value of ${fieldSchema.minimum}`); } } } } return errors; } } // 事件处理中间件 class EventMiddleware { constructor() { this.middlewares = []; } use(middleware) { this.middlewares.push(middleware); return this; } async execute(event, context, handler) { let index = 0; const next = async () => { if (index < this.middlewares.length) { const middleware = this.middlewares[index++]; return await middleware(event, context, next); } else { return await handler(event, context); } }; return await next(); } } // 常用中间件 const loggingMiddleware = async (event, context, next) => { const startTime = Date.now(); console.log(`[${new Date().toISOString()}] Processing event: ${event.eventType || 'unknown'}`); console.log('Event data:', JSON.stringify(event, null, 2)); try { const result = await next(); const duration = Date.now() - startTime; console.log(`[${new Date().toISOString()}] Event processed successfully in ${duration}ms`); return result; } catch (error) { const duration = Date.now() - startTime; console.error(`[${new Date().toISOString()}] Event processing failed after ${duration}ms:`, error); throw error; } }; const validationMiddleware = (validator) => { return async (event, context, next) => { try { validator.validate(event); return await next(); } catch (error) { console.error('Event validation failed:', error.message); throw error; } }; }; const rateLimitingMiddleware = (maxRequestsPerMinute = 60) => { const requests = new Map(); return async (event, context, next) => { const key = event.metadata?.userId || context.requestId || 'anonymous'; const now = Date.now(); const windowStart = now - 60000; // 1分钟窗口 // 清理过期请求记录 if (requests.has(key)) { const userRequests = requests.get(key).filter(timestamp => timestamp > windowStart); requests.set(key, userRequests); } else { requests.set(key, []); } const userRequests = requests.get(key); if (userRequests.length >= maxRequestsPerMinute) { throw new Error(`Rate limit exceeded: ${maxRequestsPerMinute} requests per minute`); } userRequests.push(now); return await next(); }; }; // 完整的事件处理器示例 class ComprehensiveEventHandler { constructor() { this.retryHandler = new RetryableEventHandler(3, 1000); this.validator = new EventValidator(); this.middleware = new EventMiddleware(); this.setupValidationSchemas(); this.setupMiddlewares(); } setupValidationSchemas() { // 用户事件验证模式 this.validator.defineSchema('UserCreated', { required: ['eventId', 'eventType', 'aggregateId', 'data'], properties: { eventId: { type: 'string' }, eventType: { type: 'string' }, aggregateId: { type: 'string' }, data: { type: 'object', required: ['name', 'email'], properties: { name: { type: 'string', maxLength: 100 }, email: { type: 'string', maxLength: 255 } } } } }); // 订单事件验证模式 this.validator.defineSchema('OrderCreated', { required: ['eventId', 'eventType', 'aggregateId', 'data'], properties: { eventId: { type: 'string' }, eventType: { type: 'string' }, aggregateId: { type: 'string' }, data: { type: 'object', required: ['customerId', 'items', 'totalAmount'], properties: { customerId: { type: 'string' }, totalAmount: { type: 'number', minimum: 0 } } } } }); } setupMiddlewares() { this.middleware .use(loggingMiddleware) .use(validationMiddleware(this.validator)) .use(rateLimitingMiddleware(100)); } createHandler(businessLogic) { return this.retryHandler.withRetry(async (event, context) => { return await this.middleware.execute(event, context, businessLogic); }); } } // 使用示例 const comprehensiveHandler = new ComprehensiveEventHandler(); // 用户事件处理器 exports.user_event_handler = comprehensiveHandler.createHandler(async (event, context) => { const { eventType, aggregateId, data } = event; switch (eventType) { case 'UserCreated': return await handleUserCreated(aggregateId, data); case 'UserUpdated': return await handleUserUpdated(aggregateId, data); case 'UserDeleted': return await handleUserDeleted(aggregateId, data); default: throw new Error(`Unsupported event type: ${eventType}`); } }); // 订单事件处理器 exports.order_event_handler = comprehensiveHandler.createHandler(async (event, context) => { const { eventType, aggregateId, data } = event; switch (eventType) { case 'OrderCreated': return await handleOrderCreated(aggregateId, data); case 'OrderStatusChanged': return await handleOrderStatusChanged(aggregateId, data); default: throw new Error(`Unsupported event type: ${eventType}`); } }); // 业务逻辑处理函数 async function handleUserCreated(userId, userData) { console.log(`Processing user creation: ${userId}`); // 发送欢迎邮件 await sendWelcomeEmail(userData.email, userData.name); // 创建用户配置文件 await createUserProfile(userId, userData); // 发送用户创建完成事件 const completionEvent = new BaseEvent('UserCreationCompleted', userId, { completedAt: new Date().toISOString() }); await eventPublisher.publish(completionEvent); return { success: true, userId }; } async function handleOrderCreated(orderId, orderData) { console.log(`Processing order creation: ${orderId}`); // 启动订单处理Saga const saga = new OrderProcessingSaga(); await saga.processOrder({ orderId, ...orderData }); return { success: true, orderId }; } // 辅助函数 async function sendWelcomeEmail(email, name) { console.log(`Sending welcome email to ${email}`); // 实际的邮件发送逻辑 } async function createUserProfile(userId, userData) { console.log(`Creating user profile for ${userId}`); // 实际的用户配置文件创建逻辑 }

6. 监控与可观测性

6.1 分布式追踪

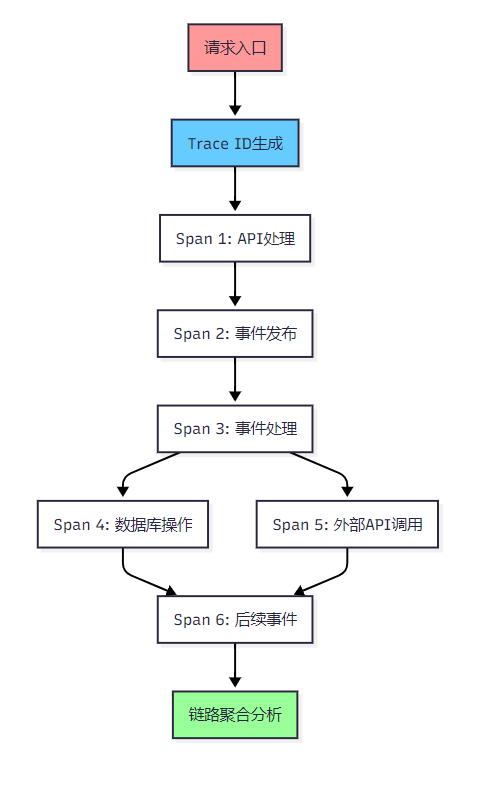

图6 分布式追踪链路图

6.2 事件监控指标

通过本文的深入探讨，我们全面了解了如何利用腾讯云SCF构建事件驱动的响应式微服务架构。从基础的事件模型设计到复杂的Saga模式实现，从简单的事件处理到复杂事件处理（CEP），我们掌握了事件驱动编程的核心技术和最佳实践。在我多年的微服务架构实践中，我深刻体会到事件驱动架构带来的巨大价值：它不仅提高了系统的可扩展性和容错性，更重要的是实现了业务逻辑的解耦，让系统更加灵活和易于维护。事件驱动架构虽然增加了系统的复杂性，但通过合理的设计模式、完善的错误处理机制和全面的监控体系，我们可以构建出既强大又可靠的分布式系统。随着云原生技术的不断发展，事件驱动架构必将在现代软件系统中发挥越来越重要的作用。希望通过本文的分享，能够帮助大家在事件驱动编程的道路上少走弯路，构建出更加优秀的微服务系统。让我们一起拥抱事件驱动的未来，在响应式编程的世界中创造更多的可能性。
