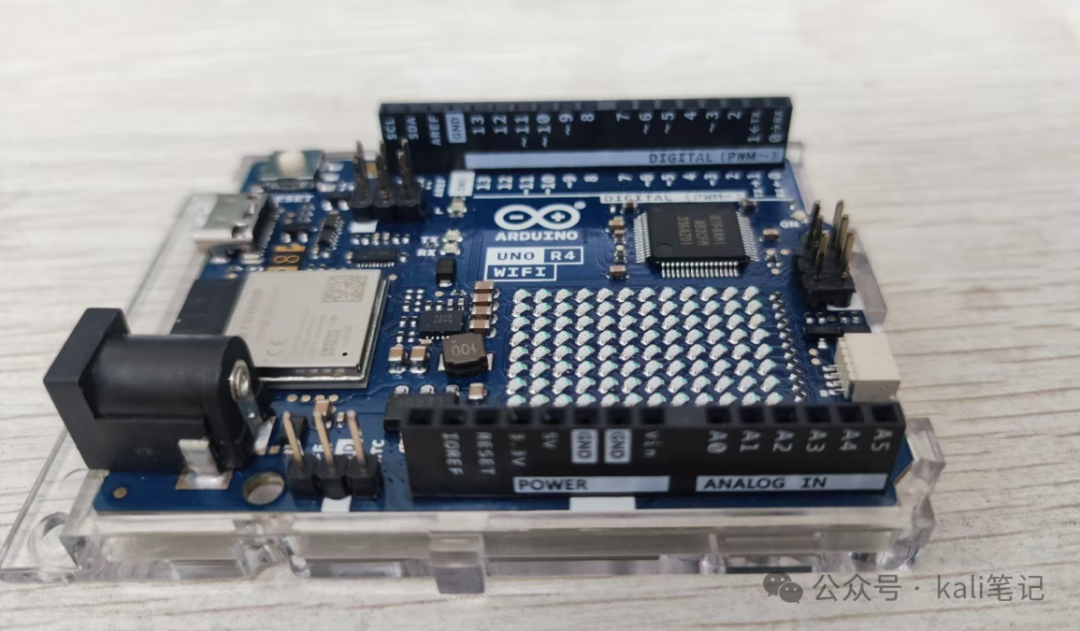

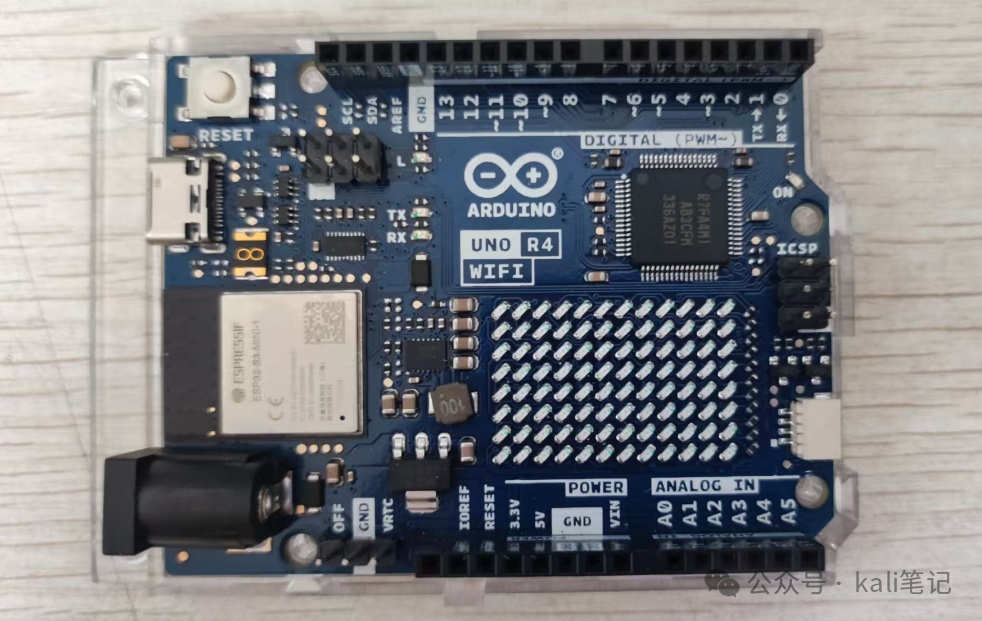

Arduino R4 WIFI板子测评及实列使用（风速测量）

#include <WiFiS3.h>
#include <ArduinoMqttClient.h>
#include <ArduinoJson.h>

// WiFi 配置
constchar* ssid = "PDCN";
constchar* password = "1234567890";

// MQTT 配置
constchar* mqttServer = "MQTT服务器地址";
constint mqttPort = 1883;
constchar* mqttUser = "admin";
constchar* mqttPassword = "admin";
constchar* mqttClientId = "ArduinoR4_Wind_";  // 将在setup中添加随机数
constchar* mqttTopic = "fengsu"; //订阅主题

WiFiClient wifiClient;
MqttClient mqttClient(wifiClient);

constint windPin = A0;
char finalClientId[50];  // 存储完整的客户端ID

// 添加校准相关变量
constfloat VOLTAGE_OFFSET = 22.22;  // 无风时的电压偏移值（mv）
constint CALIBRATION_SAMPLES = 10;  // 校准时的采样次数
float voltageOffset = 0;  // 实际测得的电压偏移值

// 生成随机的客户端ID
void generateClientId() {
unsignedlong randNumber = random(1000000, 9999999);
sprintf(finalClientId, "%s%lu", mqttClientId, randNumber);
  Serial.print("使用客户端ID: ");
  Serial.println(finalClientId);
}

// 校准函数
void calibrateSensor() {
  Serial.println("开始校准风速传感器...");
float sum = 0;
for(int i = 0; i < CALIBRATION_SAMPLES; i++) {
    int sensorValue = analogRead(windPin);
    float voltage = sensorValue * (3.3 / 1023.0) * 1000;  // 转换为mv
    sum += voltage;
    delay(100);
  }
  voltageOffset = sum / CALIBRATION_SAMPLES;
  Serial.print("电压偏移值: ");
  Serial.println(voltageOffset);
}

void connectWiFi() {
  Serial.println("\n正在连接WiFi...");

if (WiFi.status() == WL_NO_MODULE) {
    Serial.println("通信失败！找不到WiFi模块");
    while (true);
  }

  String fv = WiFi.firmwareVersion();
  Serial.print("固件版本: ");
  Serial.println(fv);

  WiFi.disconnect();
  delay(1000);

  Serial.print("正在连接到 ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);

int attempts = 0;
while (WiFi.status() != WL_CONNECTED && attempts < 20) {
    delay(500);
    Serial.print(".");
    attempts++;
  }

if (WiFi.status() == WL_CONNECTED) {
    Serial.println("\nWiFi已连接");
    Serial.print("IP地址: ");
    Serial.println(WiFi.localIP());
    Serial.print("信号强度: ");
    Serial.println(WiFi.RSSI());
  } else {
    Serial.println("\nWiFi连接失败！");
  }
}

void connectMQTT() {
if (!mqttClient.connected()) {
    Serial.println("正在连接MQTT服务器...");

    // 设置MQTT连接参数
    mqttClient.setId(finalClientId);
    mqttClient.setUsernamePassword(mqttUser, mqttPassword);
    mqttClient.setKeepAliveInterval(60 * 1000);
    mqttClient.setCleanSession(true);  // 设置Clean Start为true

    Serial.print("正在连接到MQTT服务器 ");
    Serial.print(mqttServer);
    Serial.print(":");
    Serial.println(mqttPort);

    int attempts = 0;
    bool connected = false;
    while (!connected && attempts < 5) {
      Serial.print("尝试 MQTT 连接...");

      if (mqttClient.connect(mqttServer, mqttPort)) {
        Serial.println("已连接到MQTT服务器");
        connected = true;
      } else {
        Serial.print("连接失败, 错误 = ");
        Serial.println(mqttClient.connectError());
        Serial.println("4秒后重试");
        delay(4000);
      }
      attempts++;
    }
  }
}

void setup() {
  Serial.begin(115200);
while (!Serial) {
    ; // 等待串口连接
  }

// 初始化随机数生成器
  randomSeed(analogRead(0));
  generateClientId();

  pinMode(windPin, INPUT);
  delay(1000);

// 在连接WiFi前进行校准
  calibrateSensor();

  connectWiFi();
}

void loop() {
if (WiFi.status() != WL_CONNECTED) {
    Serial.println("WiFi连接断开，尝试重连...");
    connectWiFi();
    delay(5000);
    return;
  }

if (!mqttClient.connected()) {
    connectMQTT();
  }

// 保持MQTT连接
  mqttClient.poll();

if (mqttClient.connected()) {

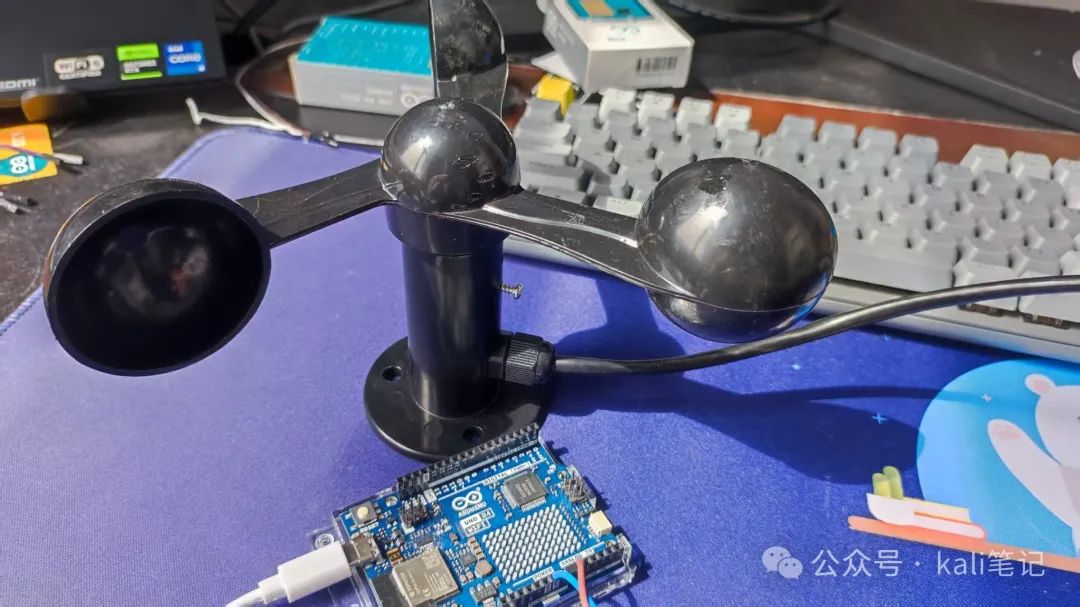

    // 读取风速传感器数据
    int sensorValue = analogRead(windPin);
    float voltage = sensorValue * (3.3 / 1023.0) * 1000;  // 转换为mv

    // 计算校准后的电压值
    float calibratedVoltage = voltage - voltageOffset;
    if (calibratedVoltage < 0) calibratedVoltage = 0;

    // 使用校准后的电压计算风速
    float speed = round(0.027 * calibratedVoltage * 10) / 10.0;  // 保留一位小数

    StaticJsonDocument<200> doc;
    doc["FS"] = speed;
    doc["FDJ"] = getWindLevel(speed);

    char json[200];
    serializeJson(doc, json);

    // 发布消息
    if (mqttClient.beginMessage(mqttTopic)) {
      mqttClient.print(json);
      mqttClient.endMessage();
      Serial.print("发送成功: ");
      Serial.println(json);
    } else {
      Serial.println("发送失败");
    }
  }

  delay(5000);
}

// 获取风速等级函数
const char* getWindLevel(float speed) {
// 添加一个小的误差范围
constfloat EPSILON = 0.0001;  // 误差范围

if (speed >= 0.0 - EPSILON && speed <= 0.2 + EPSILON) return"无风";
elseif (speed > 0.2 && speed <= 1.5) return"软风";
elseif (speed > 1.5 && speed <= 3.3) return"轻风";
elseif (speed > 3.3 && speed <= 5.4) return"微风";
elseif (speed > 5.4 && speed <= 7.9) return"和风";
elseif (speed > 7.9 && speed <= 10.7) return"轻劲风";
elseif (speed > 10.7 && speed <= 13.8) return"强风";
elseif (speed > 13.8 && speed <= 17.1) return"疾风";
elseif (speed > 17.1 && speed <= 20.7) return"大风";
elseif (speed > 20.7 && speed <= 24.4) return"烈风";
elseif (speed > 24.4 && speed <= 28.4) return"狂风";
elseif (speed > 28.4 && speed <= 32.6) return"暴风";
elseif (speed > 32.6) return"飓风";
return"未知等级";
}

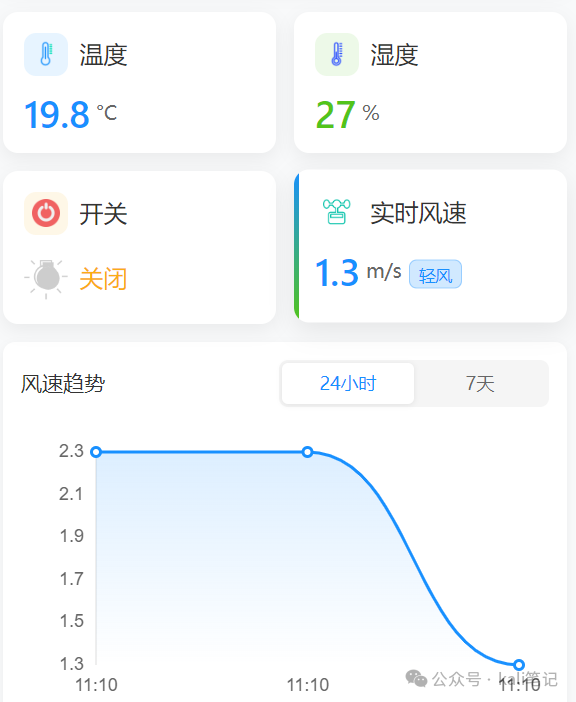

{"FS":1.1,"FDJ":"软风"}
