In this tutorial, we tested our NVIDIA Jetson Nano, Xavier NX and AGX Xavier's DeepStream performance in object detector sample. Our test sources are a video file (FPS:60, resolution:1920x1080, type:MP4) and 4 different cameras (FPS:25, resolution:1920x1080, type:RTSP).

NVIDIA Jetson Nano Info:

• Software: JetPack 4.5 (L4T-32.5)
• Hardware: Jetson Nano with DSBoard-NX2 Carrier Board
• DeepStream Version: 5.0.1
• Power Mode: MAXN

NVIDIA Jetson Xavier NX Info:

• Software: JetPack 4.5 (L4T-32.5)
• Hardware: Jetson Xavier NX with DSBoard-NX2 Carrier Board
• DeepStream Version: 5.0.1
• Power Mode: 15W 6CORE

NVIDIA Jetson AGX Xavier Info:

• Software: JetPack 4.4 (L4T-32.4.3)
• Hardware: Jetson AGX Xavier Developer Kit
• DeepStream Version: 5.0.0
• Power Mode: MAXN

Performance Test Setup

To begin with, let's set our test environment with maximum power mode:

(for Xavier NX)

• sudo nvpmodel -m 2

(for AGX Xavier and Nano)

• sudo nvpmodel -m 0

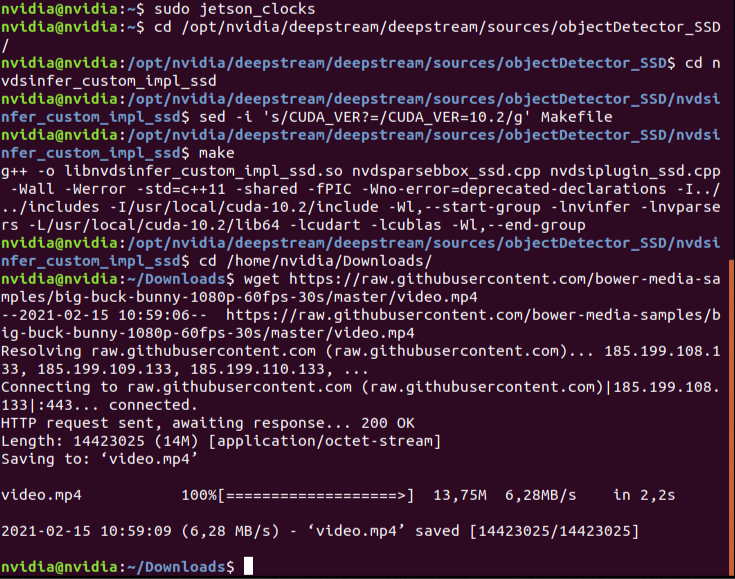

Type these commands and continue other steps in both of them:

• sudo jetson_clocks
• sudo chown -hR nvidia /opt/nvidia/deepstream/
• cd /opt/nvidia/deepstream/deepstream/sources/objectDetector_SSD/
• cd nvdsinfer_custom_impl_ssd
• sed -i 's/CUDA_VER?=/CUDA_VER=10.2/g' Makefile
• make
• cd /home/nvidia/Downloads/
• wget https://raw.githubusercontent.com/bower-media-samples/big-buck-bunny-1080p-60fps-30s/master/video.mp4
• cd /opt/nvidia/deepstream/deepstream/sources/objectDetector_SSD/

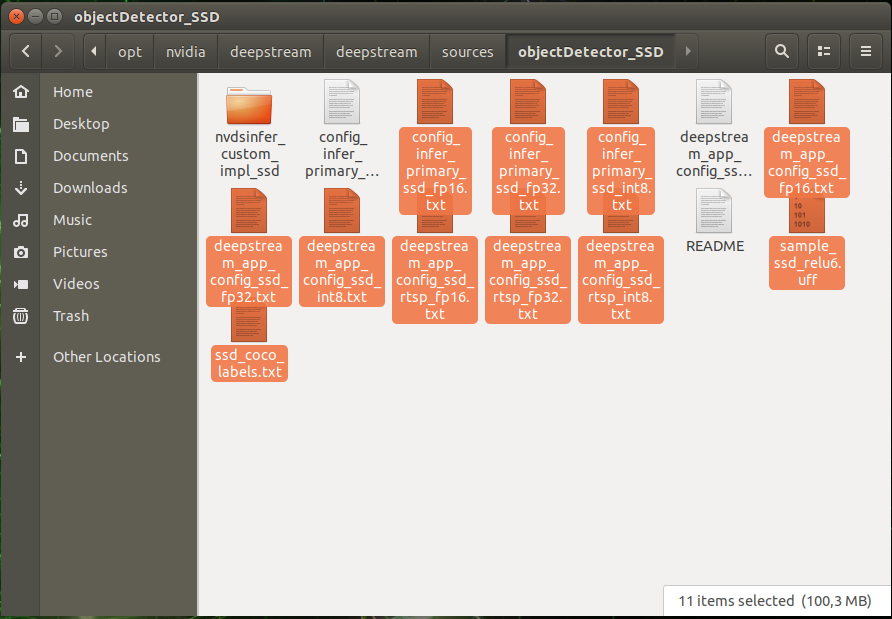

Then, copy sample_ssd_relu6.uff, ssd_coco_labels.txt and all configuration text files into /opt/nvidia/deepstream/deepstream/sources/objectDetector_SSD/ folder.

Change source URL (for source0, source1, source2 and source3) in each deepstream_app_config_ssd_rtsp... file (3 files).

DeepStream_SSD_files

Download ZIP • 92.59MB

https://download-files.wixmp.com/archives/bd25a2_8632369cf1924e4a9ddcfe6e78dd981d.zip?token=eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJ1cm46YXBwOmU2NjYzMGU3MTRmMDQ5MGFhZWExZjE0OWIzYjY5ZTMyIiwic3ViIjoidXJuOmFwcDplNjY2MzBlNzE0ZjA0OTBhYWVhMWYxNDliM2I2OWUzMiIsImF1ZCI6WyJ1cm46c2VydmljZTpmaWxlLmRvd25sb2FkIl0sImlhdCI6MTYxNzA3NTU1NCwiZXhwIjoxNjE3MTExNTY0LCJqdGkiOiI4NGM2ZGM4NzdjZDYiLCJvYmoiOltbeyJwYXRoIjoiL2FyY2hpdmVzL2JkMjVhMl84NjMyMzY5Y2YxOTI0ZTRhOWRkY2ZlNmU3OGRkOTgxZC56aXAifV1dfQ.QYDjmpsVcXm15neaT5UQBHw18XSjkfynSYPO9GW8pQg&filename=DeepStream_SSD_files.zip

Jetson Nano Test Results

The performance of each test command:

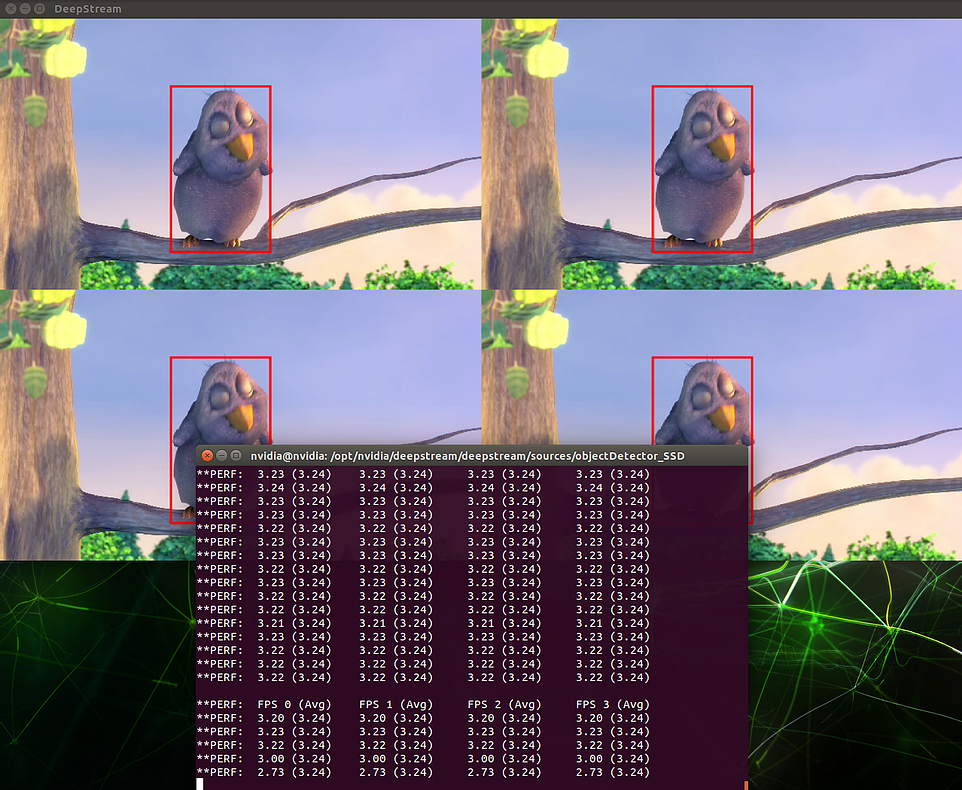

• deepstream-app -c deepstream_app_config_ssd_fp32.txt (~3 FPS)

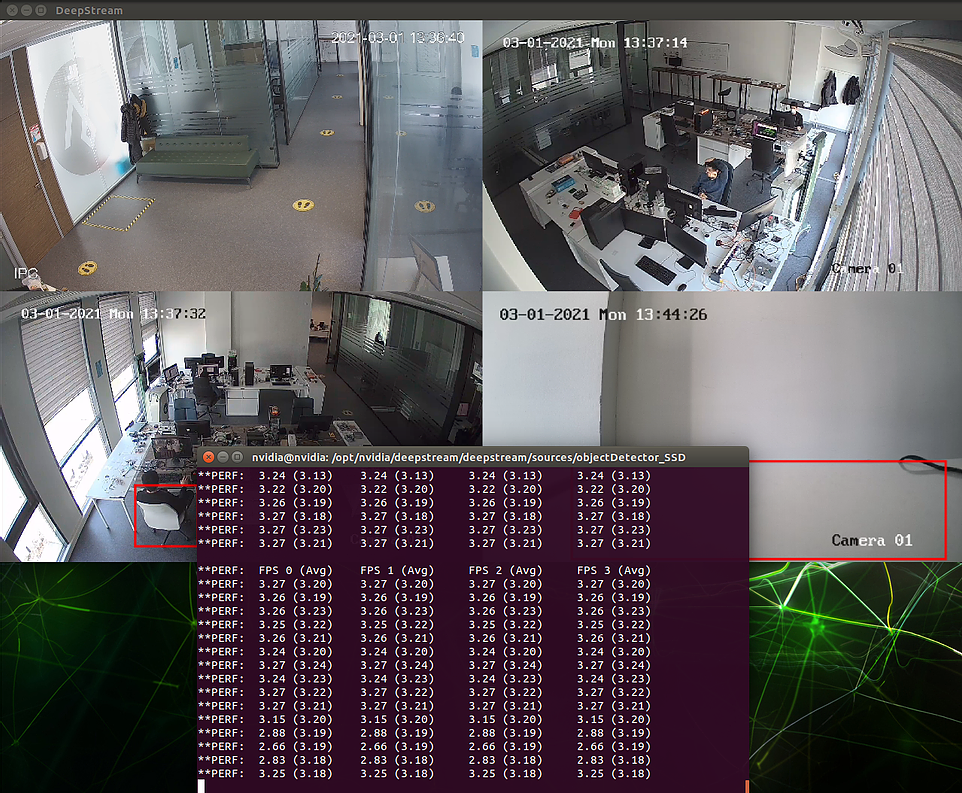

• deepstream-app -c deepstream_app_config_ssd_rtsp_fp32.txt (~3 FPS)

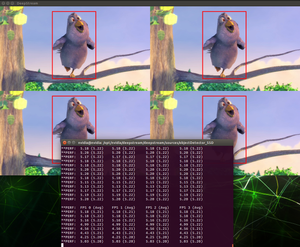

• deepstream-app -c deepstream_app_config_ssd_fp16.txt (~5 FPS)

• deepstream-app -c deepstream_app_config_ssd_rtsp_fp16.txt (~5 FPS)

Jetson Xavier NX Test Results

The performance of each test command:

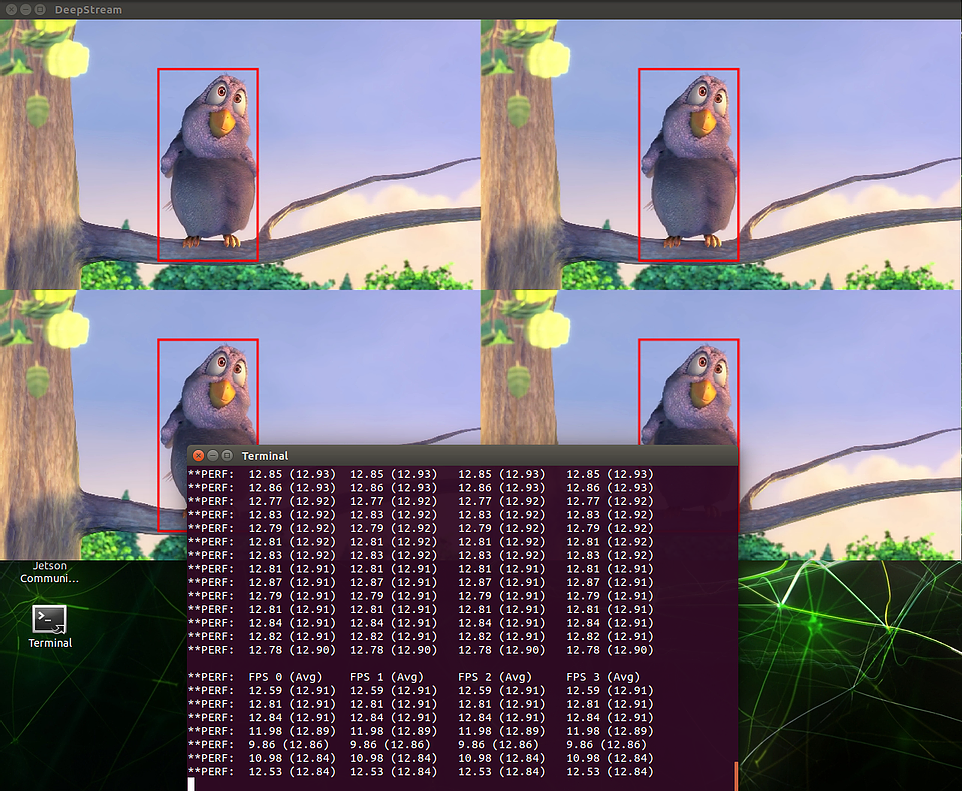

• deepstream-app -c deepstream_app_config_ssd_fp32.txt (12-13 FPS)

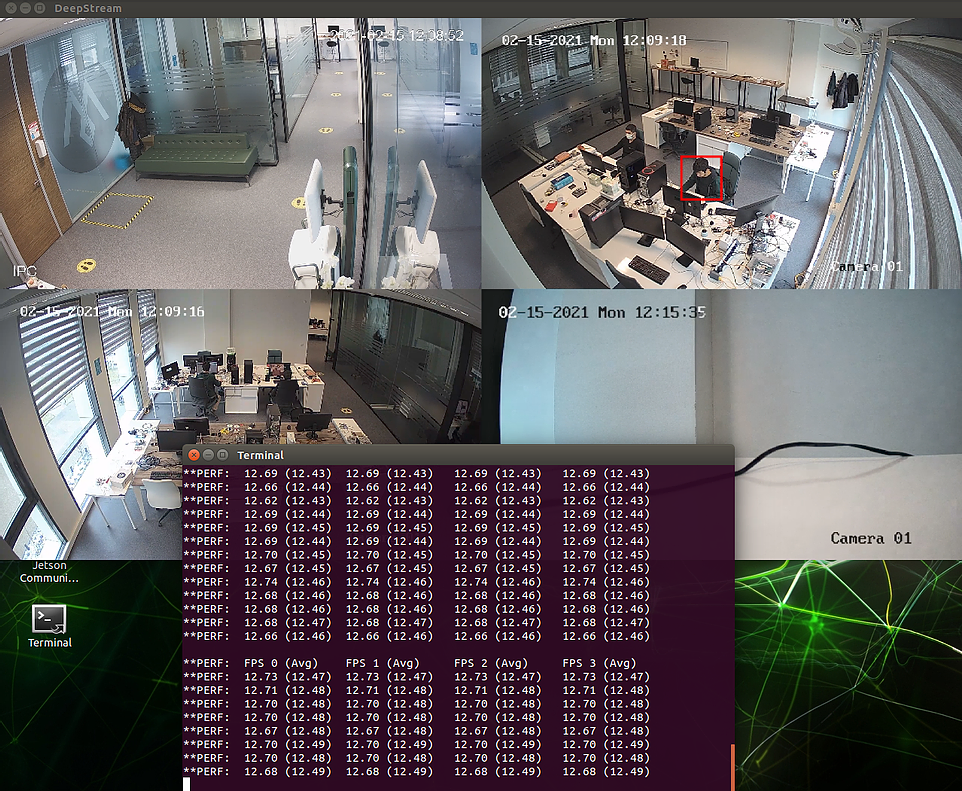

• deepstream-app -c deepstream_app_config_ssd_rtsp_fp32.txt (12-13 FPS)

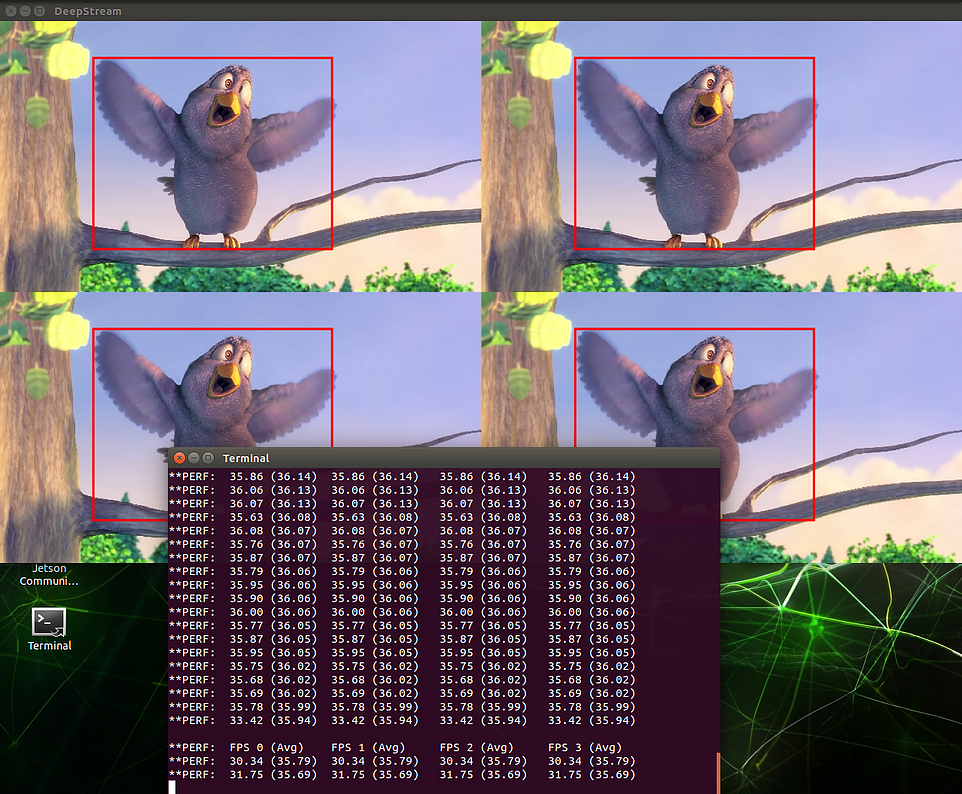

• deepstream-app -c deepstream_app_config_ssd_fp16.txt (~36 FPS)

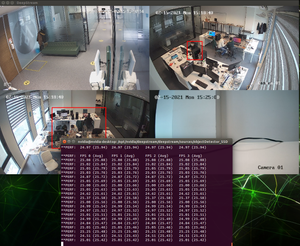

• deepstream-app -c deepstream_app_config_ssd_rtsp_fp16.txt (~25 FPS - max FPS)

Jetson AGX Xavier Test Results

The performance of each test command:

• deepstream-app -c deepstream_app_config_ssd_fp32.txt (21-22 FPS)

• deepstream-app -c deepstream_app_config_ssd_rtsp_fp32.txt (21-22 FPS)

• deepstream-app -c deepstream_app_config_ssd_fp16.txt (55-56 FPS)

• deepstream-app -c deepstream_app_config_ssd_rtsp_fp16.txt (25-26 FPS - max FPS)

Comparison of Results

Jetson Nano - Video Results (1080p, 60 FPS)

FP32 -> ~3 FPS * 4 (~12 FPS)

FP16 -> ~5 FPS * 4 (~20 FPS)

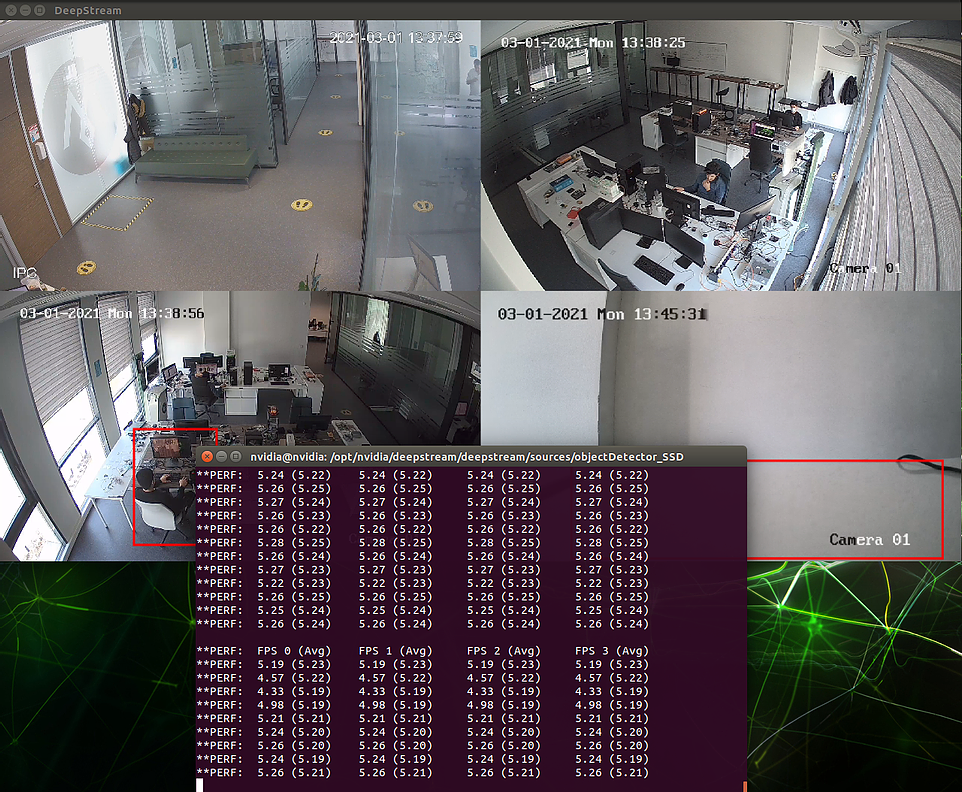

Jetson Nano - RTSP Results (1080p, 25 FPS)

FP32 -> ~3 FPS * 4 (~12 FPS)

FP16 -> ~5 FPS (max) * 4 (~20 FPS)

Jetson Xavier NX - Video Results (1080p, 60 FPS)

FP32 -> 12-13 FPS * 4 (48-52 FPS)

FP16 -> ~36 FPS * 4 (~144 FPS)

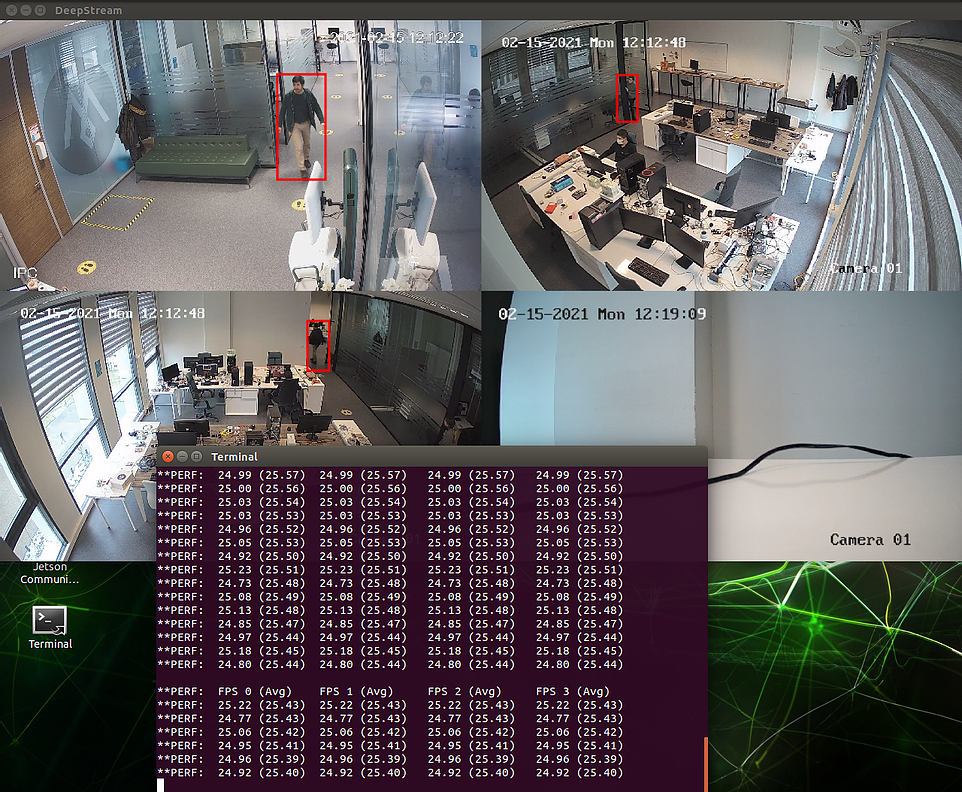

Jetson Xavier NX - RTSP Results (1080p, 25 FPS)

FP32 -> 12-13 FPS * 4 (48-52 FPS)

FP16 -> ~25 FPS (max) * 4 (~100 FPS)

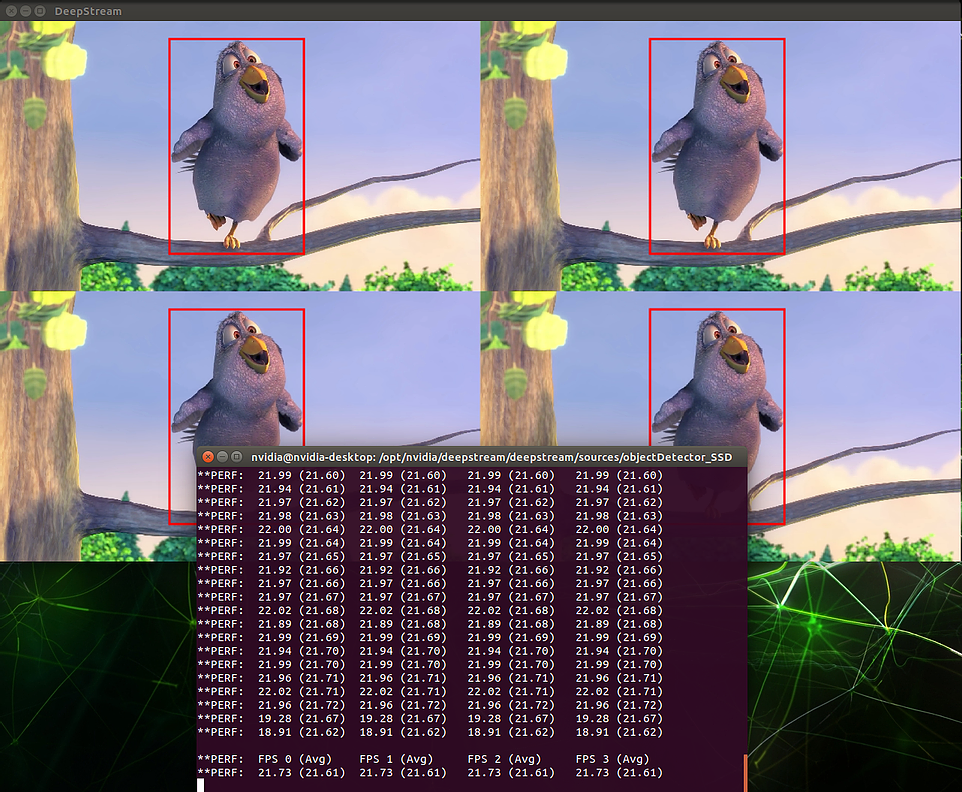

Jetson AGX Xavier - Video Results (1080p, 60 FPS)

FP32 -> 21-22 FPS * 4 (84-88 FPS)

FP16 -> 55-56 FPS * 4 (220-224 FPS)

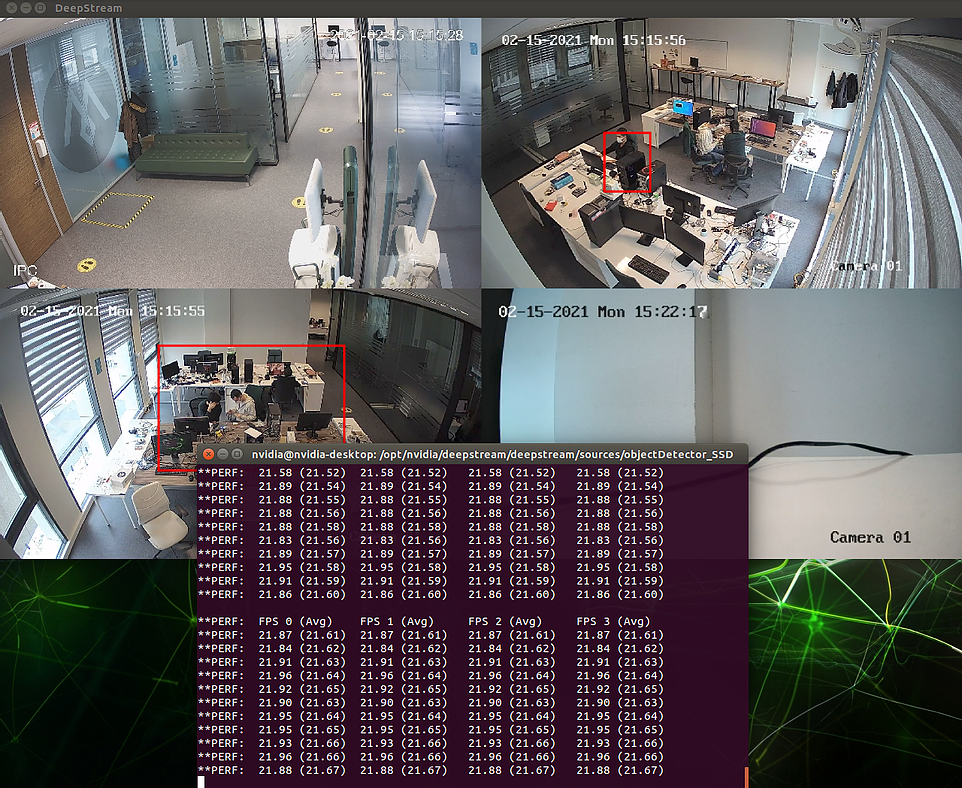

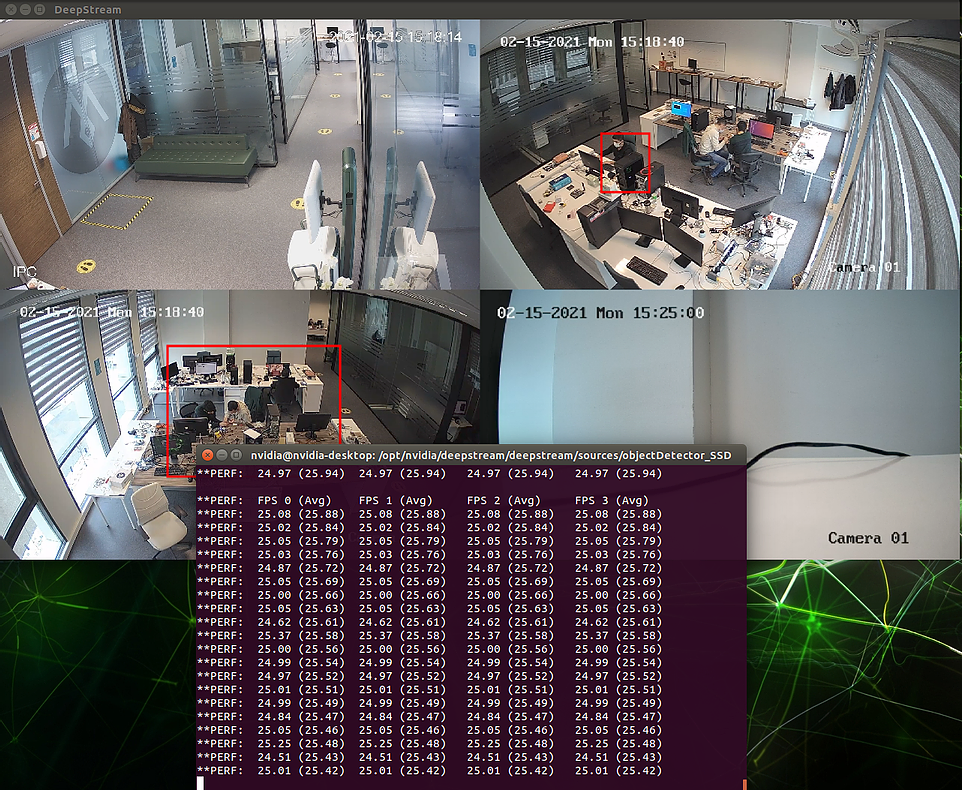

Jetson AGX Xavier - RTSP Results (1080p, 25 FPS)

FP32 -> 21-22 FPS * 4 (84-88 FPS)

FP16 -> 25-26 FPS (max) * 4 (100-104 FPS)

Thanks for reading.
