【跟踪实战】手把手教你SFSORT跟踪实战

# ******************************************************************** #
# ****************** Sharif University of Technology ***************** #
# *************** Department of Electrical Engineering *************** #
# ************************ Deep Learning Lab ************************* #
# ************************ SFSORT Version 4.2 ************************ #
# ************ Authors: Mehrdad Morsali - Zeinab Sharifi ************* #
# *********** mehrdadmorsali@gmail.com - zsh.5ooo@gmail.com ********** #
# ******************************************************************** #


# ******************************************************************** #
# ********************** Packages and Libraries ********************** #
# ******************************************************************** #
import numpy as np


use_lap=True
try:
    import lap
except ImportError:
    from scipy.optimize import linear_sum_assignment
    use_lap=False

# ******************************************************************** #
# ***************************** Classes ****************************** #
# ******************************************************************** #
class DotAccess(dict):
    """Provides dot.notation access to dictionary attributes"""
    __getattr__ = dict.get
    __setattr__ = dict.__setitem__
    __delattr__ = dict.__delitem__


class TrackState:
    """Enumeration of possible states of a track"""
    Active = 0
    Lost_Central = 1
    Lost_Marginal = 2


class Track:
    """Handles basic track attributes and operations"""

    def __init__(self, bbox, frame_id, track_id):
        """Track initialization"""
        self.track_id = track_id
        self.bbox = bbox
        self.state = TrackState.Active
        self.last_frame = frame_id

    def update(self, box, frame_id):
        """Updates a matched track"""
        self.bbox = box
        self.state = TrackState.Active
        self.last_frame = frame_id


class SFSORT:
    """Multi-Object Tracking System"""

    def __init__(self, args):
        """Initialize a tracker with given arguments"""
        args = DotAccess(args)

        # Register tracking arguments, setting default values if the argument is not provided
        if args.high_th is None:
            self.high_th = 0.6
        else:
            self.high_th = self.clamp(args.high_th, 0, 1)

        if args.match_th_first is None:
            self.match_th_first = 0.67
        else:
            self.match_th_first = self.clamp(args.match_th_first, 0, 0.67)

        if args.new_track_th is None:
            self.new_track_th = 0.7
        else:
            self.new_track_th = self.clamp(args.new_track_th, self.high_th, 1)

        if args.low_th is None:
            self.low_th = 0.1
        else:
            self.low_th = self.clamp(args.low_th, 0, self.high_th)

        if args.match_th_second is None:
            self.match_th_second = 0.3
        else:
            self.match_th_second = self.clamp(args.match_th_second, 0, 1)

        self.dynamic_tuning = False
        if args.dynamic_tuning is not None:
            self.cth = 0.5
            self.high_th_m = 0.0
            self.new_track_th_m = 0.0
            self.match_th_first_m = 0.0
            if args.dynamic_tuning:
                self.dynamic_tuning = True
                if args.cth is not None:
                    self.cth = self.clamp(args.cth, args.low_th, 1)
                if args.high_th_m is not None:
                    self.high_th_m = self.clamp(args.high_th_m, 0.02, 0.1)
                if args.new_track_th_m is not None:
                    self.new_track_th_m = self.clamp(args.new_track_th_m, 0.02, 0.08)
                if args.match_th_first_m is not None:
                    self.match_th_first_m = self.clamp(args.match_th_first_m, 0.02, 0.08)

        if args.marginal_timeout is None:
            self.marginal_timeout = 0
        else:
            self.marginal_timeout = self.clamp(args.marginal_timeout, 0, 500)

        if args.central_timeout is None:
            self.central_timeout = 0
        else:
            self.central_timeout = self.clamp(args.central_timeout, 0, 1000)

        self.l_margin = 0
        self.r_margin = 0
        if args.frame_width:
            self.r_margin = args.frame_width
            if args.horizontal_margin is not None:
                self.l_margin = self.clamp(args.horizontal_margin, 0, args.frame_width)
                self.r_margin = self.clamp(args.frame_width - args.horizontal_margin, 0, args.frame_width)

        self.t_margin = 0
        self.b_margin = 0
        if args.frame_height:
            self.b_margin = args.frame_height
            if args.vertical_margin is not None:
                self.t_margin = self.clamp(args.vertical_margin, 0, args.frame_height)
                self.b_margin = self.clamp(args.frame_height - args.vertical_margin , 0, args.frame_height)

        # Initialize the tracker
        self.frame_no = 0
        self.id_counter = 0
        self.active_tracks = []
        self.lost_tracks = []

    def update(self, boxes, scores):
        """Updates tracker with new detections"""
        # Adjust dynamic arguments
        hth = self.high_th
        nth = self.new_track_th
        mth = self.match_th_first
        if self.dynamic_tuning:
            count = len(scores[scores>self.cth])
            if count < 1:
              count = 1

            lnc = np.log10(count)
            hth = self.clamp(hth - (self.high_th_m * lnc), 0, 1)
            nth = self.clamp(nth + (self.new_track_th_m * lnc), hth, 1)
            mth = self.clamp(mth - (self.match_th_first_m * lnc), 0, 0.67)

        # Increase frame number
        self.frame_no += 1

        # Variable: Active tracks in the next frame
        next_active_tracks = []

        # Remove long-time lost tracks
        all_lost_tracks = self.lost_tracks.copy()
        for track in all_lost_tracks:
            if track.state == TrackState.Lost_Central:
                if self.frame_no - track.last_frame > self.central_timeout:
                    self.lost_tracks.remove(track)
            else:
                if self.frame_no - track.last_frame > self.marginal_timeout:
                    self.lost_tracks.remove(track)

        # Gather out all previous tracks
        track_pool = self.active_tracks + self.lost_tracks

        # Try to associate tracks with high score detections
        unmatched_tracks = np.array([])
        high_score = scores > hth
        if high_score.any():
            definite_boxes = boxes[high_score]
            definite_scores = scores[high_score]
            if track_pool:
                cost = self.calculate_cost(track_pool, definite_boxes)
                matches, unmatched_tracks, unmatched_detections = self.linear_assignment(cost, mth)
                # Update/Activate matched tracks
                for track_idx, detection_idx in matches:
                    box = definite_boxes[detection_idx]
                    track = track_pool[track_idx]
                    track.update(box, self.frame_no)
                    next_active_tracks.append(track)
                    # Remove re-identified tracks from lost list
                    if track in self.lost_tracks:
                        self.lost_tracks.remove(track)
                # Identify eligible unmatched detections as new tracks
                for detection_idx in unmatched_detections:
                    if definite_scores[detection_idx] > nth:
                        box = definite_boxes[detection_idx]
                        track = Track(box, self.frame_no, self.id_counter)
                        next_active_tracks.append(track)
                        self.id_counter += 1
            else:
             # Associate tracks of the first frame after object-free/null frames
                for detection_idx, score in enumerate(definite_scores):
                    if score > nth:
                        box = definite_boxes[detection_idx]
                        track = Track(box, self.frame_no, self.id_counter)
                        next_active_tracks.append(track)
                        self.id_counter += 1

        # Add unmatched tracks to the lost list
        unmatched_track_pool = []
        for track_address in unmatched_tracks:
            unmatched_track_pool.append(track_pool[track_address])
        next_lost_tracks = unmatched_track_pool.copy()

        # Try to associate remained tracks with intermediate score detections
        intermediate_score = np.logical_and((self.low_th < scores), (scores < hth))
        if intermediate_score.any():
            if len(unmatched_tracks):
                possible_boxes = boxes[intermediate_score]
                cost = self.calculate_cost(unmatched_track_pool, possible_boxes, iou_only=True)
                matches, unmatched_tracks, unmatched_detections = self.linear_assignment(cost, self.match_th_second)
                # Update/Activate matched tracks
                for track_idx, detection_idx in matches:
                    box = possible_boxes[detection_idx]
                    track = unmatched_track_pool[track_idx]
                    track.update(box, self.frame_no)
                    next_active_tracks.append(track)
                    # Remove re-identified tracks from lost list
                    if track in self.lost_tracks:
                        self.lost_tracks.remove(track)
                    next_lost_tracks.remove(track)

        # All tracks are lost if there are no detections!
        if not (high_score.any() or  intermediate_score.any()):
            next_lost_tracks = track_pool.copy()

        # Update the list of lost tracks
        for track in next_lost_tracks:
            if track not in self.lost_tracks:
                self.lost_tracks.append(track)
                u = track.bbox[0] + (track.bbox[2] - track.bbox[0])/2
                v = track.bbox[1] + (track.bbox[3] - track.bbox[1])/2
                if (self.l_margin < u < self.r_margin) and (self.t_margin < v < self.b_margin):
                    track.state = TrackState.Lost_Central
                else:
                    track.state = TrackState.Lost_Marginal

        # Update the list of active tracks
        self.active_tracks = next_active_tracks.copy()

        return np.asarray([[x.bbox, x.track_id] for x in next_active_tracks], dtype=object)

    @staticmethod
    def clamp(value, min_value, max_value):
        """ Clamps a value within the specified minimum and maximum bounds."""
        return max(min_value, min(value, max_value))

    @staticmethod
    def calculate_cost(tracks, boxes, iou_only=False):
        """Calculates the association cost based on IoU and box similarity"""
        eps = 1e-7
        active_boxes = [track.bbox for track in tracks]

        # Get the coordinates of bounding boxes
        b1_x1, b1_y1, b1_x2, b1_y2 = np.array(active_boxes).T
        b2_x1, b2_y1, b2_x2, b2_y2 = np.array(boxes).T

        h_intersection = (np.minimum(b1_x2[:, None], b2_x2) - np.maximum(b1_x1[:, None], b2_x1)).clip(0)
        w_intersection = (np.minimum(b1_y2[:, None], b2_y2) - np.maximum(b1_y1[:, None], b2_y1)).clip(0)

        # Calculate the intersection area
        intersection =  h_intersection * w_intersection

        # Calculate the union area
        box1_height = b1_x2 - b1_x1
        box2_height = b2_x2 - b2_x1
        box1_width = b1_y2 - b1_y1
        box2_width = b2_y2 - b2_y1

        box1_area = box1_height * box1_width
        box2_area = box2_height * box2_width

        union = (box2_area + box1_area[:, None] - intersection + eps)

        # Calculate the IoU
        iou = intersection / union

        if iou_only:
            return 1.0 - iou

        # Calculate the DIoU
        centerx1 = (b1_x1 + b1_x2) / 2.0
        centery1 = (b1_y1 + b1_y2) / 2.0
        centerx2 = (b2_x1 + b2_x2) / 2.0
        centery2 = (b2_y1 + b2_y2) / 2.0
        inner_diag = np.abs(centerx1[:, None] - centerx2) + np.abs(centery1[:, None] - centery2)

        xxc1 = np.minimum(b1_x1[:, None], b2_x1)
        yyc1 = np.minimum(b1_y1[:, None], b2_y1)
        xxc2 = np.maximum(b1_x2[:, None], b2_x2)
        yyc2 = np.maximum(b1_y2[:, None], b2_y2)
        outer_diag = np.abs(xxc2 - xxc1) + np.abs(yyc2 - yyc1)

        diou = iou - (inner_diag / outer_diag)

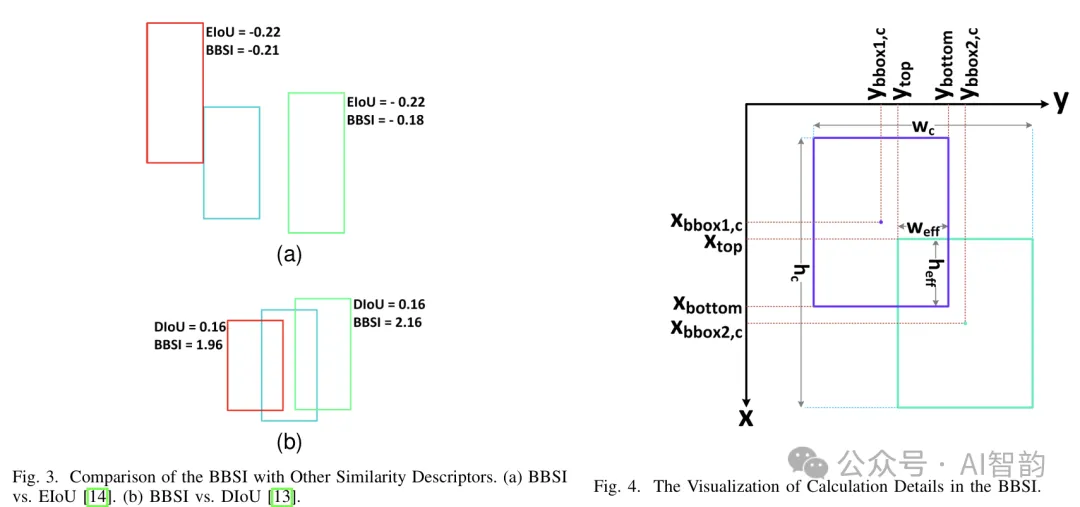

        # Calculate the BBSI
        delta_w = np.abs(box2_width - box1_width[:, None])
        sw = w_intersection / np.abs(w_intersection + delta_w + eps)

        delta_h = np.abs(box2_height - box1_height[:, None])
        sh = h_intersection / np.abs(h_intersection + delta_h + eps)

        bbsi = diou + sh + sw

        # Normalize the BBSI
        cost = (bbsi)/3.0

        return 1.0 - cost

    @staticmethod
    def linear_assignment(cost_matrix, thresh):
        """Linear assignment"""
        if cost_matrix.size == 0:
            return np.empty((0, 2), dtype=int), tuple(range(cost_matrix.shape[0])), tuple(range(cost_matrix.shape[1]))

        if use_lap:
            _, x, y = lap.lapjv(cost_matrix, extend_cost=True, cost_limit=thresh)
            matches = [[ix, mx] for ix, mx in enumerate(x) if mx >= 0]
            unmatched_a = np.where(x < 0)[0]
            unmatched_b = np.where(y < 0)[0]
        else:
            row_ind, col_ind = linear_sum_assignment(cost_matrix)
            matches = np.array([[row, col] for row, col in zip(row_ind, col_ind) if cost_matrix[row, col] <= thresh])
            matched_rows = set(row_ind)
            matched_cols = set(col_ind)
            unmatched_a = np.array([i for i in range(cost_matrix.shape[0]) if i not in matched_rows])
            unmatched_b = np.array([j for j in range(cost_matrix.shape[1]) if j not in matched_cols])

        return matches, unmatched_a, unmatched_b


class DotAccess(dict):
    __getattr__ = dict.get
    __setattr__ = dict.__setitem__
    __delattr__ = dict.__delitem__

class TrackState:
    Active = 0         # 活跃状态
    Lost_Central = 1   # 中心区域丢失
    Lost_Marginal = 2  # 边缘区域丢失

class Track:
    def __init__(self, bbox, frame_id, track_id):
        self.track_id = track_id
        self.bbox = bbox  # [x1, y1, x2, y2]
        self.state = TrackState.Active
        self.last_frame = frame_id  # 最后出现帧号

def __init__(self, args):
    # 参数边界约束
    self.high_th = self.clamp(args.high_th, 0, 1) or 0.6
    self.match_th_first = self.clamp(args.match_th_first, 0, 0.67) or 0.67
    self.new_track_th = self.clamp(args.new_track_th, self.high_th, 1) or 0.7
    self.low_th = self.clamp(args.low_th, 0, self.high_th) or 0.1
    self.match_th_second = self.clamp(args.match_th_second, 0, 1) or 0.3

    # 动态阈值调整参数
    if args.dynamic_tuning:
        self.dynamic_tuning = True
        # 动态调整因子
        self.cth = args.cth or 0.5
        self.high_th_m = args.high_th_m or 0.05
        self.new_track_th_m = args.new_track_th_m or 0.05
        self.match_th_first_m = args.match_th_first_m or 0.05

    # 丢失轨迹超时设置
    self.marginal_timeout = args.marginal_timeout or 0
    self.central_timeout = args.central_timeout or 0

    # 画面区域划分
    self.l_margin = args.horizontal_margin or 0
    self.r_margin = args.frame_width - self.l_margin
    self.t_margin = args.vertical_margin or 0
    self.b_margin = args.frame_height - self.t_margin

def update(self, boxes, scores):
    # 1. 动态阈值调整
    if self.dynamic_tuning:
        count = len(scores[scores > self.cth])
        lnc = np.log10(count) if count > 0 else 0
        hth = self.clamp(self.high_th - (self.high_th_m * lnc), 0, 1)
        nth = self.clamp(self.new_track_th + (self.new_track_th_m * lnc), hth, 1)
        mth = self.clamp(self.match_th_first - (self.match_th_first_m * lnc), 0, 0.67)

    # 2. 清理超时轨迹
    current_time = self.frame_no
    for track in self.lost_tracks[:]:
        timeout = self.central_timeout if track.state == TrackState.Lost_Central else self.marginal_timeout
        if current_time - track.last_frame > timeout:
            self.lost_tracks.remove(track)

    # 3. 轨迹池合并
    track_pool = self.active_tracks + self.lost_tracks

    # 4. 高置信度检测匹配
    high_mask = scores > hth
    if high_mask.any():
        # 计算代价矩阵
        cost_matrix = self.calculate_cost(track_pool, boxes[high_mask])
        # 匈牙利算法匹配
        matches, unmatched_tracks, unmatched_detections = self.linear_assignment(cost_matrix, mth)

        # 更新匹配轨迹
        for track_idx, det_idx in matches:
            track = track_pool[track_idx]
            track.update(boxes[high_mask][det_idx], current_time)

        # 创建新轨迹
        for det_idx in unmatched_detections:
            if scores[high_mask][det_idx] > nth:
                new_track = Track(boxes[high_mask][det_idx], current_time, self.id_counter)
                self.id_counter += 1
                self.active_tracks.append(new_track)

    # 5. 中置信度检测匹配
    mid_mask = (scores > self.low_th) & (scores < hth)
    if mid_mask.any() and unmatched_tracks:
        # 仅使用IoU计算代价
        cost_matrix = self.calculate_cost([track_pool[i] for i in unmatched_tracks],
                                         boxes[mid_mask], iou_only=True)
        matches, _, _ = self.linear_assignment(cost_matrix, self.match_th_second)

        # 更新匹配轨迹
        for track_idx, det_idx in matches:
            track = track_pool[unmatched_tracks[track_idx]]
            track.update(boxes[mid_mask][det_idx], current_time)

    # 6. 更新轨迹状态
    for track in self.active_tracks:
        if track.last_frame < current_time:
            # 确定丢失区域类型
            center_x = (track.bbox[0] + track.bbox[2]) / 2
            center_y = (track.bbox[1] + track.bbox[3]) / 2
            if (self.l_margin < center_x < self.r_margin and
                self.t_margin < center_y < self.b_margin):
                track.state = TrackState.Lost_Central
            else:
                track.state = TrackState.Lost_Marginal
            self.lost_tracks.append(track)
            self.active_tracks.remove(track)

    return [(track.bbox, track.track_id) for track in self.active_tracks]

@staticmethod
def calculate_cost(tracks, boxes, iou_only=False):
    # 提取坐标
    b1_x1, b1_y1, b1_x2, b1_y2 = np.array([t.bbox for t in tracks]).T
    b2_x1, b2_y1, b2_x2, b2_y2 = np.array(boxes).T

    # 计算交集
    inter_x1 = np.maximum(b1_x1[:, None], b2_x1)
    inter_y1 = np.maximum(b1_y1[:, None], b2_y1)
    inter_x2 = np.minimum(b1_x2[:, None], b2_x2)
    inter_y2 = np.minimum(b1_y2[:, None], b2_y2)
    inter_area = np.maximum(inter_x2 - inter_x1, 0) * np.maximum(inter_y2 - inter_y1, 0)

    # 计算并集
    area1 = (b1_x2 - b1_x1) * (b1_y2 - b1_y1)
    area2 = (b2_x2 - b2_x1) * (b2_y2 - b2_y1)
    union_area = area1[:, None] + area2 - inter_area

    # 计算IoU
    iou = inter_area / (union_area + 1e-7)

    if iou_only:
        return 1 - iou

    # 计算DIoU
    center_x1 = (b1_x1 + b1_x2) / 2
    center_y1 = (b1_y1 + b1_y2) / 2
    center_x2 = (b2_x1 + b2_x2) / 2
    center_y2 = (b2_y1 + b2_y2) / 2
    center_distance = np.abs(center_x1[:, None] - center_x2) + np.abs(center_y1[:, None] - center_y2)

    enclose_x1 = np.minimum(b1_x1[:, None], b2_x1)
    enclose_y1 = np.minimum(b1_y1[:, None], b2_y1)
    enclose_x2 = np.maximum(b1_x2[:, None], b2_x2)
    enclose_y2 = np.maximum(b1_y2[:, None], b2_y2)
    enclose_diag = np.abs(enclose_x2 - enclose_x1) + np.abs(enclose_y2 - enclose_y1)

    diou = iou - center_distance / (enclose_diag + 1e-7)

    # 计算BBSI
    w1 = b1_y2 - b1_y1
    h1 = b1_x2 - b1_x1
    w2 = b2_y2 - b2_y1
    h2 = b2_x2 - b2_x1

    w_sim = inter_area / (inter_area + np.abs(w1[:, None] - w2) + 1e-7)
    h_sim = inter_area / (inter_area + np.abs(h1[:, None] - h2) + 1e-7)

    bbsi = (diou + w_sim + h_sim) / 3
    return 1 - bbsi

graph TD
    A[开始] --> B[初始化参数]
    B --> C[读取新帧]
    C --> D[动态阈值调整]
    D --> E[清理超时轨迹]
    E --> F[合并活跃和丢失轨迹池]
    F --> G{高置信度检测?}
    G -- 是 --> H[计算BBSI代价矩阵]
    H --> I[匈牙利算法匹配]
    I --> J[更新匹配轨迹]
    J --> K[创建新轨迹]
    K --> L{中置信度检测?}
    G -- 否 --> L
    L -- 是 --> M[计算IoU代价矩阵]
    M --> N[匈牙利算法匹配]
    N --> O[更新匹配轨迹]
    O --> P[更新轨迹状态]
    L -- 否 --> P
    P --> Q[输出活跃轨迹]
    Q --> R{还有帧?}
    R -- 是 --> C
    R -- 否 --> S[结束]

    subgraph 动态阈值调整
    D --> D1[计算高置信目标数]
    D1 --> D2[计算对数因子]
    D2 --> D3[调整高置信阈值]
    D3 --> D4[调整新轨迹阈值]
    D4 --> D5[调整匹配阈值]
    end

    subgraph 轨迹状态更新
    P --> P1[遍历活跃轨迹]
    P1 --> P2{最后出现时间 < 当前帧?}
    P2 -- 是 --> P3[计算中心位置]
    P3 --> P4{在中央区域?}
    P4 -- 是 --> P5[标记为中央丢失]
    P4 -- 否 --> P6[标记为边缘丢失]
    P5 --> P7[移入丢失轨迹列表]
    P6 --> P7
    end

    subgraph 代价计算
    H --> H1[计算IoU]
    H1 --> H2[计算DIoU]
    H2 --> H3[计算宽高相似度]
    H3 --> H4[组合为BBSI]
    end

graph LR
A[目标数量] --> B[对数计算]
B --> C[调整高置信阈值]
B --> D[调整新轨迹阈值]
B --> E[调整匹配阈值]

graph TD
A[轨迹丢失] --> B{中心在画面中央?}
B -- 是 --> C[中央丢失-长超时]
B -- 否 --> D[边缘丢失-短超时]

graph LR
A[DIoU] --> D[BBSI]
B[宽度相似度] --> D
C[高度相似度] --> D

import numpy as np
import cv2

from ultralytics import YOLO
from ultralytics.utils.torch_utils import select_device
from random import randrange

from SFSORT import SFSORT
# Instantiate an object detector
# To use YOLOv8n without fine-tuning, replace 'best.pt' with 'yolov8n.pt'
model = YOLO('yolov8m.pt', 'detect')

# Check for GPU availability
device = select_device('0')
# Devolve the processing to selected devices
model.to(device)

# Load the video file
cap = cv2.VideoCapture('Sample.mp4')

# Get the frame rate, frame width, and frame height
frame_rate = cap.get(cv2.CAP_PROP_FPS)
frame_width = int(cap.get(cv2.CAP_PROP_FRAME_WIDTH))
frame_height = int(cap.get(cv2.CAP_PROP_FRAME_HEIGHT))

# Define the MP4 codec and create a VideoWriter object
fourcc = cv2.VideoWriter_fourcc(*'mp4v')
out = cv2.VideoWriter('output.mp4', fourcc, 30.0, (frame_width, frame_height))

# Organize tracker arguments into standard format
tracker_arguments = {"dynamic_tuning": True, "cth": 0.5,
                      "high_th": 0.6, "high_th_m": 0.1,
                      "match_th_first": 0.67, "match_th_first_m": 0.05,
                      "match_th_second": 0.2, "low_th": 0.1,
                      "new_track_th": 0.7, "new_track_th_m": 0.1,
                      "marginal_timeout": (7 * frame_rate // 10),
                      "central_timeout": frame_rate,
                      "horizontal_margin": frame_width // 10,
                      "vertical_margin": frame_height // 10,
                      "frame_width": frame_width,
                      "frame_height": frame_height}

# Instantiate a tracker
tracker = SFSORT(tracker_arguments)

# Define a color list for track visualization
colors = {}

# Process each frame of the video
while cap.isOpened():
   # Load the frame
  ret, frame = cap.read()
  if not ret:
      break

  # Detect people in the frame
  prediction = model.predict(frame, imgsz=(800,1440), conf=0.1, iou=0.45,
                              half=False, device=device, max_det=99, classes=0,
                              verbose=False)

  # Exclude additional information from the predictions
  prediction_results = prediction[0].boxes.cpu().numpy()

  # Update the tracker with the latest detections
  tracks = tracker.update(prediction_results.xyxy, prediction_results.conf)

  # Skip additional analysis if the tracker is not currently tracking anyone
  if len(tracks) == 0:
      continue

  # Extract tracking data from the tracker
  bbox_list = tracks[:, 0]
  track_id_list = tracks[:, 1]

  # Visualize tracks
  for idx, (track_id, bbox) in enumerate(zip(track_id_list, bbox_list)):
    # Define a new color for newly detected tracks
    if track_id not in colors:
        colors[track_id] = (randrange(255), randrange(255), randrange(255))

    color = colors[track_id]

    # Extract the bounding box coordinates
    x0, y0, x1, y1 = map(int, bbox)

    # Draw the bounding boxes on the frame
    annotated_frame = cv2.rectangle(frame, (x0, y0), (x1, y1), color, 2)
    # Put the track label on the frame alongside the bounding box
    cv2.putText(annotated_frame, str(track_id), (x0, y0-5),
                cv2.FONT_HERSHEY_SIMPLEX, 0.9, color, 2)

  # Write the frame to the output video file
  out.write(annotated_frame)

# Release everything when done
cap.release()
out.release()

import numpy as np  # 数值计算
import cv2  # OpenCV图像处理
from ultralytics import YOLO  # YOLOv8目标检测
from ultralytics.utils.torch_utils import select_device  # GPU设备选择
from random import randrange  # 随机颜色生成
from SFSORT import SFSORT  # 自定义跟踪算法

model = YOLO('yolov8m.pt', 'detect')  # 加载中规模YOLOv8预训练模型
device = select_device('0')  # 选择GPU设备（'0'表示第一块GPU）
model.to(device)  # 将模型移至GPU

cap = cv2.VideoCapture('Sample.mp4')  # 打开输入视频
frame_rate = cap.get(cv2.CAP_PROP_FPS)  # 获取帧率
frame_width = int(cap.get(cv2.CAP_PROP_FRAME_WIDTH))  # 帧宽度
frame_height = int(cap.get(cv2.CAP_PROP_FRAME_HEIGHT))  # 帧高度

fourcc = cv2.VideoWriter_fourcc(*'mp4v')  # 定义MP4编码器
out = cv2.VideoWriter('output.mp4', fourcc, 30.0, (frame_width, frame_height))  # 创建输出视频

tracker_arguments = {
    "dynamic_tuning": True,  # 启用动态参数调整
    "cth": 0.5,  # 中心区域置信度阈值
    "high_th": 0.6,  # 高置信度阈值
    # ... (其他算法参数)
    "frame_width": frame_width,
    "frame_height": frame_height
}
tracker = SFSORT(tracker_arguments)  # 实例化跟踪器
colors = {}  # 存储ID-color映射的字典

while cap.isOpened():
    ret, frame = cap.read()
    if not ret: break

    # YOLO目标检测
    prediction = model.predict(
        frame,
        imgsz=(800,1440),  # 自定义输入尺寸（非标准640）
        conf=0.1,  # 低置信度阈值（提高召回率）
        iou=0.45,  # NMS交并比阈值
        classes=0   # 只检测'person'类别
    )

    # 解析检测结果
    prediction_results = prediction[0].boxes.cpu().numpy()
    bboxes = prediction_results.xyxy  # 边界框坐标
    confs = prediction_results.conf    # 置信度分数

    # 多目标跟踪
    tracks = tracker.update(bboxes, confs)

    # 可视化跟踪结果
    for track in tracks:
        track_id = int(track[1])
        bbox = track[0].astype(int)

        # 为新ID分配随机颜色
        if track_id not in colors:
            colors[track_id] = (randrange(255), randrange(255), randrange(255))

        # 绘制边界框和ID
        cv2.rectangle(frame, (bbox[0], bbox[1]), (bbox[2], bbox[3]), colors[track_id], 2)
        cv2.putText(frame, str(track_id), (bbox[0], bbox[1]-5),
                   cv2.FONT_HERSHEY_SIMPLEX, 0.9, colors[track_id], 2)

    # 写入输出帧
    out.write(frame)

graph TD
A[视频帧输入] --> B[YOLOv8行人检测]
B --> C{检测到行人?}
C -- 是 --> D[SFSORT更新跟踪状态]
C -- 否 --> E[跳过后处理]
D --> F[分配轨迹ID]
F --> G[绘制边界框/ID]
G --> H[写入输出视频]
H --> I{下一帧?}
I -- 是 --> A
I -- 否 --> J[释放资源]
