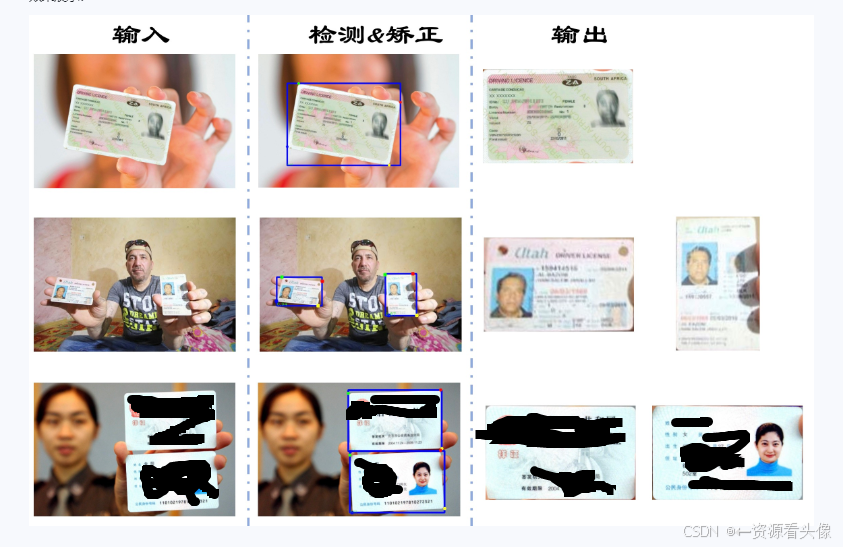

[C#]winform基于scrfd深度学习算法实现卡证身份证检测矫正

import cv2
from modelscope.pipelines import pipeline
from modelscope.utils.constant import  Tasks

card_detection = pipeline(Tasks.card_detection, 'damo/cv_resnet_carddetection_scrfd34gkps')
img_path = 'https://design3d.oss-cn-qingdao.aliyuncs.com/MS_test_img/card_detection.jpg'
result = card_detection(img_path)

# if you want to show the result, you can run
from modelscope.utils.cv.image_utils import draw_card_detection_result
from modelscope.preprocessors.image import LoadImage
import matplotlib.pyplot as plt
img = LoadImage.convert_to_ndarray(img_path)
cv2.imwrite('srcImg.jpg', img)
img_list = draw_card_detection_result('srcImg.jpg', result)
for i, img in enumerate(img_list):
    plt.figure()
    plt.imshow(img_list[i])

# <image_path> image_width image_height
bbox_x1 bbox_y1 bbox_x2 bbox_y2 (<keypoint,3>*4)
...
...
# <image_path> image_width image_height
bbox_x1 bbox_y1 bbox_x2 bbox_y2 (<keypoint,3>*4)
...
...

import os
import tempfile
from modelscope.msdatasets import MsDataset
from modelscope.metainfo import Trainers
from modelscope.trainers import build_trainer
from modelscope.hub.snapshot_download import snapshot_download

model_id = 'damo/cv_resnet_carddetection_scrfd34gkps'
ms_ds_widerface = MsDataset.load('SyntheticCards_mini', namespace='shaoxuan')  # remove '_mini' for full dataset

data_path = ms_ds_widerface.config_kwargs['split_config']
train_dir = data_path['train']
val_dir = data_path['validation']

def get_name(dir_name):
    names = [i for i in os.listdir(dir_name) if not i.startswith('_')]
    return names[0]

train_root = train_dir + '/' + get_name(train_dir) + '/'
val_root = val_dir + '/' + get_name(val_dir) + '/'
cache_path = snapshot_download(model_id)
tmp_dir = tempfile.TemporaryDirectory().name
if not os.path.exists(tmp_dir):
    os.makedirs(tmp_dir)

def _cfg_modify_fn(cfg):
        cfg.checkpoint_config.interval = 1
        cfg.log_config.interval = 10
        cfg.evaluation.interval = 1
        cfg.data.workers_per_gpu = 1
        cfg.data.samples_per_gpu = 2
        return cfg

kwargs = dict(
        cfg_file=os.path.join(cache_path, 'mmcv_scrfd.py'),
        work_dir=tmp_dir,
        train_root=train_root,
        val_root=val_root,
        total_epochs=1,  # run #epochs
        cfg_modify_fn=_cfg_modify_fn)

trainer = build_trainer(name=Trainers.card_detection_scrfd, default_args=kwargs)
trainer.train()

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Diagnostics;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using OpenCvSharp;

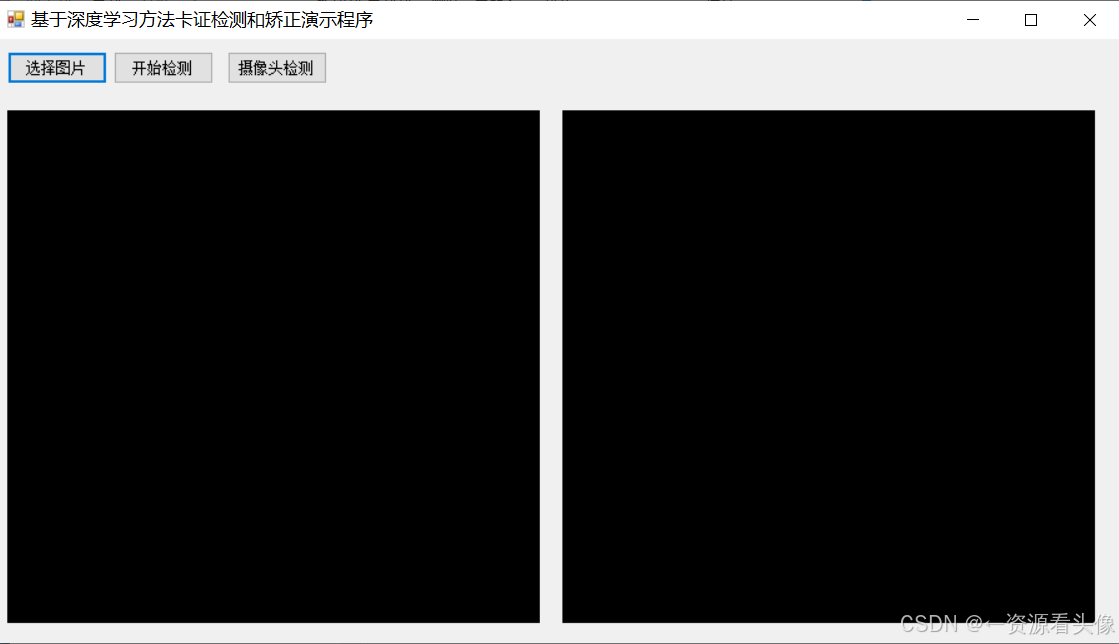

namespace FIRC
{
    public partial class Form1 : Form
    {
        Mat src = new Mat();
        CardDetector cd = new CardDetector();
        public Form1()
        {
            InitializeComponent();
        }

        private void button1_Click(object sender, EventArgs e)
        {
            OpenFileDialog openFileDialog = new OpenFileDialog();
            openFileDialog.Filter = "图文件(*.*)|*.jpg;*.png;*.jpeg;*.bmp";
            openFileDialog.RestoreDirectory = true;
            openFileDialog.Multiselect = false;
            if (openFileDialog.ShowDialog() == DialogResult.OK)
            {

                src = Cv2.ImRead(openFileDialog.FileName);
                pictureBox1.Image = OpenCvSharp.Extensions.BitmapConverter.ToBitmap(src);


            }


        }

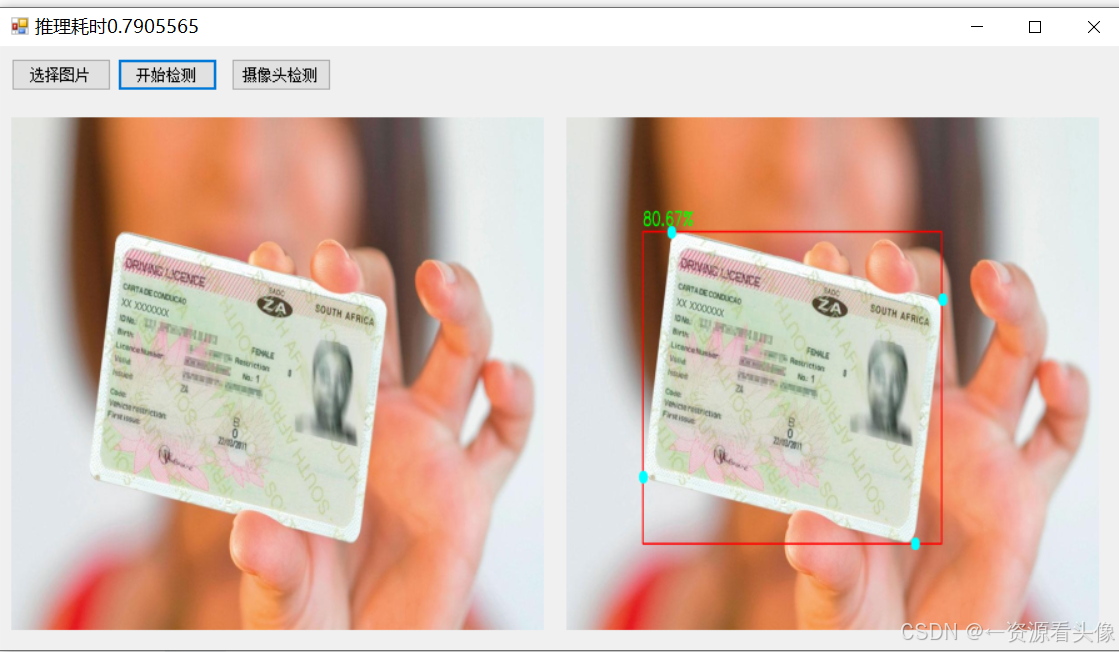

        private void button2_Click(object sender, EventArgs e)
        {
            if(pictureBox1.Image==null)
            {
                return;
            }
            Stopwatch sw = new Stopwatch();
            sw.Start();
            var results =cd.Inference(src);
            sw.Stop();
            this.Text = "推理耗时" + sw.Elapsed.TotalSeconds;
            var resultMat = cd.DrawImage(src.Clone(),results);
            var correctImages = cd.GetCorrectImage(src, results);
            for(int i=0;i<correctImages.Count;i++)
            {
                Cv2.ImShow("result",correctImages[i]);
                Cv2.WaitKey(0);
            }
            pictureBox2.Image= OpenCvSharp.Extensions.BitmapConverter.ToBitmap(resultMat); //Mat转Bitmap
        }

        private void Form1_Load(object sender, EventArgs e)
        {
            cd.LoadWeights(Application.StartupPath+ "\\weights\\carddetection_scrfd34gkps.onnx");
        }

        private void button3_Click(object sender, EventArgs e)
        {
            VideoCapture capture = new VideoCapture(0);
            if (!capture.IsOpened())
            {
                Console.WriteLine("video not open!");
                return;
            }
            Mat frame = new Mat();
            var sw = new Stopwatch();
            int fps = 0;
            while (true)
            {

                capture.Read(frame);
                if (frame.Empty())
                {
                    Console.WriteLine("data is empty!");
                    break;
                }
                sw.Start();
                var results = cd.Inference(frame);
                cd.DrawImage(frame,results);
                sw.Stop();
                fps = Convert.ToInt32(1 / sw.Elapsed.TotalSeconds);
                sw.Reset();
                Cv2.PutText(frame, "FPS=" + fps, new OpenCvSharp.Point(30, 30), HersheyFonts.HersheyComplex, 1.0, new Scalar(255, 0, 0), 3);
                //显示结果
                Cv2.ImShow("Result", frame);
                int key = Cv2.WaitKey(10);
                if (key == 27)
                    break;
            }

            capture.Release();
        }
    }
}
