Beyond Spatial Frequency: Pixel-wise Temporal Frequency-based Deepfake Video Detection

🔴 传统的检测器是通过简单的堆叠时空的空间、频率特征，导致了无法有效的检测到像素级的时间伪影。

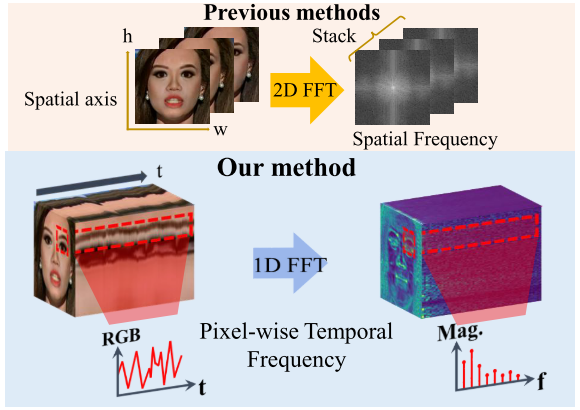

🟢 作者针对时间伪影，提出利用像素级的时间频谱，在时间轴上采用一维的傅里叶变换。为了更好的定位到经常出现时间不自然的变换区域，作者提出了基于弱监督学习的方式，通过Attention Proposal Module (APM)来识别兴趣区域。

Preliminary Analysis

作者发现，在伪造视频中，眼睛区域的存在着波动现象，认为通过关注可能包含不一致的有限区域，可以更有效地检测到时间伪影。

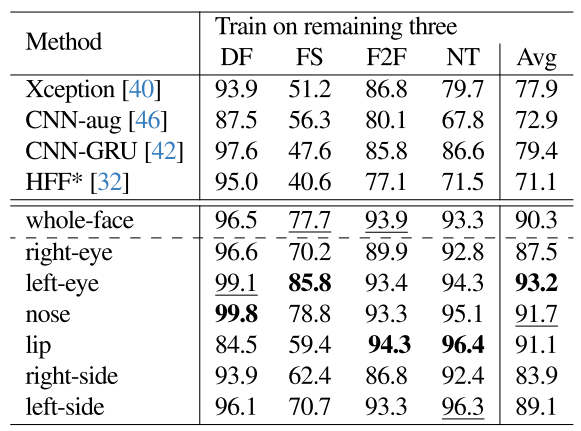

作者在前期的实验中设计了ResNet-18作为分类器，时间频谱作为输入与spatial-temporal的模型进行对比，发现不同的伪造合成方法，存在波动的区域也不同；

Proposed Method

⚠️ 目前的代码实现并未开源，因此，本文的代码均为个人实现！
⛔ 请注意：目前的代码均在阶段测试，还未在实际应用中实现！

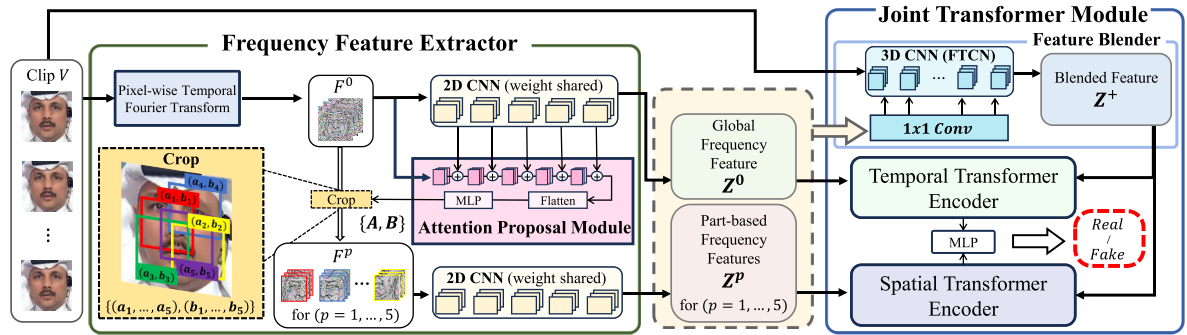

作者提出的架构中，包含了频率特征提取器以及联合transformer模块。其中，频率特征提取器用于提取时间频谱以及定位兴趣区域；联合transformer模块联合了多兴趣区域的时间频谱。

3.1 频率特征提取

Step1 作者首先通过中值滤波器对视频片段进行处理，来消除主导分量的影响：I=\text{gray}(I-median(I)) ，随后对每一个像素在时间维度上一维的傅里叶变换，由于每个值都是实值，作者忽略了幅度谱的对称部分，为此，得到的时间频谱为（\frac{T}{2} \times H \times W ）

import torch
import numpy as np
from kornia.filters import median_blur

def preprocess_video(video: torch.Tensor):
    """
    video: shape (T, H, W, C), C=3, RGB
    return: frequency representation of shape (T//2, H, W)
    """
    T, H, W, C = video.shape
    assert C == 3, "Input must be RGB"
    video = video.to(torch.float32)

    filtered_video = torch.zeros_like(video)
    for t in range(T):
        frame = video[t, :, :, :].permute(2, 0, 1)  # (C, H, W)
        filtered_frame = median_blur(frame.unsqueeze(0), kernel_size=3)  # 3x3中值滤波
        filtered_video[t, :, :, :] = filtered_frame[0].permute(1, 2, 0)  # 转回 (H, W, C)

    video_sub = video - filtered_video # (T, H, W, C)

    # Step 3: grayscale
    gray_video = (
        0.299 * video_sub[..., 0] +
        0.587 * video_sub[..., 1] +
        0.114 * video_sub[..., 2]
    )  # shape: (T, H, W)

    # Step 4: FFT along time (dim=0)
    fft_result = torch.fft.fft(gray_video, dim=0)  # (T, H, W), complex
    freq_rep = torch.abs(fft_result[:T // 2])  # keep first half (real spectrum)
    return freq_rep
# ==== Test ====
video = torch.randn((32, 224, 224, 3), dtype=torch.float16).cuda()
video = video.to(torch.float32)

freq_features = preprocess_video(video)
print(freq_features.shape)  # torch.Size([16, 224, 224])

Step2 在得到时间频谱后，作者将时间频谱输入到二维卷积网络中，在文章中采用ResNet-50作为二维网络，最终输出每一个块以及最后一个块的输出特征图

class ResNetBackbone(nn.Module):
    def __init__(self, input_channels=16):
        super().__init__()
        resnet = resnet50(pretrained=False)
        resnet.conv1 = nn.Conv2d(input_channels, 64, kernel_size=7, stride=2, padding=3, bias=False)
        self.layer0 = nn.Sequential(resnet.conv1, resnet.bn1, resnet.relu, resnet.maxpool)
        self.layer1 = resnet.layer1  # 56x56
        self.layer2 = resnet.layer2  # 28x28
        self.layer3 = resnet.layer3  # 14x14
        self.layer4 = resnet.layer4  # 7x7

    def forward(self, x):
        z0 = []
        x = self.layer0(x); z0.append(x)
        x = self.layer1(x); z0.append(x)
        x = self.layer2(x); z0.append(x)
        x = self.layer3(x); z0.append(x)
        x = self.layer4(x); z0.append(x)
        return x, z0  # list of feature maps

ResNet2d = ResNetBackbone(16).cuda()
Z0, z = ResNet2d(freq_features)
print(Z0.shape) # torch.Size([1, 2048, 7, 7])

Step3 作者在ResNet的每一个块中提取出特征图信息，也就是上一个代码块中的z，并设计了APM模块对时间频谱$F_0$和每个块的输出特征图提取五个兴趣区域：[A, B] = APM(F_0, z_0^{(i)})

APM生成了五个区域的坐标mask来提取兴趣区域得到时间频谱F_p=F_0 \odot M_p .其中M_p 存储的是每个区域的的中心点的位置。

由于patch块是中间模块的输出，先随机定义一下，文中定义块的大小为88，因此，随机初始化F_p 为：

patches = torch.randn((5,16,88,88), dtype=torch.float16).cuda()

👉 将上述得到的patch块特征，再分别输入到共享权重的ResNet-50网络中，得到局部频域特征$Z_p$,需要注意的是，$Z_p$的维度$Z_0$并不相同

Block	`F₀` 输出大小 (224x224)	`Fₚ` 输出大小 (88x88)
Layer0	112×112	44×44
Layer1	56×56	22×22
Layer2	28×28	11×11
Layer3	14×14	5×5
Layer4	7×7	2×2

3.2 联合Transformer

Step1 全局的频率特征Z_0 和局部频率特征Z_p 分别通过了$1 \times 1$的卷积核，并相加求和，所有的卷积核初始值为0 ：\sum Conv_{1 \times 1}(z_{i}) + Conv(Z_p) ，最后对结果再通过两层$1 \times 1$的卷积核，均采用ReLU激活函数；

import torch
import torch.nn as nn
import torch.nn.functional as F

class ConvFuser(nn.Module):
    def __init__(self, channels, num_parts=5):
        super().__init__()
        self.C = channels
        self.num_parts = num_parts

        # 1×1 conv for z₀⁽ⁱ⁾
        self.conv0 = nn.Conv2d(self.C, self.C, kernel_size=1)

        # 1×1 conv for each zₚ⁽ⁱ⁾
        self.convp = nn.ModuleList([
            nn.Conv2d(self.C, self.C, kernel_size=1) for _ in range(self.num_parts)
        ])

        # Convf: 2-layer conv, 中间降维，后恢复通道，第二层权重初始化为 0
        mid = self.C // 2
        self.convf1 = nn.Conv2d(self.C, mid, kernel_size=1)
        self.convf2 = nn.Conv2d(mid, self.C, kernel_size=1)
        nn.init.zeros_(self.convf2.weight)
        nn.init.zeros_(self.convf2.bias)

    def forward(self, z0_i, zp_i_list):
        """
        z0_i: tensor of shape (B, C, H, W)
        zp_i_list: list of 5 tensors, each of shape (B, C, h, w)
        """
        B, C, H, W = z0_i.shape
        assert len(zp_i_list) == self.num_parts

        # Conv0 on global
        z0_conv = self.conv0(z0_i)

        # Interpolate + Conv on each zp
        zp_conv_sum = 0
        for i in range(self.num_parts):
            zp = zp_i_list[i]
            zp_up = F.interpolate(zp, size=(H, W), mode='bilinear', align_corners=False)
            zp_conv = self.convp[i](zp_up)
            zp_conv_sum += zp_conv

        fused = z0_conv + zp_conv_sum  # shape: (B, C, H, W)

        # Apply Convf: 2-layer conv + ReLU
        out = self.convf2(F.relu(self.convf1(fused)))

        return out  # shape: (B, C, H, W)
fuser = ConvFuser(channels=2048)

z0_i = torch.randn(1, 2048, 7, 7)  # global
zp_i_list = [torch.randn(1, 2048, 2, 2) for _ in range(5)]  # 5 parts-from Fp→ResNet

# 融合
z_fused = fuser(z0_i, zp_i_list)  # shape: (1, 2048, 7, 7)
print(z_fused.shape)

Step2 将原始的视频帧数据传到3D-Resenet网络中，在不同块的输出中加入z_fused混合特征，得到Blended Feature Z^+

Step3 为了更好的结合全局和局部的关系，作者基于每个特征在二维卷积、三维卷积的最后一个块的输出，设计了STE来结合局部频率特征和空间伪影特征，利用时序变压器编码器(TTE)利用变压器将时序频率特征与时序上下文信息结合起来，促进对时序工件的更全面的理解。

import torch
import torch.nn as nn
import torch.nn.functional as F


class LinearProjector(nn.Module):
    def __init__(self, in_dim, out_dim):
        super().__init__()
        self.linear = nn.Linear(in_dim, out_dim)

    def forward(self, x):  # x: (B, C, H, W)
        B, C, H, W = x.shape
        x = x.view(B, C, -1).permute(0, 2, 1)  # (B, H*W, C)
        return self.linear(x)  # (B, H*W, out_dim)


class TransformerEncoderBlock(nn.Module):
    def __init__(self, dim, num_heads=8, dropout=0.1):
        super().__init__()
        encoder_layer = nn.TransformerEncoderLayer(
            d_model=dim,
            nhead=num_heads,
            dim_feedforward=dim * 4,
            dropout=dropout,
            activation='relu',
            batch_first=True
        )
        self.encoder = nn.TransformerEncoder(encoder_layer, num_layers=1)

    def forward(self, x):  # (B, N, C)
        return self.encoder(x)


class FinalIntegrationHead(nn.Module):
    def __init__(self, dim_spatial=1024, dim_temporal=1024, num_classes=1):
        super().__init__()
        self.classifier = nn.Sequential(
            nn.Linear(dim_spatial + dim_temporal, 512),
            nn.ReLU(),
            nn.Linear(512, num_classes)
        )

    def forward(self, f_spatial, f_temporal):  # (B, C), (B, C)
        fused = torch.cat([f_spatial, f_temporal], dim=1)
        return self.classifier(fused)  # (B, num_classes)


class TransformerIntegrationModule(nn.Module):
    def __init__(self):
        super().__init__()
        self.proj_z0 = LinearProjector(in_dim=2048, out_dim=1024)
        self.proj_zp = LinearProjector(in_dim=2048, out_dim=1024)
        self.ste = TransformerEncoderBlock(dim=1024)
        self.tte = TransformerEncoderBlock(dim=1024)
        self.head = FinalIntegrationHead()

    def forward(self, Z_plus4, z0_4, zp4_list):
        B = Z_plus4.size(0)

        # --- Temporal Transformer ---
        z0_proj = self.proj_z0(z0_4)  # (B, 49, 1024)
        zplus_flat = Z_plus4.flatten(3).permute(0, 2, 1, 3).reshape(B, -1, 1024)  # (B, 16*14*14, 1024)
        tte_input = torch.cat([zplus_flat, z0_proj], dim=1)  # (B, N, 1024)
        f_temporal = self.tte(tte_input).mean(dim=1)  # (B, 1024)

        # --- Spatial Transformer ---
        zp_proj_list = [self.proj_zp(zp) for zp in zp4_list]  # each: (B, 49, 1024)
        zp_cat = torch.cat(zp_proj_list, dim=1)  # (B, 245, 1024)
        ste_input = torch.cat([zplus_flat, zp_cat], dim=1)  # (B, N+245, 1024)
        f_spatial = self.ste(ste_input).mean(dim=1)  # (B, 1024)

        # --- Final Classifier ---
        y_hat = self.head(f_spatial, f_temporal)  # (B, 1)
        return y_hat


# ==== 模拟输入 ====
B = 2  # batch size
z0_4 = torch.randn(B, 2048, 7, 7)                     # 全局频率特征
zp4_list = [torch.randn(B, 2048, 7, 7) for _ in range(5)]  # 5个局部频率特征
Z_plus4 = torch.randn(B, 1024, 16, 14, 14)            # 3D ResNet融合特征

# ==== 构建模型并前向 ====
model = TransformerIntegrationModule()
y_hat = model(Z_plus4, z0_4, zp4_list)

print("y_hat shape:", y_hat.shape)  # should be (B, 1)
