YOLO11优化：遥感目标检测 | 专为低质量遥感图像设计的边缘 - 高斯聚合（EGA）模块，解决低空间分辨率、传感器噪声、目标模糊、低光照退化和部分遮挡等限制

class C3k2(C2f):
    """Faster Implementation of CSP Bottleneck with 2 convolutions."""

    def __init__(self, c1, c2, n=1, c3k=False, e=0.5, g=1, shortcut=True):
        """Initializes the C3k2 module, a faster CSP Bottleneck with 2 convolutions and optional C3k blocks."""
        super().__init__(c1, c2, n, shortcut, g, e)
        self.m = nn.ModuleList(
            C3k(self.c, self.c, 2, shortcut, g) if c3k else Bottleneck(self.c, self.c, shortcut, g) for _ in range(n)
        )


class C3k(C3):
    """C3k is a CSP bottleneck module with customizable kernel sizes for feature extraction in neural networks."""

    def __init__(self, c1, c2, n=1, shortcut=True, g=1, e=0.5, k=3):
        """Initializes the C3k module with specified channels, number of layers, and configurations."""
        super().__init__(c1, c2, n, shortcut, g, e)
        c_ = int(c2 * e)  # hidden channels
        # self.m = nn.Sequential(*(RepBottleneck(c_, c_, shortcut, g, k=(k, k), e=1.0) for _ in range(n)))
        self.m = nn.Sequential(*(Bottleneck(c_, c_, shortcut, g, k=(k, k), e=1.0) for _ in range(n)))

class PSABlock(nn.Module):
    """
    PSABlock class implementing a Position-Sensitive Attention block for neural networks.

    This class encapsulates the functionality for applying multi-head attention and feed-forward neural network layers
    with optional shortcut connections.

    Attributes:
        attn (Attention): Multi-head attention module.
        ffn (nn.Sequential): Feed-forward neural network module.
        add (bool): Flag indicating whether to add shortcut connections.

    Methods:
        forward: Performs a forward pass through the PSABlock, applying attention and feed-forward layers.

    Examples:
        Create a PSABlock and perform a forward pass
        >>> psablock = PSABlock(c=128, attn_ratio=0.5, num_heads=4, shortcut=True)
        >>> input_tensor = torch.randn(1, 128, 32, 32)
        >>> output_tensor = psablock(input_tensor)
    """

    def __init__(self, c, attn_ratio=0.5, num_heads=4, shortcut=True) -> None:
        """Initializes the PSABlock with attention and feed-forward layers for enhanced feature extraction."""
        super().__init__()

        self.attn = Attention(c, attn_ratio=attn_ratio, num_heads=num_heads)
        self.ffn = nn.Sequential(Conv(c, c * 2, 1), Conv(c * 2, c, 1, act=False))
        self.add = shortcut

    def forward(self, x):
        """Executes a forward pass through PSABlock, applying attention and feed-forward layers to the input tensor."""
        x = x + self.attn(x) if self.add else self.attn(x)
        x = x + self.ffn(x) if self.add else self.ffn(x)
        return x





class C2PSA(nn.Module):
    """
    C2PSA module with attention mechanism for enhanced feature extraction and processing.

    This module implements a convolutional block with attention mechanisms to enhance feature extraction and processing
    capabilities. It includes a series of PSABlock modules for self-attention and feed-forward operations.

    Attributes:
        c (int): Number of hidden channels.
        cv1 (Conv): 1x1 convolution layer to reduce the number of input channels to 2*c.
        cv2 (Conv): 1x1 convolution layer to reduce the number of output channels to c.
        m (nn.Sequential): Sequential container of PSABlock modules for attention and feed-forward operations.

    Methods:
        forward: Performs a forward pass through the C2PSA module, applying attention and feed-forward operations.

    Notes:
        This module essentially is the same as PSA module, but refactored to allow stacking more PSABlock modules.

    Examples:
        >>> c2psa = C2PSA(c1=256, c2=256, n=3, e=0.5)
        >>> input_tensor = torch.randn(1, 256, 64, 64)
        >>> output_tensor = c2psa(input_tensor)
    """

    def __init__(self, c1, c2, n=1, e=0.5):
        """Initializes the C2PSA module with specified input/output channels, number of layers, and expansion ratio."""
        super().__init__()
        assert c1 == c2
        self.c = int(c1 * e)
        self.cv1 = Conv(c1, 2 * self.c, 1, 1)
        self.cv2 = Conv(2 * self.c, c1, 1)

        self.m = nn.Sequential(*(PSABlock(self.c, attn_ratio=0.5, num_heads=self.c // 64) for _ in range(n)))

    def forward(self, x):
        """Processes the input tensor 'x' through a series of PSA blocks and returns the transformed tensor."""
        a, b = self.cv1(x).split((self.c, self.c), dim=1)
        b = self.m(b)
        return self.cv2(torch.cat((a, b), 1))


class C2fPSA(C2f):
    """
    C2fPSA module with enhanced feature extraction using PSA blocks.

    This class extends the C2f module by incorporating PSA blocks for improved attention mechanisms and feature extraction.

    Attributes:
        c (int): Number of hidden channels.
        cv1 (Conv): 1x1 convolution layer to reduce the number of input channels to 2*c.
        cv2 (Conv): 1x1 convolution layer to reduce the number of output channels to c.
        m (nn.ModuleList): List of PSA blocks for feature extraction.

    Methods:
        forward: Performs a forward pass through the C2fPSA module.
        forward_split: Performs a forward pass using split() instead of chunk().

    Examples:
        >>> import torch
        >>> from ultralytics.models.common import C2fPSA
        >>> model = C2fPSA(c1=64, c2=64, n=3, e=0.5)
        >>> x = torch.randn(1, 64, 128, 128)
        >>> output = model(x)
        >>> print(output.shape)
    """

    def __init__(self, c1, c2, n=1, e=0.5):
        """Initializes the C2fPSA module, a variant of C2f with PSA blocks for enhanced feature extraction."""
        assert c1 == c2
        super().__init__(c1, c2, n=n, e=e)
        self.m = nn.ModuleList(PSABlock(self.c, attn_ratio=0.5, num_heads=self.c // 64) for _ in range(n))

        self.cv2 = nn.ModuleList(
            nn.Sequential(Conv(x, c2, 3), Conv(c2, c2, 3), nn.Conv2d(c2, 4 * self.reg_max, 1)) for x in ch
        )
        self.cv3 = nn.ModuleList(
            nn.Sequential(
                nn.Sequential(DWConv(x, x, 3), Conv(x, c3, 1)),
                nn.Sequential(DWConv(c3, c3, 3), Conv(c3, c3, 1)),
                nn.Conv2d(c3, self.nc, 1),
            )
            for x in ch
        )

######################################## LEGNet by AI Little monster start  #######################################


import torch
import torch.nn as nn
from ultralytics.nn.modules import Conv,C2f
from ultralytics.nn.modules.block import Bottleneck, C2f,C3k,C3k2
from timm.models.layers import DropPath
import math

class Conv_Extra(nn.Module):
    def __init__(self, channel):
        super(Conv_Extra, self).__init__()
        self.block = nn.Sequential(Conv(channel, 64, 1),
                                   Conv(64, 64, 3),
                                   Conv(64, channel, 1, act=False))

    def forward(self, x):
        out = self.block(x)
        return out


class Scharr(nn.Module):
    def __init__(self, channel):
        super(Scharr, self).__init__()
        # 定义Scharr滤波器
        scharr_x = torch.tensor([[-3., 0., 3.], [-10., 0., 10.], [-3., 0., 3.]], dtype=torch.float32).unsqueeze(
            0).unsqueeze(0)
        scharr_y = torch.tensor([[-3., -10., -3.], [0., 0., 0.], [3., 10., 3.]], dtype=torch.float32).unsqueeze(
            0).unsqueeze(0)
        self.conv_x = nn.Conv2d(channel, channel, kernel_size=3, padding=1, groups=channel, bias=False)
        self.conv_y = nn.Conv2d(channel, channel, kernel_size=3, padding=1, groups=channel, bias=False)
        # 将Sobel滤波器分配给卷积层
        self.conv_x.weight.data = scharr_x.repeat(channel, 1, 1, 1)
        self.conv_y.weight.data = scharr_y.repeat(channel, 1, 1, 1)
        self.norm = nn.BatchNorm2d(channel)
        self.conv_extra = Conv_Extra(channel)

    def forward(self, x):
        # show_feature(x)
        # 应用卷积操作
        edges_x = self.conv_x(x)
        edges_y = self.conv_y(x)
        # 计算边缘和高斯分布强度（可以选择不同的方式进行融合，这里使用平方和开根号）
        scharr_edge = torch.sqrt(edges_x ** 2 + edges_y ** 2)
        scharr_edge = self.act(self.norm(scharr_edge))
        out = self.conv_extra(x + scharr_edge)
        # show_feature(out)

        return out


class Gaussian(nn.Module):
    def __init__(self, dim, size, sigma, feature_extra=True):
        super().__init__()
        self.feature_extra = feature_extra
        gaussian = self.gaussian_kernel(size, sigma)
        gaussian = nn.Parameter(data=gaussian, requires_grad=False).clone()
        self.gaussian = nn.Conv2d(dim, dim, kernel_size=size, stride=1, padding=int(size // 2), groups=dim, bias=False)
        self.gaussian.weight.data = gaussian.repeat(dim, 1, 1, 1)
        self.norm = nn.BatchNorm2d(dim)
        self.act = nn.SiLU()
        if feature_extra == True:
            self.conv_extra = Conv_Extra(dim)

    def forward(self, x):
        edges_o = self.gaussian(x)
        gaussian = self.act(self.norm(edges_o))
        if self.feature_extra == True:
            out = self.conv_extra(x + gaussian)
        else:
            out = gaussian
        return out

    def gaussian_kernel(self, size: int, sigma: float):
        kernel = torch.FloatTensor([
            [(1 / (2 * math.pi * sigma ** 2)) * math.exp(-(x ** 2 + y ** 2) / (2 * sigma ** 2))
             for x in range(-size // 2 + 1, size // 2 + 1)]
            for y in range(-size // 2 + 1, size // 2 + 1)
        ]).unsqueeze(0).unsqueeze(0)
        return kernel / kernel.sum()

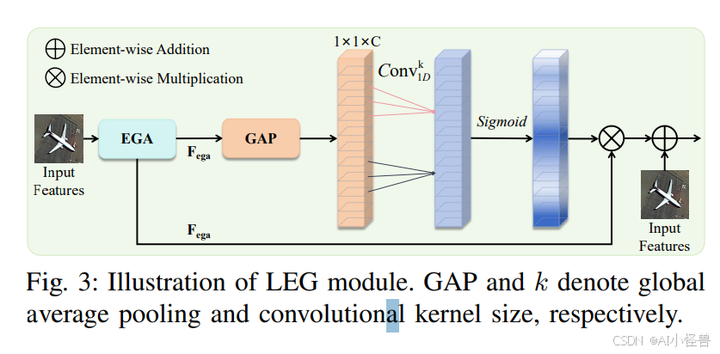

class LFEA(nn.Module):
    def __init__(self, channel):
        super(LFEA, self).__init__()
        self.channel = channel
        t = int(abs((math.log(channel, 2) + 1) / 2))
        k = t if t % 2 else t + 1
        self.conv2d = self.block = Conv(channel, channel, 3)
        self.avg_pool = nn.AdaptiveAvgPool2d(1)
        self.conv1d = nn.Conv1d(1, 1, kernel_size=k, padding=(k - 1) // 2, bias=False)
        self.sigmoid = nn.Sigmoid()
        self.norm = nn.BatchNorm2d(channel)

    def forward(self, c, att):
        att = c * att + c
        att = self.conv2d(att)
        wei = self.avg_pool(att)
        wei = self.conv1d(wei.squeeze(-1).transpose(-1, -2)).transpose(-1, -2).unsqueeze(-1)
        wei = self.sigmoid(wei)
        x = self.norm(c + att * wei)

        return x


class LFE_Module(nn.Module):
    def __init__(self,
                 dim,
                 stage=1,
                 mlp_ratio=2,
                 drop_path=0.1,
                 ):
        super().__init__()
        self.stage = stage
        self.drop_path = DropPath(drop_path) if drop_path > 0. else nn.Identity()

        mlp_hidden_dim = int(dim * mlp_ratio)
        mlp_layer: List[nn.Module] = [
            Conv(dim, mlp_hidden_dim, 1),
            nn.Conv2d(mlp_hidden_dim, dim, 1, bias=False)]

        self.mlp = nn.Sequential(*mlp_layer)
        self.LFEA = LFEA(dim)

        if stage == 0:
            self.Scharr_edge = Scharr(dim)
        else:
            self.gaussian = Gaussian(dim, 5, 1.0)
        self.norm = nn.BatchNorm2d(dim)

    def forward(self, x: Tensor) -> Tensor:
        # show_feature(x)
        if self.stage == 0:
            att = self.Scharr_edge(x)
        else:
            att = self.gaussian(x)
        x_att = self.LFEA(x, att)
        x = x + self.norm(self.drop_path(self.mlp(x_att)))
        return x

from ultralytics.nn.block.LEGNet import C3k2_LFE:


# Ultralytics YOLO 🚀, AGPL-3.0 license
# YOLO11 object detection model with P3-P5 outputs. For Usage examples see https://docs.ultralytics.com/tasks/detect

# Parameters
nc: 80 # number of classes
scales: # model compound scaling constants, i.e. 'model=yolo11n.yaml' will call yolo11.yaml with scale 'n'
  # [depth, width, max_channels]
  n: [0.50, 0.25, 1024] # summary: 319 layers, 2624080 parameters, 2624064 gradients, 6.6 GFLOPs
  s: [0.50, 0.50, 1024] # summary: 319 layers, 9458752 parameters, 9458736 gradients, 21.7 GFLOPs
  m: [0.50, 1.00, 512] # summary: 409 layers, 20114688 parameters, 20114672 gradients, 68.5 GFLOPs
  l: [1.00, 1.00, 512] # summary: 631 layers, 25372160 parameters, 25372144 gradients, 87.6 GFLOPs
  x: [1.00, 1.50, 512] # summary: 631 layers, 56966176 parameters, 56966160 gradients, 196.0 GFLOPs

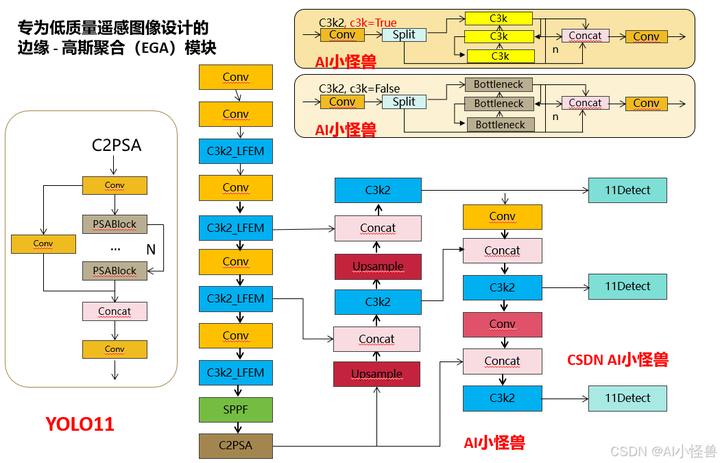

# YOLO11n backbone
backbone:
  # [from, repeats, module, args]
  - [-1, 1, Conv, [64, 3, 2]] # 0-P1/2
  - [-1, 1, Conv, [128, 3, 2]] # 1-P2/4
  - [-1, 2, C3k2_LFEM, [256, False, 0.25]]
  - [-1, 1, Conv, [256, 3, 2]] # 3-P3/8
  - [-1, 2, C3k2_LFEM, [512, False, 0.25]]
  - [-1, 1, Conv, [512, 3, 2]] # 5-P4/16
  - [-1, 2, C3k2_LFEM, [512, True]]
  - [-1, 1, Conv, [1024, 3, 2]] # 7-P5/32
  - [-1, 2, C3k2_LFEM, [1024, True]]
  - [-1, 1, SPPF, [1024, 5]] # 9
  - [-1, 2, C2PSA, [1024]] # 10

# YOLO11n head
head:
  - [-1, 1, nn.Upsample, [None, 2, "nearest"]]
  - [[-1, 6], 1, Concat, [1]] # cat backbone P4
  - [-1, 2, C3k2, [512, False]] # 13

  - [-1, 1, nn.Upsample, [None, 2, "nearest"]]
  - [[-1, 4], 1, Concat, [1]] # cat backbone P3
  - [-1, 2, C3k2, [256, False]] # 16 (P3/8-small)

  - [-1, 1, Conv, [256, 3, 2]]
  - [[-1, 13], 1, Concat, [1]] # cat head P4
  - [-1, 2, C3k2, [512, False]] # 19 (P4/16-medium)

  - [-1, 1, Conv, [512, 3, 2]]
  - [[-1, 10], 1, Concat, [1]] # cat head P5
  - [-1, 2, C3k2, [1024, True]] # 22 (P5/32-large)

  - [[16, 19, 22], 1, Detect, [nc]] # Detect(P3, P4, P5)
