研发管理经验总结：3 私有化文件存储minio

原创

李福春

发布于 2025-07-05 23:36:57

9300

代码可运行

文章被收录于专栏：研发管理经验研发管理经验

运行总次数：0

代码可运行

1 故事-森林文件危机

橡树议会紧急召开。狐狸菲菲拍桌："松鼠的存粮数据又丢了！我们需要私有化存储方案！"

猫头鹰奥利振翅而起："MinIO符合S3标准，分布式架构可横向扩展。"他在树皮上画出拓扑图，"就像我们鸟巢的分层结构。"

树懒萨姆慢吞吞举起树皮笔记："本地Docker部署只需一分钟。"他展示终端日志，"9000端口API，9001管理界面，挂载磁盘就能用。"

猎狗戴夫龇牙："我测试过穿透攻击，数据加密可靠。"他甩出测试报告，"多租户权限控制比狐狸的树洞还严实。"

菲菲舔舔爪子："客户端SDK兼容Java，上传下载像摘浆果一样简单。"她投影出控制台界面，"十分钟就能建好存储桶。"

月光下，四位长老碰触前爪达成决议。次日黎明，MinIO集群在森林数据中心启动，首个存储桶"data"开始接收松鼠的库存数据。当第一份备份成功写入时，连夜枭都吹起了口哨——这次，森林的数据终于安全了。

2 需求场景

私有化交付场景，需要有一个对象存储的组件，对文件进行统一的管理。

minio是一个不错的选择。符合S3标准。

部署步骤

本地docker部署

一分钟启动指令：

docker run --name minio --publish 9009:9000 --publish 9001:9001
--volume  /data:/data  --env MINIO_DEFAULT_BUCKETS='data,conf'
--env MINIO_FORCE_NEW_KEYS="yes" --env MINIO_ACCESS_KEY="carter"
--env MINIO_SECRET_KEY="Carter123!"  --restart=always -d bitnami/minio:2022.3.5

Plain Text

启动日志：

$ docker logs -f minio 06:18:49.99 06:18:49.99 Welcome to the Bitnami minio
container 06:18:49.99 Subscribe to project updates by watching
https://github.com/bitnami/bitnami-docker-minio 06:18:49.99 Submit
issues and feature requests at https://github.com/bitnami/bitnami-docker-minio/issues
06:18:49.99 06:18:50.00 INFO  ==> ** Starting MinIO setup **minio 06:18:50.01 INFO  ==>
Starting MinIO in background...minio 06:18:55.03 INFO  ==> Adding local Minio host to 'mc'
configuration...minio 06:18:55.06 INFO  ==> Creating default buckets...Bucket created
successfully `local/cycube`.Bucket created successfully `local/cycubedev`.minio 06:18:55.21
INFO  ==> Stopping MinIO... 06:18:56.27 INFO  ==> ** MinIO setup finished! **
minio 06:18:56.28 INFO
==> ** Starting MinIO **WARNING: MINIO_ACCESS_KEY and MINIO_SECRET_KEY are deprecated.
Please use MINIO_ROOT_USER and MINIO_ROOT_PASSWORDAPI: http://172.17.0.7:9000
http://127.0.0.1:9000
Console: http://172.17.0.7:9001 http://127.0.0.1:9001
Documentation: https://docs.min.io

Plain Text

9000端口是api端口，9001是后台管理系统端口；

更多配置：

配置	用途
--volume /data:/data --env	挂载磁盘到容器
--env MINIO_HTTP_TRACE=/opt/bitnami/minio/log/minio.log	指定http的日志输出目录
MINIO_DEFAULT_BUCKETS='cycube_local,cycube_dev'	启动即创建的bucket

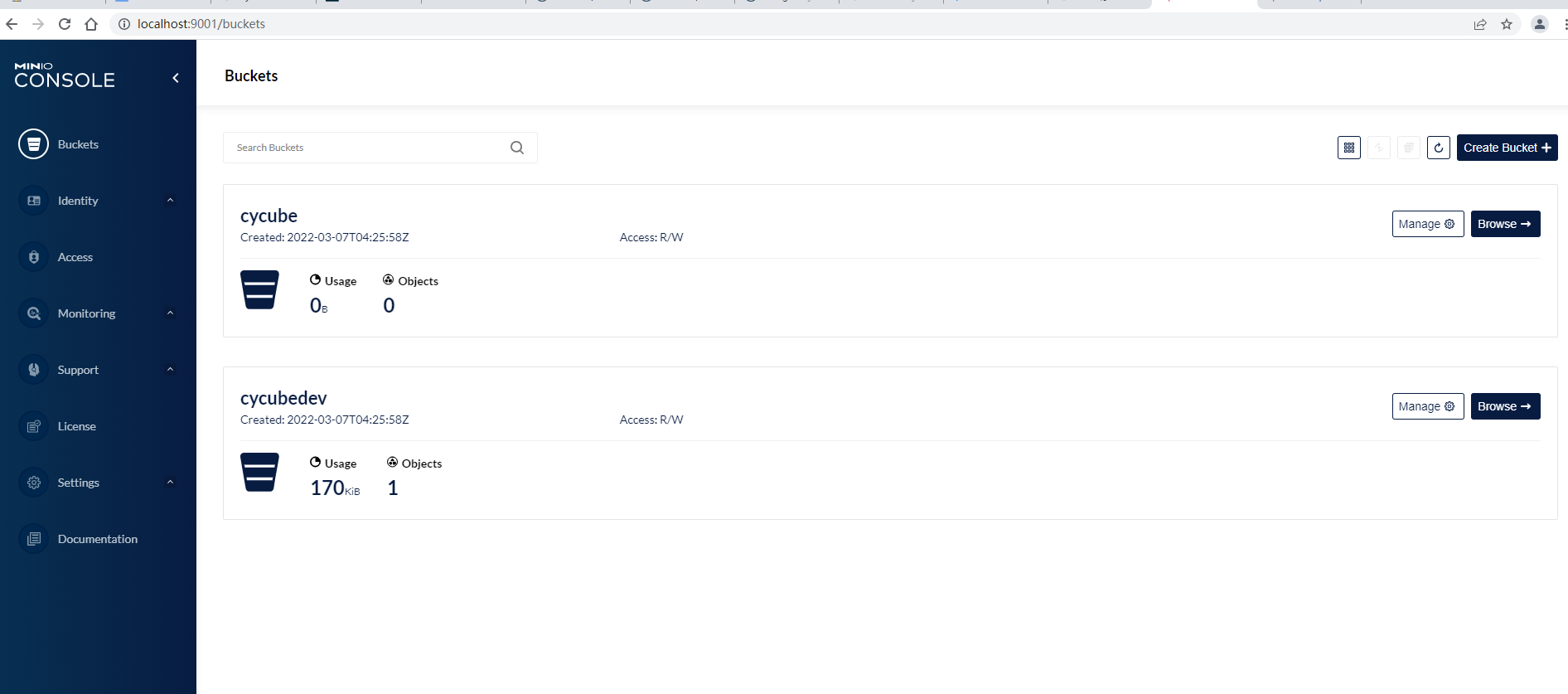

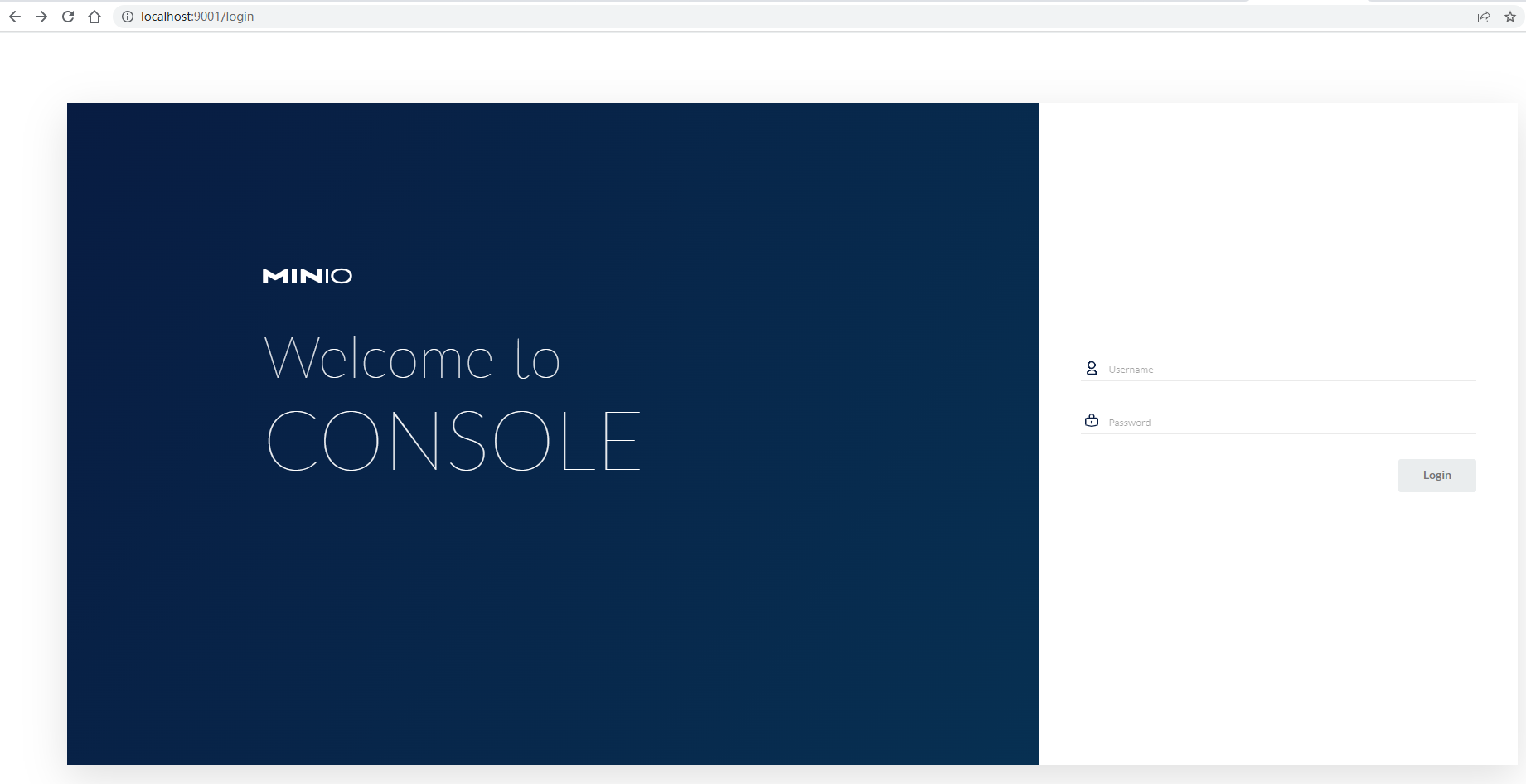

访问控制后台：

主页：

k8s部署

文件挂载 10.10.1.24的nas盘，通过hostpath方式挂载到容器：

---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: minio
spec:
  replicas: 1
  serviceName: svc-minio
  selector:
    matchLabels:
      name: minio
  template:
    metadata:
      labels:
        name: minio
    spec:
      nodeSelector:
        node: node24
      imagePullSecrets:
        - name: ali-sh2-cycube-images-mid
      volumes:
        - name: miniopv-icourt
          hostPath:
            path: /data/dev/minio/
            type: DirectoryOrCreate
      containers:
        - name: minio
          image: registry.cn-shanghai.aliyuncs.com/cycube/mid:bitnami-minio-2022.3.5
          imagePullPolicy: IfNotPresent
          volumeMounts:
          - name: miniopv-icourt
            mountPath: "/data"
            subPath: "minio-dev"
          env:
            - name: MINIO_DEFAULT_BUCKETS
              value: "data,config"
            - name: MINIO_ROOT_USER
              value: "carter"
            - name: MINIO_ROOT_PASSWORD
              value: "Carter123!"
          resources:
            limits:
              cpu: 500m
              memory: 1024Mi
            requests:
              cpu: 250m
              memory: 512Mi
          ports:
            - name: minioadmin
              containerPort: 9001
              protocol: TCP
            - name: minioapi
              containerPort: 9000
              protocol: TCP






---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: minio
  name: svc-minio
spec:
  ports:
    - name: minioadmin
      port: 9001
      targetPort: 9001
      protocol: TCP
    - name: minioapi
      port: 9000
      targetPort: 9000
      protocol: TCP
  selector:
    name: minio
  sessionAffinity: None


---
apiVersion: v1
kind: Service
metadata:
  name: svc-minio-n
spec:
  ports:
    - name: minioadmin-port
      port: 9001
      protocol: TCP
      targetPort: 9001
  selector:
    name: minio
  sessionAffinity: None
  type: NodePort

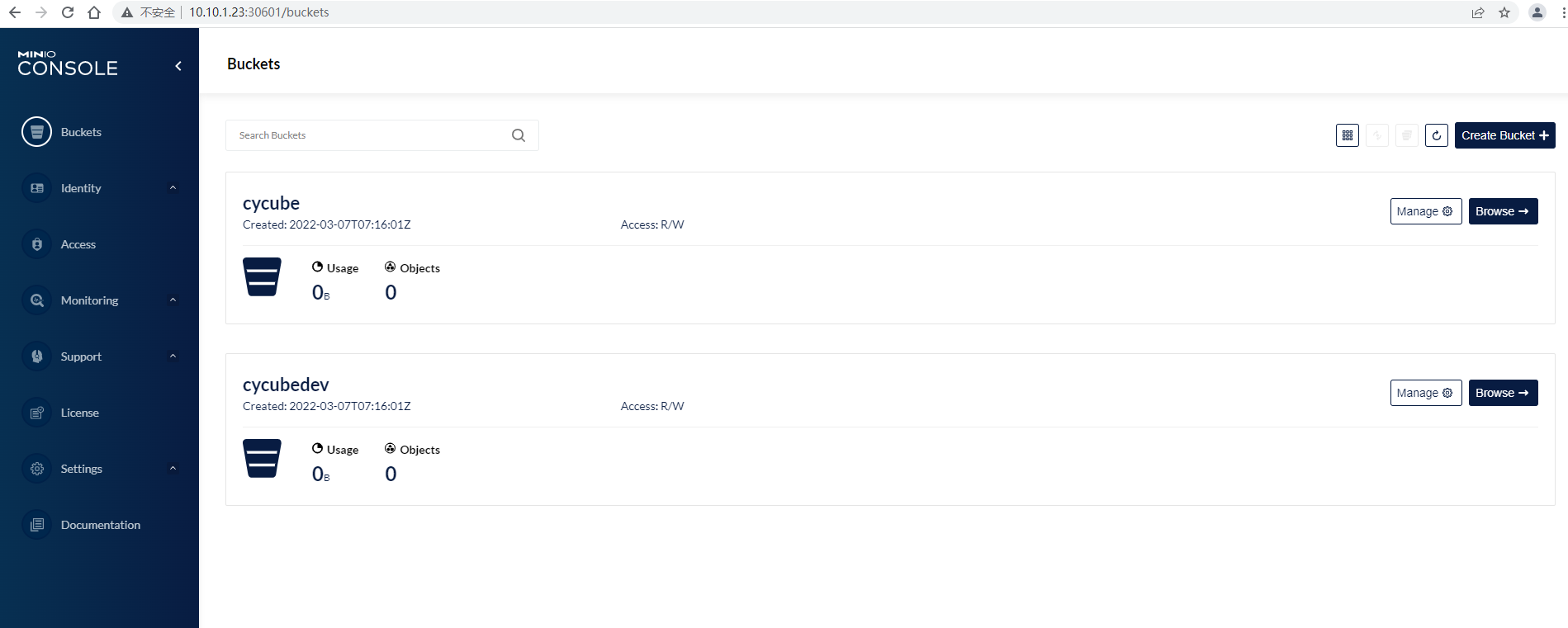

访问地址：通过nodePort方式访问，或者通过nginx转发：

  # Proxy requests to the bucket "photos" to MinIO server running on port 9000
 location /photos/ {
   proxy_set_header X-Real-IP $remote_addr;
   proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
   proxy_set_header X-Forwarded-Proto $scheme;
   proxy_set_header Host $http_host;


   proxy_connect_timeout 300;
   # Default is HTTP/1, keepalive is only enabled in HTTP/1.1
   proxy_http_version 1.1;
   proxy_set_header Connection "";
   chunked_transfer_encoding off;


   proxy_pass http://localhost:9000;
 }


 # Proxy any other request to the application server running on port 9001
 location / {
   proxy_set_header X-Real-IP $remote_addr;
   proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
   proxy_set_header X-Forwarded-Proto $scheme;
   proxy_set_header Host $http_host;


   proxy_connect_timeout 300;
   # Default is HTTP/1, keepalive is only enabled in HTTP/1.1
   proxy_http_version 1.1;
   proxy_set_header Connection "";
   chunked_transfer_encoding off;


   proxy_pass http://localhost:9001;
 }

接入步骤

客户端上传下载测试：

minio-java-sdk :

package com.joysky.joycode.lib.code.tool;




import java.io.File;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
import java.security.NoSuchAlgorithmException;
import java.security.InvalidKeyException;
import java.util.UUID;


import org.apache.http.entity.ContentType;
import org.xmlpull.v1.XmlPullParserException;


import io.minio.MinioClient;
import io.minio.errors.MinioException;


public class FileUploader {


  private static final String bucketName = "data";
 public static final String  fileName ="/data/son1.jpg";


  public static void main(String[] args) throws NoSuchAlgorithmException, IOException, InvalidKeyException, XmlPullParserException {
    try {
      // 使用MinIO服务的URL，端口，Access key和Secret key创建一个MinioClient对象
      MinioClient minioClient = new MinioClient("http://lifcHost:9009", "carte", "Carter123!");


      // 检查存储桶是否已经存在
      boolean isExist = minioClient.bucketExists("carter");
      if(isExist) {
        System.out.println("Bucket already exists.");
      } else {
        // 创建一个名为asiatrip的存储桶，用于存储照片的zip文件。
        minioClient.makeBucket("carter");
      }


      // 使用putObject上传一个文件到存储桶中。
      minioClient.putObject("carter", UUID.randomUUID().toString()+".jpeg",new FileInputStream(new File("D:\\data\\son1.jpg")),"image/jpg");
      System.out.println("/home/user/Photos/asiaphotos.zip is successfully uploaded as asiaphotos.zip to `asiatrip` bucket.");
    } catch(MinioException e) {
      System.out.println("Error occurred: " + e);
    }
  }


}

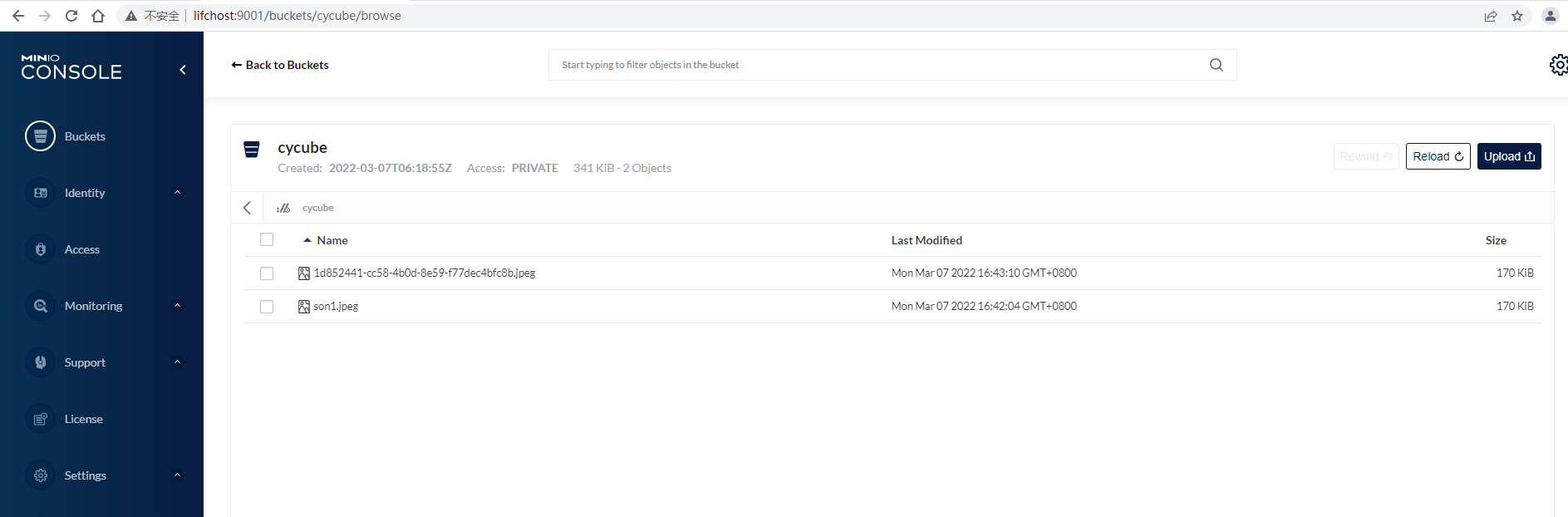

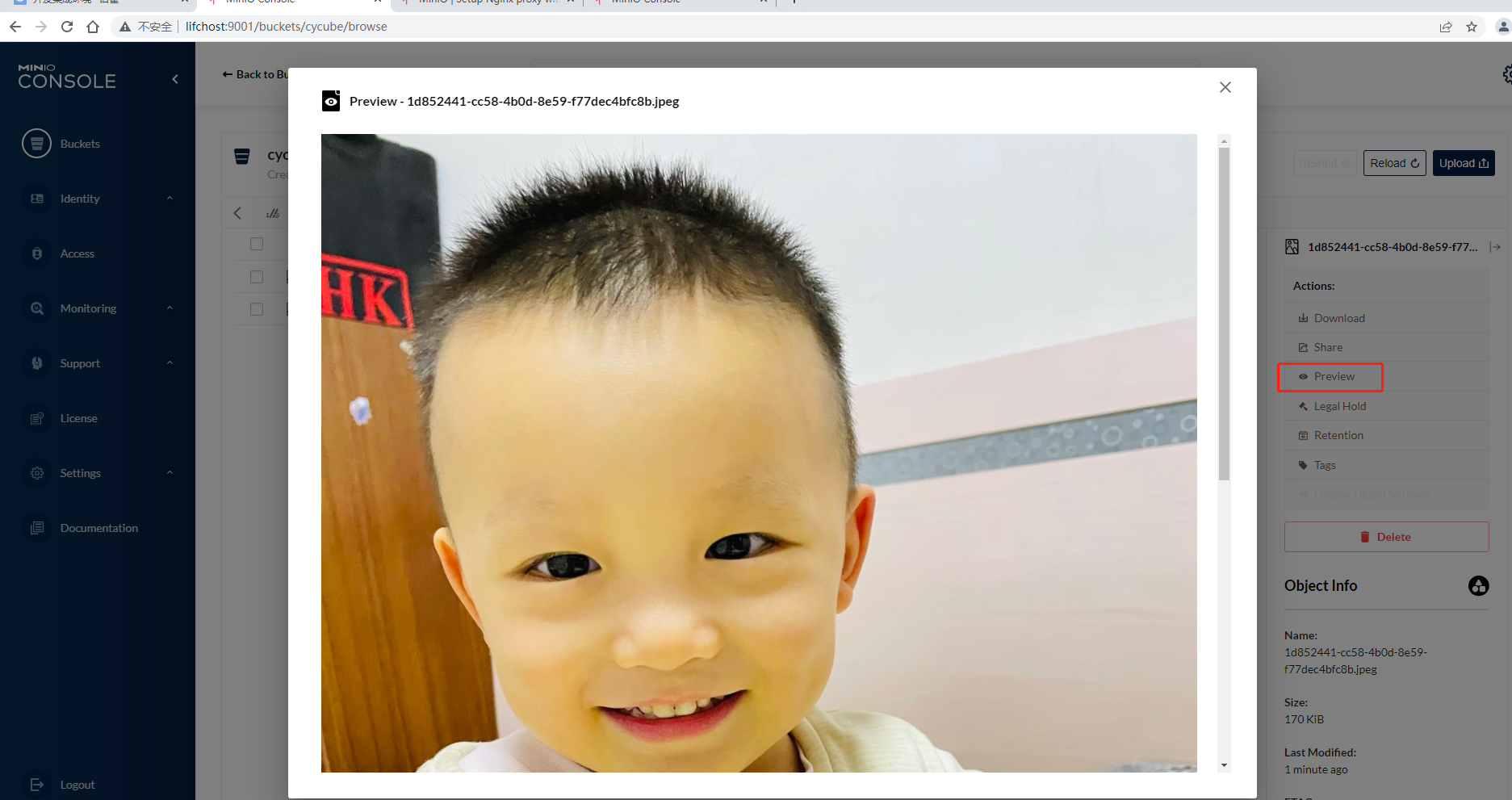

上传效果：
