pyecharts 简单朔州地图

# coding: utf-8
from pyecharts import options as opts
from pyecharts.charts import Map
from pyecharts.globals import CurrentConfig
import json

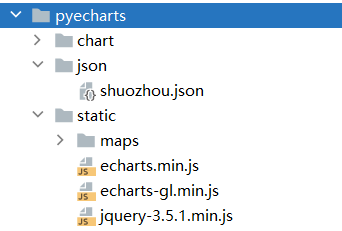

CurrentConfig.ONLINE_HOST = "../static/"
# 读取朔州地理 JSON 数据
with open("./json/shuozhou.json", "r", encoding="utf-8") as f:
    shuoZhouMapData = json.load(f)

data = [
    ("朔城区", 8000),("平鲁区", 70),("山阴县", 5868),("应县", 400),("右玉县", 330), ("怀仁市", 30)
]

c = (
    Map(init_opts=opts.InitOpts(width="800px", height="500px"))
    .add_js_funcs(f"echarts.registerMap('朔州', {json.dumps(shuoZhouMapData)});")
    .add(
        series_name="用户数量",
        data_pair=data,
        maptype="朔州",
        label_opts=opts.LabelOpts(is_show=True, position="left")
    )
    .set_global_opts(
        title_opts=opts.TitleOpts(

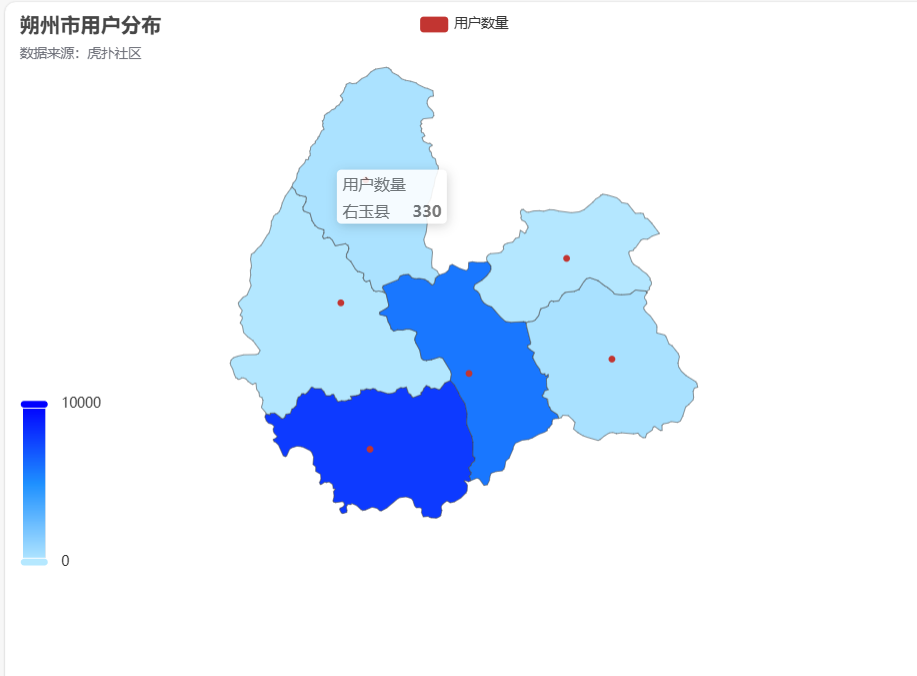

            title="朔州市用户分布",
            subtitle="数据来源：虎扑社区",
            pos_left="left"
        ),
        visualmap_opts=opts.VisualMapOpts(
            is_piecewise=False,
            max_=10000,
            range_color=["#B5E8FF", "#1E90FF", "#0100FF"]
        )
    )
    .render("./chart/朔州地图.html")
)
