非靶向代谢组学—全分析流程2（以3分组为例）

# 加载所需包
library(ggplot2)
library(rlang)
library(limma)

# 定义差异分析函数（支持 LIMMA + VIP + Volcano Plot）
DEG_limma = function(expr_matrix, group_list, group_str, output_path = '',
                     cutoff = 0.585, p = 0.05, t = "", h = 10, l = 0, lr = 5,
                     markers = "", VIP) {

  # 构建设计矩阵
  design <- model.matrix(~0 + factor(group_list))
  colnames(design) = levels(factor(group_list))
  rownames(design) = colnames(expr_matrix)

  # 构建对比矩阵
  contrast.matrix <- makeContrasts(contrasts = group_str, levels = design)

  # 拟合线性模型
  fit <- lmFit(expr_matrix, design)
  fit2 <- contrasts.fit(fit, contrast.matrix)
  fit2 <- eBayes(fit2)  # 贝叶斯调整

  # 提取差异表达结果
  tempOutput = topTable(fit2, coef = 1, n = Inf)
  nrDEG = na.omit(tempOutput)

  # 合并 VIP 值（代谢组特有）
  nrDEG <- merge(nrDEG, VIP, by = "row.names", all = TRUE)
  rownames(nrDEG) = nrDEG[,1]
  nrDEG = nrDEG[,-1]
  colnames(nrDEG)[ncol(nrDEG)] = 'VIP'
  View(nrDEG)  # 可视化表格（RStudio）

  # 判断上下调（根据 adj.P.Val、VIP 和 logFC）
  nrDEG$Change = as.factor(ifelse((nrDEG$adj.P.Val < p) & (nrDEG$VIP > 1) & (abs(nrDEG$logFC) > cutoff),
                                  ifelse(nrDEG$logFC > cutoff, 'Up', 'Down'), 'Not'))
  deg = nrDEG

  # 保存 DEG 结果为 Excel 表
  write.xlsx(nrDEG, paste0(output_path, t, '_deg.xlsx'), rowNames = T)

  # 标记特定 marker 代谢物
  nrDEG$marker = ifelse(rownames(nrDEG) %in% markers, 1, 0)
  nrDEG$gene = rownames(nrDEG)

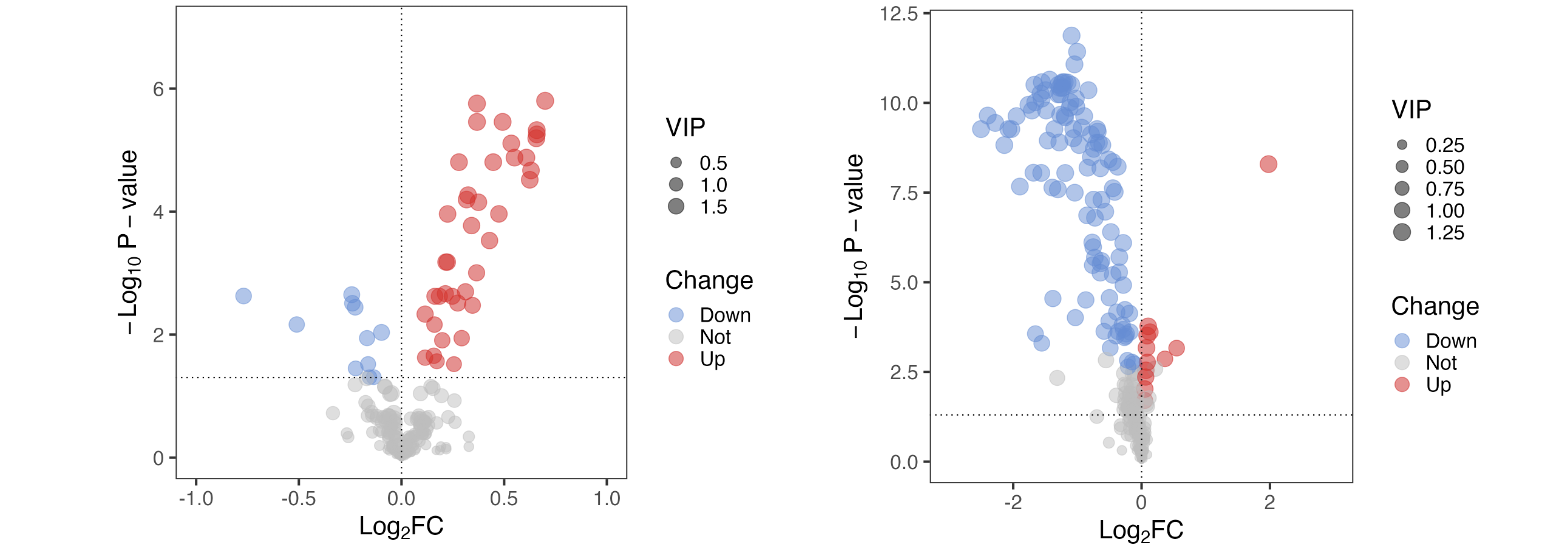

  # 绘制火山图
  g2 = ggplot(data = nrDEG,
              aes(x = logFC, y = -log10(adj.P.Val), color = Change, size = VIP)) +
    geom_point(alpha = 0.5) +
    theme_set(theme_bw(base_size = 20)) +
    xlab(expression(Log[2]*FC)) + ylab(expression(-Log[10]~P-value)) +
    scale_colour_manual(values = c("#5a8dda", 'grey', "#e81a1d")) +
    coord_cartesian(xlim = c(-lr, lr), ylim = c(l, h)) +
    geom_vline(xintercept = c(-cutoff, cutoff), linetype = "dotted", color = "black") +
    geom_hline(yintercept = -log10(p), linetype = "dotted", color = "black") +
    guides(color = guide_legend(override.aes = list(size = 5))) +
    theme(panel.grid = element_blank())

  # 标记 marker 代谢物（蓝色点 + 文字注释）
  g2 <- g2 + geom_point(data = nrDEG[nrDEG$marker == 1,],
                        aes(logFC, -log10(adj.P.Val)), color = "blue", size = 1.5, alpha = 0.8)

  print(nrDEG[nrDEG$marker == 1,])  # 输出被标注的代谢物信息

  g2 <- g2 + ggrepel::geom_text_repel(data = nrDEG[nrDEG$marker == 1,],
                                      aes(logFC, -log10(adj.P.Val), label = gene),
                                      force = 20, color = "grey15",
                                      max.overlaps = 50,
                                      size = 6, point.padding = 0.5,
                                      arrow = arrow(length = unit(0.01, "npc"),
                                                    type = "open", ends = "last"),
                                      segment.color = "grey15",
                                      segment.size = 0.2,
                                      segment.alpha = 0.8)

  # 保存火山图
  ggsave(g2, filename = paste0(output_path, 'Volcano_Plot_deg_', t, '.png'), width = 7.4, height = 6.2)

  return(deg)
}

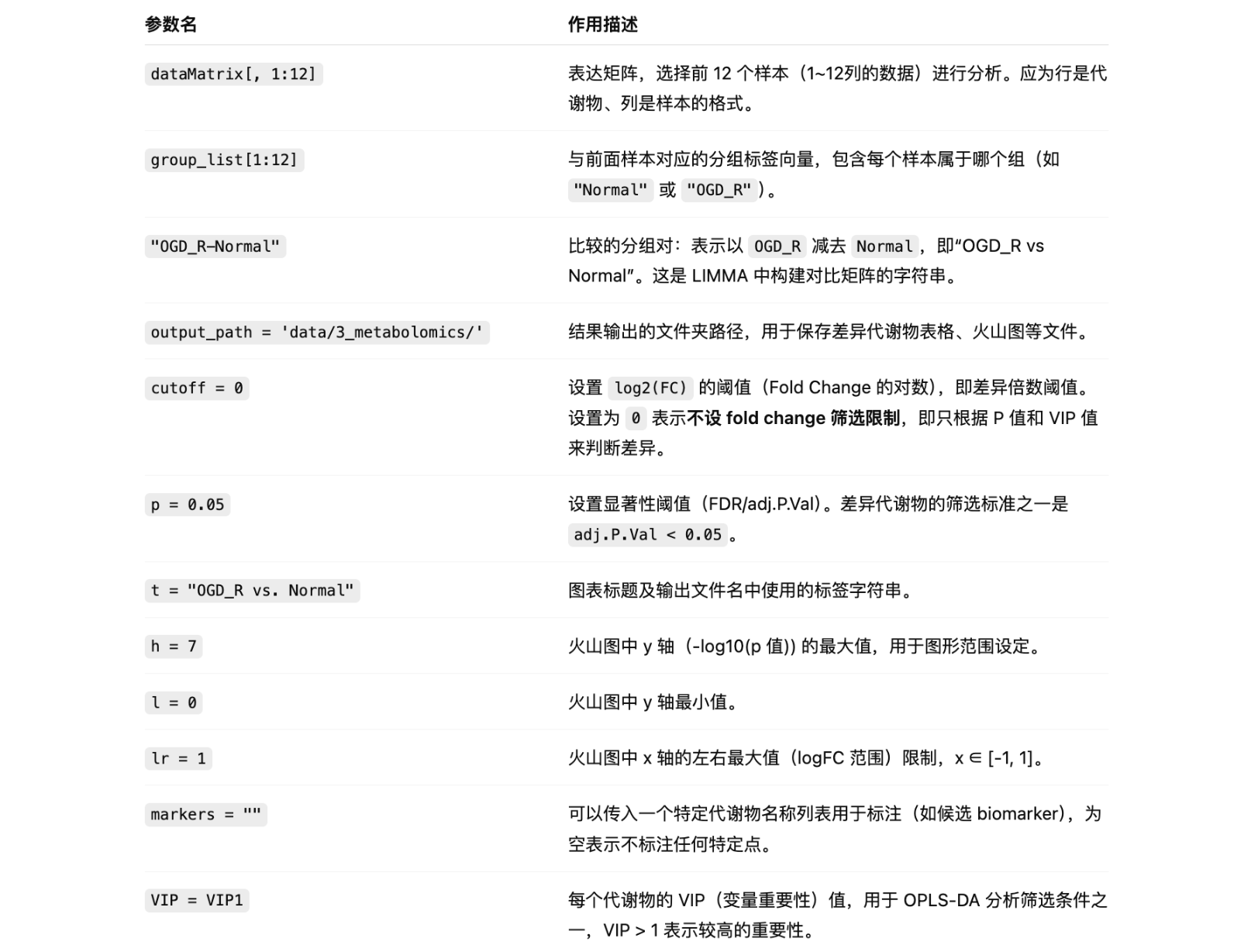

# ========== 差异分析调用 ==========
deg1 <- DEG_limma(dataMatrix[, 1:12], group_list[1:12], "OGD_R-Normal",
                  output_path = 'data/3_metabolomics/',
                  cutoff = 0, p = 0.05, t = "OGD_R vs. Normal",
                  h = 7, l = 0, lr = 1, markers = "", VIP = VIP1)

deg2 <- DEG_limma(dataMatrix[, 7:18], group_list[7:18], "HSYA75-OGD_R",
                  output_path = 'data/3_metabolomics/',
                  cutoff = 0, p = 0.05, t = "HSYA75 vs. OGD_R",
                  h = 12, l = 0, lr = 3, markers = "", VIP = VIP2)

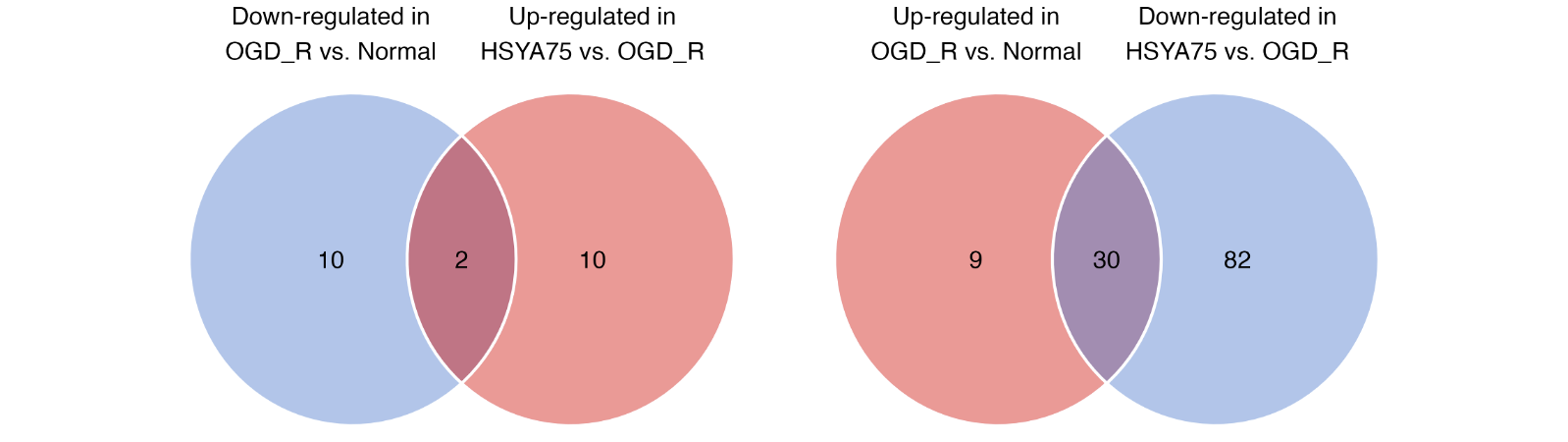

# ========== Venn图分析 ==========
library(ggvenn)

# OGD_R下调 + HSYA75上调 的交集
list_venn <- list(
  "OGD_R vs. Normal 下调" = rownames(deg1[deg1$Change == 'Down',]),
  "HSYA75 vs. OGD_R 上调" = rownames(deg2[deg2$Change == 'Up',])
)
ggvenn(list_venn, fill_color = c('#5a8dda', "#e81a1d"),
       set_name_size = 6, text_size = 6, show_percentage = F, stroke_size = 1, stroke_color = "grey100") +
  coord_cartesian(expand = T, clip = "off") +
  theme(plot.margin = unit(c(4, 0, 0, 0), "lines"))
ggsave("data/3_metabolomics/Venn of Differential Metabolites Between Down-regulated in OGD_R vs. Normal & Up-regulated in HSYA75 vs. OGD_R.png",
       width = 5.8, height = 4.7, dpi = 300)

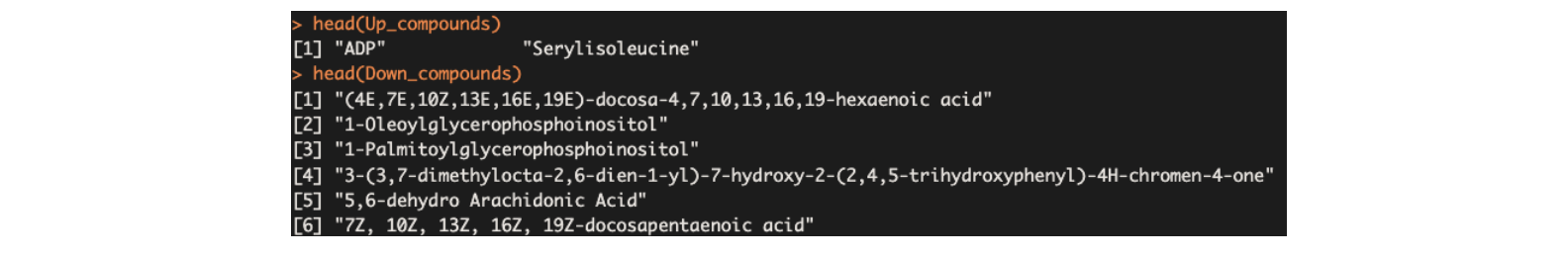

Up_compounds = intersect(rownames(deg1[deg1$Change == 'Down',]), rownames(deg2[deg2$Change == 'Up',]))

# OGD_R上调 + HSYA75下调 的交集
list_venn <- list(
  "OGD_R vs. Normal 上调" = rownames(deg1[deg1$Change == 'Up',]),
  "HSYA75 vs. OGD_R 下调" = rownames(deg2[deg2$Change == 'Down',])
)
ggvenn(list_venn, fill_color = c('#e81a1d', "#5a8dda"),
       set_name_size = 6, text_size = 6, show_percentage = F, stroke_size = 1, stroke_color = "grey100") +
  coord_cartesian(expand = T, clip = "off") +
  theme(plot.margin = unit(c(4, 0, 0, 0), "lines"))
ggsave("data/3_metabolomics/Venn of Differential Metabolites Between Up-regulated in OGD_R vs. Normal & Down-regulated HSYA75 vs. OGD_R.png",
       width = 5.8, height = 4.7, dpi = 300)

Down_compounds = intersect(rownames(deg1[deg1$Change == 'Up',]), rownames(deg2[deg2$Change == 'Down',]))

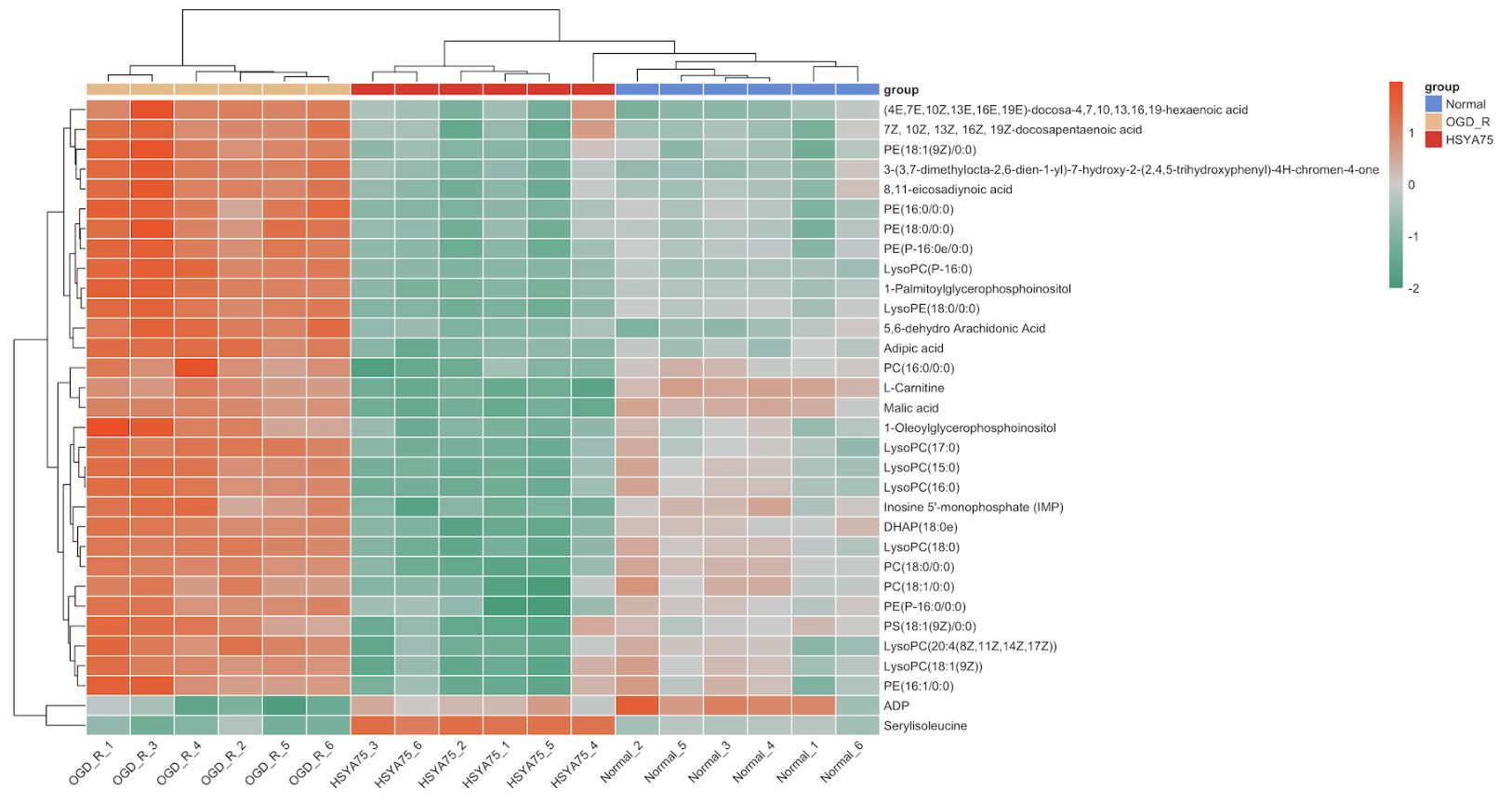

# ========== 热图绘制 ==========
library(pheatmap)

# 提取需要绘图的代谢物数据
choose_matrix = dataMatrix[c(Down_compounds, Up_compounds),]

# 构建注释颜色
annotation_col = list(group = c(Normal = "#5a8dda", OGD_R = "#ECB884", HSYA75 = "#e81a1d"))
annotation = data.frame(group = group_list)
rownames(annotation) = colnames(dataMatrix)

# 数据标准化
choose_matrix = t(scale(t(choose_matrix)))
choose_matrix[choose_matrix > 2] = 2
choose_matrix[choose_matrix < -2] = -2

# 绘制热图
pheatmap(choose_matrix,
         filename = "data/3_metabolomics/Pheatmap_of_Differential Metabolites.png",
         border_color = "grey100",
         color = colorRampPalette(c('#1B9E77', 'grey80', "#ff3c00"))(100),
         annotation_colors = annotation_col[1],
         annotation = annotation,
         show_colnames = TRUE,
         cluster_cols = TRUE,
         fontsize = 9,
         height = 8,
         width = 15,
         angle_col = 45)

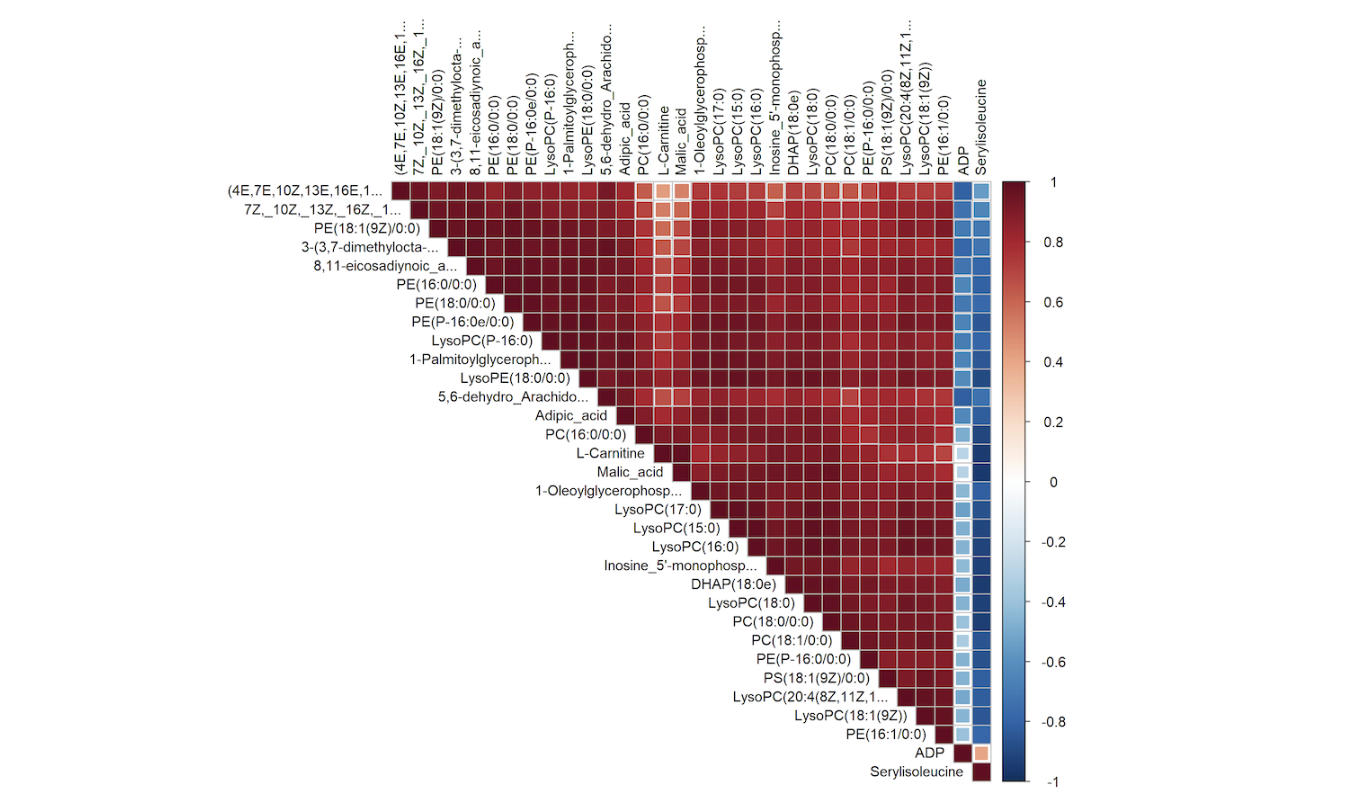

# ========== 相关性分析 ==========
library(Hmisc)
library(corrplot)

# 行名截断处理，防止标签过长
rownames(choose_matrix) = lapply(rownames(choose_matrix), function(x) gsub(" ", "_", x))
rownames(choose_matrix) = sapply(rownames(choose_matrix), function(x)
  if (nchar(x) > 20) paste0(substr(x, 1, 20), "...") else x)

# 计算代谢物间相关性
res <- cor(as.matrix(t(choose_matrix)))

# 绘制相关性热图
png("data/3_metabolomics/Correlation analysis of differential metabolites.png", width = 8, height = 8, units = 'in', res = 300)
corrplot(res,
         method = "square",
         type = "upper",
         order = "hclust",
         col = rev(COL2('RdBu')),
         tl.cex = 0.8,
         tl.col = "black")
dev.off()

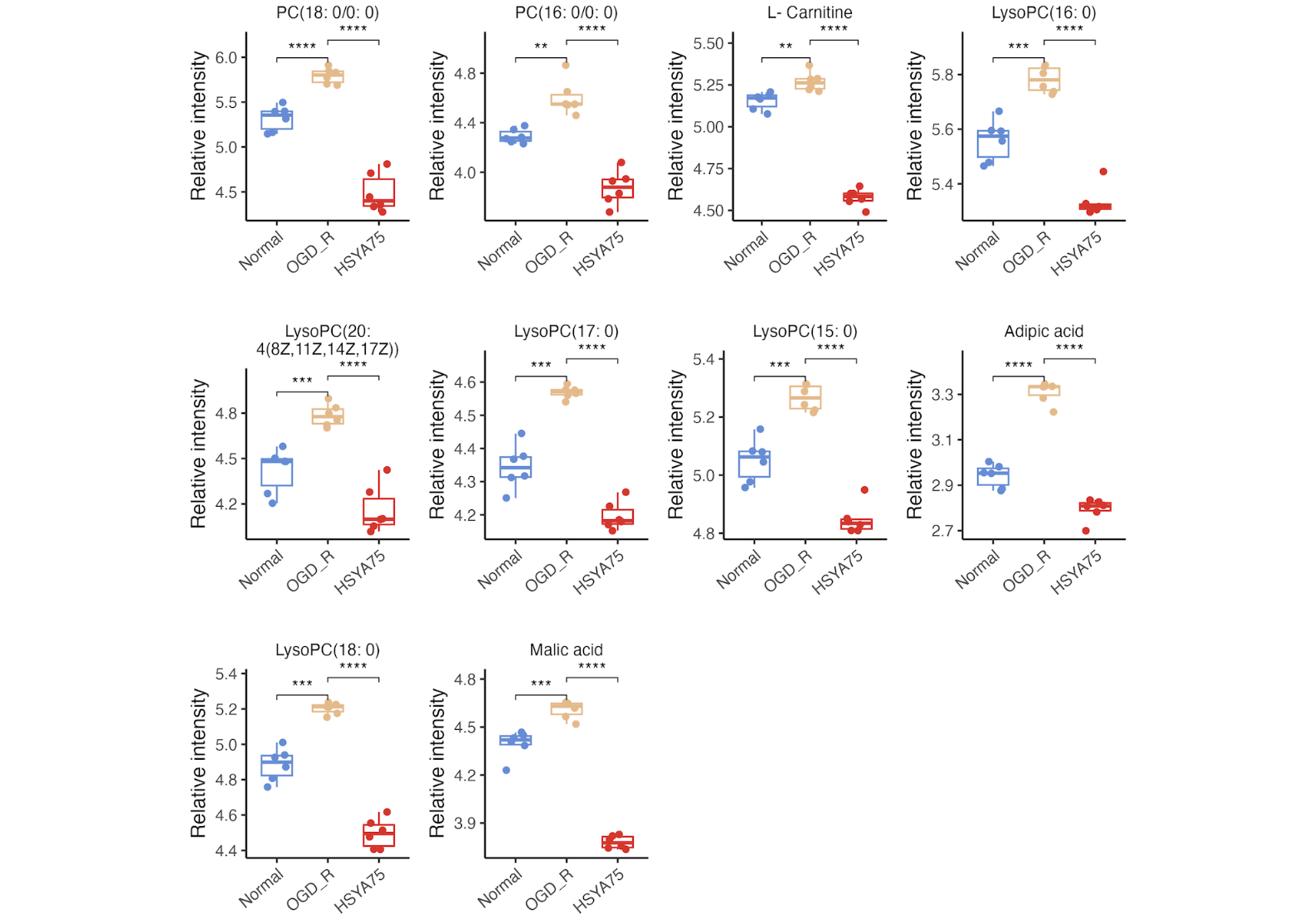

# ========== 代谢物表达箱线图 ==========
# 根据 KEGG.Compound.ID 过滤掉值为 "-" 的代谢物，只保留有 KEGG 注释的
choose_matrix = dataMatrix[inf$Metabolite[inf$KEGG.Compound.ID != '-'], ]

# 进一步筛选，只保留Down_compounds的代谢物
choose_matrix = choose_matrix[rownames(choose_matrix)%in% Down_compounds,]

# 加载 tidyverse 包用于数据整理
library(tidyverse)

# 转换表达矩阵格式：先转置表达矩阵（代谢物为列、样本为行），
# 添加 Group 分组信息，再转换为长数据格式便于绘图
expr_long <- as.data.frame(t(choose_matrix)) %>%
  mutate(Group = group_list) %>%        # 添加分组信息
  pivot_longer(
    cols = -Group,                      # 除 Group 外的所有列转为长格式
    names_to = "Gene",                  # 原列名为 "Gene"
    values_to = "Abundance"             # 表达值为 "Abundance"
  )

# 加载 ggpubr 包，用于绘制箱线图并添加统计分析
library(ggpubr)

# 创建一个空的列表用于存储每个代谢物的绘图结果
plots = list()

# 定义一个函数，用于绘制单个代谢物的箱线图
plot_gene <- function(gene_name) {
  df <- expr_long %>% filter(Gene == gene_name)  # 取出当前代谢物的表达数据

  # 设置两组之间进行 t 检验的对比组合
  comparisons <- list(c("Normal", "OGD_R"), c("OGD_R", "HSYA75"))

  # 对基因名做美化处理（例如将符号换行显示），避免标题过长
  gene_name = str_wrap(str_replace_all(df$Gene, "([-_:])", "\\1\n"), width = 20)

  # 绘制箱线图 + 抖动图点 + 显著性标记
  p = ggboxplot(df, x = "Group", y = "Abundance",
                color = "Group", palette = biocolor,     # 使用指定颜色
                add = "jitter", width = 0.6) +           # 添加抖动点
    stat_compare_means(comparisons = comparisons, method = "t.test", label = "p.signif") + # 显著性标记
    labs(title = gene_name, y = "Relative intensity", x = '') +  # 设置坐标轴标签
    theme_classic(base_size = 12) +                              # 使用简洁主题
    coord_cartesian(expand = T, clip = "off") +                  # 防止标签裁剪
    theme(plot.title = element_text(hjust = 0.5, size = 10),     # 标题居中
          legend.position = "none",                              # 不显示图例
          axis.text.x = element_text(angle = 40, hjust = 1))     # X 轴标签倾斜显示
}

# 对每一个代谢物，调用绘图函数并存入列表
for (gg in unique(expr_long$Gene)) {
  plots[[gg]] <- plot_gene(gg)
}

# 加载 gridExtra 包，用于将多个图合并为一个整图
library(gridExtra)

# 将所有代谢物的箱线图合并为网格形式，ncol=4 表示每行 4 个图
plot_grid <- do.call(grid.arrange, c(plots, ncol = 4))

# 保存图像为 PNG 文件，尺寸为 8x8 英寸
ggsave('data/3_metabolomics/Differential Metabolites.png',
       plot = plot_grid,
       width = 8,
       height = 8)  # 设置较大高度以适配所有图
