非靶向代谢组学—全分析流程1（以3分组为例）

rm(list = ls())  # 清空当前环境中的所有变量
options(stringsAsFactors = F)  # 关闭字符串自动转换为因子（防止类型混乱）

# 加载必要的R包
library(openxlsx)  # 用于读取和写入 Excel 文件
library(ggplot2)   # ggplot2绘图系统
dir.create("data/3_metabolomics")  # 创建结果保存目录

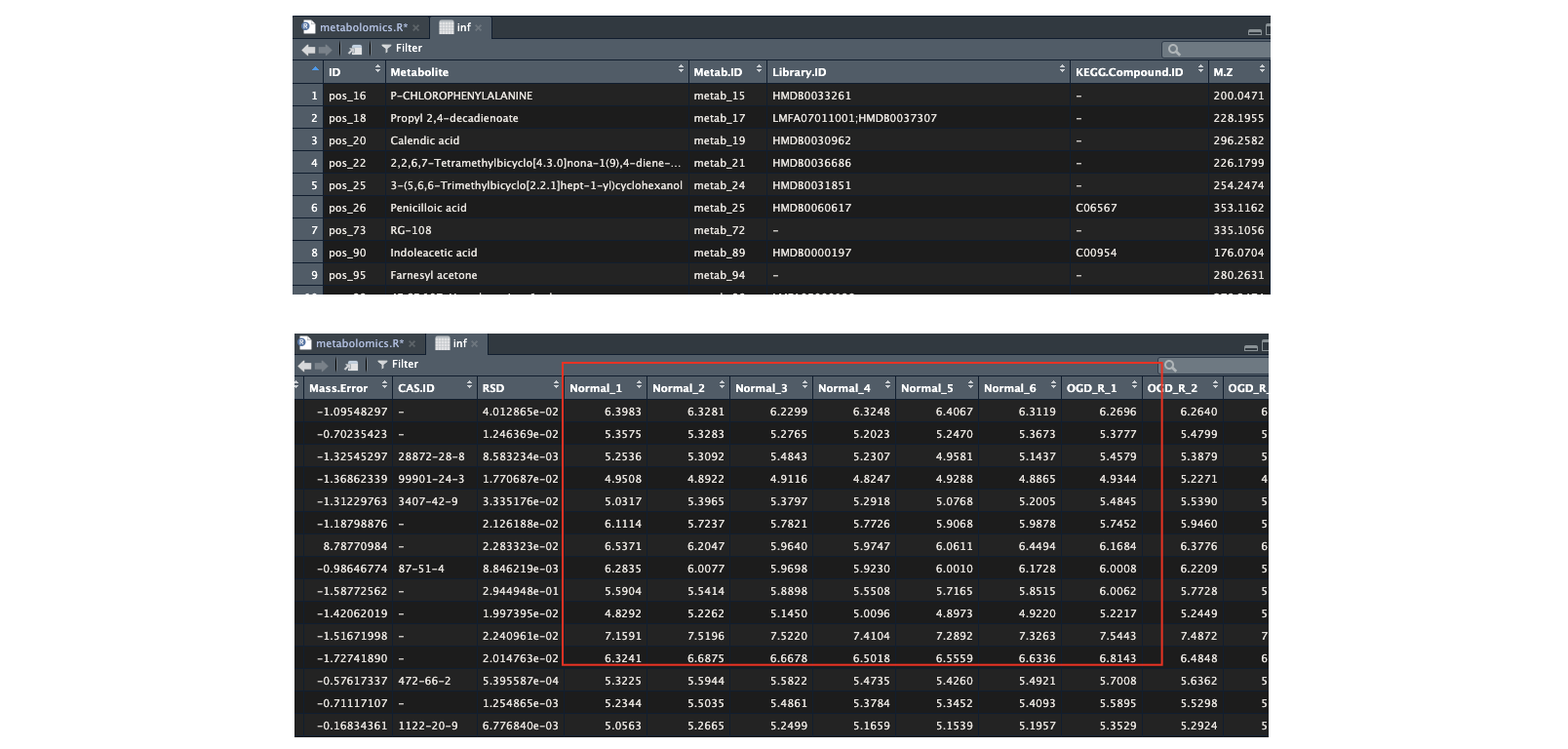

# 读取正负离子模式的代谢数据表格（csv格式）
POS <- read.csv("data/3_metabolomics/raw/mix_MetabTable_Origin.csv")
NEG <- read.csv("data/3_metabolomics/raw/mix_MetabTable_Origin (1).csv")

# 合并正负离子数据
inf <- rbind(POS, NEG)

# 将正负模式分别写入一个Excel文件（多个工作表,可选）
T3 = createWorkbook()
addWorksheet(T3,'正离子模式')
writeData(T3, "正离子模式", POS)  # 正模式代谢物数据
addWorksheet(T3,'负离子模式')
writeData(T3, "负离子模式", NEG)  # 负模式代谢物数据
saveWorkbook(T3, "Figures+Tables/Table S3. Metabolomics_mix_MetabTable_Origin.xlsx", overwrite = TRUE)

#POS <- POS[!is.na(POS$Name),]
#NEG <- NEG[!is.na(NEG$Name),]

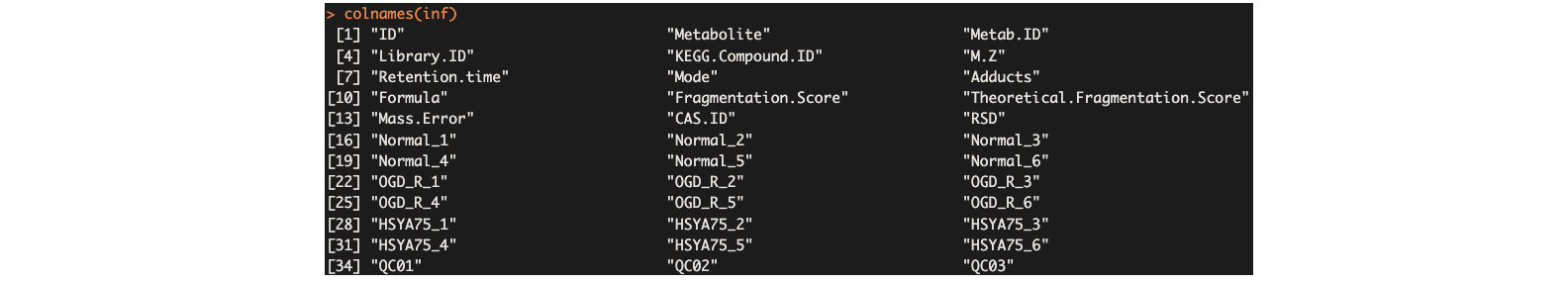

# 提取代谢物表达矩阵（正负模式的第2列和第16~33列为表达量）
dataMatrix_pos <- as.data.frame(POS[,c(2,16:33)])
dataMatrix_neg <- as.data.frame(NEG[,c(2,16:33)])

# 设置代谢物名称为行名，并移除第一列（已设置为行名）
rownames(dataMatrix_pos) <- dataMatrix_pos$Metabolite
dataMatrix_pos <- dataMatrix_pos[,-1]
rownames(dataMatrix_neg) <- dataMatrix_neg$Metabolite
dataMatrix_neg <- dataMatrix_neg[,-1]

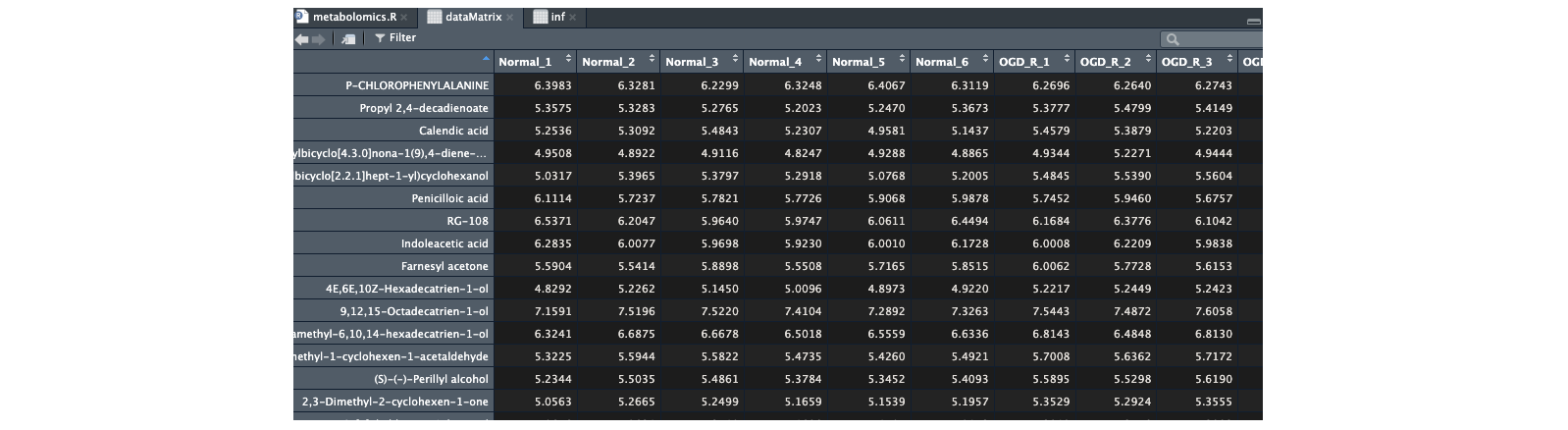

# 合并正负模式代谢矩阵
dataMatrix = rbind(dataMatrix_pos, dataMatrix_neg)

# 设置实验分组，每组6个样本
group_list <- c(rep('Normal',6), rep('OGD_R',6), rep('HSYA75',6))

# 自定义三组颜色：蓝色、橙色、红色
biocolor = c('#5a8dda', "#ECB884", '#e81a1d')

library(ropls)  # 提供PCA, PLS-DA, OPLS-DA功能

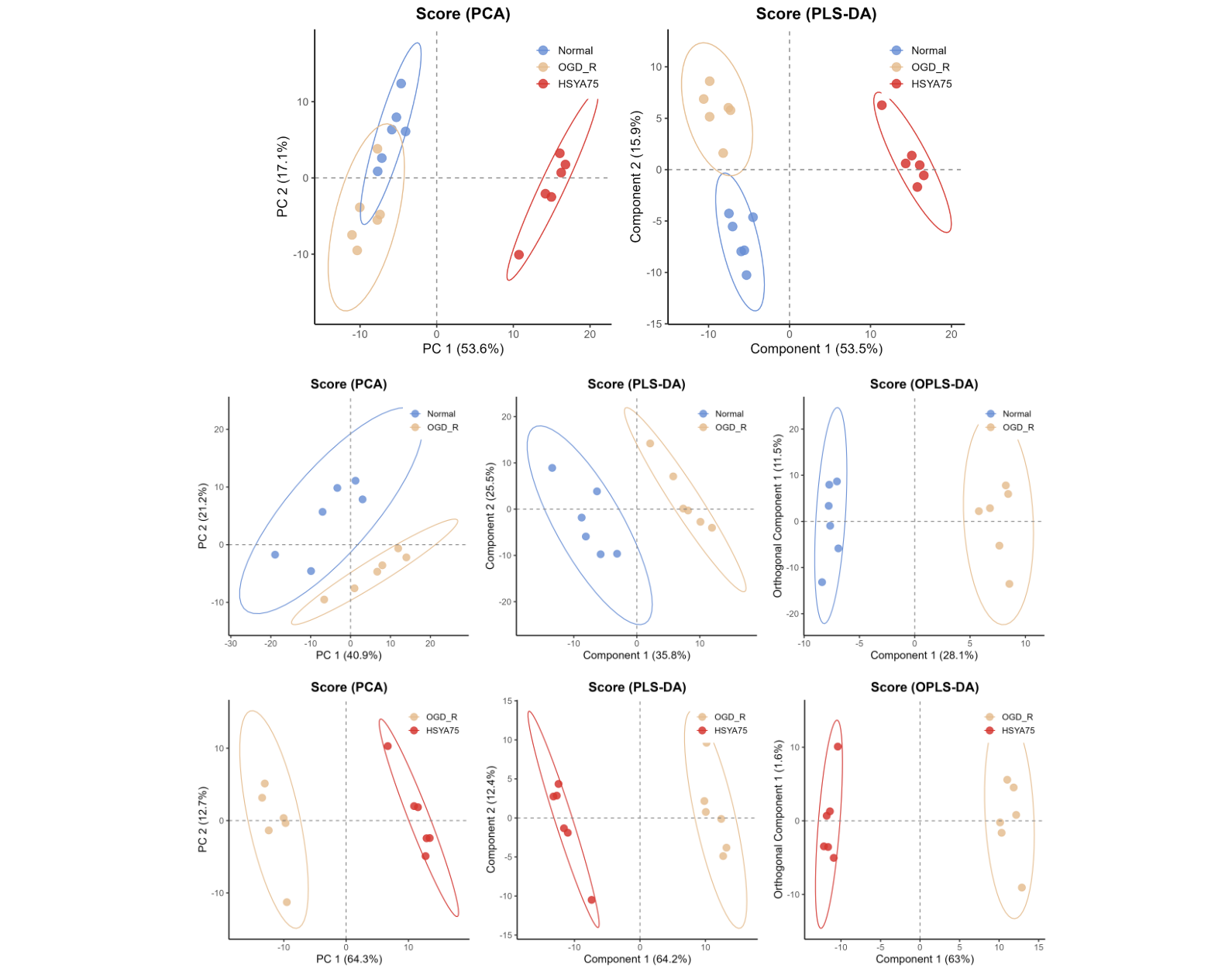

PCA = function(dataMatrix, group_list, color, savepath='', filename='') {
  pca <- opls(t(dataMatrix), predI = 2)  # 使用ropls包做PCA，取两个主成分
  scores <- pca@scoreMN  # 提取样本坐标（得分）

  score_df <- data.frame(
    Sample = rownames(scores),
    PC1 = scores[, 1],
    PC2 = scores[, 2],
    Group = factor(group_list, levels = unique(group_list))
  )

  # 绘制散点图，分组椭圆 + 主成分贡献度
  ggplot(score_df, aes(x = PC1, y = PC2, color = Group)) +
    geom_point(size = 4, alpha = 0.8) +
    stat_ellipse(aes(group = Group)) +
    theme_classic(base_size = 14) +
    scale_color_manual(values = color) +
    geom_hline(yintercept = 0, linetype = "dashed", color = "gray50") +
    geom_vline(xintercept = 0, linetype = "dashed", color = "gray50") +
    labs(
      title = "Score (PCA)",
      x = paste0("PC 1 (", round(pca@modelDF["R2X"][1,] * 100, 1), "%)"),
      y = paste0("PC 2 (", round(pca@modelDF["R2X"][2,] * 100, 1), "%)")
    ) +
    theme(plot.title = element_text(hjust = 0.5, face = "bold"),
          legend.title = element_blank(),
          panel.grid = element_blank(),
          legend.position = c(0.98, 0.98),
          legend.justification = c("right", "top"))

  ggsave(paste0(savepath, filename), height = 5.2, width = 5)
}

#函数调用
# 全部组比较
PCA(dataMatrix, group_list, biocolor, 'data/3_metabolomics/', 'Figure 1. PCA_All_Group.png')
# Normal vs OGD_R
PCA(dataMatrix[,1:12], group_list[1:12], biocolor[1:2], 'data/3_metabolomics/', 'Figure 1. PCA_Normal vs. OGD_R.png')
# HSYA75 vs OGD_R
PCA(dataMatrix[,7:18], group_list[7:18], biocolor[2:3], 'data/3_metabolomics/', 'Figure 1. PCA_HSYA75 vs. OGD_R.png')

PLS_DA = function(dataMatrix, group_list, color, savepath='', filename='') {
  plsda <- opls(t(dataMatrix), group_list)  # 拟合 PLS-DA 模型
  scores <- plsda@scoreMN

  score_df <- data.frame(
    Sample = rownames(scores),
    Component_1 = scores[, 1],
    Component_2 = scores[, 2],
    Group = factor(group_list, levels = unique(group_list))
  )

  # 可视化
  ggplot(score_df, aes(x = Component_1, y = Component_2, color = Group)) +
    geom_point(size = 4, alpha = 0.8) +
    stat_ellipse(aes(group = Group)) +
    theme_classic(base_size = 14) +
    scale_color_manual(values = color) +
    geom_hline(yintercept = 0, linetype = "dashed", color = "gray50") +
    geom_vline(xintercept = 0, linetype = "dashed", color = "gray50") +
    labs(
      title = "Score (PLS-DA)",
      x = paste0("Component 1 (", round(plsda@modelDF["R2X"][1,] * 100, 1), "%)"),
      y = paste0("Component 2 (", round(plsda@modelDF["R2X"][2,] * 100, 1), "%)")
    ) +
    theme(plot.title = element_text(hjust = 0.5, face = "bold"),
          legend.title = element_blank(),
          panel.grid = element_blank(),
          legend.position = c(0.98, 0.98),
          legend.justification = c("right", "top"))

  ggsave(paste0(savepath, filename), height = 5.2, width = 5)
}

#调用函数
PLS_DA(dataMatrix, group_list, biocolor, 'data/3_metabolomics/', 'Figure 1. PLS-DA_All_Group.png')
PLS_DA(dataMatrix[,1:12], group_list[1:12], biocolor[1:2], 'data/3_metabolomics/', 'Figure 1. PLS-DA_Normal vs. OGD_R.png')
PLS_DA(dataMatrix[,7:18], group_list[7:18], biocolor[2:3], 'data/3_metabolomics/', 'Figure 1. PLS-DA_HSYA75 vs. OGD_R.png')

OPLS_DA = function(dataMatrix, group_list, color, savepath='', filename='') {
  oplsda <- opls(t(dataMatrix[,1:12]), group_list[1:12], predI = 1, orthoI = NA)
  VIP <- oplsda@vipVn  # 提取变量重要性

  score_df <- data.frame(
    Sample = rownames(oplsda@scoreMN),
    Component_1 = oplsda@scoreMN[, 1],
    Component_2 = oplsda@orthoScoreMN[, 1],
    Group = factor(group_list, levels = unique(group_list))
  )

  # 可视化
  ggplot(score_df, aes(x = Component_1, y = Component_2, color = Group)) +
    geom_point(size = 4, alpha = 0.8) +
    stat_ellipse(aes(group = Group)) +
    theme_classic(base_size = 14) +
    scale_color_manual(values = color) +
    geom_hline(yintercept = 0, linetype = "dashed", color = "gray50") +
    geom_vline(xintercept = 0, linetype = "dashed", color = "gray50") +
    labs(
      title = "Score (OPLS-DA)",
      x = paste0("Component 1 (", round(oplsda@modelDF["R2X"][1,] * 100, 1), "%)"),
      y = paste0("Orthogonal Component 1 (", round(oplsda@modelDF["R2Y"][2,] * 100, 1), "%)")
    ) +
    theme(plot.title = element_text(hjust = 0.5, face = "bold"),
          legend.title = element_blank(),
          panel.grid = element_blank(),
          legend.position = c(0.98, 0.98),
          legend.justification = c("right", "top"))

  ggsave(paste0(savepath, filename), height = 5.2, width = 5)
  return(VIP)
}

#调用函数
VIP1 = OPLS_DA(dataMatrix[,1:12], group_list[1:12], biocolor[1:2], 'data/3_metabolomics/', 'Figure 1. OPLS-DA_Normal vs. OGD_R.png')
VIP2 = OPLS_DA(dataMatrix[,7:18], group_list[7:18], biocolor[2:3], 'data/3_metabolomics/', 'Figure 1. OPLS-DA_HSYA75 vs. OGD_R.png')
