如何做好一份技术文档?从理论到实践的完整指南

作者头像
摘星.
发布2025-06-10 09:56:34
发布2025-06-10 09:56:34
9130
举报
文章被收录于专栏:博客专享博客专享

前言摘要

作为一名从事软件开发工作超过十年的技术人员,我深深体会到优秀技术文档在项目成功中的关键作用。在我的职业生涯中,我见证了无数项目因为文档不清晰而导致的沟通成本增加、开发效率低下、维护困难等问题。同时,我也亲身经历了一份出色的技术文档如何能够显著提升团队协作效率,降低新人上手成本,甚至成为产品成功的重要推动力。通过多年的实践和总结,我逐渐形成了一套相对完整的技术文档撰写方法论。

在我看来,技术文档绝不仅仅是代码的简单说明或功能的罗列,它应该是一个完整的知识体系,能够帮助读者从零开始理解项目的背景、架构、实现细节和使用方法。一份优秀的技术文档应该具备清晰的结构层次、准确的技术描述、丰富的示例代码、直观的图表说明,以及便于维护和更新的特性。在实际工作中,我发现很多开发者往往忽视了文档的重要性,认为代码本身就是最好的文档,但这种观点是片面的。代码只能告诉我们"怎么做",而文档则能解释"为什么这样做"以及"如何更好地使用"。

通过本文,我希望能够分享我在技术文档撰写方面的经验和心得,从文档规划、结构设计、内容组织、代码示例、图表制作到工具选择等各个方面,为大家提供一个系统性的指导。我相信,掌握了这些方法和技巧,每位技术人员都能够创作出高质量的技术文档,不仅能够提升个人的技术影响力,更能为团队和项目带来实实在在的价值。让我们一起探索如何打造一份真正出色的技术文档吧!

1. 技术文档的重要性与价值

1.1 技术文档在软件开发中的核心地位

技术文档是软件开发生命周期中不可或缺的重要组成部分。它不仅是知识传承的载体,更是团队协作的桥梁。在现代软件开发中,项目往往涉及多个团队成员,跨部门协作,甚至是分布式团队开发。在这种复杂的协作环境下,技术文档的作用愈发凸显。

一份优秀的技术文档能够:

  • 降低沟通成本:减少反复询问和解释的时间
  • 提升开发效率:新团队成员能够快速上手项目
  • 保证项目质量:统一的标准和规范确保代码质量
  • 便于维护更新:详细的文档有助于后期维护和功能扩展
  • 知识积累传承:避免关键知识随人员流动而丢失
1.2 技术文档的分类与适用场景

不同类型的技术文档适用于不同的场景和受众:

图1:技术文档类型分类图

2. 技术文档的核心要素

2.1 清晰的目标定位

在开始撰写技术文档之前,首先要明确文档的目标和受众。不同的受众需要不同层次的技术细节。

代码语言:javascript
复制
class DocumentTarget:
    """
    技术文档目标定位类
    用于定义文档的受众、目标和范围
    """

    def __init__(self, audience, objective, scope):
        """
        初始化文档目标

        Args:
            audience (str): 目标受众(开发者、测试、产品经理等)
            objective (str): 文档目标(学习、使用、维护等)
            scope (str): 文档范围(模块、系统、平台等)
        """
        self.audience = audience
        self.objective = objective
        self.scope = scope

    def generate_outline(self):
        """
        根据目标生成文档大纲

        Returns:
            list: 文档章节列表
        """
        outline = []

        # 根据受众和目标确定文档结构
        if self.audience == "developer":
            outline.extend([
                "1. 技术架构概述",
                "2. 环境搭建指南",
                "3. 核心模块详解",
                "4. API接口文档",
                "5. 代码示例",
                "6. 常见问题解答"
            ])
        elif self.audience == "user":
            outline.extend([
                "1. 产品介绍",
                "2. 快速开始",
                "3. 功能详解",
                "4. 操作指南",
                "5. 故障排查"
            ])

        return outline

    def validate_content(self, content):
        """
        验证文档内容是否符合目标定位

        Args:
            content (str): 文档内容

        Returns:
            dict: 验证结果
        """
        validation_result = {
            "audience_match": False,
            "objective_clear": False,
            "scope_appropriate": False,
            "suggestions": []
        }

        # 简单的内容验证逻辑
        if self.audience.lower() in content.lower():
            validation_result["audience_match"] = True
        else:
            validation_result["suggestions"].append(
                f"内容应更贴近{self.audience}的需求"
            )

        return validation_result

# 使用示例
doc_target = DocumentTarget(
    audience="developer",
    objective="快速上手项目开发",
    scope="后端API服务"
)

outline = doc_target.generate_outline()
print("文档大纲:")
for item in outline:
    print(f"  {item}")
2.2 逻辑清晰的内容结构

技术文档的结构应该遵循从整体到细节、从简单到复杂的原则。一个典型的技术文档结构包括:

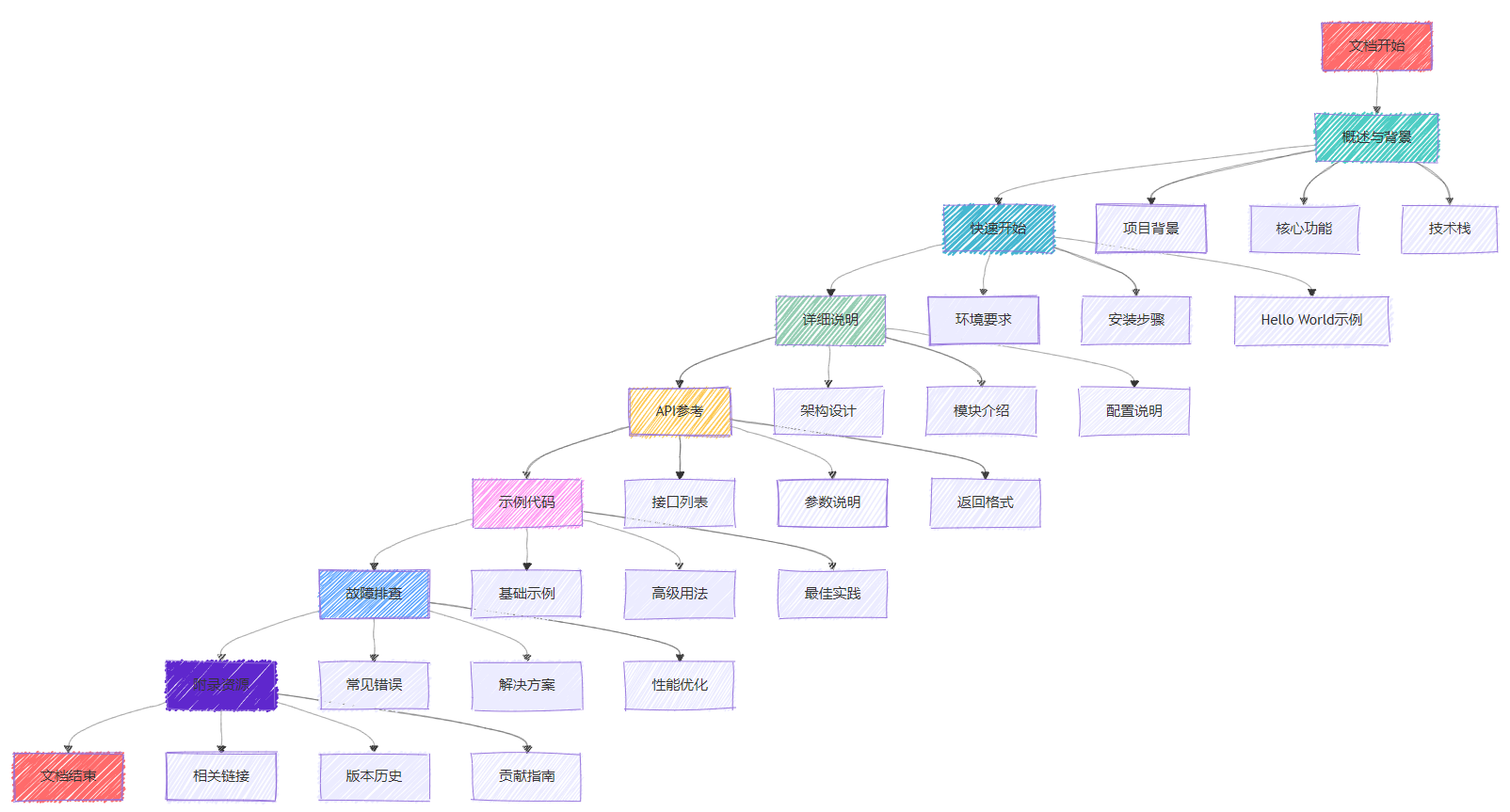

图2:技术文档标准结构流程图

2.3 准确的技术描述

技术文档中的每一个技术术语、参数说明、操作步骤都必须准确无误。为了确保准确性,可以建立一套标准化的描述模板:

代码语言:javascript
复制
/**
 * API文档标准模板类
 * 用于生成标准化的API文档描述
 */
class APIDocTemplate {
    /**
     * 构造函数
     * @param {string} apiName - API名称
     * @param {string} method - HTTP方法
     * @param {string} endpoint - 接口端点
     */
    constructor(apiName, method, endpoint) {
        this.apiName = apiName;
        this.method = method;
        this.endpoint = endpoint;
        this.parameters = [];
        this.responses = [];
        this.examples = [];
    }

    /**
     * 添加参数说明
     * @param {Object} param - 参数对象
     * @param {string} param.name - 参数名称
     * @param {string} param.type - 参数类型
     * @param {boolean} param.required - 是否必需
     * @param {string} param.description - 参数描述
     * @param {*} param.example - 示例值
     */
    addParameter(param) {
        // 验证参数完整性
        const requiredFields = ['name', 'type', 'required', 'description'];
        for (const field of requiredFields) {
            if (!param.hasOwnProperty(field)) {
                throw new Error(`参数缺少必需字段: ${field}`);
            }
        }

        this.parameters.push({
            name: param.name,
            type: param.type,
            required: param.required,
            description: param.description,
            example: param.example || null
        });
    }

    /**
     * 添加响应说明
     * @param {Object} response - 响应对象
     * @param {number} response.code - 状态码
     * @param {string} response.description - 描述
     * @param {Object} response.schema - 响应结构
     */
    addResponse(response) {
        this.responses.push(response);
    }

    /**
     * 添加使用示例
     * @param {Object} example - 示例对象
     * @param {string} example.title - 示例标题
     * @param {string} example.description - 示例描述
     * @param {string} example.code - 示例代码
     */
    addExample(example) {
        this.examples.push(example);
    }

    /**
     * 生成Markdown格式的API文档
     * @returns {string} Markdown格式的文档
     */
    generateMarkdown() {
        let markdown = `## ${this.apiName}\n\n`;
        markdown += `**方法**: \`${this.method}\`\n\n`;
        markdown += `**端点**: \`${this.endpoint}\`\n\n`;

        // 参数说明
        if (this.parameters.length > 0) {
            markdown += `### 请求参数\n\n`;
            markdown += `| 参数名 | 类型 | 必需 | 描述 | 示例 |\n`;
            markdown += `|--------|------|------|------|------|\n`;

            this.parameters.forEach(param => {
                const required = param.required ? '是' : '否';
                const example = param.example ? `\`${param.example}\` ` : '-';
                markdown += `| ${param.name} | ${param.type} | ${required} | ${param.description} | ${example} |\n`;
            });
            markdown += `\n`;
        }

        // 响应说明
        if (this.responses.length > 0) {
            markdown += `### 响应格式\n\n`;
            this.responses.forEach(response => {
                markdown += `**${response.code}**: ${response.description}\n\n`;
                if (response.schema) {
                    markdown += `\`\`\`json\n${JSON.stringify(response.schema, null, 2)}\n\`\`\`\n\n`;
                }
            });
        }

        // 使用示例
        if (this.examples.length > 0) {
            markdown += `### 使用示例\n\n`;
            this.examples.forEach((example, index) => {
                markdown += `#### ${example.title}\n\n`;
                markdown += `${example.description}\n\n`;
                markdown += `\`\`\`javascript\n${example.code}\n\`\`\`\n\n`;
            });
        }

        return markdown;
    }
}

// 使用示例:创建用户登录API文档
const loginAPI = new APIDocTemplate('用户登录', 'POST', '/api/auth/login');

// 添加参数
loginAPI.addParameter({
    name: 'username',
    type: 'string',
    required: true,
    description: '用户名或邮箱地址',
    example: 'user@example.com'
});

loginAPI.addParameter({
    name: 'password',
    type: 'string',
    required: true,
    description: '用户密码(6-20位字符)',
    example: 'mypassword123'
});

// 添加响应
loginAPI.addResponse({
    code: 200,
    description: '登录成功',
    schema: {
        success: true,
        token: 'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...',
        user: {
            id: 12345,
            username: 'user@example.com',
            nickname: '张三'
        }
    }
});

loginAPI.addResponse({
    code: 401,
    description: '用户名或密码错误',
    schema: {
        success: false,
        error: 'Invalid credentials'
    }
});

// 添加示例
loginAPI.addExample({
    title: 'JavaScript fetch 示例',
    description: '使用fetch API进行用户登录',
    code: `
fetch('/api/auth/login', {
    method: 'POST',
    headers: {
        'Content-Type': 'application/json'
    },
    body: JSON.stringify({
        username: 'user@example.com',
        password: 'mypassword123'
    })
})
.then(response => response.json())
.then(data => {
    if (data.success) {
        localStorage.setItem('token', data.token);
        console.log('登录成功:', data.user);
    } else {
        console.error('登录失败:', data.error);
    }
})
.catch(error => {
    console.error('请求失败:', error);
});`
});

// 生成文档
console.log(loginAPI.generateMarkdown());

3. 文档结构设计最佳实践

3.1 信息架构规划

良好的信息架构是技术文档成功的基础。在设计文档结构时,需要考虑用户的阅读习惯和信息获取路径:

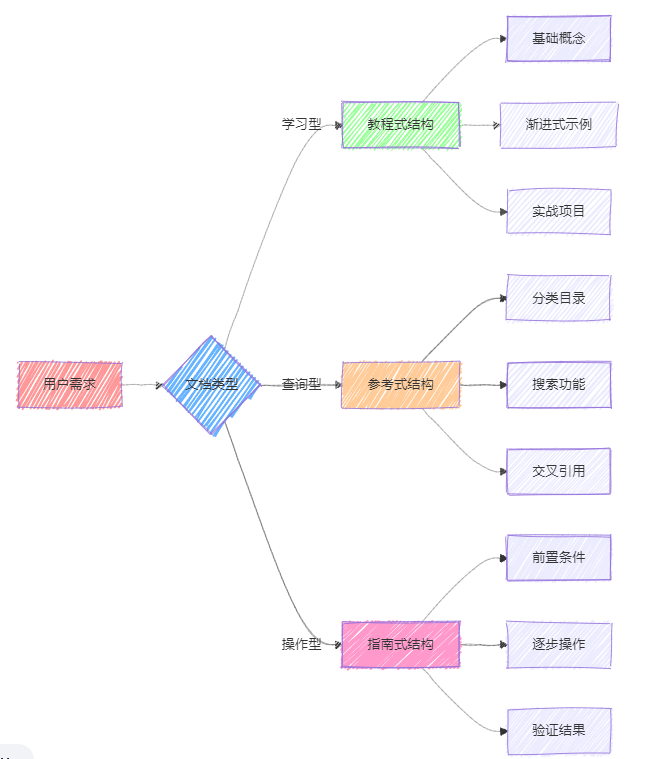

图3:文档信息架构设计决策树

3.2 导航与索引设计

为了提高文档的可用性,需要设计清晰的导航结构和有效的索引系统:

代码语言:javascript
复制
class DocumentNavigator:
    """
    文档导航器类
    提供文档导航和索引功能
    """

    def __init__(self):
        """初始化导航器"""
        self.sections = {}
        self.index = {}
        self.breadcrumbs = []

    def add_section(self, section_id, title, level, parent=None):
        """
        添加文档章节

        Args:
            section_id (str): 章节ID
            title (str): 章节标题
            level (int): 章节层级(1-6)
            parent (str): 父章节ID
        """
        self.sections[section_id] = {
            'title': title,
            'level': level,
            'parent': parent,
            'children': [],
            'content': '',
            'keywords': []
        }

        # 建立父子关系
        if parent and parent in self.sections:
            self.sections[parent]['children'].append(section_id)

    def add_content(self, section_id, content, keywords=None):
        """
        为章节添加内容和关键词

        Args:
            section_id (str): 章节ID
            content (str): 章节内容
            keywords (list): 关键词列表
        """
        if section_id in self.sections:
            self.sections[section_id]['content'] = content
            if keywords:
                self.sections[section_id]['keywords'] = keywords
                # 建立关键词索引
                for keyword in keywords:
                    if keyword not in self.index:
                        self.index[keyword] = []
                    self.index[keyword].append(section_id)

    def generate_toc(self, max_level=3):
        """
        生成目录

        Args:
            max_level (int): 显示的最大层级

        Returns:
            str: Markdown格式的目录
        """
        toc = "## 目录\n\n"

        # 按层级排序
        sorted_sections = sorted(
            self.sections.items(),
            key=lambda x: (x[1]['level'], x[0])
        )

        for section_id, section in sorted_sections:
            if section['level'] <= max_level:
                indent = "  " * (section['level'] - 1)
                toc += f"{indent}- [{section['title']}](#{section_id})\n"

        return toc

    def search(self, query):
        """
        搜索功能

        Args:
            query (str): 搜索关键词

        Returns:
            list: 匹配的章节列表
        """
        results = []
        query_lower = query.lower()

        # 在标题中搜索
        for section_id, section in self.sections.items():
            if query_lower in section['title'].lower():
                results.append({
                    'section_id': section_id,
                    'title': section['title'],
                    'match_type': 'title'
                })

        # 在关键词中搜索
        for keyword, section_ids in self.index.items():
            if query_lower in keyword.lower():
                for section_id in section_ids:
                    results.append({
                        'section_id': section_id,
                        'title': self.sections[section_id]['title'],
                        'match_type': 'keyword',
                        'keyword': keyword
                    })

        # 在内容中搜索
        for section_id, section in self.sections.items():
            if query_lower in section['content'].lower():
                results.append({
                    'section_id': section_id,
                    'title': section['title'],
                    'match_type': 'content'
                })

        # 去重并按相关性排序
        unique_results = {}
        for result in results:
            key = result['section_id']
            if key not in unique_results:
                unique_results[key] = result
            elif result['match_type'] == 'title':
                unique_results[key] = result  # 标题匹配优先级最高

        return list(unique_results.values())

    def get_breadcrumbs(self, section_id):
        """
        获取面包屑导航

        Args:
            section_id (str): 当前章节ID

        Returns:
            list: 面包屑路径
        """
        breadcrumbs = []
        current = section_id

        while current:
            section = self.sections.get(current)
            if section:
                breadcrumbs.insert(0, {
                    'id': current,
                    'title': section['title']
                })
                current = section['parent']
            else:
                break

        return breadcrumbs

# 使用示例:构建API文档导航
navigator = DocumentNavigator()

# 添加章节结构
navigator.add_section('intro', '概述', 1)
navigator.add_section('quickstart', '快速开始', 1)
navigator.add_section('api', 'API参考', 1)
navigator.add_section('auth', '认证与授权', 2, 'api')
navigator.add_section('user', '用户管理', 2, 'api')
navigator.add_section('login', '用户登录', 3, 'user')
navigator.add_section('register', '用户注册', 3, 'user')

# 添加内容和关键词
navigator.add_content('login', '用户登录API允许用户通过用户名和密码进行身份验证...',
                     ['登录', '认证', 'JWT', 'token'])
navigator.add_content('register', '用户注册API允许新用户创建账号...',
                     ['注册', '用户创建', '验证'])

# 生成目录
print(navigator.generate_toc())

# 搜索功能演示
search_results = navigator.search('登录')
print(f"\n搜索'登录'的结果:")
for result in search_results:
    print(f"- {result['title']} (匹配类型: {result['match_type']})")

# 面包屑导航演示
breadcrumbs = navigator.get_breadcrumbs('login')
print(f"\n'login'章节的面包屑导航:")
print(" > ".join([bc['title'] for bc in breadcrumbs]))

4. 代码示例与注释规范

4.1 代码示例的设计原则

优秀的代码示例应该遵循以下原则:完整性、可运行性、渐进性和实用性。代码示例不仅要展示功能的使用方法,还要体现最佳实践。

代码语言:javascript
复制
/**
 * 代码示例管理器
 * 用于管理和验证技术文档中的代码示例
 *
 * @author 技术文档团队
 * @version 1.0
 * @since 2024-01-01
 */
public class CodeExampleManager {

    /**
     * 示例代码的复杂度等级
     */
    public enum ComplexityLevel {
        BASIC,      // 基础示例:展示基本用法
        INTERMEDIATE, // 中级示例:展示常见场景
        ADVANCED    // 高级示例:展示复杂场景和最佳实践
    }

    /**
     * 代码示例类
     */
    public static class CodeExample {
        private String title;           // 示例标题
        private String description;     // 示例描述
        private ComplexityLevel level;  // 复杂度等级
        private String language;        // 编程语言
        private String code;           // 示例代码
        private List<String> dependencies; // 依赖列表
        private String expectedOutput;  // 预期输出

        /**
         * 构造函数
         *
         * @param title 示例标题
         * @param description 示例描述
         * @param level 复杂度等级
         * @param language 编程语言
         * @param code 示例代码
         */
        public CodeExample(String title, String description,
                          ComplexityLevel level, String language, String code) {
            this.title = title;
            this.description = description;
            this.level = level;
            this.language = language;
            this.code = code;
            this.dependencies = new ArrayList<>();
        }

        /**
         * 添加依赖
         *
         * @param dependency 依赖名称
         */
        public void addDependency(String dependency) {
            this.dependencies.add(dependency);
        }

        /**
         * 设置预期输出
         *
         * @param expectedOutput 预期的执行结果
         */
        public void setExpectedOutput(String expectedOutput) {
            this.expectedOutput = expectedOutput;
        }

        /**
         * 验证代码示例的完整性
         *
         * @return 验证结果
         */
        public ValidationResult validate() {
            ValidationResult result = new ValidationResult();

            // 检查标题是否为空
            if (title == null || title.trim().isEmpty()) {
                result.addError("示例标题不能为空");
            }

            // 检查代码是否为空
            if (code == null || code.trim().isEmpty()) {
                result.addError("示例代码不能为空");
            }

            // 检查代码注释覆盖率
            if (code != null) {
                double commentRatio = calculateCommentRatio(code);
                if (commentRatio < 0.2) { // 注释应占代码的20%以上
                    result.addWarning("代码注释不足,建议增加更多说明");
                }
            }

            // 根据复杂度检查依赖
            if (level == ComplexityLevel.BASIC && !dependencies.isEmpty()) {
                result.addWarning("基础示例应尽量避免外部依赖");
            }

            return result;
        }

        /**
         * 计算代码注释比例
         *
         * @param code 代码内容
         * @return 注释行数占总行数的比例
         */
        private double calculateCommentRatio(String code) {
            String[] lines = code.split("\n");
            int commentLines = 0;

            for (String line : lines) {
                String trimmed = line.trim();
                // 简单的注释识别逻辑
                if (trimmed.startsWith("//") ||
                    trimmed.startsWith("/*") ||
                    trimmed.startsWith("*") ||
                    trimmed.startsWith("#")) {
                    commentLines++;
                }
            }

            return lines.length > 0 ? (double) commentLines / lines.length : 0;
        }

        /**
         * 生成Markdown格式的示例
         *
         * @return Markdown格式的代码示例
         */
        public String toMarkdown() {
            StringBuilder md = new StringBuilder();

            // 标题和描述
            md.append("### ").append(title).append("\n\n");
            md.append(description).append("\n\n");

            // 复杂度标识
            md.append("**复杂度**: ").append(level.name()).append("\n\n");

            // 依赖列表
            if (!dependencies.isEmpty()) {
                md.append("**依赖**:\n");
                for (String dep : dependencies) {
                    md.append("- ").append(dep).append("\n");
                }
                md.append("\n");
            }

            // 代码块
            md.append("```").append(language.toLowerCase()).append("\n");
            md.append(code).append("\n");
            md.append("```\n\n");

            // 预期输出
            if (expectedOutput != null && !expectedOutput.isEmpty()) {
                md.append("**预期输出**:\n");
                md.append("```\n");
                md.append(expectedOutput).append("\n");
                md.append("```\n\n");
            }

            return md.toString();
        }

        // Getters...
        public String getTitle() { return title; }
        public String getDescription() { return description; }
        public ComplexityLevel getLevel() { return level; }
        public String getLanguage() { return language; }
        public String getCode() { return code; }
        public List<String> getDependencies() { return dependencies; }
        public String getExpectedOutput() { return expectedOutput; }
    }

    /**
     * 验证结果类
     */
    public static class ValidationResult {
        private List<String> errors = new ArrayList<>();
        private List<String> warnings = new ArrayList<>();

        public void addError(String error) {
            errors.add(error);
        }

        public void addWarning(String warning) {
            warnings.add(warning);
        }

        public boolean isValid() {
            return errors.isEmpty();
        }

        public List<String> getErrors() { return errors; }
        public List<String> getWarnings() { return warnings; }
    }

    // 示例集合
    private List<CodeExample> examples = new ArrayList<>();

    /**
     * 添加代码示例
     *
     * @param example 代码示例
     */
    public void addExample(CodeExample example) {
        examples.add(example);
    }

    /**
     * 按复杂度获取示例
     *
     * @param level 复杂度等级
     * @return 指定复杂度的示例列表
     */
    public List<CodeExample> getExamplesByLevel(ComplexityLevel level) {
        return examples.stream()
                .filter(example -> example.getLevel() == level)
                .collect(Collectors.toList());
    }

    /**
     * 验证所有示例
     *
     * @return 验证报告
     */
    public Map<String, ValidationResult> validateAllExamples() {
        Map<String, ValidationResult> results = new HashMap<>();

        for (CodeExample example : examples) {
            results.put(example.getTitle(), example.validate());
        }

        return results;
    }
}

// 使用示例
CodeExampleManager manager = new CodeExampleManager();

// 创建基础示例
CodeExampleManager.CodeExample basicExample = new CodeExampleManager.CodeExample(
    "简单的HTTP请求",
    "演示如何使用HttpURLConnection发送GET请求",
    CodeExampleManager.ComplexityLevel.BASIC,
    "Java",
    """
    // 导入必要的类
    import java.net.HttpURLConnection;
    import java.net.URL;
    import java.io.BufferedReader;
    import java.io.InputStreamReader;

    public class SimpleHttpRequest {
        /**
         * 发送GET请求的示例方法
         *
         * @param urlString 请求的URL
         * @return 服务器响应内容
         */
        public static String sendGetRequest(String urlString) throws Exception {
            // 创建URL对象
            URL url = new URL(urlString);

            // 打开连接
            HttpURLConnection connection = (HttpURLConnection) url.openConnection();

            // 设置请求方法为GET
            connection.setRequestMethod("GET");

            // 设置请求头
            connection.setRequestProperty("User-Agent", "JavaApp/1.0");

            // 获取响应码
            int responseCode = connection.getResponseCode();
            System.out.println("响应码: " + responseCode);

            // 读取响应内容
            BufferedReader reader = new BufferedReader(
                new InputStreamReader(connection.getInputStream())
            );
            String line;
            StringBuilder response = new StringBuilder();

            while ((line = reader.readLine()) != null) {
                response.append(line).append("\\n");
            }
            reader.close();

            return response.toString();
        }

        // 主方法演示用法
        public static void main(String[] args) {
            try {
                String result = sendGetRequest("https://api.github.com/users/octocat");
                System.out.println("响应内容: " + result);
            } catch (Exception e) {
                System.err.println("请求失败: " + e.getMessage());
            }
        }
    }
    """
);

basicExample.setExpectedOutput("响应码: 200\n响应内容: {\"login\":\"octocat\",...}");
manager.addExample(basicExample);
4.2 注释标准与最佳实践

注释是代码示例中不可或缺的部分,好的注释应该解释"为什么"而不仅仅是"做什么":

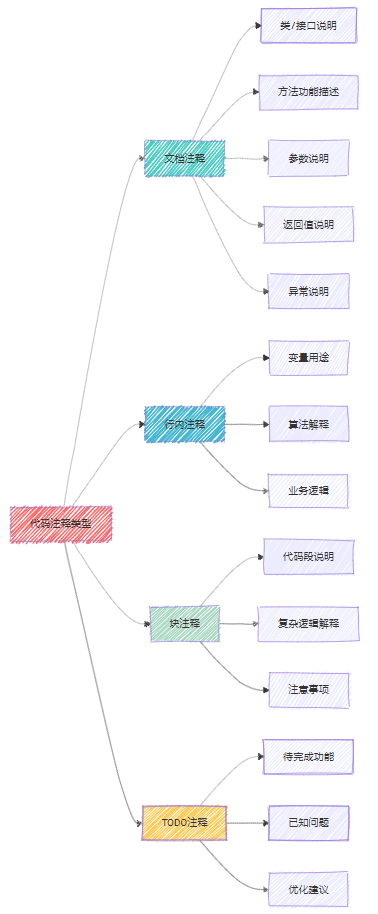

图4:代码注释类型与用途分类

5. 可视化与图表设计

5.1 架构图设计

技术架构图是技术文档中最重要的可视化元素之一。一个清晰的架构图能够帮助读者快速理解系统的整体结构:

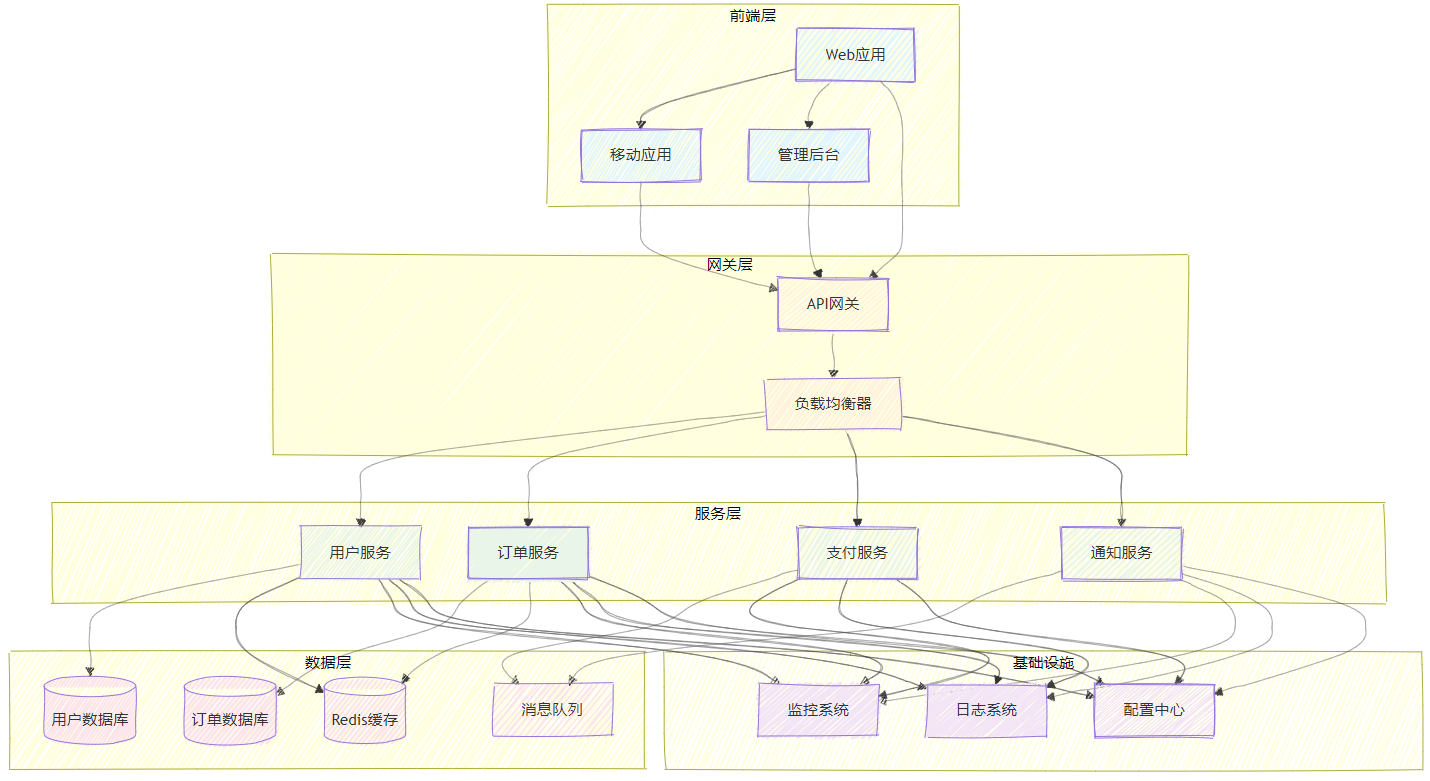

图5:微服务架构系统总体架构图

5.2 流程图与时序图

对于复杂的业务流程和系统交互,流程图和时序图是最有效的表达方式:

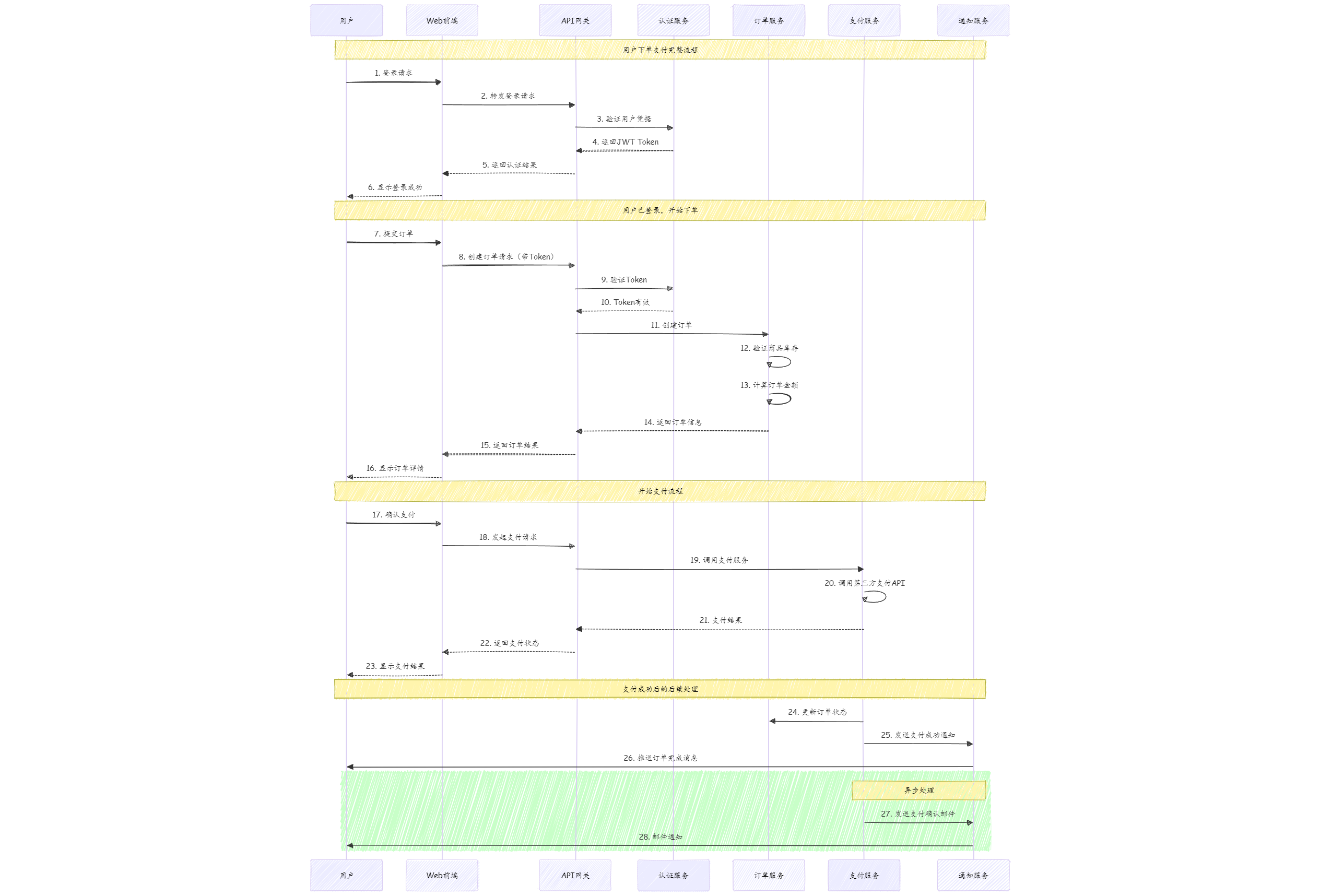

图6:用户下单支付流程时序图

6. 文档工具与平台选择

6.1 主流文档工具对比

选择合适的文档工具对于提高文档质量和维护效率至关重要。以下是一个文档工具选择的决策矩阵:

代码语言:javascript
复制
class DocumentToolComparator:
    """
    文档工具比较器
    用于评估和比较不同的文档工具
    """

    def __init__(self):
        """初始化比较器"""
        self.tools = {}
        self.criteria = {
            'ease_of_use': {'weight': 0.2, 'description': '易用性'},
            'collaboration': {'weight': 0.25, 'description': '协作功能'},
            'version_control': {'weight': 0.2, 'description': '版本控制'},
            'customization': {'weight': 0.15, 'description': '定制化能力'},
            'integration': {'weight': 0.1, 'description': '集成能力'},
            'cost': {'weight': 0.1, 'description': '成本'}
        }

    def add_tool(self, name, scores, features):
        """
        添加文档工具

        Args:
            name (str): 工具名称
            scores (dict): 各项评分(1-10分)
            features (list): 特色功能列表
        """
        self.tools[name] = {
            'scores': scores,
            'features': features,
            'total_score': 0
        }

        # 计算加权总分
        total = 0
        for criterion, weight_info in self.criteria.items():
            if criterion in scores:
                total += scores[criterion] * weight_info['weight']

        self.tools[name]['total_score'] = total

    def compare_tools(self):
        """
        比较所有工具并生成报告

        Returns:
            str: 比较报告
        """
        # 按总分排序
        sorted_tools = sorted(
            self.tools.items(),
            key=lambda x: x[1]['total_score'],
            reverse=True
        )

        report = "# 文档工具比较报告\n\n"
        report += "## 评分标准\n\n"

        for criterion, info in self.criteria.items():
            report += f"- **{info['description']}** (权重: {info['weight']*100}%)\n"

        report += "\n## 工具排名\n\n"
        report += "| 排名 | 工具名称 | 总分 | 易用性 | 协作功能 | 版本控制 | 定制化 | 集成能力 | 成本 |\n"
        report += "|------|----------|------|--------|----------|----------|--------|----------|------|\n"

        for i, (name, data) in enumerate(sorted_tools, 1):
            scores = data['scores']
            report += f"| {i} | {name} | {data['total_score']:.1f} | "
            report += f"{scores.get('ease_of_use', 0)} | "
            report += f"{scores.get('collaboration', 0)} | "
            report += f"{scores.get('version_control', 0)} | "
            report += f"{scores.get('customization', 0)} | "
            report += f"{scores.get('integration', 0)} | "
            report += f"{scores.get('cost', 0)} |\n"

        report += "\n## 详细分析\n\n"

        for name, data in sorted_tools:
            report += f"### {name}\n\n"
            report += f"**总分**: {data['total_score']:.1f}/10\n\n"
            report += "**特色功能**:\n"
            for feature in data['features']:
                report += f"- {feature}\n"
            report += "\n"

        return report

    def get_recommendation(self, priorities):
        """
        根据优先级推荐工具

        Args:
            priorities (list): 优先考虑的标准列表

        Returns:
            dict: 推荐结果
        """
        recommendations = {}

        for priority in priorities:
            if priority in self.criteria:
                best_tool = max(
                    self.tools.items(),
                    key=lambda x: x[1]['scores'].get(priority, 0)
                )
                recommendations[priority] = {
                    'tool': best_tool[0],
                    'score': best_tool[1]['scores'].get(priority, 0)
                }

        return recommendations

# 使用示例:比较文档工具
comparator = DocumentToolComparator()

# 添加工具评分
comparator.add_tool('GitBook', {
    'ease_of_use': 8,
    'collaboration': 9,
    'version_control': 8,
    'customization': 7,
    'integration': 8,
    'cost': 6
}, [
    'Markdown支持',
    '实时协作编辑',
    'Git集成',
    '美观的界面',
    '搜索功能强大'
])

comparator.add_tool('Notion', {
    'ease_of_use': 9,
    'collaboration': 9,
    'version_control': 6,
    'customization': 9,
    'integration': 8,
    'cost': 7
}, [
    '块状编辑',
    '数据库功能',
    '模板丰富',
    '多媒体支持',
    '任务管理'
])

comparator.add_tool('Confluence', {
    'ease_of_use': 7,
    'collaboration': 9,
    'version_control': 8,
    'customization': 8,
    'integration': 9,
    'cost': 5
}, [
    'Atlassian生态',
    '企业级功能',
    '权限管理',
    '宏功能',
    'JIRA集成'
])

comparator.add_tool('VuePress', {
    'ease_of_use': 6,
    'collaboration': 5,
    'version_control': 10,
    'customization': 9,
    'integration': 7,
    'cost': 10
}, [
    '静态站点生成',
    'Vue.js技术栈',
    '高度可定制',
    '开源免费',
    'GitHub Pages集成'
])

# 生成比较报告
print(comparator.compare_tools())

# 获取针对性推荐
recommendations = comparator.get_recommendation(['collaboration', 'cost'])
print("针对性推荐:")
for criterion, rec in recommendations.items():
    print(f"- {criterion}: {rec['tool']} (评分: {rec['score']})")
6.2 文档工作流设计

建立高效的文档工作流对于保证文档质量和及时更新至关重要:

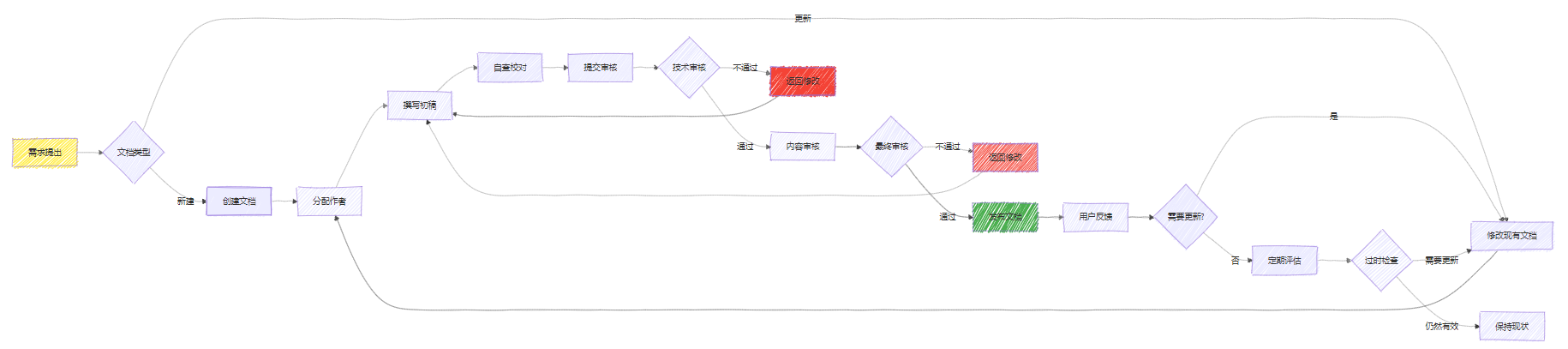

图7:文档创建与维护工作流程图

7. 文档维护与持续改进

7.1 版本管理策略

技术文档需要建立完善的版本管理机制,确保文档与产品版本同步更新:

代码语言:javascript
复制
from datetime import datetime, timedelta
from typing import List, Dict, Optional
import json

class DocumentVersionManager:
    """
    文档版本管理器
    管理文档的版本控制、更新策略和生命周期
    """

    class DocumentVersion:
        """文档版本类"""

        def __init__(self, version: str, content: str, author: str,
                     changelog: str = "", is_major: bool = False):
            """
            初始化文档版本

            Args:
                version: 版本号(如1.0.0)
                content: 文档内容
                author: 作者
                changelog: 变更日志
                is_major: 是否为主要版本
            """
            self.version = version
            self.content = content
            self.author = author
            self.changelog = changelog
            self.is_major = is_major
            self.created_at = datetime.now()
            self.status = "active"  # active, deprecated, archived

        def to_dict(self) -> Dict:
            """转换为字典格式"""
            return {
                'version': self.version,
                'author': self.author,
                'changelog': self.changelog,
                'is_major': self.is_major,
                'created_at': self.created_at.isoformat(),
                'status': self.status,
                'content_hash': hash(self.content)
            }

    def __init__(self, document_id: str):
        """
        初始化版本管理器

        Args:
            document_id: 文档唯一标识
        """
        self.document_id = document_id
        self.versions: List[DocumentVersionManager.DocumentVersion] = []
        self.current_version: Optional[DocumentVersionManager.DocumentVersion] = None

    def create_version(self, content: str, author: str,
                      changelog: str = "", is_major: bool = False) -> str:
        """
        创建新版本

        Args:
            content: 文档内容
            author: 作者
            changelog: 变更日志
            is_major: 是否为主要版本

        Returns:
            str: 新版本号
        """
        # 生成版本号
        if not self.versions:
            version_number = "1.0.0"
        else:
            last_version = self.versions[-1].version
            major, minor, patch = map(int, last_version.split('.'))

            if is_major:
                version_number = f"{major + 1}.0.0"
            elif self._has_significant_changes(content):
                version_number = f"{major}.{minor + 1}.0"
            else:
                version_number = f"{major}.{minor}.{patch + 1}"

        # 创建新版本
        new_version = self.DocumentVersion(
            version=version_number,
            content=content,
            author=author,
            changelog=changelog,
            is_major=is_major
        )

        self.versions.append(new_version)
        self.current_version = new_version

        return version_number

    def _has_significant_changes(self, new_content: str) -> bool:
        """
        判断是否有重大变更(简化的实现)

        Args:
            new_content: 新内容

        Returns:
            bool: 是否有重大变更
        """
        if not self.current_version:
            return True

        old_content = self.current_version.content

        # 简单的变更检测:内容长度变化超过20%
        length_change = abs(len(new_content) - len(old_content)) / len(old_content)

        return length_change > 0.2

    def get_version(self, version: str) -> Optional[DocumentVersion]:
        """
        获取指定版本

        Args:
            version: 版本号

        Returns:
            DocumentVersion: 版本对象,如果不存在则返回None
        """
        for v in self.versions:
            if v.version == version:
                return v
        return None

    def get_version_history(self) -> List[Dict]:
        """
        获取版本历史

        Returns:
            List[Dict]: 版本历史列表
        """
        return [v.to_dict() for v in self.versions]

    def deprecate_version(self, version: str, reason: str = ""):
        """
        废弃指定版本

        Args:
            version: 版本号
            reason: 废弃原因
        """
        version_obj = self.get_version(version)
        if version_obj:
            version_obj.status = "deprecated"
            version_obj.deprecation_reason = reason

    def cleanup_old_versions(self, keep_count: int = 10):
        """
        清理旧版本,只保留指定数量的版本

        Args:
            keep_count: 保留的版本数量
        """
        if len(self.versions) > keep_count:
            # 保留最新的版本和所有主要版本
            versions_to_keep = []

            # 添加所有主要版本
            for v in self.versions:
                if v.is_major or v.status == "active":
                    versions_to_keep.append(v)

            # 添加最新的版本
            sorted_versions = sorted(
                self.versions,
                key=lambda x: x.created_at,
                reverse=True
            )

            for v in sorted_versions[:keep_count]:
                if v not in versions_to_keep:
                    versions_to_keep.append(v)

            # 归档其他版本
            for v in self.versions:
                if v not in versions_to_keep:
                    v.status = "archived"

    def generate_changelog(self) -> str:
        """
        生成变更日志

        Returns:
            str: Markdown格式的变更日志
        """
        changelog = f"# {self.document_id} 变更日志\n\n"

        for version in reversed(self.versions):
            changelog += f"## 版本 {version.version}"
            if version.is_major:
                changelog += " (主要版本)"
            changelog += f" - {version.created_at.strftime('%Y-%m-%d')}\n\n"

            changelog += f"**作者**: {version.author}\n\n"

            if version.changelog:
                changelog += f"**变更内容**:\n{version.changelog}\n\n"
            else:
                changelog += "**变更内容**: 无详细说明\n\n"

            changelog += "---\n\n"

        return changelog

# 使用示例
doc_manager = DocumentVersionManager("api-documentation")

# 创建初始版本
initial_content = """
# API文档

## 用户管理接口

### 登录接口
POST /api/auth/login
"""

v1 = doc_manager.create_version(
    content=initial_content,
    author="张三",
    changelog="初始版本发布",
    is_major=True
)

print(f"创建版本: {v1}")

# 添加新功能
updated_content = initial_content + """

### 注册接口
POST /api/auth/register

### 用户信息接口
GET /api/user/profile
"""

v2 = doc_manager.create_version(
    content=updated_content,
    author="李四",
    changelog="添加注册和用户信息接口"
)

print(f"创建版本: {v2}")

# 生成变更日志
print("\n" + doc_manager.generate_changelog())
7.2 文档质量评估体系

建立完善的文档质量评估体系,确保文档的持续改进:

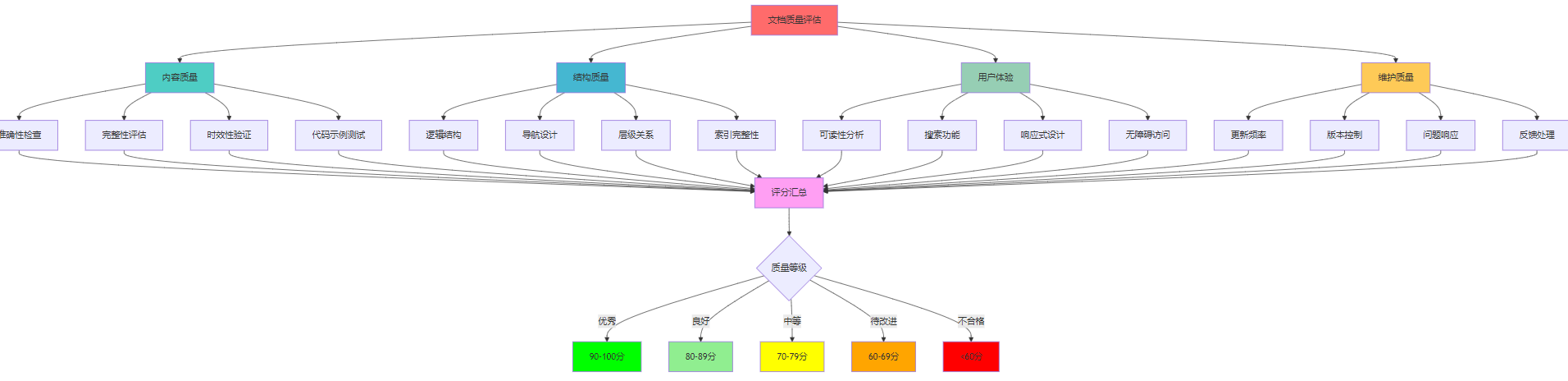

图8:文档质量评估体系框架图

结语总结

回顾我在技术文档撰写领域的多年探索和实践,我深刻认识到优秀的技术文档不仅仅是技术知识的简单记录,更是一门综合性的艺术。它需要我们在技术深度与表达清晰度之间找到平衡,在详细说明与简洁明了之间找到最佳的结合点。通过本文的系统性阐述,我希望能够为广大技术工作者提供一套实用而完整的技术文档创作方法论。

在我的实践中,我发现技术文档的成功往往取决于几个关键因素:首先是明确的目标定位和受众分析,这决定了文档的深度和广度;其次是逻辑清晰的结构设计,这是读者能够快速获取信息的基础;第三是准确详实的技术描述,配合恰当的代码示例和可视化图表,能够显著提升读者的理解效果;最后是完善的维护机制,确保文档能够与产品同步更新,始终保持准确性和时效性。我特别强调代码示例的重要性,因为对于技术文档而言,可执行的示例代码往往比千言万语更有说服力。同时,合理运用Mermaid等工具创建的架构图、流程图和时序图,能够让复杂的技术概念变得直观易懂。

在工具选择方面,我建议根据团队的具体需求和技术栈来选择最适合的文档平台,而不是盲目追求最新或最流行的工具。无论选择GitBook的协作便利、Notion的灵活性、Confluence的企业级功能,还是VuePress的高度定制化,关键在于建立标准化的文档工作流程,确保团队成员都能够按照统一的规范创作和维护文档。我还特别重视文档的版本管理和质量评估体系,这些看似繁琐的流程实际上是保证文档长期价值的重要保障。通过建立完善的评估指标和持续改进机制,我们能够确保文档始终服务于用户的真实需求,而不是变成束之高阁的摆设。

展望未来,我相信技术文档将在人工智能、自动化工具和协作平台的推动下继续演进。但无论技术如何发展,优秀技术文档的本质不会改变:那就是清晰地传达技术知识,有效地降低学习成本,真正地为读者创造价值。作为技术工作者,我们每个人都有责任和机会通过优秀的文档贡献自己的技术影响力,为技术社区的发展贡献自己的力量。我希望本文能够成为大家技术文档创作路上的有益参考,也期待看到更多高质量的技术文档在各个领域中发挥重要作用,让技术知识的传播变得更加高效和愉悦。


参考资料

  1. Write the Docs - 官方文档写作指南
  2. Google Developer Documentation Style Guide
  3. GitBook 官方文档
  4. VuePress 官方指南
  5. Mermaid 官方文档
  6. Atlassian Documentation Guidelines
  7. Microsoft Writing Style Guide
  8. API Documentation Best Practices - Swagger
本文参与 腾讯云自媒体同步曝光计划,分享自作者个人站点/博客。
原始发表:2025-06-09,如有侵权请联系 cloudcommunity@tencent.com 删除

本文分享自 作者个人站点/博客 前往查看

如有侵权,请联系 cloudcommunity@tencent.com 删除。

本文参与 腾讯云自媒体同步曝光计划  ,欢迎热爱写作的你一起参与!

评论
登录后参与评论
0 条评论
热度
最新
推荐阅读
目录
  • 前言摘要
  • 1. 技术文档的重要性与价值
    • 1.1 技术文档在软件开发中的核心地位
    • 1.2 技术文档的分类与适用场景
  • 2. 技术文档的核心要素
    • 2.1 清晰的目标定位
    • 2.2 逻辑清晰的内容结构
    • 2.3 准确的技术描述
  • 3. 文档结构设计最佳实践
    • 3.1 信息架构规划
    • 3.2 导航与索引设计
  • 4. 代码示例与注释规范
    • 4.1 代码示例的设计原则
    • 4.2 注释标准与最佳实践
  • 5. 可视化与图表设计
    • 5.1 架构图设计
    • 5.2 流程图与时序图
  • 6. 文档工具与平台选择
    • 6.1 主流文档工具对比
    • 6.2 文档工作流设计
  • 7. 文档维护与持续改进
    • 7.1 版本管理策略
    • 7.2 文档质量评估体系
  • 结语总结
  • 参考资料
领券
问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档
