docker-compose部署一个springboot项目(包含环境)

搭建docker及docker-compose环境

【说明】首先对于环境的搭建

docker环境搭建

# 安装需要的软件包
yum install -y yum-utils device-mapper-persistent-data lvm2
# 设置stable镜像仓库
yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
# 更新yum软件索引
yum makecache fast
# 安装Docker-ce
yum -y install docker-ce
# 启动Docker
systemctl start docker
# 开机自启
systemctl enable docker
# 配置Docker镜像加速器
sudo mkdir -p /etc/docker
sudo tee /etc/docker/daemon.json <<-'EOF'
{
  "registry-mirrors": ["https://c2yf9ia3.mirror.aliyuncs.com"]
}
EOF
sudo systemctl daemon-reload
sudo systemctl restart docker

docker-compose环境搭建

# 这里下载可能有点慢
sudo curl -L "https://github.com/docker/compose/releases/download/1.29.2/docker-compose-linux-x86_64" -o /usr/local/bin/docker-compose
# 配置权限
sudo chmod +x /usr/local/bin/docker-compose

【警告】注意这里我选择的是1.29.2版本，因为我的docker版本是最新的，所以选择docker-compose也是最新的

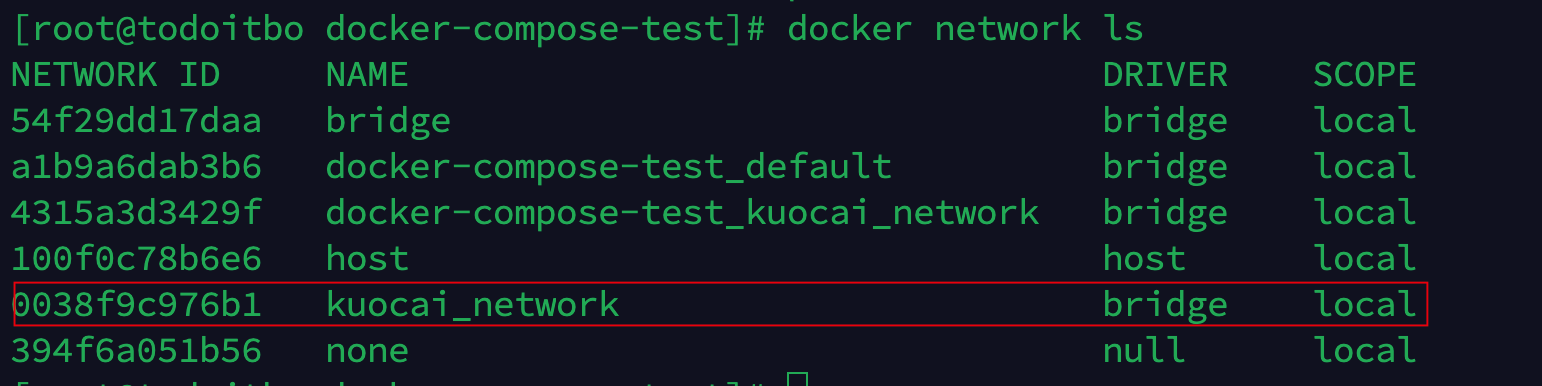

创建一个公共的docker网络

docker network ls

创建命令为docker network create kuocai_network

编写dockerfile文件

#环境
FROM openjdk:8-jdk-alpine
#日期问题，8小时差解决
RUN ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && echo 'Asia/Shanghai' >/etc/timezone
# 这个可以不加，直接运行
COPY test-project-0.0.1-SNAPSHOT.jar /test-project.jar
CMD ["java","-jar","test-project.jar"]

上传打包的test-project.jar包到dockerfile同级目录下执行以下命令

# test-project为镜像的名称，默认没给版本号就是最新版，如果指定build版本可用test-project:1.0
docker build -t test-project .

编写docker-compose.yml文件

version: '3'
services:
  web:
    image: test-project
    environment:
      SPRING_DATASOURCE_URL: jdbc:mysql://test-project-mysql:3306/test_cdn?serverTimezone=Hongkong&useAffectedRows=true&characterEncoding=utf-8
      SPRING_DATASOURCE_USERNAME: root
      SPRING_DATASOURCE_PASSWORD: test123
      SPRING_REDIS_HOST: test-project-redis
      SPRING_REDIS_PORT: 6379
      SPRING_REDIS_PASSWORD: test123
      SPRING_STORAGE_TYPE: minio
      SPRING_MINIO_URL: http://test-project-minio:9000
      SPRING_MINIO_ACCESS_KEY: test
      SPRING_MINIO_SECRET_KEY: test123
    ports:
      - "8086:8080"
    depends_on:
      - test-project-mysql
      - test-project-redis
      - test-project-minio
    networks:
      - kuocai_network
  test-project-mysql:
    image: mysql:5.7
    environment:
      MYSQL_ROOT_PASSWORD: test123
      MYSQL_DATABASE: test_cdn
      MYSQL_USER: test
      MYSQL_PASSWORD: test123
      MYSQL_LOWER_CASE_TABLE_NAMES: 1
      MYSQL_LOWER_CASE_COLUMN_NAMES: 1
    ports:
      - "3309:3306"
    volumes:
      - ./mysql:/var/lib/mysql
    networks:
      - kuocai_network
  test-project-redis:
    image: redis
    ports:
      - "6376:6379"
    volumes:
      - ./redis.conf:/usr/local/etc/redis/redis.conf
      - ./redis-data:/data
    command: redis-server /usr/local/etc/redis/redis.conf
    networks:
      - test_network
  test-project-minio:
    image: minio/minio
    environment:
      MINIO_ACCESS_KEY: test
      MINIO_SECRET_KEY: test123
      MINIO_LOG_LEVEL: debug
    ports:
      - "9002:9000"
      - "9003:9001"
    command: server /data
    volumes:
      - ./data:/data
    networks:
      - kuocai_network
networks:
  kuocai_network:
    driver: bridge
