🚀前言

图形平移、缩放、旋转是计算机图形学中常用的操作，用来改变图像的位置、大小和方向。

平移：平移是将图形在二维平面上沿着一个方向移动一段距离，通常用一个二维向量表示平移的距离。在计算机图形学中，可以通过修改坐标系来实现平移操作。
缩放：缩放是将图形按照一定比例进行放大或缩小，在计算机图形学中，通常使用缩放矩阵来进行缩放操作。缩放矩阵中，对角线上的元素表示沿着坐标轴的缩放比例，非对角线上的元素表示斜线方向的缩放比例。
旋转：旋转是将图形围绕某个点或轴旋转一定角度，通常使用旋转矩阵来实现。旋转矩阵是一个二维矩阵，其中cos和sin分别表示旋转角度的余弦和正弦值。通过对图形中每个点进行旋转矩阵变换，可以实现旋转操作。

这些操作常常用于计算机图形学、图像处理等领域中的图像变换。图形平移、缩放、旋转是计算机图形学中常用的操作，用来改变图像的位置、大小和方向。

🚀一、图形平移、缩放、旋转

🔎1.平移

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>Title</title>
  <script src="../lib/index.js"></script>
  <style>
    * {
      margin: 0;
      padding: 0;
    }

    canvas{
      margin: 50px auto 0;
      display: block;
      background: yellow;
    }
  </style>
</head>
<body>
  <canvas id="canvas" width="400" height="400">
    此浏览器不支持canvas
  </canvas>
</body>
</html>
<script>

  const ctx = document.getElementById('canvas')

  const gl = ctx.getContext('webgl')

  // 创建着色器源码
  const VERTEX_SHADER_SOURCE = `
    attribute vec4 aPosition;
    attribute float aTranslate;
    void main() {
      gl_Position = vec4(aPosition.x + aTranslate, aPosition.y, aPosition.z, 1.0);
      gl_PointSize = 10.0;
    }
  `; // 顶点着色器

  const FRAGMENT_SHADER_SOURCE = `
    void main() {
      gl_FragColor = vec4(1.0,0.0,0.0,1.0);
    }
  `; // 片元着色器

  const program = initShader(gl, VERTEX_SHADER_SOURCE, FRAGMENT_SHADER_SOURCE)

  const aPosition = gl.getAttribLocation(program, 'aPosition');
  const aTranslate = gl.getAttribLocation(program, 'aTranslate');

  const points = new Float32Array([
    -0.5, -0.5,
     0.5, -0.5,
     0.0,  0.5,
  ])

  const buffer = gl.createBuffer();

  gl.bindBuffer(gl.ARRAY_BUFFER, buffer);

  gl.bufferData(gl.ARRAY_BUFFER, points, gl.STATIC_DRAW);

  gl.vertexAttribPointer(aPosition, 2, gl.FLOAT, false, 0, 0);

  gl.enableVertexAttribArray(aPosition)

  let x = -1;
  setInterval(() => {
    x += 0.01;
    if (x > 1) {
      x = -1;
    }
    gl.vertexAttrib1f(aTranslate, x);
    gl.drawArrays(gl.TRIANGLES, 0, 3);
  }, 60)
</script>

🔎2.缩放

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>Title</title>
  <script src="../lib/index.js"></script>
  <style>
    * {
      margin: 0;
      padding: 0;
    }

    canvas{
      margin: 50px auto 0;
      display: block;
      background: yellow;
    }
  </style>
</head>
<body>
  <canvas id="canvas" width="400" height="400">
    此浏览器不支持canvas
  </canvas>
</body>
</html>
<script>

  const ctx = document.getElementById('canvas')

  const gl = ctx.getContext('webgl')

  // 创建着色器源码
  const VERTEX_SHADER_SOURCE = `
    attribute vec4 aPosition;
    attribute float aScale;
    void main() {
      gl_Position = vec4(aPosition.x * aScale, aPosition.y * aScale, aPosition.z * aScale, 1.0);
      gl_PointSize = 10.0;
    }
  `; // 顶点着色器

  const FRAGMENT_SHADER_SOURCE = `
    void main() {
      gl_FragColor = vec4(1.0,0.0,0.0,1.0);
    }
  `; // 片元着色器

  const program = initShader(gl, VERTEX_SHADER_SOURCE, FRAGMENT_SHADER_SOURCE)

  const aPosition = gl.getAttribLocation(program, 'aPosition');
  const aScale = gl.getAttribLocation(program, 'aScale');

  const points = new Float32Array([
    -0.5, -0.5,
     0.5, -0.5,
     0.0,  0.5,
  ])

  const buffer = gl.createBuffer();

  gl.bindBuffer(gl.ARRAY_BUFFER, buffer);

  gl.bufferData(gl.ARRAY_BUFFER, points, gl.STATIC_DRAW);

  gl.vertexAttribPointer(aPosition, 2, gl.FLOAT, false, 0, 0);

  gl.enableVertexAttribArray(aPosition)

  let x = 1;
  setInterval(() => {
    x += 0.1;
    if (x > 2) {
      x = 1;
    }
    gl.vertexAttrib1f(aScale, x);
    gl.drawArrays(gl.TRIANGLES, 0, 3);
  }, 60)
</script>

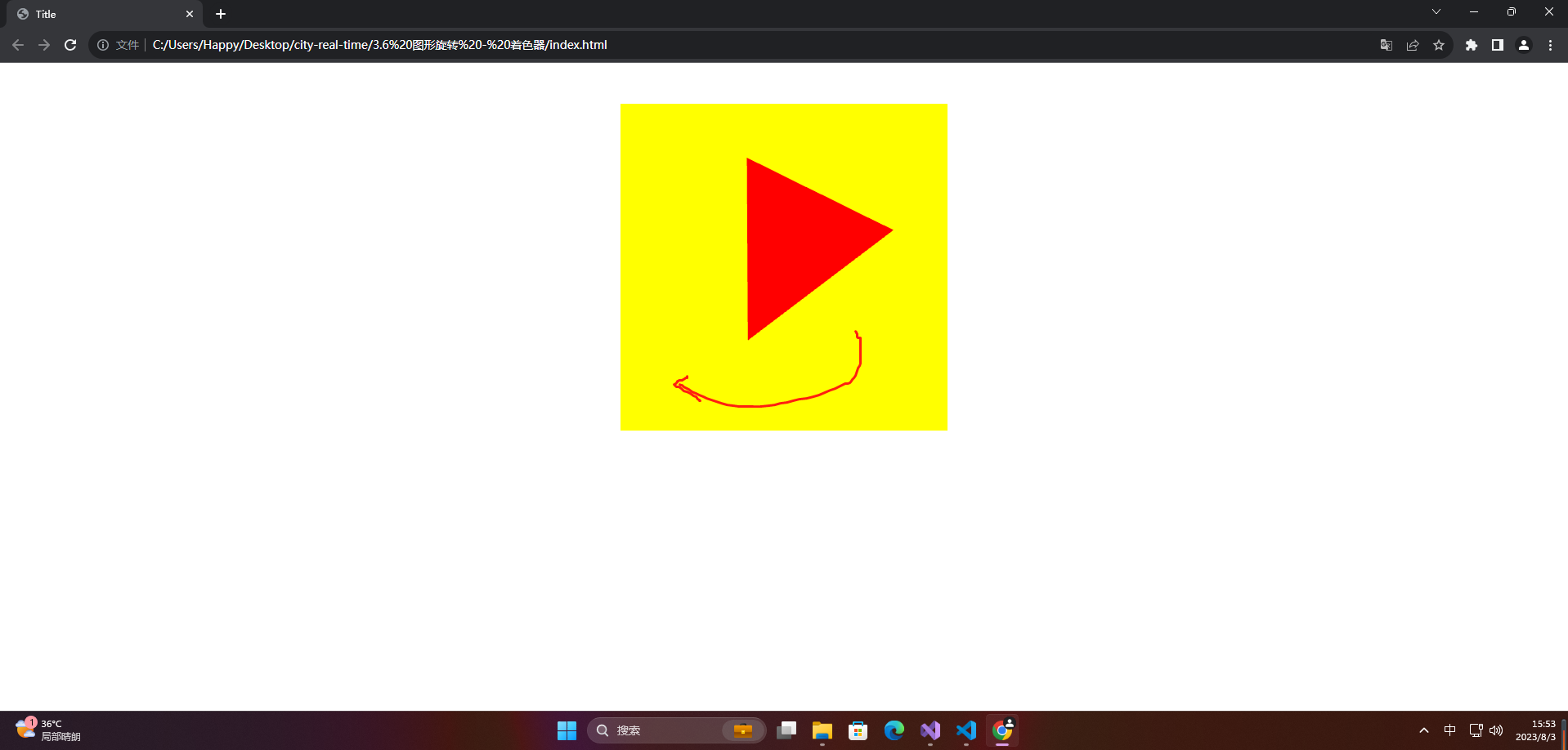

🔎3.旋转

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>Title</title>
  <script src="../lib/index.js"></script>
  <style>
    * {
      margin: 0;
      padding: 0;
    }

    canvas{
      margin: 50px auto 0;
      display: block;
      background: yellow;
    }
  </style>
</head>
<body>
  <canvas id="canvas" width="400" height="400">
    此浏览器不支持canvas
  </canvas>
</body>
</html>
<script>

  const ctx = document.getElementById('canvas')

  const gl = ctx.getContext('webgl')

  // 创建着色器源码
  const VERTEX_SHADER_SOURCE = `
    attribute vec4 aPosition;
    attribute float deg;
    void main() {
      gl_Position.x = aPosition.x * cos(deg) - aPosition.y * sin(deg);
      gl_Position.y = aPosition.x * sin(deg) + aPosition.y * cos(deg);
      gl_Position.z = aPosition.z;
      gl_Position.w = aPosition.w;
    }
  `; // 顶点着色器

  const FRAGMENT_SHADER_SOURCE = `
    void main() {
      gl_FragColor = vec4(1.0,0.0,0.0,1.0);
    }
  `; // 片元着色器

  const program = initShader(gl, VERTEX_SHADER_SOURCE, FRAGMENT_SHADER_SOURCE)

  const aPosition = gl.getAttribLocation(program, 'aPosition');
  const deg = gl.getAttribLocation(program, 'deg');

  const points = new Float32Array([
    -0.5, -0.5,
     0.5, -0.5,
     0.0,  0.5,
  ])

  const buffer = gl.createBuffer();

  gl.bindBuffer(gl.ARRAY_BUFFER, buffer);

  gl.bufferData(gl.ARRAY_BUFFER, points, gl.STATIC_DRAW);

  gl.vertexAttribPointer(aPosition, 2, gl.FLOAT, false, 0, 0);

  gl.enableVertexAttribArray(aPosition)

  let x = 1;
  function animation() {
    x += -0.01;
    gl.vertexAttrib1f(deg, x);
    gl.drawArrays(gl.TRIANGLES, 0, 3);

    requestAnimationFrame(animation)
  }
  animation();
</script>
